Abstract

The invention relates to the field of pipe polishing, in particular to a polishing device for pipe processing, including a base, two fixing plates are fixedly mounted on the upper surface of the base, and a first positioning sleeve and a first positioning sleeve and a The second positioning sleeve, a pipe is fixed between the first positioning sleeve and the second positioning sleeve, a fixing frame is fixedly installed on the top of the two fixing plates, and a polishing block is slidably installed under the fixing frame, so that The lower surface of the polishing block is in contact with the surface of the pipe, and the upper surface of the base is provided with a water collection tank. During the use of the present invention, by installing a sponge roller on the rotating shaft, the sponge roller can be rotated and contacted with the cleaning water in the sump during the polishing process of the pipe, and then the wet sponge can be continuously used to polish the surface of the pipe Wiping can effectively wipe off the floating dust attached to the surface of the pipe, which is convenient to increase the polishing effect, and at the same time can avoid the phenomenon of water waste caused by running water washing.

Description

A polishing device for pipe processing

technical field

The invention relates to the technical field related to pipe processing, in particular to a polishing device for pipe processing.

Background technique

Pipes are widely used, mainly used in water supply, drainage, heat supply, gas supply, long-distance transportation of oil and natural gas, agricultural irrigation, water conservancy projects and various industrial installations. During the production and processing of pipelines, polishing is required The organization grinds and polishes the pipeline.

During the use of existing pipe polishing devices, in order to clean up the floating dust attached to the pipe during the polishing process, most of them are cleaned by running water washing, resulting in serious water waste, and it is easy to cause water splashing during washing. , affect the working environment and need to be improved.

Contents of the invention

The purpose of the present invention is to provide a polishing device for pipe processing, to solve the problem that the existing pipe polishing device mentioned in the above prior art is in use, in order to clean up the floating dust attached to the pipe during the polishing process, Most of them are cleaned by running water washing, which leads to serious water waste, and when washing, it is easy to cause water splashing, which affects the technical problems of the working environment.

In order to solve the above-mentioned technical problems, the present invention adopts the following technical solutions: a polishing device for pipe material processing, including a base, two fixed plates are fixedly installed on the upper surface of the base, and two fixed plates are respectively rotatably installed in the two fixed plates. The first positioning sleeve and the second positioning sleeve, a pipe is fixed between the first positioning sleeve and the second positioning sleeve, and a fixing frame is fixedly installed on the top of the two fixing plates, and the fixing frame slides below A polishing block is installed, the lower surface of the polishing block is in contact with the surface of the pipe, the upper surface of the base is provided with a sump, the sump is located below the pipe, and the interior of the sump is filled with cleaning water, the top of the sump is rotated and installed There is a rotating shaft, and a sponge roller is fixedly sleeved on the rotating shaft, the lower surface of the sponge roller is located inside the sump, and the upper surface of the sponge roller is in contact with the lower surface of the pipe.

As a further preference of this technical solution: a reciprocating screw rod is installed between the two fixed plates, a drive motor is fixedly installed on one side of any one of the fixed plates, and the output shaft of the drive motor is connected to the reciprocating wire One end of the rod is fixedly connected, the reciprocating screw rod is provided with a screw nut, the bottom end of the screw nut is slidingly connected to the base, and one end of the rotating shaft is rotationally connected to one side of the screw nut.

As a further preferred aspect of this technical solution: positioning bolts are installed on the first positioning sleeve and the second positioning sleeve, one end of the positioning bolt abuts against the surface of the pipe, and the first positioning sleeve and the reciprocating wire One end of the rod is fixedly connected with a pulley, and the first positioning sleeve and the reciprocating screw rod are connected through a transmission belt.

As a further preference of this technical solution: a baffle is fixedly installed on one side of the two fixed plates, a rack is fixedly installed on the side wall of the baffle, one end of the rotating shaft is slidingly connected with the baffle, and one end of the rotating shaft A gear is fixedly installed, and the gear meshes with the rack.

As a further preference of this technical solution: the lower surface of the fixed frame is slidably installed with a moving seat, the lower surface of the moving seat is fixedly installed with an electric push rod, and the extension end of the electric push rod is fixedly installed with a dust suction seat, so The polishing block is fixedly installed on the lower surface of the vacuum seat, and one side of the moving seat is fixedly connected with an L-shaped connecting rod, and one end of the L-shaped connecting rod extends downward and is fixedly connected with the upper surface of the screw nut.

As a further preferred solution of this technical solution: a vacuum cleaner is fixedly installed on the top of the fixed frame, a retractable dust suction pipe is connected to one side of the vacuum cleaner, one end of the telescopic dust suction pipe communicates with the interior of the dust collection seat, and the suction suction A dust suction hole is provided on the lower surface of the dust seat.

The beneficial effects of the present invention are:

1. In the present invention, by setting the first positioning sleeve and the second positioning sleeve, the pipe material to be polished can be fixed inside the first positioning sleeve and the second positioning sleeve, and then fixed by positioning bolts, and then driven The motor drives the reciprocating screw to rotate, and drives the first positioning sleeve to rotate through the transmission belt, so that the pipe can be rotated synchronously, and the pipe is rotated while contacting the polishing block to perform polishing work. The raised dust is absorbed to ensure a stable polishing environment.

2. The present invention is provided with a rotating shaft and a sponge roller on the rotating shaft. During the polishing process of the pipe, the screw nut can be driven to move when the transmission screw is rotated, and then the rotating shaft can be used to move, and the wet sponge roller can move the pipe. The surface is wiped, and the rotating shaft and the sponge roller are rotated through the meshing of the gear and the teeth at the same time, so that the sponge roller can rotate and contact with the cleaning water in the sump, and then the wet sponge can be continuously used to clean the surface of the polished pipe. Wiping can effectively wipe off the floating dust attached to the surface of the pipe, which is convenient to increase the polishing effect, and at the same time can avoid the phenomenon of water waste caused by running water washing.

Description of drawings

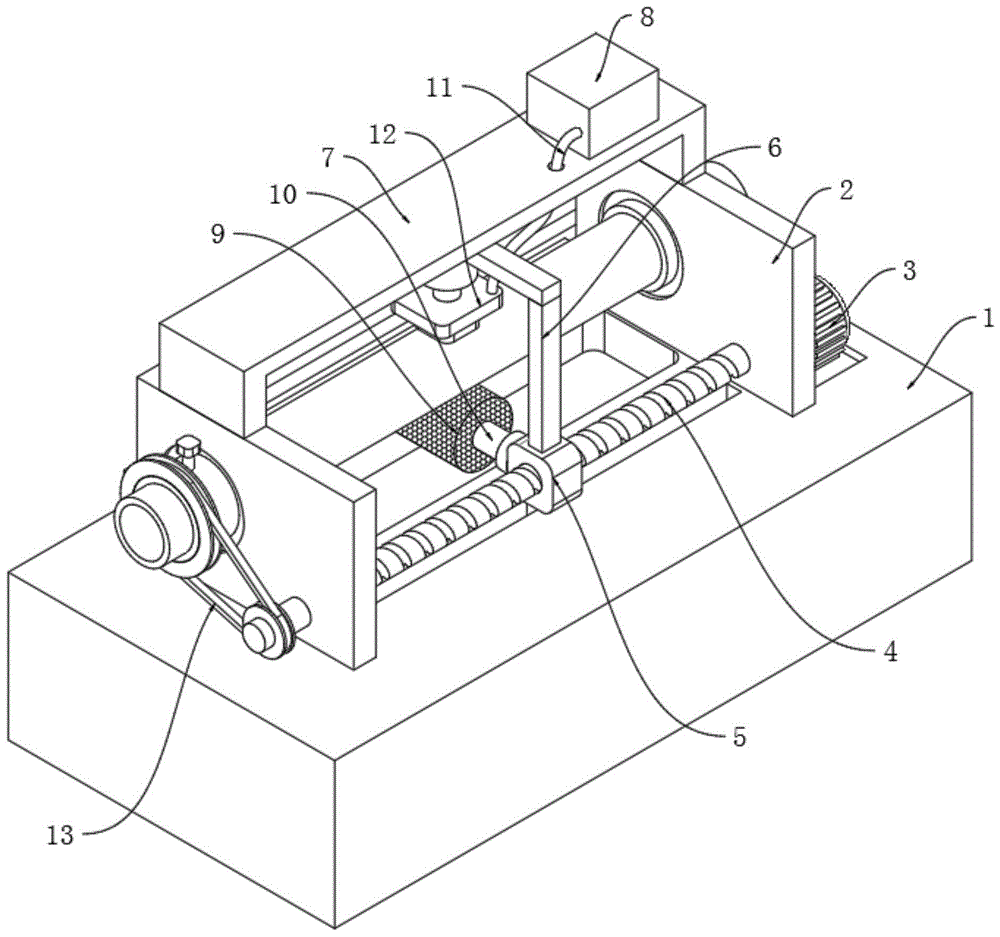

Fig. 1 is the overall structure schematic diagram of a kind of pipe processing polishing device that the present invention proposes;

Fig. 2 is a schematic diagram of the right stereoscopic structure of a polishing device for pipe processing proposed by the present invention;

Fig. 3 is a schematic view of the structure of a polishing device for pipe processing proposed by the present invention;

Fig. 4 is a schematic cross-sectional structure diagram of a polishing device for pipe processing proposed by the present invention;

Fig. 5 is an enlarged view of the structure of part A in Fig. 2 of a polishing device for pipe processing proposed by the present invention;

Fig. 6 is an enlarged view of the structure of part B in Fig. 3 of a polishing device for pipe material processing proposed by the present invention.

Reference signs: 1, base; 2, fixed plate; 3, driving motor; 4, reciprocating screw; 5, screw nut; 6, L-shaped connecting rod; 7, fixed frame; 8, vacuum cleaner; 9, sponge roller 10, rotating shaft; 11, dust suction pipe; 12, dust suction seat; 13, transmission belt; 14, first positioning sleeve; 15, second positioning sleeve; 16, positioning bolt; 17, gear; 18, set Sink; 19. Moving seat; 20. Electric push rod; 21. Dust suction hole; 22. Polishing block; 23. Rack.

Detailed ways

In order to make the technical means, creative features, goals and effects achieved by the present invention easy to understand, the present invention will be further elaborated below in conjunction with specific embodiments and accompanying drawings, but the following embodiments are only preferred embodiments of the present invention, not all . Based on the examples in the implementation manners, other examples obtained by those skilled in the art without making creative efforts all belong to the protection scope of the present invention.

Specific embodiments of the present invention will be described below in conjunction with the accompanying drawings.

Example 1

As shown in Fig. 1, Fig. 2, Fig. 3, Fig. 4 and Fig. 5, a kind of polishing device for pipe processing includes a base 1, and two fixing plates 2 are fixedly installed on the upper surface of the base 1, and the inside of the two fixing plates 2 are respectively The first positioning sleeve 14 and the second positioning sleeve 15 are rotated and installed, and the pipe is fixed between the first positioning sleeve 14 and the second positioning sleeve 15. The tops of the two fixing plates 2 are fixedly equipped with a fixed frame 7, fixed A polishing block 22 is slidably installed under the frame 7, and the lower surface of the polishing block 22 is in contact with the surface of the pipe. The upper surface of the base 1 is provided with a sump 18, which is located below the pipe, and the interior of the sump 18 is filled with cleaning water. The sump 18 A rotating shaft 10 is installed on the top to rotate, and a sponge roller 9 is fixedly set on the rotating shaft 10. The lower surface of the sponge roller 9 is located inside the sump 18, and the upper surface of the sponge roller 9 is in contact with the lower surface of the pipe.

A reciprocating screw mandrel 4 is installed in rotation between the two fixed plates 2, and a drive motor 3 is fixedly installed on one side of any fixed plate 2, and the output shaft of the drive motor 3 is fixedly connected with one end of the reciprocating screw mandrel 4. There is a screw nut 5, the bottom end of the screw nut 5 is slidingly connected with the base 1, and one end of the rotating shaft 10 is rotationally connected with one side of the screw nut 5; the first positioning sleeve 14 and the second positioning sleeve 15 are equipped with positioning bolts 16. One end of the positioning bolt 16 abuts against the surface of the pipe, the first positioning sleeve 14 and one end of the reciprocating screw rod 4 are fixedly connected with a pulley, and the first positioning sleeve 14 and the reciprocating screw rod 4 are connected by a transmission belt 13; A baffle plate is fixedly installed on one side of each fixed plate 2, a rack 23 is fixedly installed on the side wall of the baffle plate, one end of the rotating shaft 10 is slidingly connected with the baffle plate, and a gear 17 is fixedly installed on one end of the rotating shaft 10, and the gear 17 meshes with the rack 23;

During the working process, the two ends of the pipe to be polished can be respectively inserted into the first positioning sleeve 14 and the second positioning sleeve 15, and then the bottom of the positioning bolt 16 is used to abut against the surface of the pipe to fix the pipe, and then The driving motor 3 is used to drive the reciprocating screw mandrel 4 to rotate. When the reciprocating screw mandrel 4 rotates, the screw mandrel nut 5 can be reciprocated. At the same time, the reciprocating screw mandrel 4 rotates and drives the first positioning sleeve 14 to rotate through the transmission belt 13. , so that the pipes fixed in the first positioning sleeve 14 and the second positioning sleeve 15 can rotate synchronously, and the pipes can be in contact with the polishing block 22 while rotating, and the polishing block 22 is used to polish the surface of the pipe;

When the screw nut 5 moves, it can drive the rotating shaft 10 and the sponge roller 9 to move synchronously. When the rotating shaft 10 moves, it can mesh with the rack 23 through the gear 17, so that the gear 17 rotates, and the rotating shaft 10 and the sponge roller 9 rotate synchronously. When the sponge roller 9 rotates, it can reciprocally contact with the cleaning water in the sump 18. The cleaning water can wash away the floating dust attached to the sponge roller 9, and at the same time, the wet sponge roller 9 can contact the surface of the pipe material, and the surface of the pipe material will be cleaned due to The floating dust attached to the polishing can be wiped off, so as to avoid the phenomenon that the floating dust adheres to the surface of the pipe and affect the polishing. At the same time, it can avoid the phenomenon of water waste caused by washing the floating dust with running water and ensure a good polishing effect.

Example 2

As shown in Figure 1, Figure 4 and Figure 6, the lower surface of the fixed frame 7 is slidably installed with a movable seat 19, the lower surface of the movable seat 19 is fixedly installed with an electric push rod 20, and the extension end of the electric push rod 20 is fixedly installed with a dust suction seat 12. The polishing block 22 is fixedly installed on the lower surface of the vacuum seat 12, and one side of the moving seat 19 is fixedly connected with an L-shaped connecting rod 6, and one end of the L-shaped connecting rod 6 extends downward and is fixedly connected with the upper surface of the screw nut 5; A vacuum cleaner 8 is fixedly installed on the top of the frame 7, and one side of the vacuum cleaner 8 is connected with a telescopic dust suction pipe 11, and one end of the telescopic dust suction pipe 11 communicates with the interior of the dust collection seat 12, and the lower surface of the dust collection seat 12 is provided with a dust collection hole 21;

During the working process, the electric push rod 20 can be used to extend and push the vacuum seat 12 and the polishing block 22 to move down, so that the polishing block 22 is in contact with the surface of the pipe for polishing, and at the same time, the screw nut 5 can move back and forth through the L-shaped connecting rod 6 drives the moving seat 19 to reciprocate synchronously, so that the polishing block 22 and the dust-absorbing seat 12 can be reciprocated, and the surface of the pipe can be fully polished. Negative pressure, so that the dust generated during the grinding and polishing process can be absorbed through the dust suction hole 21, so as to ensure a stable polishing working environment.

Working principle: The two ends of the pipe to be polished can be inserted into the first positioning sleeve 14 and the second positioning sleeve 15 respectively, and then the bottom of the positioning bolt 16 is used to abut against the surface of the pipe to fix the pipe, and then use The electric push rod 20 is extended to push the vacuum seat 12 and the polishing block 22 to move down, so that the polishing block 22 is in contact with the surface of the pipe for polishing, and then the driving motor 3 is used to drive the reciprocating screw rod 4 to rotate. When the reciprocating screw rod 4 rotates, The screw nut 5 can be reciprocated, and the reciprocating screw 4 can drive the first positioning sleeve 14 to rotate through the transmission belt 13 at the same time, so that it can be fixed in the first positioning sleeve 14 and the second positioning sleeve 15 The pipes rotate synchronously, and the pipes can be in contact with the polishing block 22 while rotating, and the polishing block 22 is used to polish the surface of the pipes;

When the screw nut 5 moves, it can drive the rotating shaft 10 and the sponge roller 9 to move synchronously. When the rotating shaft 10 moves, it can mesh with the rack 23 through the gear 17, so that the gear 17 rotates, and the rotating shaft 10 and the sponge roller 9 rotate synchronously. When the sponge roller 9 rotates, it can reciprocally contact with the cleaning water in the sump 18. The cleaning water can wash away the floating dust attached to the sponge roller 9, and at the same time, the wet sponge roller 9 can contact the surface of the pipe, and the surface of the pipe will be cleaned due to Wipe off the floating dust attached to the polishing, so as to avoid the phenomenon that the floating dust adheres to the surface of the pipe and affect the polishing. At the same time, it can avoid the phenomenon of water waste caused by washing the floating dust with running water, and ensure a good polishing effect;

Simultaneously, when the screw nut 5 reciprocates, the L-shaped connecting rod 6 can drive the moving seat 19 to reciprocate synchronously, so that the polishing block 22 and the vacuum seat 12 can be reciprocated, and the surface of the pipe can be fully polished and polished. At the same time, the vacuum cleaner 8 can be started, so that a negative pressure is generated inside the dust suction seat 12, so that the dust generated during the grinding and polishing process can be absorbed through the dust suction hole 21, so as to ensure a stable working environment for polishing;

After polishing, the positioning bolt 16 can be disassembled, and then the pipe can be pulled out.

The basic principles, main features and advantages of the present invention have been shown and described above. Those skilled in the art should understand that the present invention is not limited by the above-mentioned embodiments, and those described in the above-mentioned embodiments and description are only preferred examples of the present invention, and are not intended to limit the present invention, without departing from the spirit and scope of the present invention. Under the premise, the present invention will have various changes and improvements, and these changes and improvements all fall within the scope of the claimed invention. The protection scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a burnishing device is used in tubular product processing, includes base (1), its characterized in that: fixed surface installs two fixed plates (2) on base (1), two it installs first position sleeve (14) and second position sleeve (15) to rotate respectively in fixed plate (2), be fixed with tubular product between first position sleeve (14) and second position sleeve (15), two fixed plate (2) top fixed mounting has mount (7), slidable mounting has polishing block (22) below mount (7), polishing block (22) lower surface and tubular product surface contact, water catch bowl (18) have been seted up to base (1) upper surface, water catch bowl (18) are located the tubular product below, and inside packing of water catch bowl (18) has wasing water, water catch bowl (18) top is rotated and is installed pivot (10), fixed cover is equipped with sponge roller (9) on pivot (10), sponge roller (9) lower surface is located inside water catch bowl (18), and sponge roller (9) upper surface and tubular product lower surface contact.

2. The polishing device for pipe processing according to claim 1, wherein: two rotate between fixed plate (2) and install reciprocal lead screw (4), arbitrary fixed plate (2) one side fixed mounting has driving motor (3), the output shaft and reciprocal lead screw (4) one end fixed connection of driving motor (3), be equipped with screw-nut (5) on reciprocal lead screw (4), screw-nut (5) bottom and base (1) sliding connection, pivot (10) one end is rotated with screw-nut (5) one side and is connected.

3. The pipe machining polishing device according to claim 2, wherein: all install positioning bolt (16) on first position sleeve (14) and second position sleeve (15), positioning bolt (16) one end and tubular product surface butt, first position sleeve (14) and reciprocal lead screw (4) one end equal fixedly connected with belt pulley, connect through driving belt (13) between first position sleeve (14) and the reciprocal lead screw (4).

4. The polishing device for pipe processing according to claim 2, wherein: two fixed plate (2) one side fixed mounting has the baffle, fixed mounting has rack (23) on the baffle lateral wall, pivot (10) one end and baffle sliding connection, pivot (10) one end fixed mounting has gear (17), gear (17) and rack (23) meshing.

5. The pipe machining polishing device according to claim 2, wherein: mount (7) lower surface slidable mounting has removal seat (19), it has electric push rod (20) to remove seat (19) lower fixed surface mounting, the extension fixed mounting of electric push rod (20) has dust absorption seat (12), polishing block (22) fixed mounting is at dust absorption seat (12) lower surface, remove seat (19) one side fixedly connected with L shape connecting rod (6), L shape connecting rod (6) one end downwardly extending and with screw-nut (5) upper surface fixed connection.

6. The pipe machining polishing device according to claim 5, wherein: the utility model discloses a dust collection device, including mount (7), dust catcher (8) one side is connected with scalable dust absorption pipe (11), scalable dust absorption pipe (11) one end and the inside intercommunication of dust absorption seat (12), dust absorption hole (21) have been seted up to dust absorption seat (12) lower surface.
