CN115592925A - Manufacturing process of sample bottle and manufactured workpiece thereof - Google Patents

Abstract

The invention discloses a manufacturing process of a sample bottle and a manufactured workpiece thereof. The invention realizes that the constant temperature heating plate is fixedly arranged at the top of the upper die chamber, the constant temperature heating plate can be movably connected with the external blow molding machine through the blow molding machine connector, then the external blow molding machine is used for spraying out liquid plastic, then the constant temperature heating plate is used for continuously heating the liquid in the hot runner, the liquid plastic in the hot runner is prevented from being solidified, the normal operation of the sample bottle manufacturing work is ensured, the external condenser is used for rotationally flowing condensate, the temperature of the liquid in the condensing box can be ensured, the first circulating pump is used for driving the liquid in the condensing box to pass through the liquid inlet pipe to be discharged into the lower die chamber, the sample bottle after blow molding can be rapidly cooled, and the production efficiency of the sample bottle is improved.

Description

A kind of manufacturing process of sample bottle and its made workpiece

technical field

The invention relates to the technical field of sample bottle manufacturing, in particular to a sample bottle manufacturing process and a workpiece made therefrom.

Background technique

The pipeline system is the pipeline system that sends water to the distribution pipe network and the user. The hydraulic calculation diagram of the water supply pipe network. The water distribution pipe network is a part of the urban water pipe network group. Pipe, the ring-shaped pipe network group connecting the main pipe and the user is called the water distribution pipe network. In the transportation of the pipeline system, sample bottles are needed to sample water. Sample bottles are also called sampling bottles, purification bottles, sterile bottles, clean bottles, Filter bottles, filter bottles, sampling bottles, filter bottles, etc., are essential items for pollution detection, and in the process of sample bottle manufacturing, the manufacturing process of sample bottles and the workpieces thereof need to be used, but in the process of realizing the present invention Among them, the inventor found that at least the following problems in the prior art have not been solved: 1. It is inconvenient to continuously heat the liquid inside the hot runner, which may easily cause the liquid plastic inside the hot runner to solidify, affecting the normal operation of sample bottle manufacturing 2. It is inconvenient to carry out rapid cooling of the sample bottle after blow molding, thereby affecting the efficiency of sample bottle production; 3. It is inconvenient to carry out automatic cleaning of the sample bottle, which affects the cleanliness of the sample bottle. For this reason, the present invention has designed a kind of manufacturing process of sample bottle and the workpiece made thereof.

Contents of the invention

(1) Solved technical problems

Aiming at the deficiencies of the prior art, the invention provides a manufacturing process of a sample bottle and a workpiece made therefrom.

(2) Technical solution

A manufacturing process of a sample bottle and the workpiece thereof, including a condensation box, a spray chamber and a lower mold chamber, the top of the lower mold chamber is movable with an upper mold chamber, and the top of the upper mold chamber is fixedly installed with a constant temperature Heating plate, support plates are fixedly installed on both sides of the lower mold chamber, a top plate is fixedly installed on the top of the support plate, electric push rods are equidistantly installed on the top of the top plate, and one side of the support plate is fixed A control button is installed, and a power jack is fixedly arranged at the bottom of the control button;

The bottom of the support plate is fixedly installed with a fixed frame, the bottom of the fixed frame is fixedly installed with a base, the top of the base is fixedly equipped with a condensation box, and one side of the condensation box is fixedly installed with a first circulation pump;

The other side of the fixed frame is fixedly equipped with a mesh belt conveyor, the top of the mesh belt conveyor is movably provided with a spray chamber, and the bottom of the mesh belt conveyor is movably provided with a filter box, and the filter box A second circulating pump is fixedly installed on one side.

Preferably, the inside of the lower mold chamber is equidistantly provided with lower mold cavities, both sides of the interior of the lower mold chamber are fixedly provided with card slots, and one side of the lower mold chamber is fixedly provided with a liquid inlet pipe, so The other side of the lower mold chamber is fixedly provided with a liquid outlet pipe.

Preferably, connecting rods are equidistantly installed on the top of the upper mold chamber, an upper mold cavity is provided through the interior of the upper mold chamber, and clamping blocks are equidistantly installed on the bottom of the upper mold chamber.

Preferably, a hot runner is fixedly arranged at the bottom of the constant temperature heating plate, a blow molding machine connection head is arranged between the constant temperature heating plate and the hot runner, and heat flow pipes are equidistantly arranged at the bottom of the hot runner.

Preferably, the top of the condensation box is fixedly provided with an externally threaded pipe, the top of the externally threaded pipe is movably provided with an internally threaded cover, and the inside of the condensation box is fixedly provided with a condensation pipe.

Preferably, a liquid outlet joint is fixedly provided on the surface of the condensation pipe, and a liquid inlet joint is fixedly provided on the other side of the liquid outlet joint.

Preferably, the bottom of the mesh belt conveyor is fixedly installed with a fixed plate, the two ends of the mesh belt conveyor are equidistantly installed with inserting rods, the inside of the fixed plate is provided with a guide port, and the bottom of the fixed plate is equidistantly installed There is a positioning board.

Preferably, the top of the spray chamber is fixedly provided with a catheter, the bottom of the spray chamber is equidistantly provided with sockets, and microporous nozzles are equidistantly provided between the sockets.

Preferably, support blocks are equidistantly installed on both sides inside the filter box, a grille is movably arranged on the top of the support block, and an activated carbon mesh is movably arranged on the bottom of the grille.

A manufacturing process for a sample bottle, comprising the following steps:

S1. Firstly connect the external blow molding machine through the connecting head of the blow molding machine, then use the external blow molding machine to spray out the liquid plastic, and then use the constant temperature heating plate to continuously heat the liquid inside the hot runner, and then use the heat flow tube to The liquid plastic is exported, and then flexibly connected through the block and the slot, and then the control button is used to control the electric push rod to drive the upper mold chamber and the lower mold chamber to be flexibly connected to form a sealed cavity, and then the liquid plastic is introduced into the interior of the lower mold cavity , and then use the wind blown from the external machine to blow the plastic body to a mold cavity of a certain shape to make a sample bottle;

S2. Then connect the condensed liquid to the external condenser through the liquid inlet joint, and then use the external condenser to introduce the condensed liquid into the inside of the condenser pipe, and then use the liquid outlet joint to export the condensed liquid to rotate and flow through the external condenser. Rotate and open the inner threaded cover, then use the outer threaded pipe to introduce the coolant into the inside of the condensation box, then cover the inner threaded cover, and then use the first circulation pump to drive the liquid inside the condensation box through the liquid inlet pipe to the inside of the lower mold chamber, The sample bottle after blow molding can be rapidly cooled, and after the cooling work is completed, the cooling liquid is exported through the liquid outlet pipe;

S3. Finally, the sample bottle can be driven by a mesh belt conveyor to move, and then the insert sleeve and the insert rod can be flexibly connected, and then the second circulation pump can be used to drive the purified liquid into the inside of the spray chamber, and then the microporous nozzle can be used to spray the sample bottle. The cleaning liquid is sprayed out to automatically clean the sample bottle, and then use the guide port to guide the waste liquid, and then guide the waste liquid into the inside of the filter box, then use the grid to filter the waste liquid, and then use the activated carbon net to filter the waste liquid. The waste liquid is further filtered, and then the purified liquid is driven to circulate by the second circulating pump.

(3) Beneficial effects

The invention provides a manufacturing process of a sample bottle and a workpiece made of the same

1. The present invention fixedly installs a constant temperature heating plate on the top of the upper mold chamber, which can be flexibly connected to the external blow molding machine through the blow molding machine connector, and then use the external blow molding machine to spray out the liquid plastic, and then use constant temperature heating The plate continuously heats the liquid inside the hot runner, prevents the liquid plastic inside the hot runner from solidifying, and ensures the normal production of sample bottles.

2. In the present invention, a condensing box is fixedly installed on the top of the base, and the condensed liquid can be introduced into the inside of the condensing pipe through the external condenser, and then exported by the liquid outlet joint, so that the condensed liquid can be rotated and flowed by the external condenser, which can ensure The temperature of the liquid inside the condensation box, and then use the first circulating pump to drive the liquid inside the condensation box through the liquid inlet pipe to the inside of the lower mold chamber, which can quickly cool the sample bottle after blow molding, thereby improving the efficiency of sample bottle production .

3. In the present invention, a spray chamber is movable on the top of the mesh belt conveyor, which can drive the sample bottle to move through the mesh belt conveyor, and then moveably connect the insertion sleeve with the insertion rod, and then use the second circulation pump to drive the purification. The final liquid is introduced into the interior of the spray chamber, and then the cleaning liquid is sprayed out by the microporous nozzle, so as to automatically clean the sample bottle and improve the cleanliness of the sample bottle.

Description of drawings

Fig. 1 is the manufacturing process of a kind of sample bottle that the present invention proposes and the perspective view that makes workpiece thereof;

Fig. 2 is the manufacturing process of a kind of sample bottle that the present invention proposes and the structural representation of making workpiece thereof;

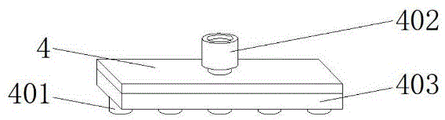

Fig. 3 is a partial perspective view of a manufacturing process of a sample bottle proposed by the present invention and a constant temperature heating plate made into a workpiece;

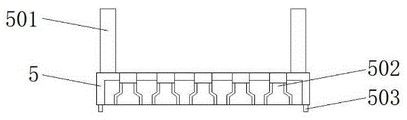

Fig. 4 is the manufacturing process of a kind of sample bottle that the present invention proposes and the partial structural representation of the upper mold chamber of making workpiece;

Fig. 5 is the manufacturing process of a kind of sample bottle proposed by the present invention and the partial perspective view of the lower mold chamber of the workpiece;

Fig. 6 is the manufacturing process of a kind of sample bottle proposed by the present invention and the partial perspective view of the spray chamber of the workpiece;

Fig. 7 is the manufacturing process of a kind of sample bottle that the present invention proposes and the partial structural representation of the condensing box that makes workpiece;

Fig. 8 is a schematic diagram of a manufacturing process of a sample bottle proposed by the present invention and a partial structure of a filter box made into a workpiece.

In the figure: 1, electric push rod; 2, top plate; 3, control button; 4, constant temperature heating plate; 401, heat flow tube; 402, blow molding machine connector; 403, hot runner; 5, upper mold chamber; 501, Connecting rod; 502, upper mold cavity; 503, clamping block; 6, support plate; 7, fixed frame; 8, condensation box; 801, external thread pipe; 802, liquid inlet joint; Tube; 805, liquid outlet joint; 9, first circulation pump; 10, spray chamber; 1001, catheter; 1002, plug sleeve; 1003, microporous nozzle; 1102, fixed plate; 1103, positioning plate; 1104, guide port; 12, filter box; 1201, support block; 1202, grille; 1203, activated carbon net; Die cavity; 1402, liquid inlet pipe; 1403, card slot; 1404, liquid outlet pipe; 15, base; 16, second circulation pump.

detailed description

The following will clearly and completely describe the technical solutions in the embodiments of the present invention with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only some, not all, embodiments of the present invention. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present invention.

As shown in Fig. 1-8, the present invention provides a kind of manufacturing process of sample bottle and the workpiece thereof, comprise condensation box 8, spray cavity 10 and lower mold chamber 14, the top of lower mold chamber 14 is provided with upper mold Chamber 5, the top of the upper mold chamber 5 is fixedly installed with a constant temperature heating plate 4, both sides of the lower mold chamber 14 are fixedly installed with a support plate 6, the top of the support plate 6 is fixedly installed with a top plate 2, and the top of the top plate 2 is equidistant. There is an electric push rod 1, a control button 3 is fixedly installed on one side of the support plate 6, and a power jack 13 is fixedly installed at the bottom of the control button 3;

The bottom of the support plate 6 is fixedly mounted with a fixed frame 7, the bottom of the fixed frame 7 is fixedly mounted with a base 15, the top of the base 15 is fixedly provided with a condensation box 8, and one side of the condensation box 8 is fixedly mounted with a first circulating pump 9;

The other side of fixed frame 7 is fixedly installed with mesh belt conveyor 11, and the top of mesh belt conveyor 11 is movable to be provided with spray chamber 10, and the bottom of mesh belt conveyor 11 is movable to be provided with filter box 12, and one part of filter box 12 A second circulating pump 16 is fixedly installed on the side.

When the device is working, it is flexibly connected to the external blow molding machine through the blow molding machine connection head 402, and then the liquid plastic is sprayed out by the external blow molding machine, and then the liquid inside the hot runner 403 is continuously heated by the constant temperature heating plate 4. Heating to prevent the liquid plastic inside the hot runner 403 from solidifying, ensuring the normal progress of the sample bottle manufacturing work, and then using the heat flow tube 401 to export the liquid plastic, and then movably connecting with the card slot 1403 through the block 503, and then using the control button 3 Control the electric push rod 1 to drive the upper mold chamber 5 and the lower mold chamber 14 to be flexibly connected to form a sealed cavity, and then introduce the liquid plastic into the lower mold cavity 1401, and then use the wind blown by an external machine to blow the molded body. to a mold cavity of a certain shape to make a sample bottle, and the control button 3 is electrically connected to the power jack 13 through a wire. , the switch that makes the moving contact and the static contact press on or off and realizes the circuit exchange. The power jack 13 is electrically connected with the electrical equipment through the wire, and the power jack 13 can provide electric energy for the electrical equipment. The constant temperature heating plate 4 is electrically connected with the control button 3 through wires, and the constant temperature heating plate 4 converts electric energy into thermal energy to heat objects, which is a form of electric energy utilization. Compared with general fuel heating, electric heating can obtain higher temperature.

The liquid inlet joint 802 is flexibly connected to the external condenser, and then the condensed liquid is introduced into the inside of the condenser pipe 804 by the external condenser, and then exported by the liquid outlet joint 805, so that the condensate is rotated and flowed by the external condenser, which can ensure The temperature of the liquid inside the condensation box 8, and then open the internal thread cover 803 by rotating, then use the external thread pipe 801 to introduce the cooling liquid into the inside of the condensation box 8, then cover the internal thread cover 803, and then use the first circulation pump 9 to drive the condensation The liquid in the tank 8 is carried into the lower mold chamber 14 through the liquid inlet pipe 1402, which can quickly cool the sample bottle after blow molding, thereby improving the efficiency of sample bottle production. After the cooling work is completed, the cooling liquid passes through the liquid outlet pipe 1404 export;

The sample bottle is driven to move by the mesh belt conveyor 11, and then movably connected with the insertion rod 1101 through the socket 1002, and then the second circulation pump 16 is used to drive the purified liquid into the inside of the spray chamber 10, and then the microporous nozzle is used 1003 sprays the cleaning solution to automatically clean the sample bottle to improve the cleanliness of the sample bottle, then use the guide port 1104 to guide the waste liquid, and then guide the waste liquid into the filter box 12, and then use the grid to 1202 to filter the waste liquid, and then use the activated carbon net 1203 to further filter the waste liquid, adopt multi-stage filtration to prevent, thereby improving the effect of waste liquid purification, and then use the second circulation pump 16 to drive the purified liquid to circulate to avoid Waste of water resources, the first circulating pump 9 and the second circulating pump 16 are electrically connected to the control button 3 through wires;

Wherein, the interior of the lower mold chamber 14 is equidistantly provided with a lower mold cavity 1401, both sides of the lower mold chamber 14 are fixedly provided with a draw-in groove 1403, and one side of the lower mold chamber 14 is fixedly provided with a liquid inlet pipe 1402, and the lower mold chamber The other side of the chamber 14 is fixedly provided with a liquid outlet pipe 1404;

It should be noted that when the device is working, liquid plastic can be introduced into the lower mold cavity 1401, and then the plastic body can be blown and attached to the mold cavity of a certain shape by using the wind blown by an external machine, thereby making a sample bottle ;

Wherein, the top of the upper mold chamber 5 is equidistantly equipped with connecting rods 501, the inside of the upper mold chamber 5 is provided with an upper mold cavity 502, and the bottom of the upper mold chamber 5 is equidistantly equipped with clamping blocks 503;

It should be noted that the clamp block 503 is flexibly connected to the slot 1403, and then the control button 3 is used to control the electric push rod 1 to drive the upper mold chamber 5 and the lower mold chamber 14 to be flexibly connected to form a sealed chamber;

Wherein, the bottom of the constant-temperature heating plate 4 is fixedly provided with a hot runner 403 , a connection head 402 of a blow molding machine runs through between the constant-temperature heating plate 4 and the hot runner 403 , and heat flow pipes 401 are equidistantly arranged at the bottom of the hot runner 403 ;

It should be noted that the connection head 402 of the blow molding machine is movably connected with the external blow molding machine, and then the liquid plastic is sprayed out by the external blow molding machine, and then the liquid inside the hot runner 403 is continuously heated by the constant temperature heating plate 4, Then utilize the heat flow tube 401 to export the liquid plastic;

Wherein, the top of the condensing box 8 is fixedly provided with an externally threaded pipe 801, the top of the externally threaded pipe 801 is movably provided with an internally threaded cover 803, and the inside of the condensing box 8 is fixedly provided with a condensing pipe 804;

It should be noted that the internal thread cover 803 is opened by rotating, and then the cooling liquid is introduced into the inside of the condensation box 8 by using the external thread pipe 801, and then the internal thread cover 803 is covered, and then the first circulating pump 9 is used to drive the coolant inside the condensation box 8. The liquid enters the inside of the lower mold chamber 14 through the liquid inlet pipe 1402, which can quickly cool the sample bottle after blow molding, thereby improving the production efficiency of the sample bottle. After the cooling work is completed, the cooling liquid is exported through the liquid outlet pipe 1404;

Wherein, the surface of the condensation pipe 804 is fixedly provided with a liquid outlet joint 805, and the other side of the liquid outlet joint 805 is fixedly provided with a liquid inlet joint 802;

It should be noted that the liquid inlet joint 802 is flexibly connected to the external condenser, and then the condensed liquid is introduced into the inside of the condensation pipe 804 by the external condenser, and then exported by the liquid outlet joint 805, so that the condensed liquid is carried out by the external condenser The rotating flow can ensure the temperature of the liquid inside the condensation box 8 .

Wherein, the bottom of mesh belt conveyor 11 is fixedly installed with fixed plate 1102, the two ends of mesh belt conveyor 11 are equidistantly installed with insertion rod 1101, the inside of fixed plate 1102 is provided with guide port 1104, the bottom of fixed plate 1102 etc. Positioning plate 1103 is installed;

It should be noted that the sample bottle is driven by the mesh belt conveyor 11 to move, and then the waste liquid is guided by the guide port 1104 .

Wherein, the top of the spray chamber 10 is fixedly provided with a catheter 1001, the bottom of the spray chamber 10 is equidistantly provided with sockets 1002, and the sockets 1002 are equidistantly provided with microporous nozzles 1003;

It should be noted that the plug sleeve 1002 is movably connected with the insertion rod 1101, and then the second circulation pump 16 is used to drive the purified liquid into the inside of the spray chamber 10, and then the cleaning liquid is sprayed out by the micro-hole nozzle 1003, thereby Clean the vials.

Wherein, both sides inside the filter box 12 are equipped with support blocks 1201 equidistantly, the top of the support block 1201 is provided with a grid 1202, and the bottom of the grid 1202 is provided with an activated carbon mesh 1203;

It should be noted that by introducing the waste liquid into the inside of the filter box 12, then using the grid 1202 to filter the waste liquid, and then using the activated carbon mesh 1203 to further filter the waste liquid, the prevention of multi-stage filtration is adopted, thereby improving the purification of the waste liquid. effect, and then use the second circulation pump 16 to drive the purified liquid to circulate, so as to avoid the waste of water resources.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes, modifications and substitutions can be made to these embodiments without departing from the principle and spirit of the present invention. and modifications, the scope of the invention is defined by the appended claims and their equivalents.

Claims (10)

1. A workpiece made of a sample bottle, characterized in that it includes a condensation box (8), a spray chamber (10) and a lower mold chamber (14), and the top of the lower mold chamber (14) is movable. A mold chamber (5), the top of the upper mold chamber (5) is fixedly installed with a constant temperature heating plate (4), and both sides of the lower mold chamber (14) are fixedly installed with support plates (6). A top plate (2) is fixedly installed on the top of the plate (6), electric push rods (1) are installed equidistantly on the top of the top plate (2), and a control button (3) is fixedly installed on one side of the support plate (6). ), the bottom of the control button (3) is fixedly provided with a power jack (13); The bottom of the support plate (6) is fixed with a fixed frame (7), the bottom of the fixed frame (7) is fixed with a base (15), and the top of the base (15) is fixed with a condensation box (8 ), a first circulation pump (9) is fixedly installed on one side of the condensation tank (8); The other side of the fixed frame (7) is fixedly installed with a mesh belt conveyor (11), the top of the mesh belt conveyor (11) is provided with a spray chamber (10), and the mesh belt conveyor ( A filter box (12) is movable at the bottom of 11), and a second circulating pump (16) is fixedly installed on one side of the filter box (12). 2. The workpiece of a sample bottle according to claim 1, characterized in that, a lower mold cavity (1401) is equidistantly arranged inside the lower mold chamber (14), and the lower mold chamber (14) ) on both sides of the inside are fixedly provided with card slots (1403), one side of the lower mold chamber (14) is fixedly provided with a liquid inlet pipe (1402), and the other side of the lower mold chamber (14) is fixedly provided with There is a liquid outlet pipe (1404). 3. The workpiece of a sample bottle according to claim 1, characterized in that, the top of the upper mold chamber (5) is equidistantly equipped with connecting rods (501), and the upper mold chamber (5) An upper mold cavity (502) is provided through the interior of the upper mold chamber (5), and clamping blocks (503) are equidistantly installed on the bottom of the upper mold chamber (5). 4. The workpiece of a sample bottle according to claim 1, characterized in that, the bottom of the constant temperature heating plate (4) is fixedly provided with a hot runner (403), and the constant temperature heating plate (4) and Blow molding machine connectors (402) are arranged through the hot runners (403), and heat flow pipes (401) are equidistantly arranged at the bottom of the hot runners (403). 5. The workpiece of a sample bottle according to claim 1, characterized in that, the top of the condensation box (8) is fixedly provided with an externally threaded pipe (801), and the top of the externally threaded pipe (801) is movable An internal thread cover (803) is provided, and a condensation pipe (804) is fixed inside the condensation box (8). 6. The workpiece of a sample bottle according to claim 5, characterized in that, the surface of the condensation pipe (804) is fixedly provided with a liquid outlet joint (805), and the other liquid outlet joint (805) The side is fixedly provided with a liquid inlet joint (802). 7. A workpiece made of a sample bottle according to claim 1, characterized in that, a fixing plate (1102) is fixedly installed on the bottom of the mesh belt conveyor (11), and the mesh belt conveyor (11) ) are equidistantly installed with insertion rods (1101), the inside of the fixed plate (1102) is provided with a guide port (1104), and the bottom of the fixed plate (1102) is equidistantly installed with a positioning plate (1103). 8. The workpiece of a sample bottle according to claim 1, characterized in that, the top of the spray chamber (10) is fixedly provided with a catheter (1001), and the spray chamber (10) Insert sleeves (1002) are equidistantly arranged at the bottom of the base, and micro-hole nozzles (1003) are equidistantly arranged between the insert sleeves (1002). 9. The workpiece of a sample bottle according to claim 1, characterized in that support blocks (1201) are equidistantly installed on both sides inside the filter box (12), and the top of the support block (1201) A grille (1202) is movable, and an activated carbon net (1203) is movable at the bottom of the grille (1202). 10. the manufacturing process of a kind of sample vial according to claim 1, is characterized in that, comprises the following steps: S1. Firstly connect the external blow molding machine through the blow molding machine connector (402), then use the external blow molding machine to spray out the liquid plastic, and then use the constant temperature heating plate (4) to heat the liquid inside the hot runner (403) Carry out continuous heating, then use the heat flow tube (401) to export the liquid plastic, and then make a flexible connection with the card slot (1403) through the block (503), and then use the control button (3) to control the electric push rod (1) to drive the upper mold The chamber (5) is movably connected with the lower mold chamber (14) to form a sealed chamber, and then the liquid plastic is introduced into the interior of the lower mold chamber (1401), and then the plastic body is blown and attached to a certain shaped cavities to make vials; S2. Then connect the external condenser through the liquid inlet joint (802), and then use the external condenser to introduce the condensed liquid into the inside of the condenser pipe (804), and then use the liquid outlet joint (805) to export, so as to use the external condenser The condensate is rotated and flowed, and then the internal threaded cover (803) is opened by rotation, and then the cooling liquid is introduced into the inside of the condensation box (8) by the external threaded pipe (801), and then the internal threaded cover (803) is covered, and then the internal threaded cover (803) is used to The first circulation pump (9) drives the liquid inside the condensation tank (8) to enter the lower mold chamber (14) through the liquid inlet pipe (1402), which can quickly cool the sample bottles after blow molding. , the cooling liquid is exported through the liquid outlet pipe (1404); S3. Finally, the sample bottle can be driven to move through the mesh belt conveyor (11), and then the insert sleeve (1002) is connected with the insertion rod (1101) in a flexible manner, and then the purified liquid is introduced by the second circulation pump (16) Inside the spray chamber (10), the microporous nozzle (1003) is used to spray the cleaning liquid, so as to automatically clean the sample bottle, and then use the guide port (1104) to guide the waste liquid, and then pass the waste liquid Introduce the inside of the filter box (12), then use the grille (1202) to filter the waste liquid, then use the activated carbon mesh (1203) to further filter the waste liquid, and then use the second circulation pump (16) to drive the purified liquid to Circular flow.
