Abstract

The invention relates to the technical field of cutting equipment, in particular to a cutting equipment with a safety protection function, which includes a sealing chamber, one end of which is opened, and a sealing door mechanism is arranged at the opening end of the sealing chamber, and the sealing door mechanism can seal the opening of the sealing chamber end. It also includes a cutting mechanism, a positioning mechanism and a dust-reducing mechanism. The cutting mechanism is arranged inside the sealed chamber, the positioning mechanism is arranged at the bottom of the sealed chamber and the positioning mechanism is used for positioning the workpiece, and the dust-reducing mechanism is installed on one side of the sealed chamber; Inside the sealed room, a closed cutting room is designed. The whole cutting process is carried out in a fully enclosed environment, without smoke and dust pollution, and has good safety; it is simple and effective to use spray dust removal, which is characterized by strong dust capture ability.

Description

A cutting device with safety protection function

technical field

The invention relates to the technical field of cutting equipment, in particular to a cutting equipment with a safety protection function.

Background technique

The methods of gate removal include grinding wheel cutting, sawing, hammering, shearing, flame cutting, etc. Because grinding wheel cutting has the advantages of wide application range, high efficiency, flat cutting surface and small residual roots, grinding wheel cutting is mostly used in the gate removal process. The technical level of gate cutting machines in our country is still relatively backward. Most of the gate cutting machines on the market are manual cutting machines, and the representative ones are hand-operated grinding wheel cutting machines and pedal grinding wheel cutting machines. More advanced is the semi-automatic grinding wheel cutting machine driven by hydraulic pressure, the grinding wheel can be lifted up and down, and the workbench can move back and forth, left and right.

So far, most domestic investment casting manufacturers still use manual fixed grinding wheel cutting machines. Operators wear protective clothing, masks, heat-insulating gloves and other equipment to cut workpieces. There is no dust removal device during the cutting process, and there are quite a lot of dust and impurities in the workshop. , The working environment in the workshop is very harsh and the pollution is very serious. The cutting process has great potential harm to the human body. First of all, when the casting is cut by hand on the high-speed rotating grinding wheel, the vibration of the workpiece is very severe, which will cause indirect damage to the hands; secondly, if the worker is not skilled in cutting, the grinding wheel may be damaged and the grinding wheel may be broken, and the high-speed moving grinding wheel fragments will directly damage the The human body; the final cutting process produces a large amount of smoke and dust that spreads to the entire workshop. Workers inhale free silica dust for a long time, which will cause silicosis and other related occupational diseases. A large amount of smoke and dust are generated when the grinding wheel cutting machine is working. Silica powder and ground metal powder. These powders will be harmful to the human body if they are inhaled by the human body. Therefore, the existing casting gate cutting equipment does not take protective measures against the smoke and flying debris generated during the cutting process. Therefore, we propose a cutting equipment with safety protection functions.

Contents of the invention

The purpose of the present invention is to solve the defect in the prior art that the casting gate cutting equipment does not take protective measures against the smoke and dust generated during the cutting process, and proposes a cutting equipment with safety protection function.

In order to achieve the above object, the present invention adopts the following technical solutions:

A cutting device with safety protection function is designed, comprising a sealed chamber, one end of the sealed chamber is opened, and a sealed door mechanism is provided at the open end of the sealed chamber, and the sealed door mechanism can seal the open end of the sealed chamber.

It also includes a cutting mechanism, a positioning mechanism and a dust-reducing mechanism, the cutting mechanism is arranged inside the sealed chamber, the positioning mechanism is arranged at the bottom of the sealed chamber and the positioning mechanism is used for positioning the workpiece, and the dust-reducing mechanism is installed in a sealed chamber side.

Preferably, the cutting mechanism includes a frame, a sleeve, a protective cover, a rotating shaft, a grinding wheel sheet, a motor and a belt mechanism, the frame is fixedly installed outside the sealed chamber, and the sleeve is fixedly installed inside the sealed chamber, so The protective cover is fixedly connected to the end of the casing, the rotating shaft is arranged in the casing and is rotatably installed inside the sealing chamber, one end of the rotating shaft runs through the sealing chamber, and the grinding wheel is fixedly connected to the end of the rotating shaft. The grinding wheel is located in the protective cover, the motor is fixedly installed on the frame, and the output shaft of the motor and the rotating shaft are driven by a belt mechanism.

Preferably, the positioning mechanism includes a support frame, an L-shaped seat, a baffle plate, a chute, a slider, a hydraulic cylinder, a pressure plate, a pair of oil cylinders and a pair of side plates, the support frame is located in the sealed chamber, and the L-shaped The seat is located in the support frame, the baffle is fixed on the L-shaped seat, the chute is opened on the L-shaped seat, the slider is slidably set in the chute, and the hydraulic cylinder is fixed on the L-shaped seat Above, the pressure plate is located at the lower end of the baffle, the pressure plate is fixedly connected with the slider, the pressure plate is fixedly connected with the output end of the hydraulic cylinder, and a pair of the oil cylinders are distributed at intervals and fixedly connected at the bottom of the sealed chamber. The output ends are all fixedly connected to the bottom of the support frame, and a pair of side plates are symmetrically distributed and fixedly connected to both sides of the bottom of the support frame.

Preferably, the dust suppression mechanism includes a plurality of high-pressure spray heads installed in the sealed chamber, and the high-pressure spray heads communicate with the external high-pressure water pump through water pipes. The strip-shaped mouth communicates with the interior of the sealed chamber, and a collection tank is fixedly installed at the bottom of the sealed chamber. And the liquid in the collection tank can be transported to the outside of the collection tank.

Preferably, the airtight door mechanism includes a pair of strip plates, a pair of rotating shafts, a pair of door panels, two door handles and a door bolt. The pair of strip plates are fixedly connected to the upper and lower sides of the opening end of the sealing chamber respectively. The rotating shaft is located between the two strip plates, the two ends of the rotating shaft are respectively rotatably mounted on the strip plates on both sides, a pair of the door panels are fixedly connected to a pair of rotating shafts respectively, and the two The door plate can seal the opening end of the sealed chamber, the two door handles are fixedly connected to the two door plates respectively, and the door bolt can be inserted into the two door handles.

Preferably, the airtight door mechanism also includes a driving wheel, a U-shaped frame, a driving bar, a first disc, a first spring, a top block, a support plate, a travel switch, a limit hole, a limit pin, and a second disc. and the second spring, the upper end of the rotating shaft on one side runs through the strip plate, the driving wheel is fixedly connected to the upper end of the rotating shaft on one side, the U-shaped frame is fixed on the top of the sealing chamber, and the driving bar runs through the U-shaped frame, and the driving bar is meshed with the driving wheel, the first disc is fixedly connected to the driving bar, the first spring is sleeved on one end of the driving bar, and the two ends of the first spring are respectively fixed on the On the first wafer and the U-shaped frame, the jacking block is fixedly connected to the end of the driving bar, the support plate is fixedly connected to the top of the sealing chamber, the travel switch is fixedly connected to the support plate, and the jacking block can be Push against the travel switch, the limit hole is opened on the drive bar, the limit pin is arranged on the U-shaped frame and the lower end passes through the U-shaped frame, and the second disc is fixedly connected to the top of the limit pin. The second spring is sleeved on the limit pin, the two ends of the second spring are fixedly connected to the second disc and the U-shaped frame respectively, the bottom end of the limit pin is set as a spherical surface and is offset against the driving bar, The lower end of the limiting pin can be inserted into the limiting hole.

Preferably, an auxiliary tool setting mechanism is provided in the sealed chamber, and the auxiliary tool setting mechanism can display the lowering position of the grinding wheel on the workpiece.

Preferably, the auxiliary tool setting mechanism includes a laser liner, the laser liner is installed on the top of the sealed chamber, and the straight line of the laser liner is in the same plane as the grinding wheel.

The auxiliary tool setting mechanism also includes an adjustment assembly, which can adjust the position of the L-shaped seat, and a glass observation window is installed on one side of the sealed chamber.

The adjustment assembly includes two guide rods, a roller screw and a turntable, the two guide rods are arranged at intervals and pass through the L-shaped seat, the ends of the guide rods are fixedly connected to the inside of the support frame, and the roller wires The rod runs through the L-shaped seat and is threadedly connected with the L-shaped seat. The ends of the roller screw rods are rotatably installed inside the support frame, and the turntable is rotatably installed outside the support frame. The rotating shaft of the turntable runs through the support frame and Engages with the roller screw.

Preferably, a cleaning mechanism is provided at the upper end of the roller screw, and the cleaning mechanism can clean the surface of the roller screw.

Preferably, the cleaning mechanism includes a first straight pipe, a third spring, a plate, a second straight pipe, a fourth spring and a plurality of water outlet holes, and the first straight pipe and the second straight pipe are respectively located on the sides of the L-shaped seat. On both sides, the first straight pipe and the second straight pipe run through the support frame, one end of the first straight pipe is fixed on the L-shaped seat, the plate is fixed on the L-shaped seat, and the second straight pipe is fixed on the L-shaped seat. One end of the tube is fixed on the plate, the third spring and the fourth spring are sleeved on the first straight tube and the second straight tube respectively, and the two ends of the third spring are fixed on the L-shaped seat and the support frame respectively , the two ends of the fourth spring are fixedly connected to the support frame and the plate respectively, and the bottoms of the first straight pipe and the second straight pipe are provided with a plurality of equidistant water outlet holes, and the water outlet holes are all facing the rollers The screw rod is arranged, and the ends of the first straight pipe and the second straight pipe are communicated with external water supply equipment through flexible hoses.

A kind of cutting equipment with safety protection function proposed by the present invention has the beneficial effect that: by setting the cutting mechanism inside the sealed chamber, the cutting chamber is designed to be closed, and the entire cutting process is carried out in a fully enclosed environment, with no smoke pollution and good safety ; It is simple and effective to choose spray dust removal, which is characterized by strong dust capture ability. The use of counter-spray technology makes the atomized particles small and covers a large area, and the water mist particles wet, agglomerate and settle the dust particles through elastic collisions to achieve the maximum dust reduction effect. In order to better suppress the rising and spreading of dust, multiple spray heads are arranged, and the nozzles are misplaced. The water is transported to the high-pressure spray head by an external high-pressure water pump for atomization. After the water droplets and dust are combined and settled, they can seep into the collection tank through the strip mouth. , The dirt in the collection tank can be discharged through the connected pipe on the collection tank.

Description of drawings

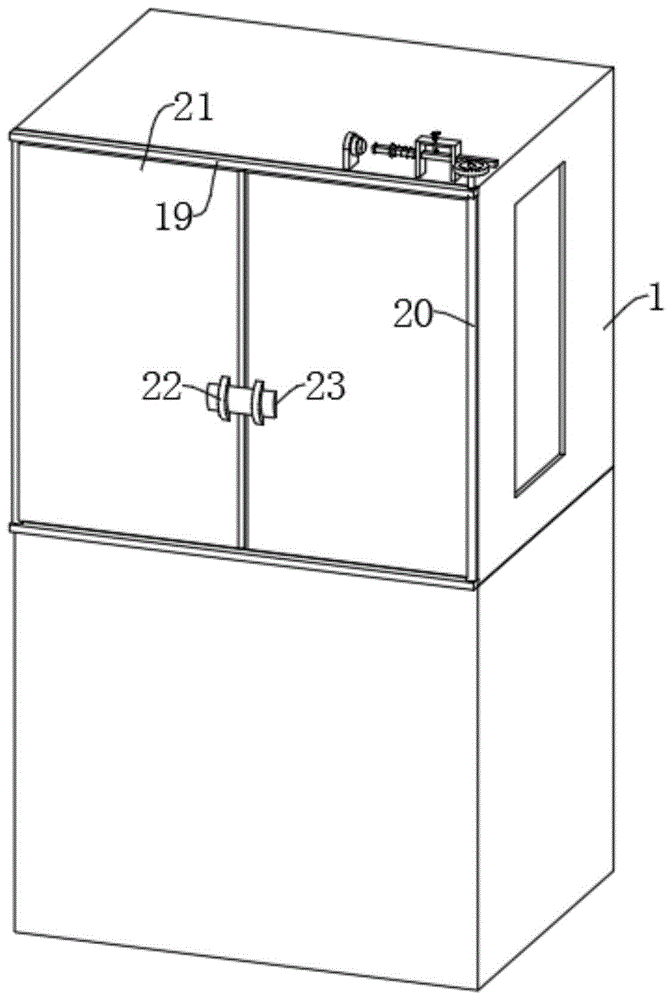

Fig. 1 is a schematic structural view of a cutting device with a safety protection function proposed by the present invention.

Fig. 2 is a first cross-sectional view of a cutting device with a safety protection function proposed by the present invention.

Fig. 3 is a second cross-sectional view of a cutting device with a safety protection function proposed by the present invention.

Fig. 4 is a rear view of a cutting device with a safety protection function proposed by the present invention.

Fig. 5 is an enlarged schematic diagram of a positioning mechanism of a cutting mechanism of a cutting device with a safety protection function proposed by the present invention.

FIG. 6 is an enlarged schematic diagram of a partial structure of an auxiliary knife setting mechanism of a cutting device with a safety protection function proposed by the present invention.

Fig. 7 is an enlarged schematic view of an L-shaped seat of a cutting device with a safety protection function proposed by the present invention.

Fig. 8 is an enlarged schematic diagram of a partial structure of a sealing door mechanism of a cutting device with a safety protection function proposed by the present invention.

Fig. 9 is a schematic structural view of a second straight pipe of a cutting device with a safety protection function proposed by the present invention.

In the figure: sealing chamber 1, frame 2, sleeve pipe 3, protective cover 4, rotating shaft 5, grinding wheel piece 6, motor 7, belt mechanism 8, support frame 9, L-shaped seat 10, baffle plate 11, chute 12, Slider 13, hydraulic cylinder 14, pressure plate 15, high-pressure spray head 16, strip mouth 17, collection tank 18, strip plate 19, rotating shaft 20, door panel 21, door handle 22, door bolt 23, drive wheel 24, U-shaped Frame 25, drive bar 26, first disc 27, first spring 28, top block 29, support plate 30, travel switch 31, limit hole 32, limit pin 33, second disc 34, second spring 35 , laser marking device 36, oil cylinder 37, side plate 38, guide rod 39, roller screw 40, turntable 41, first straight pipe 42, third spring 43, plate 44, second straight pipe 45, fourth spring 46, water outlet hole 47, glass observation window 48.

detailed description

The following will clearly and completely describe the technical solutions in the embodiments of the present invention with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only some, not all, embodiments of the present invention.

Example 1:

Referring to Figures 1-9, a cutting device with a safety protection function includes a sealed chamber 1 with an opening at one end of the sealed chamber 1, and a sealed door mechanism is provided at the opening end of the sealed chamber 1, and the sealed door mechanism can seal the opening of the sealed chamber 1 end. By setting the sealed chamber 1, the cutting work is carried out in the sealed chamber 1, which also includes a cutting mechanism, a positioning mechanism and a dust reduction mechanism. The location of the dust suppression mechanism is installed on the side of the sealed chamber 1. By arranging the cutting mechanism inside the sealed chamber 1, a closed cutting chamber is designed, and the entire cutting process is carried out in a fully enclosed environment without smoke pollution and good safety.

The cutting mechanism includes a frame 2, a casing 3, a protective cover 4, a rotating shaft 5, a grinding wheel 6, a motor 7 and a belt mechanism 8, the frame 2 is fixedly installed on the outside of the sealing chamber 1, and the casing 3 is fixedly installed on the inside of the sealing chamber 1 , the protective cover 4 is fixedly connected to the end of the casing 3, the rotating shaft 5 is arranged in the casing 3 and is rotatably installed inside the sealing chamber 1, one end of the rotating shaft 5 runs through the sealing chamber 1, and the grinding wheel 6 is fixedly connected to the end of the rotating shaft 5 The grinding wheel piece 6 is located in the protective cover 4, the motor 7 is fixedly installed on the frame 2, and the output shaft of the motor 7 and the rotating shaft 5 are driven by a belt mechanism 8. The motor 7 works and drives the rotating shaft 5 to rotate through the belt mechanism 8, and the grinding wheel sheet 6 at the end of the rotating shaft 5 rotates and cuts, and the protective cover 4 is set outside the grinding wheel sheet 6, and the grinding wheel sheet 6 splashes to the ground after being broken in extreme cases. The protective cover 4 plays a certain protective role. At the same time, because the rotating shaft 5 is located inside the sealed chamber 1, the dust and debris settled on the rotating shaft 5 will cause the rotating shaft 5 to rotate poorly. Protection, to isolate flying dust from the rotating shaft 5 .

The positioning mechanism includes a support frame 9, an L-shaped seat 10, a baffle plate 11, a chute 12, a slider 13, a hydraulic cylinder 14, a pressure plate 15, a pair of oil cylinders 37 and a pair of side plates 38, and the support frame 9 is located in the sealed chamber 1 , the L-shaped seat 10 is located in the support frame 9, the baffle plate 11 is fixedly connected to the L-shaped seat 10, the chute 12 is opened on the L-shaped seat 10, the slider 13 is slidably arranged in the chute 12, and the hydraulic cylinder 14 is fixedly connected On the L-shaped seat 10, the pressure plate 15 is located at the lower end of the baffle plate 11, the pressure plate 15 is fixedly connected with the slider 13, the pressure plate 15 is fixedly connected with the output end of the hydraulic cylinder 14, and a pair of oil cylinders 37 are distributed at intervals and fixedly connected in the sealed chamber 1 At the bottom, the output ends of the oil cylinders 37 are all fixedly connected to the bottom of the support frame 9 , and a pair of side plates 38 are symmetrically distributed and fixedly connected to both sides of the bottom of the support frame 9 . The workpiece is fixed by the positioning mechanism, the workpiece is placed between the baffle 11 and the pressure plate 15, and the hydraulic cylinder 14 drives the pressure plate 15 to move up and press the workpiece. Both the baffle 11 and the pressure plate 15 are provided with anti-skid lines, which can To anti-slip effect, the side plate 38 can protect both sides of the oil cylinder 37.

The dust suppression mechanism includes a plurality of high-pressure spray heads 16, which are installed in the sealed chamber 1. The high-pressure spray heads 16 are all connected to the external high-pressure water pump through water pipes. There are several evenly distributed strip-shaped ports 17 at the bottom of the sealed chamber 1. , the bar-shaped mouth 17 communicates with the interior of the sealed chamber 1, and the bottom of the sealed chamber 1 is fixedly equipped with a collection tank 18, which communicates with the interior of the sealed chamber 1 through several strip-shaped ports 17, and the collection tank 18 is communicated with a pipeline and can collect The liquid in the tank 18 is sent to the outside of the collection tank 18 . It is simple and effective to choose spray dust removal, which is characterized by strong dust capture ability. The use of counter-spray technology makes the atomized particles small and covers a large area, and the water mist particles wet, agglomerate and settle the dust particles through elastic collisions to achieve the maximum dust reduction effect. In order to better suppress the rising and spreading of dust, multiple spray heads are arranged, and the nozzles are misplaced. The water is transported to the high-pressure spray head 16 by an external high-pressure water pump for atomization. In the tank 18 , the dirt in the collecting tank 18 can be discharged through the connected pipeline on the collecting tank 18 .

The airtight door mechanism includes a pair of strip plates 19, a pair of rotating shafts 20, a pair of door panels 21, two door handles 22 and a door bolt 23. The counter-rotating shaft 20 is located between the two bar-shaped plates 19, and the two ends of the rotating shaft 20 are respectively rotatably mounted on the bar-shaped plates 19 on both sides. A pair of door panels 21 are fixedly connected to the pair of rotating shafts 20 respectively. The opening end of the sealed chamber 1 can be sealed, and the two door handles 22 are fixedly connected to the two door panels 21 respectively, and the door bolt 23 can be inserted into the two door handles 22 . The door panel 21 can rotate around the rotating shaft 20 on one side. When the device is in cutting process, the opening end of the sealing chamber 1 is sealed by closing a pair of door panels 21 to prevent smoke and dust from escaping. Two doors can be inserted through the door bolt 23. Inside the handle 22, the door panel 21 is limited.

At the same time, it is considered that when the door panel 21 of the sealed chamber 1 is opened due to misoperation and other reasons in an accident, while the cutting equipment in the sealed chamber 1 is working, the smoke and dust will be directly released, polluting the workshop environment, and the grinding wheel will be broken. Flying fragments may also injure workers.

The airtight door mechanism also includes a drive wheel 24, a U-shaped frame 25, a drive bar 26, a first disc 27, a first spring 28, a top block 29, a support plate 30, a travel switch 31, a limit hole 32, a limit pin 33 , the second disc 34 and the second spring 35, the upper end of the rotating shaft 20 on one side runs through the strip plate 19, the driving wheel 24 is fixedly connected to the upper end of the rotating shaft 20 on one side, and the U-shaped frame 25 is fixedly connected to the sealing chamber 1 At the top, the driving bar 26 runs through the U-shaped frame 25, and the driving bar 26 is engaged with the driving wheel 24. The first disc 27 is fixedly connected to the driving bar 26, and the first spring 28 is sleeved on one end of the driving bar 26. The first spring 28 The two ends are fixedly connected to the first wafer 27 and the U-shaped frame 25 respectively, the top block 29 is fixed to the end of the drive bar 26, the support plate 30 is fixed to the top of the sealing chamber 1, and the travel switch 31 is fixed to the support plate 30, the top block 29 can be pushed against the travel switch 31, the limit hole 32 is opened on the drive bar 26, the limit pin 33 is arranged on the U-shaped frame 25 and the lower end runs through the U-shaped frame 25, and the second disc 34 is fixed. Connected to the top of the limit pin 33, the second spring 35 is sleeved on the limit pin 33, and the two ends of the second spring 35 are fixedly connected to the second disc 34 and the U-shaped frame 25 respectively. The lower end of the limiting pin 33 can be inserted into the limiting hole 32 and is arranged as a spherical surface to abut against the driving bar 26 .

When the equipment is working, the two door panels 21 are in the closed state. If the door panel 21 is opened at this time, the door panel 21 on one side rotates counterclockwise around the rotating shaft 20, and the driving wheel 24 on the upper end of the rotating shaft 20 drives the driving bar 26 to move to the travel switch 31. A spring 28 is stretched until the top block 29 pushes against the limit switch 31, the limit hole 32 moves to the limit pin 33, and the second spring 35 starts to be in a compressed state. When the limit hole 32 moves to the limit pin 33 , the elastic force of the second spring 35 drives the lower end of the limit pin 33 to be inserted into the limit hole 32, the limit pin 33 limits the drive bar 26, and at this time the drive wheel 24 is separated from the drive bar 26, and the top block 29 stands on the On the travel switch 31, the travel switch 31 triggers the controllable motor 7 to close, so that when the door panel 21 is opened by misoperation, the motor 7 stops and the cutting work stops, so that the operator's misoperation or other factors can be avoided to cause accidents and injuries.

When the cutting work needs to be restarted, the drive wheel 24 is disengaged from the drive bar 26, the two door panels 21 are closed and can be inserted into the two door handles 22 by the door bolt 23 to limit the door panels 21, and then upwardly pull The second disc 34 makes the lower end of the limit pin 33 leave the limit hole 32, and then manually drives the drive bar 26 to move to the side away from the travel switch 31, where the drive bar 26 can reversely drive the drive wheel 24, and the door panel 21 Fixed, the driving bar 26 and the driving wheel 24 will slip normally, and then start the motor 7 to continue the cutting work.

Example 2:

Referring to Figures 1-9, as another preferred embodiment of the present invention, the difference from Embodiment 1 is that an auxiliary tool setting mechanism is provided in the sealed chamber 1, and the auxiliary tool setting mechanism can display the lowering of the grinding wheel 6 on the workpiece. Location. The auxiliary tool setting mechanism includes a laser liner 36, which is installed on the top of the sealed chamber 1, and the inline light of the laser liner 36 is in the same plane as the grinding wheel sheet 6. The light beam that the laser marker 36 sends is in the same plane as the grinding wheel sheet 6, which can mark the position where the grinding wheel sheet 6 will cut into the workpiece during clamping, so as to ensure that the workpiece will not be cut. In addition, the seriously deformed casting group can be found in time. When the workpiece is clamped, it can intuitively reflect the position where the grinding wheel will cut into the gate, so as to prevent the workpiece from being cut and causing waste.

The auxiliary tool setting mechanism also includes an adjustment assembly, which can adjust the position of the L-shaped seat 10. A glass observation window 48 is installed on one side of the sealing chamber 1, through which the situation in the sealing chamber 1 can be observed. The adjustment assembly includes Two guide rods 39, a roller screw 40 and a turntable 41, the two guide rods 39 are arranged at intervals and run through the L-shaped seat 10, the ends of the guide rods 39 are fixedly connected to the inside of the support frame 9, and the roller screw 40 runs through the L-shaped seat 10. Shaped seat 10 is also threadedly connected with L-shaped seat 10, and roller screw mandrel 40 ends are respectively rotatably installed on the inside of support frame 9, and rotating disk 41 is rotatably installed outside support frame 9, and the rotating shaft of rotating disk 41 runs through support frame 9 and is connected with The roller screw 40 engages. The relative position of the workpiece and the grinding wheel 6 is adjusted by adjusting the assembly, and the rotating turntable 41 drives the roller screw 40 to rotate, so that the L-shaped seat 10 moves along the direction of the guide rod 39, thereby adjusting the position of the workpiece.

Because the roller screw 40 is located under the workpiece and the grinding wheel 6, the roller screw 40 is close to the dust source, so the roller screw 40 is affected by dust, the pollution is serious and the working environment is harsh, and debris, etc. accumulate on the rollers. On the screw mandrel 40, it is easy to cause the L-shaped seat 10 to move poorly or even get stuck.

The upper end of the roller screw 40 is provided with a cleaning mechanism, which can clean the surface of the roller screw 40 . The cleaning mechanism includes a first straight pipe 42, a third spring 43, a plate 44, a second straight pipe 45, a fourth spring 46 and a plurality of water outlet holes 47, and the first straight pipe 42 and the second straight pipe 45 are respectively located in the L-shaped seat Both sides of 10, the first straight pipe 42 and the second straight pipe 45 all run through the support frame 9, one end of the first straight pipe 42 is fixedly connected on the L-shaped seat 10, the plate 44 is fixedly connected on the L-shaped seat 10, the second One end of the straight pipe 45 is fixedly connected to the plate 44, the third spring 43 and the fourth spring 46 are sleeved on the first straight pipe 42 and the second straight pipe 45 respectively, and the two ends of the third spring 43 are respectively fixedly connected to the L-shaped seat 10 and the support frame 9, the two ends of the fourth spring 46 are fixedly connected to the support frame 9 and the plate 44 respectively, and the bottoms of the first straight pipe 42 and the second straight pipe 45 are provided with a plurality of equally spaced water outlet holes 47, The water outlet holes 47 are all arranged towards the roller screw 40, the ends of the first straight pipe 42 and the second straight pipe 45 are connected to the external water supply equipment through flexible pipes, and a number of evenly distributed strip-shaped leakage holes are provided on the support frame 9. Through the external water supply equipment, the cleaning water is passed into the first straight pipe 42 and the second straight pipe 45 through the hose, and the cleaning water is sprayed on the roller wire by the water outlet hole 47 at the bottom of the first straight pipe 42 and the second straight pipe 45. rod 40 surface to realize the cleaning of the roller screw 40, and when the position of the L-shaped seat 10 changes, the L-shaped seat 10 can push or pull the first straight pipe 42 and the second straight pipe 45 to move, and the second straight pipe 45 can be moved. The three springs 43 and the fourth spring 46 are correspondingly compressed or stretched, the surface of the roller screw 40 can be cleaned, and the movement of the L-shaped seat 10 is not affected by the first straight pipe 42 and the second straight pipe 45. Affect, the sewage after cleaning can seep down by the strip leak hole on the support frame 9, enters in the collection tank 18 at last.

Cutting workflow:

Fix the workpiece first, place the workpiece between the baffle plate 11 and the pressure plate 15, the hydraulic cylinder 14 drives the pressure plate 15 to move up and press the workpiece, turn on the laser marker 36, and adjust the relative position of the workpiece and the grinding wheel 6 by adjusting the assembly , rotating the turntable 41 drives the roller screw 40 to rotate, so that the L-shaped seat 10 moves along the direction of the guide rod 39, thereby adjusting the position of the workpiece, and then the opening end of the sealing chamber 1 is sealed by closing a pair of door panels 21 to prevent The smoke escapes, and can be inserted into two door handles 22 through the door bolt 23 to limit the door panel 21. The motor 7 is started to work and the belt mechanism 8 drives the rotating shaft 5 to rotate, and the grinding wheel sheet 6 at the end of the rotating shaft 5 rotates. Start a pair of oil cylinders 37 to drive the support frame 9 to move vertically upwards slowly, thereby performing the cutting operation.

The above is only a preferred embodiment of the present invention, but the scope of protection of the present invention is not limited thereto, any person familiar with the technical field within the technical scope disclosed in the present invention, according to the technical solution of the present invention Any equivalent replacement or change of the inventive concepts thereof shall fall within the protection scope of the present invention.

Claims (10)

1. A cutting device with a safety protection function, characterized in that it comprises a sealed chamber (1), one end of the sealed chamber (1) is open, and the open end of the sealed chamber (1) is provided with a sealed door mechanism, The sealing door mechanism can seal the opening end of the sealing chamber (1); It also includes a cutting mechanism, a positioning mechanism and a dust reduction mechanism, the cutting mechanism is arranged inside the sealed chamber (1), the positioning mechanism is arranged at the inner bottom of the sealed chamber (1), and the positioning mechanism is used for positioning the workpiece, the The dust suppression mechanism is installed on one side of the sealed chamber (1). 2. A kind of cutting equipment with safety protection function according to claim 1, characterized in that, the cutting mechanism includes a frame (2), a sleeve (3), a protective cover (4), a rotating shaft (5) , a grinding wheel (6), a motor (7) and a belt mechanism (8), the frame (2) is fixedly installed on the outside of the sealed chamber (1), and the sleeve (3) is fixedly installed on the sealed chamber (1) Inside, the protective cover (4) is fixedly connected to the end of the casing (3), and the rotating shaft (5) is arranged in the casing (3) and is rotatably mounted on the inside of the sealing chamber (1). One end of the rotating shaft (5) runs through the sealed chamber (1), the grinding wheel piece (6) is fixedly connected to the end of the rotating shaft (5), the grinding wheel piece (6) is located in the protective cover (4), and the motor (7) It is fixedly installed on the frame (2), and the output shaft of the motor (7) and the rotating shaft (5) are driven by a belt mechanism (8). 3. A kind of cutting equipment with safety protection function according to claim 1, characterized in that, the positioning mechanism includes a support frame (9), an L-shaped seat (10), a baffle plate (11), a chute ( 12), slider (13), hydraulic cylinder (14), pressure plate (15), a pair of oil cylinders (37) and a pair of side plates (38), the support frame (9) is located in the sealed chamber (1), The L-shaped seat (10) is located in the support frame (9), the baffle (11) is fixedly connected to the L-shaped seat (10), and the chute (12) is opened on the L-shaped seat (10) , the slider (13) is slidingly arranged in the chute (12), the hydraulic cylinder (14) is fixedly connected to the L-shaped seat (10), the pressure plate (15) is located at the lower end of the baffle plate (11), Described pressing plate (15) is fixedly connected with slide block (13), and described pressing plate (15) is fixedly connected with the output end of hydraulic cylinder (14), and a pair of described oil cylinders (37) are distributed at intervals and are fixedly connected in the sealing chamber ( 1) Inner bottom, the output ends of the oil cylinders (37) are all fixedly connected to the bottom of the support frame (9), and a pair of side plates (38) are symmetrically distributed and fixedly connected to both sides of the bottom of the support frame (9). 4. A kind of cutting equipment with safety protection function according to claim 1, it is characterized in that, described dust reduction mechanism comprises a plurality of high-pressure spray heads (16), and a plurality of described high-pressure spray heads (16) are installed in sealing In the chamber (1), the high-pressure spray nozzles (16) are all communicated with the external high-pressure water pump through water pipes, and the bottom of the sealed chamber (1) is provided with several evenly distributed strip-shaped ports (17), and the strip-shaped ports ( 17) communicate with the interior of the sealed chamber (1), the bottom of the sealed chamber (1) is fixedly equipped with a collection tank (18), and the collection tank (18) communicates with the interior of the sealed chamber (1) through several strip-shaped ports (17) The collecting tank (18) is communicated with a pipeline and can transport the liquid in the collecting tank (18) to the outside of the collecting tank (18). 5. A cutting device with a safety protection function according to claim 1, characterized in that, the airtight door mechanism comprises a pair of strip plates (19), a pair of rotating shafts (20), a pair of door panels (21 ), two door handles (22) and door bolts (23), a pair of strip plates (19) are respectively fixedly connected to the upper and lower sides of the opening end of the sealed chamber (1), and a pair of said rotating shafts (20) are located at the two Between the two strip plates (19), the two ends of the rotating shaft (20) are respectively rotatably mounted on the strip plates (19) on both sides, and a pair of the door panels (21) are fixedly connected to a pair of rotating shafts respectively. (20), the two door panels (21) can seal the open end of the sealed chamber (1), and the two door handles (22) are fixedly connected to the two door panels (21) respectively, and the door bolt (23) can be inserted in the two door handles (22). 6. A kind of cutting equipment with safety protection function according to claim 1, is characterized in that, described airtight door mechanism also comprises driving wheel (24), U-shaped frame (25), driving strip (26), the first One disc (27), first spring (28), top block (29), support plate (30), travel switch (31), limit hole (32), limit pin (33), second disc (34) and the second spring (35), the upper end of the rotating shaft (20) on one side passes through the strip plate (19), and the driving wheel (24) is fixedly connected to the upper end of the rotating shaft (20) on one side , the U-shaped frame (25) is fixedly connected to the top of the sealed chamber (1), the driving bar (26) runs through the U-shaped frame (25), and the driving bar (26) is engaged with the driving wheel (24), The first disc (27) is fixedly connected to the driving bar (26), the first spring (28) is sleeved on one end of the driving bar (26), and the two ends of the first spring (28) are fixedly connected respectively On the first disc (27) and the U-shaped frame (25), the top block (29) is fixedly connected to the end of the drive bar (26), and the support plate (30) is fixedly connected to the sealed chamber (1 ) top, the travel switch (31) is fixedly connected on the support plate (30), the top block (29) can be supported on the travel switch (31), and the limit hole (32) is opened on the drive bar ( 26), the limit pin (33) is arranged on the U-shaped frame (25) and the lower end passes through the U-shaped frame (25), and the second disc (34) is fixed on the top of the limit pin (33) , the second spring (35) is sleeved on the limit pin (33), and the two ends of the second spring (35) are fixedly connected to the second disc (34) and the U-shaped frame (25) respectively, The bottom end of the limit pin (33) is set as a spherical surface and abuts against the drive bar (26), and the lower end of the limit pin (33) can be inserted into the limit hole (32). 7. A cutting device with a safety protection function according to claim 1, characterized in that an auxiliary knife setting mechanism is provided in the sealed chamber (1), and the auxiliary knife setting mechanism can display the grinding wheel (6 ) the cutting position on the workpiece. 8. A kind of cutting equipment with safety protection function according to claim 1, characterized in that, the auxiliary knife setting mechanism includes a laser liner (36), and the laser liner (36) is installed on the sealed In the top of the chamber (1), the inline light of the laser marking device (36) is coplanar with the grinding wheel sheet (6); The auxiliary tool setting mechanism also includes an adjustment assembly, which can adjust the position of the L-shaped seat (10), and a glass observation window (48) is installed on one side of the sealed chamber (1); The adjustment assembly includes two guide rods (39), a roller screw (40) and a turntable (41), the two guide rods (39) are arranged at intervals and pass through the L-shaped seat (10), the guide rods (39) ends are fixedly connected on the inside of the support frame (9) respectively, and the described roller screw rod (40) runs through the L-shaped seat (10) and is threadedly connected with the L-shaped seat (10), and the described roller screw rod ( 40) The ends are rotatably mounted on the inside of the support frame (9), the turntable (41) is rotatably mounted outside the support frame (9), and the rotating shaft of the turntable (41) runs through the support frame (9) and is connected to the roller The column screw (40) engages. 9. A kind of cutting equipment with safety protection function according to claim 1, characterized in that, the upper end of the roller screw (40) is provided with a cleaning mechanism, and the cleaning mechanism can clean the roller screw (40). ) surface for cleaning. 10. A kind of cutting equipment with safety protection function according to claim 1, characterized in that, the cleaning mechanism comprises a first straight pipe (42), a third spring (43), a plate (44), a second Straight pipe (45), the fourth spring (46) and a plurality of water outlet holes (47), the first straight pipe (42) and the second straight pipe (45) are respectively located on both sides of the L-shaped seat (10), The first straight pipe (42) and the second straight pipe (45) all pass through the support frame (9), and one end of the first straight pipe (42) is fixedly connected to the L-shaped seat (10), and the plate ( 44) Fixed on the L-shaped seat (10), one end of the second straight pipe (45) is fixed on the plate (44), and the third spring (43) and the fourth spring (46) are sleeved respectively On the first straight pipe (42) and the second straight pipe (45), the two ends of the third spring (43) are fixedly connected to the L-shaped seat (10) and the support frame (9) respectively, and the fourth The two ends of the spring (46) are fixedly connected to the support frame (9) and the plate (44) respectively, and the bottoms of the first straight pipe (42) and the second straight pipe (45) are provided with a plurality of equally spaced water outlets. Holes (47), the water outlet holes (47) are all set towards the roller screw (40), the ends of the first straight pipe (42) and the second straight pipe (45) are connected to the external water supply equipment through hoses connected.
