Abstract

The present invention relates to the technical field of antimicrobial peptide production equipment, in particular to a novel antimicrobial peptide production and cleaning device, comprising: a casing and an air intake pipe; The air intake pipe is connected; the dust suction mechanism is arranged inside the housing and connected with the dust collection mechanism; the transmission assembly is arranged between the dust suction mechanism and the dust collection mechanism. Between mechanisms; wherein, the dust collection mechanism includes: a filter assembly, which is slidably connected to the inner side of the housing, connected with the dust suction mechanism, and connected with the transmission assembly; a storage assembly, storing The assembly is detachably connected with the filter assembly; the cleaning assembly is arranged between the housing and the filter assembly, and by setting a dust collection mechanism and cooperating with the dust suction mechanism and the transmission assembly, it can not only complete Absorb dust, and can filter and collect the absorbed dust.

Description

A new type of antimicrobial peptide production cleaning device

technical field

The invention relates to the technical field of antimicrobial peptide production equipment, in particular to a novel antimicrobial peptide production cleaning device.

Background technique

Antimicrobial peptides refer to a class of basic polypeptide substances with antibacterial activity induced in insects. Most of these active peptides have the characteristics of strong alkalinity, thermal stability and broad-spectrum antibacterial properties. Natural antimicrobial peptides have selective immune activation and regulation functions, and have good preventive and protective effects on sepsis.

During the production process of antimicrobial peptides, the production environment needs to be cleaned and dust removed, so as to avoid the reduction of the purity of the finished product, but the existing cleaning devices cannot collect the dust, resulting in a mediocre cleaning effect. Therefore, in view of the above current situation, it is urgent to develop a Novel antimicrobial peptide production cleaning device to overcome deficiencies in current practical applications.

Contents of the invention

The object of the present invention is to provide a novel antimicrobial peptide production and cleaning device to solve the problems raised in the above-mentioned background technology.

To achieve the above object, the present invention provides the following technical solutions:

A new type of antimicrobial peptide production cleaning device, including:

a housing and an air intake pipe, the air intake pipe is fixedly connected to the housing;

A dust collection mechanism, the dust collection mechanism is slidingly connected to the inside of the housing and connected to the air intake pipe for filtering and recycling dust;

a dust suction mechanism, the dust suction mechanism is arranged inside the housing and connected with the dust collection mechanism, and is used to cooperate with the dust collection mechanism to absorb dust;

A transmission assembly, the transmission assembly is arranged between the dust collection mechanism and the dust collection mechanism, and is used to cooperate with the dust collection mechanism to realize the reciprocating movement of the dust collection mechanism;

Wherein, the dust collection mechanism includes:

A filter assembly, the filter assembly is slidingly connected to the inside of the housing, connected to the dust suction mechanism, and connected to the transmission assembly, and is used to cooperate with the dust suction mechanism to filter dust in the air;

a storage component, the storage component is detachably connected to the filter component;

A cleaning component, the cleaning component is arranged between the casing and the filter component, and is used to cooperate with the transmission component to collect dust by the storage component.

Compared with prior art, the beneficial effect of the present invention is:

When the device is running, the dust suction mechanism absorbs the air, and the air enters the inside of the filter assembly along the intake pipe, and the filter assembly filters the dust in the air. The air discharged by the dust suction mechanism will drive the transmission assembly, and the transmission assembly drives the filter assembly. The assembly reciprocates up and down along the shell wall of the housing, and the filter assembly will drive the cleaning assembly during the movement process, and the cleaning assembly will sweep the dust left on the filter assembly into the inside of the storage assembly, thereby completing the cleaning of the dust Compared with the cleaning device in the prior art, this application cannot collect dust, resulting in general cleaning effect. By setting up a dust collection mechanism and cooperating with the dust suction mechanism and the transmission assembly, not only can the dust be absorbed, but also the dust can be collected. The absorbed dust is filtered and collected to avoid secondary pollution to the environment and ensure cleaning efficiency and cleaning effect.

Description of drawings

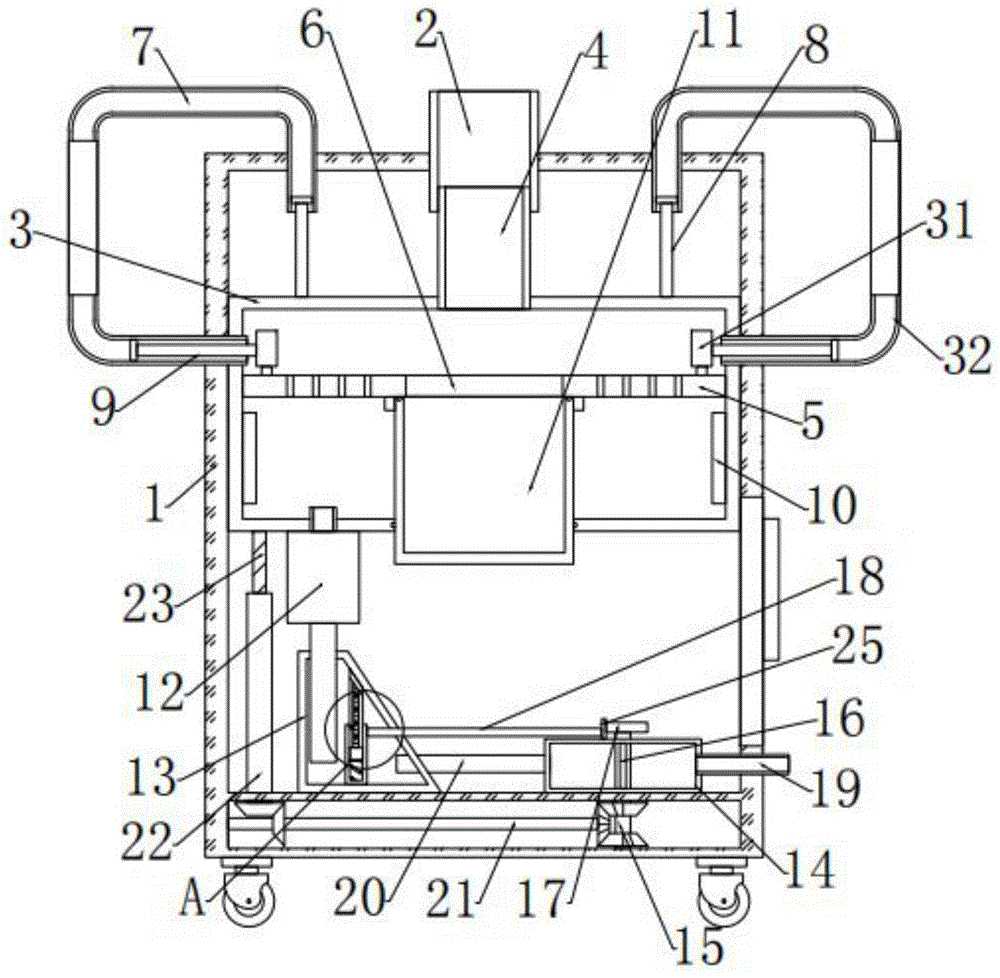

Figure 1 is a structural schematic diagram of a cleaning device for the production of novel antimicrobial peptides.

Fig. 2 is a top view of the filter box in the novel antimicrobial peptide production and cleaning device.

Fig. 3 is a top view of the transmission assembly in the novel antimicrobial peptide production and cleaning device.

FIG. 4 is a schematic diagram of an enlarged structure at point A in FIG. 1 .

Fig. 5 is a structural schematic diagram of a filter frame in a cleaning device for producing novel antimicrobial peptides.

In the figure: 1-shell, 2-intake pipe, 3-filter box, 4-connecting pipe, 5-filter plate, 6-drain outlet, 7-first piston tube, 8-first piston part, 9-the first Two piston parts, 10-disinfection lamp, 11-dust box, 12-vacuum pump, 13-purification box, 14-transmission box, 15-transmission rod, 16-fan blade, 17-cam, 18-sliding rod, 19-exhaust pipe, 20-blowing pipe, 21-driven rod, 22-support rod, 23-threaded rod, 24-air guide pipe, 25-push plate, 26-slider, 27-filter frame, 28-filter , 29-the second cleaning brush, 30-elastic member, 31-the first cleaning brush, 32-the second piston tube.

detailed description

The technical solution of this patent will be further described in detail below in conjunction with specific embodiments.

Embodiments of the present patent are described in detail below, examples of which are shown in the drawings, wherein the same or similar reference numerals designate the same or similar elements or elements having the same or similar functions throughout. The embodiments described below by referring to the figures are exemplary and are only used for explaining the patent, and should not be construed as limiting the patent.

Please refer to Fig. 1, in one embodiment of the present invention, a kind of novel antimicrobial peptide production cleaning device comprises: housing 1 and air inlet pipe 2, and described air inlet pipe 2 is fixedly connected with described housing 1; Dust collecting mechanism, The dust collection mechanism is slidingly connected to the inside of the housing 1 and is connected to the air intake pipe 2 for filtering and recycling dust; the dust suction mechanism is arranged on the housing 1. The inner side is connected with the dust collection mechanism, and is used to cooperate with the dust collection mechanism to realize the absorption of dust; the transmission assembly, the transmission assembly is arranged between the dust suction mechanism and the dust collection mechanism, for Cooperate with the dust collection mechanism to realize the reciprocating movement of the dust collection mechanism; wherein, the dust collection mechanism includes: a filter assembly, the filter assembly is slidably connected to the inside of the housing 1 and connected to the dust collection mechanism, and It is connected with the transmission assembly and is used to cooperate with the dust suction mechanism to filter the dust in the air; the storage assembly is detachably connected with the filter assembly; the cleaning assembly is arranged on the housing 1 and the filter assembly, used to cooperate with the transmission assembly to realize the collection of dust by the storage assembly.

In this embodiment, when the device is running, the dust suction mechanism absorbs the air, and the air enters the inside of the filter assembly along the intake pipe, and the filter assembly filters the dust in the air, and the air discharged by the dust suction mechanism will drive the transmission assembly, and the transmission The assembly drives the filter assembly to reciprocate up and down along the shell wall of the housing 1, and the filter assembly drives the cleaning assembly during the movement process, and the cleaning assembly sweeps the dust left on the filter assembly into the inside of the storage assembly , and then complete the collection of dust. Compared with the cleaning device in the prior art, the present application cannot collect dust, resulting in a general cleaning effect. Absorption, and can filter and collect the absorbed dust, avoid secondary pollution to the environment, and ensure cleaning efficiency and cleaning effect.

In one embodiment of the present invention, please refer to Figure 1 and Figure 2, the filter assembly includes: a filter box 3, the filter box 3 is slidingly connected to the inside of the housing 1, and one end is connected to the dust suction mechanism , and connected with the transmission assembly; connecting pipe 4, the connecting pipe 4 is arranged between the air inlet pipe 2 and the filter box 3, fixedly connected with the filter box 3, and connected with the air inlet pipe 2 Sliding connection; filter plate 5, the filter plate 5 is fixedly connected to the inner side of the filter box 3, arranged opposite to the connecting pipe 4, and connected to the storage component, for filtering dust in the air; A disinfection lamp 10, the disinfection lamp 10 is fixedly connected with the wall of the filter box 3.

In this embodiment, the disinfection lamp 10 is arranged on the side of the filter plate 5 away from the connecting pipe 4, and the disinfection lamp 10 is distributed in a ring shape on the inner wall of the filter box 3. By setting the filter assembly, the outside world After the air enters the inside of the filter box 3 along the intake pipe 2 and the connecting pipe 4, the filter plate 5 filters the dust in the air, and the disinfection lamp 10 kills the filtered air, which improves the purification ability of the device.

In one embodiment of the present invention, the storage assembly includes: a sewage outlet 6, the sewage outlet 6 is arranged on the wall of the filter plate 5; a dust collection box 11, the dust collection box 11 and the filter box 3 The box wall abuts and is threadedly connected with the filter plate 5 for cooperating with the sewage outlet 6 and the cleaning assembly to collect dust.

In this embodiment, the sewage outlet 6 is located at the central position of the filter plate 5, the bottom end of the filter box 3 of the dust collection box 11 is pipe wall, the top of the dust collection box 11 is connected to the filter plate 5 screw connection, wherein, the top wall of the dust collection box 11 and the wall of the connection between the filter box 3 and the dust collection box 11 are all provided with sealing rings to ensure the sealing of the device. By setting the storage component, The cleaning assembly sweeps the dust on the filter plate 5 into the inside of the dust box 11 through the sewage outlet 6, which not only ensures the dust removal efficiency of the device, but also facilitates people to clean the device.

In one embodiment of the present invention, the cleaning assembly includes: a second piston tube 32, the second piston tube 32 is arranged outside the filter plate 5, fixedly connected with the filter box 3, and connected with the shell The body 1 is slidingly connected; the first cleaning brush 31, the first cleaning brush 31 is arranged on the outside of the filter plate 5, and is connected with the second piston tube 32 through the second piston member 9; the first piston tube 7. The first piston tube 7 is fixedly connected to the housing 1, and one end is connected to the second piston tube 32 through a rubber tube, and the other end is slidingly connected to the inside of the first piston tube connected to the filter box 3. The piston member 8 is used for moving the first cleaning brush 31 in cooperation with the lifting of the filter box 3 .

In this embodiment, the first piston tube 7 is fixedly connected and arranged on both sides of the top end of the housing 1, wherein the first piston member 8 includes a first piston member slidably connected inside the first piston tube 7. Piston, the outer side of the first piston is fixedly connected with a first push rod, the other end of the first push rod is fixedly connected with the filter box 3, and the second piston tube 32 is fixedly connected with the housing 1 On both sides of the shell wall, a rubber tube is fixedly connected between the second piston tube 32 and the first piston tube 7, and the second piston member 9 includes a sliding connection and is arranged inside the second piston tube 32. the second piston, the outer side of the second piston is fixedly connected with a second push rod, and the other end of the second push rod is fixedly connected with the first cleaning brush 31 arranged outside the filter plate 5, by setting the cleaning assembly , when the filter box 3 moves, the filter box 3 drives the first piston to slide inside the first piston tube through the first push rod, so that the second piston located inside the second piston tube 32 moves, and the second piston passes through The second push rod realizes the movement of the second cleaning brush 29, and the second cleaning brush 29 sweeps the dust on the filter plate 5 into the inside of the dust box 11 to avoid dust accumulation and ensure smoothness and stability of air purification.

In one embodiment of the present invention, please refer to Fig. 1 and Fig. 3, described dust suction mechanism comprises: dust suction pump 12, described dust suction pump 12 is fixedly connected with described filter box 3, is used for driving air flow; Assemblies, the dust removal assembly is connected with the housing 1, connected with the output end of the dust suction pump 12 through the air duct 24, and connected with the transmission assembly, for purifying the air.

In this embodiment, the air guide pipe 24 is fixedly connected to the output end of the dust suction pump 12, the air guide pipe 24 is slidably connected to the purification box 13 inside the dust removal assembly, and the input end of the dust suction pump 12 is connected to The inside of the filter box 3 is provided with a dust suction mechanism, so that the device can complete the absorption of external air, and cooperate with the dust removal component to complete the secondary purification of the air, which can not only realize the drive of the device, but also greatly improve the performance of the device. Purifying effect.

In one embodiment of the present invention, please refer to FIG. 1 , FIG. 4 and FIG. 5 , the dust removal assembly includes: a clean box 13 , the clean box 13 is fixedly connected to the housing 1 , and connected to the air duct 24 Sliding connection; sliding plate 26, the sliding connection of the sliding plate 26 is arranged on the inner side of the purification box 13, and is connected with the transmission assembly through a pusher; filter frame 27, the sliding connection of the filtering frame 27 and the sliding plate 26, the inner side The fixed connection is provided with a filter screen 28, and one end abuts against the wall of the purification box 13, and the other end is connected with the slide plate 26 through an elastic member 30 for realizing dust removal of the air; the second cleaning brush 29, the The second cleaning brush 29 is arranged outside the filter screen 28 and is fixedly connected with the slide plate 26 for cleaning the filter screen 28 in cooperation with the movement of the slide plate 26 .

In this embodiment, the longitudinal section of the purification box 13 has a trapezoidal structure, the top of the filter frame 27 abuts against the hypotenuse of the purification box 13, and the filter frame 27 and the slide plate 26 are fixedly connected with a Elastic member 30, the elastic member 30 is a spring, in addition, a return spring is fixedly connected between the slide plate 26 and the purification box 13, and the pusher includes a slide bar 18 fixedly connected with the slide plate 26 , the sliding rod 18 is slidingly connected to the wall of the purification box 13, the outer side of the other end of the sliding rod 18 is fixedly connected to a push plate 25 connected to the transmission assembly, and the second cleaning brush 29 is fixedly connected to the On the inner wall at the top of the slide plate 26, by setting the dust removal assembly, the air output by the dust suction pump 12 enters the inside of the purification box 13 along the air duct 24, and the filter screen 28 inside the filter frame 27 performs secondary dust removal on the dust, and the purified The air enters the inner side of the transmission assembly. When the transmission assembly is in operation, it cooperates with the pusher to realize the reciprocating motion of the slide plate 26. When the slide plate 26 moves, it cooperates with the wall of the purification box 13 to realize the up and down reciprocation of the filter frame 27. The second cleaning brush 29 pairs The filter screen 28 positioned at the inner side of the filter frame 27 is cleaned, and the cleaned dust falls into the inner side of the purification box 13, which ensures the purification effect of the device.

In one embodiment of the present invention, the transmission assembly includes: a transmission box 14, the transmission box 14 is fixedly connected to the housing 1, and is connected to the purification box 13 through an air blowing pipe 20; an exhaust pipe 19, The exhaust pipe 19 is arranged between the transmission box 14 and the housing 1; The fan blade 16 is fixedly connected; the cam 17 is arranged on the outside of the pusher in contact with the cam 17, and is fixedly connected with the transmission rod 15, and is used to cooperate with the transmission rod 15 to drive the sliding plate 26 to move; the support rod 22, the support rod 22 is rotatably connected with the housing 1, and the inner threaded connection is provided with a threaded rod 23 fixedly connected with the filter assembly; a driven rod 21, the driven rod 21 is arranged on the support Between the rod 22 and the transmission rod 15, one end is rotatably connected to the housing 1, and the other end is connected to the transmission rod 15 through a gear member, and is connected to the support rod 22 for matching the transmission rod 15 drives the support rod 22 to rotate.

In this embodiment, the gear member includes a first gear that is fixedly connected to the outside of the driven rod 21, and both sides of the first gear are meshed and connected to a second gear that is fixedly connected to the transmission rod 15 , the second gear is a half gear, and the driven rod 21 and the support rod 22 are meshed and connected by a third gear, the first gear and the third gear are both bevel gears, and the threaded rod 23 It is threadedly connected with the support rod 22 and fixedly connected with the filter box 3. In addition, the air blowing pipe 20 is connected with the side wall of the transmission box 14. By setting the transmission assembly, the air after dust removal enters along the air blowing pipe 20 The inner side of the transmission box 14 is discharged through the exhaust pipe 19. When the air flows inside the transmission box 14, it cooperates with the fan blade 16 to realize the rotation of the transmission rod 15. The transmission rod 15 realizes the reciprocating motion of the slide plate 26 through the cam 17, and the transmission The rod 15 can also drive the driven rod 21 to alternately rotate clockwise and counterclockwise, the driven rod 21 drives the support rod 22 to rotate, and the support rod 22 cooperates with the threaded rod 23 to realize the filter box 3 Up and down reciprocating movement, thereby complete collection of dust on the surface of the filter plate 5 .

In one embodiment of the present invention, both sides of the bottom end of the housing 1 are fixedly connected with casters, so that it is convenient for people to move the device.

In one embodiment of the present invention, a box door is hingedly arranged on the shell wall of the housing 1 , and by setting the box door, it is convenient for people to take and place the dust box 11 .

The new antimicrobial peptide production and cleaning device can not only complete the absorption of dust, but also filter and collect the absorbed dust by setting a dust collection mechanism and cooperating with the dust collection mechanism and transmission components, so as to avoid causing secondary pollution to the environment. The cleaning efficiency and cleaning effect are guaranteed. By setting up the cleaning assembly, when the filter box 3 moves, the filter box 3 drives the first piston to slide inside the first piston tube through the first push rod, so that it is located in the second The second piston on the inner side of the piston tube 32 moves, and the second piston realizes the movement of the second cleaning brush 29 through the second push rod, and the second cleaning brush 29 sweeps the dust on the filter plate 5 into the inside of the dust box 11 to avoid Dust accumulation ensures the fluency and stability of air purification. By setting up a dust suction mechanism, the device can complete the absorption of external air, and cooperate with the dust removal component to complete the secondary purification of the air, which can not only realize the drive of the device, but also It can greatly improve the purification effect of the device.

The above are only preferred embodiments of the present invention, and it should be pointed out that for those skilled in the art, some modifications and improvements can be made without departing from the concept of the present invention, and these should also be regarded as protection of the present invention. None of these will affect the effect of implementing the present invention and the practicability of the patent.

Claims (7)

1. A novel antibiotic peptide produces cleanness device which characterized in that includes:

the air inlet pipe is fixedly connected with the shell;

the dust collecting mechanism is arranged on the inner side of the shell in a sliding connection mode, is connected with the air inlet pipe and is used for filtering and recycling dust;

the dust collection mechanism is arranged on the inner side of the shell, is connected with the dust collection mechanism and is used for realizing the absorption of dust in cooperation with the dust collection mechanism;

the transmission assembly is arranged between the dust collection mechanism and is used for matching with the dust collection mechanism to realize the reciprocating motion of the dust collection mechanism;

wherein, dust collection mechanism includes:

the filtering component is arranged on the inner side of the shell in a sliding connection mode, connected with the dust suction mechanism and connected with the transmission component and used for being matched with the dust suction mechanism to filter dust in air;

the receiving assembly is detachably connected with the filtering assembly;

clean the subassembly, clean the subassembly and locate the casing with between the filtering component, be used for the cooperation the transmission assembly realizes accomodating the collection of subassembly to the dust.

2. The novel antimicrobial peptide production cleaning device of claim 1, wherein the filter assembly comprises:

the filter box is slidably connected to the inner side of the shell, and one end of the filter box is connected with the dust collection mechanism and the transmission assembly;

the connecting pipe is arranged between the air inlet pipe and the filter box, is fixedly connected with the filter box and is in sliding connection with the air inlet pipe;

the filter plate is fixedly connected to the inner side of the filter box, arranged opposite to the connecting pipe, connected with the containing assembly and used for filtering dust in air;

and the disinfection lamp is fixedly connected with the wall of the filter box.

3. The novel antimicrobial peptide production cleaning device of claim 2, wherein the receiving assembly comprises:

the sewage draining port is arranged on the wall of the filter plate;

and the dust collection box is abutted against the wall of the filter box and is in threaded connection with the filter plate, and is used for matching the drain outlet and the cleaning component to collect dust.

4. The novel antimicrobial peptide production cleaning device of claim 3, wherein the sweeping assembly comprises:

the second piston pipe is arranged on the outer side of the filter plate, is fixedly connected with the filter box and is connected with the shell in a sliding manner;

the first cleaning brush is abutted to the outer side of the filter plate and is connected with the second piston pipe through a second piston piece;

the first piston pipe is fixedly connected with the shell, one end of the first piston pipe is connected with the second piston pipe through a rubber pipe, and the inner side of the other end of the first piston pipe is slidably connected with a first piston piece connected with the filter box and used for matching with the lifting of the filter box to realize the movement of the first cleaning brush.

5. The novel antimicrobial peptide production cleaning device as claimed in claim 2, wherein the dust suction mechanism comprises:

the dust suction pump is fixedly connected with the filter box and is used for driving air to flow;

the dust removal assembly is connected with the shell, connected with the output end of the dust collection pump through an air duct and connected with the transmission assembly for purifying air.

6. A novel antimicrobial peptide production cleaning device as claimed in claim 5, characterized in that the dust removal assembly comprises:

the purification box is fixedly connected with the shell and is in sliding connection with the air guide pipe;

the sliding plate is arranged on the inner side of the purifying box in a sliding connection manner and is connected with the transmission assembly through a pushing piece;

the filter frame is connected with the sliding plate in a sliding manner, a filter screen is fixedly connected to the inner side of the filter frame, one end of the filter frame is abutted against the wall of the purification box, and the other end of the filter frame is connected with the sliding plate through an elastic piece and used for removing dust in air;

the second cleaning brush is arranged on the outer side of the filter screen and fixedly connected with the sliding plate, and is used for matching the sliding plate to move to clean the filter screen.

7. The novel antimicrobial peptide production cleaning apparatus of claim 6, wherein the transmission assembly comprises:

the transmission box is fixedly connected with the shell and is connected with the purification box through an air blowing pipe;

the exhaust pipe is arranged between the transmission case and the shell;

the transmission rod is rotationally connected with the transmission box and fixedly connected with the fan blades arranged on the inner side of the transmission box;

the cam is abutted to the outer side of the pushing piece, is fixedly connected with the transmission rod and is used for matching the transmission rod to drive the sliding plate to move;

the supporting rod is rotatably connected with the shell, and a threaded rod fixedly connected with the filtering component is arranged on the inner side of the supporting rod in a threaded connection manner;

the driven rod is arranged between the support rod and the transmission rod, one end of the driven rod is rotatably connected with the shell, and the other end of the driven rod is connected with the transmission rod through a gear piece and is connected with the support rod to be matched with the transmission rod to drive the support rod to rotate.
