Abstract

The invention discloses a pickup box. The pickup box includes side rails. Inside the pickup box, a side box is arranged above the wheel bag area. The lateral outer end of the side box is an open end, and the side rail is movable. It is connected to the side box and can open or close the open end of the side box. The invention also discloses a pickup. The pickup box of the present invention is provided with a side box above the wheel bag area as a closed storage space, which expands the space utilization rate of the pickup box and meets the user's personalized and private storage needs; the side box is set to open laterally at the outer end , the side fence acts as a protective door and plays the role of opening or closing the opening of the side box. The performance requirements of the side fence structure make it a better protection ability as a protective door to ensure the safety of the items inside the side box; On the other hand, after opening the side box, the user can stand on the ground to pick and place items, which is convenient and quick, and the user experience is better.

Description

A kind of pickup box and electric pickup

technical field

The invention relates to the technical field of vehicles, in particular to a pickup box and an electric pickup.

Background technique

In recent years, with the rise of going camping with pickup trucks at home and abroad, the diversity of pickup truck functions and the development of multiple scenarios have become the current trend. Therefore, it is necessary to redesign the structure of the pickup truck container and optimize the space of the pickup truck container through structural design. Secondary development and utilization to meet the multi-scenario application needs of consumers.

Contents of the invention

The purpose of the present invention is to provide a pickup container, which can carry out secondary development and utilization of space through a new structural design, expand the space utilization rate of the pickup container, and meet the multi-scenario application needs of consumers.

In order to solve the above-mentioned technical problems, the present invention provides a pickup box, the pickup box includes side rails, a side box is arranged inside the pickup box above the wheel bag area, and the side box is transversely The outer end is an open end, and the side fence is movably connected to the side box, and can open or close the open end of the side box.

The pickup box of the present invention, firstly, a side box is set above the wheel bag area as a closed storage space, and the space above the wheel bag area is fully utilized, which not only further increases the storage space, expands the utilization rate of the pickup box space, and can meet the The user's personalized and private storage needs; at the same time, the side box is set to open at the lateral outer end, and the side rail is set to be movable, and the side rail is used as a protective door to open or close the opening of the side box On the one hand, the performance requirements of the side fence structure make it better protective as a protective door and less prone to damage, ensuring the safety of the items inside the side box during vehicle driving; on the other hand, when opening Behind the side box, users can stand on the ground to take and place items, which is convenient and quick, and the user experience is better.

Optionally, it also includes two slide rail components, the slide rail components are arranged at both longitudinal ends of the side fence, including a first slide rail and a second slide rail, wherein:

The first slide rail is slidably installed on the side wall of the side box and extends laterally, and the second slide rail extends vertically, including an outer slide rail and an inner slide rail slidably installed inside the outer slide rail. As for the slide rail, one of the outer slide rail and the inner slide rail is connected to the first slide rail, and the other is connected to the side rail.

Optionally, it also includes a first driving part and a second driving part, the first driving part is relatively fixed to the side wall of the side box, and is connected with the first slide rail, and is used to drive the first driving part. A sliding rail moves laterally; the second driving part is relatively fixed to the outer sliding rail and connected to the inner sliding rail, and is used to drive the inner sliding rail to move vertically.

Optionally, a guide portion is provided on the side wall of the side box, the guide portion extends laterally, a guide groove is formed inside the guide portion, and the first sliding rail is slidably installed inside the guide groove.

Optionally, a partition is further provided inside the side box, and the partition divides the inside of the side box into a plurality of accommodation spaces.

Optionally, a plurality of doors are further included, and the doors are arranged corresponding to the opening end of the accommodation space, so as to open or close the opening end of the accommodation space.

Optionally, the number of the partitions is two, and the inside of the side box is divided into a first accommodation space, a second accommodation space and a third accommodation space according to the wheel bag area.

Optionally, the door body includes a first door body, the first door body is arranged at the opening end of the first accommodation space, and can be turned up and down;

And/or, the door body includes a second door body and a third door body, the second door body is arranged at the opening end of the second accommodation space, and the third door body is arranged at the third accommodation space At the open end of the space, the second door body and the third door body are installed in a split form.

Optionally, the side railing includes a side railing outer panel and a side railing inner panel fixed on the inner side of the side railing outer panel, from top to bottom, the side railing outer panel and the side railing The inner and outer panels of the panels are gradually extended outward;

And/or, the side box body is welded by sheet metal parts.

The present invention also provides a pickup, including the aforementioned pickup box.

The pickup truck of the present invention includes the aforementioned pickup box, so it has the same technical effect as the aforementioned pickup box, and will not be repeated here.

Description of drawings

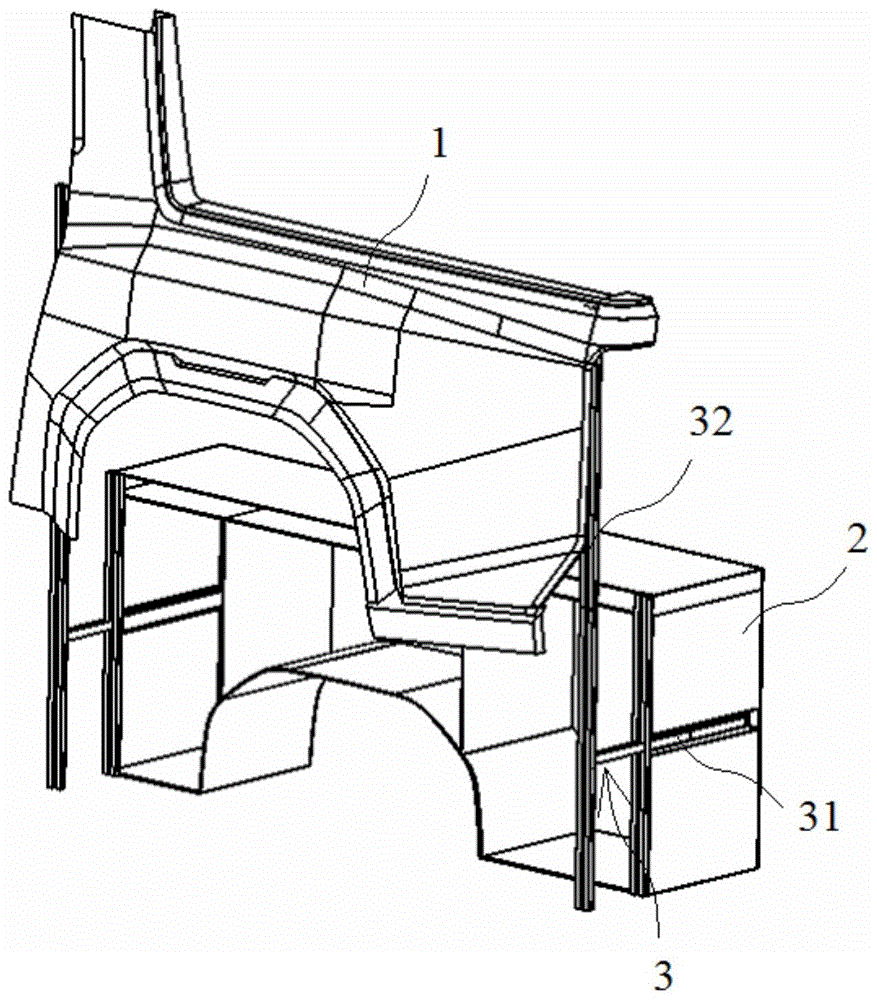

Fig. 1 is the first state diagram of a specific embodiment of the pickup box provided by the present invention when the side box is opened;

Fig. 2 is a second state diagram of the pickup container in Fig. 1 when the side box is opened;

Fig. 3 is a third state diagram of the pickup container in Fig. 1 when the side box is opened;

Fig. 4 is a schematic diagram of the structure inside the side box of the pickup container in Fig. 1;

Fig. 5 is a cross-sectional view of the side panel in the pickup box of Fig. 1;

Fig. 6 is a cross-sectional view of a side rail in a pickup box in the prior art;

Wherein, the reference signs in Fig. 1-Fig. 5 are explained as follows:

1 - side rails;

11- side fence outer panel;

12- side panel inner panel;

2- side box;

A- the first storage space;

B- the second storage space;

C- the third storage space;

3- slide rail components;

31 - the first slide rail;

32 - the second slide rail;

4 - clapboard;

Wherein, the reference numerals in Fig. 6 are explained as follows:

1'-side rail outer panel; 2'-side rail inner panel; 3'-wheel bag area.

detailed description

In order to enable those skilled in the art to better understand the technical solutions of the present invention, the present invention will be further described in detail below in conjunction with the accompanying drawings and specific embodiments.

Words such as "first" and "second" mentioned in this article are only for the convenience of describing two or more structures or components with the same or similar structure and/or function, and do not represent any order and/or importance. some special limit.

The "several" mentioned in this article refers to a number with an indeterminate number, usually more than two; and when "several" is used to indicate the quantity of certain components, it does not indicate the relationship between these components in terms of quantity.

In this paper, the longitudinal direction along the length of the vehicle body is referred to as the horizontal direction along the width of the vehicle body. In the lateral direction, the side close to the outside of the vehicle body is "outer", and the side close to the inside of the vehicle body is "inner".

Please refer to Fig. 1-Fig. 3, Fig. 1 is the first state diagram of a specific embodiment of the pickup box provided by the present invention when the side box is opened; Fig. 2 is the pickup box in Fig. 1 when the side box is opened The second state diagram; Fig. 3 is the third state diagram of the pickup container in Fig. 1 when the side box is opened.

The present invention provides a pickup box. The pickup box includes side rails 1. Inside the pickup box, a side box 2 is arranged above the wheel bag area. As shown in FIG. 3, the lower end of the side box 2 is recessed and ready to use In order to avoid the wheel bag area, the lateral outer end of the side box body 2 is an open end, and the side fence 1 is movably connected to the side box body 2 and can open or close the open end of the side box body 2 .

The pickup box of the present invention, firstly, the side box body 2 is arranged above the wheel bag area as a closed storage space, and the space above the wheel bag area is fully utilized, which not only further increases the storage space, expands the utilization rate of the pickup box space, and can Meet the user's personalized and private storage needs; at the same time, the side box 2 is set to open at the lateral outer end, and the side fence 1 is set to be movable. The function of the box body 2, on the one hand, the structural performance requirements of the side fence 1 make it better protective ability as a protective door body, and less prone to damage, so as to ensure the safety of the items inside the side box body 2 during the driving of the vehicle; on the other hand On the one hand, after opening the side box 2, the user can stand on the ground to take and place items, which is convenient and quick, and the user experience is better.

Further, the movement of the side fence 1 can be realized through the slide rail parts 3. Specifically, the pickup box of the present invention includes two slide rail parts 3, and the slide rail parts 3 are arranged on the longitudinal ends of the side fence 1, including The first slide rail 31 and the second slide rail 32, wherein:

The first slide rail 31 is slidably installed on the side wall of the side box body 2, and extends horizontally, and the second slide rail 32 extends vertically, including an outer slide rail and an inner slide rail slidably installed inside the outer slide rail. The rail is connected with the first slide rail 31 , and the inner slide rail is connected with the side rail 1 . Of course, it is also feasible that the inner slide rail is connected to the first slide rail 31 and the outer slide rail is connected to the side rail 1 .

In this way, in the process of opening the side box body 2, the side fence 1 can first move outward along the lateral direction, and its lateral movement process is shown in Figure 1 and Figure 2; Move vertically upwards, as shown in FIG. 3 , when the side fence 1 moves vertically into place, the side fence 1 remains at the current position, and the user can take out the required items from the inside of the side box 2 . The process of closing the side box 2 is opposite to the above-mentioned process. The side fence 1 first moves vertically downward. When moving in place, the side box body 2 is in a closed state.

It can be understood that the moving path of the side fence panel 1 is not limited to the above-mentioned embodiment. For example, the slide rail component 3 may only include an outer slide rail and an inner slide rail slidably installed inside the outer slide rail. The outer slide rail and the side box body 2 Hinged, the inner rail is connected with the side rail 1, in the process of opening the side box 2, the side rail 1 first moves outward, the inner rail moves outward relative to the outer rail, and then the side rail 1 rotates upward ; In the process of closing the side box body 2, the side fence 1 first rotates downward, and then moves inward, and the inner slide rail moves inward relative to the outer slide rail.

In practical applications, the horizontal and vertical movement of the side fence 1 can be manually driven. At this time, a locking component needs to be provided separately to lock the side fence 1 in the open position or the closed position, such as when the side fence 1 When it is in the open or closed position, a separate locking lever can be set, one end of the locking lever is detachably fixed to the side rail 1, and the other end is detachably fixed to the vehicle body or side box 2; when the side rail 1 needs to switch positions, Then detach the locking lever.

Further, in this embodiment, a first driving component and a second driving component are also provided, the first driving component is relatively fixed to the side wall of the side box body 2, and is connected with the first sliding rail 31 for driving the first driving component. The slide rail 31 moves horizontally; the second driving part is relatively fixed to the outer slide rail and connected to the inner slide rail, and is used to drive the inner slide rail to move vertically.

Wherein, the first drive component includes a first drive motor and a rack and pinion transmission unit, the first drive motor is relatively fixed to the side box 2, the output shaft of the first drive motor is fixed to the gear, and the rack is fixed to the first slide rail 31 , or the first slide rail 31 itself is provided with a tooth portion, and the first slide rail 31 is used as a rack. When the first drive motor is started, the first drive motor drives the gear to rotate, thereby driving the first slide rail 31 to move laterally.

The second drive component includes a second drive motor and a rack and pinion transmission unit, the second drive motor is relatively fixed to the outer slide rail, the output shaft of the second drive motor is fixed to the gear, and the rack is fixed to the inner slide rail, or the inner slide rail The gear portion is provided by itself, and the inner slide rail is used as a rack. When the second drive motor is started, the second drive motor drives the gear to rotate, thereby driving the inner slide rail to move vertically relative to the outer slide rail.

In practical applications, the start-up time of the first drive motor and the second drive motor can be controlled in advance. In the process of opening the side box 2, the first drive motor starts first, and only when the side fence 1 moves laterally into place, The second drive motor just starts. In the process of closing the side box body 2, the second driving motor is first started, and only when the side fence 1 is vertically moved in place, the first driving motor is started.

When the above-mentioned first driving part and the second driving part are set, on the one hand, there is no need to manually open or close the side fence 1, which saves time and effort; on the other hand, the side fence 1 can also be It is kept in the open or closed position, has a simple structure and is more reliable, and is a more preferred solution.

Of course, the structure of the first driving part and the second driving part is not limited to the above-mentioned embodiment, as the first driving part can also be an electric cylinder/air cylinder/hydraulic oil cylinder capable of producing a linear position, and the electric cylinder/air cylinder/hydraulic oil cylinder and The side box body 2 is relatively fixed and connected with the first slide rail 31; the second driving part is also an electric cylinder/air cylinder/hydraulic cylinder, and the electric cylinder/air cylinder/hydraulic cylinder is relatively fixed with the outer slide rail and connected with the inner slide rail .

As shown in Figure 2, the side wall of the side box body 2 is provided with a guide part, the guide part extends along the transverse direction, a guide groove is formed inside the guide part, and the first slide rail 31 is slidably installed inside the guide groove to ensure that the first slide rail 31 and Connection stability between side boxes 2.

Please refer to FIG. 4 . FIG. 4 is a schematic diagram of the internal structure of the side box of the pickup box in FIG. 1 .

In order to make full use of the internal space of the side box body 2 and improve the space utilization rate of the side box body 2, the present invention can also set a partition 4 inside the side box body 2 to divide the inside of the side box body 2 into a plurality of different accommodation spaces. , different storage spaces can be used to place different items. Specifically in this embodiment, the number of partitions 4 is two, and the inside of the side box 2 is divided into a first storage space A, a second storage space B and a third storage space C according to the area of the wheel bag.

Of course, in practical applications, according to the different needs of consumers, the division method can also be adaptively modified. For example, the longitudinal dimension of the first storage space A is relatively large, and a vertically extending The partition 4 is used to divide the first storage space A into two longitudinally distributed subspaces, both of which can be used to place different items, further improving the space utilization rate of the first storage space A;

If the vertical size of the third storage space C is relatively large, a partition plate 4 extending horizontally can be arranged inside the third storage space C to divide the third storage space C into two vertically distributed sub-spaces. Each vertically distributed subspace can be used to place different items, further improving the space utilization rate of the third storage space C.

If the longitudinal and vertical dimensions of the second accommodating space B are relatively large, a transversely extending partition 4 and a longitudinally extending partition 4 may also be provided inside the second accommodating space B to divide the second accommodating space B into Each of the four subspaces can be used to place different items, further improving the space utilization of the second storage space B; in this way, the individual needs of consumers can be met, and the space utilization of the side box 2 can be improved to the greatest extent.

Further, in order to ensure that the items inside each accommodation space can be kept stable during the running of the vehicle; at the same time, in order to prevent the items inside each accommodation space from falling when the side fence 1 is opened, the opening ends of each accommodation space A door body (not shown in the figure) may also be provided, and the door body is used to open or close the open end of the accommodation space.

In this way, during the driving process of the vehicle, each accommodation space can be closed by the corresponding door first, and the corresponding door serves as the first protection, and then closed by the side fence 1, which serves as the second protection; When opening, you can open the side fence 1 first. At this time, due to the protective effect of the door body, the items in each storage space will not fall and be damaged, and then open the corresponding door body to take out the items in the storage space, which is more secure sex.

Specifically in this embodiment, the door body includes a first door body, the first door body is disposed at the opening end of the first accommodation space A, and can be turned upside down.

It also includes a second door body and a third door body, the second door body is arranged at the opening end of the second accommodation space B, the third door body is arranged at the opening end of the third accommodation space C, the second door body and the third door body The body is installed in split form.

Certainly, in practical application, the opening and closing form of the door body is not limited to the above-mentioned embodiment, for example, each door body can also be set as a push-pull type, and the door body can move vertically to open or close the corresponding accommodating space.

In addition, in this embodiment, each door body can be set as a push-type, as long as the corresponding push-type accessories are installed inside the door body, it can be automatically opened or closed by pressing, and there is no need to set a handle, which saves installation space. Simple operation and good user experience.

Please refer to FIG. 5 , which is a cross-sectional view of the pickup container in FIG. 1 .

As shown in Figure 5, in the present invention, the side fence 1 includes a side fence outer panel 11 and a side fence inner panel 12 fixed on the inner side of the side fence outer panel 11, from top to bottom, the side fence outer panel 11 and the inner panel 12 of the side railing panel all gradually extend outward.

The structure of the side fence of a traditional drive system pickup is shown in Figure 6. Since it is necessary to reserve the position of the oil filling hole and the fuel tank, from top to bottom, the side fence outer panel 1' gradually extends outward, and the side fence inner panel 2' Basically keep the vertical extension, so that the position above the wheel bag area is relatively small, and the space of the side box body 2 is limited; for electric pickups, since there is no need to reserve the position of the fuel tank, the present invention combines the side fence outer panel 11 and The inner panel 12 of the side fence is set to extend outward from top to bottom, and the two fit together as much as possible. On the premise of ensuring the structural strength, the volume of the cavity between the two is minimized, and the wheel space is further increased. The space above the bag area 3 ′ further expands the storage space inside the side box 2 .

The side box 2 on one side of this solution can provide a sealed volume of 35L, and the whole vehicle can provide a sealed volume of 70L in total, fully meeting the storage needs of customers.

In addition, in the present invention, the side box body 2 is welded by sheet metal parts, which has a stable structure and good sealing performance.

The present invention also provides a pickup, including the aforementioned pickup box.

The pickup truck of the present invention includes the aforementioned pickup box, so it has the same technical effect as that of the aforementioned pickup box, and will not be repeated here.

A pickup container and a pickup provided by the present invention have been introduced in detail above. The principles and implementation methods of the present invention have been explained by using specific examples in this paper. The descriptions of the above examples are only used to help understand the method of the present invention. and its core ideas. It should be pointed out that for those skilled in the art, without departing from the principle of the present invention, some improvements and modifications can be made to the present invention, and these improvements and modifications also fall within the protection scope of the claims of the present invention.

Claims (10)

1. A kind of pickup box, described pickup box comprises side rail (1), it is characterized in that, described pickup box inside, is provided with side box (2) above the wheel bag area, and described side The lateral outer end of the box body (2) is an open end, and the side fence (1) is movably connected to the side box body (2), and can open or close the open end of the side box body (2) . 2. The pickup box according to claim 1, characterized in that, it also comprises two slide rail components (3), and the slide rail components (3) are arranged at both longitudinal ends of the side fence (1), The slide rail component (3) comprises a first slide rail (31) and a second slide rail (32), wherein: The first sliding rail (31) is slidably installed on the side wall of the side box (2) and extends laterally, and the second sliding rail (32) extends vertically, including an outer sliding rail and a sliding installation An inner slide rail inside the outer slide rail, one of the outer slide rail and the inner slide rail is connected to the first slide rail (31), and the other is connected to the side fence (1 )connect. 3. The pickup box according to claim 2, characterized in that, it also comprises a first drive component and a second drive component, the first drive component is relatively fixed to the side wall of the side box body (2), and It is connected with the first slide rail (31) and is used to drive the first slide rail (31) to move laterally; the second driving part is relatively fixed with the outer slide rail, and is connected with the inner slide rail connected to drive the inner slide rail to move vertically. 4. The pickup box according to claim 2, characterized in that, the side wall of the side box body (2) is provided with a guide portion, the guide portion extends laterally, and a guide groove is formed inside the guide portion, so that The first slide rail (31) is slidably installed inside the guide groove. 5. The pickup box according to claim 1, characterized in that, a partition (4) is also arranged inside the side box (2), and the partition (4) separates the side box (2) The interior is divided into multiple accommodation spaces. 6 . The pickup box according to claim 5 , further comprising a plurality of door bodies, the door bodies are arranged corresponding to the opening ends of the accommodating space, so as to open or close the accommodating space. 7. The pickup box according to claim 6, characterized in that, the number of the partitions (4) is two, and the interior of the side box (2) is divided into first according to the wheel bag area. An accommodation space (A), a second accommodation space (B) and a third accommodation space (C). 8. The pickup box according to claim 7, wherein the door body comprises a first door body, the first door body is arranged at the opening end of the first accommodation space (A), and can be moved up and down flip; And/or, the door body includes a second door body and a third door body, the second door body is set at the opening end of the second accommodation space (B), and the third door body is set at the At the open end of the third accommodation space (C), the second door body and the third door body are installed in a split form. 9. The pickup box according to any one of claims 1-8, characterized in that, the side fence (1) comprises a side fence outer panel (11) and is fixed to the side fence outer panel (11). ) the side fence inner panel (12) on the inner side, from top to bottom, the side fence outer panel (11) and the side fence inner panel (12) all gradually extend outward; And/or, the side box (2) is welded by sheet metal parts. 10. A pick-up truck, characterized in that it comprises a pick-up truck container according to any one of claims 1-9.
