Abstract

The invention relates to the field of traditional Chinese medicine equipment, in particular to a drying device for traditional Chinese medicine for internal use, which includes a bottom plate with walking wheels, and also includes: a multi-layer storage mechanism arranged on the bottom plate, and the multi-layer storage mechanism is used to store traditional Chinese medicine The slices are dried and stored after drying; the multi-layer storage mechanism is provided with a vibration mechanism, and the multi-layer storage mechanism drives the vibration mechanism to knock and vibrate the tablets while unfolding or storing them, so that they can be flipped and Shake off the dust on the surface; the sealing mechanism is arranged on the bottom plate, and the multi-layer storage mechanism drives the sealing mechanism to open or seal during the process of unfolding or storing, so as to dry the Chinese medicine slices. This kind of drying device for internal medicine of traditional Chinese medicine is convenient for drying, storing and managing the slices of traditional Chinese medicine, improving drying efficiency and reducing labor intensity, and driving the vibrating mechanism to knock and vibrate the tablets while unfolding or storing them, so as to make them flip and shake dust on its surface.

Description

A drying device for traditional Chinese medicine for internal use

technical field

The invention relates to the field of traditional Chinese medicine equipment, in particular to a drying device for traditional Chinese medicine for internal use.

Background technique

After the raw materials of traditional Chinese medicine are made into slices or simply pretreated, they need to be naturally air-dried in order to increase the efficacy and storage of the medicine. At present, the slices of these traditional Chinese medicines are usually spread on the flat ground for drying. Because the paving surface is large, it is not easy to turn over, and it is easy to get dusty. It needs to be collected at night or covered with cloth or film to avoid dew at night. Wet, so the labor intensity is relatively large, and the operation is inconvenient. In view of this, we propose a kind of traditional Chinese medicine internal medicine drying device.

Contents of the invention

The purpose of the present invention is to provide a drying device for traditional Chinese medicine for internal use, so as to solve the problems raised in the above-mentioned background technology. In order to achieve the above object, the present invention provides the following technical solutions: a drying device for traditional Chinese medicine for internal use, comprising a bottom plate with walking wheels, and further comprising:

A multi-layer storage mechanism arranged on the bottom plate, and the multi-layer storage mechanism is used to dry the slices of traditional Chinese medicine and store them after the drying;

The multi-layer storage mechanism is provided with a vibration mechanism, and the multi-layer storage mechanism drives the vibration mechanism to knock and vibrate the tablets while unfolding or storing them, so as to make them flip and shake off the dust on the surface;

The sealing mechanism is arranged on the bottom plate, and the multi-layer storage mechanism drives the sealing mechanism to open or seal during the process of unfolding or storing, so as to dry the Chinese medicine slices.

Preferably, the multi-layer storage mechanism includes a bottom frame, a middle frame and a top frame arranged sequentially from bottom to top, the bottom frame is fixed on the bottom plate, and the inner bottom of the bottom frame, the middle frame and the top frame are all fixed with a mesh plate one, and the bottom frame The inner upper part of the frame, the middle frame and the top frame can be detachably fixed with the second net plate.

Preferably, lifting lugs are fixed on the bottom of the bottom frame, middle frame and top frame, and a vibration mechanism is provided on the lifting lugs. Connected by a coil spring, a plurality of hammers are fixed and evenly arranged on the peripheral wall of the shaft. When the shaft rotates, the hammers are driven to knock the corresponding screen plate to vibrate and drive the Chinese medicine slices on it to flip.

Preferably, one end of the shaft is coaxially fixedly connected to a reel, and a pull cord is wound on the reel, and one end of the draw cord on the reel corresponding to the bottom of the bottom frame is fixedly connected to the bottom surface of the middle frame, and the bottom of the middle frame corresponds to One end of the stay cord on the reel of the top frame is fixedly connected to the top surface of the bottom frame, and one end of the stay cord on the corresponding reel at the bottom of the top frame is fixedly connected to the top surface of the middle frame.

Preferably, two brackets are symmetrically fixed on both sides of the upper surface of the bottom frame, and a connecting rod 1 is hinged on the two brackets;

Two brackets are symmetrically fixed on both sides of the lower surface of the middle frame, a gear 1 is fixedly connected to the brackets for rotation, and a connecting rod 2 is fixed on the gear 1, and the two connecting rods 2 are respectively connected to the Two connecting rods one hinged;

Two brackets are also symmetrically fixed on both sides of the upper surface of the middle frame, and a gear one is also connected to the two brackets for fixed axis rotation, and the corresponding two gears are meshed and connected, and the gears on the upper surface of the middle frame One is fixed with connecting rod three;

Two brackets are symmetrically fixed on both sides of the lower surface of the top frame, and connecting rods 4 are hinged on the two brackets, and the two connecting rods 4 are respectively hinged with the two connecting rods 3.

Preferably, one of the connecting rods on the bottom frame is coaxially and fixedly connected to the worm gear one with one end hinged to the corresponding bracket, and a stand is fixed on the bottom plate, and the worm gear one is connected with the fixed axis rotation on the stand, and the worm gear one is meshed with the worm gear one. , the lower end of the worm one passes through the bottom plate and this end is coaxially fixedly connected with the gear three.

Preferably, a hanger is fixed on the bottom surface of the bottom plate, and a rocker is connected to the hanger for fixed axis rotation, and one end of the rocker is coaxially fixedly connected to gear 4, and gear 4 is meshed with gear 3, and the hanger is sleeved and slidably connected There is a sliding sleeve, and the sliding sleeve is connected to the lower end of the hanger through the second spring. The lower end of the hanger is fixed with a motor, and the output shaft end of the motor is coaxially fixedly connected to the polygonal rod. The outer wall of the sliding sleeve is fixed with a driving lever. , and the fixed axis rotation on the driving rod is connected with a tube shaft, the tube shaft is sleeved and slidably connected on the polygonal rod, the upper end of the tube shaft is coaxially fixedly connected with the gear five, and the gear five can be meshed with the gear four.

Preferably, the sealing mechanism includes a pump barrel 2 fixed on the bottom plate, a piston plate 2 is slidably connected inside the pump barrel 2, the upper surface of the piston plate 2 is vertical and fixedly connected to a slide rod, the upper end of the slide rod is fixed with a ring frame, and the ring A cylindrical cover cloth is fixedly connected between the bottom surface of the frame and the upper surface of the bottom plate, and the cover cloth is used to cover the bottom frame, the middle frame and the top frame inside.

Preferably, the first pump barrel is fixed on the bottom plate, and the first pump barrel is connected with the second pump barrel. Both the first pump barrel and the second pump barrel are filled with hydraulic oil, and the first piston plate is slidably connected with the first piston plate. A push rod is fixed on the top, and the bottom surface of the piston plate 1 is connected with the bottom of the pump cylinder 1 through the spring 3, and a top block is fixed on the upper end of the push rod.

Preferably, an apron is fixed on the peripheral wall of the top frame, and a second worm wheel is hinged on the apron, a cover plate is fixed on the second worm wheel, and a second worm corresponding to the second worm wheel is connected to the outer peripheral wall of the top frame by fixed axis rotation. , and the worm two meshes with the corresponding worm gear two, one end of the worm two is coaxially fixedly connected to the gear two, the skirt plate runs through and is slidably connected to the rack corresponding to the gear two, and the rack is meshed with the corresponding gear two , the lower end of the rack is fixed with a limit block, and the limit block is connected with the bottom surface of the apron through a spring one, and the top block can be snapped into contact with the limit block.

Compared with prior art, the beneficial effect of the present invention:

In the present invention, the Chinese medicine slices are air-dried through the multi-layered storage mechanism that can be unfolded and stored, and are stored after the drying, so that the Chinese medicine slices are conveniently dried, stored and managed, and the operation is simple and convenient, saving time and effort , improve drying efficiency and reduce labor intensity.

In the present invention, the multi-layer storage mechanism drives the vibrating mechanism to knock and vibrate the tablets while unfolding or storing them, so as to flip them over and shake off the dust on their surfaces, which saves time and effort, and is efficient and convenient.

In the present invention, the multi-layered storage mechanism drives the sealing mechanism to open or seal during the process of unfolding or storing, so as to dry the slices of traditional Chinese medicine, and realize releasing the sealing while unfolding the bottom frame, middle frame and top frame, In order to dry the Chinese medicine slices, the operation is simple and convenient, and the bottom frame, the middle frame and the top frame are stored automatically at the same time, so as to avoid dew, dust, etc. on the surface of the Chinese medicine slices after drying, saving time and effort. Manual override.

Description of drawings

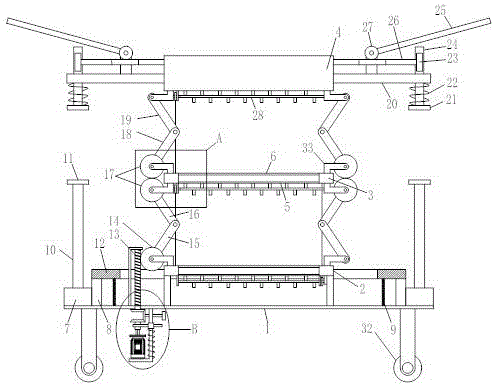

Fig. 1 is the schematic diagram of the unfolded state of the assembly structure of the present invention;

Fig. 2 is a schematic diagram of the storage state of the assembly structure of the present invention;

Fig. 3 is a schematic diagram of an enlarged structure at A in Fig. 1;

FIG. 4 is a schematic diagram of an enlarged structure at B in FIG. 1;

FIG. 5 is a schematic diagram of an enlarged cross-sectional structure at point C in FIG. 2 .

In the figure: 1. Bottom plate; 2. Bottom frame; 3. Middle frame; 4. Top frame; 5. Screen one; 6. Screen two; 7. Pump cylinder one; 8. Pump cylinder two; 9. Cover cloth ;10, ejector rod; 11, top block; 12, ring frame; 13, worm one; 14, worm gear one; 15, connecting rod one; 16, connecting rod two; 17, gear one; 18, connecting rod three; 19 , connecting rod four; 20, skirt plate; 21, limit block; 22, spring one; 23, gear two; 24, rack; 25, cover plate; 26, worm two; 27, worm gear two; 28, shaft ;29, hammer rod; 30, pull rope; 31, reel; 32, walking wheel; 33, bracket; 34, lug; 35, rocker; 36, sliding sleeve; 37, hanger; 38, spring two ; 39, vertical frame; 40, gear three; 41, gear four; 42, gear five; 43, shift lever; ; 49, piston plate one; 50, piston plate two.

detailed description

The following will clearly and completely describe the technical solutions in the embodiments of the present invention with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only some, not all, embodiments of the present invention. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without creative efforts fall within the protection scope of the present invention.

Referring to Fig. 1 to Fig. 5, the present invention provides a technical solution: a traditional Chinese medicine drying device for internal medicine, which includes a bottom plate 1 with walking wheels 32, and also includes:

A multi-layer storage mechanism arranged on the bottom plate 1, and the multi-layer storage mechanism is used to dry the Chinese medicine slices and store them after the drying;

The multi-layer storage mechanism is provided with a vibration mechanism, and the multi-layer storage mechanism drives the vibration mechanism to knock and vibrate the tablets while unfolding or storing them, so as to make them flip and shake off the dust on the surface;

The sealing mechanism is arranged on the bottom plate 1, and the multi-layer storage mechanism drives the sealing mechanism to open or cover during the process of unfolding or storing, so as to dry the Chinese medicine slices.

In this embodiment, the multi-layer storage mechanism includes a bottom frame 2, a middle frame 3 and a top frame 4 arranged in sequence from bottom to top, the bottom frame 2 is fixed on the bottom plate 1, the bottom frame 2, the middle frame 3 and the top frame 4 The bottom of the inner side is fixed with a mesh plate 1, and the inner upper parts of the bottom frame 2, middle frame 3 and top frame 4 are detachably fixed with a mesh plate 2 6, and the mesh plate 2 6 can be connected by screws, buckles, or hinges. Connections and other detachable fixed connections are connected to the corresponding bottom frame 2 , middle frame 3 and top frame 4 .

In this embodiment, the bottom of the bottom frame 2, the middle frame 3 and the top frame 4 are all fixed with lifting lugs 34, and the lifting lugs 34 are provided with a vibration mechanism, and the vibration mechanism includes a shaft rod connected to the lifting lugs 34 for fixed axis rotation. 28. The shaft 28 and the lifting lug 34 are connected by a coil spring. A plurality of hammers 29 are fixed and uniformly arranged on the peripheral wall of the shaft 28. When the shaft 28 rotates, the hammers 29 are driven to carry out the corresponding mesh plate-5. Knocking makes it vibrate and drives the Chinese medicine slices on it to flip. One end of the shaft 28 is coaxially fixedly connected with a reel 31, and the reel 31 is wound with a stay rope 30, and the corresponding reel at the bottom of the bottom frame 2 One end of the stay cord 30 on the wheel 31 is fixedly connected to the bottom surface of the middle frame 3, and one end of the stay cord 30 on the corresponding winding wheel 31 at the bottom of the middle frame 3 is fixedly connected to the top surface of the bottom frame 2, and the corresponding winding wheel at the bottom of the top frame 4 One end of the stay cord 30 on the 31 is fixedly connected to the top surface of the middle frame 3 .

In this embodiment, two brackets 33 are symmetrically fixed on both sides of the upper surface of the bottom frame 2, and a connecting rod 15 is hinged on the two brackets 33;

Two brackets 33 are symmetrically fixed on both sides of the lower surface of the middle frame 3, and a gear one 17 is connected with a fixed axis on the two brackets 33, and a connecting rod two 16 is fixed on the gear one 17. Said connecting rod two 16 are respectively hinged with two connecting rod one 15;

Both sides of the upper surface of the middle frame 3 are also symmetrically fixed with two brackets 33, and the two brackets 33 are also fixedly connected with a gear 17 for rotation, and the corresponding two gears 17 are meshed and connected. A connecting rod three 18 is fixed on the gear one 17 on the upper surface of the frame 3;

The lower surface of the top frame 4 is symmetrically fixed with two brackets 33, and the two brackets 33 are hinged with connecting rods 419, and the two connecting rods 19 are connected with the two connecting rods respectively. Bar three 18 hinged.

In this embodiment, one of the connecting rods 15 on the bottom frame 2 is coaxially fixedly connected to the worm gear 14 at one end hinged with the corresponding bracket 33, and a stand 39 is fixed on the bottom plate 1, and a worm is connected to the stand 39 for fixed axis rotation. One 13, the worm one 13 is engaged with the worm gear one 14, the lower end of the worm one 13 passes through the bottom plate 1 and the end is fixedly connected with the gear three 40 coaxially.

In this embodiment, a hanger 37 is fixed on the bottom surface of the bottom plate 1, and a rocker 35 is connected to the hanger 37 for fixed axis rotation, and one end of the rocker 35 is coaxially fixedly connected to the fourth gear 41, and the fourth gear 41 meshes with the third gear 40 Connection, the hanger 37 is sleeved and slidably connected with a sliding sleeve 36, and the sliding sleeve 36 is connected with the lower end of the hanger 37 through a spring two 38, the lower end of the hanger 37 is fixed with a motor 46, and the output shaft end of the motor 46 The multi-edge rod 45 is fixedly connected coaxially, the outer wall of the sliding sleeve 36 is fixed with a driving rod 43, and the driving rod 43 is fixedly rotated and connected with a tube shaft 44, and the tube shaft 44 is sleeved and slidably connected to the multi-edge rod 45 The upper end of the pipe shaft 44 is fixedly connected with the fifth gear 42 coaxially, and the fifth gear 42 can be meshed with the fourth gear 41 .

In this embodiment, the sealing mechanism includes a pump barrel 8 fixed on the bottom plate 1, and a piston plate 50 is slidably connected to the pump barrel 2 8. The upper surface of the piston plate 50 is vertical and fixedly connected to the slide bar 47, and the slide bar 47 The upper end of the ring frame 12 is fixed, and the cylindrical cover cloth 9 is fixedly connected between the bottom surface of the ring frame 12 and the upper surface of the bottom plate 1, and the cover cloth 9 is used to cover the bottom frame 2, the middle frame 3 and the top frame 4. Internally, pump cylinder one 7 is fixed on the bottom plate 1, and pump cylinder one 7 is connected with pump cylinder two 8. Both pump cylinder one 7 and pump cylinder two 8 are filled with hydraulic oil, and pump cylinder one 7 is slidingly connected with Piston plate one 49, piston plate one 49 is fixed with ejector rod 10, and the bottom surface of piston plate one 49 is connected with the bottom of pump cylinder one 7 by spring three 48, and the upper end of ejector rod 10 is fixed with top block 11, top frame The skirt plate 20 is fixed on the peripheral wall of the top frame 4, and the skirt plate 20 is hinged with the second worm wheel 27, the second worm wheel 27 is fixed with the cover plate 25, and the fixed axis rotation connection on the outer peripheral wall of the top frame 4 is connected with the second worm wheel 27. Worm 2 26, and worm 2 26 is engaged with corresponding worm gear 27, one end of worm 26 is fixedly connected to gear 2 23 coaxially, skirt plate 20 is penetrated and slidably connected with rack 24 corresponding to gear 2 23 , and the rack 24 is meshed with the corresponding gear two 23, the lower end of the rack 24 is fixed with a limit block 21, and the limit block 21 is connected with the bottom surface of the skirt plate 20 through the spring one 22, and the top block 11 can be connected with the limit block Block 21 buckles the contacts.

The working principle and advantages of the present invention: when the traditional Chinese medicine drying device for oral administration is used to dry the slices of traditional Chinese medicine, the working process is as follows:

As shown in Fig. 1, Fig. 2 and Fig. 3, open the net plate 2 6 on the bottom frame 2, the middle frame 3 and the top frame 4, then place the Chinese medicine slices in the bottom frame 2, the middle frame 3 and the top frame 4, And cover the screen plate 2 6, adopt the screen plate 1 5 and the screen plate 2 6 up and down to keep the ventilation and light transmission, so that it can be aired better, and then use the walking wheels 32 to move the whole device to the airing position, which is convenient for management, adjustment, and operation Simple.

When the Chinese medicine slices need to be unfolded and dried, as shown in Figure 4, the motor 46 is started to work, and the motor 46 drives the gear 5 42 to rotate through the polygonal rod 45 and the tube shaft 44. Because the sliding sleeve 36 is affected by the spring 2 38, the dial Rod 43 drives gear five 42 and gear four 41 to engage and connect through tube shaft 44, so that gear five 42 drives gear three 40 to rotate through gear four 41. When motor 46 is damaged or there is no power, it can be driven by lever 43 The sliding sleeve 36 moves down and compresses the spring 2 38, so that the lever 43 drives the gear 5 42 to move down through the tube shaft 44 and moves away from the gear 4 41, and then the rocker 35 is manually shaken so that the rocker 35 passes through the gear 4 41 Drive gear three 40 to rotate, realize manual operation, simple structure, realize electric and manual driving modes, practical and reliable.

As mentioned above, the gear three 40 drives the connecting rod one 15 to rotate to the upper side of the bottom frame 2 through the worm one 13 and the worm gear one 14 while rotating forward, so that the included angle between the first connecting rod 15 and the second connecting rod 16 increases , and then the middle frame 3 is raised, and the second connecting rod 16 drives the third connecting rod 18 to rotate to the upper side of the middle frame 3 through two meshing gears one 17, so that the angle between the third connecting rod 18 and the fourth connecting rod 19 Increase, and then the top frame 4 is raised, thereby realizing the expansion of the bottom frame 2, the middle frame 3 and the top frame 4, so that the Chinese medicine slices are aired.

When the traditional Chinese medicine slices need to be stored, the reverse rotation of the gear three 40 is controlled by electric or manual means, so that the connecting rod one 15 is driven to rotate in the direction close to the bottom frame 2 through the worm one 13 and the worm gear one 14, so that the connecting rod one 15 The included angle with connecting rod 2 16 decreases, and then the middle frame 3 approaches the bottom frame 2, and the connecting rod 2 16 drives the connecting rod 3 18 to rotate towards the middle frame 3 through two meshing gears 17, thereby The included angle between the third connecting rod 18 and the fourth connecting rod 19 is reduced, and then the top frame 4 is moved closer to the middle frame 3, thereby realizing the storage of the bottom frame 2, the middle frame 3 and the top frame 4, so as to store the Chinese medicine slices Save management, simple and convenient operation, save time and effort.

As mentioned above, in the process of unfolding the bottom frame 2, the middle frame 3 and the top frame 4, the corresponding reel 31 is pulled by the pull cord 30 to rotate, so that the reel 31 drives the shaft 28 to rotate, and the shaft 28 applies torque to the coil spring to make it deform and obtain a restoring force, and then the shaft 28 drives the hammer 29 to knock the corresponding mesh plate 15, causing the mesh plate 15 to vibrate to flip the Chinese medicine slices and shake them off The dust adhering to the Chinese medicine slices, and in the process of accommodating the bottom frame 2, the middle frame 3 and the top frame 4, because the pull cord 30 is not subject to tension, the shaft rod 28 drives the hammer under the restoring force of the coil spring. The rod 29 rotates in the opposite direction, and then knocks the corresponding screen one 5 again, so that the screen one 5 vibrates to flip the Chinese medicine slices, and shakes off the dust adhering to the Chinese medicine slices, so that through one or more times of unfolding , The operation of storing the bottom frame 2, the middle frame 3 and the top frame 4 realizes the flipping of the Chinese medicine slices, which is simple and convenient to operate, saving time and effort.

In the process of accommodating the bottom frame 2, the middle frame 3 and the top frame 4, when the top frame 4 drives the apron 20 to move down and makes the stop block 21 snap into contact with the top block 11, the stop block 21 is pressed by the top block 11. The upward thrust compresses the spring one 22, so that the spring one 22 obtains a restoring force, and the stop block 21 drives the rack 24 to move upward, so that the rack 24 drives the gear two 23 to rotate, so that the gear two 23 passes through the worm two 26 and worm wheel two 27 drive cover plate 25 to cover top frame 4 upper surface.

As mentioned above, the top block 11 is simultaneously pressed downward by the limit block 21, so that the top block 11 drives the piston plate one 49 to move down in the pump barrel one 7 through the top rod 10 and compresses the spring three 48, so that the spring three 48 obtains a restoring force, and piston plate 1 49 squeezes the hydraulic oil in pump cylinder 1 7 into pump cylinder 2 8, so that piston plate 2 50 drives ring frame 12 to move upward through slide rod 47, thereby making ring The frame 12 pulls up the cover cloth 9 to cover the bottom frame 2, the middle frame 3 and the top frame 4, and when the ring frame 12 is in contact with the bottom surface of the skirt plate 20, the storage is completed and the cover is automatically realized, thereby avoiding the drying after drying. There is dew, dust, etc. on the surface of Chinese medicine slices, which saves time and effort and does not require manual coverage.

In the process of unfolding the bottom frame 2, the middle frame 3 and the top frame 4, when the top frame 4 drives the limit block 21 to separate from the top block 11 through the skirt plate 20, under the restoring force of the spring three 48, the piston plate will 49 moves up and resets, and then pumps the hydraulic oil in the pump cylinder 2 8 into the pump cylinder 1 7, so that the piston plate 2 50 drives the ring frame 12 to move down through the slide rod 47, and then the ring frame 12 drives the cover cloth 9 is retracted downward, and at the same time, under the restoring force of the spring one 22, the limit block 21 drives the rack 24 to move down and reset, so that the gear two 23 drives the cover plate 25 to open through the worm two 26 and the worm gear two 27, realizing When the bottom frame 2, the middle frame 3 and the top frame 4 are unfolded, the cover is released to dry the Chinese medicine slices. The operation is simple and convenient. After the drying, open the net plate 2 6 to take out the dried Chinese medicine slices.

It will be apparent to those skilled in the art that the invention is not limited to the details of the above-described exemplary embodiments, but that the invention can be embodied in other specific forms without departing from the spirit or essential characteristics of the invention. Accordingly, the embodiments should be regarded in all points of view as exemplary and not restrictive, the scope of the invention being defined by the appended claims rather than the foregoing description, and it is therefore intended that the scope of the invention be defined by the appended claims rather than by the foregoing description. All changes within the meaning and range of equivalents of the elements are embraced in the present invention. Any reference sign in a claim should not be construed as limiting the claim concerned.

In the description of the present invention, unless otherwise stated, the meaning of "plurality" is two or more; the terms "upper", "lower", "left", "right", "inner", "outer" , "front end", "rear end", "head", "tail", etc. indicate the orientation or positional relationship based on the orientation or positional relationship shown in the drawings, and are only for the convenience of describing the present invention and simplifying the description, rather than Nothing indicating or implying that a referenced device or element must have a particular orientation, be constructed, and operate in a particular orientation should therefore not be construed as limiting the invention. In addition, the terms "first", "second", "third", etc. are used for descriptive purposes only and should not be construed as indicating or implying relative importance.

In the description of the present invention, it should be noted that unless otherwise specified and limited, the terms "connected" and "connected" should be understood in a broad sense, for example, it can be a fixed connection, a detachable connection, or an integral Ground connection; it can be mechanical connection or electrical connection; it can be direct connection or indirect connection through an intermediary. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present invention in specific situations.

Claims (10)

1. The utility model provides a traditional chinese medical science is taken medicine drying device orally, includes bottom plate (1) that has walking wheel (32), its characterized in that: further comprising:

the multilayer type storage mechanism is arranged on the bottom plate (1) and is used for airing the traditional Chinese medicine slices and storing the traditional Chinese medicine slices after airing;

the multilayer type storage mechanism is provided with a vibration mechanism, and drives the vibration mechanism to knock and vibrate the tablets while unfolding or storing the tablets, so that the tablets are turned over and shake off dust on the surfaces of the tablets;

the sealing cover mechanism is arranged on the bottom plate (1), and the multi-layer type receiving mechanism drives the sealing cover mechanism to open or seal the cover in the unfolding or receiving process so as to dry the Chinese medicine slices.

2. The drying device for the traditional Chinese medicine internal medicine according to claim 1, which is characterized in that: multilayer formula receiving mechanism includes underframe (2), center (3) and top frame (4) that follow supreme setting gradually down, underframe (2) are fixed on bottom plate (1), the inboard bottom of underframe (2), center (3) and top frame (4) all is fixed with otter board one (5), the inboard upper portion of underframe (2), center (3) and top frame (4) all detachably is fixed with otter board two (6).

3. The airing device for the internal medicine of traditional Chinese medicine according to claim 2, is characterized in that: lifting lugs (34) are fixed at the bottoms of the bottom frame (2), the middle frame (3) and the top frame (4), a vibration mechanism is arranged on the lifting lugs (34), the vibration mechanism comprises a shaft rod (28) which is connected to the lifting lugs (34) in a rotating mode through a fixed shaft, the shaft rod (28) is connected with the lifting lugs (34) through a coil spring, a plurality of hammer rods (29) are fixed on the peripheral wall of the shaft rod (28) and are evenly distributed, and the shaft rod (28) is driven to knock corresponding screen plates (5) to generate vibration and drive traditional Chinese medicine slices on the screen plates to turn when rotating.

4. The airing device for the internal medicine of traditional Chinese medicine according to claim 3, is characterized in that: one end of the shaft lever (28) is coaxially and fixedly connected with a winding wheel (31), a pull rope (30) is wound on the winding wheel (31), one end of the pull rope (30) on the winding wheel (31) corresponding to the bottom of the bottom frame (2) is fixedly connected with the bottom surface of the middle frame (3), one end of the pull rope (30) on the winding wheel (31) corresponding to the bottom of the middle frame (3) is fixedly connected with the top surface of the bottom frame (2), and one end of the pull rope (30) on the winding wheel (31) corresponding to the bottom of the top frame (4) is fixedly connected with the top surface of the middle frame (3).

5. The airing device for the internal medicine of traditional Chinese medicine according to claim 2, is characterized in that: two brackets (33) are symmetrically fixed on two sides of the upper surface of the bottom frame (2), and a first connecting rod (15) is hinged to the two brackets (33);

two supports (33) are symmetrically fixed on two sides of the lower surface of the middle frame (3), a first gear (17) is rotationally connected to the two supports (33) in a dead axle manner, a second connecting rod (16) is fixed on the first gear (17), and the two second connecting rods (16) are respectively hinged with the first connecting rods (15);

two supports (33) are symmetrically fixed on two sides of the upper surface of the middle frame (3), a first gear (17) is rotationally connected to the two supports (33) in a fixed-shaft manner, the two corresponding first gears (17) are meshed and connected, and a third connecting rod (18) is fixed on the first gear (17) on the upper surface of the middle frame (3);

two supports (33) are symmetrically fixed on the two sides of the lower surface of the top frame (4), two connecting rod four (19) are hinged to the supports (33), and the connecting rod four (19) is hinged to the connecting rod three (18) respectively.

6. The airing device for the internal medicine of traditional Chinese medicine according to claim 5, is characterized in that: one of them connecting rod (15) is gone up in underframe (2) and is corresponded coaxial fixed connection worm wheel (14) of support (33) articulated one end, be fixed with grudging post (39) on bottom plate (1), and the dead axle rotates on grudging post (39) and is connected with worm (13), worm (13) are connected with worm wheel (14) meshing, the lower extreme of worm (13) runs through bottom plate (1) and the coaxial fixed connection gear three (40) of this end.

7. The airing device for the internal medicine of traditional Chinese medicine according to claim 6, is characterized in that: the bottom surface of bottom plate (1) is fixed with gallows (37), dead axle rotates on gallows (37) and is connected with rocker (35), the coaxial fixed connection gear four (41) of one end of rocker (35), and gear four (41) and gear three (40) meshing are connected, establish and sliding connection sliding sleeve (36) on gallows (37), and sliding sleeve (36) are connected with the lower extreme of gallows (37) through spring two (38), the lower extreme of gallows (37) is fixed with motor (46), and the coaxial fixed connection many arris pole (45) of output axle head of motor (46), be fixed with driving lever (43) on the lateral wall of sliding sleeve (36), and dead axle rotates on driving lever (43) and is connected with hollow shaft (44), hollow shaft (44) cover establishes and sliding connection on many arris pole (45), the coaxial fixed connection gear five (42) in hollow shaft (44) upper end, and gear five (42) can be connected with gear four (41) meshing.

8. The airing device for the internal medicine of traditional Chinese medicine according to claim 2, is characterized in that: the sealing cover mechanism comprises a second pump cylinder (8) fixed on the bottom plate (1), a second piston plate (50) is connected to the second pump cylinder (8) in a sliding mode, the upper surface of the second piston plate (50) is vertical, a sliding rod (47) is fixedly connected with the upper end of the sliding rod (47), a ring frame (12) is fixed to the upper end of the sliding rod, cover cloth (9) in a shape of a cylinder is fixedly connected between the bottom surface of the ring frame (12) and the upper surface of the bottom plate (1), and the cover cloth (9) is used for covering the bottom frame (2), the middle frame (3) and the top frame (4) inside.

9. The airing device for the internal medicine of traditional Chinese medicine according to claim 8, is characterized in that: the improved hydraulic pump is characterized in that a first pump cylinder (7) is fixed on the base plate (1), the first pump cylinder (7) is communicated with a second pump cylinder (8), hydraulic oil is filled in the first pump cylinder (7) and the second pump cylinder (8), a first piston plate (49) is connected to the first pump cylinder (7) in a sliding mode, a push rod (10) is fixed on the first piston plate (49), the bottom surface of the first piston plate (49) is connected with the bottom of the first pump cylinder (7) through a third spring (48), and a top block (11) is fixed at the upper end of the push rod (10).

10. The airing device for the internal medicine of traditional Chinese medicine according to claim 9, is characterized in that: the skirting board (20) is fixed on the outer peripheral wall of the top frame (4), a second worm wheel (27) is hinged to the skirting board (20), a cover plate (25) is fixed on the second worm wheel (27), a second worm (26) corresponding to the second worm wheel (27) is connected to the outer peripheral wall of the top frame (4) in a fixed-shaft rotating mode, the second worm (26) is meshed with the corresponding second worm wheel (27), a second gear (23) is fixedly connected to one end of the second worm (26) coaxially, a rack (24) corresponding to the second gear (23) penetrates through and is connected to the skirting board (20) in a sliding mode, the rack (24) is meshed with the corresponding second gear (23), a limiting block (21) is fixed to the lower end of the rack (24), the limiting block (21) is connected with the bottom face of the skirting board (20) through a first spring (22), and the top block (11) can be in abutting-buckling contact with the limiting block (21).
