Abstract

The invention discloses a nano-grinding device for processing brewed rice flour, and the invention relates to the technical field of nano-grinding. The nano-grinding equipment for brewing rice flour processing includes a base plate, support legs are fixedly connected to the corners of the lower surface of the base plate, a casing is provided on the upper surface of the base plate, and a rotating motor is provided on the lower surface of the base plate. The rotating motor is installed to drive the grinding device to produce the effect of rotating, which can cause the grinding device to produce the effect of rotating friction with the material, so that the material can achieve the effect of crushing. The rotating motor penetrates the lower surface of the bottom plate and extends to the upper surface of the bottom plate , the end of the rotating motor extending to the upper surface of the bottom plate is rotatably connected with a crushing device, the inner wall of the housing is fixedly connected with a support frame, the lower surface of the support frame is fixedly connected with a support plate, and the lower surface of the support plate The surface is fixedly connected with a soft plate to reduce the loss caused by powder collection.

Description

Nano pulverization equipment for brewing rice noodles

technical field

The invention relates to the technical field of nano-grinding, in particular to a nano-grinding device for processing brewed rice flour.

Background technique

Nano grinder is a new type of grinder. With imported high-precision double-end mechanical seal, the smallest grinding medium can be used. The material enters the grinding chamber from the top with the feed pump. During the intense grinding process, the rod pin and the stator continuously hit the grinding medium violently, and the grinding medium acts on the material again, and the material is fully ground. Different, the grinding medium returns to the grinding chamber, but the material flows out of the grinding chamber through the gap separator under the pressure of the feed pump. Originally originated in Germany, it is used in carbon nanotubes, nanomaterial pigments, nanocoatings, inks, inkjet inks, batteries, functional ceramics, photovoltaic materials, cosmetics, food, proteins and other fields.

After the nano-grinding of the material, the powder needs to be collected; however, the powder is often difficult to collect, and the nano-grinding equipment on the market often has a lot of wear and tear when collecting the powder.

Contents of the invention

In order to achieve the above object, the present invention is achieved through the following technical proposals: a nano-grinding device for processing rice flour, comprising a base plate, support legs are fixedly connected to the corners of the lower surface of the base plate, and the upper surface of the base plate is provided with There is a shell, and the lower surface of the bottom plate is provided with a rotating motor. By setting the rotating motor, the grinding device can be driven to produce the effect of rotation, and the grinding device can produce the effect of rotating friction with the material, so that the material can achieve the effect of crushing. The rotating motor runs through the lower surface of the base plate and extends to the upper surface of the base plate, and one end of the rotating motor extending to the upper surface of the base plate is rotatably connected with a crushing device, and the inner wall of the housing is fixedly connected with a support frame, and the support frame The lower surface of the support plate is fixedly connected with a support plate, the lower surface of the support plate is fixedly connected with a soft plate, and the opposite surface of the support frame and the support plate is fixedly connected with an arc-shaped soft plate. The plate can make the material scraps on the inner wall of the shell contact with the crushing device again through vibration, so as to achieve the full crushing effect on the material. When the rotating motor starts to rotate, it will vibrate. Due to the vibration of the shell, it will drive the support frame and the support plate. The soft board and the curved soft board on the lower surface vibrate, and the soft board and the curved soft board will amplify the generated vibration, so that the material on the inner wall of the shell will vibrate down. The inner wall of the shell is provided with a grinding device, and the upper surface of the shell A card slot is provided, and a cover plate is sleeved on the card slot provided on the upper surface of the housing.

Preferably, the crushing device includes a rotating column, and the rotating column is connected to the output end of the rotating motor. By setting the crushing device, the material can be crushed. When working, the operator places the material to be crushed on the At the inner cavity of the shell, connect the rotating motor to the power supply and turn on the switch of the rotating motor, and the rotating motor starts to work, so that the rotating column starts to rotate. During the rotating process, the outer surface of the grinding barrel and the grinding column will come into contact with the material. Therefore, during the high-speed rotation, the material is crushed. The outer surface of the rotating column is covered with a grinding barrel, the outer surface of the grinding barrel is fixedly connected with a support column, and the opposite surfaces of the support columns are rotatably connected with a grinding column. , the upper surface of the grinding bucket is provided with a collecting tank, the collecting tank on the upper surface of the grinding bucket is fixedly connected with a clamping plate, the upper surface of the grinding bucket is provided with a fixing ring, and the surface of the fixing ring is fixedly connected There is a partition, by setting the collection tank, the fixed ring and the partition, the material crushed to a certain diameter can be collected. When the material is crushed by the grinding barrel and the grinding column, the small diameter will be crushed during the rotation of the rotating column. The material enters the collection tank opened by the grinding barrel, and the partition plays the role of screening.

Preferably, the grinding device includes a grinding device shell, the grinding device shell is fixedly connected to the inner wall of the shell, the inner cavity of the grinding device shell is sleeved with a moving column, and the moving column penetrates the grinding device shell and extends To the outer surface of the grinding device shell, one end of the moving column extending to the outer surface of the grinding device shell is fixedly connected with an extruding plate, and the outer surface of the extruding plate is fixedly connected with a grinding bar, and the moving column is far away from the extruding plate One end of the machine is provided with an elastic column, and the elastic column is squeezed and adapted to the extrusion moving column. By setting the grinding device, it can be matched with the crushing device, so that the material can be crushed. When working, the rotation of the rotating motor will Drive the crushing device to rotate. During the rotation, the material will be crushed between the crushing device and the grinding device. The grinding bar in the grinding device can play the role of grinding, and the extrusion of the moving column and the elastic column can play a role in grinding. To a certain buffering effect, to prevent large material damage to the device.

Preferably, a circular hole is opened on the upper surface of the cover plate, and a suction device is sleeved on the circular hole opened on the upper surface of the cover plate, and the suction device includes a shell of the suction device, and the suction device The upper surface of the device casing is fixedly connected with a collecting pipe, the inner wall of the suction device casing is fixedly connected with a motor support plate, and the end of the motor support plate away from the suction device casing is provided with a fan motor, and the lower surface of the fan motor is A fan rotation column is rotatably connected, and the outer surface of the fan rotation column is fixedly connected with a fan blade. The bottom end of the fan rotation column is provided with a bottom limit column, and the bottom limit column is opposite to the motor support plate. A suction device support plate is fixedly connected between them, and a fine grinding device is rotatably connected between the opposite surfaces of the support plate of the suction device. By setting the suction device, the materials that have been ground can be collected, and the crushed materials The collection effect can be achieved under the action of slight suction. When working, the operator turns on the switch of the fan motor, and the fan motor drives the fan rotation column to rotate, so that the fan blades generate suction during the rotation process to achieve material collection. Effect.

Preferably, the fine grinding device includes a rotating column of the fine grinding device, the rotating column of the fine grinding device is rotatably connected between the opposite surfaces of the support plate of the suction device, and the outer surface of the rotating column of the fine grinding device is fixedly connected with a fine grinding device. Grinding fan plate, the inner cavity of the fine grinding fan plate is covered with a fine grinding device moving column, and a wavy shrapnel is arranged between the inner cavity of the fine grinding fan plate and the opposite surface of the fine grinding device moving column, and the The moving column is squeezed and fitted with the wavy line shrapnel, the moving column penetrates the inner cavity of the fine grinding fan plate and extends to the outer surface of the fine grinding fan plate, and one end of the moving column extending to the outer surface of the fine grinding fan plate is fixed The fine grinding plate is connected, and the material can be further crushed by setting the fine grinding device. When the fan rotates, the fine grinding fan plate will also rotate, so that the material passing through the fine grinding device can be crushed on the fine grinding plate. becomes finer under action.

The invention provides a nanometer pulverizing device for processing brewed rice flour. Has the following beneficial effects:

1. The nano-grinding equipment for brewing rice flour processing can drive the grinding device to produce the effect of rotation by setting the rotating motor, so that the grinding device can produce the effect of rotating friction with the material, so that the material can achieve the effect of crushing. By setting the soft The board and the arc-shaped soft board can make the material chips on the inner wall of the shell contact with the crushing device again through vibration, so as to achieve a full crushing effect on the material. When the rotating motor starts to rotate, vibration will be generated. Due to the vibration of the shell, it will drive this The soft board and the curved soft board on the lower surface of the support frame and the support plate generate vibration, and the soft board and the curved soft board will amplify the generated vibration, so that the material on the inner wall of the shell will vibrate down.

2. The nano-grinding equipment for rice flour processing can crush the materials by setting the crushing device. When working, the operator places the materials to be crushed in the inner cavity of the shell, and then connects the rotating motor to the power supply. And turn on the switch of the rotating motor, the rotating motor starts to work, so that the rotating column starts to rotate. During the rotating process, the outer surface of the grinding barrel and the grinding column will come into contact with the material, so that the material is crushed during the high-speed rotating process. By setting The collection tank, the fixed ring and the partition can collect the materials crushed to a certain diameter. After the materials are crushed by the grinding barrel and the grinding column, the materials with small diameter will enter the opening of the grinding barrel during the rotation of the rotating column. At the collection tank, the partition plays a role of screening

3. The nano-grinding equipment for rice flour processing can cooperate with the crushing device by setting the grinding device, so that the material can achieve the effect of crushing. When working, the rotation of the rotating motor will drive the crushing device to rotate. During the process, the material will be crushed between the crushing device and the grinding device. The grinding bar in the grinding device can play the role of grinding, and the extrusion of the moving column and the elastic column can play a certain buffering effect and prevent large pieces The material will cause damage to the device.

4. The nano-grinding equipment for brewing rice flour processing can collect the materials that have been ground by setting the suction device, and the crushed materials can achieve the effect of collection under the action of slight suction. When working, the operator Turn on the switch of the fan motor, and the fan motor will drive the fan rotating column to rotate, so that the fan blades will generate suction during the rotation process to achieve the effect of collecting materials. By setting up a fine grinding device, the materials can be further crushed. During the rotation process, the fine grinding fan plate will also rotate, so that the material passing through the fine grinding device can become finer under the action of the fine grinding plate.

Description of drawings

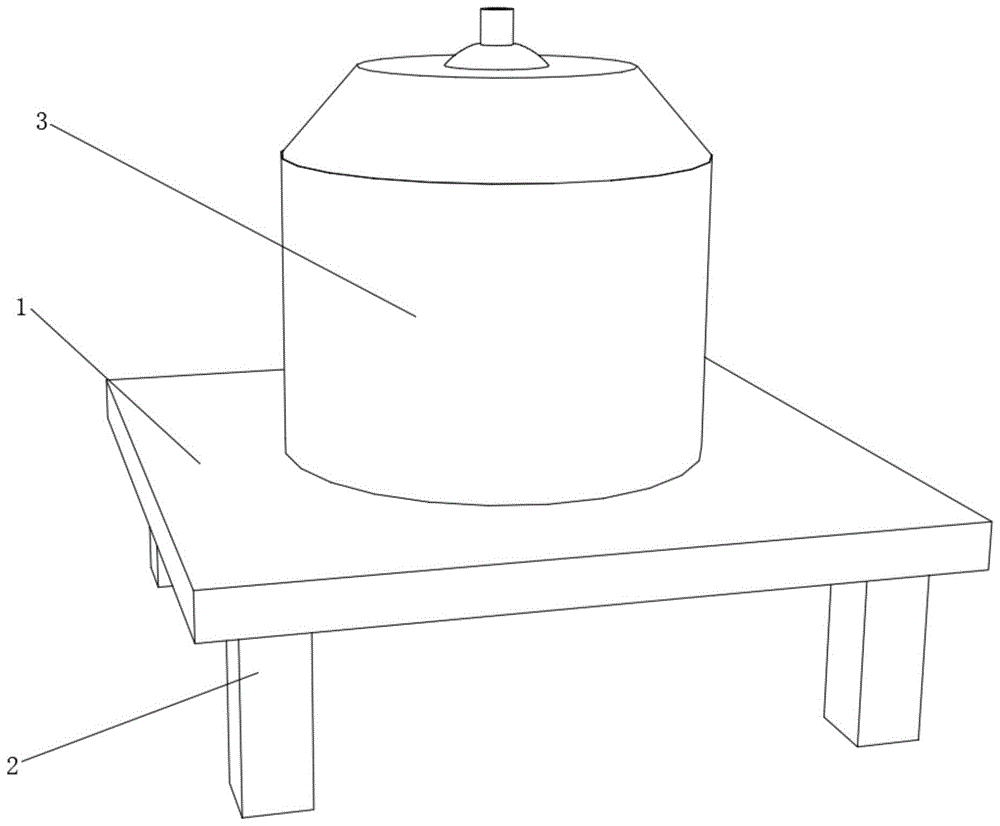

Fig. 1 is a schematic diagram of the overall structure of the present invention;

Fig. 2 is a schematic diagram of the overall sectional structure of the present invention;

Fig. 3 is a schematic diagram of the decomposition structure of the present invention;

Fig. 4 is the structural representation of crushing device of the present invention;

Fig. 5 is a schematic cross-sectional structure diagram of a crushing device of the present invention;

Fig. 6 is a schematic structural view of the grinding device of the present invention;

Fig. 7 is a schematic diagram of the structure of the cover plate of the present invention;

Fig. 8 is a structural schematic diagram of the suction device of the present invention;

Fig. 9 is a schematic structural view of the fine grinding device of the present invention.

In the figure: 1. Bottom plate; 2. Support legs; 3. Shell; 4. Rotating motor; 5. Crushing device; 6. Grinding device; 7. Cover plate; 8. Suction device; 9. Support frame; 10. Support plate; 11, curved soft plate; 12, soft plate; 51, rotating column; 52, grinding barrel; 53, supporting column; 54, grinding column; 55, clamping plate; 56, fixed ring; 57, partition; 61. Grinding device shell; 62. Moving column; 63. Elastic column; 64. Squeeze plate; 65. Grinding bar; 81. Suction device shell; 82. Collection pipe; 83. Motor support plate; 84. Fan motor; 85. Fan rotating column; 86. Fan piece; 87. Bottom limit column; 88. Suction device support plate; 89. Fine grinding device; 891. Fine grinding device rotating column; 892. Fine grinding fan plate; 893. Wave Wire shrapnel; 894, moving column; 895, fine grinding plate.

detailed description

The present invention will be further described in detail below in conjunction with the accompanying drawings and specific embodiments. The embodiments of the present invention have been presented for purposes of illustration and description, but are not intended to be exhaustive or to limit the invention to the form disclosed. Many modifications and changes will be apparent to those of ordinary skill in the art. The embodiment was chosen and described in order to better explain the principles of the invention and the practical application, and to enable others of ordinary skill in the art to understand the invention and design various embodiments with various modifications as are suited to the particular use.

As shown in Figures 1 to 9, the present invention provides a technical solution: a nano-grinding device for processing rice flour, including a bottom plate 1, and support legs 2 are fixedly connected to the corners of the lower surface of the bottom plate 1, so that The upper surface of the base plate 1 is provided with a casing 3, and the lower surface of the base plate 1 is provided with a rotating motor 4. By setting the rotating motor 4, the grinding device 5 can be driven to rotate, and the grinding device 5 can be rotated with the material. The effect of friction, so that the material achieves the effect of crushing. The rotating motor 4 penetrates the lower surface of the bottom plate 1 and extends to the upper surface of the bottom plate 1. The end of the rotating motor 4 extending to the upper surface of the bottom plate 1 is connected with a crushing Device 5, the inner wall of the housing 3 is fixedly connected with a support frame 9, the lower surface of the support frame 9 is fixedly connected with a support plate 10, and the lower surface of the support plate 10 is fixedly connected with a soft board 12, the support An arc-shaped soft board 11 is fixedly connected between the opposite surface of the frame 9 and the support plate 10. By setting the soft board 12 and the arc-shaped soft board 11, the material chips on the inner wall of the shell 3 can be brought into contact with the crushing device 5 again through vibration. To achieve a sufficient crushing effect on the material, when the rotating motor 4 starts to rotate, it will vibrate. Due to the vibration of the shell 3, it will drive the soft plate 12 and the arc-shaped soft plate 11 on the lower surface of the support frame 9 and the support plate 10 to vibrate. , the soft board 12 and the arc-shaped soft board 11 will amplify the vibration generated, so that the material on the inner wall of the shell 3 is vibrated down. Cover plate 7 is sleeved at the draw-in slot on the upper surface of housing 3, and crushing device 5 includes a rotating column 51, which is connected to the output end of rotating motor 4. By setting crushing device 5, The material can be crushed. When working, the operator places the material to be crushed in the inner cavity of the shell 3, then connects the rotating motor 4 to the power supply and turns on the switch of the rotating motor 4, and the rotating motor 4 starts to work, so that the rotating The column 51 starts to rotate. During the rotation, the outer surface of the grinding barrel 52 and the grinding column 54 will come into contact with the material, so that the material is crushed during the high-speed rotation. The outer surface of the rotating column 51 is covered with a grinding barrel 52 , the outer surface of the grinding barrel 52 is fixedly connected with a support column 53, and the opposite surfaces of the support column 53 are rotatably connected with a grinding column 54, and the upper surface of the grinding barrel 52 is provided with a collecting tank, and the grinding barrel 52 is fixedly connected with a clamping plate 55 at the collecting groove provided on the upper surface, and the upper surface of the grinding barrel 52 is provided with a fixed ring 56, and the surface of the fixed ring 56 is fixedly connected with a dividing plate 57, by setting the collecting groove and the fixed ring 56 and partition 57 can collect the materials crushed to a certain diameter. When the materials are crushed by the grinding barrel 52 and the grinding column 54, the materials with small diameters will enter the grinding barrel 52 during the rotation of the rotating column 51. At the collection tank provided, the partition 57 has played the role of screening, and the grinding device 6 includes a grinding device shell 61, and the grinding device shell 61 is fixedly connected to the inner wall of the shell 3. The inner cavity of the shell 61 is sheathed with a moving column 62, the moving column 62 runs through the grinding device casing 61 and extends to the outer surface of the grinding device casing 61, and one end of the moving column 62 extending to the grinding device casing 61 outer surface is fixed An extruding plate 64 is connected, the outer surface of the extruding plate 64 is fixedly connected with a grinding bar 65, and the end of the moving column 62 away from the extruding plate 64 is provided with an elastic column 63, and the elastic column 63 and the extruding moving column 62-phase extrusion adaptation, by setting the grinding device 6, it can cooperate with the crushing device 5, so that the material can achieve the effect of crushing. When working, the rotation of the rotating motor 4 will drive the crushing device 5 to rotate. During the rotation process The material in the medium will have a crushing effect between the crushing device 5 and the grinding device 6. The grinding bar 65 in the grinding device 6 can play the role of grinding, and the extrusion of the moving column 62 and the elastic column 63 can play a certain buffer effect, to prevent the large material from damaging the device, the upper surface of the cover plate 7 is provided with a circular hole, and the circular hole provided on the upper surface of the cover plate 7 is provided with a suction device 8, and the suction device 8 is provided. The device 8 includes a material suction device housing 81, the upper surface of the material suction device housing 81 is fixedly connected with a collecting pipe 82, and the inner wall of the material suction device housing 81 is fixedly connected with a motor support plate 83, and the motor support plate 83 is away from One end of the material suction device housing 81 is provided with a fan motor 84, the lower surface of the fan motor 84 is rotatably connected with a fan rotating post 85, and the outer surface of the fan rotating post 85 is fixedly connected with a fan blade 86, and the fan rotating post 85 is fixedly connected with a fan blade 86. The bottom end of 85 is provided with a bottom limit column 87, and a suction device support plate 88 is fixedly connected between the bottom limit column 87 and the opposite surface of the motor support plate 83, and the opposite surface of the suction device support plate 88 There is a fine grinding device 89 rotating between the surfaces. By setting the suction device 8, the materials that have been ground can be collected, and the crushed materials can achieve the effect of collection under the action of slight suction. When working, the operator Turn on the switch of the fan motor 84, the fan motor 84 drives the fan rotating column 85 to rotate, so that the fan blade 86 generates suction during the rotation, and achieves the effect of collecting materials. The fine grinding device 89 includes a fine grinding device rotating column 891, the rotating column 891 of the fine grinding device is rotatably connected between the opposite surfaces of the support plate 88 of the suction device, the outer surface of the rotating column 891 of the fine grinding device is fixedly connected with a fine grinding fan plate 892, and the fine grinding fan The inner cavity of the plate 892 is covered with a fine grinding device moving column 894, and a wavy shrapnel 893 is arranged between the inner cavity of the fine grinding fan plate 892 and the opposite surface of the fine grinding device moving column 894. The wavy line shrapnel 893 is squeezed and fitted, the moving column 894 runs through the inner cavity of the fine grinding fan plate 892 and extends to the outer surface of the fine grinding fan plate 892, and the moving column 894 extends to the outer surface of the fine grinding fan plate 892 One end of the fan is fixedly connected with a fine grinding plate 895. By setting the fine grinding device 89, the material can be further pulverized. During the rotation of the fan, the fine grinding fan plate 892 will also generate rotation so that the material passing through the fine grinding device 89 can become finer under the action of the fine grinding plate 895.

When in use, by setting the rotating motor 4, the grinding device 5 can be driven to produce the effect of rotation, and the grinding device 5 can produce the effect of rotating friction with the material, so that the material can achieve the effect of crushing. By setting the soft plate 12 and the arc soft The plate 11 can make the material scraps on the inner wall of the shell 3 contact the crushing device 5 again through vibration, so as to achieve a sufficient crushing effect on the material. When the rotating motor 4 starts to rotate, vibration will be generated, and the vibration of the shell 3 will drive the crushing device 5. The soft plate 12 and the curved soft plate 11 on the lower surface of the support frame 9 and the support plate 10 vibrate, and the soft plate 12 and the curved soft plate 11 can amplify the vibration generated, so that the material on the inner wall of the shell 3 is vibrated, and the roller The crushing device 5 can crush the materials. When working, the operator places the materials to be crushed in the inner cavity of the shell 3, then connects the rotating motor 4 to the power supply and turns on the switch of the rotating motor 4, and the rotating motor 4 starts Work, so that the rotating column 51 starts to rotate. During the rotation process, the outer surface of the grinding barrel 52 and the grinding column 54 will be in contact with the material, so that the material is crushed during the high-speed rotation. By setting the collecting tank and the fixed ring 56 and The partition 57 can collect the materials crushed to a certain diameter. After the materials are crushed by the grinding barrel 52 and the grinding column 54, the materials with small diameters will enter the grinding barrel 52 during the rotation process of the rotating column 51. At the collection tank, the partition 57 plays a role of screening. By setting the grinding device 6, it can cooperate with the crushing device 5, so that the material can achieve the effect of crushing. When working, the rotation of the rotating motor 4 will drive the crushing device 5. Rotate, during the process of rotation, the material will produce a crushing effect between the crushing device 5 and the grinding device 6, the grinding bar 65 in the grinding device 6 can play the role of grinding, and the moving column 62 and the elastic column 63 are squeezed It can play a certain buffering effect and prevent large pieces of material from causing damage to the device. By setting the suction device 8, the materials that have been ground can be collected, and the crushed materials can achieve the collection effect under the action of slight suction. , during work, the operator turns on the switch of the fan motor 84, and the fan motor 84 drives the fan rotating column 85 to rotate, so that the fan blade 86 generates suction during the rotation, and achieves the effect of collecting materials. By setting the fine grinding device 89 , the material can be further pulverized. During the rotation of the fan, the fine grinding fan plate 892 will also rotate, so that the material passing through the fine grinding device 89 can become finer under the action of the fine grinding plate 895.

Apparently, the described embodiments are only some of the embodiments of the present invention, not all of them. Based on the embodiments of the present invention, all other embodiments obtained by those skilled in the art and related fields without creative efforts shall fall within the protection scope of the present invention. The structures, devices and operation methods not specifically described and explained in the present invention, unless otherwise specified and limited, shall be implemented according to conventional means in the art.

Claims (8)

1. The utility model provides a dash nanometer crushing apparatus for rice flour processing, includes bottom plate (1), its characterized in that: the supporting legs (2) are fixedly connected to the corners of the lower surface of the bottom plate (1), the shell (3) is arranged on the upper surface of the bottom plate (1), the rotating motor (4) is arranged on the lower surface of the bottom plate (1), the rotating motor (4) penetrates through the lower surface of the bottom plate (1) and extends to the upper surface of the bottom plate (1), and one end, extending to the upper surface of the bottom plate (1), of the rotating motor (4) is rotatably connected with a crushing device (5);

the inner wall department fixedly connected with support frame (9) of shell (3), the lower fixed surface of support frame (9) is connected with backup pad (10), the lower fixed surface of backup pad (10) is connected with soft board (12), fixedly connected with arc soft board (11) between the opposite face of support frame (9) and backup pad (10), shell (3) inner wall department is provided with grinder (6), the draw-in groove has been seted up to the upper surface of shell (3), the draw-in groove department cover that shell (3) upper surface was seted up is equipped with apron (7).

2. The nano grinding device for processing the reconstituted rice noodles according to claim 1, wherein: the grinding device (5) comprises a rotating column (51), the rotating column (51) is connected with the output end of the rotating motor (4), a grinding barrel (52) is sleeved on the outer surface of the rotating column (51), a supporting column (53) is fixedly connected to the outer surface of the grinding barrel (52), and a grinding column (54) is rotatably connected between the opposite surfaces of the supporting column (53).

3. The nano-crushing apparatus for processing reconstituted rice flour according to claim 2, wherein: the upper surface of the grinding barrel (52) is provided with a collecting groove, the collecting groove formed in the upper surface of the grinding barrel (52) is fixedly connected with a clamping plate (55), the upper surface of the grinding barrel (52) is provided with a fixing ring (56), and the surface of the fixing ring (56) is fixedly connected with a partition plate (57).

4. The nano-crushing apparatus for processing reconstituted rice flour according to claim 1, wherein: grinder (6) include grinder shell (61), grinder shell (61) fixed connection is in the inner wall department of shell (3), the inner chamber department cover of grinder shell (61) is equipped with removes post (62), remove post (62) and run through grinder shell (61) and extend to the surface of grinder shell (61).

5. The nano-crushing apparatus for processing reconstituted rice flour according to claim 4, wherein: remove one end fixedly connected with stripper plate (64) that post (62) extended to grinder shell (61) surface, the outer fixed surface of stripper plate (64) is connected with grinding strip (65), the one end that stripper plate (64) were kept away from in removal post (62) is provided with elasticity post (63), elasticity post (63) with crowded removal post (62) looks extrusion adaptation.

6. The nano-crushing apparatus for processing reconstituted rice flour according to claim 1, wherein: circular hole has been seted up to the upper surface of apron (7), the circular hole department cover that apron (7) upper surface was seted up is equipped with inhales material device (8), inhale material device (8) including inhaling material device shell (81), inhale last fixed surface of material device shell (81) and be connected with collecting pipe (82), inhale inner wall department fixed connection motor support board (83) of material device shell (81), the one end of inhaling material device shell (81) is kept away from in motor support board (83) is provided with fan motor (84), the lower surface rotation of fan motor (84) is connected with fan and rotates post (85), the outer fixed surface that the fan rotated post (85) is connected with fan piece (86).

7. The nano grinding device for processing the reconstituted rice noodles as claimed in claim 6, wherein: the bottom cover of fan rotation post (85) is equipped with spacing post (87) in bottom, fixedly connected with inhales material device backup pad (88) between the opposite face of spacing post (87) in bottom and motor backup pad (83), it is connected with fine grinding device (89) to rotate between the opposite face of inhaling material device backup pad (88).

8. The nano-crushing apparatus for processing reconstituted rice flour according to claim 7, wherein: finely grind device (89) including finely grinding device rotation post (891), finely grind device rotation post (891) and rotate to be connected between the opposite face of material suction device backup pad (88), finely grind device rotation post (891)'s external surface fixed connection has finely ground fan board (892), the inner chamber department cover of finely ground fan board (892) is equipped with finely ground device removal post (894), finely ground fan board (892) inner chamber and finely grind device remove be provided with wave line shell fragment (893) between the opposite face of post (894), remove post (894) and wave line shell fragment (893) looks extrusion adaptation, remove post (894) and run through the inner chamber of finely ground fan board (892) and extend to the surface of finely ground fan board (892), remove post (894) and extend to the one end fixed connection of finely ground fan board (892) surface has finely ground board (895).
