Abstract
本发明提供了一种内置泡沫发生装置及智能马桶，该内置泡沫发生装置包括水液混合组件以及发泡喷头组件；水液混合组件具有用于将流速激增的水和发泡液交汇混合的震荡腔；发泡喷头组件包括第一喷嘴、第二喷嘴以及发泡网；混合液体经过第一喷嘴后增加旋转流速并产生一级文丘里吸气效应，并在经过第二喷嘴撞击在发泡网上形成二级文丘里吸气效应，由此形成泡沫。以上描述中可以看出，通过发泡喷头组件的自身结构替换气泵的吸气作用，利用两次文丘里吸气效应，保证类似装配气泵的发泡效果，并简化整体结构。另外，本申请还提供了一种智能马桶，该智能马桶本体上装配有上述内置泡沫发生装置，降低对液泵选型需求，简化装配工艺。
The invention provides a built-in foam generating device and an intelligent toilet. The built-in foam generating device includes a water-liquid mixing assembly and a foaming nozzle assembly; cavity; the foaming nozzle assembly includes a first nozzle, a second nozzle and a foaming net; after the mixed liquid passes through the first nozzle, the rotational flow rate is increased and a first-order Venturi suction effect is generated, and the second nozzle hits the foaming net A second-order Venturi suction effect is formed, thereby forming foam. It can be seen from the above description that by replacing the suction function of the air pump with the self-structure of the foaming nozzle assembly, two Venturi suction effects are used to ensure the foaming effect similar to that of an assembled air pump, and to simplify the overall structure. In addition, the present application also provides an intelligent toilet. The body of the intelligent toilet is equipped with the above-mentioned built-in foam generating device, which reduces the need for liquid pump selection and simplifies the assembly process.
Description
Technical Field
The invention relates to the technical field of intelligent toilets, in particular to a built-in foam generating device and an intelligent toilet.
Background
With the continuous development of society, traditional closestool is gradually replaced to intelligent closestool, and the water potential of massage function different intensity repeatedly acts on the clean position, promotes blood circulation, prevents relevant diseases, especially to constipation patient, has the effect of promoting the laxative.
The foam shield is widely applied to the field of intelligent toilets, and has the main functions of antifouling, splash prevention, antibiosis, deodorization and the like. The foam shield consists of a foaming agent, water and air, can cover the water seal of the closestool, has obvious splash-proof, anti-sticking, deodorant and bacteriostatic effects, and can protect the toilet environment and the human health just like a shield, thereby being named as the foam shield.
The existing foam shield system needs equipment such as a foam storage device, a liquid pumping pump, an air pump and the like for forming foam, and the foaming time is longer and is more than 10 seconds because the pressure ratio is lower during the integral foaming; meanwhile, the liquid pump is small due to assembly requirements, the liquid pump needs to be started first to suck foaming liquid into the pump cavity, and the foaming liquid in the pump cavity can work well. When the negative pressure is 0.05MPa, the liquid pump cannot discharge air, the type selection of the liquid pump is particularly important, and the requirement of the whole system on the liquid pump is high. Meanwhile, in the aspect of foaming, air suction and air supply, an air pump is adopted to do work, so that foaming liquid and water are mixed into foam, and the assembly requirement is greatly improved while the manufacturing cost is increased due to excessive power equipment.
Disclosure of Invention
The invention aims to overcome the defects of the prior art and provides a built-in foam generating device and an intelligent closestool.
The invention is realized by the following technical scheme:
in a first aspect, the present invention provides a built-in foam generating device comprising: a water liquid mixing component and a foaming nozzle component; wherein,
the water liquid mixing component is provided with an oscillation cavity for mixing the water with the flow velocity increased suddenly and the foaming liquid together;
the foaming nozzle assembly includes: the first nozzle, the second nozzle and the foaming net are connected in sequence from top to bottom;
the first-stage mixed liquid in the oscillating cavity passes through the first nozzle, the rotating flow rate is increased, and a first-stage Venturi suction effect is generated;
and the secondary mixed liquid passing through the first nozzle impacts the foaming net after flowing through the second nozzle to generate a secondary Venturi suction effect and then form foam.
It can be seen from the above description that under the condition that conditions such as the flow velocity and pressure inside the oscillation cavity are met, the liquid can form an eddy in the oscillation cavity through the structure of the oscillation cavity, and the problem of difficulty in mixing the liquid is solved by mixing the liquid with the eddy in the oscillation cavity. Meanwhile, the self structure of the foaming nozzle assembly is utilized to replace the air inlet function of the air pump, the two venturi phenomena are fully utilized, natural air suction is realized, and the foaming effect which is the same as that of other foam shield systems can be met by adopting one liquid pump.
In a specific embodiment, the aqueous liquid mixing assembly comprises a housing and a liquid pumping mechanism for pumping the foaming liquid into the shaking cavity; wherein,
the liquid pump mechanism and the oscillation cavity are both located inside the shell. Compact structure and small occupied installation space.
In a specific implementation mode, the liquid pumping mechanism pumps the foaming liquid into the oscillation cavity through a liquid suction pipeline;
the water is input into the oscillation cavity through a water conveying pipeline;
the foaming liquid and the water are mutually intersected in the oscillation cavity to form a vortex. Gather to shaking the chamber through two different pipelines, solved the difficult problem of liquid mixing.
In a specific implementation scheme, the connection part of the liquid suction pipeline and the water conveying pipeline connected with the oscillation cavity is provided with a narrow throat reducing part. Through the narrow throat reducing that is equipped with, make foaming liquid and the increase of water velocity of flow get into vibrate intracavity portion, foaming liquid and water intensive mixing.
In a specific embodiment, the fluid pumping mechanism includes a fluid pump disposed within the housing;
and the liquid suction end and the liquid pump end of the liquid pump are hermetically connected with the liquid suction pipeline. The response of the liquid pump for transferring and conveying the foaming liquid is more sensitive.
In a specific embodiment, the pipette path comprises: an adapter having two passageways;
the adapter is assembled on the shell in a limiting way;
the first passage of the adapter is hermetically connected with the liquid suction end of the liquid pump;
the second passage of the adapter is hermetically connected with the pump liquid end of the liquid pump;
the liquid suction pipeline also comprises a one-way valve; the check valve assembly is in the second passageway with vibrate between the chamber, just the check valve with vibrate the junction in chamber and be equipped with narrow larynx reducing. Avoiding the gas backflow from occupying the pump cavity and reducing the model selection standard of the liquid pump.
In a specific possible embodiment, a sealing cover is hermetically connected above the first nozzle, and the oscillation cavity is connected with one side of the first nozzle through a reducing pipeline;
the first nozzle is connected to the inside of the second nozzle in a clamping manner;
and the foaming net is clamped and connected to the bottom of the second nozzle. The clamping structure is adopted for connection, so that the connection process is reduced, and the assembly is more convenient.
In a specific embodiment, the first-stage mixing liquid increases the rotational flow rate specifically by: the diameter of the water outlet of the L-shaped water channel is smaller than that of the water inlet of the L-shaped water channel. The diameter difference of the water inlet and the water outlet of the L-shaped water channel is adopted, so that the rotating flow speed of the primary mixed liquid is increased when the primary mixed liquid passes through the L-shaped water channel.
In addition, the first-stage mixed liquid generates a first-stage Venturi air suction effect which specifically comprises the following steps: and the primary mixed liquid flows through the water outlet of the L-shaped water channel to form a water column with an olive-shaped cavity. The primary mixing fluid has a rotational flow rate and creates a olive-shaped cavity for creating a primary venturi suction effect.
In a specific possible embodiment, the secondary mixed liquid impacts on the foaming net after flowing through the second nozzle, and the foam is formed after the secondary venturi suction effect is generated, specifically:
the bottom of the second nozzle is provided with a reducing nozzle facing the foaming net, and the diameter of the reducing nozzle is smaller than that of the second nozzle and that of the foaming net. When the high-speed secondary mixed liquid flows through the reducing nozzle, a secondary Venturi suction effect is triggered, a large amount of gas is brought in, and finally, the gas impacts on the foaming net to form foam.
In a second aspect, the invention further provides an intelligent closestool which comprises an intelligent closestool body, wherein the built-in foam generating device in the first aspect is assembled on the intelligent closestool. Therefore, the intelligent closestool body reduces the requirement for selecting the type of the liquid pump and simplifies the assembly process.
Drawings

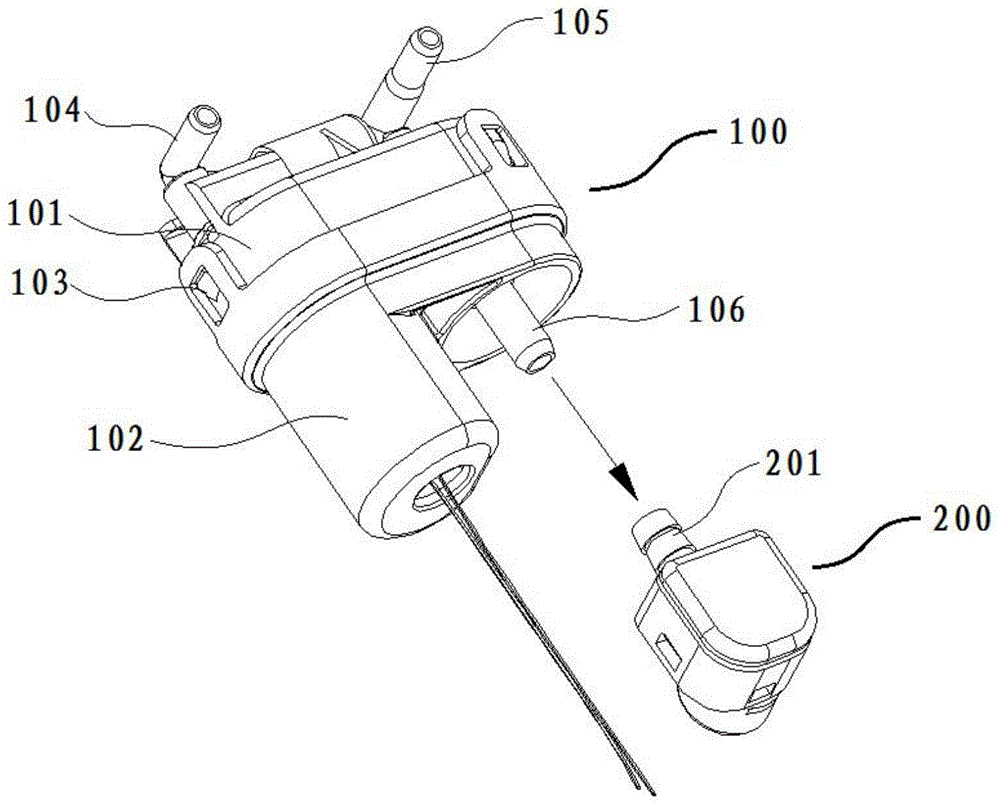

FIG. 1 is a schematic structural diagram of a built-in foam generating device provided in an embodiment of the present invention;
FIG. 2 is a schematic diagram of an exploded structure of an aqueous liquid mixing assembly according to an embodiment of the present invention;
FIG. 3 is a sectional view of an aqueous liquid mixing assembly according to an embodiment of the present invention;
FIG. 4 is a cross-sectional view of an oscillation chamber provided in accordance with an embodiment of the present invention;
FIG. 5 is a schematic diagram of an exploded structure of a foaming nozzle assembly according to an embodiment of the present invention;
fig. 6 is a cross-sectional view of a showerhead assembly provided by an embodiment of the present invention.
Reference numerals:
the device comprises a water liquid mixing component-100, an upper shell-101, a lower shell-102, a first clamping structure-103, a pipette-104, a water pipeline-105, a transfusion tube-106, a liquid pump-107, a liquid pump sealing piece-108, a power supply line-109, an adapter-110, a one-way valve sealing piece-111, a one-way valve-112, a vibration cavity-113, a first narrow throat diameter-114, a rotational flow bulge-115 and a second narrow throat diameter-116;
the foaming sprayer comprises a foaming sprayer component-200, a reducer pipe-201, a sealing cover-202, a first nozzle-203, an L-shaped water channel-204, a second nozzle-205, a second clamping structure-206, a reducing nozzle-207, a foaming net-208, a third clamping structure-209 and a water outlet-210.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more apparent, the present invention is described in further detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and do not limit the invention.
The embodiment of the invention provides a built-in foam generating device and an intelligent closestool, and firstly, application scenes of the built-in foam generating device and the intelligent closestool are explained. The existing foam shield system needs to form foam and needs equipment such as a foam storage device, a liquid pump, an air pump and the like, and the pressure ratio is lower during the integral foaming, so that the foaming time is longer and is more than 10 seconds; meanwhile, due to the assembly requirement, the liquid pump is small, the liquid pump needs to be started first, foaming liquid is sucked into the pump cavity, and the foaming liquid can work well after being contained in the pump cavity. When the negative pressure is 0.05MPa, the liquid pump cannot discharge air, the type selection of the liquid pump is particularly important, and the requirement of the whole system on the liquid pump is high. Meanwhile, in the aspect of foaming, air suction and air supply, an air pump is adopted to do work, so that foaming liquid and water are mixed into foam, and the assembly requirement is greatly improved while the manufacturing cost is increased due to excessive power equipment. Therefore, the application provides a built-in foam generating device and intelligent closestool, the same effect of breathing in with the air pump is guaranteed to application self structure, reduces the installation of air pump, adopts the venturi phenomenon to breathe in, guarantees the foaming effect, reduces the type selection demand to the liquid pump simultaneously, simplifies assembly process. The following describes the built-in foam generating device and the intelligent toilet in detail.
Referring to fig. 1, fig. 1 is a schematic structural diagram of a built-in foam generating device according to an embodiment of the present invention; this built-in foam generating device includes: a water liquid mixing assembly 100 and a foaming nozzle assembly 200; the water-liquid mixing assembly 100 is used for mixing foaming liquid and water, the foaming liquid is filled in a liquid storage device, and water is introduced into the water-liquid mixing assembly 100 by an external water pipe to vibrate and mix with the foaming liquid.
Water liquid mixing assembly 100 has and is used for the water and the foaming liquid that the velocity of flow is sharply increased and concussion chamber 113 that mixes that intersects, in this application embodiment, increases the velocity of flow of water and foaming liquid, increases rotational speed, produces the vortex effect, reaches better mixed effect.
A liquid suction pipe 104 and a water conveying pipeline 105 are exposed on the water liquid mixing component 100, the liquid suction pipe 104 is used for inputting foaming liquid in the liquid storage device into the oscillation cavity 113 in a pump mode, the liquid storage device and the liquid suction pipe 104 are fixedly connected through a silicone tube, and the silicone tube with proper length is selected according to the distance between the liquid storage device and the liquid suction pipe 104 for fixing.
The interior of the water-liquid mixing assembly 100 is provided with a liquid pumping mechanism for pumping the foaming liquid into the shaking chamber 113. Specifically, the aqueous liquid mixing assembly 100 includes a housing; the liquid pumping mechanism and the oscillation chamber 113 are both located inside the housing. Compact structure and small occupied installation space. Of course, in another embodiment of the present application, the liquid pumping mechanism can be disposed outside the housing, and has a flexible assembly feature, and when the liquid pumping mechanism is located outside the housing, the liquid pumping mechanism also uses a silicone tube to connect the liquid suction tube 104 of the liquid-liquid mixing assembly 100, so as to pump the foaming liquid in the liquid reservoir into the shaking chamber 113 by using a liquid pumping mechanism with smaller power.
In the embodiment of the application, in order to improve the convenience of disassembly and assembly, the shell comprises an upper shell 101 and a lower shell 102 which are separated; the upper casing 101 and the lower casing 102 are connected by a first clamping structure 103. The split type assembly process is more convenient and fast to install. Meanwhile, after the internal parts of the shell are damaged, the shell is convenient to disassemble, assemble and replace.
Specifically, this first joint structure 103 includes, relative or along the first buckle that upper housing 101 circumference set up, set up on lower housing 102 with the first draw-in groove of first buckle one-to-one, when upper housing 101 moves down towards lower housing 102, the inside at first draw-in groove of first buckle one-to-one joint to make upper housing 101 and lower housing 102 form the fixed relation of connection of joint, consequently, upper housing 101 and lower housing 102 are collectively referred to as the casing.
Referring to fig. 2, in the conventional foam shield system, the liquid pump 107 is small due to assembly requirements, and the liquid pump 107 needs to be started first to suck foaming liquid into the pump cavity, so that the conventional foam shield system can work well after the foaming liquid is in the pump cavity. However, when the negative pressure is 0.05MPa, the liquid pump 107 cannot discharge air, and the selection of the type of the liquid pump 107 is particularly important, and the requirement of the whole system on the liquid pump 107 is high. In view of this, in the present application, the liquid pump mechanism pumps the foaming liquid into the oscillation cavity 113 through the liquid suction pipeline; one of the liquid suction pipelines and the liquid suction pipe 104 are the same pipeline and are used for conveying the foaming liquid to the oscillation cavity 113 in a pump mode.
When specifically setting up and shaking chamber 113, go up casing 101 and lower casing 102 and all have assorted cell body structure, after last casing 101 and the mutual lock of casing 102 down, install the sealing washer in the middle of the cell body structure between the two, make and form the vibration chamber 113 that link up between the cell body structure of casing 101 and lower casing 102 down, make foaming liquid and water join and get into and shake formation vortex in the middle of the chamber 113, obtain abundant mixture.
Water is input into the oscillation cavity 113 through the water conveying pipeline 105; the water conveying pipeline 105 is arranged at the top of the upper shell 101 and is communicated with the oscillation cavity 113, and the water conveying pipeline 105 adopts an external water source; the pressure of the external water source is 0.4Mpa, so that after the foaming liquid is pumped by the liquid pump 107, the foaming liquid is subjected to impact mixing to form a vortex mixing liquid of the water and the foaming liquid.
Referring to fig. 3 and 4 together, in the existing foam shield system, because the liquid pump 107 is relatively small, the pump needs to be started first, and the foam shield system can work well after liquid is sucked into the pump cavity and the cavity has liquid therein (when the negative pressure is 0.05Mpa, the liquid pump 107 cannot discharge air at present), so that the gas backflow occupies the pump cavity of the liquid pump 107, and the one-way flow check valve 112 is adopted to stop the gas backflow in the present application.
Specifically, the liquid pump mechanism includes a liquid pump 107 disposed inside the housing; the liquid pump 107 is started by supplying 5v voltage through the power supply line 109, and the liquid suction end and the pump liquid end of the liquid pump 107 are hermetically connected with the liquid suction pipeline. By sealing the connection, air is prevented from entering the pump chamber of the liquid pump 107, and the response of the liquid pump 107 in switching to deliver foaming liquid is more sensitive.
The pipette path in the embodiment of the present application includes: an adaptor 110 having two passages; the adaptor 110 is pushed into the housing for limiting, and the adaptor 110 is limited and mounted in the upper housing 101 in an interference connection mode. The adaptor 110 has a first passage for sucking up foaming liquid and a second passage for pumping foaming liquid into the one-way valve 112, and liquid pump seals 108 are fitted between the first passage and the liquid suction end of the liquid pump 107 and between the second passage and the pump liquid end of the liquid pump 107, thereby achieving sealing between the liquid pump 107 and the adaptor 110.
When the first passage of adapter member 110 is sealingly connected to the intake end of liquid pump 107 and the second passage of adapter member 110 is sealingly connected to the pump end of liquid pump 107, the end of the second passage remote from liquid pump 107 communicates with oscillation chamber 113 through one-way valve 112. A one-way valve seal 111 is fitted between the one-way valve 112 and the second passage to ensure a seal between the one-way valve 112 and the adaptor piece 110.
And in order to increase the flow rate of the foaming liquid pumped into the oscillation cavity, a first narrow throat reducing pipe 114 is arranged at the joint of the one-way valve 112 and the oscillation cavity 113, so that the foaming liquid pumped by the liquid pump 107 rapidly flows into the oscillation cavity 113 through the first narrow throat reducing pipe of the one-way valve 112, and is mixed with the entering water in a vortex mode.
A second narrow throat reducing diameter 116 is arranged between the oscillating cavities 113 of the water conveying pipeline 105, and water with pressure outside enters the oscillating cavities 113 through the second narrow throat reducing diameter 116 of the water conveying pipeline 105 in a state of rapid increase of flow rate by the arrangement of the second narrow throat reducing diameter 116, so that the water and the foaming liquid are mixed rapidly.
The foaming liquid and the water meet inside the oscillating chamber 113 to form a vortex. The problem of difficulty in mixing liquid is solved by collecting the liquid to the oscillation cavity 113 through two different pipelines. In addition, in the embodiment of the present application, in order to better mix the water and the foaming liquid to form a vortex, a tapered swirling protrusion 115 is disposed at the bottom of the oscillation cavity 113, so that the water and the foaming liquid form a vortex after rapidly entering the oscillation cavity 113.
As can be seen from the above description, the foaming liquid is filled in the liquid reservoir and is connected to the liquid suction pipe 104 through the silicone tube; the pressurized water is rapidly fed into the oscillation cavity 113 through the second narrow throat diameter-changing 116, and the liquid pump 107 synchronously pumps the foaming liquid into the oscillation cavity 113 in a rapid state through the adapter 110. Check valve 112 prevents backflow of air from occupying the pump chamber of liquid pump 107 after liquid pump 107 is deactivated. The liquid outlet direction of the one-way valve 112 and the water outlet direction of the water conveying pipeline 105 are distributed at a right angle, so that external water with pressure impacts foaming liquid at a variable speed, and a vortex is easily formed under the structural action of the rotational flow protrusion 115 of the oscillation cavity 113, and a better mixing effect is achieved. Of course, it should be understood that the liquid outlet direction of the check valve 112 and the water outlet direction of the water conveying pipeline 105 may also adopt an included angle equal to 90 ° or smaller than 90 °, so as to realize the vortex flow in the oscillation cavity 113 in the self-flowing state of the water impact foaming liquid.
The bottom of the oscillation cavity 113 is connected with an infusion tube 106, and the infusion tube 106 is used for conveying primary mixed liquid formed by mixing water and foaming liquid to the foaming nozzle assembly 200 to form foam.
Referring to fig. 5, fig. 5 is a schematic diagram illustrating an exploded structure of a foaming nozzle assembly provided in an embodiment of the present application. The foaming nozzle assembly 200 replaces the air inlet function of the air pump by utilizing the structure of the foaming nozzle assembly, fully utilizes the phenomenon of two venturi, realizes natural air suction, achieves the effect of adopting one liquid pump 107, and can meet the same foaming effect with other foam shield systems.
Specifically, the foaming nozzle assembly 200 includes: a first nozzle 203, a second nozzle 205 and a foaming net 208 which are connected from top to bottom in sequence. A sealing cover 202 is hermetically connected above the first nozzle 203, the sealing cover 202 is used for sealing the top of the first nozzle 203, a reducer 201 is arranged on one side of the first nozzle 203, and a silicone tube is connected between the infusion tube 106 and the reducer 201, so that a primary mixed liquid which forms vortex mixing in the oscillation cavity 113 flows into the first nozzle 203, and the primary mixed liquid is continuously mixed and rotated and the flow rate is increased under the action of the first nozzle 203.
Water liquid mixing assembly 100 and foaming shower nozzle subassembly 200 adopt split type setting, according to the assembly demand, select for use the silicone tube of different length to connect, increase nimble assembly performance. In addition, the first nozzle 203, the second nozzle 205 and the foaming net 208 are connected in a snap-fit manner by using buckles. The first nozzle 203 is connected to the inside of the second nozzle 205 through a second clamping structure 206; specifically, second joint structure 206 includes, relatively or along the second buckle that first nozzle 203 circumference set up, set up the second draw-in groove with second buckle one-to-one on second nozzle 205, when first nozzle 203 moves towards the inside of second nozzle 205, the inside of second buckle one-to-one joint at the second draw-in groove to make the fixed assembly of first nozzle 203 in the inside of second nozzle 205, it is more convenient to guarantee the dismouting simultaneously.
The lower part of the second nozzle 205 is provided with a reducing nozzle 207, the foaming net 208 is clamped and fixed on the reducing nozzle 207 through a third clamping structure 209, and the foaming net 208 is made of a steel wire mesh and steel wire mesh fixing pieces. Specifically, the third clamping structure 209 includes, relatively or along the third buckle that reducing spout 207 circumference set up, set up the third draw-in groove with third buckle one-to-one on the wire net mounting, when reducing spout 207 moved to the inside of wire net mounting, the inside at the third draw-in groove of third buckle one-to-one correspondence joint to make foaming net 208 fixed assembly in the bottom of second nozzle 205, make reducing spout 207 spun high-speed liquid impact the wire net and form the foam. Adopt the joint structure to connect, reduce connection process, it is more convenient to assemble, is convenient for later stage change maintenance.
Referring to fig. 6, when the liquid is made to increase the rotational flow rate inside the first nozzle 203 and generate the primary venturi suction effect, an L-shaped water channel 204 communicated with the reducing pipe is provided inside the first nozzle 203, and the diameter of the water outlet 210 of the L-shaped water channel 204 is smaller than the diameter of the water inlet of the L-shaped water channel. By using the difference in diameter between the water inlet and the water outlet of the L-shaped water channel, the primary mixed liquid is caused to flow through the L-shaped water channel at an increased rotational flow rate and enter the second nozzle 205 at a rapidly increased flow rate.
As can be seen from the above description, the first-stage mixed liquid has a certain self-rotation force after flowing into the L-shaped water channel 204; the primary mixed liquid with the rotary flow rate forms a water column with an olive-shaped cavity after flowing out of the water outlet 210 after passing through the L-shaped water channel 204, so that the whole primary mixed liquid is slightly thick and does not lose the flow rate, air is absorbed for the first time, when the primary mixed liquid flows to the second nozzle 205 through the water outlet 210 of the first nozzle 203, the rotary flow rate of the primary mixed liquid is easily increased by using the mode that the caliber of the water outlet 210 is reduced, and the water column with the olive-shaped cavity generates a primary venturi suction effect.
Furthermore, the diameter of the water outlet 210 of the L-shaped water channel 204 is reduced, so that the flow speed of the primary mixed liquid is increased when the primary mixed liquid flows out of the L-shaped water channel 204, and an olive-shaped cavity is formed under the action of a rotating effect, so that air is absorbed, and the primary Venturi suction effect is facilitated.
After the primary mixed liquid flows out through the first nozzle 203, a secondary mixed liquid with increased flow rate and sufficient gas content is formed, and the secondary mixed liquid enters the second nozzle 205 in a self-flowing state with increased flow rate. The secondary mixed liquid formed by the first nozzle 203 flows through the second nozzle 205 and then impinges on the foaming net 208, and a secondary venturi suction effect is generated to form foam. Specifically, the primary mixed liquid and the secondary mixed liquid are both a mixture of water and a foaming liquid, and form foam after passing through the water liquid mixing assembly and the foaming head assembly, wherein the mixing and suction forms are different, so that the water liquid mixed liquid is defined as the primary mixed liquid, the liquid sucked through the first nozzle 203 to cause primary foaming is defined as the secondary mixed liquid, and finally the secondary mixed liquid is formed into foam after being impacted on the foaming net 208 through the second nozzle 205.
Specifically, a reducing nozzle 207 facing the foaming net 208 is arranged at the bottom of the second nozzle 205, and the diameter of the reducing nozzle 207 is smaller than the diameter of the second nozzle 205 and the diameter of the foaming net 208. When the high-flow-rate secondary mixed liquid flows through the reducing nozzle 207, a secondary Venturi suction effect is triggered, a large amount of gas is brought in, and finally, the gas collides on the foaming net 208 to form foam.
In the invention, under the condition that the conditions of flow speed, pressure and the like in the oscillation cavity 113 are met, liquid can form a vortex in the oscillation cavity 113 through the structure of the oscillation cavity 113, and the problem of difficulty in liquid mixing is solved by using the vortex of the oscillation cavity 113 to mix liquid. Meanwhile, the self structure of the foaming nozzle assembly 200 is utilized to replace the air inlet function of the air pump, the two venturi phenomena are fully utilized, natural air suction is realized, and the same foaming effect as other foam shield systems can be met by adopting one liquid pump 107.
In addition, the invention also provides an intelligent closestool which comprises an intelligent closestool body, wherein the intelligent closestool is provided with the built-in foam generating device of the first aspect. Therefore, the intelligent closestool body reduces the requirement for selecting the type of the liquid pump and simplifies the assembly process.
The intelligent closestool also comprises a control system, and the control system is electrically connected with the liquid pump through signals. When the foam generating device is used, a button does not need to be pressed in advance, and the control system is connected with the liquid pump to automatically generate foam and stop generating foam.
The controller system is a master device for controlling the starting, speed regulation, braking and reversing of the motor by changing the wiring of a main circuit or a control circuit and changing the resistance value in the circuit according to a preset sequence. The system consists of a program counter, an instruction register, an instruction decoder, a time sequence generator and an operation controller, and is a decision mechanism for issuing commands, namely, the decision mechanism is used for coordinating and commanding the operation of the whole computer system.
The control system can be a PLC controller and a digital logic controller for automatic control, and can load control instructions into a memory at any time for storage and execution. The programmable controller is modularly assembled by an internal CPU, an instruction and data memory, an input/output unit, a power module, a digital analog unit and the like. The PLC logic controller comprises a central processing unit and a data memory, and the central processing unit is electrically connected with the data memory. It should be specifically explained that the control system controls the liquid pump to work correspondingly through programming, which is the prior art known to those skilled in the art, and will not be described in detail herein.
The present invention is not limited to the above preferred embodiments, and any modifications, equivalent substitutions and improvements made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (11)
1. A built-in foam generating device, comprising: a water liquid mixing component and a foaming nozzle component; wherein,
the water liquid mixing component is provided with an oscillation cavity for mixing the water with the flow velocity increased suddenly and the foaming liquid together;
the foaming nozzle assembly includes: the first nozzle, the second nozzle and the foaming net are connected in sequence from top to bottom;
the first-stage mixed liquid in the oscillating cavity passes through the first nozzle, the rotating flow rate is increased, and a first-stage Venturi suction effect is generated;
and the secondary mixed liquid passing through the first nozzle impacts the foaming net after flowing through the second nozzle to generate a secondary Venturi suction effect and then form foam.
2. The foam-generating device as set forth in claim 1, wherein the water-liquid mixing assembly comprises a housing and a pumping mechanism for pumping the foaming liquid into the shaking chamber; wherein,
the liquid pump mechanism and the oscillation cavity are both located inside the shell.
3. The internal foam generating device according to claim 2, wherein the liquid pumping mechanism pumps the foaming liquid into the oscillation cavity through a liquid suction pipeline;
the water is input into the oscillation cavity through a water conveying pipeline;
the foaming liquid and the water are mutually jointed in the oscillation cavity to form a vortex.
4. The built-in foam generating device according to claim 3, wherein the narrow throat diameter-changing portion is arranged at the connection position of the liquid suction pipeline and the water conveying pipeline which are connected with the oscillation cavity.
5. The internal foam generating apparatus according to claim 4, wherein the liquid pump mechanism includes a liquid pump disposed inside the housing;
and the liquid suction end and the liquid pump end of the liquid pump are hermetically connected with the liquid suction pipeline.
6. The built-in foam generating apparatus according to claim 5, wherein the liquid suction line comprises: an adapter having two passageways;
the adapter is assembled on the shell in a limiting way;
the first passage of the adapter is hermetically connected with the liquid suction end of the liquid pump;
the second passage of the adapter is hermetically connected with the pump liquid end of the liquid pump;
the liquid suction pipeline also comprises a one-way valve; the check valve assembly is in the second passageway with vibrate between the chamber, just the check valve with vibrate the junction in chamber and be equipped with narrow larynx reducing.
7. The built-in foam generating device according to any one of claims 1 to 6, wherein a sealing cover is hermetically connected above the first nozzle, and the oscillating cavity is connected with one side of the first nozzle through a reducing pipeline;
the first nozzle is connected to the inside of the second nozzle in a clamping manner;
and the foaming net is clamped and connected to the bottom of the second nozzle.
8. The built-in foam generating device according to claim 7, wherein the primary mixed liquid increases the rotational flow rate by:
an L-shaped water channel communicated with the reducing pipeline is arranged inside the first nozzle, and the diameter of a water outlet of the L-shaped water channel is smaller than that of a water inlet of the L-shaped water channel.
9. The built-in foam generating device according to claim 8, wherein the primary mixed liquid generates a primary venturi suction effect, specifically: and the primary mixed liquid flows through the water outlet of the L-shaped water channel to form a water column with an olive-shaped cavity.
10. The device according to claim 9, wherein the secondary mixed liquid impacts on the foaming net after flowing through the second nozzle, and the secondary venturi suction effect is generated to form foam as follows:
the bottom of the second nozzle is provided with a reducing nozzle facing the foaming net, and the diameter of the reducing nozzle is smaller than that of the second nozzle and that of the foaming net.
11. An intelligent closestool, which is characterized by comprising an intelligent closestool body, wherein the intelligent closestool is provided with the built-in foam generating device as claimed in any one of claims 1 to 10.
