The invention relates to the technical field of oncology nursing, and discloses a movable workbench for oncology nursing, which includes a cabinet, a placing platform is fixed on the top of the cabinet, and a flushing structure is fixed on the left side of the cabinet. A transmission structure is fixed on one side of the placing table, a scrubbing structure is provided on the left side of the inside of the placing table, and a first placing board is slidably connected to the upper and lower sides of the inside of the cabinet. The present invention can disinfect and clean the surface of the workbench after the patient care is completed, effectively improving the sanitation of the workbench, avoiding cross-infection between patients, and the workbench can automatically clean the ground below it. Rotate and clean to prevent the effusion of the patient's wound from falling on the floor of the ward, which will affect the internal environment of the patient's ward. The nursing work of medical staff provides convenience.

Description

A mobile workbench for oncology nursing

technical field

The invention relates to the technical field of oncology nursing, in particular to a movable workbench for oncology nursing.

Background technique

Oncology, like internal medicine, surgery, obstetrics and gynecology, and pediatrics, is a secondary discipline of clinical medicine, divided into medical oncology, radiotherapy oncology, and surgery oncology. The medical oncology department is mainly engaged in the medical treatment of various benign and malignant tumors; The Department of Radiation Therapy for Tumors is mainly engaged in radiation therapy for tumors. After patients undergo tumor surgery, medical staff are required to perform regular nursing operations on patients to speed up the recovery of patients and reduce their pain.

After searching, for example, Chinese patent literature discloses a movable workbench for respiratory medicine nursing [application number: CN202020628081.0; publication number: CN212816951U]. This movable workbench for respiratory medical care includes a bottom plate, a cabinet is fixedly installed on the top of the bottom plate, a placement mechanism is arranged inside the cabinet, a sliding adjustment mechanism is arranged on the top of the cabinet, and the internal sliding connection of the sliding adjustment mechanism has Folding table plate mechanism, the bottom of the base plate is fixedly installed with four moving wheels in a rectangular array.

The workbench disclosed in this patent also has certain problems in the actual use process. When performing nursing operations on patients, medical staff need to place some medical instruments or medical appliances on the workbench, which makes the surface of the workbench easy to adhere to. For the patient's body fluids, blood or medicinal liquid, after the medical staff completes the care, the workbench is inconvenient to clean and disinfect the blood or medicinal liquid attached to its surface. When the medical staff pushes the workbench to care for other patients, then The risk of cross-infection is increased, and the workbench cannot clean the ground in the ward after the nursing is completed. The effusion in the area is easy to flow to the ground, and it needs to be cleaned by cleaning personnel. At the same time, the workbench is equipped with multiple placement plates for placing medicines and medical equipment. The height of the placement plates on the workbench is fixed. When personnel need to take out the medicines located at the bottom, they also need to bend down to take them, and it is inconvenient to take out the corresponding medicines accurately, and the use process is relatively inconvenient.

Contents of the invention

(1) Solved technical problems

Aiming at the deficiencies of the prior art, the present invention provides a movable workbench for oncology care, which can disinfect and clean the surface of the workbench after the patient care is completed, effectively improving the sanitation of the workbench and avoiding There is cross-infection between patients, and the workbench can automatically rotate and clean the ground below it to prevent the fluid from the patient's wound from falling on the ward floor and affect the internal environment of the patient's ward. During nursing, it is convenient for the medical staff to take the medicines or medical devices in the workbench, which provides convenience for the nursing work of the medical staff.

(2) Technical solutions

In order to achieve the above object, the present invention provides the following technical solutions: a movable workbench for oncology nursing, including a cabinet, a placing platform is fixed on the top of the cabinet, a flushing structure is fixed on the left side of the cabinet, One side of the placing table is fixed with a transmission structure, the left side of the inside of the placing table is provided with a scrubbing structure, the upper and lower sides of the inside of the cabinet are slidably connected with a first placing board, and the rear of the inside of the cabinet is provided with a There is a cavity, the top of the cavity is movably connected with a drive structure, the back of the cabinet is provided with a mounting frame, and the inner wall of the mounting frame is fixed with a number of second placement plates, and the interior of the cavity is movably connected with Adjusting structure, the bottom of the cabinet body is movably connected with a cleaning structure.

Preferably, the flushing structure includes a water tank, a water pump, a water pipe, a first installation box, a nozzle, a waste liquid box and a water inlet hole, the water tank is fixed at the bottom on the left side of the cabinet, and the inside of the water tank is provided with a disinfectant , the water pump is fixed on the top of the water tank, and the water pump and the water tank are connected, the water pipe is connected to the top of the water pump, the bottom of the inner wall of the placement table is inclined, and the first installation box is fixed on the placement table On the left side of the inner wall, one end of the water pipe penetrates into the inside of the placement table and communicates with the first installation box, the nozzle is fixed on the surface on the right side of the first installation box, and the waste liquid box is fixed on the bottom of the placement table The right side of the water inlet hole is opened on the right side of the bottom of the inner wall of the placement platform, the number of the water inlet holes is several, and the bottom of the water inlet hole extends to the inside of the waste liquid box.

Preferably, the transmission structure includes a first box body, a fixed box, a driving wheel, a first motor, a driven wheel, a first threaded rod, a threaded sleeve and a through groove, and the first box body is bolted to the right side of the placement table. side, the fixed box is fixed on the front and rear sides of the placement table, the driving wheel is rotatably connected to the inside of the first box body, the first motor is fixed on the right side of the first box body, and the output of the first motor The shaft penetrates to the inside of the first box body and is fixedly connected to the right side of the driving wheel. The driven wheel is rotatably connected to the front and back of the first box body, and the driving wheel is connected to the driven wheel through a belt. The first The threaded rod is rotatably connected inside the fixed box, and the right end of the first threaded rod penetrates into the inside of the first box body and is fixedly connected with the driven wheel. The threaded sleeve is threaded on the left side of the surface of the first threaded rod. The through groove is provided on the top of the fixed box.

Preferably, the brushing structure includes a connecting frame, a second installation box, a connecting plate, a spring and a brush, the connecting frame is arranged on the left side of the top of the placing table, the connecting frame is U-shaped, and the connecting frame One side passes through the through groove and extends to the inside of the fixed box, one side of the connecting frame is fixedly connected with the threaded sleeve, the second mounting box is fixed on the bottom of the connecting frame, and the connecting plate is slidably connected to the second mounting box Below the inside, the spring is fixed on the top of the connecting plate, and the top of the spring is fixedly connected to the inner wall of the second installation box, and the brush is fixed under the connecting plate.

Preferably, the driving structure includes a second motor, a rotating rod, a first bevel gear plate, a first bevel gear, a rotating rod, a first gear and a rack plate, and the second motor is fixed on the inner wall of the cavity. At the bottom, the rotating rod is fixed on the top of the output shaft of the second motor, the first bevel gear disc is fixed on the top of the rotating rod, and the rotating rod is rotatably connected above the inside of the cavity, and the first conical The gear is fixed on the surface of the rotating rod, and the first bevel gear meshes with the first bevel gear plate, the first gear is fixed on the left and right sides of the rotating rod surface, and the first gear runs through the cabinet, the The rack plate is bolted to the left and right sides of the front of the installation frame, and the rack plate is meshed with the first gear.

Preferably, clamping plates are bolted to the left and right sides of the back of the cabinet, limiting slots are provided behind the surface of the opposite side of the clamping plate, and limiting blocks are bolted to the bottom of one side of the rack plate. , one side of the limiting block extends to the inside of the limiting groove and is slidably connected with the inner wall of the limiting groove.

Preferably, the adjustment structure includes a second bevel gear plate, a second bevel gear, a connecting groove and a second threaded rod, the second bevel gear plate is fixed on the upper and lower sides of the surface of the rotating rod, and the first Two bevel gears are arranged on the upper and lower sides of the front side of the inner wall of the cavity, and the second bevel gear plate is meshed with the second bevel gear, the connecting groove is opened on the back side of the first placement plate, and the second A second threaded rod is bolted to the front of the bevel gear, and the front end of the second threaded rod penetrates into the connecting groove and is threadedly connected with the inner wall of the connecting groove.

Preferably, the cleaning structure includes a second box body, a third motor, a third threaded rod, a sleeve, a rotating disk and a cleaning cloth, the second box body is fixed on the bottom of the inner wall of the cabinet, and the third motor fixed on the top of the second box body, the third threaded rod is arranged inside the second box body, the bottom end of the third motor output shaft penetrates to the inside of the second box body and connects with the top end of the third threaded rod fixed connection, the sleeve is set under the third threaded rod, and the inner wall of the sleeve is threadedly connected with the third threaded rod, the bottom end of the sleeve penetrates to the bottom of the cabinet and is slidably connected with the cabinet, The rotating disk is bolted to the bottom of the casing, and the cleaning cloth is fixed on the bottom of the rotating disk.

Preferably, the left and right sides of the inner wall of the second box are fixed with electric push rods, the left and right sides of the casing are provided with card slots, and one end of the output shaft of the electric push rod is fixed with a limit rod. One end of the limiting rod extends to the inside of the slot and is slidably connected with the inner wall of the slot.

Preferably, guide grooves are provided on the four sides of the inner wall of the cabinet, and guide blocks are bolted to the rear of the left and right sides of the first placement plate, and the guide blocks are located inside the guide groove and connected to the inner wall of the guide groove. Swipe to connect.

(3) Beneficial effects

Compared with the prior art, the present invention provides a movable workbench for oncology nursing, which has the following beneficial effects:

1. The movable workbench for oncology nursing, through the setting of washing structure, transmission structure, brushing structure and cleaning structure, enables the workbench to disinfect and clean the surface of the workbench after the patient care is completed, effectively improving It improves the sanitation of the workbench and avoids cross-infection between patients, and the workbench can automatically rotate and clean the ground below it to prevent the fluid from the patient's wound from falling on the ward floor and affect the internal environment of the patient ward. The utility model provides convenience for the cleaning work of the medical staff, and solves the problem that it is inconvenient to clean the stains on the surface of the workbench and the effusion flowing on the ground in the existing workbench.

2. The movable workbench for oncology nursing, through the setting of the first placement board, driving structure, adjustment structure, installation frame and second placement board, makes the workbench convenient for medical staff to care for patients. Taking the medicines or medical devices in the workbench provides convenience for the nursing work of the medical staff, and solves the problem that it is inconvenient for the medical staff to take the medicines or medical devices on the workbench when nursing.

Description of drawings

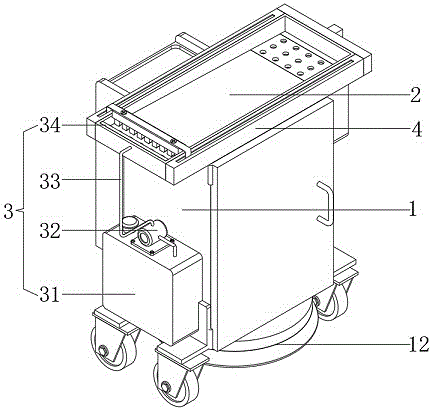

Fig. 1 is the three-dimensional structure schematic diagram of the present invention;

Fig. 2 is the three-dimensional structure schematic diagram of the present invention;

Fig. 3 is the three-dimensional structure schematic diagram of the present invention;

Fig. 4 is the three-dimensional schematic diagram of flushing structure in the present invention;

Fig. 5 is the three-dimensional schematic view of transmission structure in the present invention;

Fig. 6 is the three-dimensional schematic diagram of brushing structure among the present invention;

Fig. 7 is the sectional view of cabinet body in the present invention;

Fig. 8 is a three-dimensional schematic diagram of the driving structure in the present invention;

Fig. 9 is a schematic perspective view of the cleaning structure in the present invention.

In the figure: 1. cabinet body; 2. placing platform; 3. flushing structure; 31. water tank; 32. water pump; 33. water pipe; 34. first installation box; 35. nozzle; 36. waste liquid box; 37. Water inlet; 4, transmission structure; 41, first box body; 42, fixed box; 43, driving wheel; 44, first motor; 45, driven wheel; 46, first threaded rod; 47, threaded sleeve; 48 , through slot; 5, scrubbing structure; 51, connecting frame; 52, second installation box; 53, connecting plate; 54, spring; 55, brush; 6, first placing plate; 7, cavity; 8, drive Structure; 81, second motor; 82, rotating rod; 83, first bevel gear plate; 84, first bevel gear; 85, rotating rod; 86, first gear; 87, rack plate; 9, adjustment Structure; 91, second bevel gear disc; 92, second bevel gear; 93, connection groove; 94, second threaded rod; 10, mounting frame; 11, second placement plate; 12, cleaning structure; 121, The second box body; 122, the third motor; 123, the third threaded rod; 124, sleeve pipe; 125, rotating disk; 126, cleaning cloth; 13, guide groove; 14, guide block; Limit slot; 17, limit block; 18, electric push rod; 19, limit rod; 20, card slot.

detailed description

In order to better understand the purpose, structure and function of the present invention, a mobile workbench for oncology nursing of the present invention will be described in further detail below in conjunction with the accompanying drawings.

Please refer to Figures 1-9, the present invention: a mobile workbench for oncology nursing, including a cabinet 1, a placing table 2 is fixed on the top of the cabinet 1, and a flushing structure 3 is fixed on the left side of the cabinet 1, and the One side of the table 2 is fixed with a transmission structure 4, the left side of the inside of the table 2 is provided with a scrubbing structure 5, the upper and lower sides of the inside of the cabinet 1 are slidingly connected with a first placement plate 6, and the rear of the inside of the cabinet 1 is provided with a space. cavity 7, the top inside the cavity 7 is movably connected with a drive structure 8, the back of the cabinet body 1 is provided with a mounting frame 10, and the inner wall of the mounting frame 10 is fixed with a number of second placement plates 11, and the inside of the cavity 7 is movably connected with Adjusting structure 9, the bottom of cabinet 1 is movably connected with cleaning structure 12; the present invention can disinfect and clean the surface of the workbench after the patient care is completed, effectively improving the sanitation of the workbench and avoiding the occurrence of cross-infection, and the workbench can automatically rotate and clean the ground below it to prevent the fluid from the patient's wound from falling on the ward floor and affect the internal environment of the patient ward. At the same time, the workbench is convenient for medical staff to care for patients. The medical staff take the medicines or medical devices in the workbench, which provides convenience for the nursing work of the medical staff. It not only solves the inconvenience of the existing workbench, but also removes the stains on the surface of the workbench and the effusion that flows to the ground. The problem of cleaning also solves the problem that it is inconvenient for medical staff to take medicine or medical equipment on the workbench when they are nursing.

The flushing structure 3 includes a water tank 31, a water pump 32, a water pipe 33, a first installation box 34, a nozzle 35, a waste liquid box 36 and a water inlet 37. The water tank 31 is fixed on the bottom of the left side of the cabinet body 1, and the inside of the water tank 31 Disinfectant is provided, the water pump 32 is fixed on the top of the water tank 31, and the water pump 32 is connected to the water tank 31, the water pipe 33 is connected to the top of the water pump 32, and the bottom of the inner wall of the placing table 2 is inclined, and the first installation box 34 Fixed on the left side of the inner wall of the placing table 2, one end of the water pipe 33 penetrates into the inside of the placing table 2 and communicates with the first installation box 34, the nozzle 35 is fixed on the surface on the right side of the first installation box 34, and the waste liquid box 36 Fixed on the right side of the bottom of the placement table 2, the water inlet 37 is opened on the right side of the bottom of the inner wall of the placement table 2, the number of the water inlet 37 is several, and the bottom of the water inlet 37 extends to the inside of the waste liquid box 36 After the nursing is finished, the staff will open the water pump 32, so that the water pump 32 will suck the disinfectant in the water tank 31 into the water pipe 33, and then the disinfectant will flow out from the nozzle 35 on the surface of the first installation box 34. The bottom of the inner wall of the table 2 is inclined, so that the disinfectant flows to the right, and the stains on the surface of the table 2 are disinfected and rinsed during the flow, and then the disinfectant flows to the water inlet 37, and then flows into the waste liquid box 36. .

The transmission structure 4 comprises a first box body 41, a fixed box 42, a driving wheel 43, a first motor 44, a driven wheel 45, a first threaded rod 46, a threaded sleeve 47 and a through groove 48, and the first box body 41 is bolted to place On the right side of the platform 2, the fixed box 42 is fixed on the front and rear sides of the placing platform 2, the driving wheel 43 is rotatably connected to the inside of the first box body 41, the first motor 44 is fixed on the right side of the first box body 41, and the second The output shaft of a motor 44 penetrates to the inside of the first box body 41 and is fixedly connected with the right side of the driving wheel 43, the driven wheel 45 is rotatably connected to the front and rear of the inside of the first box body 41, and the driving wheel 43 is connected with the driven wheel 43 by a belt. The driving wheel 45 is connected in transmission, the first threaded rod 46 is rotatably connected inside the fixed box 42, and the right end of the first threaded rod 46 penetrates to the inside of the first box body 41 and is fixedly connected with the driven wheel 45, and the threaded sleeve 47 is threaded on the On the left side of the first threaded rod 46 surface, the through groove 48 is opened on the top of the fixed box 42. When the first motor 44 is opened, the output shaft of the first motor 44 drives the driving wheel 43 to rotate, and the driven wheels 45 on both sides Start to rotate synchronously, the first threaded rod 46 in the fixed box 42 starts to rotate, and then drives the threaded sleeve 47 to move left and right, so that the position of the scrubbing structure 5 is adjusted.

Scrubbing structure 5 comprises connecting frame 51, the second installation box 52, connecting plate 53, spring 54 and hairbrush 55, connecting frame 51 is arranged on the left side of placing table 2 top, connecting frame 51 is U-shaped setting, and connecting frame 51 One side of one side passes through the through groove 48 and extends to the inside of the fixed box 42, one side of the connecting frame 51 is fixedly connected with the threaded sleeve 47, the second mounting box 52 is fixed on the bottom of the connecting frame 51, and the connecting plate 53 is slidably connected to the second Below the inside of the mounting box 52, the spring 54 is fixed on the top of the connecting plate 53, and the top of the spring 54 is fixedly connected with the inner wall of the second mounting box 52, and the brush 55 is fixed below the connecting plate 53. When the threaded sleeve 47 moves At this time, it can drive the connecting frame 51 to also start to move. During the left and right movement of the connecting frame 51, the spring 54 changes with the slope of the bottom of the inner wall of the placing table 2, so that the hairbrush 55 can always be attached to the surface of the placing table 2, thereby improving Cleaning effect on stains.

The driving structure 8 includes a second motor 81, a rotating rod 82, a first bevel gear plate 83, a first bevel gear 84, a rotating rod 85, a first gear 86 and a rack plate 87, and the second motor 81 is fixed in the cavity 7, the bottom of the inner wall, the rotating rod 82 is fixed on the top of the output shaft of the second motor 81, the first bevel gear plate 83 is fixed on the top of the rotating rod 82, the rotating rod 85 is connected to the top of the cavity 7, the first cone The bevel gear 84 is fixed on the surface of the rotating rod 85, and meshes between the first bevel gear 84 and the first bevel gear plate 83, and the first gear 86 is fixed on the left and right sides of the rotating rod 85 surface, and the first gear 86 Through the cabinet body 1, the rack plate 87 is bolted to the left and right sides of the front of the installation frame 10, and the rack plate 87 is engaged with the first gear 86. When the second motor 81 is turned on, the rotating rod 82 above it will Rotation also takes place, and the first bevel gear disc 83 begins to rotate, and because the first bevel gear disc 83 meshes with the first bevel gear 84, the rotating rod 85 rotates, and the first gear 86 on the surface of the rotating rod 85 also begins to rotate. This causes the rack plate 87 to move up and down, thereby adjusting the height of the mounting frame 10 .

The left and right sides of cabinet body 1 backside all are bolted with clamping plate 15, and the rear of clamping plate 15 facing one side surface all offers limit groove 16, and the bottom of rack plate 87 one side surface is bolted limit block 17, and position-limiting One side of the block 17 extends to the inside of the limiting groove 16 and is slidably connected with the inner wall of the limiting groove 16. After the first gear 86 rotates, the limiting block 17 will limit the mounting frame 10, so that the mounting frame 10 can only move up and down to improve the stability of the mounting frame 10 when it is adjusted up and down.

The adjustment structure 9 includes a second bevel gear plate 91, a second bevel gear 92, a connecting groove 93 and a second threaded rod 94, the second bevel gear plate 91 is fixed on the upper and lower sides of the rotating rod 82 surface, and the second cone Bevel gear 92 is arranged on the upper and lower sides of the front side of the cavity 7 inner wall, and meshes between the second bevel gear plate 91 and the second bevel gear 92, and the connecting groove 93 is opened on the back side of the first placement plate 6, and the second The front of the bevel gear 92 is bolted with a second threaded rod 94, and the front end of the second threaded rod 94 penetrates into the inside of the connecting groove 93 and is threadedly connected with the inner wall of the connecting groove 93. When the rotating rod 82 rotates, the second threaded rod 94 on its surface The second bevel gear disc 91 also rotates, and then drives the second bevel gear 92 on one side to rotate, and the second threaded rod 94 then rotates synchronously, and the first placement plate 6 then passes through the connecting groove 93 on the second threaded rod 94. The surface moves forward and backward, so as to remove the first placement plate 6 from the inside of the cabinet body 1, so as to facilitate medical staff to take medical equipment or medicines.

The cleaning structure 12 comprises a second box body 121, a third motor 122, a third threaded rod 123, a sleeve pipe 124, a rotating disk 125 and a cleaning cloth 126, and the second box body 121 is fixed on the bottom of the cabinet body 1 inner wall, and the third motor 122 is fixed on the top of the second box body 121, the third threaded rod 123 is arranged inside the second box body 121, and the bottom end of the output shaft of the third motor 122 penetrates to the inside of the second box body 121 and connects with the third threaded rod 123 is fixedly connected at the top, the sleeve 124 is sleeved under the third threaded rod 123, and the inner wall of the sleeve 124 is threadedly connected with the third threaded rod 123, and the bottom end of the sleeve 124 penetrates to the bottom of the cabinet body 1 and is connected with The cabinet body 1 is slidingly connected, the rotating disk 125 is bolted to the bottom of the sleeve pipe 124, and the cleaning cloth 126 is fixed on the bottom of the rotating disk 125. When it is opened, the third threaded rod 123 rotates, and the sleeve 124 moves downward on the surface of the third threaded rod 123, so that the cleaning cloth 126 contacts the ground, and then the ground is cleaned.

The left and right sides of the second box body 121 inner wall are all fixed with electric push rods 18, and the left and right sides surfaces of sleeve pipe 124 are all provided with draw-in groove 20, and one end of electric push rod 18 output shafts is fixed with limit rod 19, and the limit rod One end of 19 extends to the inside of the slot 20 and is slidably connected with the inner wall of the slot 20. When the third threaded rod 123 rotates, it can limit the position of the sleeve 124 so that the sleeve 124 will not be damaged by the third thread. The rotation of the rod 123 rotates, but moves up and down on the surface of the third threaded rod 123, after the sleeve pipe 124 drives the cleaning cloth 126 to contact the ground, the electric push rod 18 is opened, and the output shaft of the electric push rod 18 returns to the ground. shrink, remove the limit rod 19 from the inside of the card slot 20, and stop limiting the casing 124, the casing 124 will be rotated, driving the cleaning cloth 126 below to rotate, and the ground will be rotated and cleaned. After the cleaning is completed Rotate the sleeve 124 to the corresponding position, align the slot 20 on the surface of the sleeve 124 with the limit rod 19, and then open the electric push rod 18 again, so that the limit rod 19 can limit the sleeve 124 again. The sleeve 124 can be raised back into place again.

The four sides of the inner wall of the cabinet body 1 are provided with guide grooves 13, and the rears of the left and right sides of the first placement plate 6 are bolted with guide blocks 14. , when the first placing plate 6 is stretched out, the first placing plate 6 can be guided to increase the stability of the first placing plate 6 when it moves.

Working principle: When it is necessary to care for patients after tumor surgery, the medical staff will open the door on the front of the cabinet 1, and then turn on the second motor 81, so that the installation frame 10 rises upwards as a whole. The first placement board 6 is also removed from the inside of the cabinet body 1, so that the medical staff can take the medicines and medical devices during nursing, which is convenient for nursing operations. Get back to the original position, and then the medical staff will turn on the water pump 32, so that the nozzle 35 will discharge the disinfectant, and the inside of the placing table 2 will be rinsed. The interior of the container moves back and forth, the brush 55 cooperates with the disinfectant to scrub the inner wall of the placement table 2, and the sewage flows into the waste liquid box 36, and then the third motor 122 is turned on, so that the cleaning cloth 126 contacts the ground and starts to rotate. When the medical personnel push the workbench to move, they can clean up the stains on the ground due to nursing care. After the cleaning is completed, the cleaning cloth 126 will be raised back to its original position again, so as to complete the patient's nursing operation.

It can be understood that the present invention is described through some embodiments, and those skilled in the art know that various changes or equivalent substitutions can be made to these features and embodiments without departing from the spirit and scope of the present invention. In addition, the features and examples may be modified to adapt a particular situation and material to the teachings of the invention without departing from the spirit and scope of the invention. Therefore, the present invention is not limited by the specific embodiments disclosed here, and all embodiments falling within the scope of the claims of the present application belong to the protection scope of the present invention.
