CN115382658A - Intelligent sand mining platform - Google Patents

Abstract

The invention relates to an intelligent sand production platform, which is characterized in that a sand production device, a sand screening device and a sand washing device are arranged on the same ship body, a uniform sand feeding device is arranged between the sand production device and the sand washing device, and the lever principle of two groups of connecting rods is utilized, the vertical position of a trapezoidal wedge block which is hinged between the connecting rods is adjusted compared with the vertical position between a first wedge block and a second wedge block by comparing the weight of two sides, so that the amplitude of pulse force for driving the first wedge block and the second wedge block by a crank structure is changed, the feeding rate of mixed silt is adjusted, and the purpose of uniform sand feeding is achieved.

Description

An intelligent sand mining platform

technical field

The invention belongs to the technical field of dredging equipment, in particular to an intelligent sand mining platform.

Background technique

In the field of dredging construction technology, sand mining is usually carried out by sand mining construction technology, and the sand source obtained from sand mining construction is used for land reclamation construction to form land. The traditional sand mining process is generally carried out by sand suction ship/sand mining ship facilities. The sand suction ship/sand mining ship lowers the end of the suction pipe vertically and inserts it into the surface of the sand, uses a centrifugal pump to absorb water, pressurizes it and sprays it through the nozzle. Undisturbed soil, and then use the suction pump to suck the mortar into the sand cabin for screening and washing.

The sand source obtained from sand mining construction is generally transported by sand barge. Sand barge is a ship used to transport sand source back and forth. In this kind of sand mining construction, in order to facilitate the sand barge to load and transport the collected sand source, it is usually necessary to set up a barge loading platform floating on the sea. During the process of loading and transporting the sand source, the sand barge stops at the The side orientation of the barge loading platform and receive the sand loading from the barge loading platform, and the sand barge will leave the barge loading platform after it is full.

Because the mud collected by sand mining facilities usually contains large pieces of earth and rock debris, on the other hand, dredging debris such as rocks and hard clay dumped by the previous construction unit are distributed to varying degrees on the surface of the sand mining area, and some It has been sunken and embedded in the silt layer, so the collected sand source cannot meet the quality requirements of the project construction, and needs to be screened to filter out the large particles to obtain a qualified sand source for land blowing. Fill in and use. Furthermore, under normal circumstances, project construction requires that the sand source has a certain mud content, so it is usually necessary to perform sand washing on the obtained mud to remove excess mud.

In the prior art, there are few equipment with dual functions of mud screening and sand washing treatment, which leads to the fact that the collected sand source cannot meet the construction requirements, and other measures need to be taken for sand source screening and sand washing treatment, which leads to The efficiency of construction is reduced, and the cost of construction is increased. On the other hand, because the working method of the sand suction ship/sand dredger has the characteristics of fixed-point sand extraction, it needs to be transferred to another water area for sand extraction after completing the sand extraction construction in one water area Construction, so the efficiency of sand mining is low, and the sand source at the bottom of the water cannot be fully used, which leads to the waste of sand source. For example, the application number is 2020211022768, and the patent name is "A washing machine for sand mining Sand platform", discloses "a sand washing platform for sand mining construction includes ship facilities, a screening tank and a sand washing tank are arranged on the ship facilities, and the inner chambers of the screening tank and the sand washing tank are connected. A screening device is installed in the screening tank, and a sand washing device is installed in the sand washing tank; the screening device includes an inclined screen screen, and the surrounding edges of the screen screen are fixedly connected with the inner wall of the screen tank. There are left and right slag outlets on the front of the screen plate, and two left and right slag discharge pipes. The top port of the slag discharge pipe is located in the slag discharge port and is fixedly connected; the sand washing device includes a driving roller and a driven roller. , a sand washing conveyor belt is arranged between the two, and a plurality of fixed blocks are arranged on the surface of the sand washing conveyor belt, and a plurality of sand buckets are installed and fixed on the fixed blocks, and a sand washing motor that drives the driving roller to rotate is also included. ; There is a mud pipeline at the stern of the ship facility, and the inner end of the mud pipeline extends into the screening tank, and also includes a transfer conveyor belt. The head end of the transfer conveyor belt is located below the end of the sand washing conveyor belt" and the application number is "2021211099393" , the patent title is "Sand washing platform based on sand mining ship", which discloses a kind of "A sand washing platform based on sand mining ship includes a ship with a ship engine room, and a sand mining device is installed on the ship; There is a sand washing tank in the middle of the sand washing tank, and a sand screening device is provided in front of the sand washing tank. The sand outlet of the sand screening device is connected with the sand washing tank. There is an inclined bottom plate between the walls, the lower edge of the inclined bottom plate is connected with the upper edge of the sand washing tank, and a sand washing device is installed between the two side walls, and the lower end of the sand washing device is located in the sand washing tank. Below the upper end of the sand device is installed a sand unloading device for laterally conveying and loading the received sand source, and also includes a lifting device for lifting and lowering the lower end of the sand washing device; a mining device is installed at the entrance of the sand screening device The sand input pipeline, the outlet of the sand mining device is butt-connected with the end of the sand mining input pipeline by connecting the flexible pipeline”;

Although the above two existing technologies combine sand washing and sand screening, although the versatility of the equipment has been improved and the functions are diverse in the process of use, there are also certain problems, for example, in the process of removing sand from different areas. When sanding, the amount of mud and sand in different areas is different. If continuous sand extraction is carried out according to a certain frequency, then for locations with more mud and sand areas, the amount of sand excavated per unit time will be large, which will be transported to the rear sand washing and screening device. The amount per unit time is also large, which reduces the quality and efficiency of sand washing and sand screening per unit time. For locations with less mud and sand areas, the amount of sand mining per unit time is small, and it is transported to the rear for sand washing and sand screening. The amount of mud and sand in the device is small, resulting in waste of equipment, so we hope that the amount of mud and sand collected in different sand mining locations will be different to make the amount of mud and sand transported to the rear sand screening and sand washing device consistent per unit time. So as to solve the problem that the mud and sand sometimes accumulate and sometimes loosen in the process of sand screening and sand washing. The inclined plate cannot be flexibly adjusted according to the use adjustment, and the angle adjustment of the sand mining pipe in the sand mining device is single. Therefore, we urgently need an intelligent sand mining platform to solve the above-mentioned problems.

Contents of the invention

Aiming at the deficiencies in the existing technology, the object of the present invention is to provide an intelligent sand mining platform to solve the problems of sand washing, sand screening and separation in the prior art mentioned in the background technology. Screening of mud and sand caused by different amounts of sand collected at the sand mining position, insufficient cleaning or waste of equipment, and at the same time solve the problem that the sand washing and sand screening devices in the prior art cannot adjust the vibration of the screen, and debris is easy to block the screen , the inclined plate in the sand washing device cannot be flexibly adjusted according to the use adjustment, and the angle adjustment of the sand mining pipe in the sand mining device is single.

Above-mentioned technical purpose of the present invention is achieved through the following technical solutions:

An intelligent sand mining platform includes a ship body, the ship is provided with a ship engine room, and a ship control system is installed in the ship engine room, and it is characterized in that sand mining devices, Uniform sand feeding device, sand screening device, sand washing device and sand transporting device, five sets of devices are connected in sequence;

The sand mining device is connected to a uniform sand delivery device, which meets the requirement of collecting and transporting mixed mud and sand from the river bed to the uniform sand delivery device;

The uniform sand feeding device includes a bottom plate installed in the ship and placed between the sand mining device and the sand screening device. A trapezoidal lower hopper is installed on the upper end of the bottom plate, and the upper end of the lower hopper is connected to a feed pipe. The feed pipe Connected with the sand mining device, the lower end of the lower hopper is provided with a discharge opening, and the front and rear sides of the lower hopper are respectively rotated and connected with connecting rods arranged horizontally, and the left end of the connecting rod is hinged to the T on the left side of the lower hopper The left and right ends between the lower ends of the two sets of T-shaped bars are respectively longitudinally rotated and connected with the rollers placed under the lower hopper. The first motor installed on one of the T-shaped rods is driven to rotate. The other end of the connecting rod has a long hole along its length, and the two groups of long holes slide horizontally to connect the counterweight. There is an inclination limiting device between the right end of the connecting rod and the bottom plate, which can limit the inclination limit of the connecting rod, and a fixed rod placed between the lower hopper and the counterweight is installed between the two sets of connecting rods , the trapezoidal wedges extending downwards are connected by rotation on the fixed rod, the left and right sides of the trapezoidal wedges are all inclined planes, and the left and right sides of the trapezoidal wedges are respectively provided with first The wedge and the second wedge, the inclined surfaces of the first wedge and the second wedge are all set towards the direction of the trapezoidal wedge, and the left end of the first wedge is connected to the first rectangular horizontal slide connected to the lower end of the lower hopper. rod, the other end of the first rectangular rod is connected with a trapezoidal stop block that cooperates with the discharge port to change the size of the discharge port, and the first wedge block and the discharge hopper are connected with a trapezoidal block set on the first rectangular rod Outer first spring, the right end of the second wedge is equipped with a second rectangular bar that is horizontally slidably connected to the bottom plate, and the right end of the second rectangular bar is hinged to the transition bar, and also includes a longitudinal rotation on the bottom plate and placed The crank on the right side of the transition rod, the outer edge of the front end surface of the crank is hinged with one end of the transition rod, the rotating shaft of the crank is coaxially connected with the output shaft of the second motor installed on the base plate, the rotating shaft of the crank Power connection with the sand screening device, the outlet position of the discharge port is provided with a baffle plate that is rotatably connected to the discharge hopper, and a limit plate installed longitudinally on the left end of the discharge port is provided below the baffle plate. The other end of the baffle plate is hinged to the transition plate, and the other end of the transition plate is hinged to a drive plate that is rotatably connected to the left end of the lower hopper. The front and rear sides of the left end of the drive plate are respectively connected with drive rods, and the two sets of drive rods are inserted Between the two sets of limit bars installed longitudinally between the two sets of T-shaped bars, the outlet at the left end of the splicing belt is connected to the sand screening device;

The left end of the sand screening device is connected to a sand washing device, and the right end is connected to a uniform sand sending device, which satisfies the need to screen the mixed mud and sand and transport it to the sand washing device;

The left end of the sand washing device is connected to the sand conveying device, and the right end is connected to the sand screening device, which meets the cleaning and desilting of the screened mixed mud and sand;

The right end of the sand conveying device is connected to a sand washing device, which satisfies the need to transport the cleaned sand outward;

The sand mining device, the first motor, the second motor, the sand washing device, the sand transporting device and the ship control system are all electrically connected to the general control system installed on the ship.

Preferably, the inclination limiting device includes a first needle-shaped plate installed on the right side of the connecting rod, and also includes a second needle-shaped plate installed on the upper end of the ship and in the same horizontal direction as the two groups of first needle-shaped plates, The needle-shaped tips of the two groups of needle-shaped plates are arranged opposite to each other. The lower end of the first needle-shaped plate is equipped with an L-shaped first rotation limiting rod, and the lower end of the second needle-shaped plate is installed with an L-shaped second rotation limiting rod. The first rotation limiting rod is placed below the second rotation limiting rod, and the distance between the two groups of rotation limiting rods meets the limit of the rotation of the connecting rod.

Preferably, the sand mining device includes a U-shaped plate vertically rotatably connected to the right end of the ship, the rotating shaft of the U-shaped plate is connected to the output shaft of the third motor installed in the ship via a belt, and the U-shaped plate A sand suction pipe and a jet pipe are hinged longitudinally inside the sand suction pipe, and the angle of the sand suction pipe is adjusted by the sand mining driving device installed in the ship. A mud pump is installed in the sand suction pipe, and a second A connecting hose, the other end of the first connecting hose is butted connected with the feed pipe, and a jet water pump installed on the right end of the ship, the outlet of the jet water pump is butted with a second connecting hose, the second The other end of the connecting hose is butt-connected with the inlet of the jet tube, and the third motor, the mud pump, and the jet water pump are all electrically connected to the master control system.

Preferably, the driving device for sand mining includes brackets installed on the ship, which are placed on the front and rear sides of the first connecting hose. The connection hook on the sand suction pipe, the hoist on the corresponding side, the pulley block and the connection hook on the sand suction pipe are connected by steel cables and rolled up by the hoist, and the hoist is electrically connected to the master control system .

Preferably, the sand screening device includes a sand screening tank installed in the ship and placed at the outlet of the left end of the material receiving belt. The extension plates are respectively installed on the sides, and the extension plates are slidingly matched with the sliding holes on the corresponding sides of the front and rear sides of the sand screening tank respectively. Cams are respectively installed at the front and rear ends of the front and rear ends, and the cams are in contact with the lower end of the extension plate on the corresponding side. A second spring vertically arranged is connected between the lower end of the extension plate and the ship, and the transmission shaft and the crank The rotating shafts are connected by transmission through a belt. The front and rear ends of the left end of the sand screening tank are respectively opened with a slag discharge port placed above the screen, and the corresponding sides of the slag discharge port are connected with a slag discharge port installed on the ship. Channel, above the left end of the sand screening tank is connected with a reciprocating slag cleaning device placed above the screen to meet the reciprocating cleaning of the slag moving to the left end of the screen, and the reciprocating slag cleaning device is connected to the transmission shaft for power transmission , the left end of the sand screening tank is provided with a sand passing hole placed under the screen, the left end of the sand passing hole is connected to the sand washing device, and the reciprocating slag cleaning device is connected to the sand screening device through power transmission to meet the requirements for The sand screening device provides power input.

Preferably, the reciprocating slag cleaning device is longitudinally installed on the fixed plate at the upper end of the sand screening tank, the front and rear ends of the fixed plate are respectively vertically rotated and connected with two sets of pulleys, and the lower end of the fixed plate is longitudinally slidably connected with two sets of pulleys. The translation plate below the set of pulleys, the drive belt is set between the two sets of pulleys, the drive pin is vertically installed on the outer edge of the drive belt, and the upper end of the translation plate is horizontally provided with a drive hole that is horizontally slidable with the drive pin. A telescopic scraper structure placed above the screen is provided below the translation plate;

It also includes a transition shaft longitudinally rotatably connected to the rear end of the sand screening tank, the transition shaft is connected to the drive shaft via a belt, the transition shaft is coaxially equipped with a first bevel gear, and the first bevel gear is connected to the vertical Rotationally connected to the second bevel gear on the sand sieve tank, the rotating shaft of the second bevel gear is connected to the rotating shaft of one of the pulleys via a belt, and the transition shaft is connected to the sand washing device for power transmission.

Preferably, the telescopic scraper structure includes a mounting plate installed at the lower end of the translation plate, the lower end of the installation plate is vertically slidably connected with the translation scraper and does not disengage, and the connection between the translation scraper and the installation plate There are multiple groups of third springs arranged vertically to form a telescopic scraper structure.

Preferably, the sand washing device includes a sand washing tank connected to the left side of the sand screening device, the sand washing tank communicates with the sand screening device, and also includes a vertically rotatable tank connected to the ship and placed on the sand screening device and the sand transporting tank. There are two sets of quill shafts between the devices, the two sets of quill shafts are set longitudinally and coaxially, and the power shafts are connected to the longitudinal rotation between the two sets of quill shafts, and the power shafts are connected with the fourth motor installed on the ship. The output shafts are coaxially connected, the front and rear ends of the power shaft are respectively coaxially installed with the first sprocket, the sleeve shaft is coaxially installed with inclined plates, and the lower ends of the two sets of inclined plates are rotated to connect with the matching shaft. The front and rear ends of the shaft are respectively coaxially equipped with the second sprocket, and a chain is set between the first sprocket and the second sprocket on the same side of the front and rear, and multiple groups of sand buckets are evenly arranged between the two sets of chains;

The position below the rear end of the inclined plate on the rear side is connected to the reciprocating turning device installed on the ship. The reciprocating turning device is connected to the sand screening device for power transmission and meets the reciprocating adjustment of the rotation of the two groups of inclined plates. The fourth motor is electrically connected to the master control system.

Preferably, the reciprocating turning device includes a drive plate that is longitudinally rotatably connected to the ship and placed behind the rear inclined plate. A plurality of sets of threaded holes are provided at intervals in the direction, and a reciprocating rod longitudinally connected to the rear end of the rear inclined plate is provided. The reciprocating rod is slidably matched with the side wall of the sand washing tank. A grooved hole is opened on the elongated rod, and a threaded pin is arranged in the grooved hole, and a shaft sleeve which is slidably matched with the grooved hole is arranged on the outer surface of the threaded pin, and a threaded hole is arranged at the rear end of the threaded pin. Cooperating threads, a limit knob is installed on the front end, and the rotating shaft of the driving disc is connected with the sand screening device for power transmission.

Preferably, the sand transporting device comprises two groups of sand transporting rollers which are connected to the ship in transverse rotation and spaced longitudinally, the two groups of sand transporting rollers are placed on the left side of the sand washing device, and a transporting roller is set between the two groups of sand transporting rollers. An abrasive belt, wherein the rotating shafts of a set of sanding rollers are coaxially connected to the output shaft of the fifth motor installed on the ship, and the fifth motor is electrically connected to the master control system.

Beneficial effects of the present invention: the present invention integrates sand mining, sand screening and sand washing devices by setting them on the same hull, wherein a uniform sand feeding device is set between the sand mining device and the sand washing device to evenly send sand The sand device uses the lever principle of two sets of connecting rods, one end is connected to the material belt, and the other end is connected to the counterweight. By comparing the weights on both sides, the trapezoidal wedge between the hinged connecting rods is adjusted compared to the first wedge. The vertical position between the block and the second wedge, so as to change the amplitude of the pulse force driven by the crank structure to drive the first wedge and the second wedge, adjust the feed rate of the mixed mud and sand, and achieve the purpose of uniform sand delivery and screen sand In the device, the cooperation of the cam is used to achieve the purpose of vibration screening. The sand washing device adjusts the position of the threaded pin and the agitation amplitude of the frame structure, so that it can be adjusted according to the actual situation of the user. The invention performs mixed mud and sand at different positions. During collection, the amount of mud and sand transported to the rear screen and sand washing device in a unit time is consistent, avoiding system blockage or equipment waste, and improving the efficiency and quality of sand screening and sand washing in the entire system. At the same time, the screen mesh The unique vibration design prevents debris from clogging the screen, quickly collects and processes the debris on the screen, and improves the screening efficiency. The agitation range during the sand washing process is adjustable, and it can be flexibly adjusted according to the actual mud content. The adjustment is convenient and simple, and the practicability is strong. Suitable for promotional use.

Description of drawings

Fig. 1 is perspective view 1 of the perspective view of the present invention.

Fig. 2 is a second perspective view of the present invention.

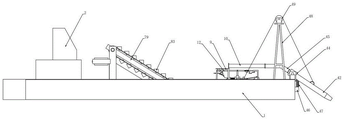

Fig. 3 is a front view of the present invention.

Figure 4 is a top view of the present invention.

Figure 5 is a side view of the present invention.

Fig. 6 is an enlarged view of part A in Fig. 1 of the present invention.

Fig. 7 is a three-dimensional structure diagram of the sand mining device in the present invention.

Fig. 8 is a sectional view of the sand mining device in the present invention.

Fig. 9 is a perspective view 1 of a three-dimensional structural view of the uniform sand feeding device in the present invention.

Fig. 10 is a perspective view 2 of the perspective structure of the uniform sand sending device in the present invention.

Fig. 11 is a front view of the uniform sand sending device in the present invention.

Fig. 12 is a sectional view of the uniform sand feeding device in the present invention.

Fig. 13 is a perspective view of a partial three-dimensional structure in the present invention.

Fig. 14 is a perspective view 1 of a three-dimensional structural view of the sand screening device and its connecting parts in the present invention.

Fig. 15 is a perspective view 2 of a three-dimensional structural view of the sand screening device and its connecting parts in the present invention.

Fig. 16 is a partial three-dimensional structural view of the sand screening device in the present invention.

Fig. 17 is a perspective view of the translational scraper in the sand screening device of the present invention.

Fig. 18 is a partial three-dimensional structural view of the sand washing device in the present invention.

Fig. 19 is a sectional view of the sand washing device in the present invention.

Fig. 20 is a three-dimensional structural view of the reciprocating swing device and its connecting parts in the sand washing device of the present invention.

Fig. 21 is a partial structural perspective view of the sand transport device in the present invention.

In the figure, 1. ship; 2. engine room; 3. sand mining device; 4. uniform sand delivery device; 5. sand screening device; 6. sand washing device; 7. sand transport device; Lower hopper; 10, feeding pipe; 11, feeding port; 12, connecting rod; 13, T-shaped bar; 14, turning roller; 15, feeding belt; 16, first motor; 19, fixed rod; 20, trapezoidal wedge; 21, first wedge; 22, second wedge; 23, first rectangular rod; 24, trapezoidal block; 25, first spring; 26. The second rectangular rod; 27. The transition rod; 28. The crank; 29. The second motor; 30. The block; 31. The limit plate; 32. The transition plate; 33. The drive plate; 34. The drive rod; 35 , limit rod; 36, the first needle plate; 37, the second needle plate; 38, the first limit rod; 39, the second limit rod; 40, U-shaped plate; 41, the third motor; 42 , sand washing pipe; 43, jet pipe; 44, mud pump; 45, first connecting hose; 46, jet water pump; 47, second connecting hose; 48, bracket; 49, pulley block; 50, winch; 51, Connecting hook; 52, sand screening tank; 53, screen mesh; 54, extension plate; 55, sliding hole; 56, transmission shaft; 57, cam; 58, second spring; 59, slag discharge port; 60, slag discharge channel ; 61, sand hole; 62, fixed plate; 63, pulley; 64, translation plate; 65, driving belt; 66, driving pin; 67, driving hole; 68, transition shaft; 69, the first bevel gear; 70, Mounting plate; 71, mounting plate; 72, translation scraper; 73, third spring; 74, sand washing tank; 75, sleeve shaft; 76, power shaft; 77, fourth motor; 78, first sprocket wheel; 79, inclined plate; 80, mating shaft; 81, second sprocket wheel; 82, chain; 83, sand bucket; 84, driving disc; 85, radial groove; 86, threaded hole; 87, reciprocating rod; 88, Elongated rod; 89, grooved hole; 90, threaded pin; 91, axle sleeve; 92, limit knob; 93, transport sand roller; 94, transport abrasive belt; 95, the fifth motor.

Detailed ways

The specific implementation manner of the present invention will be described in further detail below in conjunction with accompanying drawings 1-21.

Embodiment 1, combined with the existing technology, this embodiment discloses an intelligent sand mining platform, including a ship 1 body, a ship engine room 2 is set on the ship 1, a ship 1 control system is installed in the ship engine room 2, the ship 1 The control system controls the propeller and the engine in the ship 1 to make corresponding actions, such as forward and backward, acceleration and deceleration, etc. The control system of the ship 1 here is the existing technology, and it will not be described here. Sand mining device 3, uniform sand feeding device 4, sand screening device 5, sand washing device 6 and sand transporting device 7 are installed in sequence from right to left, and the five groups of devices are connected in sequence, and the five groups of devices cooperate with each other in function , the sand mining device 3 collects the mud and sand on the river bed, and the uniform sand transport device 7 evenly transports the collected mud and sand to the sand screening device 5, and then the sand screening device 5 is cleaned, and then transported to the sand washing device 6 for removal. Mud treatment, after the treatment is completed, the treated sand will be transported to the sand storage platform with the sand transport device 7 for collection and concentration;

The sand extraction device 3 is connected to the uniform sand delivery device 4, which satisfies the collection and transportation of mixed mud and sand from the river bed to the uniform sand delivery device 4. The uniform sand delivery device 4 is arranged on the left side of the sand mining device 3, and the sand mining device 3 will collect The mud and sand are collected and concentrated, and then sent to the uniform sand feeding device 4 for uniform transportation to the rear sand screening device 5 and sand washing device 6;

The uniform sand sending device 4 includes a base plate 8 installed in the ship 1 and placed between the sand mining device 3 and the sand screening device 5. The upper end of the base plate 8 is equipped with a trapezoidal lower hopper 9. The lower hopper 9 is a trapezoidal structure. The upper end of 9 is connected to feed pipe 10, and feed pipe 10 is connected with sand mining device 3, and sand mining device 3 enters the collected mud and sand into lower hopper 9 through feeding pipe 10, and a lower end of lower hopper 9 is provided with a feeding port 11 , the feeding opening 11 is arranged at the position directly below the lowering hopper 9 and at the lower end of the inclined surface on the left side, the front and rear sides of the lowering hopper 9 are respectively rotated and connected with connecting rods 12 arranged horizontally, and the left ends of the connecting rods 12 are hinged Place the T-shaped bar 13 on the left side of the lower hopper 9. The T-shaped bar 13 is in a state of being vertically and naturally downwardly arranged. The rotating roller 14, the rotating roller 14 not only plays the role of supporting and connecting the two groups of T-shaped bars 13, but also can rotate relative to the two groups of T-shaped bars 13, and the connecting belt 15 is sleeved between the two groups of rotating rollers 14. The both sides of material-connecting belt 15 are provided with retaining edge, prevent that the material that falls onto material-connecting belt 15 can not flow out from the front and rear sides of material-connecting belt 15, wherein the rotating shaft of one group of turning rollers 14 is installed on one of them. The first motor 16 on the set of T-shaped bars 13 is driven to rotate, and the rotation of the first motor 16 drives the two groups of rotating rollers 14 to rotate, thereby driving the material receiving belt 15 to rotate, so that the material on it is moved, and then from the receiving The material belt 15 is transported to the sand screening device 5, and the feeding speed per unit time can be adjusted by adjusting the rotation speed of the first motor 16 to drive the rotating roller 14. The other end of the connecting rod 12 is provided with a strip along its length. Holes 17, the two groups of long holes 17 slide horizontally to connect the counterweight 18, by adjusting the position of the counterweight 18, the lever balance is achieved through the two sets of connecting rods 12, and the counterweight 18 is formed by the lever formed by the connecting rods 12 The material balance is formed on the structure and the receiving belt 15, and the adjustment of the counterweight 18 can be provided by screwing pins at the front and rear ends of the counterweight 18, and the rubber in the screwing pins is arranged in contact with the outside of the connecting rod 12. Anti-slip grains, so that the position of the counterweight 18 will not easily move after the adjustment is completed. A tilt limit device is arranged between the right end of the two sets of connecting rods 12 and the bottom plate 8, and the tilt limit device meets the inclination of the connecting rod 12. The limit is limited, because when the material accumulation on the material receiving belt 15 is too much, the connecting rod 12 will drive to rotate, or when the material accumulation on the material receiving belt 15 is too little, the connection will also be driven to reverse rotation, The inclination limiting device is in order to prevent that the connection will not exceed the limit when the rotation occurs. The inclination limiting device includes the first needle-like plate 36 installed on the right side of the connecting rod 12, and also includes the first pin plate 36 installed on the upper end of the ship 1 and connected with two groups of first pins. The needle-shaped plate 36 is in the second needle-shaped plate 37 on the same horizontal direction. The needle-shaped tips of the two groups of needle-shaped plates are arranged oppositely. In the horizontal direction, when the two groups of needle-shaped plates are in the same horizontal direction, the two groups of needle-shaped plates There is a gap between the plates. The lower end of the first needle-shaped plate 36 is equipped with an L-shaped first rotation-limiting lever 38, and the lower end of the second needle-shaped plate 37 is equipped with an L-shaped second rotation-limiting lever 39. The first rotation-limiting lever 38 placed at the lower position of the second rotation limiting rod 39, and the distance between the two groups of rotation limiting rods satisfies the limit of the rotation of the connecting rod 12. When the right end of the connecting rod 12 rotates downward, the first Needle-shaped plate 36 cooperates with the second rotation limiting rod 39 on the right side, so that the connecting plate cannot continue to rotate downwards, and plays the role of downward rotation limit, while the right side is in the process of upward rotation, the first rotation limiting plate In the process of upward rotation, the second rotation limiting plate will be encountered, and the upward rotation cannot be continued, so as to limit the upward rotation and achieve the effect of limiting the tilt of the connecting rod 12;

A fixed rod 19 placed between the lower hopper 9 and the counterweight 18 is installed between the two groups of connecting rods 12. The fixed rod 19 is rotated and connected to the downwardly extending trapezoidal wedge 20, and the two sides of the trapezoidal wedge 20 are inclined. Set toward both sides respectively, set on the downward direction of both sides, the left and right sides of trapezoidal wedge 20 are inclined-plane settings, and the left and right sides of trapezoidal wedge 20 are respectively provided with the first wedge on the same horizontal plane. Block 21 and the second wedge 22, the inclined surfaces of the first wedge 21 and the second wedge 22 are all set towards the direction of the trapezoidal wedge 20, and the inclined surfaces of the two groups of wedges are consistent with the two sides of the trapezoidal wedge 20 The inclination of the inclined surface remains consistent, the left end of the first wedge 21 is connected to the first rectangular rod 23 that is horizontally slidably connected to the lower end of the lower hopper 9, and the first rectangular rod 23 is used to make the first wedge 21 laterally slidably connected to the lower end of the lower hopper 9, The other end of the first rectangular rod 23 is connected with the trapezoidal material block 3024 that cooperates with the blanking port 11 to change the size of its blanking port 11, and the inclined surface of the trapezoidal material block 3024 is set toward the upper left, wherein the short side of the upper end surface It can be retracted to the lower end of the lower hopper 9, and the trapezoidal stop block 3024 can also be pushed to the left to change the size of the lower material opening 11. There is a sleeve set between the first wedge 21 and the lower hopper 9. The first spring 25 outside the rod 23, the first spring 25 plays the role of reset, because we are to adjust the size of the feeding port 11, so in the process of adjusting the feeding port 11, the first spring 25 plays the role of reset role, so that the discharge port 11 is restored, the right end of the second wedge 22 is installed with a second rectangular rod 26 that is horizontally slidably connected to the bottom plate 8, and the second rectangular rod 26 plays the role of connection, while the second rectangular rod 26 is horizontally inserted on the base plate 8, and the right end of the second rectangular bar 26 is hinged with the transition bar 27, and also includes a crank 28 that is longitudinally rotated on the base plate 8 and placed on the right side of the transition bar 27, and the outer edge of the front end of the crank 28 is connected to the transition bar. One end of the rod 27 is hinged, and the rotating shaft of the crank 28 is coaxially connected with the output shaft of the second motor 29 installed on the base plate 8, and the second rectangular rod 26, the crank 28 and the transition rod 27 constitute the crank 28 connecting rod structure, so that the first During the rotation of the crank 28 driven by the second motor 29, the transition rod 27 is driven to reciprocate, so that due to the position of the trapezoidal wedge 20 changes with the position of the connecting rod 12, the crank 28 drives the second rectangular rod 26 through the transition rod 27 In the process of reciprocating movement, this amplitude can be adjusted along with the up and down movement of the trapezoidal wedge 20 members. This adjustment is automatically completed by the rotation of the left end of the splicing belt 15 around a central point, and the second wedge 22 will pass through Enter the trapezoidal wedge 20 to push the first wedge 21 to move back and forth, so as to adjust the size of the discharge port 11, the rotating shaft of the crank 28 is connected with the sand screening device 5, and the rotation of the crank 28 is one of the functions of the sand screening device 5. One part provides power input, and the outlet position of the feeding port 11 is provided with a baffle plate that is rotatably connected to the lower hopper 9. The baffle plate can be adjusted by its rotation to adjust the size of the lower hopper 9. The material baffle plate and the trapezoidal baffle The cooperation of the material block 3024 can also play a role in adjusting the size of the feeding port 11. The bottom of the blocking plate is provided with a limiting plate 31 longitudinally installed on the left end of the feeding port 11. The limiting plate 31 can also be used to limit the blocking material. The limit of the rotation position of the plate, the other end of the baffle plate is hinged to the transition plate 32, and the other end of the transition plate 32 is hinged to a drive plate 33 that is rotatably connected to the left end of the lower hopper 9, and the shape of the drive plate 33 is set according to the rotation of the connecting rod 12. The V-shaped structure ensures the follow-up rotation of the driving plate 33. The front and rear sides of the left end of the driving plate 33 are respectively connected with driving rods 34. Between the stop rods 35, the stop rods 35 connected between the two groups of T-shaped rods 13, the stop rods 35 are arranged at vertical intervals, the driving rod 34 is inserted between the two groups of stop rods 35, and can be connected through the connecting rods 12 The tilting rotation drives the two groups of driving rods 34 to rotate, so that the driving plate 33 rotates, and then the material blocking plate is rotated to adjust the size of the lower feeding port 11.

The outlet at the left end of the feeding belt 15 is connected to the sand screening device 5, and the material passing through the feeding belt 15 is transported to the sand screening device 5 for processing after being driven by it;

The left end of the sand screening device 5 is connected to the sand washing device 6, and the right end is connected to the uniform sand sending device 4, which meets the requirement of screening the mixed mud and sand and then transports it to the sand washing device 6. The sand screening device 5 is used to screen and process the collected mixed mud and sand. Remove relatively large stones, sundries and other materials, so that only mud and sand are left;

The left end of the sand washing device 6 is connected to the sand conveying device 7, and the right end is connected to the sand screening device 5, which meets the cleaning and desilting of the screened mixed mud and sand. The main purpose of the sand washing device 6 is to screen the mud and sand screened by the sand screening device 5 After the treatment, it is transported to the sand washing device 6 for cleaning treatment;

The right end of the sand transport device 7 is connected to the sand washing device 6, which is enough to transport the cleaned sand outwards, and the outlet position of the sand transport device 7 can be connected to the sand barge to realize the collection and transportation of the cleaned sand;

The sand mining device 3, the first motor 16, the second motor 29, the sand washing device 6, the sand transport device 7 and the control system of the ship 1 are all electrically connected to the master control system installed on the ship 1, and the master control system adopts The integrated circuit system is made, and its core components are made of single-chip microcomputer and integrated CPU, which are used to control the working status of each device and the movement time of each device and other data. The operating system of this kind of ship 1 is connected with power systems such as steering, and is used to control various traveling data and berthing data of the hull. The setting of the general control system is a conventional technical means for those skilled in the art, and will not be expanded here. describe;

When this embodiment is in use, the hull is first moved to the position where sand needs to be mined through the general control system, and the sand barge is moved to the corresponding position for berthing, and then the mud and sand at this position is collected by the sand mining device 3 It is transported into the lower hopper 9 of the uniform sand feeding device 4 through the feed pipe 10, and then the first motor 16 and the second motor 29 are turned on by the controller, and then enters the lower hopper 9 and the mud sand falls to the receiving material through the lower hopper 9. On the belt 15, along with the material on the material receiving belt 15 slowly concentrating, because the rotation of the first motor 16 drives two groups of turning rollers 14 to rotate, the material receiving belt 15 is also slowly rotated, and the material is transferred from the material receiving belt 15 Transported to the screening device, as the material on the material receiving belt 15 is slowly concentrated, when the accumulated mud and sand are overloaded, the whole device drives the connecting rod 12 to rotate counterclockwise through two sets of T-shaped rods 13, at this time the trapezoidal wedge 20 Rise, along with the rise of the trapezoidal wedge 20, because the second motor 29 on the right side drives the second rectangular rod 26 to reciprocate through the rotation of the crank 28, thereby adjusting the distance between the first wedge 21 and the second wedge 22. Cooperate with the amplitude of the contact, reduce the amplitude of the second impulse, thereby reducing the feeding amount of the mud and sand falling onto the hopper, and at the same time, with the accumulation of materials on the material receiving belt 15, the two sets of T-shaped bars 13 drive downward to drive The rod 34 is pulled downwards, and through the cooperation of the drive plate 33 and the material retaining plate, the material retaining plate is driven to rotate and lift upwards, thereby reducing the size of the discharge port 11 and limiting the feed rate of the material flowing out of the discharge port 11. On the contrary, If the material on the material receiving belt 15 is too little, two groups of T-shaped bars 13 and connecting rods 12 can be driven to rotate clockwise around the central point by cooperating. At this time, the trapezoidal wedge 20 descends. Because the second motor 29 on the right side drives the second rectangular rod 26 to reciprocate through the rotation of the crank 28, thereby adjusting the amplitude of the matching contact between the first wedge 21 and the second wedge 22, and improving the amplitude of the second impulse, Thereby the feed rate of mud and sand falling onto the receiving hopper is improved. At the same time, due to the reduction of materials on the receiving belt 15, the two groups of T-shaped rods 13 drive the driving rods 34 to push upwards, and the drive plates 33 and the retaining materials are pushed up. The cooperation of the plate drives the baffle plate to rotate downward, thereby increasing the size of the feeding port 11, increasing the feed rate of the material flowing out from the feeding port 11, and achieving the purpose of dynamically adjusting the material on the feeding belt 15, avoiding the The sand screening efficiency of the subsequent sand screening device 5 caused by too much or too little collected mud and sand ensures that the system works stably, continuously and efficiently, and ensures that the mud and sand entering the sand screening device 5 can be evenly transported to the screen. The sand is screened in the sand device 5, and then the mixed mud and sand are screened by the sand screen device 5. After the screening, the mud and sand are sent to the sand washing device 6 for cleaning, and the cleaned sand is then transported to the sand barge by the sand transport device 7. Carry out centralized collection and processing, wherein the sand barge can move along with the entire hull to realize sand mining treatment at multiple sand mining points. and the amount of mud and sand per unit time in the sand washing device 6 is guaranteed Consistent, to avoid system blockage or waste of equipment, improve the efficiency and quality of sand screening and sand washing of the entire system, strong practicability, suitable for popularization and use.

Embodiment 2. On the basis of Embodiment 1, this embodiment discloses a sand mining device 3 that includes a U-shaped plate 40 that is vertically rotatable and connected to the right end of the ship 1. The rotation of the U-shaped plate 40 can adjust the mining speed in the horizontal direction. Sand angle, the rotating shaft of the U-shaped plate 40 is connected to the output shaft of the third motor 41 installed in the ship 1 through a belt, and the position of the U-shaped plate 40 is adjusted by the driving of the third motor 41, so that the U-shaped plate The angle of 40 is adjusted and changed, and the U-shaped plate 40 is longitudinally hinged with a sand suction pipe and a jet pipe 43, and the sand suction pipe is adjusted in angle through the sand mining driving device installed in the ship 1, and a mud pump 44 is installed in the sand suction pipe. The outlet of the mud pump 44 is docked with a first connecting hose 45, and the other end of the first connecting hose 45 is docked with the feed pipe 10. The connection between the mud pump 44 and the sand washing pipe 42 is through the mud pump 44 in the washing The end of the sand pipe 42 generates negative pressure, and the sand washing pipe 42 is inserted into the sand source at the position of the sand source for adsorption, so that the sand washing pipe 42 is collected and transitioned, and is transported to the feed pipe 10 through the first connecting hose 45 Carry out the concentration in the lower hopper 9, also include the jet water pump 46 installed on the right end of the ship 1, the outlet of the jet water pump 46 is connected with the second connection hose 47, the other end of the second connection hose 47 is connected to the inlet end of the jet pipe 43 Butt connection, the connection of the jet pipe 43 and the jet water pump 46 is to transport the water body from the inlet port through the second connecting hose 47 to the inlet end of the jet pipe 43 through the jet water pump 46, and then spray the sand source body from the end. Agitation, cooperate with the mud pump 44 to better absorb the agitated sand source, so that it can be better sucked into the sand washing pipe 42. The use of the first connecting hose 45 and the second connecting hose 47 is for jet flow When the pipe 43 and the sand suction pipe carry out angle adjustment, it is better to carry out the rotational connection, and the third motor 41, the mud pump 44, and the jet water pump 46 are all electrically connected with the master control system, and the master control system is used for the controller third Motor 41, working device of mud pump 44 and jet water pump 46;

The driving device for mining sand includes a support 48 installed on the ship 1 and placed on the front and rear sides of the first connecting hose 45. The upper end of the support 48 is equipped with a pulley block 49, and also includes two groups of winches 50 installed in the ship 1, and the installation The connection hook 51 on the sand suction pipe, the hoist 50 on the corresponding side, the pulley block 49 and the connection hook 51 on the sand suction pipe are connected by a steel cable and are rewound through the hoist 50. The hoist 50 is connected to the master control system. Electrically connected between them, through the work of the controller hoist 50, the steel cable is controlled to adjust the vertical angle of the jet pipe 43 and the sand suction pipe, so as to adjust the inclination angle inserted into the sand source part, and when rotating, ensure In the process of not moving the hull, the position of the sand source can be changed at multiple angles, so as to achieve efficient sand source extraction. When this embodiment is used, it is necessary to adjust the angle in the horizontal direction when performing sand mining operations. At this time, the third motor 41 is turned on by the master control system, and the third motor 41 drives the U-shaped plate 40 to rotate, thereby adjusting the angle in the horizontal direction. When it is necessary to adjust the angle of the sand washing pipe 42 in the vertical direction, thereby To adjust the angle inserted into the sand source, it is necessary to adjust the hoist 50 through the master control system. The hoist 50 lifts or lowers the sand suction pipe through the steel cable to adjust the vertical angle, and then by turning on the jet water pump 46 and the mud pump 44, The jet water pump 46 impacts the bottom of the sand source by introducing water, and then the mud pump 44 absorbs the mixed mud and sand into the sand suction pipe by generating negative pressure, and then enters the lower hopper 9 through the feed pipe 10 for concentration, wherein the sand suction pipe It belongs to the same pipe body as the jet pipe 43, but they are separated by a partition to avoid shunting between them.

Embodiment 3, on the basis of Embodiment 1, in this embodiment, we disclose a sand screening device 5 including a sand screening tank 52 installed in the ship 1 and placed at the outlet of the left end of the material receiving belt 15 , the left end in the sand screening tank 52 is vertically rotated to connect the rectangular screen 53, the right end of the screen 53 is movable, the front and rear sides of the right end of the screen 53 are respectively equipped with extension plates 54, and the extension plates 54 are respectively connected to the sand screening tank 52 The sliding holes 55 on the corresponding sides of the front and rear sides slide and fit, so that the extension plate 54 can slide and fit in the sliding holes 55, and at the same time, the tilting angle of the right end of the screen 53 can also be limited. The drive shaft 56 below the 55, the front and rear ends of the drive shaft 56 are equipped with cams 57 respectively, and the cam 57 contacts and cooperates with the lower end of the extension plate 54 on the corresponding side. Spring 58, transmission shaft 56 and the rotating shaft of crank 28 carry out transmission connection through belt, power transmission between transmission shaft 56 and crank 28, thereby drives transmission shaft 56 to work, and cam 57 plays screen cloth 53 right-hand end bouncing function, cooperate with the second spring 58, so that the right end of the screen 53 can be lifted back and forth, and the sundries on the screen 53 can be vibrated and cleaned, so that they can be concentrated on the left side, and the setting of the screen 53 has a certain slope , right high and left low setting, to avoid sundries from clogging in the holes of the screen 53, the front and rear ends of the left end of the sand screening tank 52 are respectively provided with a slag outlet 59 placed above the screen 53, and the slag outlet 59 The corresponding side of the corresponding side communicates with the slag discharge channel 60 installed on the ship 1. The slag discharge port 59 and the slag discharge channel 60 are used to concentrate the large debris collected by vibration on the screen 53 at the left end. It is connected with a reciprocating slag cleaning device placed above the screen 53 to meet the reciprocating cleaning of the slag moving to the left end of the screen 53. The reciprocating slag cleaning device is connected to the transmission shaft 56 for power transmission, and the reciprocating slag cleaning device is concentrated on the left end. The slag body is cleaned in the front and back directions, so that it can be reliably concentrated in the slag removal channel from the slag removal port to both sides. The left end of the sand screening tank 52 is provided with a sand passing hole 61 placed under the screen 53. After the screened mud and sand are concentrated at the bottom of the sand screening tank 52, they enter the sand washing device 6 through the sand passing hole 61 to carry out the next process, which is actually the sand washing tank 74. Connected, the reciprocating slag cleaning device is connected with the sand screening device 5 for power transmission, so as to provide power input to the sand screening device 5, and the power input part of the reciprocating slag cleaning device can be transported to the sand screening device 5 for power transmission;

Wherein, the reciprocating slag cleaning device is longitudinally installed on the fixed plate 62 at the upper end of the sand screening tank 52, and the front and rear ends of the fixed plate 62 are respectively vertically rotated and connected with two sets of pulleys 63, the pulleys 63 are set downwards, and the lower end of the fixed plate 62 slides longitudinally A translation plate 64 placed below the two sets of pulleys 63 is connected, and guide rails are set on the left and right sides of the lower end of the fixed plate 62, and then the translation plate 64 is longitudinally fitted on the guide rails so that the longitudinal direction of the translation plate 64 relative to the fixed plate 62 To move, a drive belt 65 is set between the two groups of pulleys 63, a drive pin 66 is vertically installed on the outer edge of the drive belt 65, and the upper end of the translation plate 64 is horizontally provided with a drive hole 67 that is horizontally slidably matched with the drive pin 66. The bottom of the plate 64 is provided with a retractable scraper structure placed on the top of the screen cloth 53. The drive belt 65 can be moved along the drive belt 65 as the drive belt 65 rotates with the pulley 63. Due to its cooperation with the drive hole 67 , so that the translation plate 64 can reciprocate along the longitudinal direction, the telescopic scraper structure includes a mounting plate 71 installed at the lower end of the translation plate 64, and the lower end of the mounting plate 71 is vertically slidably connected with the translation scraper 72 and does not disengage, The lower end of the mounting plate 71 is provided with a horizontally arranged receiving tank, and the translation scraper 72 is vertically slidably connected in the receiving tank, and a limit stop is provided at the lower end of the receiving tank to prevent the translation scraper 72 from detaching from the lower end of the mounting plate 71. The lower end of the translation scraper 72 is provided with a pointed shape, and the end is provided with rounded corners. Multiple sets of vertically arranged third springs 73 are connected between the translation scraper 72 and the installation plate 71, thereby forming a telescopic scraper structure. , the purpose of setting the telescopic scraper structure is that the screen 53 is to be lifted back and forth, so the telescopic scraper structure is convenient to make the translation scraper 72 always keep in contact with the upper end of the screen 53;

It also includes a transition shaft 68 that is longitudinally rotatably connected to the rear end of the sand screening tank 52. The transition shaft 68 is connected to the drive shaft 56 through a belt. The transition shaft 68 is coaxially equipped with a first bevel gear 69, which is connected to the vertical shaft. It is connected to the second bevel gear on the sand screening tank 52 in rotation, and the bevel gear set plays the purpose of power transmission. The rotating shaft of the second bevel gear is connected to the rotating shaft of one of the pulleys 63 through the belt through the second bevel gear. The bevel gear drives one set of pulleys 63 to rotate, and the transition shaft 68 is connected to the sand washing device 6 through power transmission. The transmission shaft 56 in the sand washing device 6 is connected to the transition shaft 68 through a belt. In use, when the sand screening operation is carried out, when the sand and gravel material on the material receiving belt 15 enters above the right end of the screen 53, the rotating shaft of the crank 28 drives the transmission shaft 56 to rotate while driving the crank 28 to rotate, and the transmission shaft The rotation of 56 makes the cam 57 connected on the upper coaxial to rotate, cooperates with the second spring 58, drives the screen 53 to vibrate up and down, so that the slag on the screen 53 can smoothly move to the left end for concentration, and at the same time drive The shaft 56 drives the transition shaft 68 to rotate through the belt, and the rotation of the transition shaft 68 drives one of the pulleys 63 to work through the direction-changing transmission of the bevel gear, thereby sometimes driving the drive pin 66 on the belt 65 to work, because the drive pin 66 Cooperating with the driving hole 67, the translation plate 64 is reciprocated in the longitudinal direction, and then the translation scraper 72 is driven to reciprocate in the longitudinal direction, so that the slag concentrated on the left end of the screen 53 is reciprocated and cleaned to two sides. The slag discharge channel 60 on the side is concentrated, and the slag discharge channel 60 can discharge the water body inside it through the drain port connected with the ship 1, and the screened sand falls through the screen 53 and falls into the sand screening tank 52 for concentration. , and then enter the sand washing tank 74 through the sand hole 61 for concentration, thereby completing the entire sand screening work.

Embodiment 4, on the basis of Embodiment 1, in this embodiment, we disclose a sand washing device 6 including a sand washing tank 74 connected to the left side of the sand screening device 5, the sand washing tank 74 and the sand screening device 5 are connected, and a sand hole 61 is set between the sand washing tank 74 and the sand screening tank 52, and also includes two sets of sleeve shafts that are longitudinally rotatably connected to the ship 1 and placed between the sand screening device 5 and the sand transporting device 7 75. The quill shafts 75 are longitudinally arranged at intervals, and are rotatably connected to the support frame body on the ship 1 through bearings. The two sets of quill shafts 75 are longitudinally and concentrically arranged. The power shaft 76, the power shaft 76 coaxial bearings are rotatably connected in two groups of sleeve shafts 75, the rotation of the power shaft 76 and the rotation of the sleeve shaft 75 do not affect each other, the power shaft 76 is connected with the first shaft installed on the ship 1 The output shafts of the four motors 77 are coaxially connected, and the fourth motor 77 provides power input. The front and rear ends of the power shaft 76 are respectively coaxially equipped with the first sprocket 78, and the sleeve shaft 75 is coaxially installed with an inclined plate 79, and the two groups of inclined The lower ends of the plates 79 are rotatably connected to the mating shaft 80, and the mating shaft 80 is rotatably connected to the lower ends of the inclined plates 79 through bearings. Two groups of inclined plates 79 form a rectangular frame structure through the sleeve shaft 75 and the mating shaft 80. The second sprocket 81 is coaxially installed at the ends respectively, and the chain 82 is sleeved between the first sprocket 78 and the second sprocket 81 on the same side at the front and rear, and multiple groups of sand buckets are evenly arranged between the two groups of chains 82 83, the opening of the sand-connecting bucket 83 is set upwards, and its front and rear ends are fixedly installed on the chain 82, so that it will not rotate easily, and the rotation of the chain 82 will drive the sand washing bucket to move circularly, and when the sand washing bucket passes through During the upward climb of the sand washing tank 74, the sand-water mixture in the sand washing tank 74 enters the sand washing bucket and at the same time slightly stirs the sand washing bucket to promote the separation of the soil components in the sand source, and the sand washing bucket climbs to The top handle turns over and turns to the lower part, the sand-water mixture in the bucket is dumped, and the muddy water in the upper layer is splashed out, and the sand source in the lower layer comes out of the sand washing bucket and falls, and falls into the sand transport device 7 for transportation , an inclined baffle can also be set at the position of the support bracket 48, so that the muddy water will not spill out from a distance, and will not fall into the sand transport device 7 below after passing through the baffle, thereby avoiding cleaning the bottom. pollution caused by sand sources;

The position below the rear end of the inclined plate 79 on the rear side is connected to the reciprocating turning device installed on the ship 1, and the reciprocating turning device is connected to the sand screening device 5 for power transmission, and satisfies the need to reciprocate the rotation of the two groups of inclined plates 79. Adjustment, electrical connection between the fourth motor 77 and the master control system, the purpose of the reciprocating turning device is to increase the agitation to the bottom of the sand washing tank 74, so that the muddy water in the mixture in the sand washing tank 74 can be better removed Precipitation in sand body;

The reciprocating turning device includes a drive disc 84 that is longitudinally rotated and connected to the ship 1 and placed behind the rear side inclined plate 79. The rotating shaft of the drive disc 84 is connected to the transition shaft 68 in the sand washing device 6 through a belt. The front end of the drive disc 84 The surface is provided with a radial groove 85 in the radial direction, and a plurality of groups of threaded holes 86 are provided at intervals along the radial direction in the radial groove 85, and the threaded hole 86 at one end of the threaded hole 86 close to the center of the drive disk 84 is connected with the threaded hole 86 of the drive disk 84. The center is arranged concentrically, and the end away from the center of the driving disk 84 is arranged close to the outer edge of the driving disk 84. It also includes a reciprocating rod 87 longitudinally connected to the rear end of the rear inclined plate 79. The reciprocating rod 87 is slidably matched with the side wall of the sand washing tank 74. , the reciprocating rod 87 is vertically arranged with the inclined plate 79, the rear end of the reciprocating rod 87 is equipped with an elongated rod 88, the elongated rod 88 is provided with a grooved hole 89, the grooved hole 89 is provided with a threaded pin 90, and the threaded pin 90 outerwear A shaft sleeve 91 that is slidingly fitted with the grooved hole 89 is provided, and the outer wall of the shaft sleeve 91 is slidably fitted with the inner side wall of the grooved hole 89. The rear end of the threaded pin 90 is provided with a thread that matches the threaded hole 86, and the front end is installed with a limited position. Knob 92, the limit knob 92 is larger than the radius of threaded pin 90, and plays the role of limit. By adjusting the position of threaded pin 90, the swing range of inclined plate 79 is adjusted. The threaded pin 90 at different positions, the position of inclined plate 79 The swing range is different, and the difference of the swing range has different agitation effects on the bottom of the sand washing tank 74. If the amount of mud and sand is large, the swing range can be larger. If the amount of mud and sand is small, the swing range can be slightly, or even not. Swing, now only need to screw the threaded pin 90 to the position of the threaded hole 86 coincident with the center of the drive plate 84. When this embodiment is in use, the master control system drives the fourth motor 77 to work, the fourth The motor 77 drives the power shaft 76 to rotate, thereby driving the chain 82 to rotate. The rotation of the chain 82 drives the sand washing bucket to move back and forth. The water mixture enters the sand washing hopper and at the same time slightly agitates the sand washing hopper to promote the separation of the soil in the sand source. The sand washing hopper climbs to the top and the handle turns to the lower part, and the sand-water mixture in the hopper is dumped. The muddy water in the upper layer is splashed out, and the sand source in the lower layer falls out of the sand washing bucket and falls into the sand transport device 7 for transportation. At the same time, the rotation of the transition shaft 68 in the sand screening device 5 drives the drive plate 84 rotates, and the rotation of the drive plate 84 drives the threaded pin 90 to rotate, and the rotation of the threaded pin 90 makes the reciprocating rod 87 swing back and forth, so that the entire frame structure of the inclined plate 79 swings, thereby improving the washing effect. The bottom of the sand tank 74 is stirred, so that the muddy water is more fully separated, and by changing the position of the threaded pin 90, the magnitude of the stirring can be changed.

Embodiment 5. On the basis of Embodiment 1, the sand transport device 7 includes two groups of sand transport rollers 93 that are horizontally rotatably connected to the ship 1 and spaced longitudinally. The two groups of sand transport rollers 93 are placed on the left side of the sand washing device 6. A sand belt 94 is sleeved between the two groups of sand rollers 93, wherein the rotating shaft of one group of sand rollers 93 is coaxially connected with the output shaft of the fifth motor 95 installed on the ship 1, and the fifth motor 95 is connected to the overall The control system is electrically connected, and the fifth motor 95 drives two groups of sand transporting rollers 93 to rotate, thereby transporting the sand body dropped onto the sand transporting belt 94 outwards to achieve the purpose of transporting.

When the present invention is in use, firstly, the hull is moved to the position where sand needs to be mined through the general control system, and at the same time, the sand barge is moved to the corresponding position for berthing. When performing sand mining operations, it is necessary to adjust the angle in the horizontal direction At this time, the third motor 41 is turned on by the master control system, and the third motor 41 drives the U-shaped plate 40 to rotate, thereby adjusting the angle in the horizontal direction. When it is necessary to adjust the angle of the sand washing pipe 42 in the vertical direction, thereby To adjust the angle inserted into the sand source, it is necessary to adjust the hoist 50 through the master control system. The hoist 50 lifts or lowers the sand suction pipe through the steel cable to adjust the vertical angle, and then by turning on the jet water pump 46 and the mud pump 44, The jet water pump 46 impacts the bottom of the sand source by introducing water, and then the mud pump 44 absorbs the mixed mud and sand into the sand suction pipe by generating negative pressure, and then enters the lower hopper 9 through the feed pipe 10 for concentration, and then through the controller Open the first motor 16 and the second motor 29, then enter the silt in the lower hopper 9 and drop onto the material receiving belt 15 through the lower hopper 9, and slowly concentrate along with the material on the material receiving belt 15, due to the first motor 16 The rotation drives two groups of turning rollers 14 to rotate, so that the material receiving belt 15 also slowly rotates, and the material is transported from the material receiving belt 15 to the sand screening tank 52 in the sand screening device 5, along with the material receiving belt 15. The materials are slowly concentrated, and when the accumulated mud and sand are overloaded, the whole device drives the connecting rod 12 to rotate counterclockwise through two sets of T-shaped rods 13. At this time, the trapezoidal wedge 20 rises. The second motor 29 drives the second rectangular rod 26 to reciprocate through the rotation of the crank 28, thereby adjusting the amplitude of the matching contact between the first wedge 21 and the second wedge 22, reducing the amplitude of the second impulse, thereby reducing the At the same time, with the accumulation of materials on the material receiving belt 15, the two groups of T-shaped rods 13 drive the driving rod 34 to pull downward, and the driving plate 33 and the material blocking plate Cooperate, drive the baffle plate to rotate upwards, thereby reducing the size of the feeding port 11, limiting the feed rate of the material flowing out from the feeding port 11, on the contrary, if the material on the material receiving belt 15 is too small, it can be adjusted by matching Drive two groups of T-shaped bars 13 and connecting rods 12 to rotate clockwise around the central point. At this time, the trapezoidal wedge 20 descends. As the trapezoidal wedge 20 descends, the second motor 29 on the right side is driven The second rectangular rod 26 moves back and forth, thereby adjusting the amplitude of the mating contact between the first wedge 21 and the second wedge 22, increasing the amplitude of the second impulse, thereby increasing the feed rate of the mud and sand falling onto the receiving hopper At the same time, due to the reduction of the material on the receiving belt 15, the two groups of T-shaped rods 13 drive the driving rod 34 downward to push upward, and through the cooperation of the driving plate 33 and the material retaining plate, the driving material retaining plate rotates downward, thereby increasing The size of the large discharge port 11 increases the feed rate of the material flowing out of the discharge port 11, and achieves the purpose of dynamically adjusting the material on the material receiving belt 15, avoiding excessive or too little mud and sand collected. The sieving sand of follow-up sand screening device 5 Efficiency, to ensure that the system works stably, continuously and efficiently, and ensure that the mud and sand entering the sand screening device 5 can be evenly transported to the sand screening device 5 for screening;

When carrying out the sand screening operation, when the sand and gravel material on the material receiving belt 15 enters above the right end of the screen cloth 53, the rotating shaft of the crank 28 drives the transmission shaft 56 to rotate while driving the crank 28 to rotate, and the rotation of the transmission shaft 56 makes the The cam 57 connected coaxially on it rotates, and cooperates with the second spring 58 to drive the screen 53 to vibrate up and down, so that the slag on the screen 53 can smoothly move to the left end for concentration, and at the same time, the transmission shaft 56 passes through the belt Drive the transition shaft 68 to rotate, and the rotation of the transition shaft 68 drives one of the pulleys 63 to work through the direction-changing transmission of the bevel gear, thereby sometimes driving the drive pin 66 on the belt 65 to work, because the drive pin 66 and the drive hole 67 cooperation, so that the translation plate 64 reciprocates in the longitudinal direction, and then drives the translation scraper 72 to reciprocate in the longitudinal direction, so that the slag concentrated on the left end of the screen 53 is reciprocally cleaned to the slag discharge on both sides Concentrate in the channel 60, and the slag discharge channel 60 can discharge the water body inside it through the drain port connected with the ship 1, and the screened sand falls through the screen 53 to the sand screening tank 52 for concentration, and then passes through the The sand hole 61 enters the sand washing tank 74 for concentration, thereby completing the entire sand screening work;

When performing sand screening work, the master control system drives the fourth motor 77 to work, and the fourth motor 77 drives the power shaft 76 to rotate, thereby driving the chain 82 to rotate, and the rotation of the chain 82 drives the sand washing bucket to reciprocate. When the sand bucket climbs up through the sand washing tank 74, the sand-water mixture in the sand washing tank 74 enters the sand washing bucket and at the same time slightly agitates the inside of the sand washing bucket to promote the separation of the soil components in the sand source and sand washing. The bucket climbs to the top and the handle turns over to the lower part, the sand-water mixture in the bucket is dumped, and the muddy water in the upper layer is splashed out, and the sand source in the lower layer comes out of the sand washing bucket and falls, and falls to the sand transport device 7 At the same time, the rotation of the transition shaft 68 in the sand screening device 5 drives the drive plate 84 to rotate, and the rotation of the drive plate 84 drives the screw threaded pin 90 to rotate, and the rotation of the thread pin 90 makes the reciprocating rod 87 Swing back and forth, so that the entire frame structure of the inclined plate 79 swings, thereby stirring the bottom of the sand washing tank 74, so that the muddy water is more fully separated, and by changing the position of the threaded pin 90, the amplitude of the stirring can be changed. After cleaning The sand is then transported to the sand barge ship through the sand transport device 7 for centralized collection and processing, wherein the sand barge barge can move along with the entire hull to realize sand mining treatment at multiple sand mining points. The present invention performs sand mining at different positions When the mixed mud and sand are collected, the amount of mud and sand transported to the rear screen and the sand washing device 6 in a unit time is kept consistent, avoiding system blockage or equipment waste, and improving the efficiency and quality of the sand screening and sand washing of the entire system, and at the same time , the vibration design of the screen 53 prevents the debris from clogging the screen 53, quickly collects and processes the debris on the screen 53, and improves the screening efficiency. It is convenient and simple, has strong practicability, and is suitable for popularization and use.

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present invention shall be included in the scope of the present invention. within the scope of protection.

Claims (10)

1. An intelligent sand mining platform, including a ship (1) body, the ship (1) is provided with a ship engine room (2), and the ship engine room (2) is equipped with a ship (1) control system. It is characterized in that a sand mining device (3), a uniform sand feeding device (4), a sand screening device (5), a sand washing device (6) and a sand transporting device ( 7), the five groups of devices are connected in sequence; The sand extraction device (3) is connected to the uniform sand delivery device (4), meeting the requirement of collecting and transporting the mixed mud and sand from the river bed to the uniform sand delivery device (4); The uniform sand sending device (4) includes a bottom plate (8) installed in the ship (1) and placed between the sand mining device (3) and the sand screening device (5). The upper end of the bottom plate (8) is equipped with a trapezoidal The lower hopper (9), the upper end of the lower hopper (9) is connected to the feed pipe (10), the feed pipe (10) is connected to the sand mining device (3), and the lower end of the lower hopper (9) is set The material opening (11), the front and rear sides of the lower hopper (9) are respectively connected with the horizontal connecting rod (12), and the left end of the connecting rod (12) is hinged and placed on the left side of the lower hopper (9). The T-shaped bar (13), the left and right ends between the lower ends of the two groups of T-shaped bars (13) are respectively longitudinally rotated and connected with the rotating roller (14) placed under the lower hopper (9), and the two groups of rotating rollers (14) A splicing belt (15) is provided between the sleeves, and the rotating shaft of one set of rotating rollers (14) is driven to rotate by the first motor (16) installed on one of the set of T-shaped bars (13), and the connecting bar (12 ) is provided with a long hole (17) along its length direction, the two groups of long holes (17) slide horizontally to connect the counterweight (18), and the right ends of the two groups of connecting rods (12) are connected to the bottom plate ( 8) There is a tilt limit device between them, the tilt limit device can limit the tilt limit of the connecting rod (12), and the lower hopper (9) and the counterweight are installed between the two sets of connecting rods (12) The fixed rod (19) between (18), the fixed rod (19) is rotated to connect the trapezoidal wedge (20) extending downwards, the left and right sides of the trapezoidal wedge (20) are inclined, The left and right sides of the trapezoidal wedge (20) are respectively provided with a first wedge (21) and a second wedge (22) on the same horizontal plane, and the first wedge (21) and the second wedge The inclined surfaces of the block (22) are set towards the direction of the trapezoidal wedge (20), and the left end of the first wedge (21) is connected to the first rectangular rod (23) which is horizontally slidably connected to the lower end of the lower hopper (9). The other end of the first rectangular rod (23) is connected with a trapezoidal block (30) (24) that cooperates with the discharge port (11) to change the size of the discharge port (11). The first wedge (21 ) and the lower hopper (9) are connected with the first spring (25) sleeved outside the first rectangular rod (23), and the right end of the second wedge (22) is installed with a horizontal sliding connection on the bottom plate (8 ) on the second rectangular rod (26), the right end of the second rectangular rod (26) is hinged to the transition rod (27), and also includes a Crank (28), the outer edge of the front end of the crank (28) is hinged to one end of the transition rod (27), the rotation shaft of the crank (28) is connected to the second motor (29) installed on the bottom plate (8) ) is coaxially connected to the output shaft, the rotating shaft of the crank (28) is power-connected with the sand screening device (5), and the outlet of the feeding port (11) is provided with a rotary connection connected to the lower hopper (9). A baffle plate, the bottom of the baffle plate is provided with a limit plate (31) longitudinally installed on the left end of the discharge opening (11), so The other end of the baffle plate is hinged to a transition plate (32), and the other end of the transition plate (32) is hinged to a drive plate (33) that is rotatably connected to the left end of the lower hopper (9). Drive rods (34) are respectively connected to the front and rear sides, and two sets of drive rods (34) are inserted between two sets of limit rods (35) longitudinally installed between two sets of T-shaped bars (13). The outlet at the left end of the material belt (15) is connected to the sand screening device (5); The left end of the sand screening device (5) is connected to the sand washing device (6), and the right end is connected to the uniform sand sending device (4), which satisfies the requirement of screening the mixed mud and sand and transporting it to the sand washing device (6); The left end of the sand washing device (6) is connected to the sand conveying device (7), and the right end is connected to the sand screening device (5), which can clean and desilt the screened mixed mud and sand; The right end of the sand conveying device (7) is connected to the sand washing device (6), which is sufficient to transport the cleaned sand outward; The sand mining device (3), the first motor (16), the second motor (29), the sand washing device (6), the sand transport device (7) and the control system of the ship (1) are all installed in the ship (1) ) are electrically connected between the master control systems on the 2. An intelligent sand mining platform according to claim 1, characterized in that the tilt limit device includes a first needle-shaped plate (36) installed on the right side of the connecting rod (12), and also includes a On the upper end of the ship (1) and the second needle-shaped plate (37) in the same horizontal direction as the two groups of first needle-shaped plates (36), the needle-like tips of the two groups of needle-shaped plates are oppositely arranged, and the first needle-shaped plates The lower end of the shape plate (36) is equipped with an L-shaped first rotation-limiting lever (38), and the lower end of the second needle-shaped plate (37) is equipped with an L-shaped second rotation-limiting lever (39). The rod (38) is placed below the second rotation limiting rod (39), and the distance between the two groups of rotation limiting rods meets the limit of the rotation of the connecting rod (12). 3. An intelligent sand mining platform according to claim 1, characterized in that the sand mining device (3) includes a U-shaped plate (40) vertically rotatably connected to the right end of the ship (1), the U The rotating shaft of the U-shaped plate (40) is connected to the output shaft of the third motor (41) installed in the ship (1) through a belt, and the U-shaped plate (40) is longitudinally hinged with a sand suction pipe and a jet pipe ( 43), the angle of the sand suction pipe is adjusted by the sand mining driving device installed in the ship (1), a mud pump (44) is installed in the sand suction pipe, and the outlet of the mud pump (44) is docked with a The first connecting hose (45), the other end of the first connecting hose (45) is docked with the feed pipe (10), and also includes a jet water pump (46) installed on the right end of the ship (1), the said The outlet of the jet water pump (46) is docked with a second connecting hose (47), and the other end of the second connecting hose (47) is docked with the inlet end of the jet tube (43), and the third motor (41) , the mud pump (44), and the jet water pump (46) are all electrically connected with the master control system. 4. An intelligent sand mining platform according to claim 3, characterized in that, the sand mining driving device includes two sides installed on the ship (1) and placed on the front and rear sides of the first connecting hose (45). The bracket (48), the upper end of the bracket (48) is equipped with a pulley block (49), and also includes two sets of winches (50) installed in the ship (1), and a connecting hook (51) installed on the sand suction pipe , the hoist (50) on the corresponding side, the pulley block (49) and the connecting hook (51) on the sand suction pipe are connected by a steel cable and rolled up by the hoist (50), and the hoist (50) is connected to the total Electrical connection between control systems. 5. An intelligent sand mining platform according to claim 1, characterized in that the sand screening device (5) is installed in the ship (1) and placed at the outlet of the left end of the material receiving belt (15). The sand sieve tank (52), the left end of the sand sieve tank (52) is rotated longitudinally to connect the rectangular screen (53), and the front and rear sides of the right end of the screen (53) are respectively equipped with extension plates (54), The extension plates (54) are slidingly matched with the sliding holes (55) on the corresponding sides of the front and rear sides of the sand screening tank (52), and the right end of the sand screening tank (52) is longitudinally rotated and connected and placed under the sliding holes (55) The transmission shaft (56), the front and rear ends of the transmission shaft (56) are respectively equipped with cams (57), and the cams (57) are in contact with the lower end of the extension plate (54) on the corresponding side, and the extension plate ( 54) A second spring (58) arranged vertically is connected between the lower end and the ship (1), and the transmission shaft (56) is connected to the rotating shaft of the crank (28) via a belt, and the screen The front and rear ends of the left end of the sand tank (52) are respectively provided with a slag outlet (59) placed above the screen (53), and the corresponding side of the slag outlet (59) is connected with a slag outlet installed on the ship (1). The slag discharge channel (60), above the left end of the sand screening tank (52), is connected with a reciprocating slag cleaning device placed above the screen (53), which satisfies the need for reciprocating the slag that moves to the left end of the screen (53) Cleaning, the reciprocating slag cleaning device is connected to the transmission shaft (56) for power transmission, and the left end of the sand screening tank (52) has a sand passing hole (61) placed under the screen (53), and the sand passing The left end of the hole (61) is connected to the sand washing device (6), and the reciprocating slag cleaning device is connected to the sand screening device (5) through power transmission, so as to provide power input to the sand screening device (5). 6. An intelligent sand mining platform according to claim 5, characterized in that, the reciprocating slag removal device is longitudinally installed on the fixed plate (62) at the upper end of the sand screening tank (52), and the fixed plate (62 ) are respectively vertically rotated and connected with two sets of pulleys (63), the lower end of the fixed plate (62) is longitudinally slidably connected with a translation plate (64) placed below the two sets of pulleys (63), and the two sets of pulleys A drive belt (65) is sleeved between (63), a drive pin (66) is installed vertically on the outer edge of the drive belt (65), and a drive pin (66) is horizontally opened on the upper end of the translation plate (64). ) a drive hole (67) for horizontal sliding fit, and a telescopic scraper structure placed above the screen (53) is provided under the translation plate (64); It also includes a transition shaft (68) connected longitudinally to the rear end of the sand screening tank (52), the transition shaft (68) is connected to the drive shaft (56) via a belt, and the transition shaft (68) is coaxial The first bevel gear (69) is installed, and the first bevel gear (69) is meshed with the second bevel gear that is vertically rotatably connected to the sand screen (52), and the rotating shaft of the second bevel gear is in contact with one of the The rotating shaft of the belt pulley (63) is connected via a belt, and the transition shaft (68) is connected to the sand washing device (6) by power transmission. 7. An intelligent sand mining platform according to claim 6, characterized in that, the telescopic scraper structure includes a mounting plate (71) installed at the lower end of the translation plate (64), and the mounting plate (71 ) The lower end is vertically slidably connected with a translation scraper (72) and is not detached, and multiple sets of vertically arranged third springs (73) are connected between the translation scraper (72) and the installation plate (71), Thereby constituting the retractable scraper structure. 8. An intelligent sand mining platform according to claim 1, characterized in that the sand washing device (6) includes a sand washing tank (74) connected to the left side of the sand screening device (5), the The sand washing tank (74) communicates with the sand screening device (5), and also includes two sets of sleeves that are longitudinally rotatably connected to the ship (1) and placed between the sand screening device (5) and the sand transporting device (7) Shaft (75), two sets of sleeve shafts (75) are set longitudinally and coaxially, and the power shaft (76) is connected to the longitudinal rotation between the two sets of sleeve shafts (75), and the power shaft (76) is installed on the The output shaft of the fourth motor (77) on the ship (1) is coaxially connected, the front and rear ends of the power shaft (76) are coaxially installed with the first sprocket (78), and the sleeve shaft (75) The inclined plates (79) are coaxially installed, and the lower ends of the two sets of inclined plates (79) are rotated to connect with the matching shaft (80), and the front and rear ends of the matching shaft (80) are respectively coaxially installed with the second sprocket (81) , a chain (82) is sleeved between the first sprocket (78) and the second sprocket (81) on the same side of the front and rear, and multiple groups of sand buckets (83) are evenly arranged between the two sets of chains (82) ); The position below the rear end of the inclined plate (79) on the rear side is connected to the reciprocating turning device installed on the ship (1). The rotation of the set of inclined plates (79) is reciprocally adjusted, and the fourth motor (77) is electrically connected to the master control system. 9. An intelligent sand mining platform according to claim 8, characterized in that the reciprocating turning device includes a drive plate ( 84), the front end surface of the driving disc (84) is provided with radial grooves (85) in the radial direction, and multiple sets of threaded holes (86) are arranged in the radial grooves (85) at intervals in the radial direction, and It includes a reciprocating rod (87) longitudinally connected to the rear end of the rear inclined plate (79). The reciprocating rod (87) is slidingly fitted with the side wall of the sand washing tank (74). shaped rod (88), the elongated rod (88) is provided with a grooved hole (89), the grooved hole (89) is provided with a threaded pin (90), and the threaded pin (90) is covered with There is a shaft sleeve (91) slidingly fitted with the grooved hole (89), the rear end of the threaded pin (90) is provided with a thread matched with the threaded hole (86), and a limit knob (92) is installed at the front end, the drive The rotating shaft of the disc (84) is connected with the sand screening device (5) for power transmission. 10. An intelligent sand mining platform according to claim 1, characterized in that, the sand transport device (7) includes two groups of sand transport rollers (93) that are connected to the ship (1) in transverse rotation and spaced longitudinally ), two sets of sand transport rollers (93) are placed on the left side of the sand washing device (6), and a sand transport belt (94) is set between the two sets of sand transport rollers (93), and one set of sand transport rollers (93 ) is coaxially connected to the output shaft of the fifth motor (95) installed on the ship (1), and the fifth motor (95) is electrically connected to the master control system.
