Abstract

The invention relates to and discloses a connection node structure between a partially laminated plate and a PEC column. Involved in the field of construction technology. This application specifically includes prefabricated PEC columns supported vertically, beams connected horizontally with the prefabricated PEC columns, partial laminated slabs laid on the beams, when the partial laminated slabs are laid on the beams, the prefabricated PEC columns are located on the side of the partial laminated slabs, and A connecting component used to fixedly connect the end of the partially laminated plate to the prefabricated PEC column. The invention fixes and connects the ends of the local laminated slabs with the prefabricated PEC columns through the connecting components, thereby enhancing the integrity of the floor slab and the frame structure, preventing partial cracking of the floor slab, and ensuring the safety performance and service life of the floor slab.

Description

A connection structure between local laminated slab and PEC column

technical field

The invention relates to the technical field of construction, in particular to a connection node structure between a partially laminated plate and a PEC column.

Background technique

In recent years, PEC columns are widely used in prefabricated building structures. PEC columns are filled with concrete in the H-shaped steel cavity, and a supporting column formed by a certain number of connecting rods and longitudinal bars is configured according to the structure and force requirements. However, when the floor is laid through the PEC column, the PEC beam or steel beam is connected to the PEC column, and the floor is lapped on the frame formed by the PEC column and the beam, there is no reliable connection between the PEC column and the floor. Therefore, in order to strengthen the connection between the floor slab and the overall structure, prevent partial cracking of the floor slab, and ensure the safety performance of the floor slab, the method of connecting the floor slab and the main structure at the connection node of the PEC column and beam is invented and designed, which has important application value.

Chinese patent CN110344503B, publication date 2020-04-24 discloses a connection node structure between a partial laminated plate and a combined wall column, including a combined wall column and a partial laminated plate, the combined wall column is provided with a supporting plate, and the supporting plate Ribs are provided on the ribs, holes are set on the ribs, the ends of the partial laminated plates are set on the supporting plate, ribs are provided in the openings, and the steel bars on the partial laminated plates are formed by The rib-through side part extends to between the rib-through and the combined wall column. The node structure can cancel the reserved outrigger reinforcement, which is convenient for processing and transportation. However, the connection between the composite wall column and the local laminated slab in this joint structure is not reliable enough, which leads to partial cracking of the laid partial laminated slab, which cannot ensure the safety performance of the floor slab.

Contents of the invention

The object of the present invention is to address the shortcomings of the above-mentioned prior art, to provide a joint structure for the connection between the partially laminated slab and the PEC column, which can strengthen the connection between the floor and the overall structure, prevent partial cracking of the floor, and ensure the safety performance of the floor.

The present invention proposes a connection node structure between a partially laminated slab and a PEC column, which includes a vertically supported prefabricated PEC column, a beam connected horizontally to the prefabricated PEC column, a partially laminated slab laid on the beam, and the partially laminated slab. When the plywood is laid on the crossbeam, the prefabricated PEC column is located on one side of the partially laminated slab, and a connecting component for fixedly connecting the end of the partially laminated slab to the prefabricated PEC column.

Further, the end of the partially laminated slab is provided with a stepped structure, and the connection assembly includes a post-cast concrete strip filled between the stepped structure, the beam and the prefabricated PEC column.

Further, the end of the partially laminated slab is provided with reinforcement extending from the stepped structure, and the post-cast concrete strip is filled between the stepped structure, the beam and the prefabricated PEC column In time, cover the reinforcement.

Further, the connection assembly also includes distribution bars laid between the stepped structure and the prefabricated PEC column, and the post-cast concrete strip is filled in the stepped structure, the beam and the prefabricated PEC column. When between the columns, the distribution tendons are covered.

Further, the connecting assembly also includes a reinforcing member whose one end is fixedly connected to the prefabricated PEC column, and the other end is fixedly connected to the slab, and the post-concrete strip is filled in the stepped structure, the beam and the slab. When between the prefabricated PEC columns, the reinforcing member is covered.

Further, the reinforcing member includes a sealing plate whose back is fixedly connected to the prefabricated PEC column, and a reinforcing rib whose one end is fixedly connected to the front of the sealing plate and the other end is fixedly connected to the reinforcement, filling in the step The post-casting concrete strip between the beam and the prefabricated PEC column wraps the sealing plate and the reinforcing bar.

Further, both ends of the back of the cover plate are fixedly connected to the flange of the main steel part of the prefabricated PEC column, and the reinforcement also includes an anchor bar fixedly connected to the middle part of the back of the cover plate at one end, and the anchor bar between the concrete filled in the main steel part of the prefabricated PEC column.

Further, the sealing plate is provided with a through hole, and the reinforcement also includes one end fixedly connected to the web of the prefabricated PEC column main steel part, and the other end connected to the prefabricated PEC column main steel part. The outer surface of the concrete is flat with the sleeve, the end of the sleeve that is flat with the outer surface of the concrete is provided with a threaded hole penetrating through the sleeve, one end of which passes through the through hole and screwed with the screw hole, and is sleeved on the The limit nut of the above-mentioned screw.

Further, the through holes are strip-shaped through holes.

Further, the crossbeams are four horizontally connected to the four sides of the prefabricated PEC column respectively, the local laminated plates are four of which the two ends are respectively laid on two adjacent crossbeams, and the distribution bars are laid Between the stepped structures of the four partially laminated slabs and the prefabricated PEC columns, the distribution ribs are fixedly connected to the reinforcements of the four partially laminated slabs.

A connection node structure between a partially laminated plate and a PEC column of the present invention has the following gain effects:

(1) In this structure, the end of the partial laminated slab is fixedly connected to the prefabricated PEC column through the connecting component, so as to enhance the integrity of the floor and frame structure, prevent partial cracking of the floor, and ensure the safety performance and service life of the floor;

(2) When the partial laminated slab of this structure is laid on the beam, the concrete post-casting strip is filled between the stepped structure, the beam and the prefabricated PEC column. And the fixed connection of the beam, so as to enhance the integrity of the floor and the frame structure, and prevent partial cracking of the floor;

(3) The reinforcement is extended from the stepped structure at the end of the local laminated slab in this structure. When the concrete post-casting tape is filled between the stepped structure, the beam and the prefabricated PEC column, the concrete post-casting tape will cover the reinforcement , so that after the concrete post-casting strip is hardened, the slab reinforcement is located between the concrete and is fixedly connected with the concrete post-casting strip, thereby further strengthening the connection strength between the local laminated slab and the prefabricated PEC column and beam;

(4) The stepped structure at the end of the local laminated slab of this structure, the distribution bars are laid between the beams and the prefabricated PEC columns, and the distribution bars Cladding, so that after the concrete post-casting strip is hardened, the distribution bars are distributed in the concrete post-casting strip, and the structural strength of the concrete post-casting strip is strengthened, so that the gap between the local laminated slab and the prefabricated PEC column and beam The connection is more stable;

(5) The reinforcement of this structure includes a sealing plate and a reinforcing rib. The back of the sealing plate is fixedly connected with the prefabricated PEC column. One end of the reinforcing rib and the front of the sealing plate can be fixedly connected by welding, and the other end and the rib can be passed through The binding parts are tied together for fixed connection, so that the local laminated slab is fixedly connected with the prefabricated PEC column, which further enhances the integrity of the floor slab and the frame structure and prevents the floor slab from being partially cracked;

(6) One end of the anchor bar of this structure can be fixed in the middle of the back of the sealing plate by welding, and the other end of the anchor bar extends to the middle of the two wings of the main steel part of the prefabricated PEC column. When pouring the prefabricated PEC column, The concrete filled in the main steel part of the prefabricated PEC column covers the anchor bar, so that the sealing plate is further fixedly connected with the prefabricated PEC column, making the connection between the sealing plate and the prefabricated PEC column more stable;

(7) One end of the sleeve of this structure is fixedly connected to the web of the main steel part of the prefabricated PEC column, and the other end is flush with the outer surface of the concrete filled in the main steel part of the prefabricated PEC column, and the threaded hole is provided through the screw and the sleeve One end is screwed, and the limit nut is in contact with the sealing plate, so that the sealing plate and the sleeve are fixedly connected, and then the fixed connection between the sealing plate and the prefabricated PEC column is realized;

(8) When the distribution ribs of this structure are laid between the stepped structure of multiple partially laminated slabs and the prefabricated PEC column, they are also laid in the gap between two adjacent partially laminated slabs, so that not only the The PEC columns are fixedly connected, and two adjacent partially laminated slabs are also fixedly connected, so as to further enhance the integrity of the floor slab and the frame structure and prevent partial cracking of the floor slab.

Description of drawings

The accompanying drawings, which are incorporated in and constitute a part of this specification, illustrate the embodiments of the invention and together with the description serve to explain the principles of the invention. In the drawings, like reference numerals are used to denote like elements.

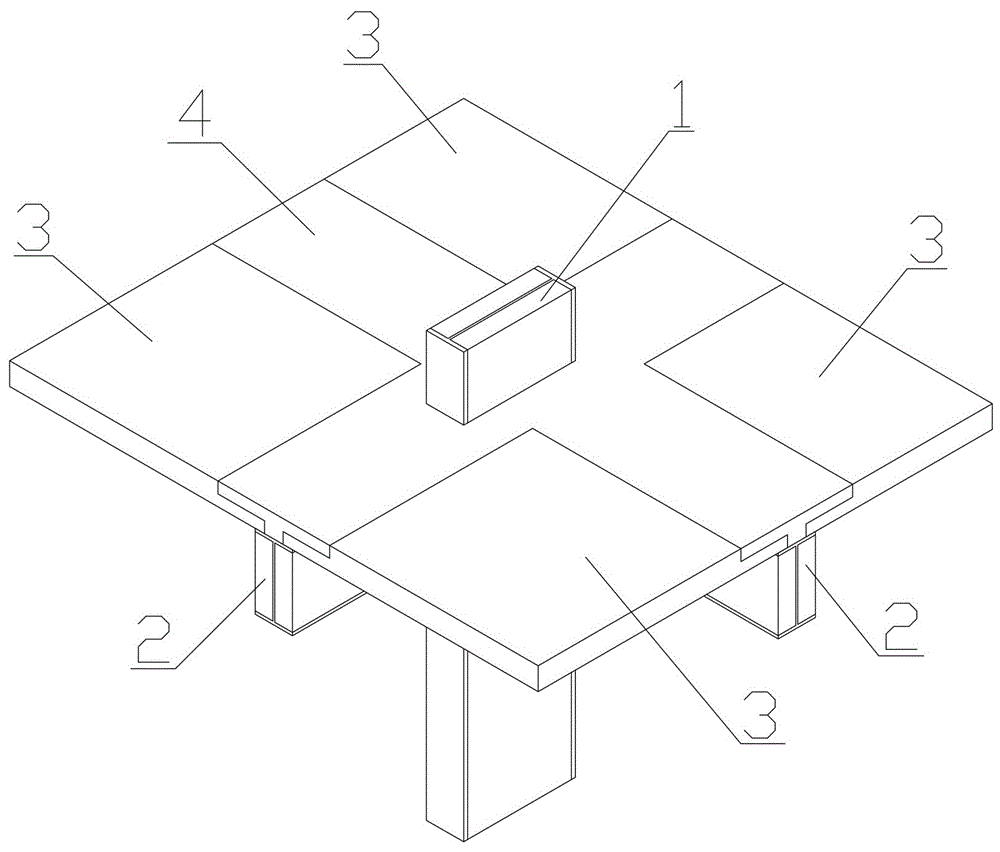

Fig. 1 is a structural schematic diagram of a connection node structure between a partially laminated plate and a PEC column according to an embodiment of the present invention;

Fig. 2 is a structural schematic diagram of a post-casting strip without laying concrete of a partial laminated slab and a PEC column connection node structure according to an embodiment of the present invention;

Fig. 3 is a structural schematic diagram of an embodiment of a reinforcing member of a connection node structure between a partially laminated plate and a PEC column according to an embodiment of the present invention;

Fig. 4 is an installation cross-sectional view of an embodiment of a reinforcing member of a connection node structure between a partially laminated plate and a PEC column according to an embodiment of the present invention;

Fig. 5 is a structural schematic diagram of another embodiment of a reinforcing member of a connection node structure between a partially laminated plate and a PEC column according to an embodiment of the present invention;

Fig. 6 is an installation cross-sectional view of another embodiment of a reinforcing member of a connection node structure between a partially laminated plate and a PEC column according to an embodiment of the present invention.

In the figure: 1. Prefabricated PEC column; 2. Beam; 3. Partially laminated slab; 31. Step structure; 32. Plate reinforcement; 4. Concrete post-cast belt; plate; 611, through hole; 62, reinforcing rib; 63, anchor rib; 64, sleeve; 65, screw rod; 66, limit nut.

Detailed ways

In order to make the purpose, technical solutions and advantages of the embodiments of the present invention more clear, the technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Based on the embodiments of the present invention All other embodiments obtained by persons of ordinary skill in the art without creative efforts fall within the protection scope of the present invention.

A connection node structure between a partially laminated slab and a PEC column in an embodiment of the present invention includes a vertically supported prefabricated PEC column 1, a beam 2 horizontally connected to the prefabricated PEC column 1, a partially laminated slab 3 laid on the beam 2, and a local When the laminated slab 3 is laid on the beam 2, the prefabricated PEC column 1 is located on one side of the partial laminated slab 3, and the connection assembly for fixedly connecting the end of the partial laminated slab 3 to the prefabricated PEC column 1, see Figure 1 for the specific effect.

In the field of architectural decoration, the PEC column is poured with concrete in the middle area of the H-shaped steel, and the concrete fills the middle area of the H-shaped steel, making it a rectangular column, supporting the top of the building wall. In this application, a prefabricated PEC column 1 with vertical support is provided. The prefabricated PEC column 1 is a rectangular column composed of main steel parts and concrete filled in the main steel parts. The main steel parts are H-shaped steel, and the floor design It is a partial laminated plate 3. A beam 2 is horizontally connected to the prefabricated PEC column 1, and the laying of the floor slab is realized by laying the partial laminated slab 3 on the beam 2. When the partially laminated slab 3 is laid on the beam 2, the prefabricated PEC column 1 is located on one side of the partially laminated slab 3, and the end of the partially laminated slab 3 is fixedly connected to the prefabricated PEC column 1 through the connecting component, thereby strengthening the floor slab and the frame structure The integrity of the floor can prevent partial cracking of the floor and ensure the safety performance and service life of the floor.

In this embodiment, the end of the partially laminated slab 3 is provided with a stepped structure 31, and the connection assembly includes a concrete post-casting strip 4 filled between the stepped structure 31, the beam 2 and the prefabricated PEC column 1, the specific effect is shown in the figure 1 and 2. A stepped structure 31 is provided at the end of the partially laminated slab 3. Since the prefabricated PEC column 1 is located on one side of the partially laminated slab 3 when the partially laminated slab 3 is laid on the beam 2, the stepped structure 31 at the end of the partially laminated slab 3 is connected to the The prefabricated PEC column 1 is arranged oppositely. When the partial laminated slab 3 is laid on the beam 2, the concrete post-casting strip 4 is filled between the stepped structure 31, the beam 2 and the prefabricated PEC column 1, and after the concrete post-casting strip 4 hardens, the local laminated slab 3 and the precast The PEC column 1 and the beam 2 are fixedly connected, thereby enhancing the integrity of the floor slab and the frame structure, and preventing partial cracking of the floor slab.

The reason why the step-shaped structure 31 is set at the end of the partial laminated plate 3, and the concrete post-casting strip 4 is filled between the step-shaped structure 31, the beam 2 and the prefabricated PEC column 1 is because on the one hand, if the concrete post-casting strip 4 is directly Covering the partial laminated slab 3, the post-concrete strip 4 is solid after hardening and has a certain thickness, so that a bump is formed at the connection between the partial laminated slab 3 and the prefabricated PEC column 1, which affects the aesthetics of the floor slab laying. And set step-shaped structure 31 at the end of partial laminated plate 3, concrete post-casting belt 4 is filled in stepped structure 31, and make the concrete post-casting belt 4 after filling and the top surface of partial laminated plate 3 flush, thereby in After the concrete post-pouring belt 4 is hardened, the top surface of the partially laminated slab 3 remains flat, making the laying of the floor slab more beautiful.

On the other hand, because the prefabricated PEC column 1 is located on the side of the end of the partial laminated plate 3, there is a gap between the prefabricated PEC column 1 and the partial laminated plate 3. If only the gap between the prefabricated PEC column 1 and the partial laminated plate 3 Fill the concrete post-cast belt 4 and make the top surface of the concrete post-cast belt 4 flush with the top surface of the partial laminated slab 3 to ensure that the top surface of the partial laminated slab 3 is flat, thereby ensuring the aesthetics of the floor slab. However, due to the prefabricated PEC The gap between the column 1 and the partially laminated slab 3 is small, and the fixed connection between the prefabricated PEC column 1 and the ends of the partially laminated slab 3 and the beam 2 through the concrete post-casting tape 4 filled in the gap will cause local The fixed connection between the laminated slab 3 and the prefabricated PEC column 1 and the beam 2 is not firm enough, thus affecting the stability of the floor slab laying. A step-shaped structure 31 is set at the end of the partial laminated plate 3, and the concrete post-casting belt 4 is filled between the step-shaped structure 31, the beam 2 and the prefabricated PEC column 1, which can increase the filling amount of concrete and increase the size of the concrete post-casting belt. 4 and the contact area between the partial laminated plate 3, so that the fixed connection between the partial laminated plate 3 and the prefabricated PEC column 1 and the beam 2 is more firm.

In this embodiment, the end of the partially laminated slab 3 is provided with a rib 32 extending from the stepped structure 31, and when the post-cast concrete strip 4 is filled between the stepped structure 31, the beam 2 and the prefabricated PEC column 1 , the reinforcement 32 is coated, and the specific effect is shown in Fig. 1 and Fig. 2 . Ribs 32 are extended from the stepped structure 31 at the end of the partially laminated slab 3, and when the post-concrete strip 4 is filled between the stepped structure 31, the beam 2 and the prefabricated PEC column 1, the post-concrete strip 4 will fill the slab The ribs 32 are covered, so that after the concrete post-casting strips 4 are hardened, the slab bars 32 are located between the concrete post-casting strips 4 and are fixedly connected with the concrete post-casting strips 4, thereby further strengthening the local laminated slab 3 and the prefabricated PEC column 1 and the beam The connection strength between 2.

In the present application, the ribs 32 can be multiple extending from the stepped structure 31 at the end of the partial laminated plate 3, the more the ribs 32 are, the more connected the filled concrete post-casting belt 4 will be. The more reliable, that is, the stronger the connection strength between the partially laminated plate 3 and the prefabricated PEC column 1 and the beam 2 is. However, the greater the number of ribs 32, the greater the processing cost of the partially laminated slab 3, thereby increasing the cost of floor laying. Therefore, in actual use, the number of ribs 32 can be set according to user requirements.

In this embodiment, the connection assembly also includes distribution bars 5 laid between the stepped structure 31 and the prefabricated PEC column 1, when the concrete post-casting strip 4 is filled between the stepped structure 31, the beam 2 and the prefabricated PEC column 1 , and wrap the distribution rib 5, the specific effect is shown in Fig. 1 and Fig. 2 . When the stepped structure 31 at the end of the partial laminated plate 3, the beam 2 and the prefabricated PEC column are laid with distribution bars 5, and the concrete post-casting strip 4 is filled between the stepped structure 31, the beam 2 and the prefabricated PEC column 1 , the distribution bars 5 are covered, so that after the concrete post-casting belt 4 is hardened, the distribution bars 5 are distributed in the concrete post-casting belt 4, and the structural strength of the concrete post-casting belt 4 is strengthened, so that the concrete post-casting belt 4 pairs are partially stacked The fixed connection between the plywood 3 and the prefabricated PEC column 1 and the beam 2 is more stable.

In this embodiment, the connecting assembly further includes a reinforcing member 6 whose one end is fixedly connected to the prefabricated PEC column 1 and the other end is fixedly connected to the rib 32 , the specific effect is shown in FIG. 2 . In this application, a reinforcing member 6 is also provided. One end of the reinforcing member 6 is fixedly connected to the prefabricated PEC column 1, and the other end is fixedly connected to the rib 32 extending from the step structure at the end of the partial laminated plate 3, thereby further strengthening the local The connection strength between laminated plate 3 and prefabricated PEC column 1.

When concrete is filled between the stepped structure 31, the beam 2, and the prefabricated PEC column 1, the filled concrete post-cast belt 4 covers the reinforcement 6. On the one hand, after the concrete post-cast belt 4 hardens, the reinforcement 6 is located In the belt 4, it is fixedly connected with the concrete post-casting belt 4, so as to enhance the integrity of the floor slab and the frame structure, and prevent partial cracking of the floor slab; The joints of the prefabricated PEC columns 1 are kept flat and flush with the top surface of the partially laminated slab 3, thereby improving the aesthetics of the floor slab laying.

In this embodiment, the reinforcement 6 includes a sealing plate 61 whose back is fixedly connected to the prefabricated PEC column 1, and a reinforcing rib 62 whose one end is fixedly connected to the front of the sealing plate 61, and the other end is fixedly connected to the rib 32. The specific effect is shown in the figure 2. The reinforcement 6 includes a sealing plate 61 and a reinforcing rib 62. The back of the sealing plate 61 is fixedly connected to the prefabricated PEC column 1. One end of the reinforcing rib 62 can be fixedly connected to the front of the sealing plate 61 by welding, and the other end is connected to the rib 32 Binding parts can be used for fixed connection, so that the partially laminated slab 3 and the prefabricated PEC column 1 are fixedly connected, further enhancing the integrity of the floor slab and the frame structure, and preventing partial cracking of the floor slab.

When the concrete post-casting strip 4 is filled between the stepped structure 31, the beam 2 and the prefabricated PEC column 1, the concrete post-casting strip 4 will cover the sealing plate 61 and the reinforcing rib 62, because the filling between the stepped structure 31, the beam 2 and the The concrete top surface between the prefabricated PEC columns 1 should be flush with the top surface of the partial laminated slab 3, so when the partial laminated slab 3 is laid on the beam 2, the fixed height of the sealing plate 61 on the prefabricated PEC column 1 cannot exceed the partial laminated slab 3, preventing the top of the sealing plate 61 from being exposed outside the concrete post-casting belt 4 filled between the stepped structure 31, the beam 2 and the prefabricated PEC column 1, not only reducing the The connection strength of the slab also affects the aesthetics of the floor slab laying.

In this embodiment, both ends of the back of the sealing plate 61 are fixedly connected to the flange of the main steel part of the prefabricated PEC column 1, and the reinforcing member 6 also includes an anchor bar 63 that is fixedly connected at one end to the middle part of the back of the closing plate 61, and the anchor bar 63 is located at It is filled between the concrete in the main steel part of the prefabricated PEC column 1, and the specific effect is shown in Fig. 3 and Fig. 4 . In this application, the prefabricated PEC column 1 is a rectangular column composed of main steel parts and concrete filled in the main steel parts. The main steel parts are H-shaped steel, and the H-shaped steel includes wing plates at both ends, and between the two wing plates, The web is connected to the two wing plates at both ends.

Both ends of the back of the sealing plate 61 can be fixedly connected to the wing plates at both ends of the main steel part of the prefabricated PEC column 1 by welding, so that the sealing plate 61 is fixedly connected to the prefabricated PEC column 1 . One end of the anchor bar 63 can be fixed in the middle of the back of the sealing plate 61 by welding, and the other end of the anchor bar 63 extends to the middle of the two wings of the main steel part of the prefabricated PEC column 1. When pouring the prefabricated PEC column 1, The concrete filled in the main steel part of the prefabricated PEC column 1 covers the anchor bar 63, and after the concrete is hardened, the anchor bar 63 is fixedly connected with the prefabricated PEC column 1, so that the sealing plate 61 is further fixedly connected with the prefabricated PEC column 1, so that The connection between the sealing plate 61 and the prefabricated PEC column 1 is more stable, thereby making the connection between the partially laminated plate 3 and the prefabricated PEC column 1 and the beam 2 more stable.

In this application, the two ends of the back of the sealing plate 61 are respectively welded to the flanges at both ends of the main steel part of the prefabricated PEC column 1, and the anchor bar 63 is covered by the concrete filled in the main steel part of the prefabricated PEC column 1. There are two ways to fix the connection between the sealing plate 61 and the prefabricated PEC column 1. On the one hand, in order to improve the connection strength between the sealing plate 61 and the prefabricated PEC column 1, the two ends of the back side of the sealing plate 61 are welded to the two main steel parts of the prefabricated PEC column 1. The middle part of the back of the sealing plate 61 is fixedly connected with the concrete filled in the main steel part of the prefabricated PEC column 1 through the anchor bar 63, so that the connection between the sealing plate 61 and the prefabricated PEC column 1 is more stable.

On the other hand, because the anchor bar 63 will be inserted into the concrete when the concrete filled in the main steel part of the prefabricated PEC column 1 is still in a fluid state, and wait for a period of time for the concrete to harden into a solid state, it will be able to play the role of fixed connection. If only the anchor bar 63 is used to fix the sealing plate 61 and the prefabricated PEC column 1, in the process of waiting for the concrete to harden, the force of the fluid state concrete on the anchor bar 63 is small, and the anchor bar 63 cannot be limited. As mentioned above, the fixed height of the sealing plate 61 on the prefabricated PEC column 1 is required, so an additional limiting device is required to limit the anchor bars 63 and keep the sealing plate 61 installed on the prefabricated PEC column 1 height, causing the structure of the present application to be complex.

If only the two ends of the back of the sealing plate 61 are welded to the flanges at the two ends of the main steel part of the prefabricated PEC column 1, and the sealing plate 61 is fixedly connected to the prefabricated PEC column 1, the thickness of the flanges at both ends of the main steel part of the prefabricated PEC column 1 If it is limited, the connection strength between the sealing plate 61 and the prefabricated PEC column 1 will be poor, thus affecting the connection strength between the partially laminated plate 3 and the prefabricated PEC column 1 . Therefore, in this application, the two ends of the back side of the sealing plate 61 can be welded to the flanges at both ends of the main steel part of the prefabricated PEC column 1, and the installation height of the sealing plate 61 on the prefabricated PEC column 1 can be fixed, and then to the prefabricated PEC column 1 The main steel part is filled with concrete, and after the concrete is hardened, it is fixed with the anchor bar 63, which not only facilitates the laying of the floor slab, but also makes the connection between the sealing plate 61 and the prefabricated PEC column 1 more stable.

In this application, the reinforcement 6 has another embodiment: the reinforcement 6 includes a sleeve 64, a screw 65 and a stop nut 66, and one end of the sleeve 64 is fixedly connected to the web of the main steel part of the prefabricated PEC column 1, The other end is flush with the concrete outer surface filled in the main steel part of the prefabricated PEC column 1, and the end of the sleeve 64 that is flat with the concrete outer surface is provided with a threaded hole, and a through hole 611 is provided on the sealing plate 61, and one end of the screw rod 65 After passing through the through hole 611, it is screwed into the threaded hole, and the limit nut 66 is sleeved on the screw rod 65. When one end of the screw rod 65 penetrates through the through hole 611 and is screwed into the threaded hole, the limit nut 66 is in contact with the sealing plate 61. The effect is shown in Figure 5 and Figure 6.

Since one end of the sleeve 64 is fixedly connected to the web of the main steel part of the prefabricated PEC column 1, when the main steel part of the prefabricated PEC column 1 is filled with concrete, the concrete is wrapped around the periphery of the sleeve 64. After the concrete hardens, the concrete and the sleeve 64 The fixed connection makes the connection between the sleeve 64 and the prefabricated PEC column 1 more stable. The other end of the sleeve 64 is level with the outer surface of the concrete, and the end portion of the sleeve 64 that is level with the outer surface of the concrete is provided with a threaded hole that runs through the sleeve 64, and one end of the screw 65 first passes through the through hole 611 of the sealing plate 61, and then connects with the sleeve. The threaded holes on the 64 are screwed. At this time, the sealing plate 61 is sleeved on the screw rod 65, and then the limit nut 66 is screwed on the screw rod 65 from the end of the screw rod 65 away from the screw connection with the sleeve 64, until the limit nut 66 The side of the sealing plate 61 away from the sleeve 64 abuts against the side of the sealing plate 61 close to the sleeve 64 and the outer surface of the concrete, so that the sealing plate 61 is fixedly connected to the prefabricated PEC column 1 .

It can be foreseen that: the cross-sectional diameter of the limit nut 66 is greater than the cross-sectional diameter of the through hole 611, or a backing plate with a cross-sectional area larger than the cross-sectional area of the through hole 611 is placed between the limit nut 66 and the sealing plate 61, so that the limit When the position nut 66 limits the position of the sealing plate 61 , it can apply force to the side of the sealing plate 61 without passing through the through hole 611 .

Compared with the previous embodiment of the reinforcing member 6, this embodiment has the following advantages: First, in the previous embodiment, the anchor bar 63 is fixed in the middle of the back of the sealing plate 61, and if it is to be filled in the prefabricated PEC column 1 The concrete in the main steel part is fixedly connected with the anchor bar 63. During the pouring process of the prefabricated PEC column 1, the anchor bar 63 should be pre-embedded in the middle of the two wing plates of the main steel part of the prefabricated PEC column 1, and then placed in the prefabricated PEC column 1. The main steel part of 1 is filled with concrete. After the concrete is hardened, the pouring of the prefabricated PEC column 1 is completed. At this time, the prefabricated PEC column 1 and the sealing plate 61 are of an integrated structure, which will make it difficult to transfer the prefabricated PEC column 1 after pouring.

In this embodiment, when the prefabricated PEC column 1 is poured, it is only necessary to weld the sleeve 64 on the web plate of the main steel part of the prefabricated PEC column 1, and then fill with concrete. After the concrete hardens, the prefabricated PEC column 1 After the pouring is completed, the prefabricated PEC column 1 and the sealing plate 61 that have been poured at this time are split structures. The prefabricated PEC column 1 needs to be fixedly connected to the sealing plate 61, and then screwed to the sleeve 64 fixed on the prefabricated PEC column 1 through the screw 65, so the poured prefabricated PEC column 1 and the sealing plate 61 can be transported separately. The prefabricated PEC column 1 and the sealing plate 61 are fixedly connected at the construction site, so that the implementation of the application is simpler and the use is more convenient.

Second, in this embodiment, the sealing plate 61 is fixedly connected to the prefabricated PEC column 1 by screwing, and the sealing plate 61 can also be disassembled from the prefabricated PEC column 1 through the screw 65, so that the sealing plate 61 can be Recycling has the significance of energy saving and environmental protection. In the previous embodiment, the sealing plate 61 is fixedly connected to the prefabricated PEC column 1 through the anchor bar 63. After the prefabricated PEC column 1 is poured, the sealing plate 61 is completely fixed on the prefabricated PEC column 1. Column 1 cannot be disassembled, so that the sealing plate 61 cannot be recycled.

In this embodiment, the through holes 611 are strip-shaped through holes 611 , and the specific effect is shown in FIG. 5 . The through hole 611 provided on the sealing plate 61 is set as a strip-shaped through hole 611, so that the threaded rod 65 penetrates through the through hole 611 and then is screwed with the sleeve 64, and the limit nut 66 abuts against the sealing plate 61, so that the sealing plate 61 When it is fixed on the prefabricated PEC column 1 , it is convenient to adjust the fixed position of the sealing plate 61 on the prefabricated PEC column 1 . Since the fixed connection between the reinforcing member 6 and the partially laminated plate 3 is realized through the fixed connection between the reinforcing rib 62 provided on the front of the sealing plate 61 and the rib 32 of the partially laminated plate 3, the sealing plate 61 is fixed on the prefabricated PEC column 1 The position is adjusted so that when the partial laminated board 3 is laid, the reinforcing rib 62 provided on the front of the sealing plate 61 can better match the position of the partial laminated board 3 rib 32, thereby better connecting the reinforcing rib 62 and the rib 32. Bundling together realizes the fixed connection between the reinforcing member 6 and the partially laminated plate 3 .

In the present application, the strip-shaped through holes 611 can be vertically arranged on the sealing plate 61 , and can also be arranged horizontally on the sealing plate 61 . When the strip-shaped through hole 611 is vertically arranged on the sealing plate 61, the vertical position that the sealing plate 61 is fixed on the prefabricated PEC column 1 can be adjusted; The fixed horizontal position of the sealing plate 61 on the prefabricated PEC column 1 can be determined according to the actual construction situation.

In this embodiment, four beams 2 are horizontally connected to the four sides of the prefabricated PEC column 1 respectively, four local laminated plates 3 are laid on two adjacent beams 2 at both ends, and distribution ribs 5 are laid on the four sides. Between the step-shaped structure 31 of one partially laminated slab 3 and the prefabricated PEC column 1 , the distribution rib 5 is fixedly connected to the ribs 32 of the four partially laminated slabs 3 , the specific effect is shown in FIG. 2 . The prefabricated PEC column 1 is a rectangular column, and a beam 2 is horizontally connected to each of the four sides of the prefabricated PEC column 1. There are four partial laminated plates 3, and the two ends of each partial laminated plate 3 are respectively laid on the crossbeam 2, so that the four partially laminated slabs 3 are enclosed around the prefabricated PEC column 1, and the laying of the floor slab is completed.

The reason why four partial laminated slabs 3 are set is on the one hand to facilitate the laying of the floor slab. If the floor is a whole partial laminated slab 3, transportation and construction will be more difficult. However, if multiple partial laminated slabs 3 are used, the transportation is more convenient. , and transported to the construction site, respectively laying a plurality of partial laminated slabs 3 on the beam 2 makes the laying of the floor slab easier; , when the distribution ribs 5 are laid between the stepped structures 31 of a plurality of partially laminated slabs 3 and the prefabricated PEC column 1, they are also laid in the gap between two adjacent partially laminated slabs 3, and are connected with the ribs 32 at the ends of the partially laminated slabs 3 When the concrete post-cast strip 4 is filled between the stepped structure 31, the beam 2 and the prefabricated PEC column 1, the concrete post-cast strip 4 is also filled in the gap between two adjacent partial superimposed plates 3, so that not only A plurality of partially laminated panels 3 are fixedly connected to the prefabricated PEC column 1, and two adjacent partially laminated panels 3 are also fixedly connected, thereby further enhancing the integrity of the floor slab and the frame structure and preventing partial cracking of the floor slab.

It is foreseeable that the number of partially laminated plates 3 surrounding a prefabricated PEC column 1 may be two, or four, or even more. When there are two partially laminated plates 3 enclosed around a prefabricated PEC column 1, it is only necessary to horizontally connect a beam 2 on the two opposite sides of the prefabricated PEC column 1; When there are four partially laminated panels 3, the four sides of the prefabricated PEC column 1 are horizontally connected to a beam 2. Therefore, when there are multiple partially laminated panels 3 surrounding a prefabricated PEC column 1, it is necessary to The corresponding number of horizontal bars on the side can be connected horizontally, and the specific situation can be determined according to actual construction needs.

The content described above can be implemented alone or combined in various ways, and these variants are all within the protection scope of the present invention.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device. Without further limitations, an element defined by the phrase "comprising a" does not preclude the presence of additional identical elements in the process, method, article or apparatus that includes the element.

Finally, it should be noted that the above embodiments are only used to illustrate the technical solutions of the present invention, rather than to limit them. Although the present invention has been described in detail with reference to the aforementioned embodiments, those skilled in the art should understand that: they can still modify the technical solutions described in the aforementioned embodiments, or perform equivalent replacements for some of the technical features; and these The modification or replacement does not make the essence of the corresponding technical solutions deviate from the spirit and scope of the technical solutions of the various embodiments of the present invention.

Claims (10)

1. A connection node structure between a local laminated plate and a PEC column, characterized in that it includes a vertically supported prefabricated PEC column (1), and a beam (2) horizontally connected to the prefabricated PEC column (1) is laid on the The partial laminated plate (3) on the beam (2), when the partial laminated plate (3) is laid on the beam (2), the prefabricated PEC column (1) is located on the partial laminated plate (3) One side, and a connecting component for fixedly connecting the end of the partially laminated plate (3) with the prefabricated PEC column (1). 2. A connection node structure between partially laminated slabs and PEC columns according to claim 1, characterized in that: the end of the partially laminated slab (3) is provided with a stepped structure (31), and the connection component includes filling A concrete post-cast strip (4) between the stepped structure (31), the beam (2) and the prefabricated PEC column (1). 3. A connection node structure between a partially laminated plate and a PEC column as claimed in claim 2, characterized in that: the end of the partially laminated plate (3) is provided with a reinforcement (32), when the post-concrete strip (4) is filled between the stepped structure (31), the beam (2) and the prefabricated PEC column (1), the reinforcement (32) WRAPPING. 4. A connection node structure between partially laminated slabs and PEC columns according to claim 3, characterized in that: the connection component also includes a joint between the stepped structure (31) and the prefabricated PEC column (1) distribution bars (5) between, when the concrete post-cast strip (4) is filled between the stepped structure (31), the beam (2) and the prefabricated PEC column (1), the The above distribution ribs (5) are covered. 5. A connection node structure between partially laminated slabs and PEC columns according to claim 3, characterized in that: the connection assembly also includes one end fixedly connected to the prefabricated PEC column (1), and the other end connected to the slab The reinforcing member (6) fixedly connected with the rib (32), the concrete post-casting strip (4) is filled between the stepped structure (31), the beam (2) and the prefabricated PEC column (1) , wrap the reinforcing member (6). 6. A connection node structure between partially laminated slabs and PEC columns according to claim 5, characterized in that: the reinforcement (6) includes a sealing plate (61) whose back is fixedly connected to the prefabricated PEC column (1) ), and a reinforcing rib (62) whose one end is fixedly connected to the front of the sealing plate (61) and the other end is fixedly connected to the rib (32), filling in the stepped structure (31), the beam ( 2) The post-casting concrete strip (4) between the prefabricated PEC column (1) covers the sealing plate (61) and reinforcing ribs (62). 7. The joint structure of local laminated plates and PEC columns according to claim 6, characterized in that: the two ends of the back of the sealing plate (61) are connected to the wings of the main steel part of the prefabricated PEC column (1). plate is fixedly connected, the reinforcement (6) also includes an anchor bar (63) fixedly connected at one end to the middle of the back of the sealing plate (61), and the anchor bar (63) is located in the prefabricated PEC column (1 ) between the concrete in the main steel member. 8. A connection structure between partially laminated plates and PEC columns according to claim 6, characterized in that: said sealing plate (61) is provided with a through hole (611), and said reinforcement (6) also includes A sleeve (64) whose one end is fixedly connected to the web of the main steel part of the prefabricated PEC column (1), and whose other end is flush with the outer surface of the concrete filled in the main steel part of the prefabricated PEC column (1). The end of the sleeve (64) that is level with the outer surface of the concrete is provided with a threaded hole penetrating through the sleeve (64), one end of which passes through the through hole (611) and the screw (65) that is screwed to the threaded hole, and sleeved The limit nut (66) on the screw rod (65). 9 . The connection node structure between partially laminated plates and PEC columns according to claim 8 , characterized in that: the through holes ( 611 ) are strip-shaped through holes ( 611 ). 10. The joint structure of partially laminated slabs and PEC columns according to claim 4, characterized in that: the beams (2) are four horizontally connected to the four sides of the prefabricated PEC columns (1) , the local laminated boards (3) are four of which are respectively laid on two adjacent beams (2) at both ends, and the distribution ribs (5) are laid on the steps of the four partial laminated boards (3) Between the shaped structure (31) and the prefabricated PEC column (1), the distribution rib (5) is fixedly connected to the ribs (32) of the four partially laminated plates (3).
