Abstract

The invention provides a stable external wall thermal insulation structure, which belongs to the technical field of external wall thermal insulation. The external wall thermal insulation structure with stable support includes a bottom plate, and a stable platform is fixedly connected to the upper surface of the bottom plate. The rear upper surface is fixedly connected with a fixed frame, and the middle part of the upper surface of the stable platform is provided with an installation groove, and the outer surface of the installation groove is fixedly connected with an outer wall fireproof shell. The external wall insulation structure with stable support, through the setting of the bottom plate, stable platform, handle and spring, when the wall is too long, press the handle, and the handle will drive the connecting column and the L-shaped tongue to retreat in the right card slot. The pulley on the support rod drives the L-shaped tab back in the chute, and then aligns the left slot on the other stable external wall insulation structure with the L-shaped tab, releases the handle, and the spring returns to make the L The type tab snaps into the left card slot to realize the installation and connection of multiple external wall insulation structures. The structure will not be loose and unsafe due to changes in external environmental factors.

Description

An external wall insulation structure with stable support

technical field

The invention belongs to the technical field of external wall heat preservation, and in particular relates to a stable external wall heat preservation structure.

Background technique

With the development of social economy and the improvement of people's living standards, in the current cities or villages, more and more multi-storey or high-rise buildings have sprung up, gradually replacing the original houses and greatly improving the quality of life. People's living conditions provide a better living environment. The exterior walls of various residential buildings, public buildings and industrial buildings, in order to eliminate the influence of "thermal bridges", keep the room temperature stable and improve the quality of the indoor thermal environment, usually Insulation boards are installed on the exterior wall. The exterior wall insulation of the building is made of polymer mortar, glass fiber mesh cloth, flame-retardant molded polystyrene foam board or extruded board and other materials. Combined with construction, the new thermal insulation and decoration integrated board is produced through an assembly line, integrating functions such as thermal insulation, waterproofing, and decoration. It is the first choice material for building energy-saving renovation. The external wall insulation board integrates heat preservation, energy saving, waterproof and decoration. It is produced in a factory, with simple construction, short cycle, high efficiency, reduced wet work, and low comprehensive construction cost, so the scope of application is getting wider and wider. The wider, in order to better save energy and provide people with a warm and quiet working and living environment, but for the insulation of building walls, special external wall insulation boards are generally used. Existing external wall insulation boards are generally bonded Adhesive is used to bond the insulation board to the base wall, so that the insulation board can be hung on the exterior wall of the building, but the adhesive is easily affected by the weather, temperature, humidity changes and the passage of time. The adhesive performance is reduced, and when the adhesive is prepared, the bonding strength of the adhesive will be affected if the adhesive mortar is too thick or too thin, resulting in the possibility of the external wall insulation board falling off, especially in high-rise buildings. The shedding of the external wall insulation board brings safety hazards. At the same time, in summer and winter, the external wall insulation board is prone to thermal expansion and contraction due to the long-term high temperature or low temperature environment, resulting in deformation. If waterproof adhesive is used to fill the gaps between the external wall insulation boards, the waterproof performance and adhesive performance will decrease over time, and it will fall off from the gaps between the external wall insulation boards, causing the external wall insulation boards to expand and insulate due to heat The boards are extruded and damaged by mutual extrusion or contracted when cold, which makes the gap between the external wall insulation boards expand, which affects the thermal insulation and waterproof performance of the entire system.

Chinese Patent Publication (Announcement) No. CN216196210U discloses an exterior wall insulation board for building decoration, including an exterior wall insulation board. Heat insulation layer, waterproof and anti-cracking mortar layer, alkali-resistant glass fiber mesh layer and finishing layer, the threaded holes are connected with threaded fixing bolts, and the external wall insulation board is clamped with the metal connector, and through The fixing of the threaded fixing bolt improves the safe anchoring between the external wall insulation board and the wall, and avoids the peeling off of the external wall insulation board due to the weakening of the adhesive strength of the adhesive layer. While the external wall insulation board is not damaged, The sealing between the insulation board and the insulation board is always maintained, but the patent application only ensures that the outer wall insulation board does not fall off through the fixed bonding between the materials. Once the weather, temperature, humidity change and the passage of time will Affect the properties of the adhesive, reduce the bonding performance, cause the external wall insulation board to fall and cause safety problems, and when facing the long external wall, there is no convenient installation, connection and support of the external wall insulation board on the structure, ensuring Structural stability and convenient connection, therefore, it is necessary to design a stable external wall insulation structure.

Contents of the invention

The purpose of the present invention is to provide a stable external wall thermal insulation structure, aiming at solving the problem that in the prior art, when the external wall thermal insulation board is exposed to high temperature or low temperature for a long time, the adhesion between the external wall and the external wall is prone to loosening. The long exterior wall and multiple exterior wall insulation structures can facilitate installation, connection, support and stability.

In order to achieve the above object, the present invention provides the following technical solutions: a stable external wall thermal insulation structure, including a bottom plate, the upper surface behind the bottom plate is fixedly connected with a stabilizing platform, and the upper surface behind the stable platform is fixedly connected There is a fixed frame, the middle part of the upper surface of the stable platform is provided with an installation groove, the outer surface of the installation groove is fixedly connected with an outer wall fireproof shell, the left side of the stable platform is provided with a left card slot, and the stable platform There is a right card slot on the right side of the right card slot, and a chute is opened on the inner bottom wall of the right card slot. The upper surface of the chute is movably connected with a pulley, and the outer surface of the pulley is rotatably connected with a support rod. The upper surface of the support bar is fixedly connected with an L-shaped tab, the front surface of the L-shaped tab is fixedly connected with a connecting column, the front surface of the connecting column is fixedly connected with a handle, and the rear surface of the L-shaped tab is fixed. A spring is fixedly connected, and one end of the spring is fixedly connected in the right card slot, and the size of the L-shaped tongue is adapted to the left card slot.

In order to make this kind of external wall thermal insulation structure with stable support achieve the purpose of conveniently fixing the support plate and forming the most stable triangular support structure to ensure firm and stable support and provide safety, as a preferred aspect of the present invention, the upper surface of the bottom plate The middle part is fixedly connected with a lower fixing plate, the front surface of the outer wall fireproof shell is fixedly connected with an upper fixing plate, and a support plate is fixedly connected between the lower fixing plate and the upper fixing plate.

In order to make the external wall insulation structure with stable support achieve the purpose of ensuring the external decoration of the support plate, improving the beautification function and increasing the visual appearance, as a preferred embodiment of the present invention, the front surface of the support plate is fixedly connected with a decorative layer.

In order to make this kind of external wall thermal insulation structure with stable support achieve the purpose of increasing the contact area between the entire external wall thermal insulation structure and the ground and increasing the frictional force to ensure stability and safety, as a preferred embodiment of the present invention, the bottom of the bottom plate The surface is fixedly connected with the buried plate, and the front surface and the rear surface of the buried plate are fixedly connected with protrusions. There are several protrusions, and the several protrusions are arrayed in the form of a rectangular array.

In order to make this kind of external wall thermal insulation structure with stable support achieve the purpose of conveniently connecting and fixing the entire external wall thermal insulation structure with stable support and the wall body, and at the same time facilitate installation and disassembly, as a preferred embodiment of the present invention, the base plate and The outer surface of the fixed frame is threaded with bolts, and the number of the bolts is four.

In order to make this kind of external wall thermal insulation structure with stable support achieve the purpose of ensuring additional bonding reinforcement and increasing double bonding and fixing, as a preference of the present invention, the rear surface of the fixed frame and the outer wall fireproof shell is fixedly connected with an adhesive layered.

In order to make this kind of external wall thermal insulation structure with stable support to ensure the fire prevention of the external wall fireproof shell and waterproof to protect the internal material from water and fire and reduce capital loss, as a preferred embodiment of the present invention, the side of the external wall fireproof shell A groove is opened on the surface, and a waterproof layer is fixedly connected to the inner side wall of the groove.

In order to make the external wall thermal insulation structure with stable support achieve the purpose of ensuring that the entire external wall thermal insulation structure with stable support achieves sound insulation, reduces noise pollution, and provides residents with a comfortable, quiet and warm accommodation environment, as a preferred embodiment of the present invention, the The outer surface of the waterproof layer is fixedly connected with a sound insulation layer.

In order to make the external wall thermal insulation structure with stable support to protect the heat generated by the thermal insulation layer from being easily dissipated and lose the thermal insulation function, as a preferred embodiment of the present invention, the outer surface of the sound insulation layer is fixedly connected with a thermal insulation layer .

In order to make the external wall thermal insulation structure with stable support achieve the purpose of providing residents with a warm and quiet working and living environment, as a preferred embodiment of the present invention, the outer surface of the thermal insulation layer is fixedly connected with a thermal insulation layer.

Compared with prior art, the beneficial effect of the present invention is:

1. The external wall insulation structure with stable support is connected through the bottom plate, stable platform, fixed frame, installation groove, external wall fireproof shell, left card slot, right card slot, chute, pulley, support rod, L-shaped tongue, The setting of columns, handles and springs, the bottom plate increases the contact area with the ground, which is convenient for installation and fixing on the ground. The stable platform ensures the stability of the center of gravity of the entire external wall insulation structure with stable support. The installation groove on the stable platform is convenient for fixing To install the fire-proof shell of the external wall, when the wall is too long, you can press a handle on a stable external wall insulation structure, and the handle will drive the connecting column and the L-shaped tab to retreat in the right card slot, and the support rod will The pulley of the pulley drives the L-shaped tab back in the chute, and then aligns the left card slot on the other stable external wall insulation structure with the L-shaped tab, releases the handle, and the spring returns to make the L-shaped tab Snap into the left card slot to realize the installation and connection of multiple external wall insulation structures. The structure will not be loose and unsafe due to changes in external environmental factors. For example, changes in weather, temperature, humidity and the passage of time will affect the adhesion Due to the nature of the mixture, there is no decrease in adhesive performance, causing loosening and unsafe problems caused by the falling of the external wall insulation board.

2. The external wall insulation structure with stable support, through the lower fixed plate, upper fixed plate, support plate, decorative layer, lower buried plate, protrusions, bolts, adhesive layer, groove, waterproof layer, sound insulation layer, heat insulation The lower fixing plate and the upper fixing plate are conveniently fixed and connected to the supporting plate, and the most stable triangular structure is formed between the lower fixing plate, the upper fixing plate and the supporting plate, which helps to support the fireproof shell of the outer wall and achieves The most stable support structure, due to the leakage of the support plate, affects the decorative aesthetics and living mood of the user when using and living, so the decorative layer increases the decorativeness of the support plate, and the decorative layer increases the decorativeness of the support plate, increasing Great visual aesthetics, the buried slab can be buried in the soil layer of the ground, increasing the grip of the external wall insulation structure, achieving the most stable and stable support structure, and the protrusion increases the contact area between the structure and the ground and increases Large friction force, avoiding the inclination of the entire external wall insulation structure with stable support caused by the relatively large vibration of the structure due to shaking and earthquakes, and the economic, personal health and safety and financial losses caused by safety problems, through The bolts fix the bottom plate and the fixed frame on the wall, which is convenient for installation and disassembly. The adhesive layer also helps to bond the fireproof shell of the outer wall, the fixed frame and the wall. When the bolt or the adhesive layer is loose , to provide double protection, the groove provides the structure with installation space for installing and combining other functional boards, the waterproof layer helps the structure to be waterproof, prevents the structure from being affected by moisture and affects the function of the board, ensures that the fireproof shell of the outer wall is fireproof and waterproof, and protects the internal material from damage Water and fire invasion can reduce capital loss, and the sound insulation layer can help the structure achieve the purpose of sound insulation and noise reduction, providing a quiet living environment. Heat dissipation and volatilization of heat will affect the indoor temperature and provide users with comfortable and comfortable accommodation and living conditions.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the description, and are used together with the embodiments of the present invention to explain the present invention, and do not constitute a limitation to the present invention. In the attached picture:

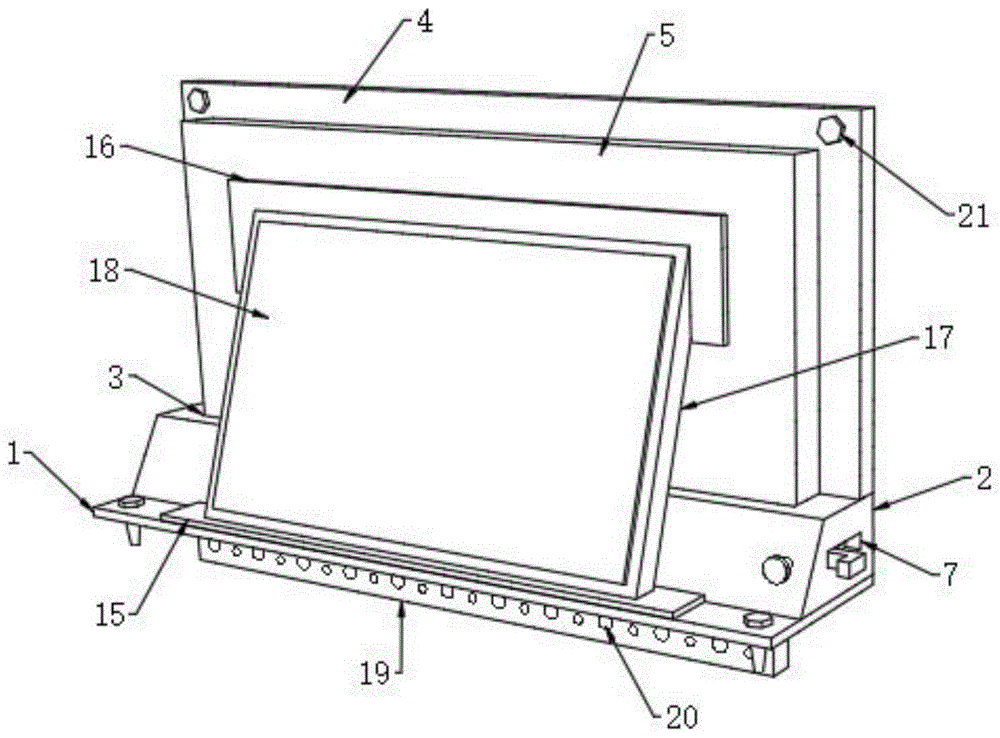

Fig. 1 is the front view structure schematic diagram of the present invention;

Fig. 2 is a schematic diagram of the structure of the L-shaped tongue in the present invention;

Fig. 3 is a schematic diagram of the structure of the right card slot in the present invention;

Fig. 4 is a structural representation of a stabilizing platform and a mounting groove in the present invention;

Fig. 5 is a schematic diagram of the structure of the buried plate and the adhesive layer in the present invention;

Fig. 6 is a side sectional structural schematic diagram of the fireproof shell of the outer wall in the present invention.

In the figure: 1. Bottom plate; 2. Stabilizing platform; 3. Fixed frame; 4. Installation groove; 10. Support rod; 11. L-shaped tab; 12. Connecting column; 13. Press handle; 14. Spring; 15. Lower fixing plate; 16. Upper fixing plate; 17. Supporting plate; 18. Decorative layer; 19. Buried board; 20, protrusion; 21, bolt; 22, adhesive layer; 23, groove; 24, waterproof layer; 25, sound insulation layer; 26, heat insulation layer; 27, heat preservation layer.

Detailed ways

The following will clearly and completely describe the technical solutions in the embodiments of the present invention with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only some of the embodiments of the present invention, not all of them. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present invention.

Example

Please refer to Figures 1-6, the present invention provides the following technical solutions: a stable external wall thermal insulation structure, including a bottom plate 1, the upper surface of the bottom plate 1 is fixedly connected with a stabilizing platform 2, and the upper surface of the stabilizing platform 2 is behind Fixedly connected with a fixed frame 3, the middle part of the upper surface of the stable platform 2 is provided with an installation groove 4, the outer surface of the installation groove 4 is fixedly connected with an outer wall fireproof shell 5, and the left side of the stable platform 2 is provided with a left card slot 6, which is stable The right side of the platform 2 is provided with a right card slot 7, the inner bottom wall of the right card slot 7 is provided with a chute 8, the upper surface of the chute 8 is movably connected with a pulley 9, and the outer surface of the pulley 9 is rotatably connected with a support rod 10 , the upper surface of the support rod 10 is fixedly connected with an L-shaped tab 11, the front surface of the L-shaped tab 11 is fixedly connected with a connecting column 12, the front surface of the connecting column 12 is fixedly connected with a handle 13, the L-shaped tab 11 A spring 14 is fixedly connected to the rear surface, and one end of the spring 14 is fixedly connected in the right draw-in slot 7 , and the size of the L-shaped snap tongue 11 is adapted to the left draw-in slot 6 .

In a specific embodiment of the present invention, the bottom plate 1 has increased the contact area with the ground, which is convenient for installation and fixing on the ground. The stable platform 2 ensures the stability of the center of gravity of the entire supporting and stable external wall insulation structure. The installation on the stable platform 2 Groove 4 is convenient for fixedly installing exterior wall fireproof shell 5, when body of wall is too long, can press handle 13 on the external wall insulation structure of a support firm, press handle 13 drives connecting column 12 and L-shaped snap tongue 11 in Back in the right card slot 7, the pulley 9 on the support rod 10 drives the L-shaped tab 11 to retreat in the chute 8, and then align the left card slot 6 on another external wall insulation structure with stable support to the L-shaped tab 11. Release the handle 13, and the spring 14 returns to its original position, so that the L-shaped tab 11 snaps into the left slot 6, realizing the installation and connection of multiple external wall insulation structures, and the structure will not be loosened by changes in external environmental factors Unsafe, such as changes in weather, temperature, humidity and the passage of time will affect the properties of the adhesive, there is no decline in adhesive performance, causing safety problems caused by the falling of the external wall insulation board Loosening and unsafe problems appear .

Specifically, a lower fixing plate 15 is fixedly connected to the middle of the upper surface of the bottom plate 1, an upper fixing plate 16 is fixedly connected to the front surface of the outer wall fireproof shell 5, and a supporting plate 17 is fixedly connected between the lower fixing plate 15 and the upper fixing plate 16. .

In this embodiment: the lower fixed plate 15 and the upper fixed plate 16 are conveniently fixedly connected to the support plate 17, and the most stable triangular structure is formed between the lower fixed plate 15, the upper fixed plate 16 and the support plate 17, which helps to support the outer wall The fireproof shell 5 achieves the most stable supporting structure.

Specifically, a decoration layer 18 is fixedly connected to the front surface of the support plate 17 .

In this embodiment: due to the leakage of the support plate 17, it affects the decorative aesthetics and living mood of the user when using and living, so the decorative layer 18 increases the decorativeness of the support plate 17, and the decorative layer 18 increases the decorativeness of the support plate 17 And, increase the visual aesthetics.

Specifically, the lower surface of the bottom plate 1 is fixedly connected with a lower buried plate 19, and the front surface and the rear surface of the lower buried plate 19 are fixedly connected with protrusions 20. There are several protrusions 20, and the plurality of protrusions 20 are arranged in a rectangular array. array of the form.

In this embodiment: the lower buried plate 19 can be buried in the soil layer of the ground, so as to increase the grip force of the external wall insulation structure, and achieve the most fixed and stable support structure, and the protrusion 20 increases the contact area between the structure and the ground. Increase the frictional force to avoid the inclination of the entire external wall insulation structure with stable support caused by the relatively large vibration of the structure due to shaking and earthquakes, and the safety problems caused by the economy, personal health and safety and financial losses.

Specifically, bolts 21 are threadedly connected to the outer surfaces of the bottom plate 1 and the fixing frame 3 , and there are four bolts 21 .

In this embodiment: the bottom plate 1 and the fixing frame 3 are fixed on the wall by bolts 21, which is convenient for installation and disassembly.

Specifically, an adhesive layer 22 is fixedly connected to the rear surface of the fixed frame 3 and the fireproof shell 5 of the outer wall.

In this embodiment: the adhesive layer 22 also helps to bond the connection and adhesion of the outer wall fireproof shell 5, the fixed frame 3 and the wall, and when the bolt 21 or the adhesive layer 22 is loose, double protection is provided.

Specifically, a groove 23 is opened on the side surface of the fireproof shell 5 of the outer wall, and a waterproof layer 24 is fixedly connected to the inner side wall of the groove 23 .

In this embodiment: the groove 23 provides the structure with an installation space for installing and combining other functional board layers, and the waterproof layer 24 helps the structure to be waterproof, avoiding the structure being damp and affecting the function of the board layer, ensuring that the fireproof shell 5 of the outer wall is fireproof and waterproof to protect the interior The material is not attacked by water and fire to reduce financial losses.

Specifically, the outer surface of the waterproof layer 24 is fixedly connected with the sound insulation layer 25 .

In this embodiment: the sound insulation layer 25 helps the structure achieve the purpose of sound insulation and noise reduction, and provides a quiet living environment.

Specifically, the outer surface of the sound insulation layer 25 is fixedly connected with the heat insulation layer 26 .

In this embodiment: the heat insulation layer 26 helps to insulate heat, avoids heat dissipation and volatilizes heat, affects the indoor temperature, and provides users with comfortable and comfortable accommodation and living conditions.

Specifically, the outer surface of the heat insulation layer 26 is fixedly connected with the heat insulation layer 27 .

In this embodiment: the insulation layer 27 helps to ensure the comfort and stability of the indoor temperature for the resident in a cold environment.

The working principle and application process of the present invention: when this kind of external wall thermal insulation structure with stable support is in use, the base plate 1 increases the contact area with the ground, increases the stability of the entire external wall thermal insulation structure with stable support, and is convenient for installation Fixed on the ground, the stabilizing platform 2 ensures the stability of the center of gravity of the entire supported external wall insulation structure, and the installation groove 4 on the stabilizing platform 2 facilitates the fixed installation of the exterior wall fireproof shell 5, while the assembly structure layer in the exterior wall fireproof shell 5 It can help to provide users with a comfortable, quiet and warm living environment. When the wall is too long during the installation process, it can be driven by pressing the handle 13 on a stable external wall insulation structure. The connecting column 12 retreats, and the connecting column 12 drives the L-shaped tab 11 to retreat in the right card slot 7, while the pulley 9 on the support rod 10 drives the L-shaped tab 11 to retreat in the chute 8, reducing friction and facilitating pressing and pushing , and then align the left card slot 6 on another external wall insulation structure with firm support to the L-shaped tab 11, then release the handle 13, and the spring 14 drives the L-shaped tab 11 back to its original position, so that the L-shaped tab snaps 11 is snapped into the left card slot 6 to realize the installation and connection of multiple external wall insulation structures, to ensure the connection fixation and stability of the structures. The passage of time will affect the properties of the adhesive, and there is no decrease in adhesive performance, causing safety problems caused by the falling of the external wall insulation board. plate 17, and the most stable triangular structure is formed between the lower fixed plate 15, the upper fixed plate 16 and the support plate 17, which helps to support the outer wall fireproof shell 5 and reaches the most stable support structure. Because the support plate 17 leaks, It affects the decorative aesthetics and living mood of the user when using and living. Therefore, the decorative layer 18 increases the decorativeness of the support plate 17 and increases the visual aesthetics. The grip of the structure achieves the most stable and stable support structure. The protrusions 20 increase the contact area between the structure and the ground and increase the friction, so as to avoid the entire support caused by the relatively large vibration of the structure due to shaking and earthquakes. The inclination of the stable external wall insulation structure will cause economic, personal health and safety and financial losses caused by safety problems. The bottom plate 1 and the fixed frame 3 are fixed on the wall by bolts 21, which is convenient for installation and disassembly. Adhesive layer 22 also helps to bond the connection and adhesion of outer wall fireproof shell 5, fixed frame 3 and body of wall, when bolt 21 or adhesive layer 22 one side is loose, provide double protection, groove 23 provides installation combination for the structure The installation space of the functional board layer, the waterproof layer 24 helps the structure to be waterproof, prevents the structure from being damp and affects the function of the board layer, ensures that the fireproof shell 5 of the outer wall is fireproof and waterproof, protects the internal material from water and fire, and reduces financial losses. The sound insulation layer 25 helps the structure To achieve the purpose of sound insulation and noise reduction, to provide a quiet living environment, the heat insulation layer 26 helps to isolate heat, avoid heat dissipation and volatile heat, which will affect the indoor temperature, and provide users with a comfortable and safe environment. Comfortable accommodation and living conditions, the thermal insulation layer 27 helps to ensure the comfort and stability of the indoor temperature for the resident in the cold environment.

Finally, it should be noted that: the above is only a preferred embodiment of the present invention, and is not intended to limit the present invention. Although the present invention has been described in detail with reference to the foregoing embodiments, for those skilled in the art, it still The technical solutions recorded in the foregoing embodiments may be modified, or some technical features thereof may be equivalently replaced. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present invention shall be included within the protection scope of the present invention.

Claims (10)

1. An external wall thermal insulation structure with stable support, comprising a base plate (1), characterized in that: a stable platform (2) is fixedly connected to the upper surface of the base plate (1) behind, and the stable platform (2) rests on The rear upper surface is fixedly connected with a fixed frame (3), and the middle part of the upper surface of the stable platform (2) is provided with an installation groove (4), and the outer surface of the installation groove (4) is fixedly connected with an outer wall fireproof shell ( 5), the left side of the stable platform (2) is provided with a left card slot (6), the right side of the stable platform (2) is provided with a right card slot (7), and the right card slot (7) ) is provided with a chute (8) on the inner bottom wall, the upper surface of the chute (8) is movably connected with a pulley (9), and the outer surface of the pulley (9) is rotatably connected with a support rod (10), so The upper surface of the support rod (10) is fixedly connected with an L-shaped tab (11), the front surface of the L-shaped tab (11) is fixedly connected with a connecting column (12), and the front surface of the connecting column (12) The surface is fixedly connected with a handle (13), the rear surface of the L-shaped tab (11) is fixedly connected with a spring (14), and one end of the spring (14) is fixedly connected in the right card slot (7). The size of the L-shaped tongue (11) is compatible with the left draw-in groove (6). 2. The external wall insulation structure with stable support according to claim 1, characterized in that: the middle part of the upper surface of the bottom plate (1) is fixedly connected with a lower fixing plate (15), and the fireproof shell of the external wall ( 5) An upper fixed plate (16) is fixedly connected to the front surface, and a support plate (17) is fixedly connected between the lower fixed plate (15) and the upper fixed plate (16). 3. The heat-preservation structure for external walls with stable support according to claim 2, characterized in that: the front surface of the support plate (17) is fixedly connected with a decorative layer (18). 4. The external wall insulation structure with stable support according to claim 1, characterized in that: the lower surface of the bottom plate (1) is fixedly connected with a lower buried plate (19), and the lower buried plate (19) Protrusions (20) are fixedly connected to the front surface and the rear surface, the number of the protrusions (20) is several, and the several protrusions (20) are arrayed in the form of a rectangular array. 5. A stable external wall thermal insulation structure according to claim 1, characterized in that: the outer surface of the bottom plate (1) and the fixed frame (3) are threadedly connected with bolts (21), and the bolts ( 21) The number is four. 6. The external wall thermal insulation structure with stable support according to claim 5, characterized in that an adhesive layer (22) is fixedly connected to the rear surface of the fixed frame (3) and the fireproof shell (5) of the external wall . 7. A stable external wall thermal insulation structure according to claim 6, characterized in that: the side surface of the external wall fireproof shell (5) is provided with a groove (23), and the groove (23) The inner wall of the inner wall is fixedly connected with a waterproof layer (24). 8. The heat-insulating structure of a stable external wall according to claim 7, characterized in that: the outer surface of the waterproof layer (24) is fixedly connected with a sound-insulating layer (25). 9. The heat-insulating structure of a stable external wall according to claim 8, characterized in that: the outer surface of the sound-insulating layer (25) is fixedly connected with a heat-insulating layer (26). 10. The thermal insulation structure of an external wall with stable support according to claim 9, characterized in that: the outer surface of the thermal insulation layer (26) is fixedly connected with a thermal insulation layer (27).
