Abstract

The invention relates to the technical field of mold removal, and discloses a mold production removal device, which includes a base, a support plate, and a mold body. A connecting guard plate is installed on the base, and a fixing seat is installed on the base. , the fixed seat is connected with a connecting plate, the upper end of the connecting plate is connected with a connecting seat, a pressure plate is installed on the top of the connecting seat, and a lower mold is arranged above the base; A pressure bolt is installed on the side, and a connecting piece is installed on the upper side of the support plate. In the present invention, when the upper mold is separated from the lower mold, there is a pressing plate at the bottom for extrusion, and the extruded mold body is still between the upper mold and the lower mold. After the lower mold contacts the base, the connecting plate completely crosses the limit The height of the hole, under the weight of the mold body, the connecting plate will fall towards the side that can be bent, so that the mold body can move a part outward, which is convenient for employees to take parts and reduces the risk of employees being burned.

Description

A removable device for mold production

technical field

The invention relates to the technical field of mold removal, in particular to a removal device for mold production.

Background technique

In the production of mold parts, due to the special shape of some parts, it is impossible to use normal mechanical processing technology during production. This is usually processed by stamping dies, and the required parts can be processed quickly through stamping dies. Existing Advanced stamping dies have basically been able to meet the needs of daily use, but there are still some deficiencies that need to be improved.

When the existing stamping dies are in use, it is generally necessary to put the dies into the stamping machine, and press the stamping dies through the stamping machine. When taking out the formed parts, because the parts are inside the mold, it is easy for the staff to touch the mold by mistake when taking it out. High temperature burns, safety accidents. Therefore, those skilled in the art provide a removable device for mold production to solve the problems raised in the above-mentioned background technology.

Contents of the invention

(1) Solved technical problems

Aiming at the deficiencies of the prior art, the present invention provides a removable device for mold production to solve the problems raised in the background art above.

(2) Technical solution

In order to achieve the above object, the present invention provides the following technical solutions: a removable device for mold production, including a base, a support plate, and a mold body, a connecting guard plate is installed on the base, and a fixed A seat, the fixed seat is connected with a connecting plate, the upper end of the connecting plate is connected with a connecting seat, a pressure plate is installed on the top of the connecting seat, and a lower mold is arranged above the base;

There are movable holes on the support plate, a pressure bolt is installed on the bottom side of the support plate, a connector is installed on the upper side of the support plate, a motor is connected to the top of the connector, and a two-way threaded rod is connected to the bottom of the motor , an upper mold is arranged under the support plate.

Preferably, the lower mold is provided with a settling groove, and a limited hole is set in the settling groove, and a threaded sleeve 1 is installed on both sides of the lower mold, and the lower mold is screwed into the lower section of the two-way threaded rod through the threaded sleeve 1 .

Preferably, the upper mold is connected with a grouting pipe, vent holes are provided on both sides of the grouting pipe, two threaded sleeves are installed on both sides of the upper mold, and the upper mold passes through the threaded sleeve two and the upper threaded sleeve of the two-way threaded rod. catch.

Preferably, the two-way threaded rod is rotatably connected to the base through a positioning hole.

Preferably, the base is fixedly connected to the support plate through a connecting guard plate.

Preferably, the pressing pin is correspondingly socketed with the vent hole, and when there is mold residue in the vent hole, after the upper mold rises, the pressing pin engages and squeezes the vent hole to facilitate the ejection of the mold body.

Preferably, the fixing seat is rotatably connected to the connecting seat through a connecting plate, a bottom corner of the connecting plate is in pressing contact with the fixing seat, and a top corner of the connecting plate is in pressing contact with the pressing plate.

Preferably, the connecting plate is slidably socketed with the limiting hole, and the pressing plate is meshed and connected with the placement groove.

(3) Beneficial effects

Compared with the prior art, the present invention provides a removable device for mold production, which has the following beneficial effects:

In the present invention, when the upper mold is separated from the lower mold, there is a pressing plate at the bottom for extrusion, and the extruded mold body is still between the upper mold and the lower mold. After the lower mold contacts the base, the connecting plate completely crosses the limit The height of the hole, under the weight of the mold body, the connecting plate will fall towards the side that can be bent, so that the mold body can move a part outward, which is convenient for employees to take parts and reduces the risk of employees being burned.

Description of drawings

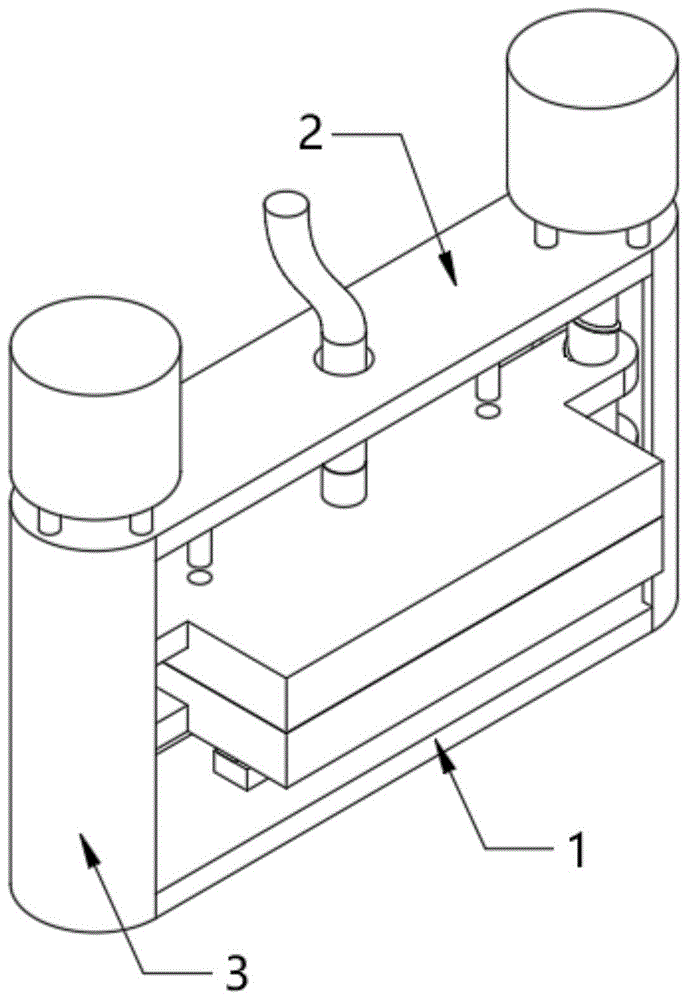

Fig. 1 is a three-dimensional structural schematic diagram of a removable device for mold production provided by an embodiment of the present application.

Fig. 2 is a schematic structural view of a pressing bolt in a removable device for mold production provided by an embodiment of the present application.

Fig. 3 is a schematic structural view of a mold body in a removable device for mold production provided by an embodiment of the present application.

Fig. 4 is an exploded view of the structure of a removable device for mold production provided by the embodiment of the present application.

Fig. 5 is a schematic structural view of a connecting plate in a removable device for mold production provided by an embodiment of the present application.

In the figure: 1, base; 101, positioning hole; 2, support plate; 201, connector; 202, movable hole; 203, pressure bolt; 3, connection guard plate; 4, lower mold; ; 402, placement groove; 403, limit hole; 5, upper mold; 501, thread sleeve two; 502, grouting pipe; 503, vent hole; 6, mold body; 7, motor; 8, two-way threaded rod; 9. Fixed seat; 10. Connecting plate; 11. Resisting pressure plate; 12. Connecting seat.

Detailed ways

The following will clearly and completely describe the technical solutions in the embodiments of the present invention with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only some, not all, embodiments of the present invention. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present invention.

The present invention provides a technical solution, a removable device for mold production, as shown in Figure 1, Figure 2, and Figure 3, including a base 1, a support plate 2, and a mold body 6. The plate 3 is fixedly connected with the support plate 2, the base 1 is equipped with a connecting guard plate 3, as shown in Figure 5, the base 1 is equipped with a fixed seat 9, and the fixed seat 9 is connected with a connecting plate 10. The upper end of the connecting plate 10 is connected with a connecting seat 12, and a pressure plate 11 is installed on the top of the connecting seat 12. The fixed seat 9 is connected to the connecting seat 12 through the connecting plate 10, and a corner of the bottom of the connecting plate 10 is connected to the fixed seat 9. Pressing contact, the pressing plate 11 at the top corner of the connecting plate 10 is pressing contacting, the connecting plate 10 is slidably socketed with the limiting hole 403, and the pressing plate 11 is meshed and connected with the placement groove 402, as shown in Figure 4, the base 1 is provided with a lower mold 4, and a placement groove 402 is provided in the lower mold 4, and a limit hole 403 is opened in the placement groove 402. A threaded sleeve 401 is installed on both sides of the lower mold 4, and the lower mold 4 passes through the threaded sleeve. - 401 is threaded into the lower section of the two-way threaded rod 8;

As shown in Figure 4 and Figure 5, the support plate 2 is provided with a movable hole 202, and a pressing bolt 203 is installed on the bottom side of the supporting plate 2, and the pressing bolt 203 is correspondingly socketed with the exhaust hole 503, so that A connector 201 is installed on the upper side of the support plate 2, a motor 7 is connected to the top of the connector 201, and a two-way threaded rod 8 is connected to the bottom of the motor 7, and the two-way threaded rod 8 rotates with the base 1 through the positioning hole 101. connection, an upper mold 5 is arranged below the support plate 2, and a grouting pipe 502 is connected to the upper mold 5, and vent holes 503 are provided on both sides of the grouting pipe 502, and threaded holes are installed on both sides of the upper mold 5 Cover two 501, the upper mold 5 is threadedly socketed with the upper segment of the two-way threaded rod 8 through the thread cover two 501.

The working principle of the device: the device is provided with a base 1 and a support plate 2, the base 1 is fixedly connected to the support plate 2 through the connecting guard plate 3, and the connecting guard plate 3 also protects the two-way threaded rod 8, To avoid accidental contact and injury by employees, and to prevent the two-way threaded rod 8 from being bumped by the outside world, the motor 7 is fixedly installed on the support plate 2 through the connector 201. 1. Thread sleeve 2 501 drives the corresponding lower mold 4 and upper mold 5 to perform relative opening and closing movements, so as to achieve the effect of mold opening;

Further, when the lower mold 4 descends, the pressing plate 11 is lifted up under the action of the connecting plate 10, and the mold body 6 is ejected from the lower mold 4, and then, since the fixed seat 9 is rotationally connected with the connecting seat 12 through the connecting plate 10, One corner of the bottom of the connecting plate 10 is in pressure contact with the fixing seat 9, and one corner of the top of the connecting plate 10 is in pressure contact with the pressure plate 11. Under the weight of the mold body 6, the connecting plate 10 will fall toward the side that can be bent , so that part of the mold body 6 can be moved outward, which is convenient for employees to pick up parts;

Further, the vent hole 503 provided on the upper mold 5 is convenient for venting during grouting, but it is easy to have residues in the vent hole 503, which makes it difficult to separate the mold body 6 from the upper mold 5. 2. The bottom side is equipped with a pressing bolt 203. When the upper mold 5 rises, the pressing bolt 203 engages and squeezes the vent hole 503 to facilitate the mold body 6 to come out.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes, modifications and substitutions can be made to these embodiments without departing from the principle and spirit of the present invention. and modifications, the scope of the invention is defined by the appended claims and their equivalents.

Claims (8)

1. The utility model provides a mould production is with removing formula device which characterized in that: the die comprises a base (1), a supporting plate (2) and a die body (6), wherein a connecting protective plate (3) is arranged on the base (1), a fixed seat (9) is arranged on the base (1), a connecting plate (10) is connected onto the fixed seat (9), a connecting seat (12) is connected to the upper end of the connecting plate (10), a pressing plate (11) is arranged at the top of the connecting seat (12), and a lower die (4) is arranged above the base (1);

the improved die is characterized in that a movable hole (202) is formed in the supporting plate (2), a pressing bolt (203) is installed on the bottom side of the supporting plate (2), a connecting piece (201) is installed on the upper side of the supporting plate (2), a motor (7) is connected to the top end of the connecting piece (201), a bidirectional threaded rod (8) is connected to the bottom of the motor (7), and an upper die (5) is arranged below the supporting plate (2).

2. The removal-type apparatus for mold production according to claim 1, wherein: the lower die is characterized in that a placement groove (402) is formed in the lower die (4), a limiting hole (403) is formed in the placement groove (402), a first threaded sleeve (401) is installed on two sides of the lower die (4), and the lower die (4) is in threaded sleeve connection with the lower section of the bidirectional threaded rod (8) through the first threaded sleeve (401).

3. The removal type device for producing the mold according to claim 1, wherein: go up mould (5) and be connected with slip casting pipe (502), exhaust hole (503) have been seted up to slip casting pipe (502) both sides, go up mould (5) both sides and install thread bush two (501), go up mould (5) and cup joint through thread bush two (501) and two-way threaded rod (8) upper segment screw thread.

4. The removal type device for producing the mold according to claim 1, wherein: the bidirectional threaded rod (8) is rotatably connected with the base (1) through the positioning hole (101).

5. The removal type device for producing the mold according to claim 1, wherein: the base (1) is fixedly connected with the supporting plate (2) through a connecting protection plate (3).

6. The removal type device for producing the mold according to claim 1, wherein: the pressing bolt (203) is correspondingly sleeved with the exhaust hole (503).

7. The removal type device for producing the mold according to claim 1, wherein: the fixing seat (9) is rotatably connected with the connecting seat (12) through a connecting plate (10), one corner of the bottom of the connecting plate (10) is in abutting contact with the fixing seat (9), and one corner of the top of the connecting plate (10) is in abutting contact with the pressing plate (11).

8. The removal-type apparatus for mold production according to claim 1, wherein: the connecting plate (10) is in sliding sleeve connection with the limiting hole (403), and the pressing plate (11) is in meshed connection with the placing groove (402).
