An intelligent low-temperature catalytic combustion equipment and its exhaust gas treatment method

technical field

The invention belongs to the technical field of exhaust gas treatment, and in particular relates to an intelligent low-temperature catalytic combustion equipment and an exhaust gas treatment method thereof.

Background technique

Activated carbon has strong adsorption capacity, good chemical stability and easy regeneration, so it plays a huge role in environmental protection, and at the same time, the demand for external activated carbon is increasing. However, the current exhaust gas treatment equipment is not perfect enough, and now the activated carbon adsorption equipment is routinely used, which simply uses activated carbon to absorb exhaust gas pollutants, and the treated clean air is discharged into the air, and the activated carbon is regularly replaced during use.

A catalytic combustion device and its exhaust gas treatment method proposed in the authorized publication number CN112076586A relate to the technical field of exhaust gas treatment. The invention comprises a filter box, a catalytic combustion furnace, a plurality of side-by-side activated carbon boxes, and an adsorption fan arranged in sequence; the inlet and outlet of each activated carbon box are connected with an adsorption damper and a desorption damper; The room is connected by desorption air duct; the filter box, activated carbon box, and adsorption fan are connected by adsorption air duct. The present invention completely degrades organic waste gas by means of catalytic combustion, degrades waste gas pollutants into low-molecular harmless substances, can also effectively reduce reaction temperature, improve equipment safety, and reduce operating costs; by adsorbing activated carbon boxes, Desorption can transform large-volume low-concentration exhaust gas into small-volume high-concentration exhaust gas, which can greatly reduce the scale of subsequent treatment devices, thereby reducing investment, long service life, low maintenance and replacement costs, and the entire set of devices adopts automatic control and easy operation and management. .

The above-mentioned patents have the following disadvantages: when the device is in use, the exhaust gas needs to be introduced into the air duct. Due to the excessive flow rate of the exhaust gas, the vibration is relatively large, which is likely to affect the service life of the equipment, and the device is equipped with a rain cover on the chimney. There will be less dust particles in the exhaust gas, but they will still accumulate on the inner wall of the chimney after a long period of time. The rain shield is fixed outside the chimney and is not easy to disassemble, which will affect the convenience of operators' observation.

To this end, we propose an intelligent low-temperature catalytic combustion equipment and its exhaust gas treatment method to solve the above problems.

Contents of the invention

The purpose of the present invention is to solve the above problems and provide an intelligent low-temperature catalytic combustion equipment and its waste gas treatment method.

In order to achieve the above object, the present invention adopts the following technical solutions: an intelligent low-temperature catalytic combustion equipment and its exhaust gas treatment method, including a filter box, a plurality of activated carbon boxes are arranged on the right side of the filter box, and the left side of the filter box is The side wall is provided with an air inlet, and the upper side wall of the filter box is fixedly connected with an adsorption air duct, and the adsorption air duct is fixedly connected with the upper side walls of a plurality of activated carbon boxes through a connecting mechanism, and the filter box and the activated carbon box There is a combustion furnace between them, and the cooling air valve is provided in the combustion furnace. An adsorption fan is arranged on the right side of the activated carbon box. There is an adsorption tube, the side wall of the adsorption tube is fixedly connected with a plurality of activated carbon boxes, the outer walls of the left and right sides of the chimney are fixedly connected with inserting sleeves, and inserting rods are inserted into the two inserting sleeves. The inner wall of the insertion sleeve is provided with a positioning groove, and a positioning plate is inserted into the positioning groove, and a plurality of locking teeth are fixedly connected to the side wall on the opposite side of the positioning plate and the insertion rod, and the side wall of the positioning plate is fixed. A pull rod is connected, and the side wall of the pull rod away from the positioning plate extends out of the positioning slot, and one end of the pull rod extending out of the positioning slot is fixedly connected with a pull plate, and the side wall of the pull plate on the opposite side of the insertion socket is fixedly connected with a same a first spring, and the upper ends of the two insertion rods are fixedly connected with the same rain shield.

Preferably, the connection mechanism includes an elastic tube fixedly connected to the upper side wall of the activated carbon box, the upper end of the elastic tube and the lower side wall of the adsorption air duct are connected with a ring tube, and the two ring tubes are fixedly sleeved. A mounting ring is provided, and two snap rings hinged to each other are provided outside the two mounting rings. The longitudinal section of the snap ring is an inverted U-shaped structure, and the side wall of the snap ring on one side is fixedly connected with a sliding frame. A slide block is slidably connected in the slide frame, the same second spring is fixedly connected with the side wall on the opposite side of the slide block, the upper side wall of the slide block is fixedly connected with a guide plate, and the slide block is fixedly connected with a guide plate. The side wall of the frame is provided with a guide port that matches with the guide plate, the side wall of the guide plate protruding from the guide port is fixedly connected with the card frame, and the side wall of the snap ring on the other side is fixedly connected with the card plate, the The length of the clamping board is as short as the length of the sliding frame, and the lower side of the clamping frame and the lower side of the clamping board are in contact with each other.

Preferably, the front side of the combustion furnace is hinged with a cover plate, the side wall of the cover plate is fixedly connected with a bent plate, and the right side wall of the combustion furnace is fixedly connected with two clamping blocks, and the two clamping blocks The side walls of the blocks are all provided with limiting holes, and the limiting pins are inserted into the limiting holes, and the side walls of the bent plate are provided with through holes matching with the limiting pins.

Preferably, the lower inner wall of the combustion furnace is fixedly connected with a work cylinder, the inner wall of the work cylinder is fixedly connected with a memory alloy, the memory alloy is bent and placed in the work cylinder, and the right side of the memory alloy is fixedly connected There is a connecting plate, and two conductive blocks are fixedly connected inside the working cylinder, and the two conductive blocks are electrically connected with the power-off valve for controlling the combustion furnace.

Preferably, an observation window is provided on the front side of the cover plate, and a handle is fixedly connected to the front side of the cover plate.

Preferably, a gas detector is fixedly connected to the chimney near the outlet.

Preferably, a support frame is fixedly connected to the right side wall of the activated carbon box located on the far right, and the upper end of the support frame is fixedly connected to the lower side wall of the adsorption air duct.

A waste gas treatment method for intelligent low-temperature catalytic combustion equipment, comprising the following steps:

S1, connect the air inlet of the filter box with the exhaust gas discharge port;

S2. Pass the exhaust gas into the filter box, and use the filter box to process the particulate matter in the exhaust gas;

S3. The exhaust gas adsorbed by the filter box is transported to the activated carbon box through the adsorption duct, and the activated carbon box is used to adsorb the impurities in the exhaust gas:

S4. The pollution source in the exhaust gas will be trapped in the activated carbon box, and the cleaned gas will be discharged by the adsorption fan and chimney;

S5. Start the combustion furnace to perform a desorption process on multiple activated carbon boxes.

Compared with the existing technology, the advantages of an intelligent low-temperature catalytic combustion equipment and its exhaust gas treatment method are:

1. Through the filter box, activated carbon box, adsorption air duct, combustion furnace, adsorption fan, chimney, inserting tube, inserting rod, positioning plate, locking teeth, pull plate, rain cover, the elastic tube that can be set, in the direction When the exhaust gas adsorption duct in the treatment device vibrates, the elastic tube can reduce the vibration between the activated carbon box and the adsorption duct, thereby avoiding the problem that the vibration affects the service life of the equipment.

2. Through the set of inserting socket, inserting rod, positioning plate, clamping teeth, pull plate, and rain cover, it is convenient and quick to remove the rain cover after the chimney has been used for a period of time, and it is convenient for the operator to observe the specific dust accumulation in the chimney situation, so that it is convenient for the operator to clean the dust in time.

Description of drawings

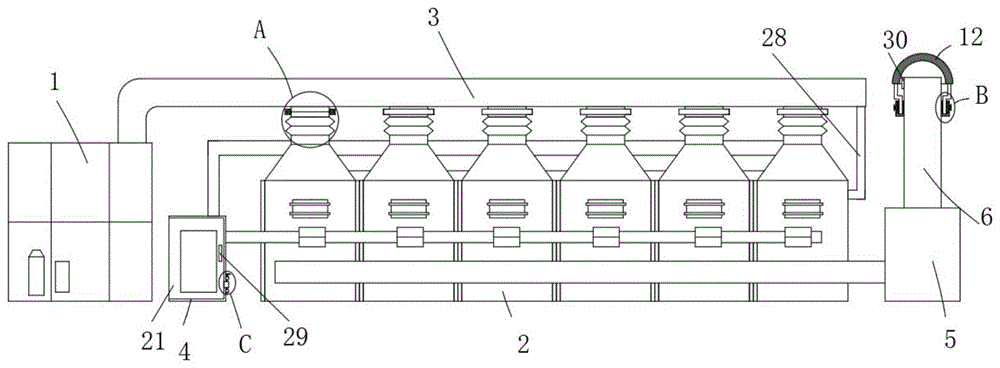

Fig. 1 is a structural schematic diagram of a kind of intelligent low-temperature catalytic combustion equipment and its waste gas treatment method provided by the present invention;

Fig. 2 is the enlarged schematic diagram of part A in Fig. 1;

Fig. 3 is the enlarged schematic diagram of part B in Fig. 1;

Fig. 4 is the enlarged schematic diagram of part C in Fig. 1;

Fig. 5 is a schematic diagram of the internal structure of the combustion furnace in a kind of intelligent low-temperature catalytic combustion equipment and its waste gas treatment method provided by the present invention;

Fig. 6 is a schematic diagram of the connection relationship between two snap rings of an intelligent low-temperature catalytic combustion equipment and its exhaust gas treatment method provided by the present invention.

In the figure: 1. Filter box; 2. Activated carbon box; 3. Adsorption air duct; 4. Combustion furnace; 5. Adsorption fan; 6. Chimney; Locking teeth; 11, pull plate; 12, rain cover; 13, elastic tube; 14, ring tube; 16, installation ring; 17, snap ring; 18, slide frame; 19, card frame; 20, clamp plate; 21 , cover plate; 22, bending plate; 23, clamping block; 24, working cylinder; 25, memory alloy; 26, connecting plate; 27, conductive block; 28, support frame; 29, handle;

Detailed ways

The following examples are for illustrative purposes only and are not intended to limit the scope of the invention.

As shown in Figure 1-6, an intelligent low-temperature catalytic combustion equipment and its exhaust gas treatment method include a filter box 1, a plurality of activated carbon boxes 2 are arranged on the right side of the filter box 1, and an inlet is provided on the left side wall of the filter box 1. The air port, the upper side wall of the filter box 1 is fixedly connected with the adsorption air duct 3, and the adsorption air duct 3 is fixedly connected with the upper side walls of a plurality of activated carbon boxes 2 through the connection mechanism, and a combustion air duct is arranged between the filter box 1 and the activated carbon box 2. The furnace 4 and the combustion furnace 4 are provided with a supplementary cooling air valve, the right side of the activated carbon box 2 is provided with an adsorption fan 5, the upper end of the adsorption fan 5 is connected with a chimney 6, and the intake end of the adsorption fan 5 is fixedly connected with an adsorption pipe, and the adsorption pipe The side wall of the chimney 6 is fixedly connected with a plurality of activated carbon boxes 2, and the outer walls of the left and right sides of the chimney 6 are fixedly connected with inserting sleeves 7, and inserting rods 8 are inserted into the two inserting sleeves 7, and the inner wall of the inserting sleeve 7 is provided with positioning grooves. , a positioning plate 9 is inserted into the positioning groove, and the side walls on the opposite side of the positioning plate 9 and the insertion rod 8 are fixedly connected with a plurality of locking teeth 10, and the side wall of the positioning plate 9 is fixedly connected with a pull rod, and the pull rod is far away from the positioning plate 9 The side wall of the pull rod extends out of the positioning groove, and one end of the pull rod extending out of the positioning groove is fixedly connected with a pull plate 11, and the side wall of the opposite side of the pull plate 11 and the insertion socket 7 is fixedly connected with the same first spring, and the upper ends of the two insertion rods 8 The same rain shield 12 is fixedly connected.

The connection mechanism includes an elastic tube 13 fixedly connected to the upper side wall of the activated carbon box 2. The upper end of the elastic tube 13 and the lower side wall of the adsorption air duct 3 are connected with a ring tube 14, and the two ring tubes 14 are fixedly sleeved with mounting brackets. Ring 16, the two mounting rings 16 are covered with two mutually hinged snap rings 17, the longitudinal section of the snap ring 17 is an inverted U-shaped structure, and the side wall of the snap ring 17 on one side is fixedly connected with a sliding frame 18, the sliding frame 18 The inner slide is connected with a slider, the side wall on the opposite side of the slider and the slide frame 18 is fixedly connected with the same second spring, the upper side wall of the slider is fixedly connected with a guide plate, and the side wall of the slide frame 18 is provided with a guide plate. The guide port that the plates match each other, the side wall of the guide plate protruding from the guide port is fixedly connected with the clamp frame 19, and the side wall of the other side snap ring 17 is fixedly connected with the clamp plate 20, and the length of the clamp plate 20 is as short as that of the slide frame 18. length, the lower side of the card frame 19 and the lower side of the card plate 20 are in contact with each other, and the elastic tube that can be provided can reduce the gap between the activated carbon box and the adsorption air tube when the waste gas adsorption air tube is vibrated in the treatment device. Vibration, thereby avoiding the problem that vibration affects the service life of the equipment.

The front side of the combustion furnace 4 is hinged with a cover plate 21, the side wall of the cover plate 21 is fixedly connected with a bent plate 22, the right side wall of the combustion furnace 4 is fixedly connected with two clamping blocks 23, and the side walls of the two clamping blocks 23 Limiting holes are all provided, and limiting pins are inserted into the limiting holes. The side walls of the bent plate 22 are provided with through holes matching the limiting pins to facilitate fixing the cover plate 21 .

The lower inner wall of the combustion furnace 4 is fixedly connected with a work cylinder 24, the inner wall of the work cylinder 24 is fixedly connected with a memory alloy 25, the memory alloy 25 is bent and placed in the work cylinder 24, and the right side of the memory alloy 25 is fixedly connected with a connecting plate 26 , the inner fixed connection of working cylinder 24 is connected with two conductive blocks 27, and two conductive blocks 27 are electrically connected with the cut-off valve of control combustion furnace 4, when the temperature in the combustion furnace 4 is too high, the combustion furnace 4 can be controlled automatically. Perform a power down.

The front side of the cover plate 21 is provided with an observation window, and the front side of the cover plate 21 is fixedly connected with a handle 29 to facilitate pulling the cover plate 21 .

A gas detector 30 is fixedly connected to the position of the chimney 6 near the outlet, which can detect whether the gas discharged from the chimney 6 meets the standard.

The right side wall of the activated carbon box 2 on the far right side is fixedly connected with a support frame 28, and the upper end of the support frame 28 is fixedly connected with the lower side wall of the adsorption air duct 3, which improves the support capacity of the adsorption air duct 3.

A waste gas treatment method for intelligent low-temperature catalytic combustion equipment, comprising the following steps:

S1, the air inlet of the filter box 1 and the exhaust gas discharge port are fixedly connected;

S2. Pass the exhaust gas into the filter box 1, and use the filter box 1 to process the particulate matter in the exhaust gas;

S3. The exhaust gas absorbed by the filter box 1 is transported to the activated carbon box 2 through the adsorption duct 3, and the activated carbon box 2 is used to adsorb the impurities in the exhaust gas:

S4, the pollution source in the exhaust gas will be trapped in the activated carbon box 2, and the cleaned gas will be discharged by the adsorption fan 5 and the chimney 6;

S5. Start the combustion furnace 4 to perform a desorption process on multiple activated carbon boxes 2 .

Now the operating principle of the present invention is described as follows: the adsorption air duct 3 is connected with the activated carbon box 2 through the elastic tube 13, and when the adsorption air duct 3 vibrates, the elastic tube 13 can absorb the vibration of the adsorption air duct 3, and the elastic tube that can be set, When the exhaust gas adsorption duct is transported to the treatment device to vibrate, the elastic tube can reduce the vibration between the activated carbon box and the adsorption duct, thereby avoiding the problem that the vibration affects the service life of the equipment; pull the pull plate 11 away from the insertion sleeve 7 , pulling plate 11 drives positioning plate 9 away from inserting rod 8, can extract rain cover 12, facilitates the operator to observe the specific ash accumulation situation in the chimney, thereby facilitates the operator to clear ash in time.

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present invention shall be included in the protection of the present invention. within range.

Claims (8)

1. An intelligent low-temperature catalytic combustion device and a waste gas treatment method thereof comprise a filter box (1), and are characterized in that the right side of the filter box (1) is provided with a plurality of activated carbon boxes (2), the left side wall of the filter box (1) is provided with an air inlet, the upper side wall of the filter box (1) is fixedly connected with an adsorption air pipe (3), the adsorption air pipe (3) is fixedly communicated with the upper side walls of the activated carbon boxes (2) through a connecting mechanism, a combustion furnace (4) is arranged between the filter box (1) and the activated carbon boxes (2), a compensation air valve is arranged in the combustion furnace (4), the right side of each activated carbon box (2) is provided with an adsorption fan (5), the upper end of each adsorption fan (5) is communicated with a chimney (6), the air inlet end of each adsorption fan (5) is fixedly communicated with an adsorption pipe, the side wall of each adsorption pipe is fixedly communicated with the activated carbon boxes (2), the outer walls of the left side and the right side of each chimney (6) are fixedly connected with an inserting cylinder (7), the inserting rod (8) is arranged in each inserting cylinder (7), one side wall of each inserting cylinder is fixedly connected with a positioning plate (9), and one positioning plate (9) is fixedly connected with a positioning groove (9), the side wall that locating plate (9) were kept away from to the pull rod stretches out the constant head tank, the one end fixedly connected with arm-tie (11) that the constant head tank was stretched out to the pull rod, the same root first spring of lateral wall fixedly connected with of one side is relative with an inserted bar (7) in arm-tie (11), two the same rain shade (12) of upper end fixedly connected with of inserted bar (8).

2. The intelligent low-temperature catalytic combustion equipment and the exhaust gas treatment method thereof according to claim 1, wherein the connecting mechanism comprises an elastic tube (13) fixedly communicated with the upper side wall of the activated carbon box (2), the upper end of the elastic tube (13) and the lower side wall of the adsorption air duct (3) are both communicated with an annular tube (14), two annular tubes (14) are both fixedly sleeved with a mounting ring (16), two clamping rings (17) hinged to each other are sleeved outside the two mounting rings (16), the longitudinal section of each clamping ring (17) is of an inverted-U-shaped structure, the side wall of the clamping ring (17) on one side is fixedly connected with a sliding frame (18), a sliding block is slidably connected in the sliding frame (18), the side wall of the sliding block and the side wall of the sliding frame (18) on the opposite side are fixedly connected with a same second spring, the upper side wall of the sliding block is fixedly connected with a guide plate, the side wall of the sliding frame (18) is provided with a guide hole matched with the guide plate, the guide plate extends out of the guide hole and is fixedly connected with a clamping frame (19) on the other side, the side wall of the clamping ring (17) is fixedly connected with a guide plate, and the length of the clamping plate (20) is in contact with the lower side of the clamping plate (18), and the clamping plate, and the length of the clamping plate (20) is equal to the length of the clamping plate (20).

3. The intelligent low-temperature catalytic combustion equipment and the exhaust gas treatment method thereof according to claim 1, wherein a cover plate (21) is hinged to the front side of the combustion furnace (4), a bending plate (22) is fixedly connected to the side wall of the cover plate (21), two clamping blocks (23) are fixedly connected to the right side wall of the combustion furnace (4), limiting holes are formed in the side walls of the two clamping blocks (23), limiting pins are inserted into the limiting holes, and through holes matched with the limiting pins are formed in the side walls of the bending plate (22).

4. The intelligent low-temperature catalytic combustion equipment and the exhaust gas treatment method thereof according to claim 1, wherein a working barrel (24) is fixedly connected to the inner wall of the lower side of the combustion furnace (4), a memory alloy (25) is fixedly connected to the inner wall of the working barrel (24), the memory alloy (25) is placed in the working barrel (24) in a bending mode, a communication plate (26) is fixedly connected to the right side of the memory alloy (25), two conductive blocks (27) are fixedly connected to the inner side of the working barrel (24), and the two conductive blocks (27) are electrically connected with a power-off valve for controlling the combustion furnace (4).

5. The intelligent low-temperature catalytic combustion equipment and the exhaust gas treatment method thereof according to claim 3, wherein the front side of the cover plate (21) is provided with an observation window, and the front side of the cover plate (21) is fixedly connected with a handle (29).

6. The intelligent low-temperature catalytic combustion equipment and the exhaust gas treatment method thereof according to claim 1, wherein a gas detector (30) is fixedly connected to a position of the chimney (6) close to the outlet.

7. The intelligent low-temperature catalytic combustion equipment and the exhaust gas treatment method thereof according to claim 1, wherein a support frame (28) is fixedly connected to the right side wall of the rightmost activated carbon box (2), and the upper end of the support frame (28) is fixedly connected to the lower side wall of the adsorption air duct (3).

8. The exhaust gas treatment method of the intelligent low-temperature catalytic combustion equipment as claimed in any one of claims 1 to 7, comprising the steps of:

s1, fixedly communicating an air inlet and an exhaust gas discharge port of a filter box (1);

s2, introducing the waste gas into the filter box (1), and treating particulate matters in the waste gas by using the filter box (1);

s3, the waste gas adsorbed by the filter box (1) is conveyed to the activated carbon box (2) through the adsorption air pipe (3), and the impurities in the waste gas are adsorbed by the activated carbon box (2):

s4, a pollution source in the waste gas is intercepted in the activated carbon box (2), and the cleaned gas is discharged by the adsorption fan (5) and the chimney (6);

and S5, starting the combustion furnace (4) to perform desorption process on the plurality of activated carbon boxes (2).
