Abstract

The invention discloses a dust-free cooling type motor, which relates to the technical field of motors and includes a motor body and a base, the bottom of the motor body is fixedly connected with the top of the base, the outer wall of the base is provided with a cooling cover, and the cooling cover The inner wall of the cooling cover is fixedly connected with an arc-shaped socket, the bottom of the cooling cover is slidably connected with the top of the base, the outer wall of the cooling cover is fixedly connected with a condenser, and the top of the condenser is fixedly connected with a water injection pipe. In the present invention, the temperature of the cooling liquid can be reduced by the arrangement of the condenser, the circulation pipe, the shunt pipe, the heat absorbing plate, the cooling pipe and the heat conducting strip, and the circulation pipe can reduce the temperature of the cooling liquid in the shunt pipe at the same time. The cooling liquid is circulated, and the cooling efficiency can be improved through the cooling pipe. At the same time, the heat generated by the surface of the motor body can be easily absorbed through the heat-conducting strip, so that the heat absorbed by the heat-conducting strip can be cooled through the heat-absorbing plate.

Description

A dust-free cooling motor

technical field

The invention relates to the technical field of motors, in particular to a dust-free cooling motor.

Background technique

An electric motor is a device that converts electrical energy into mechanical energy. It uses energized coils to generate a rotating magnetic field and acts on the rotor to form a magnetoelectric force rotating torque. Motors are divided into DC motors and AC motors according to different power sources. Most of the motors we often use are AC motors. There are following problems at prior art:

1. After the motor runs for a long time, a large amount of heat will be generated inside it, which will cause excessive heat to accumulate inside and on the surface of the motor, which is not conducive to the long-term operation of the motor;

2. During the long-term use of the motor, the external air will circulate inside the motor, causing external dust to easily accumulate inside the motor, which will easily affect the normal operation of the motor.

Contents of the invention

In order to solve the problems of the technologies described above, the technical solution adopted in the present invention is:

A dust-free cooling motor, comprising a motor body and a base, the bottom of the motor body is fixedly connected to the top of the base, the outer wall of the base is provided with a cooling cover, and the inner wall of the cooling cover is fixedly connected with an arc-shaped holder , the bottom of the cooling cover is slidingly connected to the top of the base, the outer wall of the cooling cover is fixedly connected with a condenser, the top of the condenser is fixedly connected with a water injection pipe, and the output end of the condenser is fixedly connected with a circulation pipe , the other end of the circulation pipe runs through the inner wall of the arc-shaped seat.

The bottom of the base is provided with a cavity seat, and the top of the cavity seat is provided with a placement opening, and the inner wall of the placement opening is slidingly connected with the outer wall of the base.

The further improvement of the technical solution of the present invention lies in that: the inner wall of the arc-shaped holder is clamped with a shunt pipe, the outer wall of the shunt pipe is fixedly connected with the other end of the circulation pipe, and the outer wall of the shunt pipe is fixedly connected with a cooling pipe. The cooling pipe is arranged in an arc shape.

By adopting the above technical solution, the shunt tube in this solution can fill the cooling liquid in the cooling tube, and meanwhile, the cooling tube is arc-shaped to better fit the main body of the motor.

The further improvement of the technical solution of the present invention lies in that: a heat absorbing plate is fixedly connected to the edge of the inner wall of the arc-shaped holder, the heat absorbing plate is arranged in a semicircle, and a heat conducting strip is fixedly connected to the inner wall of the heat absorbing plate.

With the above technical solution, the heat conducting strip in this solution can absorb the heat on the motor body, and at the same time contact the cooling pipe through the heat absorbing plate, so as to accelerate the cooling of the motor body.

The further improvement of the technical solution of the present invention is: the right end of the cooling cover is provided with a ventilation ring, the outer wall of the ventilation ring is fixedly connected with a staple, the outer wall of the staple is detachably connected with the right end of the cooling cover, the ventilation The inner wall of the ring is fixedly connected with a mounting frame, the inner wall of the mounting frame is rotatably connected with a rotating rod, the right end of the rotating rod is fixedly mounted with a fan blade, the left end of the rotating rod is rotatably connected with a bearing, and the left end of the bearing runs through The inner wall of the motor body.

With the above technical solution, the staples in this solution can facilitate the installation or removal of the ventilation ring, and at the same time, can be connected with the rotating shaft inside the motor body through the bearing, so that the rotating rod can be rotated through the bearing to drive the fan blade to rotate. Accelerate the circulation of air.

The further improvement of the technical solution of the present invention lies in that: the edge of the inner wall of the ventilation ring is fixedly connected with a dustproof plate, the left side of the dustproof plate is fixedly connected with an elastic rope, and the other end of the elastic rope is fixedly connected with a light A quality movable ring, the inner wall of the lightweight movable ring is fixedly connected with a connecting rod, the right side of the connecting rod is fixedly connected with a striking rod, and the outer wall of the striking rod is fixedly connected with a windshield ring.

Adopting the above-mentioned technical scheme, when the windshield ring in this scheme is blown by the wind force, it can drive the light-weight movable ring to move, and at the same time make the air flow. At the same time, when the air stops flowing, the light-weight movable ring can be moved The ring resets.

The further improvement of the technical solution of the present invention is that: the outer wall of the dust-proof plate is provided with a ventilation hole, the inner wall of the ventilation hole is fixedly connected with a dust-proof net, and the outer wall of the dust-proof net is movably connected with the right end of the striking rod.

With the above technical solution, the ventilation holes in this solution can keep the air circulating, and at the same time, the dust in the air can be blocked by the dust-proof net to prevent the dust from entering the inside of the motor body, and the impact rod can hit the dust-proof net at the same time , so as to clean the dust on the dust filter.

The further improvement of the technical solution of the present invention is that: the inner wall of the cavity seat is slidably connected with a support plate, the bottom of the support plate is provided with a groove, the inner wall of the groove is fixedly connected with a buffer spring, and the buffer spring The bottom end is fixedly connected with the bottom of the inner wall of the cavity seat, the top of the support plate is fixedly connected with a rubber pad, and the top of the rubber pad overlaps with the bottom of the base.

By adopting the above technical solution, the buffer spring in the solution can buffer the motor body on the support plate, avoiding the motor body from vibrating up and down during use, so that the motor body can run smoothly.

The further improvement of the technical solution of the present invention lies in that: the inner wall of the cavity seat is fixedly connected with a fixing frame above the support plate, a guide hole is opened on the right side of the fixing frame, and the inner wall of the cavity seat is located at An electric telescopic rod is fixedly installed inside the fixed frame, the outer wall of the telescopic end of the electric telescopic rod is slidingly connected with the inner wall of the guide hole, and the telescopic end of the electric telescopic rod is fixedly connected with a clamping plate.

With the above technical solution, the electric telescopic rod in this solution can push the clamping plate to move, so that the base can be easily fixed through the clamping plate, avoiding the shaking of the motor body during operation, and at the same time, the guide hole can make the electric telescopic rod stable to move.

Owing to adopting above-mentioned technical scheme, relative to the prior art, the technical progress of the present invention is:

1. The present invention provides a dust-free cooling motor. Through the cooperation between the set condenser, circulation pipe, shunt pipe, heat absorbing plate, cooling pipe and heat conduction strip, the temperature of the cooling liquid can be controlled by the set condenser. At the same time, the circulation pipe can circulate the coolant in the shunt pipe, and the cooling efficiency can be improved through the cooling pipe. At the same time, the heat generated on the surface of the motor body can be easily absorbed through the heat-conducting strip, so that the heat-conducting strip can be absorbed by the heat-absorbing plate. Cool down the heat to prevent the temperature of the motor body from being too high. At the same time, the heat absorbing plate can prevent the cooling pipe from being damaged.

2. The present invention provides a dust-free cooling motor, through the cooperation between the set bearings, rotating rods, light movable rings, elastic ropes, windshield rings, impact rods, ventilation holes and dust-proof nets, through the main body of the motor The internal rotating shaft drives the bearing to rotate, and then the rotating rod drives the fan blades to rotate, so as to generate wind force, so that the wind force can blow the windshield ring, and the light movable ring is driven by the impact rod to move, so that the external air can pass through the ventilation hole. At the same time, the dust in the air can be blocked by the dust-proof net to prevent the dust from entering the inside of the motor body. When the fan blade stops rotating, the elastic rope can reset the light-weight movable ring, which in turn can facilitate the impact of the anti-corrosion rod. The dust net is impacted to clean the dust on the dust net, so as to avoid excessive dust accumulation inside the main body of the motor after long-term operation.

3. The present invention provides a dust-free cooling motor. Through the cooperation between the fixed frame, the electric telescopic rod, the clamping plate, the guide hole, the rubber pad, the support plate and the buffer spring, the electric telescopic rod is controlled by the fixed frame. For protection, at the same time, the electric telescopic rod can be kept stable during the movement through the guide hole, and the electric telescopic rod can push the clamping plate to move, so that the base can be fixed through the clamping plate, and the main body of the motor can be fixed. At the same time, the buffer spring can The running motor body on the support plate is buffered to prevent the motor body from vibrating up and down during use.

Description of drawings

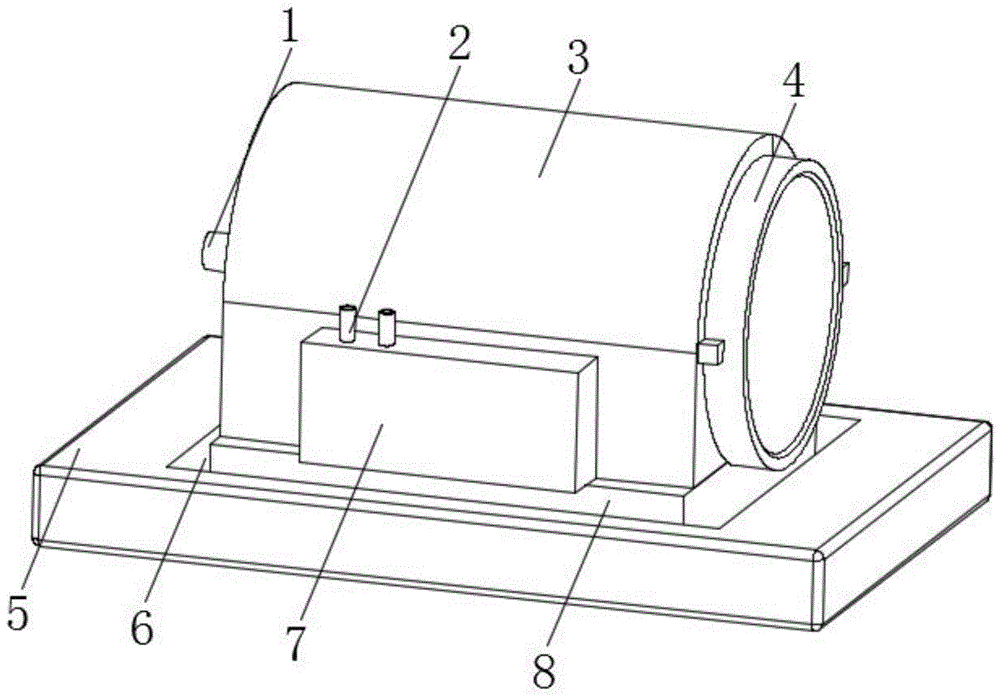

Fig. 1 is a structural representation of the present invention;

Fig. 2 is a schematic diagram of the structural connection between the cooling cover and the arc holder of the present invention;

Fig. 3 is a structural cross-sectional view of the arc-shaped holder of the present invention;

Fig. 4 is a structural sectional view of the ventilation ring of the present invention;

Fig. 5 is the enlarged view of place A in Fig. 4 of the present invention;

Fig. 6 is a structural cross-sectional view of the cavity seat of the present invention;

Fig. 7 is an enlarged view of B in Fig. 6 of the present invention.

In the figure: 1. Motor main body; 2. Water injection pipe; 3. Cooling cover; 4. Ventilation ring; 5. Cavity seat; 6. Placement port; 7. Condenser; 8. Base; 10. Cooling pipe; 11. Circulation pipe; 12. Heat-absorbing plate; 13. Diverter pipe; 14. Thermal strip; 15. Staple; 16. Mounting frame; 17. Bearing; 18. Elastic rope; 19. Dustproof board ;20, lightweight movable ring; 21, rotating rod; 22, connecting rod; 23, windshield ring; 24, impact rod; 25, dust-proof net; 26, ventilation hole; 29. Buffer spring; 30. Support plate; 31. Fixed frame; 32. Electric telescopic rod; 33. Guide hole; 34. Clamping plate.

Detailed ways

Below in conjunction with embodiment the present invention is described in further detail:

Example 1

As shown in Figures 1-7, the present invention provides a dust-free cooling motor, including a motor body 1 and a base 8, the bottom of the motor body 1 is fixedly connected to the top of the base 8, and the outer wall of the base 8 is provided with a cooling cover 3 , the inner wall of the cooling cover 3 is fixedly connected with an arc-shaped deck 9, the bottom of the cooling cover 3 is slidingly connected with the top of the base 8, the outer wall of the cooling cover 3 is fixedly connected with a condenser 7, and the top of the condenser 7 is fixedly connected with a water injection pipe 2. The output end of the condenser 7 is fixedly connected with a circulation pipe 11, the other end of the circulation pipe 11 runs through the inner wall of the arc-shaped holder 9, the bottom of the base 8 is provided with a cavity seat 5, and the top of the cavity seat 5 is provided with a place Port 6, the inner wall of the placement port 6 is slidably connected with the outer wall of the base 8 .

As shown in Figures 1-7, preferably, the inner wall of the arc-shaped holder 9 is clamped with a shunt pipe 13, the outer wall of the shunt pipe 13 is fixedly connected with the other end of the circulation pipe 11, and the outer wall of the shunt pipe 13 is fixedly connected with a cooling pipe. 10. The cooling pipe 10 is arranged in an arc shape, and the shunt pipe can fill the cooling liquid in the cooling pipe 10. At the same time, the cooling pipe 10 is arc-shaped to better fit the motor body 1. The inner wall of the arc-shaped holder 9 The edge is fixedly connected with a heat absorbing plate 12, the heat absorbing plate 12 is set in a semicircle, and the inner wall of the heat absorbing plate 12 is fixedly connected with a heat conducting strip 14, which can absorb the heat on the motor body 1, and at the same time pass the heat absorbing The hot plate 12 is in contact with the cooling pipe 10 , so that the cooling of the motor main body 1 can be accelerated.

Example 2

As shown in Figures 1-7, on the basis of Embodiment 1, the present invention provides a technical solution: preferably, the right end of the cooling cover 3 is provided with a ventilation ring 4, and the outer wall of the ventilation ring 4 is fixedly connected with a staple 15, The outer wall of the staple 15 is detachably connected with the right end of the cooling cover 3, the inner wall of the ventilation ring 4 is fixedly connected with a mounting bracket 16, the inner wall of the mounting bracket 16 is rotatably connected with a rotating rod 21, and the right end of the rotating rod 21 is fixedly equipped with a fan blade. The left end of the rotating rod 21 is rotatably connected with a bearing 17, and the left end of the bearing 17 runs through the inner wall of the motor body 1. The staple 15 can facilitate the installation or removal of the ventilation ring 4, and can be connected with the rotating shaft inside the motor body 1 through the bearing 17. , and then it is convenient to rotate the rotating rod 21 through the bearing 17, drive the fan blades to rotate, and accelerate the circulation of the air. The edge of the inner wall of the ventilation ring 4 is fixedly connected with a dustproof plate 19, and the left side of the dustproof plate 19 is fixedly connected with a Elastic rope 18, the other end of elastic rope 18 is fixedly connected with lightweight movable ring 20, and the inwall of lightweight movable ring 20 is fixedly connected with connecting rod 22, and the right side of connecting rod 22 is fixedly connected with striking rod 24, and striking rod 24 The outer wall of the outer wall is fixedly connected with a windshield ring 23. When the windshield ring 23 is blown by the wind, it can drive the lightweight movable ring 20 to move, and at the same time make the air flow. When the air stops flowing, the elastic cord 18 can The light movable ring 20 is reset, and the outer wall of the dustproof plate 19 is provided with a ventilation hole 26, and the inner wall of the ventilation hole 26 is fixedly connected with a dustproof net 25, and the outer wall of the dustproof net 25 is movably connected with the right end of the impact bar 24, and the ventilation The hole 26 can keep the air circulating, and the dust in the air can be blocked by the dust-proof net 25 to prevent the dust from entering the inside of the motor main body 1, and the impact rod 24 can impact the dust-proof net 25 simultaneously, so as to protect the dust-proof net 25. The dust on the net 25 is cleaned.

Example 3

As shown in Figures 1-7, on the basis of Embodiment 1, the present invention provides a technical solution: preferably, the inner wall of the cavity seat 5 is slidably connected with a support plate 30, and the bottom of the support plate 30 is provided with a groove 28 , the inner wall of the groove 28 is fixedly connected with a buffer spring 29, the bottom of the buffer spring 29 is fixedly connected with the bottom of the inner wall of the cavity seat 5, the top of the support plate 30 is fixedly connected with a rubber pad 27, and the top of the rubber pad 27 is connected with the base 8 The bottom of the bottom overlaps, and the buffer spring 29 can buffer the motor body 1 on the support plate 30, avoiding the situation that the motor body 1 vibrates up and down during use, so that the motor body 1 can run smoothly, and the cavity seat 5 The inner wall is fixedly connected with a fixed frame 31 above the support plate 30, and the right side of the fixed frame 31 is provided with a guide hole 33. The outer wall of the telescopic end of the telescopic rod 32 is slidingly connected with the inner wall of the guide hole 33, and the telescopic end of the electric telescopic rod 32 is fixedly connected with a clamping plate 34, and the electric telescopic rod 32 can push the clamping plate 34 to move, thereby passing the clamping plate 34 It is convenient to fix the base 8 to avoid shaking of the motor body 1 during operation, and at the same time, the guide hole 33 enables the electric telescopic rod 32 to move stably.

Let's talk about the working principle of the dust-free cooling motor in detail.

As shown in Figure 1-7, the base 8 and the motor body 1 are placed on the support plate, so that the electric telescopic rod 32 is kept stable through the guide hole 33 during the telescopic process, and at the same time, the electric telescopic rod 32 pushes the clamping plate 34 to move, The clamping plate 34 is fixed to the base 8, which facilitates the installation of the motor body 1. When the motor body 1 is running, the buffer spring 29 can buffer the motor body 1 on the support plate to prevent the motor body 1 from appearing during operation. Vibrating up and down, the rotating shaft inside the motor body 1 drives the bearing 17 to rotate, so that the rotating rod 21 drives the fan blades to rotate, so that the generated wind blows the windshield ring 23, so that the windshield ring 23 drives the light weight through the impact rod 24. The movable ring 20 moves to facilitate the circulation of external air through the ventilation holes 26, and the dust-proof net 25 can block the dust in the air to prevent the dust from entering the inside of the motor main body 1. When the fan blade stops rotating, the elastic cord 18 makes the The lightweight movable ring 20 is reset, so that the impact rod 24 impacts the dust-proof net 25, and the dust on the dust-proof net 25 is cleaned up, which can be reused. The temperature of the cooling liquid is reduced by the condenser 7, and the circulation pipe 11 The cooling liquid in the shunt pipe 13 is circulated, so that the cooling pipe 10 can improve the cooling efficiency, and the heat conduction strip can absorb the heat generated on the surface of the motor body 1, so that the heat absorption plate 12 can cool down the heat absorbed by the heat conduction strip 14, To prevent the temperature of the motor main body 1 from being too high, and at the same time, the heat absorbing plate 12 can protect the cooling pipe 10 .

The above has generally described the present invention in detail, but some modifications or improvements can be made on the basis of the present invention, which are obvious to those skilled in the art. Therefore, any modifications or improvements that do not depart from the spirit of the present invention are within the protection scope of the present invention.

Claims (8)

1. A dust-free cooling type motor, comprising a motor body (1) and a base (8), the bottom of the motor body (1) is fixedly connected to the top of the base (8), it is characterized in that: the base (8 ) is provided with a cooling cover (3) on the outer wall, the inner wall of the cooling cover (3) is fixedly connected with an arc-shaped holder (9), and the bottom of the cooling cover (3) is slidingly connected to the top of the base (8), The outer wall of the cooling cover (3) is fixedly connected with a condenser (7), the top of the condenser (7) is fixedly connected with a water injection pipe (2), and the output end of the condenser (7) is fixedly connected with a circulation pipe (11), the other end of the circulation pipe (11) runs through the inner wall of the arc-shaped holder (9); The bottom of the base (8) is provided with a cavity seat (5), and the top of the cavity seat (5) is provided with a placement opening (6), and the inner wall of the placement opening (6) and the base (8) External wall sliding connection. 2. A dust-free cooling motor according to claim 1, characterized in that: the inner wall of the arc-shaped holder (9) is clamped with a shunt tube (13), and the outer wall of the shunt tube (13) It is fixedly connected with the other end of the circulation pipe (11), and the outer wall of the branch pipe (13) is fixedly connected with a cooling pipe (10), and the cooling pipe (10) is arranged in an arc shape. 3. A dust-free cooling motor according to claim 1, characterized in that: a heat-absorbing plate (12) is fixedly connected to the edge of the inner wall of the arc-shaped holder (9), and the heat-absorbing plate ( 12) is arranged in a semicircle, and the inner wall of the heat absorbing plate (12) is fixedly connected with a heat conducting strip (14). 4. A dust-free cooling motor according to claim 1, characterized in that: the right end of the cooling cover (3) is provided with a ventilation ring (4), and the outer wall of the ventilation ring (4) is fixedly connected with staple (15), the outer wall of the staple (15) is detachably connected to the right end of the cooling cover (3), the inner wall of the ventilation ring (4) is fixedly connected with a mounting frame (16), and the mounting frame ( The inner wall of 16) is rotatably connected with a rotating rod (21), the right end of the rotating rod (21) is fixedly equipped with fan blades, and the left end of the rotating rod (21) is rotatably connected with a bearing (17), and the bearing (17) ) runs through the inner wall of the motor body (1). 5. A dust-free cooling motor according to claim 4, characterized in that: a dust-proof plate (19) is fixedly connected to the edge of the inner wall of the ventilation ring (4), and the dust-proof plate (19) The left side of the left side is fixedly connected with an elastic rope (18), and the other end of the elastic rope (18) is fixedly connected with a lightweight movable ring (20), and the inner wall of the described lightweight movable ring (20) is fixedly connected with a connecting rod (22), the right side of the connecting rod (22) is fixedly connected with a strike rod (24), and the outer wall of the strike rod (24) is fixedly connected with a windshield ring (23). 6. A dust-free cooling motor according to claim 5, characterized in that: the outer wall of the dust-proof plate (19) is provided with a ventilation hole (26), and the inner wall of the ventilation hole (26) is fixedly connected to There is a dustproof net (25), and the outer wall of the dustproof net (25) is movably connected with the right end of the striking rod (24). 7. A dust-free cooling motor according to claim 1, characterized in that: the inner wall of the cavity seat (5) is slidably connected with a support plate (30), and the bottom of the support plate (30) is opened There is a groove (28), the inner wall of the groove (28) is fixedly connected with a buffer spring (29), and the bottom end of the buffer spring (29) is fixedly connected with the bottom of the inner wall of the cavity seat (5). A rubber pad (27) is fixedly connected to the top of the support plate (30), and the top of the rubber pad (27) overlaps with the bottom of the base (8). 8. A dust-free cooling motor according to claim 1, characterized in that: the inner wall of the cavity seat (5) is fixedly connected with a fixing frame (31) above the support plate (30), so that The right side of the fixed frame (31) is provided with a guide hole (33), and the inner wall of the cavity seat (5) is fixedly installed with an electric telescopic rod (32) inside the fixed frame (31). The outer wall of the telescopic end of the telescopic rod (32) is slidingly connected with the inner wall of the guide hole (33), and the telescopic end of the electric telescopic rod (32) is fixedly connected with a clamping plate (34).
