Abstract

The invention discloses a water treatment device for an intelligent fire-fighting construction project, comprising a protective casing, a mobile component and a stirring component. A mobile base is fixedly installed at the bottom of the protective casing, and a water inlet pipe is arranged through the top of the protective casing. A storage box is fixedly installed at the bottom of the water inlet pipe; the moving component is located inside the mobile base, and the stirring component is located inside the storage box; the moving component includes an electric push rod, a chute, a lifting plate, a wheel and a through hole , the number of the electric push rods is that two are fixedly installed on the inner top wall of the mobile base, the direction of the telescopic end of the electric push rod is the lower side, and the telescopic ends of the two electric push rods are connected with the lifting plate. The top is fixed. The intelligent fire-fighting construction engineering water treatment device achieves the purpose of being convenient to move as a whole, and can effectively remove impurities for the intelligent fire-fighting construction engineering water, and has good inventiveness.

Description

An intelligent fire protection construction engineering water treatment device

technical field

The invention relates to the technical field of water purification, in particular to an intelligent water treatment device for fire-fighting construction engineering.

Background technique

In short, water purification is the purification of water. Water purification is to remove rust, sediment, residual chlorine, organic matter, harmful The process of heavy metal ions, bacteria, viruses, etc.

The intelligent fire protection construction water treatment device on the market can play a role in purifying the intelligent fire protection construction water. However, when the existing intelligent fire protection construction water treatment device is used, there will be a lot of sediment and Other magazines enter the interior of the water treatment device, causing the interior of the water treatment device to be blocked by sediment, and the water treatment device for intelligent fire-fighting construction projects is not easy to move because of its heavy weight, and requires a lot of labor or machinery to move , very inconvenient, so an intelligent fire protection construction water treatment device is proposed to solve the above problems.

Contents of the invention

Aiming at the deficiencies of the prior art, the present invention provides an intelligent water treatment device for fire-fighting construction engineering, which has the advantages of convenient movement and impurity removal, and solves the problems of inconvenient movement and impossibility of impurity removal.

In order to achieve the above object, the present invention provides the following technical solutions: an intelligent fire protection construction water treatment device, including a protective shell, a moving assembly and a stirring assembly, the bottom of the protective shell is fixedly installed with a mobile base, and the top of the protective shell A water inlet pipe is arranged through the water inlet pipe, and a storage box is fixedly installed at the bottom of the water inlet pipe.

The moving assembly is located inside the mobile base, and the stirring assembly is located inside the storage box.

The mobile assembly includes an electric push rod, a chute, a lifting plate, wheels and through holes, and the number of the electric push rod is two fixedly installed on the inner top wall of the mobile base, and the expansion and contraction of the electric push rod The end direction is the lower side, the telescopic ends of the two electric push rods are fixed to the top of the lifting plate, the bottom of the lifting plate is fixed to the top of the wheel, and the number of the chute is two. On the left and right side walls of the interior, the number of through openings is two through the bottom of the mobile base, and the left and right ends of the bottom of the mobile base are fixedly installed with supporting cushions.

Further, the stirring assembly includes a stirring shaft, a driving motor fixing frame and a driving motor, the bottom of the storage box is fixed to the top of the driving motor fixing frame, and the driving motor is fixedly installed inside the driving motor fixing frame, the The direction of the output end of the driving motor is the upper side, and the output end of the driving motor is fixedly installed with a stirring shaft.

Further, a first filter plate and a third filter plate are fixedly installed inside the water inlet pipe, the first filter plate is located above the third filter plate, and a third connection plate is fixedly installed on the left and right sides of the water inlet pipe. Tube.

Further, the bottoms of the third connecting pipes on the left and right sides are fixedly equipped with first connecting pipes, and the sides of the first connecting pipes on the left and right sides close to the central axis of the third filter plate are fixed to the left and right sides of the water inlet pipe. , the connection between the first connecting pipe and the third connecting pipe is fixedly installed with a second filter plate.

Further, the left and right sides of the inner top wall of the storage box are fixedly installed with germicidal lamp mounting seats, and the bottoms of the left and right sides of the germicidal lamp mounting seats are fixedly installed with germicidal lamps.

Further, the left and right sides of the storage box are provided with second water pipes, the bottoms of the second water pipes on the left and right sides are fixedly installed with water pumps, and the bottoms of the water pumps on the left and right sides are fixedly installed with first water pipes, A second connecting pipe is fixedly installed on the left and right sides of the stirring shaft close to the central axis of the third filter plate.

Further, a control switch is installed on the top of the water outlet pipe and on the right side of the protective casing. The left and right sides of the mobile base are fixedly installed with fixing plates.

Further, a connecting rod is provided through the middle of the fixing plate, and a supporting bottom plate is fixedly installed on the bottom of the connecting rod.

Compared with the prior art, the technical solution of the present application has the following beneficial effects:

1. The intelligent fire protection construction water treatment device can drive the entire intelligent fire protection construction water treatment device to move through the mobile components whose height is inside the mobile base, and through the support cushion, fixed plate, connecting rod and support base, in the When there is no need to move, the intelligent fire-fighting construction engineering water treatment device can be kept from moving.

2. The intelligent fire-fighting construction water treatment device can sterilize the water inside the storage box through the germicidal lamp fixed on the germicidal lamp mounting base, and through the stirring component, the water that has not been filtered completely will not appear The phenomenon of sinking to the bottom improves the efficiency of water purification.

Description of drawings

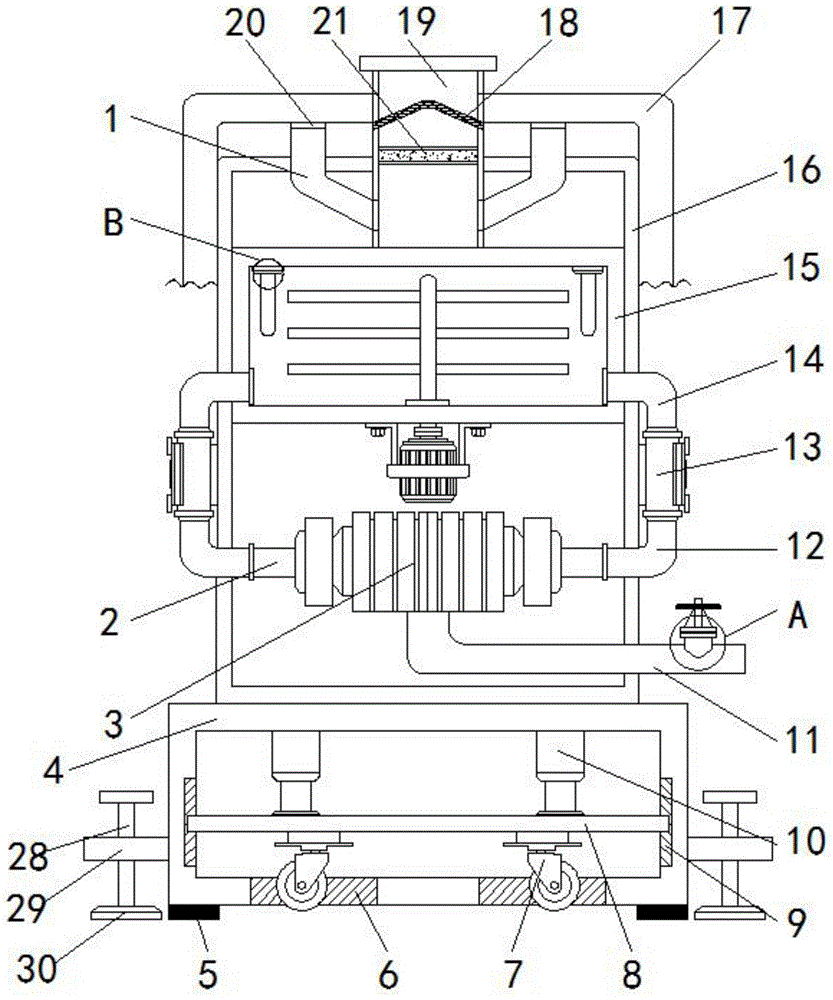

Fig. 1 is a structural representation of the present invention;

Fig. 2 is a sectional view of the mobile assembly of the present invention;

Fig. 3 is the enlarged view of stirring assembly of the present invention;

Fig. 4 is the enlarged view of A in Fig. 1 of the present invention;

Fig. 5 is an enlarged view of B in Fig. 1 of the present invention.

In the figure: 1 first connecting pipe, 2 second connecting pipe, 3 water purifier, 4 mobile base, 5 support cushion, 6 through hole, 7 wheel, 8 lifting plate, 9 chute, 10 electric push rod, 11 outlet pipe, 12 first water pipe, 13 water pump, 14 second water pipe, 15 storage box, 16 protective shell, 17 third connecting pipe, 18 first filter plate, 19 water inlet pipe, 20 second filter plate, 21 third Filter plate, 22 stirring shafts, 23 driving motor fixing frames, 24 driving motors, 25 control switches, 26 germicidal lamp mounts, 27 germicidal lamps, 28 connecting rods, 29 fixed plates, 30 support base plates.

Detailed ways

The following will clearly and completely describe the technical solutions in the embodiments of the present invention with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only some, not all, embodiments of the present invention. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present invention.

Please refer to Fig. 1-5, a kind of intelligent fire-fighting construction engineering water treatment device in the present embodiment, comprises protective shell 16, moving assembly and stirring assembly, the bottom of protective shell 16 is fixedly installed with mobile base 4, the top of protective shell 16 A water inlet pipe 19 is installed through it, and a storage tank 15 is fixedly installed at the bottom of the water inlet pipe 19. A first filter plate 18 and a third filter plate 21 are fixedly installed inside the water inlet pipe 19, and the first filter plate 18 is located on the third filter plate 21. Above, the left and right sides of the water inlet pipe 19 are fixedly installed with the third connecting pipe 17, the bottom of the third connecting pipe 17 on the left and right sides is fixedly installed with the first connecting pipe 1, and the first connecting pipe 1 on the left and right sides is close to the first connecting pipe 1. One side of the central axis of the three filter plates 21 is fixed to the left and right sides of the water inlet pipe 19 , and the second filter plate 20 is fixedly installed at the junction of the first connecting pipe 1 and the third connecting pipe 17 .

In addition, the left and right sides of the storage box 15 are provided with second water pipes 14, the bottoms of the second water pipes 14 on the left and right sides are fixedly installed with water pumps 13, and the bottoms of the left and right water pumps 13 are fixedly installed with first water pipes 12. The stirring shaft 22 on the left and right sides is fixedly installed with the second connecting pipe 2 on one side close to the central axis of the third filter plate 21, and the water purifier 3 is fixedly installed between the second connecting pipe 2 on the left and right sides. A water outlet pipe 11 is fixedly installed on the bottom plate, and a control switch 25 is installed on the top of the water outlet pipe 11 and on the right side of the protective shell 16 .

Wherein, the outlet pipe 11 runs through the right side wall of the protective shell 16, the second water pipe 14 and the first water pipe 12 on the left and right sides respectively run through the left and right side walls of the protective shell 16, and the left and right water pumps 13 on the left and right sides and the left and right sides of the protective shell 16 The two sides are fixedly connected, and the first connecting pipes 1 on the left and right sides both pass through the upper side wall of the protective shell 16 .

The moving assembly is located inside the mobile base 4 , and the stirring assembly is located inside the storage box 15 .

The mobile assembly includes an electric push rod 10, a chute 9, a lifting plate 8, wheels 7 and a through hole 6, and the number of the electric push rod 10 is two and is fixedly installed on the inner top wall of the mobile base 4. The electric push rod 10 The direction of the telescopic end is the lower side, the telescopic ends of the two electric push rods 10 are fixed to the top of the lifting plate 8, the bottom of the lifting plate 8 is fixed to the top of the wheel 7, and the number of chute 9 is two. On the left and right side walls inside the base 4, the number of through openings 6 is two through the bottom of the mobile base 4, and the left and right ends of the bottom of the mobile base 4 are fixedly equipped with supporting cushions 5.

Wherein, the lifting plate 8 slides up and down between the chutes 9 on the left and right sides, the wheels 7 penetrate through the opening 6 through the lower side wall of the mobile base 4, and the lifting plate 8 and the electric push rod 10 are vertically arranged. Support cushion 5 plays the effect of antiskid support.

In this embodiment, the stirring assembly includes a stirring shaft 22, a drive motor fixing frame 23 and a driving motor 24, the bottom of the storage box 15 is fixed to the top of the driving motor fixing frame 23, and the driving motor 24 is fixedly mounted on the top of the driving motor fixing frame 23. Inside, the direction of the output end of the driving motor 24 is the upper side, and the output end of the driving motor 24 is fixedly installed with the stirring shaft 22 .

In this embodiment, the left and right sides of the inner top wall of the storage box 15 are fixedly installed with germicidal lamp mounting seats 26 , and the bottoms of the left and right sides of the germicidal lamp mounting seats 26 are fixedly installed with germicidal lamps 27 .

In this embodiment, the left and right sides of the mobile base 4 are fixedly mounted with fixed plates 29 , the middle of the fixed plate 29 is provided with a connecting rod 28 , and the bottom of the connecting rod 28 is fixedly mounted with a support base plate 30 .

The working principle of the above-mentioned embodiment is:

The intelligent fire-fighting construction water treatment device first pours the water from the water inlet pipe 19 when processing the water for the intelligent fire-fighting construction engineering. When the water passes through the first filter plate 18, some larger magazines It is discharged from the third connecting pipe 17, and then the third filter plate 21 can filter the water for the second time, and the first connecting pipe 1 fixed at the bottom of the third connecting pipe 17 is fixed to the left and right sides of the water inlet pipe 19 connection, when the water discharged from the third connecting pipe 17 passes through the upper side of the first connecting pipe 1 and is filtered through the second filter plate 20, the water flowing out from the third connecting pipe 17 can be filtered again, and the water flowing out from the third connecting pipe 17 can be filtered again. The impurities flowing out of the connecting pipe 17 will be stored, and the water filtered through the second filter plate 20, the first filter plate 18 and the third filter plate 21 will enter into the storage box 15, and be driven by the drive motor fixed frame 23. The motor 24 drives the stirring shaft 22 to rotate, so that the water entering the storage box 15 can be stirred, and the sterilizing lamp 27 fixed by the sterilizing lamp mounting seat 26 can sterilize the water in the storage box 15. , through the water pump 13, the water inside the storage tank 15 can be made to enter the water purifier 3 through the second water pipe 14, the first water pipe 12, and the second connecting pipe 2, and the water in the water purifier 3 will flow out of the water outlet pipe 11 discharge, the control switch 25 can control the water outlet speed of the water outlet pipe 11; The downward movement can drive the wheels 7 to move downwards, and the wheels 7 can pass through the openings 6 through the lower side wall of the mobile base 4, so that the bottom of the wheels 7 can be in contact with the ground, so that the support cushion 5 and the support bottom plate The bottom of 30 is not in contact with the ground. When there is no need to move, the electric push rod 10 can make the wheels 7 not be in contact with the ground, and the support cushion 5 and the support base plate 30 will be in contact with the ground. The purpose is convenient to move, and can effectively remove impurities from the water used in intelligent fire-fighting construction projects, which is very inventive.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device. Without further limitations, an element defined by the phrase "comprising a ..." does not exclude the presence of additional identical elements in the process, method, article or apparatus comprising said element.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes, modifications and substitutions can be made to these embodiments without departing from the principle and spirit of the present invention. and modifications, the scope of the invention is defined by the appended claims and their equivalents.

Claims (9)

1. The utility model provides an intelligence fire control building engineering water treatment facilities, includes protecting sheathing (16), removes subassembly and stirring subassembly, its characterized in that: the bottom of the protective shell (16) is fixedly provided with a movable base (4), the top of the protective shell (16) is provided with a water inlet pipe (19) in a penetrating manner, and the bottom of the water inlet pipe (19) is fixedly provided with a storage box (15);

the moving assembly is positioned inside the moving base (4), and the stirring assembly is positioned inside the storage box (15);

the movable assembly comprises electric push rods (10), sliding grooves (9), lifting plates (8), wheels (7) and a support cushion (5) in the left end and the right end, the quantity of the electric push rods (10) is two equal fixed mounts on the inner top wall of the movable base (4), the telescopic end direction of the electric push rods (10) is a lower side and two telescopic ends of the electric push rods (10) are fixed to the top of the lifting plates (8), the bottom of the lifting plates (8) is fixed to the top of the wheels (7), the quantity of the sliding grooves (9) is two, the two telescopic ends of the electric push rods are arranged on the left side wall and the right side wall of the inner portion of the movable base (4), the quantity of the support cushion (5) penetrates through the bottom of the movable base (4) for two, and the support cushion (5) is fixedly mounted at the left end and the right end of the bottom of the movable base (4).

2. The intelligent fire fighting building engineering water treatment device according to claim 1, characterized in that: the stirring subassembly includes (mixing) shaft (22), driving motor mount (23) and driving motor (24), the bottom of storage box (15) is fixed mutually with the top of driving motor mount (23), driving motor (24) fixed mounting is in the inside of driving motor mount (23), the output end direction of driving motor (24) is the upside, the output fixed mounting of driving motor (24) has (mixing) shaft (22).

3. The intelligent fire-fighting building engineering water treatment device according to claim 1, characterized in that: the inside fixed mounting of inlet tube (19) has first filter (18) and third filter (21), first filter (18) are located the top of third filter (21), the equal fixed mounting in the left and right sides of inlet tube (19) has third connecting pipe (17).

4. The intelligent fire fighting water treatment device for building engineering according to claim 3, characterized in that: the left and right sides the equal fixed mounting in bottom of third connecting pipe (17) has first connecting pipe (1), the left and right sides one side that first connecting pipe (1) is close to third filter (21) center pin is fixed mutually with the left and right sides of inlet tube (19), the junction fixed mounting of first connecting pipe (1) and third connecting pipe (17) has second filter (20).

5. The intelligent fire fighting building engineering water treatment device according to claim 1, characterized in that: the sterilizing lamp storage box is characterized in that sterilizing lamp mounting seats (26) are fixedly mounted on the left side and the right side of the inner top wall of the storage box (15), and sterilizing lamps (27) are fixedly mounted on the bottoms of the sterilizing lamp mounting seats (26).

6. The intelligent fire-fighting building engineering water treatment device according to claim 1, characterized in that: the left and right sides of storage box (15) all runs through and is provided with second water pipe (14), the left and right sides the equal fixed mounting in bottom of second water pipe (14) has water pump (13), the left and right sides the equal fixed mounting in bottom of water pump (13) has first water pipe (12), the left and right sides (mixing) shaft (22) are close to the equal fixed mounting in one side of third filter (21) center pin has second connecting pipe (2).

7. The intelligent fire fighting water treatment device for building engineering according to claim 6, characterized in that: the left and right sides fixed mounting has purifier (3) between second connecting pipe (2), the bottom plate fixed mounting of purifier (3) has outlet pipe (11).

8. The intelligent fire fighting water treatment device for building engineering according to claim 7, characterized in that: the top of the water outlet pipe (11) and the right side of the protective shell (16) are provided with control switches (25), and the left side and the right side of the movable base (4) are fixedly provided with fixing plates (29).

9. The intelligent fire fighting water treatment device for building engineering according to claim 8, characterized in that: the middle part of fixed plate (29) runs through and is provided with connecting rod (28), the bottom fixed mounting of connecting rod (28) has supporting baseplate (30).
