CN115283960A - Automatic clamping equipment is used in production of gun sight focusing lens cone - Google Patents

Abstract

The invention relates to the technical field of focusing lens barrels, in particular to an automatic clamping device for the production of focusing lens barrels for sighting lenses, comprising a base, a conveying unit and an assembling unit; the existing lens barrel assembly has the following problems: due to the lens barrel disk It is impossible to limit and fix the lens barrel, so it is easy to cause the improper placement of the lens barrel, which will cause its position to shift and affect the assembly accuracy of the lens and the lens barrel; the clamping jaws only provide support for the lens barrel disk, The lens barrel disk cannot be limited and fixed, so the lens barrel disk lacks certain stability during the transmission process, so that it is easy to tilt or fall; the present invention can continuously assemble and process the eyepiece and the lens barrel, and it is convenient to take the eyepiece The lens barrel can be removed and clamped, thereby ensuring the accuracy when the eyepiece and the lens barrel are assembled; the present invention can limit and fix the lens barrel in multiple directions through the clamping strip, which can improve the stability of the lens barrel during transmission and assembly. , to prevent the lens barrel from shifting and falling.

Description

An automatic clamping device for the production of focusing lens barrels for scopes

technical field

The invention relates to the technical field of focusing lens barrels, in particular to an automatic clamping device for the production of focusing lens barrels for scopes.

Background technique

The scope refers to the optical aiming device. Most of the ends of the scope are equipped with a focusing lens barrel. The focal length of the scope can be changed through the focusing lens barrel, so as to obtain different-definition viewing angles and images of different sizes. The focusing lens barrel usually It is assembled from an eyepiece and a lens barrel. During the production process of the eyepiece, a fixed ring that is screwed to the inner wall of the lens is usually sleeved on the outer periphery of the eyepiece, and then the eyepiece and the lens barrel are assembled to facilitate its normal use later.

During the assembly process of the existing lens barrel, workers generally need to manually assemble and assemble the lenses on the lens barrel with the aid of a suction pen, which leads to low assembly efficiency and high labor cost. For the above problems of low assembly efficiency and high labor cost, corresponding solutions are provided in the prior art. For example, the Chinese utility model patent with the publication number CN206010308U discloses an assembly mechanism applied to automatic assembly equipment for lens barrels. The lens on the lens turntable of the two-dimensional mobile platform can be automatically assembled into the lens barrel in the lens barrel plate of the linkage device through the assembly mechanism, which can greatly reduce the labor cost, and the lens barrel assembly efficiency is high.

And the above-mentioned patent also has the following problems: 1. the above-mentioned patent controls the suction pen on the suction pen seat to move by a certain displacement value through the two-dimensional mobile platform, and makes the suction pen assemble the lens into the lens barrel, during which the lens barrel It needs to be placed in the lens barrel plate in advance. The lens barrel plate cannot limit and fix the lens barrel, so it is easy to cause improper placement of the lens barrel, which will cause its position to shift, thereby affecting the assembly accuracy of the lens and lens barrel.

2. The above-mentioned patent controls the clamping claws to clamp up or down the lens tube plate by clamping the electric push rod. The clamping jaws only provide support for the lens tube plate, and cannot limit and fix the lens tube plate. Therefore, the lens tube plate is in the process of transmission. There is a lack of stability in the lens, so it is prone to tilting or falling, and it cannot ensure that the lens barrel is placed in accordance with the assembly requirements.

Contents of the invention

1. The technical problem to be solved: the automatic clamping equipment for the production of a scope focusing lens barrel provided by the present invention can solve the problems pointed out in the above-mentioned background technology.

2. Technical solution: In order to achieve the above purpose, the present invention adopts the following technical solution, a kind of automatic clamping equipment for the production of the focusing lens barrel of the scope, including a base, a conveying unit and an assembly unit, the base is placed horizontally, and the base Two connecting plates are symmetrically installed on the upper end and along its width direction.

The conveying unit includes a rotating shaft, a vertical plate, a first intermittent motor, a first conveyor belt, a first placement seat, a second conveyor belt and a second placement seat, wherein: the opposite sides of the two connecting plates rotate at equal intervals along their length direction There are multiple rotating shafts, and each rotating shaft is rotated on the side close to the middle of the base. A vertical plate is installed. The lower end of the vertical plate is connected to the upper end of the base. The outer wall of the connecting plate is installed with the first intermittent motor through the motor seat, the output shaft of the first intermittent motor passes through the connecting plate and is connected with any rotating shaft, and the outer wall of the rotating shaft on any side of the base is sleeved with the first conveyor belt. The outer wall of a conveyor belt is equidistantly equipped with a plurality of first placement seats, the second conveyor belt is sleeved between the outer walls of the rotating shaft on the other side of the base, and the outer wall of the second conveyor belt is equidistantly installed with second placement seats.

The assembly unit includes a U-shaped frame, a support shaft, a second intermittent motor, a linkage shaft, a transmission gear, a third conveyor belt, a tooth seat, an eyepiece picking assembly and a lens barrel clamping assembly, wherein: the middle part of the upper end of the base and along its length Two U-shaped frames are installed in the direction, and the opening of the U-shaped frame is set downward. Two support shafts are arranged between the two U-shaped frames and rotated symmetrically along the width direction of the base, and the two support shafts are respectively located on the first conveyor belt and the Above the second conveyor belt, the outer wall of any U-shaped frame is provided with a second intermittent motor through the motor cover. The output shaft of the second intermittent motor passes through the U-shaped frame and is connected with any one of the supporting shafts. The other U-shaped frame is far away from the first One side of the second intermittent motor is rotated with a linkage shaft, and the end of any one support shaft away from the second intermittent motor passes through the U-shaped frame and is sleeved with a transmission gear, and the other support shaft and the linkage shaft are sleeved with a third conveyor belt , the outer wall of the third conveyor belt is equidistantly installed with a plurality of tooth holders meshing with the transmission gear, the eyepiece picking assembly is installed on the support shaft above the first conveyor belt, and the lens barrel clamping assembly is installed on the support shaft above the second conveyor belt .

As a preferred technical solution of the present invention, the lens barrel clamping assembly includes a fixed seat, an annular seat, a first electric push rod, a circular plate, a guide chute, a sliding block, a return spring rod, a clamping bar and The guide inclined plate, wherein: the outer wall of the support shaft above the second conveyor belt is provided with a fixed seat, and the outer wall of the fixed seat is evenly rotated along the circumferential direction of the support shaft. The first electric push rod is installed on one side, and a circular plate is installed on the telescopic end of the first electric push rod. The circular plate is uniform in the upper direction and has a plurality of guide chutes running through it. Each guide chute is slidably set There is a sliding block, and a return spring rod is connected between the sliding block and the inner wall of the guide chute, and a clamping bar is installed on the side of the sliding block away from the first electric push rod, and the clamping bar is close to the axis of the circular plate. Anti-slip rubber pads are installed on the side, and a guide slant plate is installed on the side of the clamping bar away from the circular plate, and the guide slant plate is gradually inclined to the outer wall close to the circular plate.

As a preferred technical solution of the present invention, the first placement seat includes a flexible support, a retractable spring rod, a support seat and a discharge seat, wherein: the outer wall of the first conveyor belt is equipped with a plurality of flexible supports at equal intervals, and the flexible support The seat is far away from the side of the first conveyor belt and is symmetrically installed with two retractable spring rods along its length direction. The upper ends of the two retractable spring rods are jointly provided with a discharge seat through the support seat, and a circular groove is opened on the top of the discharge seat. The cross-section of the lower half of the circular groove is an arc-shaped concave surface.

As a preferred technical solution of the present invention, a material placement groove is provided on the top of the second placement seat, and a plurality of accommodation grooves are evenly opened on the inner wall of the material placement groove in the circumferential direction, and a telescopic spring is installed in each accommodation groove, so that the telescopic The end of the spring far away from the holding groove is equipped with a pressing plate, which is slidably arranged in the holding groove, and the upper half of the pressing plate is gradually inclined to the side close to the axis of the material placing groove from top to bottom.

As a preferred technical solution of the present invention, the eyepiece taking assembly includes a sleeve, a support rod, a linkage seat, an air pump, an air channel and a suction piece, wherein: the outer wall of the support shaft above the first conveyor belt is covered with a sleeve , the outer wall of the sleeve is evenly installed with a plurality of support rods in the circumferential direction, the end of the support rod far away from the sleeve is provided with a linkage seat, the inside of the linkage seat is provided with an installation groove, and an air pump is arranged in the installation groove, and the linkage seat is far away from the side of the support rod One side is provided with a plurality of air passages connected with the air suction pump, and a suction piece is installed on the linkage seat.

As a preferred technical solution of the present invention, the suction member includes a bellows telescopic tube, an actuator plate, a conflict spring and a suction cup, wherein: the side of the linkage seat far away from the support rod is installed with a bellows bellows bellows on the outside of the airway, The end of the pipe far away from the linkage seat is provided with an execution disk, and a conflict spring is connected between the execution disk and the linkage seat. The suction cup, the corrugated telescopic tube and the air passage are all connected.

As a preferred technical solution of the present invention, the lens barrel clamping assembly also includes a positioning ring gear, a transmission motor and an auxiliary gear, wherein: the outer wall of the annular seat is covered with a positioning ring gear, and any U-shaped frame is far away from the fixed seat A second electric push rod is installed on one side of the second electric push rod, and the telescopic end of the second electric push rod close to the side of the fixed seat passes through the U-shaped frame and is connected to a motor frame. A transmission motor is installed on the motor frame, and the output shaft of the transmission motor is sleeved. There is an auxiliary gear that meshes with the positioning ring gear.

As a preferred technical solution of the present invention, an L-shaped frame is installed in the middle of the upper end of the base, and a lifting plate is installed on the side of the L-shaped frame close to the first conveyor belt, and the lifting plate reaches the end of the first conveyor belt along its end. The middle gradually slopes upwards.

3. Beneficial effects: 1. The conveying unit provided by the present invention can arrange the eyepiece and the lens barrel at equal intervals and deliver them to the assembly unit intermittently, so that the assembly unit can assemble the eyepiece and the lens barrel; the assembly unit provided by the present invention can The continuous assembly and processing of the eyepiece and the lens barrel facilitates the taking of the eyepiece and the clamping of the lens barrel, thereby ensuring the accuracy of the assembly of the eyepiece and the lens barrel.

2. The eyepiece taking assembly provided by the present invention fits the top of the eyepiece through the suction cup to complete the taking of the eyepiece. The suction cup can protect the eyepiece to prevent the surface of the eyepiece from being scratched, and can ensure the safety of the eyepiece during assembly. Stability to avoid the eyepiece from falling.

3. The lens barrel clamping assembly provided by the present invention can guide the clamping strips through the guide slant plate, so that multiple clamping strips are against the outer wall of the lens barrel, so that the lens barrel can be fixed in multiple directions, and can Improve the stability of the lens barrel in the process of transmission and assembly, avoid the lens barrel from shifting and falling, and facilitate the clamping of the lens barrel.

4. The first placement seat provided by the present invention can ensure that the eyepiece is placed in the center of the circular groove, thereby ensuring the accuracy when the assembly unit picks up the eyepiece.

5. The second placement seat provided by the present invention abuts against the outer wall of the lens barrel at the same time through a plurality of abutting plates, so that the lens barrel can be fixed in multiple directions, and the lens barrel can be located at the center of the material placement groove, so as to Ensure the precision when assembling the unit to pick up the lens barrel.

6. The anti-slip rubber pad provided by the present invention can be deformed according to the outline of the outer wall of the lens barrel, so as to increase the contact area between the anti-slip rubber pad and the outer wall of the lens barrel, thereby improving the clamping effect on the lens barrel and preventing the lens barrel from falling fall.

Description of drawings

The present invention will be further described below in conjunction with the accompanying drawings and embodiments.

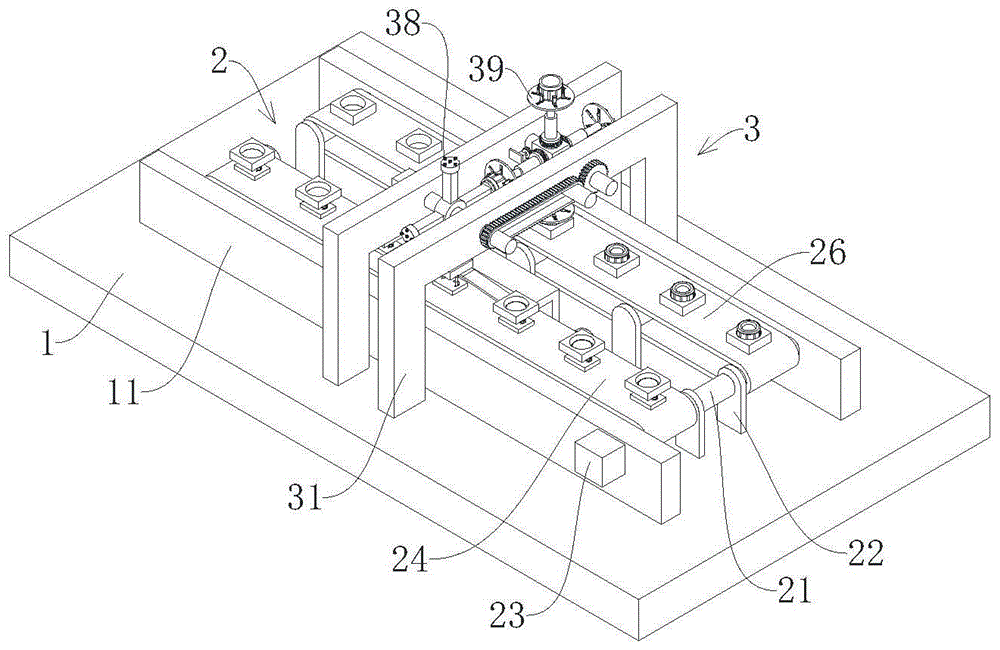

Fig. 1 is a schematic diagram of the three-dimensional structure of the present invention.

Fig. 2 is a schematic perspective view of the delivery unit of the present invention.

Fig. 3 is a partially enlarged view of D in Fig. 2 of the present invention.

Fig. 4 is a diagram of the working state of the first placement seat of the present invention.

Fig. 5 is a partial cutaway view of the assembly unit of the present invention.

FIG. 6 is a partial enlarged view of F in FIG. 5 of the present invention.

Fig. 7 is a partial three-dimensional structural schematic view of the lens barrel clamping assembly of the present invention.

Fig. 8 is a working state view of the eyepiece taking assembly and the lens barrel clamping assembly of the present invention.

Reference signs: 1, base; 11, connecting plate; 2, conveying unit; 21, rotating shaft; 22, vertical plate; 23, first intermittent motor; 24, first conveyor belt; Bearing; 252, contraction spring rod; 253, support seat; 254, discharge seat; 26, the second conveyor belt; 27, the second placement seat; 271, telescopic spring; 272, tight plate; 28, L-shaped frame; 29. Lifting plate; 3. Assembly unit; 31. U-shaped frame; 32. Support shaft; 33. Second intermittent motor; 34. Linkage shaft; 35. Transmission gear; 36. Third conveyor belt; 37. Tooth seat; 38. Eyepiece taking assembly; 381. Sleeve; 382. Support rod; 383. Linkage seat; 384. Air pump; 385. Airway; 386. Suction piece; 387. Corrugated telescopic tube; Collision spring; 380, suction cup; 39, lens barrel clamping assembly; 391, fixed seat; 392, ring seat; 393, first electric push rod; 394, circular plate; 395, guide chute; 396, sliding block 397, return spring bar; 398, clamping bar; 399, inclined plate; 40, positioning ring gear; 41, transmission motor; 42, auxiliary gear; 43, the second electric push rod.

Detailed ways

The embodiments of the present invention will be described in detail below with reference to the accompanying drawings, but the present invention can be implemented in many different ways defined and covered by the claims.

An automatic clamping device for the production of a focusing lens barrel of a scope according to an embodiment of the present invention will be described below with reference to the accompanying drawings. Referring to Fig. 1, an automatic clamping device for the production of focusing lens barrels for scopes, including a base 1, a conveying unit 2 and an assembly unit 3, the base 1 is placed horizontally, and the upper end of the base 1 is installed symmetrically along its width direction There are two connection plates 11 .

1 and 2, the conveying unit 2 includes a rotating shaft 21, a vertical plate 22, a first intermittent motor 23, a first conveyor belt 24, a first placement seat 25, a second conveyor belt 26 and a second placement seat 27, wherein: The opposite sides of the two connecting plates 11 are provided with a plurality of rotating shafts 21 which are equidistantly rotated along the lengthwise direction, and each rotating shaft 21 is provided with a vertical plate 22 which is rotated near the middle part of the base 1, and the lower end of the vertical plate 22 is connected to the base 1. The upper ends are connected, and any set of rotating shafts 21 with coincident axes pass through the vertical plate 22 and are connected. The outer wall of any connecting plate 11 is equipped with a first intermittent motor 23 through a motor base, and the output shaft of the first intermittent motor 23 passes through the connection. After the plate 11 is connected with any rotating shaft 21, a first conveyor belt 24 is sleeved between the outer walls of the rotating shaft 21 on any side of the base 1, and a plurality of first placement seats 25 are installed on the outer walls of the first conveyor belt 24 at equal intervals. The second conveyor belt 26 is sleeved between the outer walls of the rotating shaft 21 on the other side, and the outer walls of the second conveyor belt 26 are equidistantly provided with second placement seats 27, and the second placement seats 27 can be elastically deformed under the action of an external force; during work, First turn on the first intermittent motor 23, the output shaft of the first intermittent motor 23 drives the first conveyor belt 24 and the second conveyor belt 26 to rotate counterclockwise intermittently through the rotating shaft 21, then the eyepiece is placed in the first placement seat 25, and the eyepiece The barrel is placed in the second placement seat 27, the first conveyor belt 24 transports the eyepiece to the assembly unit 3 through the first placement seat 25, and the second conveyor belt 26 transports the lens barrel to the assembly unit 3 through the second placement seat 27, so that The eyepiece and lens barrel move to the assembly unit 3 at the same time for easy assembly.

Referring to Fig. 4, described first placement seat 25 comprises flexible support 251, contraction spring bar 252, support seat 253 and material discharge seat 254, wherein: the outer wall of first conveyor belt 24 is equidistantly installed with a plurality of flexible support 251, flexible The support 251 can be elastically deformed under the action of an external force. The flexible support 251 is away from the side of the first conveyor belt 24 and is symmetrically installed with two contraction spring rods 252 along its length direction. The upper ends of the two contraction spring rods 252 pass through the support seat 253 are jointly provided with a discharge seat 254, and the top of the discharge seat 254 is provided with a circular groove. The cross section of the lower half of the circular groove is an arc-shaped concave surface that fits with the eyepiece. At its center, and then ensure the accuracy when the assembly unit 3 takes the eyepiece; the middle part of the upper end of the base 1 is equipped with an L-shaped frame 28, and the side of the L-shaped frame 28 near the first conveyor belt 24 is equipped with a lifting plate 29, The lifting plate 29 is gradually inclined upwards along its end to the middle part of the first conveyor belt 24; it is fixedly connected between the contraction spring bar 252 and the supporting seat 253, so when the lifting plate 29 lifted the supporting seat 253 upwards, the supporting seat 253 moves upward in a straight line without inclination, and the bottom of the support seat 253 is an arc-shaped convex surface, so as to reduce the friction between it and the lifting plate 29, so that the support seat 253 is more stable when it is lifted upward; During work, when the first conveyor belt 24 drives the flexible support 251 to move counterclockwise, the contraction spring rod 252, the support seat 253 and the discharge seat 254 move synchronously with the flexible support 251. When the support seat 253 and the lifting plate 29 When there is a conflict between them, the support seat 253 gradually moves upward under the action of the lifting plate 29, so that the support seat 253 lifts the discharge seat 254 upward (as shown in Figure 4), thereby increasing the height of the eyepiece, so that the assembly unit 3. Take the eyepiece in the discharge seat 254, then the support seat 253 falls off from the lifting plate 29 and drives the discharge seat 254 to quickly reset under the action of the contraction spring rod 252.

Referring to Fig. 3, the top of the second placement seat 27 is provided with a material placement groove, and the inner wall of the material placement groove is evenly provided with a plurality of accommodation grooves in the circumferential direction, and a telescopic spring 271 is installed in each accommodation groove, and the telescopic spring 271 is far away from the accommodation. One end of the groove is equipped with a pressing plate 272, which is slidably arranged in the receiving groove, and the upper half of the pressing plate 272 is gradually inclined to the side close to the axis of the material placement groove from top to bottom; during work, the The lens barrel is inserted into the material placement groove. During this period, the telescopic spring 271 always exerts a pressing force on the pressing plate 272 to move toward the side near the middle of the material placement groove, so that multiple pressing plates 272 are simultaneously against the mirror. The outer wall of the barrel, so that the lens barrel can be fixed in multiple directions, and the lens barrel can be positioned at the center of the material placement groove to ensure the accuracy when the assembly unit 3 takes the lens barrel.

5, the assembly unit 3 includes a U-shaped frame 31, a support shaft 32, a second intermittent motor 33, a linkage shaft 34, a transmission gear 35, a third conveyor belt 36, a gear seat 37, an eyepiece taking assembly 38 and a lens barrel Clamping assembly 39, wherein: two U-shaped frames 31 are installed in the middle of the upper end of the base 1 and along its length direction, the openings of the U-shaped frames 31 are set downward, and the two U-shaped frames 31 are symmetrical along the width direction of the base 1 Two support shafts 32 are provided for rotation, and the two support shafts 32 are positioned above the first conveyor belt 24 and the second conveyor belt 26 respectively, any U-shaped frame 31 outer wall is provided with a second intermittent motor 33 through a motor cover, and the second intermittent The output shaft of the motor 33 passes through the U-shaped frame 31 and is connected with any one of the support shafts 32. Another U-shaped frame 31 is rotated with a linkage shaft 34 away from the side of the second intermittent motor 33, and any one of the support shafts 32 is far away from the second intermittent motor 33. One end of the two intermittent motors 33 passes through the U-shaped frame 31 and is sleeved with a transmission gear 35. A third conveyor belt 36 is sleeved between the other support shaft 32 and the linkage shaft 34. The outer wall of the third conveyor belt 36 is equally spaced. The tooth holder 37 meshing with the transmission gear 35 , the eyepiece picking assembly 38 is installed on the support shaft 32 above the first conveyor belt 24 , and the lens barrel clamping assembly 39 is arranged on the support shaft 32 above the second conveyor belt 26 .

During work, the first conveyor belt 24 transports the eyepiece to the lower side of the U-shaped frame 31, and when the second conveyor belt 26 transports the lens barrel to the lower side of the U-shaped frame 31, the eyepiece is picked up by the eyepiece picking assembly 38, and the eyepiece is picked up by the lens barrel. The clamping assembly 39 takes the lens barrel, and then turns on the second intermittent motor 33, the second intermittent motor 33 drives the supporting shaft 32 connected to its output shaft to rotate intermittently, and the supporting shaft 32 is driven by the gear seat 37 and the third conveyor belt 36 The transmission gear 35 rotates, and the transmission gear 35 drives another support shaft 32 to rotate intermittently, and the rotation of the two support shafts 32 is opposite, so that the two support shafts 32 drive the eyepiece taking assembly 38 and the lens barrel clamping assembly 39 to rotate in reverse, To facilitate the assembly of the eyepiece and lens barrel.

Referring to Fig. 5, Fig. 6 and Fig. 8, the eyepiece taking assembly 38 includes a sleeve 381, a support rod 382, a linkage seat 383, an air pump 384, an air channel 385 and a suction piece 386, wherein: the first conveyor belt 24 above The outer wall of the support shaft 32 is provided with a sleeve 381, and a plurality of support rods 382 are evenly installed on the outer wall of the sleeve 381 in the circumferential direction. Groove, an air pump 384 is arranged in the installation groove, and the side of the linkage seat 383 away from the support rod 382 is provided with a plurality of air passages 385 connected with the air pump 384, and the linkage seat 383 is equipped with a suction piece 386; Part 386 includes bellows telescopic tube 387, executive plate 388, conflict spring 389 and suction cup 380, wherein: linkage seat 383 is away from the side of support rod 382 and along the outside of air channel 385, bellows telescopic tube 387 is installed, and bellows telescopic tube 387 is far away from the linkage One end of the seat 383 is provided with an actuator plate 388, and a conflict spring 389 is connected between the actuator plate 388 and the linkage seat 383. The conflict spring 389 is sleeved outside the bellows telescopic tube 387, and the actuator plate 388 is installed on the side away from the bellows bellows tube 387. There are a plurality of suction cups 380, and the suction cups 380, the bellows telescopic tube 387 and the air passage 385 are all connected.

During work, the support shaft 32 drives the support rod 382 to rotate intermittently through the sleeve 381, and then the first conveyor belt 24 drives the eyepiece to move to the bottom of the support rod 382. At this time, the lifting plate 29 lifts the eyepiece up, so that the upper end of the eyepiece is in contact with the suction cup. 380 are in conflict with each other, and the actuator disk 388 drives the suction cup 380 against the top of the eyepiece under the action of the collision spring 389, and then the air pump 384 is turned on, and the air pump 384 sucks out the air inside the suction cup 380 through the air channel 385 and the bellows telescopic tube 387 , so that the suction cup 380 fits with the top of the eyepiece to ensure that the suction cup 380 and the eyepiece are fixed; then the first conveyor belt 24 drives the first placement seat 25 to move out from the bottom of the support rod 382, and then drives the support rod 382 through the support shaft 32 Continue to rotate, so that the support rod 382 drives the eyepiece to move to the side close to the middle of the U-shaped frame 31 and is in a horizontal state, so that the lens barrel clamping assembly 39 can sleeve the lens barrel on the eyepiece.

5, 7 and 8, the lens barrel clamping assembly 39 includes a fixed seat 391, an annular seat 392, a first electric push rod 393, a circular plate 394, a guide chute 395, a sliding block 396, a reset Spring bar 397, clamping strip 398 and slant guide plate 399, wherein: the support shaft 32 outer wall cover on the second conveyer belt 26 tops is provided with fixed seat 391, and the outer wall of fixed seat 391 rotates evenly along support shaft 32 circumferential directions and is installed with a plurality of The number of support rods 382 corresponds to the number of annular seats 392, and the side of the annular seat 392 away from the fixed seat 391 is equipped with a first electric push rod 393, and the telescopic end of the first electric push rod 393 is equipped with a circular plate 394, and the circular plate 394 A plurality of guide chute 395 is evenly and penetratingly opened in the upper direction, and a sliding block 396 is slidably arranged in each guide chute 395, and a return spring rod 397 is connected between the sliding block 396 and the inner wall of the guide chute 395, Return spring bar 397 always applies the pressing force that one side moves near the center of circular plate 394 to sliding block 396, and the side of sliding block 396 away from first electric push rod 393 is equipped with clamping bar 398, clamps Tight bar 398 is equipped with anti-skid rubber pad near the side of circular plate 394 axis, anti-skid rubber pad can be deformed under external force, can rebound under its own elasticity under no external force, and clamping bar 398 is far away from circle. One side of the shaped plate 394 is equipped with a slant guide plate 399, and the slant guide plate 399 is gradually inclined to the outer wall close to the circular plate 394; the lens barrel clamping assembly 39 also includes a positioning ring gear 40, a transmission motor 41 and an auxiliary gear 42 , wherein: the outer wall of the annular seat 392 is provided with a positioning ring gear 40, and any one U-shaped frame 31 is equipped with a second electric push rod 43 on the side away from the fixed seat 391, and the telescopic end of the second electric push rod 43 passes through the U A motor frame is connected behind the shape frame 31, and a transmission motor 41 is installed on the motor frame, and the output bushing of the transmission motor 41 is provided with an auxiliary gear 42 meshed with the positioning ring gear 40; in the present embodiment, the second electric push rod 43 In the contraction state during the initial state, the second electric push rod 43 drives the transmission motor 41 against the inner wall of the U-shaped frame 31, the auxiliary gear 42 moves synchronously with the transmission motor 41, and the positioning ring gear 40 of the auxiliary gear 42 and the outer wall of the ring seat 392 There is a certain gap between them. When the annular seat 392 rotates with the fixed seat 391 and is flush with the auxiliary gear 42 , the second electric push rod 43 drives the auxiliary gear 42 to mesh with the positioning ring gear 40 through the transmission motor 41 .

During work, the support shaft 32 drives the fixed seat 391 to rotate intermittently, the fixed seat 391 drives the first electric push rod 393 to be in a vertical state, and then the second conveyor belt 26 drives the lens barrel to move to the bottom of the circular plate 394, and then the first electric push rod is turned on. The push rod 393, the first electric push rod 393 drives the circular plate 394 to move downward, the clamping bar 398 and the guide slant plate 399 move downward with the circular plate 394, when the guide slant plate 399 abuts against the top of the lens barrel Afterwards, the clamping strip 398 can be guided by the slant guide plate 399, so that a plurality of clamping strips 398 abut against the outer wall of the lens barrel, so that the lens barrel is clamped. At this time, the anti-skid rubber on the clamping strip 398 The pad can be deformed according to the contour of the outer wall of the lens barrel, so as to increase the contact area between the non-slip rubber pad and the outer wall of the lens barrel, thereby improving the clamping effect on the lens barrel and preventing the lens barrel from falling; then the first electric push rod 393 shrinks, and then the support shaft 32 drives the fixed seat 391 and the first electric push rod 393 to continue to rotate to a horizontal state, and the first electric push rod 393 drives the lens barrel to be on the same axis as the eyepiece, and then the first electric push rod 393 drives The lens barrel is set on the outside of the eyepiece. At this time, the transmission motor 41 is turned on. The transmission motor 41 drives the positioning ring gear 40 to rotate through the auxiliary gear 42. The positioning gear ring 40 drives the first electric push rod 393 to rotate through the ring seat 392, so that the first electric push rod 393 rotates. The electric push rod 393 sets the lens barrel on the outside of the eyepiece and drives the lens barrel to rotate at the same time, so that the lens barrel is rotatably set on the outside of the eyepiece, thereby completing the assembly of the eyepiece and the lens barrel, and ensuring the accuracy of the assembly of the eyepiece and the lens barrel After the work is completed, close the air pump 384 to remove the fixation between the suction cup 380 and the eyepiece, then the first electric push rod 393 shrinks, and then the support shaft 32 drives the fixed seat 391 to rotate, and the fixed seat 391 passes through the first electric push rod 393 drives the assembled focusing lens barrel to move to the top of the fixing seat 391, so that the focusing lens barrel can be taken off.

Working principle: S1: First, the first intermittent motor 23 drives the first conveyor belt 24 and the second conveyor belt 26 to rotate counterclockwise intermittently through the rotating shaft 21, and then place the eyepiece and the lens barrel on the first placement seat 25 and the second placement seat respectively 27, so that the first conveyor belt 24 and the second conveyor belt 26 can transport the eyepiece and lens barrel to the assembly unit 3.

S2: The support shaft 32 drives the support rod 382 to rotate intermittently through the sleeve 381, and then the first conveyor belt 24 drives the eyepiece to move to the bottom of the support rod 382. At this time, the lifting plate 29 cooperates with the support seat 253 to lift the eyepiece upward, so that the eyepiece The upper end is in contact with the suction cup 380, and then the suction cup 380 is fitted to the top of the eyepiece to ensure that the suction cup 380 and the eyepiece are fixed, and then the support shaft 32 drives the eyepiece through the support rod 382 to move to the center of the U-shaped frame 31. side and level.

S3: The support shaft 32 drives the fixed seat 391 to rotate intermittently to a vertical state, then the second conveyor belt 26 drives the lens barrel to move to the bottom of the circular plate 394, and then the first electric push rod 393 drives the circular plate 394 to move downwards and A plurality of clamping strips 398 are made to abut against the outer wall of the lens barrel so as to clamp the lens barrel.

S4: The first electric push rod 393 shrinks, and then the first electric push rod 393 drives the lens barrel to be on the same axis as the eyepiece, and then the first electric push rod 393 drives the lens barrel to cover the outside of the eyepiece. At this time, the transmission motor 41 passes through the auxiliary The gear 42 drives the positioning ring gear 40 to rotate, and the positioning ring gear 40 drives the first electric push rod 393 to rotate through the annular seat 392, so that the first electric push rod 393 rotates the lens barrel outside the eyepiece, thereby completing the eyepiece and lens barrel assembly.

S5: After the eyepiece and lens barrel are assembled, turn off the air pump 384 to release the fixation between the suction cup 380 and the eyepiece, then the first electric push rod 393 shrinks, and then the support shaft 32 drives the fixed seat 391 to rotate, and the fixed seat 391 passes The first electric push rod 393 drives the assembled focusing lens barrel to move to the top of the fixing seat 391, so that the focusing lens barrel can be taken off; the continuous assembly process of the eyepiece and the lens barrel can be completed by repeating the above steps.

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention. For those skilled in the art, the present invention may have various modifications and changes. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present invention shall be included within the protection scope of the present invention.

Claims (8)

1. The automatic clamping equipment for production of the sighting telescope focusing lens barrel is characterized by comprising a base (1), wherein the base (1) is horizontally arranged, and two connecting plates (11) are symmetrically arranged at the upper end of the base (1) along the width direction of the base;

conveying unit (2), conveying unit (2) include pivot (21), riser (22), first intermittent type motor (23), first conveyer belt (24), first seat (25), second conveyer belt (26) and second seat (27) of placing, wherein: a plurality of rotating shafts (21) are rotatably arranged on the opposite sides of the two connecting plates (11) at equal intervals along the length direction of the connecting plates, a vertical plate (22) is rotatably arranged on one side, close to the middle part of the base (1), of each rotating shaft (21), the lower end of each vertical plate (22) is connected with the upper end of the base (1), any group of rotating shafts (21) with coincident axes are connected after penetrating through the vertical plates (22), a first intermittent motor (23) is installed on the outer wall of any connecting plate (11) through a motor base, an output shaft of the first intermittent motor (23) penetrates through the connecting plate (11) and then is connected with any rotating shaft (21), a first conveying belt (24) is sleeved between the outer walls of the rotating shafts (21) on any side of the base (1), a plurality of first placing seats (25) are installed on the outer walls of the first conveying belts (24) at equal intervals, a second conveying belt (26) is sleeved between the outer walls of the rotating shafts (21) on the other side of the base (1), and second placing seats (27) are installed on the outer walls of the second conveying belts (26) at equal intervals;

assembly unit (3), assembly unit (3) include U-shaped frame (31), back shaft (32), second intermittent type motor (33), universal driving shaft (34), drive gear (35), third conveyer belt (36), toothholder (37), eyepiece take subassembly (38) and lens cone clamping subassembly (39), wherein: two U-shaped frames (31) are arranged in the middle of the upper end of the base (1) along the length direction of the base, the openings of the U-shaped frames (31) are arranged downwards, two support shafts (32) are symmetrically and rotatably arranged between the two U-shaped frames (31) along the width direction of the base (1), the two supporting shafts (32) are respectively positioned above the first conveying belt (24) and the second conveying belt (26), a second intermittent motor (33) is arranged on the outer wall of any one U-shaped frame (31) through a motor cover, an output shaft of the second intermittent motor (33) penetrates through the U-shaped frame (31) and then is connected with any one supporting shaft (32), a linkage shaft (34) is rotatably installed on one side, away from the second intermittent motor (33), of the other U-shaped frame (31), a transmission gear (35) is sleeved on one end, away from the second intermittent motor (33), of any one supporting shaft (32) after penetrating through the U-shaped frame (31), a third conveying belt (36) is sleeved between the other supporting shaft (32) and the linkage shaft (34), a plurality of tooth seats (37) meshed with the transmission gear (35) are installed on the outer wall of the third conveying belt (36) at equal intervals, an eyepiece clamping assembly (38) is installed on the supporting shaft (32) above the first conveying belt (24), and a lens cone assembly (39) is arranged on the supporting shaft (32) above the second conveying belt (26).

2. The automatic clamping equipment for the production of the sighting telescope focusing lens barrel according to claim 1, wherein the automatic clamping equipment comprises: the lens cone clamping assembly (39) comprises a fixed seat (391), an annular seat (392), a first electric push rod (393), a circular plate (394), a guide sliding groove (395), a sliding block (396), a reset spring rod (397), a clamping strip (398) and a guide inclined plate (399), wherein: the utility model discloses a set up the inclined plate (399) that the inclined plate (394) that lead to, the back shaft (32) outer wall cover of second conveyer belt (26) top is equipped with fixing base (391), fixing base (391) outer wall is installed along back shaft (32) circumference even rotation a plurality of annular seat (392) corresponding with bracing piece (382) quantity, one side that fixing base (391) were kept away from in annular seat (392) is installed first electric putter (393), round plate (394) are installed to the flexible end of first electric putter (393), evenly just run through and seted up a plurality of direction spout (395) on round plate (394), it is provided with skid block (396) all to slide in each direction spout (395), be connected with reset spring pole (397) between skid block (396) and direction spout (395) inner wall, and skid block (396) keep away from one side of first electric putter (393) and install clamp strip (398), clamp strip (398) are close to one side of round plate (394) axis and install anti-skidding cushion 398, and clamp strip (394) keep away from one side of round plate (394) and install direction inclined plate (399), the slope that direction inclined plate (399) is close to the outer wall that is close to round plate (394) gradually.

3. The automatic clamping equipment for the production of the sighting telescope focusing lens barrel according to claim 1, wherein the automatic clamping equipment comprises: the first placing seat (25) comprises a flexible support (251), a contraction spring rod (252), a supporting seat (253) and a discharging seat (254), wherein: a plurality of flexible supports (251) are installed at equal intervals on the outer wall of the first conveying belt (24), two contraction spring rods (252) are symmetrically installed on one side, far away from the first conveying belt (24), of the flexible supports (251) along the length direction of the flexible supports, the upper ends of the two contraction spring rods (252) are provided with a material placing seat (254) through a supporting seat (253) together, a circular groove is formed in the top of the material placing seat (254), and the cross section of the lower half portion of the circular groove is an arc-shaped concave surface.

4. The automatic clamping equipment for the production of the sighting telescope focusing lens barrel according to claim 1, wherein the automatic clamping equipment comprises: the material placing groove is formed in the top of the second placing seat (27), a plurality of containing grooves are evenly formed in the inner wall of the material placing groove in the circumferential direction, an expansion spring (271) is installed in each containing groove, one end, far away from the containing grooves, of the expansion spring (271) is installed to support a tight plate (272), the tight plate (272) is arranged in the containing grooves in a sliding mode, and the first half of the tight plate (272) is gradually inclined towards one side, close to the axis of the material placing groove, from top to bottom.

5. The automatic clamping equipment for the production of the sighting telescope focusing lens barrel according to claim 1, wherein the automatic clamping equipment comprises: the eyepiece taking assembly (38) comprises a sleeve (381), a support rod (382), a linkage seat (383), an air suction pump (384), an air channel (385) and a suction piece (386), wherein: support shaft (32) outer wall cover above first conveyer belt (24) is equipped with sleeve (381), a plurality of bracing pieces (382) are evenly installed to the lateral wall circumference of sleeve (381), the one end that sleeve (381) were kept away from in bracing piece (382) is provided with linkage seat (383), the inside mounting groove of having seted up of linkage seat (383), be provided with aspiration pump (384) in the mounting groove, one side that bracing piece (382) were kept away from in linkage seat (383) is seted up a plurality of air flues (385) that are linked together with aspiration pump (384), and install on linkage seat (383) and suck piece (386).

6. The automatic clamping device for the production of the sighting telescope focusing lens barrel according to claim 5, wherein the automatic clamping device comprises: the suction piece (386) comprises a corrugated expansion pipe (387), an actuating disc (388), an abutting spring (389) and a suction disc (380), wherein: the utility model discloses a bellows (387) are installed to one side that bracing piece (382) were kept away from in linkage seat (383) and along the air flue (385) outside, the flexible pipe of ripple (387) one end of keeping away from linkage seat (383) is provided with execution dish (388), be connected with conflict spring (389) between execution dish (388) and linkage seat (383), the outside at the flexible pipe of ripple (387) is established in conflict spring (389) cover, one side that flexible pipe of ripple (387) was kept away from in execution dish (388) is installed a plurality of sucking discs (380), and sucking disc (380), flexible pipe of ripple (387) and air flue (385) homogeneous phase intercommunication.

7. The automatic clamping equipment for the production of the sighting telescope focusing lens barrel according to claim 2, wherein the automatic clamping equipment comprises: the lens barrel clamping assembly (39) further comprises a positioning gear ring (40), a transmission motor (41) and an auxiliary gear (42), wherein: the outer wall cover of annular seat (392) is equipped with location ring gear (40), and second electric putter (43) are installed to one side that fixing base (391) was kept away from in arbitrary U-shaped frame (31), and flexible end that second electric putter (43) are close to fixing base (391) one side is passed U-shaped frame (31) and is connected with the motor frame, installs drive electricity (41) on the motor frame, and the output shaft cover of drive electricity (41) is equipped with auxiliary gear (42) with location ring gear (40) engaged with.

8. The automatic clamping equipment for the production of the sighting telescope focusing lens barrel according to claim 1, wherein the automatic clamping equipment comprises: the middle part of the upper end of the base (1) is provided with an L-shaped frame (28), one side of the L-shaped frame (28) close to the first conveying belt (24) is provided with a lifting plate (29), and the lifting plate (29) gradually inclines upwards along the middle part from the end part to the first conveying belt (24).
