Abstract

The invention belongs to the technical field of automobile lamps, and in particular relates to a concealed multi-function automobile lamp and a vehicle, comprising a body cover, an automobile lamp is fixedly mounted on the inner side of the body cover, and the automobile lamp includes a lamp body, a lampshade and a decorative part , a shading member and an optical system, the lamp body is installed on the inner side of the body cover, the lampshade is connected to one side of the lamp body, the decorative piece is connected to the lampshade, the vehicle body cover has a notch, the The decorative part is located in the notch, the optical system is installed in the lamp body, and the light shielding part is installed on the optical system. The purpose is: to solve the problem of the hidden vehicle lamp in the prior art pointed out in the background art that the cost is high and the lamp cannot be completely hidden. The proposed solution is simple in structure, exquisite in shape and low in cost, can realize complete concealment of automobile lamps, and can meet the requirements of domestic and foreign mandatory regulations on light color and light intensity of automobile light signals or lighting devices.

Description

A kind of concealed multifunctional automobile lamp and vehicle

technical field

The invention belongs to the technical field of automobile lamps, and in particular relates to a hidden multifunctional automobile lamp and a vehicle.

Background technique

As an important means of transportation in people's daily life, automobiles are the most important design attributes for their reliability and fashion sense. Automobile lamps integrate reliability, fashion, intelligence, and green attributes, and are the key to automobile design. How to integrate them with vehicle design while meeting reliability requirements and meet economic requirements has become a key research topic. technology. Hidden automotive lighting has the advantages of increasing the sense of fashion, reducing wind resistance and energy consumption, and reducing gap and surface defects. If its reliability and economic problems can be solved, it will definitely promote the upgrading of related industries.

At present, hidden car lamps are mainly divided into two categories in terms of implementation methods. The first category is: using the transmission mechanism to drive the movement of the whole or part of the decorative parts of the automotive lamps to achieve concealment, which can meet the requirements of domestic and foreign mandatory regulations on the light color and light intensity of automotive light signals or lighting devices, but the structure is complicated ,high cost. For example, Chinese patent: CN202120741577.3, which discloses a light-emitting module concealable headlamp, which includes a bracket, a light-emitting module, a baffle and a baffle drive mechanism, and the light-emitting module and the baffle drive The mechanisms are installed on the bracket, and the power output end of the baffle driving mechanism is connected with the baffle and can drive the baffle to block or expose the light-emitting surface of the light-emitting module. The utility model also discloses an automobile with the concealable headlamp of the light-emitting module. By adopting the utility model, the purpose of hiding the light-emitting surface of the headlight can be achieved without rotating or lifting the light-emitting module itself, without affecting the light shape and brightness of the road surface of the headlight, and the structure is simple and the cost is low. However, this solution adds a driving mechanism to drive the movement of the whole or part of the decorative parts of the lamp to realize the concealment, and the use cost is relatively high.

The second category is: the use of filter films to cover the inside or outside of the light-transmitting surface of automobile lamps to achieve shielding and concealment. The structure is simple and the cost is low, but it cannot meet the mandatory regulations at home and abroad on the light color of automobile light signals or lighting devices. and light intensity requirements, it can only be used as an interior ambient light. For example, Chinese patent: CN202020159164.X, which discloses a hidden car atmosphere lighting decoration structure, including an upper cover plate, a lower cover plate, a decorative part, a filter diaphragm, a transparent plate, an LED light strip and an LED light strip installation plate, the upper cover plate and the lower cover plate are arranged oppositely, the decorative parts are fixedly connected with the upper cover plate and the lower cover plate respectively, the filter film is fixedly installed on the transparent plate, and the LED The light strip is fixedly installed on the LED light strip installation plate, the transparent plate and the LED light strip installation plate are connected to the upper cover plate and the lower cover plate, and the transparent plate is arranged between the decorative part and the Between the LED light strip mounting boards, the filter film and the LED light strip are respectively arranged facing the decorative parts. The utility model discloses a structure of a hidden car atmosphere lighting decoration part, which can better reduce costs, reduce energy consumption and improve the pass rate.

The above two types of hidden ways to realize automotive lamps, although both can realize LED indirect visibility, but the cost is high, and the extension part can only be the color corresponding to the regulations, for example, the extension part can only be colorless, transparent, milky white, Red and amber colors may cause the lamp parts to be different from the color of the body when they are not lit, and the lamps cannot be completely hidden.

Contents of the invention

The object of the present invention is to provide a hidden multi-functional automobile lamp and vehicle, which is used to solve the problem that the hidden lamp in the prior art pointed out in the background technology has high cost and cannot completely hide the lamp. The application scheme has simple structure, exquisite shape and low cost, can realize the complete concealment of automobile lamps, and can meet the requirements of domestic and foreign mandatory regulations on the light color and light intensity of automobile light signals or lighting devices.

For realizing above-mentioned technical purpose, the technical scheme that the present invention adopts is as follows:

The present application provides a concealed multi-function automotive lamp, which includes a body cover, and an automotive lamp is fixedly installed on the inner side of the vehicle body cover. The lamp body is installed on the inner side of the vehicle body cover, the lampshade is connected to one side of the lamp body, the decorative part is connected to the lampshade, the vehicle body cover part has a gap, and the decorative part is located in the gap. The optical system is installed in the lamp body, and the shading member is installed on the optical system.

On the basis of the above scheme, the application has also made the following improvements

Further, the optical system includes a first optical part and a second optical part, and the first optical part and the second optical part are installed in the lamp body at intervals. Such a structural design enables the optical system to meet the requirements of Compulsory regulations at home and abroad on the light intensity requirements of automotive light signals or lighting devices.

Further, the first optical part and the second optical part have the same structure, the first optical part includes a light source, a circuit board and a light guide strip, the circuit board is fixedly installed in the lamp body, and the light source is fixedly installed in the circuit board Above, the light guide strip is fixedly installed on the circuit board and covers the light source. Such a structural design can adapt to lamps with different functions by selecting different light sources, and through the light guide strip, the emitted light intensity can be fulfil requirements.

Further, the light guide strip is made of transparent plastic with high light transmittance. Such a structural design can reduce the loss of light flux and reduce the impact on the intensity of light output through the transparent plastic with high light transmittance.

Further, the end of the light guide strip close to the light source is provided with a first light-condensing plate and the second light-condensing plate, and the end of the light guide strip close to the shade is provided with a light distribution pattern. Such a structural design further improves the efficiency of the light emitted by the light source. Optical utilization and luminous intensity.

Further, the side of the light guide strip close to the lampshade is the light-emitting surface of the light guide strip, and both sides of the decorative part and the notch form fully transparent windows, and the cross-sectional area of the light-emitting surface of the light guide strip is larger than that of the fully transparent window. The cross-sectional area of the light window and such a structural design can further improve the optical efficiency of the lamp and reduce the cost of the optical system.

Further, the shading member includes a first shading plate, a second shading plate and a third shading plate, the first shading plate and the third shading plate are arranged on both sides of the optical system, and the second shading plate is arranged on the optical system In the middle of the system, such a structural design can reduce the light intensity loss of the optical system in the lamp, and at the same time, increase the emitted light intensity.

Further, the lampshade is made of transparent plastic, and such a structural design is used to reduce the influence of the lampshade on the light intensity emitted by the optical system.

Further, the decorative part includes a first decorative layer and a second decorative layer, the first decorative layer is arranged on the lampshade, the second decorative layer is arranged on the first decorative layer and covers the first decorative layer, Such a structural design is conducive to the concealment of the lamp without affecting the light intensity.

Further, the first decoration layer is an opaque area, the edge of the second decoration layer and the edge of the first decoration layer form a light-transmitting area, and the light-transmitting area is located on one side of the notch. Such a structural design makes the optical system When emitting light, it can emit through the light-transmitting area to comply with the requirements of domestic and foreign mandatory regulations on light color and light intensity of automotive light signals or lighting devices, and keep the luminous intensity when it is lit to improve the visual effect.

Further, the second decorative layer is coated with paint, and the color of the paint is the same as that of the body covering. On the one hand, such a structural design can hide the second decorative layer to form a hidden lamp. On the one hand, it is possible to unify the light transmittance coefficients of different light-transmitting areas through the thickness of different paints, and then control the proportion of color paint in the paint to cure its influence on light color shift, so that the light intensity of the lamp can be emitted And light color can meet the relevant requirements.

The present application also provides a vehicle, including a vehicle body and the above-mentioned concealed multifunctional vehicle lamp.

By installing the concealed multi-functional automotive lamps in this application document at the position lights, daytime running lights, turn signals, and brake lights of the vehicle, it is possible to hide multiple lamps of the vehicle and improve the appearance and shape of the vehicle.

Adopt the invention of above-mentioned technical scheme, have following advantages:

1. By installing decorative parts on the lampshade, and the outer color of the decorative parts is the same as that of the body cover, the lamps can be completely hidden and the appearance of the vehicle can be improved. When the optical system emits light, the light transmission coefficient can be unified through the decorative parts, thereby Make the luminous intensity and light color consistent when the lamp is lit, and improve the visual effect;

2. The decorative part includes a first decorative layer and a second decorative layer. The first decorative layer is designed to be opaque, and the second decorative layer covers the first decorative layer to form a light-transmitting area. The light-transmitting area is located on the side of the gap. On the one hand, it is beneficial to hide the lamp without affecting the light intensity. On the other hand, when the optical system emits light, it can not only improve the optical efficiency, but also make it possible to emit light through the light-transmitting area that complies with domestic and foreign mandatory regulations. Requirements for light color and light intensity of signal or lighting devices;

3. By coating different colors of paint on the second decorative layer, and controlling the thickness of the painted paint and the ratio of the colored paint in the paint, the light transmittance coefficient of the decorative parts can be unified, so as to adapt to different models and different positions on the car Lighting requirements, and the cost is low.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present application or the prior art, the following will briefly introduce the drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are some embodiments of the present application. Those skilled in the art can also obtain other drawings based on these drawings without creative work. In addition, in the drawings, the same components use the same reference numerals, and the drawings are not drawn according to actual scale;

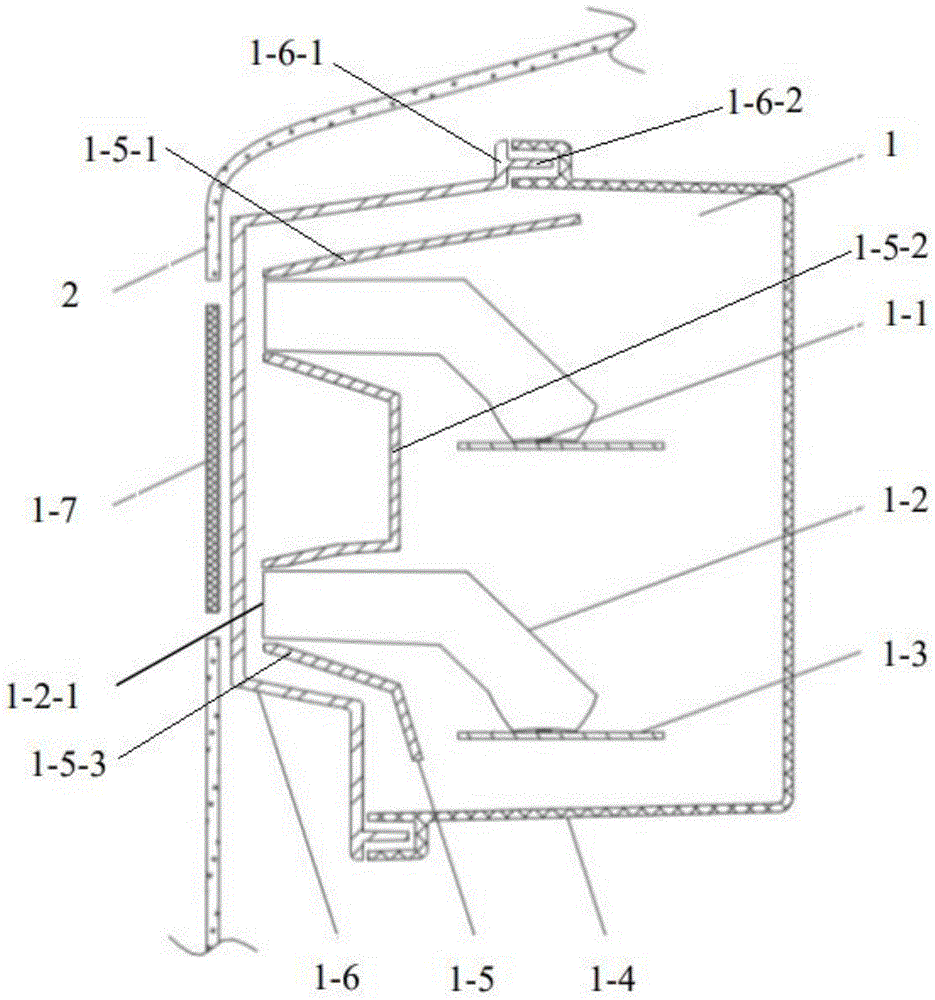

Fig. 1 is a structural schematic diagram of an embodiment of a concealed multi-functional automobile lamp of the present application;

Fig. 2 is a partial structural schematic diagram of an embodiment of a concealed multifunctional automotive lamp of the present application;

Fig. 3 is a partial structural schematic diagram 2 of an embodiment of a concealed multifunctional automobile lamp of the present application;

The main component symbols are explained as follows:

Automotive lighting 1, light source 1-1, light guide strip 1-2, light-emitting surface 1-2-1, first concentrating plate 1-2-2, second concentrating plate 1-2-3, circuit board 1-3, Lamp body 1-4, shading member 1-5, first shading plate 1-5-1, second shading plate 1-5-2, third shading plate 1-5-3, lampshade 1-6, mounting plate 1 -6-1, connecting plate 1-6-2, decorative part 1-7, second decorative layer 1-7-1, first decorative layer 1-7-2, light-transmitting area 1-7-3, body covering Part 2, fully transparent window 3.

Detailed ways

The implementation of the present invention is described below through specific specific examples, and those skilled in the art can understand the advantages and effects of the present invention from the content disclosed in this specification. It should be noted that the diagrams provided in the following examples are for illustrative purposes only, and are only schematic diagrams rather than actual pictures, and should not be construed as limitations on the present invention. In order to better illustrate the embodiments of the present invention , some components in the figure will be omitted, enlarged or reduced, and do not represent the size of the actual product; for those skilled in the art, it is understandable that some known structures and their descriptions in the figure may be omitted.

The same or similar symbols in the figures of the embodiments of the present invention correspond to the same or similar components. In the description of the present invention, it should be understood that if there are terms "upper", "lower", "left", "right", The orientation or positional relationship indicated by "front", "rear", etc. is based on the orientation or positional relationship shown in the figure, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific Orientation, construction and operation in a specific orientation, so the terms describing the positional relationship in the figure are for illustrative purposes only, and should not be construed as limitations on the present invention. Those of ordinary skill in the art can understand the above-mentioned specific meaning of the term.

As shown in Fig. 1, Fig. 2 and Fig. 3, the embodiment of the present application provides a kind of concealed multifunctional automobile lamp, which comprises a body cover 2, and an automobile lamp 1 is fixedly installed inside the body cover 2, and the automobile lamp 1 includes a lamp Body 1-4, lampshade 1-6, trim 1-7, shade 1-5 and optical system, lamp body 1-4 is installed on the inner side of body cover 2, lampshade 1-6 is connected to one side of the lamp body , the decorative parts 1-7 are connected to the lampshade 1-6, there is a gap on the body cover 2, the decorative parts 1-7 are located in the gap, the optical system is installed in the lamp body 1-4, and the shading parts 1-5 are installed in the optical on the system.

In this embodiment, the body cover 2 is made of plastic, and the lamp bodies 1-4 are preferably plastic lamp bodies, and the plastic lamp body is fixed and installed on the inner side of the body cover 2 by bolts or screws, so as to provide an installation position for the optical system . The lampshades 1-6 are preferably transparent plastic lampshades, and the transparent plastic lampshades are fixedly installed on the plastic lamp body by welding or bonding to seal the plastic lamp body. The decorative parts 1-7 are fixedly mounted on the transparent plastic lampshade through buckles or screws, and are used to make the automotive lamp 1 have a hidden function. The optical system is fixedly installed in the plastic lamp body by bolts or screws, and is used to provide a light source for the automotive lamp 1 . The shading member 1-5 is fixedly installed between the lampshade 1-6 and the lighting system by bolts or welding, and is used to reduce the loss of luminous flux of the lighting system, thereby improving the optical utilization ratio.

Through the mutual cooperation of the lamp body 1-4, the lampshade 1-6, the optical system, the shade 1-5, the decoration 1-7 and the body cover 2, on the one hand, the complete concealment of the automobile lamp 1 can be realized, on the other hand , when the optical system emits light, it can not only improve the optical efficiency, but also enable the automotive lamp 1 to emit light color and light intensity that meet the requirements of domestic and foreign mandatory regulations on automotive optical signals or lighting devices, and the entire automotive lamp 1 is compact in shape, Low cost and high reliability.

In some optional embodiments, please refer to FIG. 1, the optical system includes a first optical part and a second optical part, and the first optical part and the second optical part are installed in the plastic lamp body at intervals. In this embodiment , both the first optical part and the second optical part are fixedly installed in the plastic lamp body by bolts or screws. By setting the first optical part and the second optical part, the optical system can emit light intensity that meets the domestic and foreign mandatory regulations on automobile light signals or lighting devices when the automobile lamp 1 emits light.

In some optional embodiments, please continue to refer to FIG. 1 and FIG. 2 , the first optical component and the second optical component have the same structure. Wherein, taking the first optical part as an example, the first optical part includes a light source 1-1, a circuit board 1-3 and a light guide strip 1-2, and the circuit board 1-3 is fixed and installed in the plastic lamp body by bolts or screws, and the light source 1-1 is fixedly installed on the circuit board 1-3 by welding, and the light guide strip 1-2 is fixedly installed on the circuit board 1-3 by bolts or screws, and covers the light source 1-1. In this embodiment, the light source 1-1 is preferably an LED light source. First, the LED light source is fixedly welded on the circuit board 1-3 by soldering, and then the circuit board 1-3 is fixed on the light guide strip 1-2 by bolts or screws. one end. Through the mutual cooperation of the LED light source, the circuit board 1-3 and the light guide strip 1-2, different light sources can be selected to adapt to lamps with different functions, so that they can be used for automotive lamps 1 in different positions, such as position lights, daylight Running lights and turn signals, etc. And through the light guide strip 1-2, the emitted light intensity can meet the requirement.

In an exemplary embodiment, please refer to FIG. 2, the light guide strip 1-2 is integrally injection-molded with high light transmittance transparent plastic, and the light guide strip 1-2 is preferably transparent with a light transmittance above 85%. The PC or PMMA plastic is integrally injection molded and formed into a bent shape, which can reduce the loss of luminous flux and reduce the impact on the light intensity. In this embodiment, the end of the light guide strip 1-2 close to the LED light source is integrally formed with a first light-gathering plate 1-2-2 and a second light-gathering plate 1-2-3, and the light guide strip 1-2 is close to the shading member 1-2. One end of 5 is provided with a light distribution pattern, through the first light concentrating plate 1-2-2 and the second light concentrating plate 1-2-3 and the light distribution pattern, the reduction of luminous flux and the loss of light intensity of the LED light source can be further reduced, thereby improving Optical utilization and luminous intensity of LED light sources.

In some optional embodiments, please refer to FIG. 1, the shading member 1-5 includes a first shading plate 1-5-1, a second shading plate 1-5-2 and a third shading plate 1-5- 3. The first shading plate 1-5-1 and the third shading plate 1-5-3 are arranged on both sides of the first optical part and the second optical part, and the second shading plate 1-5-2 is arranged on the first optical part part and the second optic.

In this embodiment, the first light-shielding plate 1-5-1, the second light-shielding plate 1-5-2 and the third light-shielding plate 1-5-3 are all made of plastic, preferably black PC plastic, and the first light-shielding plate The plate 1-5-1 is obliquely fixed and installed in the plastic lamp body through bolts or screws, so that one end of the first light-shielding plate 1-5-1 is in contact with the light-emitting surface 1-2-1 of the light guide strip 1-2 in the first optical part. Contact, the other end is inclined upward, so that the end of the first light shielding plate 1-5-1 can cover the end of the first optical part and the end of the light guide strip 1-2 in the second optical part; the third light shielding plate 1-5- 3. It is fixed and installed in the plastic lamp body by bolts or screws. The third light-shielding plate 1-5-3 is in a bent shape. The light-emitting surface 1-2-1 contacts, and the other end is located under the circuit board 1-3 in the second optical part; the second shading plate 1-5-2 is fixed and installed in the plastic lamp body by bolts or screws, and the second shading plate 1 -5-2 is concave, one end of the second shading plate 1-5-2 is in contact with the light-emitting surface 1-2-1 of the light guide strip 1-2 in the first optical part, and the other end is in contact with the light emitting surface of the second optical part The light-emitting surface 1-2-1 of the light guide strip 1-2 is in contact with each other through the cooperation of the first shading plate 1-5-1, the second shading plate 1-5-2 and the third shading plate 1-5-3, When the first optical component and the second optical component emit light, the light intensity loss of the light in the lamp can be reduced, and at the same time, the light intensity irradiated to the outside can be enhanced.

In some optional embodiments, the plastic lamp body is fixed with a reflector on the rear side of the first shading plate 1-5-1 and the third shading plate 1-5-3 through bolts or screws, and the reflector can further reduce the When the first optical component and the second optical component emit light, the light intensity of the light inside the lamp is lost, and the light intensity irradiated to the outside is increased.

In some optional embodiments, please refer to the accompanying drawing 1, the lampshades 1-6 are transparent plastics, preferably transparent PC or PMMA plastics with light transmittance above 85%, and the transparent plastic lampshades are integrally injection molded. In this embodiment, the transparent plastic lampshade is fixed on the plastic lamp body by gluing, welding or screwing. When the transparent plastic lampshade is fixedly connected with the plastic lamp body, both ends of the transparent plastic lampshade have a mounting plate 1-6-1 and a connecting plate 1-6-2, and the mounting plate 1-6-1 and the connecting plate 1-6- 2. It is integrally formed at both ends of the transparent plastic lampshade. Both ends of the plastic lamp body have a connecting frame. The connecting frame is open on one side. The connecting plate 1-6-2 is located in the connecting frame, and the mounting plate 1-6- 1. Covering the opening side of the connection frame, and then fixing the connection by gluing, welding or screwing, can enhance the connection strength between the transparent plastic lampshade and the plastic lamp body.

In some optional embodiments, please refer to Figure 1 and Figure 2, the decoration 1-7 includes a first decoration layer 1-7-2 and a second decoration layer 1-7-1, the first decoration The layer 1-7-2 is arranged on the lampshade 1-6, and the second decoration layer 1-7-1 is arranged on the first decoration layer 1-7-2 and covers the first decoration layer 1-7-2.

In this embodiment, the first decorative layer 1-7-2 and the second decorative layer 1-7-1 are formed as a whole by double-layer two-color injection molding process, wherein the first decorative layer 1-7-2 adopts opaque black plastic to form an opaque area, the second decorative layer 1-7-1 adopts transparent PC or PMMA plastic with light transmittance above 85%, so that the second decorative layer 1-7-1 covers the first decorative layer 1-7-2, and form a light-transmitting area 1-7-3 on the edge, and the boundary between the opaque area and the light-transmitting area 1-7-3 is clear, and the light-emitting surface 1-2-1 of the light guide strip 1-2 Corresponding to the light-transmitting area 1-7-3, and the cross-sectional area of the light-emitting surface 1-2-1 of the light guide strip 1-2 is larger than the light-transmitting area 1-7-3, which facilitates the light emitted by the optical system to pass through the light-transmitting area. The light area 1-7-3 is irradiated to the outside world, so that when the optical system emits light, it can emit light through the light-transmitting area 1-7-3, which meets the requirements of domestic and foreign mandatory regulations on the light color and light intensity of automotive light signals or lighting devices , and keep the luminous intensity consistent when it is turned on, improving the visual effect.

In some optional embodiments, please refer to the accompanying drawing 3, the second decorative layer 1-7-1 and both sides of the gap of the vehicle body cover 2 form a fully transparent window 3, the guide in the first optical part The section of the light-emitting surface 1-2-1 of the light strip 1-2 covers the full light-transmitting window 3 on the lower side of the notch, and the section of the light-emitting surface 1-2-1 of the light guide strip 1-2 in the second optical part will The full light transmission window 3 on the upper side of the gap is covered, so that when the optical system emits light, the light can pass through the light transmission area 1-7-3 and the full light transmission window 3, thereby further improving the optical utilization of the automotive lamp 1 and reducing the The cost of the optical system to achieve the corresponding light intensity.

In some optional embodiments, the second decorative layer 1-7-1 can completely cover the notch of the vehicle body panel 2, so that the second decorative layer 1-7-1 and the two sides of the notch of the vehicle body panel 2 do not need to be formed. Fully transparent window 3.

In an exemplary embodiment, the body panel 2 is coated with silver-gray paint, the second decorative layer 1-7-1 is coated with silver-gray paint, and the second decorative layer 1-7-1 is coated with silver-gray paint The silver-gray paint can realize that the second decorative layer 1-7-1 has the same color as the body cover part 2, so as to completely hide the automobile lamp 1.

In this embodiment, due to the influence of the decorative part 1-7, the transparent plastic lampshade 1-6 and the light guide strip 1-2 on the light color and light intensity, wherein, by controlling the decorative part 1-7 and the transparent plastic lampshade 1-6 The thickness of the thickness dimension affects the brightness visible to the naked eye. The thickness of the decorative part 1-7 is 2-10mm, preferably 4mm, wherein the thickness of the first decorative layer 1-7-2 is 2mm, and the second decorative layer 1-7-1 The thickness of the transparent plastic lampshade 1-6 is 2-10mm, preferably 2.5mm, so that the light emitted by the LED light source can better pass through the transparent plastic lampshade 1-6 and the decorative part 1-7. The coating thickness of the silver-gray paint on the second decorative layer 1-7-1 is 50um, so that the thickness of the light-transmitting area 1-7-3 is 4.05mm, thereby unifying the light transmission coefficients of different light-transmitting areas, so that the irradiated The external light intensity is consistent, and by controlling the proportion of the color paint in the silver-gray paint, the influence of the silver-gray paint on the light color shift can be cured, so that the light color irradiated to the outside world is consistent, and the visual effect is improved.

In an exemplary embodiment, the body panel 2 is coated with blue paint, the second decorative layer 1-7-1 is coated with blue paint, and the second decorative layer 1-7-1 is coated with blue paint. The blue paint can realize that the second decorative layer 1-7-1 has the same color as the body covering part 2, so as to completely hide the automobile lamp 1.

In this embodiment, due to the influence of the decorative part 1-7, the transparent plastic lampshade 1-6 and the light guide strip 1-2 on the light color and light intensity, wherein, by controlling the decorative part 1-7 and the transparent plastic lampshade 1-6 The thickness dimension affects the brightness visible to the naked eye, wherein the thickness of the decorative part 1-7 is 2-10mm, preferably 4.5mm, wherein the thickness of the first decorative layer 1-7-2 is 2mm, and the second decorative layer 1-7- The thickness of 7-1 is 2.5mm, the thickness of the transparent plastic lampshade 1-6 is 2-10mm, preferably 2mm, so that the light emitted by the LED light source can better pass through the transparent plastic lampshade 1-6 and the decorative parts 1-7 , at this time, the coating thickness of the blue paint on the second decorative layer 1-7-1 is 100um, so that the thickness of the light-transmitting area 1-7-3 is 4.6mm, thereby unifying the light transmission coefficients of different light-transmitting areas, Make the light intensity irradiated to the outside consistent, and then by controlling the proportion of the color paint in the blue paint, the influence of the blue paint on the light color shift can be cured, so that the light color irradiated to the outside world is consistent, thereby improving the visual effect.

In an exemplary embodiment, the body panel 2 is coated with white paint, the second decorative layer 1-7-1 is coated with white paint, and the white paint coated on the second decorative layer 1-7-1 , can realize that the second decorative layer 1-7-1 has the same color as the body cover part 2, thereby achieving the function of completely hiding the automobile lamp 1.

In this embodiment, due to the influence of the decorative part 1-7, the transparent plastic lampshade 1-6 and the light guide strip 1-2 on the light color and light intensity, wherein, by controlling the decorative part 1-7 and the transparent plastic lampshade 1-6 The thickness dimension affects the brightness visible to the naked eye, wherein the thickness of the decorative part 1-7 is 2-10mm, preferably 4.8mm, wherein the thickness of the first decorative layer 1-7-2 is 2.5mm, and the second decorative layer 1 - The thickness of 7-1 is 2.3mm, the thickness of the transparent plastic lampshade 1-6 is 2-10mm, preferably 2.5mm, so that the light emitted by the LED light source can better pass through the transparent plastic lampshade 1-6 and the decorative part 1 -7, at this time, the coating thickness of the white paint on the second decorative layer 1-7-1 is 200um, so that the thickness of the light-transmitting area 1-7-3 is 5.0mm, so as to unify the light transmission coefficients of different light-transmitting areas , so that the light intensity irradiated to the outside world is consistent, and then by controlling the ratio of the color paint in the white paint, the influence of the white paint on the light color shift can be cured, so that the light color irradiated to the outside world is consistent, thereby improving the visual effect.

In an exemplary embodiment, the body panel 2 is coated with red paint, the second decorative layer 1-7-1 is coated with red paint, and the red paint coated on the second decorative layer 1-7-1 , can realize that the second decorative layer 1-7-1 has the same color as the body cover part 2, thereby achieving the function of completely hiding the automobile lamp 1.

In this embodiment, due to the influence of the decorative part 1-7, the transparent plastic lampshade 1-6 and the light guide strip 1-2 on the light color and light intensity, wherein, by controlling the decorative part 1-7 and the transparent plastic lampshade 1-6 The thickness dimension affects the brightness visible to the naked eye, wherein the thickness of the decorative part 1-7 is 2-10mm, preferably 5mm, wherein the thickness of the first decorative layer 1-7-2 is 3mm, and the second decorative layer 1-7 The thickness of -1 is 2mm, and the thickness of transparent plastic lampshade 1-6 is 2-10mm, preferably 2.5mm, so that the light emitted by the LED light source can better pass through the transparent plastic lampshade and decorative parts. At this time, the red paint The coating thickness on the second decorative layer 1-7-1 is 300um, so that the thickness of the light-transmitting area 1-7-3 is 5.3mm, so as to unify the light transmission coefficients of different light-transmitting areas and make the light intensity irradiated to the outside consistent , and then by controlling the ratio of the color paint in the red paint, the influence of the red paint on the light color shift can be cured, so that the light color irradiated to the outside world is consistent, thereby improving the visual effect

By coating the same color of paint on the second decorative layer 1-7-1 according to the colors of different body panels 2, the effect of completely hiding the automotive lamp 1 can be achieved at a relatively low cost, and through different The thickness of the coating can make the light intensity and light color of the car lamp 1 consistent, so that the visible color can be other colors when the lamp is not lit, so as to achieve the effect of hiding the car lamp. When it is lit, it can meet the The corresponding lighting color requirements of the regulations.

In some optional embodiments, when the automotive lamp 1 is used as a position lamp or/and a daytime running lamp or/and a turn signal, LED lamp beads of corresponding colors can be selected as the LED light source, so that the hidden lamp can be applied to Different models and lamps in different positions.

In an exemplary embodiment, when used as the front position lamp of a car, the LED lamp bead selects a white LED light source, that is, the LED light source is powered off, and the light-emitting surface 1-2-1 of the light guide strip 1-2 does not emit light, and the white light source is white. The second decorative layer 1-7-1 is the same color as the white body covering part 2, and the car lamp 1 cannot be seen, so as to achieve the appearance effect of hiding the front position lamp. When the function of the front position lamp of the car is turned on, the LED light source is energized, and the light-emitting surface 1-2-1 of the light guide strip 1-2 emits white light with corresponding light intensity, so that the light-transmitting area 1-7 of the light-transmitting plastic decorative part 1-7 -3 and fully transparent window 3 emit corresponding white light, and its light color and light intensity meet GB4785 "Installation regulations for exterior lighting and light signal devices of automobiles and trailers", and GB5920 "front position lamps, rear position lamps and position marker lamps of automobiles and trailers and Brake Light Distribution Performance" and the corresponding ECE standards.

In an exemplary embodiment, when used as a turn signal of a car, the LED lamp bead selects an amber LED light source, that is, the LED light source is powered off, the light-emitting surface 1-2-1 of the light guide strip 1-2 does not emit light, and the amber The color of the second decorative layer 1-7-1 is the same as that of the amber body covering part 2, and the automobile lamp 1 cannot be seen, so as to achieve the appearance effect of hiding the turn signal. When the turn signal function of the car is turned on, the LED light source is energized, and the light-emitting surface 1-2-1 of the light guide strip 1-2 emits amber light with a corresponding light intensity to make the light-transmitting area 1-7-3 of the light-transmitting decorative part 1-7 And the fully light-transmitting window 3 emits corresponding amber light, and its light color and light intensity meet GB4785 "Installation Regulations for Exterior Lighting and Light Signal Devices of Automobiles and Trailers", GB17509 "Light Distribution Performance of Turn Signal Lamps of Automobiles and Trailers" and the corresponding ECE standards.

In an exemplary embodiment, when used as a daytime running light of a car, the LED lamp bead selects a white LED light source, that is, the LED light source is powered off, and the light-emitting surface 1-2-1 of the light guide strip 1-2 does not emit light. The white second decorative layer 1-7-1 is the same color as the white body covering part 2, and the automotive lamp 1 cannot be seen, so as to achieve the appearance effect of hiding the daytime running lights. When the function of the daytime running lights of the automobile is turned on, the LED light source is energized, and the light-emitting surface 1-2-1 of the light guide strip 1-2 emits white light with corresponding light intensity, so that the light-transmitting area 1- of the light-transmitting plastic decorative part 1-7 7-3 and fully transparent window 3 emit corresponding white light, and its light color and light intensity meet GB4785 "Regulations for the Installation of External Lighting and Light Signal Devices of Automobiles and Trailers", GB23255 "Light Distribution Performance of Motor Vehicle Daytime Running Lights" and the corresponding ECE standard.

In an exemplary embodiment, when used as the rear position lamp of a car, the LED lamp bead selects a red LED light source, that is, the LED light source is powered off, and the light-emitting surface 1-2-1 of the light guide strip 1-2 does not emit light, and the red light source is red. The second decorative layer 1-7-1 is the same color as the red body cover 2, and the car lamp 1 cannot be seen, so as to achieve the appearance effect of hiding the rear position lamp. When the function of the rear position lamp of the car is turned on, the LED light source is energized, and the light-emitting surface 1-2-1 of the light guide strip 1-2 emits red light with a corresponding light intensity, so that the light-transmitting area 1- of the light-transmitting plastic decorative part 1-7 7-3 and fully light-transmitting window 3 emit corresponding red light, and its light color and light intensity meet GB4785 "Regulations for the Installation of External Lighting and Light Signal Devices for Automobiles and Trailers", and GB5920 "Regulations for Front Position Lamps, Rear Position Lamps, and Indicator Lights for Automobiles and Trailers" Light distribution performance of side lights and brake lights" and the corresponding ECE standards.

In an exemplary embodiment, when used as a brake light of a car, the LED lamp bead selects a red LED light source, that is, the LED light source is powered off, the light-emitting surface 1-2-1 of the light guide strip 1-2 does not emit light, and the red light source is turned off. The second decorative layer 1-7-1 is the same color as the red body cover 2, and the car lamp cannot be seen, so as to achieve the appearance effect of hiding the brake light. When the function of the automobile brake light is turned on, the LED light source is energized, and the light-emitting surface 1-2-1 of the light guide strip 1-2 emits red light with a corresponding light intensity, so that the light-transmitting area 1- of the light-transmitting plastic decorative part 1-7 7-3 and fully light-transmitting window 3 emit corresponding red light, and its light color and light intensity meet GB4785 "Regulations for the Installation of External Lighting and Light Signal Devices for Automobiles and Trailers", and GB5920 "Regulations for Front Position Lamps, Rear Position Lamps, and Indicator Lights for Automobiles and Trailers" Light distribution performance of side lights and brake lights" and the corresponding ECE standards.

This embodiment also provides a vehicle, including the vehicle main body and the above-mentioned hidden multi-functional vehicle lamp, by installing the above-mentioned hidden multi-functional vehicle lamp The lamps and lanterns can realize the complete concealment of multiple lamps of the vehicle, and adjust the outline size according to the shape of different models, improve the appearance and shape of the vehicle, and then make the hidden lamps realize multi-function.

The concealed multifunctional automobile lamp and vehicle provided by the present invention have been introduced in detail above. The description of specific embodiments is only used to help understand the method and core idea of the present invention. It should be pointed out that for those skilled in the art, without departing from the principles of the present invention, some improvements and modifications can be made to the present invention, and these improvements and modifications also fall within the protection scope of the claims of the present invention.

It should be noted that references in the specification to "one embodiment", "some optional embodiments", "embodiments", "exemplary embodiments", "some embodiments" and the like mean that the described embodiments may include specific feature, structure or characteristic, but not necessarily every embodiment includes that particular feature, structure or characteristic. Furthermore, such phrases are not necessarily referring to the same embodiment. Furthermore, where a particular feature, structure, or characteristic is described in conjunction with an embodiment, it is within the purview of those skilled in the art to implement such feature, structure, or characteristic in conjunction with other embodiments that are explicitly or not explicitly described.

It should be readily understood that "on", "above" and "over" in this disclosure should be interpreted in the broadest manner such that "on" means not only " directly on something", also includes the meaning of "on something" with intermediate features or layers in between, and "above" or "over" not only includes "on something" or " The meaning of "over" may also include the meaning of "above" or "over" without intervening features or layers (ie, directly on something).

In addition, spatially relative terms, such as "below", "below", "below", "above", "above", etc., may be used herein for convenience of description to describe the position of one element or feature with respect to other elements or features. relationship shown. Spatially relative terms are intended to encompass different orientations of the device in use or operation in addition to the orientation depicted in the figures. The device may be otherwise oriented (rotated 90 degrees or at other orientations) and the spatially relative descriptors used herein interpreted accordingly.

It should be noted that in this article, relative terms such as "first" and "second" are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply these No such actual relationship or order exists between entities or operations. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device. Without further limitations, an element defined by the phrase "comprising a ..." does not exclude the presence of additional identical elements in the process, method, article or apparatus comprising said element.

Finally, it should be noted that: the above embodiments are only used to illustrate the technical solutions of the present application, and are not intended to limit it; although the application has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand that: It is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements for some or all of the technical features; and these modifications or replacements do not make the essence of the corresponding technical solutions deviate from the technical solutions of the various embodiments of the present application. scope.

Claims (12)

1. A concealed multifunctional automotive lamp, comprising a body cover (2), characterized in that: an automotive lamp (1) is fixedly mounted on the inner side of the vehicle body cover (2), and the automotive lamp (1) includes a lamp body (1-4), lampshade (1-6), decorative part (1-7), shading part (1-5) and an optical system, the lamp body (1-4) is installed on the body cover part (2) The inner side of the lampshade (1-6), the lampshade (1-6) is connected to one side of the lamp body (1-4), the decorative part (1-7) is connected to the lampshade (1-6), and the vehicle body cover part (2 ) has a notch, the decoration (1-7) is located in the notch, the optical system is installed in the lamp body (1-4), and the shading member (1-5) is installed on the optical system. 2. A concealed multifunctional automotive lamp according to claim 1, wherein the optical system includes a first optical component and a second optical component, and the first optical component and the second optical component are installed at intervals Inside the lamp body (1-4). 3. A concealed multifunctional automotive lamp according to claim 2, characterized in that: the first optical part and the second optical part have the same structure, and the first optical part includes a light source (1-1), A circuit board (1-3) and a light guide strip (1-2), the circuit board (1-3) is fixedly installed in the lamp body (1-4), and the light source (1-1) is fixedly installed in the circuit On the board (1-3), the light guide strip (1-2) is fixedly installed on the circuit board (1-3) and covers the light source (1-1). 4. A concealed multifunctional automotive lamp according to claim 3, characterized in that: the light guide strip (1-2) is transparent plastic with high light transmittance. 5. A concealed multifunctional automotive lamp according to claim 3, characterized in that: the end of the light guide strip (1-2) close to the light source (1-1) is provided with a first light-concentrating plate (1-1) 2-2) and the second light concentrating plate (1-2-3), the end of the light guide strip (1-2) close to the shade (1-5) is provided with a light distribution pattern. 6. A concealed multifunctional automotive lamp according to claim 3, characterized in that: the side of the light guide strip (1-2) close to the lampshade (1-6) is the light guide strip (1-2 ), the light-emitting surface (1-2-1) of the decorative piece (1-7) and both sides of the gap form a fully light-transmitting window (3), and the light-emitting surface of the light guide strip (1-2) ( 1-2-1) has a cross-sectional area greater than that of the fully transparent window (3). 7. A concealed multi-function automotive lamp according to claim 1, characterized in that: said shading member (1-5) comprises a first shading plate (1-5-1), a second shading plate (1 -5-2) and the third shading plate (1-5-3), the first shading plate (1-5-1) and the third shading plate (1-5-3) are arranged on both sides of the optical system , the second shading plate (1-5-2) is arranged in the middle of the optical system. 8. A concealed multifunctional automotive lamp according to claim 1, characterized in that: the lampshade (1-6) is transparent plastic. 9. A concealed multifunctional automotive lamp according to claim 1, characterized in that: said decorative piece (1-7) comprises a first decorative layer (1-7-2) and a second decorative layer (1 -7-1), the first decorative layer (1-7-2) is arranged on the lampshade (1-6), and the second decorative layer (1-7-1) is arranged on the first decorative layer (1 -7-2), and cover the first decorative layer (1-7-2). 10. A concealed multifunctional automotive lamp according to claim 9, characterized in that: the first decorative layer (1-7-2) is an opaque area, and the second decorative layer (1-7-2) 7-1) The edge and the edge of the first decoration layer (1-7-2) form a light-transmitting region (1-7-3), and the light-transmitting region (1-7-3) is located on one side of the notch. 11. A concealed multifunctional automotive lamp according to claim 10, characterized in that: the second decorative layer (1-7-1) is coated with paint, and the color of the paint is the same as that of the body covering ( 2) Same color. 12. A vehicle, characterized in that it comprises a vehicle body and the concealed multi-function automotive lamp according to any one of claims 1-11.
