The invention discloses a textile disinfection and cleaning device for a textile assembly line, which comprises an installation base, the upper end of the installation base is provided with a support base, and a cleaning pipe is fixedly connected to one end of the support base away from the installation base, and the cleaning pipe is inside the cleaning pipe. A rotating shaft is rotatably connected, a heating block is sleeved on the side wall of the rotating shaft, a contact roller is sleeved on the side wall of the heating block, and two symmetrically arranged side walls are fixedly connected to the side wall of the rotating shaft. The rotating plate is fixedly connected with a heating plate on the inner side wall of the cleaning pipe. By arranging structures such as contact rollers, cleaning tubes, ultraviolet lamps, and guide rollers, the present invention utilizes the cleaning rollers and the contact rollers to cooperate with the installation of the support base and the installation base, which facilitates the installation of textiles at any position on the assembly line, and can achieve multi-level cleaning at the same time. With the disinfection process, the cleaning process of traditional disinfection and cleaning equipment and the shortcomings of a single level of cleaning are avoided.

Description

Textile disinfection cleaning device for textile production line

Technical Field

The invention relates to the technical field of textile cleaning, in particular to a textile disinfection and cleaning device for a textile production line.

Background

The weaving principle is a general name taken from spinning and weaving, but with the continuous development and perfection of a weaving knowledge system and a subject system, particularly after non-woven textile materials, three-dimensional compound weaving and other technologies are produced, the existing weaving is not only the traditional hand-made spinning and weaving, but also clothing, industrial and decorative textiles produced by non-woven fabric technology, modern three-dimensional weaving technology, modern electrostatic nano-web technology and the like, so the modern weaving refers to a multi-scale structure processing technology of fibers or fiber aggregates, and the modern weaving carries out the production of the textiles in a way of passing through a weaving production line in order to improve the weaving efficiency.

The in-process of fabrics production on the assembly line, because the weaving process adopts fluidic mode to weave the line more, therefore the fabrics produces and the in-process of carrying on the assembly line its inside contains a large amount of moisture, simultaneously because the assembly line exposes in the air, consequently, the fabrics of weaving production can be polluted and carry impurity or bacterium at production and the in-process of carrying, not only can influence the subsequent production of fabrics, can cause the influence to the quality of fabrics simultaneously, current be used for mostly setting up alone in the transportation process after the fabrics production and be used for the clear process of disinfection to the clear mode of fabrics disinfection, not only the clear rigidity of disinfection is fixed when using to this kind of mode, and the installation is comparatively inconvenient, the disinfection cleanness of the multi-level multichannel of unable realization fabrics and the convenient installation of disinfecting equipment, and can't realize its tight state through the mode of taut fabrics, influence the clean effect of fabrics.

Disclosure of Invention

The invention aims to solve the problems that in the prior art, a textile can not be kept in a tight state in the textile disinfection process, and in addition, separate disinfection equipment and separate disinfection lines are required to be arranged in the textile disinfection process, so that the textile disinfection cleaning device for the textile production line is inconvenient to install and is inconvenient for production of the production line.

In order to achieve the purpose, the invention adopts the following technical scheme:

a textile disinfection and cleaning device for a textile production line comprises an installation base, wherein a supporting base is arranged at the upper end of the installation base, a cleaning pipe is fixedly connected to the end part, far away from the installation base, of the supporting base, a rotating shaft is rotatably connected into the cleaning pipe, a heating block is sleeved on the side wall of the rotating shaft, a contact roller is sleeved on the side wall of the heating block, two rotating plates which are symmetrically arranged are fixedly connected onto the side wall of the rotating shaft, a heating plate is fixedly connected onto the inner side wall of the cleaning pipe, two baffle plates which are symmetrically arranged are fixedly connected onto the inner side wall of the cleaning pipe, evaporation liquid is arranged between the two baffle plates and the inner side wall of the cleaning pipe, the evaporation liquid is filled with cleaning liquid, a plurality of air nozzles are circumferentially arranged on the side wall of the contact roller, pressure valves are arranged in the air nozzles, and a liquid supply mechanism for supplying liquid to the air nozzles is arranged on the side wall of the rotating plates;

the utility model discloses a textile conveying device, including clean pipe, support base, mounting base, feed opening, apron, ultraviolet lamp, guiding mechanism, supporting base, mounting groove, the material mouth of two symmetry settings has been seted up on the lateral wall of clean pipe, it is connected with the apron to rotate on the inside wall of material mouth, two all be equipped with ultraviolet lamp on the relative lateral wall of apron, be equipped with the guiding mechanism who is used for direction in the textile conveying process in the clean pipe, be equipped with the drive mechanism who is used for keeping textile conveying process in the state of tautness between support base and the mounting base, set up the mounting groove in the rotor plate, be equipped with the power supply mechanism who is used for the drive mechanism power supply in the mounting groove.

Preferably, the liquid supply mechanism comprises a plurality of water collecting cavities which are arranged in the circumferential direction and are arranged in the contact roller, a plurality of collecting pipes are arranged on the side wall of the rotating plate in the circumferential direction, liquid inlet pipes are communicated with the end portions of the two ends of the water collecting cavities, and the end portion, far away from the water collecting cavities, of each liquid inlet pipe penetrates through the rotating plate and is communicated with the collecting pipes.

Preferably, the guide mechanism comprises a plurality of mounting frames fixedly connected to the inner side wall of the cleaning pipe, a guide roller is arranged between the two corresponding mounting frames, and the guide rollers are circumferentially distributed on the outer side of the contact roller.

Preferably, the traction mechanism comprises two symmetrically-arranged supporting tubes fixedly connected to the lower end face of the supporting base, a connecting rod is arranged in each supporting tube and penetrates through the sliding connection mounting base, a supporting plate is fixedly connected to one end, far away from the supporting tubes, of the connecting rod, an electric connection spring is elastically connected between each supporting plate and the corresponding mounting base, and the electric connection spring is sleeved on the side wall of the corresponding connecting rod.

Preferably, a corrugated pipe is arranged between the supporting base and the mounting base, the end parts of the two ends of the corrugated pipe are respectively and fixedly connected with the mounting base and the supporting base, and the supporting pipe is arranged in the corrugated pipe.

Preferably, the power supply mechanism comprises a connecting pipe fixedly connected in the mounting groove, a coil is diffracted on the side wall of the connecting pipe, and a magnetic ball is connected in the connecting pipe in a rolling manner.

Preferably, a connecting groove is formed in the rotating plate, a wire is arranged in the connecting groove, the wire is electrically connected with an electricity connecting ring, the electricity connecting ring is rotatably connected with the rotating shaft, and the end part of one end, far away from the electricity connecting ring, of the wire is electrically connected with an electricity connecting spring.

Preferably, two matching grooves which are symmetrically arranged are formed in the side wall of the baffle, and the rotating plate is rotatably connected in the matching grooves.

Compared with the prior art, the invention has the beneficial effects that:

1. compared with the prior art, the cleaning device has the advantages that the contact roller, the cleaning tube, the ultraviolet lamp, the guide roller and other structures are arranged, the cleaning roller and the contact roller are matched to support the base and the installation base to be installed, the installation of textiles at any position on a production line is facilitated, multi-level cleaning and disinfection processes can be realized, and the defects of the cleaning process and single cleaning level of the traditional disinfection cleaning equipment are overcome.

2. Compared with the prior art, the invention also solves the problem of realizing the disinfection and cleaning treatment process of the textile by the textile conveying mode, avoids the process of independently setting a cleaning assembly line, and reduces the space occupation caused by disinfection and cleaning in the production process of the textile.

3. Through setting up structures such as apron, ultraviolet lamp and guide roll, utilize the fabrics to all carry out the ultraviolet sterilization disinfection in carrying the entering and the clean pipe in-process of discharge, when providing the preliminary treatment disinfection for the fabrics, guarantee the final treatment effect of fabrics.

4. Through setting up heating piece, air jet, pressure valve and collecting water cavity isotructure, through the mixture of antiseptic solution and evaporating liquid to and the steam that the heating evaporation formed sprays disinfection to the fabrics when, realize being in the steam that the antiseptic solution was handled all the time to the fabrics in the cleaning tube, guarantee fabrics disinfection and clean effect, the blowout of cooperation steam realizes piercing through the gas of fabrics, avoids impurity and bacterium in the inside residue of fabrics.

5. Through setting up magnetic ball, coil, connecing electric ring and connecing structures such as electric spring, utilize and connect the phenomenon of electric spring circular telegram shrink to drive the connecting rod and upwards impel stay tube and support base, keep fabrics to keep tight state in the cleaning tube in carrying disinfection process, avoid the fold of fabrics to cause disinfection and cleaning process to receive the influence.

Drawings

FIG. 1 is a schematic view of a front view structure according to the present invention;

FIG. 2 is a schematic cross-sectional front view of the present invention;

FIG. 3 is a schematic perspective view of a contact roller according to the present invention;

FIG. 4 is a schematic cross-sectional structure of a contact roller according to the present invention;

FIG. 5 is a schematic view of the internal structure of the rotating plate according to the present invention;

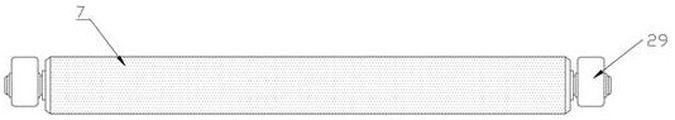

fig. 6 is a schematic structural view of a guide roller according to the present invention.

In the figure: the device comprises an installation base 1, a support base 2, a cleaning tube 3, a material port 4, a cover plate 5, an ultraviolet lamp 6, a guide roller 7, a rotating plate 8, a contact roller 9, a liquid inlet tube 10, a heating plate 11, a baffle plate 12, a corrugated tube 13, a connecting rod 14, an electric connecting spring 15, a support tube 16, a water collecting cavity 17, a collecting tube 18, an air jet 19, a pressure valve 20, a heating block 21, an installation groove 22, a connecting tube 23, a coil 24, a magnetic ball 25, an electric connecting ring 26, a connecting groove 27, a rotating shaft 28 and an installation frame 29.

Detailed Description

In order to make the aforementioned objects, features and advantages of the present invention comprehensible, embodiments accompanied with figures are described in detail below. In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention. This invention may, however, be embodied in many different forms than those specifically described herein, and it will be apparent to those skilled in the art that many more modifications are possible without departing from the spirit and scope of the invention.

It will be understood that when an element is referred to as being "secured to" another element, it can be directly on the other element or intervening elements may also be present. When an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may also be present. The terms "vertical," "horizontal," "left," "right," and the like as used herein are for illustrative purposes only and do not represent the only embodiments.

Referring to fig. 1-6, a textile disinfection cleaning device for a textile production line comprises an installation base 1, a support base 2 is arranged at the upper end of the installation base 1, a cleaning tube 3 is fixedly connected to one end of the support base 2 far away from the installation base 1, a rotating shaft 28 is rotatably connected to the cleaning tube 3, a heating block 21 is sleeved on the side wall of the rotating shaft 28, a contact roller 9 is sleeved on the side wall of the heating block 21, two symmetrically-arranged rotating plates 8 are fixedly connected to the side wall of the rotating shaft 28, a heating plate 11 is fixedly connected to the inner side wall of the cleaning tube 3, two symmetrically-arranged baffles 12 are fixedly connected to the inner side wall of the cleaning tube 3, two symmetrically-arranged matching grooves are formed in the side wall of the baffle 12, the rotating plates 8 are rotatably connected to the matching grooves, an evaporation liquid is arranged between the two baffles 12 and the inner side wall of the cleaning tube 3, a cleaning liquid is filled in the evaporation liquid, a plurality of air nozzles 19 are circumferentially arranged on the side wall of the contact roller 9, pressure valves 20 are arranged in the air nozzles 19, wherein the pressure valves 20 are formed by a plurality of circumferentially arranged elastic rubber sheets which can be in a certain pressure accumulation state when a pressure of the pressure accumulation of the pressure valve 20 is achieved;

a liquid supply mechanism for supplying liquid to an air jet 19 is arranged on the side wall of the rotating plate 8, the liquid supply mechanism comprises a plurality of circumferentially arranged water collecting cavities 17 arranged in the contact roller 9, a plurality of collecting pipes 18 are circumferentially arranged on the side wall of the rotating plate 8, the end parts of the two ends of the water collecting cavities 17 are communicated with liquid inlet pipes 10, the end part, far away from the water collecting cavities 17, of each liquid inlet pipe 10 penetrates through the rotating plate 8 and is communicated with the collecting pipes 18, the collecting pipes 18 are immersed at the bottom of the cleaning pipe 3 storing disinfectant by means of the structure of the collecting pipes in the process of rotating along with the rotating plate 8, the disinfectant is received in a small amount, the flowing direction of water in the cleaning pipe is changed along with the rotating plate 8, the received disinfectant is conveyed into the water collecting cavities 17 through the liquid inlet pipes 10, and the conveying and supplying processes of the disinfectant are further realized;

offer the material mouth 4 that two symmetries set up on the lateral wall of cleaning tube 3, it is connected with apron 5 to rotate on the inside wall of material mouth 4, all be equipped with ultraviolet lamp 6 on the relative lateral wall of two apron 5, be equipped with in the cleaning tube 3 and be used for the guiding mechanism to the direction in the fabrics transportation process, guiding mechanism includes a plurality of mounting bracket 29 of fixed connection on the cleaning tube 3 inside wall, be equipped with guide roll 7 between two corresponding mounting bracket 29, a plurality of guide roll 7 circumference distribute in the contact roll 9 outside, guide roll 7 distributes and can realize the fabrics and contact the laminating with contact roll 9 in transportation process in the outside of contact roll 9, when being convenient for spout the antiseptic solution to the fabrics pierce through the contact with guide roll 7, can realize extruding of antiseptic solution and moisture in the textile after the disinfection, avoid a large amount of antiseptic solution in the fabrics to remain.

A traction mechanism for keeping the textile in a tight state in the conveying process is arranged between the supporting base 2 and the mounting base 1, the traction mechanism comprises two symmetrically arranged supporting tubes 16 fixedly connected with the lower end surface of the supporting base 2, connecting rods 14 are arranged in the supporting tubes 16, the connecting rods 14 penetrate through the mounting base 1 in a sliding connection manner, corrugated tubes 13 are arranged between the supporting base 2 and the mounting base 1, the end parts of the two ends of each corrugated tube 13 are respectively and fixedly connected with the mounting base 1 and the supporting base 2, the supporting tubes 16 are arranged in the corrugated tubes 13, one end part of each connecting rod 14, which is far away from the supporting tube 16, is fixedly connected with a supporting plate, an electric connecting spring 15 is elastically connected between the supporting plate and the mounting base 1, the electric connecting spring 15 is sleeved on the side wall of the connecting rod 14, a connecting groove 27 is formed in the rotating plate 8, the connecting groove 27 is internally provided with a lead, the lead is electrically connected with an electricity connecting ring 26, the electricity connecting ring 26 is rotatably connected with the rotating shaft 28, one end part of the lead far away from the electricity connecting ring 26 is electrically connected with the electricity connecting spring 15, wherein the electricity connecting ring 26 is sleeved between the rotating shaft 28 and the rotating shaft 28 in a first relative rotating state, so that the electricity connecting ring 26 does not move along with the rotation of the rotating shaft 8, and therefore electricity connection can be carried out through guiding, meanwhile, after the electricity connecting spring 15 is powered on, because each strand of the spring generates a magnetic field after electricity connection, and the spiral rotating directions of two adjacent springs are opposite, a magnetic force field with opposite magnetic poles can be generated between the two adjacent springs, so that two adjacent springs can generate magnetic field attraction to be close to each other, namely, the integral contraction phenomenon of the electricity connecting spring 15 is realized.

Offer mounting groove 22 in the rotor plate 8, be equipped with the power supply mechanism who is used for the power supply to the drive mechanism in mounting groove 22, power supply mechanism includes connecting pipe 23 of fixed connection in mounting groove 22, it has coil 24 to diffract on the lateral wall of connecting pipe 23, it has magnetic ball 25 to roll in the connecting pipe 23 to be connected with, wherein magnetic ball 25 comprises two hemispheres, and magnetic field direction and the unanimous magnetic ball 25 of earth's magnetic field magnetic induction line direction set up to be globular and be used for convenient magnetic path to roll in connecting pipe 23, provide the condition of the cutting magnetic induction line process that lasts for coil 24 cutting magnetic induction line.

The invention can be illustrated by the following operating modes: as shown in fig. 1-6, firstly, the supporting base 2 and the cleaning tube 3 are installed on a textile production line through the installation base 1, at this time, a textile product enters between the guide roller 7 and the contact roller 9 of the installation frame 29 on the inner side wall of the cleaning tube 3 after passing through the material opening 4 on the side wall of the cleaning tube 3, the textile product is pulled on the production line and passes through between the guide roller 7 and the contact roller 9, at this time, the textile product at the material opening 4 is sterilized by the ultraviolet lamp 6 on the side wall of the cover plate 5, then the heating plate 11 at the bottom in the cleaning tube 3 heats the evaporation liquid in the cleaning tube 3 and the disinfectant used as the disinfectant (the disinfectant can adopt alcohol as raw material, the disinfectant is in the cleaning tube 3 in a steam state after evaporation, and is disinfected and cleaned by contacting and dissolving the organic matter, and the alcohol is easy to evaporate to form a gas state, and the impurities are washed while the alcohol residue is reduced by matching with the washing of water flow, namely, the washing and the washing process is carried out after the disinfection process is reached), so as to realize the vaporization and disinfection treatment of the product placed in the cleaning tube 3;

the textile drives the rotating shaft 28 and the contact roller 9 to rotate in the process of conveying and pulling on the production line, in the process, the rotating plates 8 on the side walls of the two ends of the rotating shaft 28 take materials for the disinfectant at the bottom in the cleaning pipe 3 through the collecting pipe 18, and then the materials are conveyed into the water collecting cavity 17 through the liquid inlet pipe 10, the rotating plates 8 drive the magnetic balls 25 in the connecting pipe 23 to roll in the rotating process, at the moment, the coil 24 on the side wall of the connecting pipe 23 makes continuous motion for cutting the magnetic induction lines, at the moment, the current generated on the coil 24 is transmitted to the heating plate 11 and the heating block 21 through the conducting wire in the connecting groove 27 and the power-on ring 26 to realize the heating treatment of the disinfectant at the bottom in the cleaning pipe 3 and in the water collecting cavity 17, the rotating shaft 28 drives the rotating plates 8 to rotate in the rotating process, and the magnetic balls 25 continuously roll in the connecting groove in the rotating process, at the moment, the coil 24 is in continuous cutting magnetic induction line movement, so that electricity is continuously generated on the coil 24 to be used as electric energy supply for heating the disinfectant by the heating plate 11, the alcohol component in the disinfectant is formed into a vapor state in a volatilization mode, and the evaporation of the alcohol can be realized without high temperature by matching with the heating of the heating plate 11, so that the current generated by cutting the magnetic induction line by the coil 24 is enough for the evaporation process of the disinfectant, the pressure of the disinfectant in the water collecting cavity 17 is increased in the air outlet 19 after the disinfectant is heated and evaporated, the pressure valve 20 in the air outlet 19 senses the change of pressure, when the steam pressure is greater than the pressure threshold value of the pressure valve 20, the pressure valve 20 is opened, the steam of the disinfectant is sprayed out through the air outlet 19 and penetrates through the textile, namely, the disinfection treatment on the interior of the textile is realized in a mode that the steam penetrates through the textile, the disinfection effect of the textiles is ensured, meanwhile, in the running process of the textiles in the cleaning pipe 3, the contact rollers 9 contact with the guide rollers 7 and then contact and extrude the textiles, and the moisture in the textiles is discharged in a contact and extrusion manner;

the current generated by the coil 24 after continuously cutting the magnetic induction line is transmitted to the electric connection spring 15 on the connecting rod 14 through the conducting wire, when the electric connection spring 15 is electrified, a magnetic field is generated between each strand of the spring after electric connection, and the spiral directions of the two adjacent springs are opposite, so that a magnetic force field with opposite magnetic poles is generated between the two adjacent springs, so that the two adjacent springs can generate magnetic field attraction to be close to each other, namely, the integral contraction phenomenon of the electric connection spring 15 is realized, at the moment, the electric connection spring 15 drives the connecting rod 14 to move upwards, the connecting rod 14 pushes the supporting tube 16 to move upwards after moving upwards on the mounting base 1, at the moment, the supporting tube 16 drives the supporting base 2 to move upwards, in the process, the corrugated tube 13 is used for connecting and protecting the supporting base 2 and the mounting base 1, the textile in the conveying process in the cleaning tube 3 is always in a stretching tight state, and the effect of sterilizing the textile in the folding process is avoided.

The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered as the technical solutions and the inventive concepts of the present invention within the technical scope of the present invention.

Claims

1. The utility model provides a textile disinfection cleaning device for textile production line, includes installation base (1), its characterized in that, the upper end of installation base (1) is equipped with support base (2), the one end tip fixedly connected with cleaning tube (3) of installation base (1) is kept away from in support base (2), cleaning tube (3) internal rotation is connected with axis of rotation (28), the cover is equipped with heating block (21) on the lateral wall of axis of rotation (28), the cover is equipped with contact roller (9) on the lateral wall of heating block (21), fixedly connected with two rotor plates (8) that the symmetry set up on the lateral wall of axis of rotation (28), fixedly connected with hot plate (11) on the inside wall of cleaning tube (3), fixedly connected with two baffle (12) that the symmetry set up on the inside wall of cleaning tube (3), two be equipped with the evaporating liquid between the inside wall of baffle (12) and cleaning tube (3), the evaporating liquid intussuseption is filled with the cleaning liquid feed mechanism, a plurality of air jet (19) have been seted up to circumference on the lateral wall of contact roller (9), be equipped with pressure valve (20) in air jet (19), be equipped with the lateral wall that the rotor plate (8) for air jet (19);

offer material mouth (4) that two symmetries set up on the lateral wall of clean pipe (3), it is connected with apron (5), two to rotate on the inside wall of material mouth (4) all be equipped with ultraviolet lamp (6) on the relative lateral wall of apron (5), be equipped with in clean pipe (3) and be used for the guiding mechanism to direction in the fabrics transportation process, be equipped with between support base (2) and installation base (1) and be used for keeping the fabrics transportation process in the drive mechanism who is in the state of tightly stretching tight, mounting groove (22) have been seted up in rotor plate (8), be equipped with the power supply mechanism who is used for the drive mechanism power supply in mounting groove (22).

2. The textile disinfection and cleaning device for the textile production line as claimed in claim 1, wherein the liquid supply mechanism comprises a plurality of circumferentially arranged water collection chambers (17) arranged in the contact roller (9), a plurality of collection pipes (18) are circumferentially arranged on the side wall of the rotating plate (8), both end portions of the water collection chambers (17) are communicated with liquid inlet pipes (10), and one end portion, far away from the water collection chambers (17), of each liquid inlet pipe (10) penetrates through the rotating plate (8) and is communicated with the collection pipes (18).

3. A textile disinfection and cleaning apparatus for a textile production line as claimed in claim 2, wherein said guiding mechanism comprises a plurality of mounting brackets (29) fixedly connected to the inner side wall of the cleaning tube (3), a guiding roller (7) is disposed between two corresponding mounting brackets (29), and a plurality of guiding rollers (7) are circumferentially distributed outside the contact roller (9).

4. The textile disinfection and cleaning device for the textile production line according to claim 3, wherein the traction mechanism comprises two symmetrically arranged supporting tubes (16) fixedly connected to the lower end face of the supporting base (2), a connecting rod (14) is arranged in the supporting tubes (16), the connecting rod (14) penetrates through the sliding connection mounting base (1), a supporting plate is fixedly connected to one end portion, far away from the supporting tubes (16), of the connecting rod (14), an electric connection spring (15) is elastically connected between the supporting plate and the mounting base (1), and the electric connection spring (15) is sleeved on the side wall of the connecting rod (14).

5. A textile disinfection and cleaning apparatus for a textile production line according to claim 4, wherein a corrugated tube (13) is disposed between the supporting base (2) and the mounting base (1), both ends of the corrugated tube (13) are respectively fixedly connected to the mounting base (1) and the supporting base (2), and the supporting tube (16) is disposed in the corrugated tube (13).

6. The textile disinfection and cleaning device for the textile production line according to claim 5, wherein the power supply mechanism comprises a connecting pipe (23) fixedly connected in the mounting groove (22), a coil (24) is wound on a side wall of the connecting pipe (23), and a magnetic ball (25) is connected in the connecting pipe (23) in a rolling manner.

7. The textile disinfection and cleaning device for the textile production line according to claim 6, wherein the rotating plate (8) is provided with a connecting groove (27) therein, the connecting groove (27) is provided with a conducting wire therein, the conducting wire is electrically connected with an electrical connection ring (26), the electrical connection ring (26) is rotatably connected with a rotating shaft (28), and an end portion of the conducting wire far away from the electrical connection ring (26) is electrically connected with an electrical connection spring (15).

8. The textile disinfection and cleaning device for the textile production line as claimed in claim 7, wherein the side wall of the baffle plate (12) is provided with two symmetrically arranged matching grooves, and the rotating plate (8) is rotatably connected in the matching grooves.
