Abstract

本申请公开了一种节约水资源的涤纶面料生产用清洗设备，包括支撑板、移动轮组和清洗结构，所述支撑板底部四角处均固接有移动轮组，所述清洗结构包括清洗壳体、分隔板、第一导向轴组件、固定壳体、喷洒头、第二导向轴组件、第三导向轴组件、转动轴、挤干轴组件、第四导向轴组件和安装板，所述清洗壳体固接于支撑板顶部，所述清洗壳体内腔底部固接有分隔板，所述分隔板一侧设置有第一导向轴组件，所述固定壳体与清洗壳体内腔侧壁转动连接，所述第一导向轴组件侧面设置有固定壳体，所述固定壳体靠近第一导向轴组件的一侧固接有若干个均匀分布的喷洒头。本申请的有益之处在于：提供一种便于清洁、干燥的节约水资源的涤纶面料生产用清洗设备。

Figure 202210935262

The present application discloses a water-saving cleaning device for polyester fabric production, comprising a support plate, a moving wheel set and a cleaning structure. The four corners of the bottom of the support plate are fixed with moving wheel sets, and the cleaning structure includes a cleaning shell body, partition plate, first guide shaft assembly, fixed housing, spray head, second guide shaft assembly, third guide shaft assembly, rotating shaft, squeeze shaft assembly, fourth guide shaft assembly and mounting plate, the The cleaning shell is fixed on the top of the support plate, the bottom of the inner cavity of the cleaning shell is fixed with a partition plate, and one side of the partition plate is provided with a first guide shaft assembly, and the fixed shell is connected to the inner cavity side of the cleaning shell. The walls are rotatably connected, the side of the first guide shaft assembly is provided with a fixed casing, and the side of the fixed casing close to the first guide shaft assembly is fixed with a number of evenly distributed spray heads. The benefit of the present application is to provide a cleaning device for producing polyester fabrics that is convenient for cleaning and drying and saves water resources.

Figure 202210935262

Description

Water-saving cleaning equipment for production of polyester fabric
Technical Field
The application relates to a cleaning device, in particular to a cleaning device for producing polyester fabrics capable of saving water resources.
Background
The polyester fiber is a synthetic fiber obtained by spinning polyester formed by polycondensing organic diacid and dihydric alcohol, is called PET fiber for short, belongs to a high molecular compound, has the greatest advantages of good crease resistance and shape retention, higher strength and elastic recovery capability, fastness, durability, crease resistance, no ironing, no hair sticking, high strength, high modulus and low water absorption, has wide application as civil fabrics and industrial fabrics, can be used as textile materials, can be purely spun, and is particularly suitable for being blended with other fibers; the polyester twisted filament can be mainly used for weaving various silk-like silk fabrics, can also be interwoven with natural fibers or chemical staple yarns, and can also be interwoven with silk or other chemical fiber filaments, and the interwoven fabrics keep a series of advantages of the polyester.
The dacron surface fabric need wash the processing in process of production, but current cleaning equipment cleaning performance is relatively poor, and water waste is comparatively serious, the production of the dacron surface fabric of not being convenient for, and the dacron surface fabric need shift to drying equipment and carry out the drying after finishing wasing simultaneously, and at the transfer in-process, the liquid of adhesion can drip at will on the dacron surface fabric, influences operational environment on every side.
Disclosure of Invention
In order to solve the not enough of prior art, utilize and wash the structure and can wash dacron surface fabric, solved the poor and problem of water waste resource of current cleaning equipment cleaning performance, the cleaning performance is better, and partial water resource can cyclic utilization when wasing, can reduce the water yield of water simultaneously, effective water economy resource.
More in order to solve the problem among the prior art, utilize preliminary treatment structure can clean the dacron surface fabric, solved the problem that current dacron surface fabric cleaning efficiency is low, be convenient for handle ash on the dacron surface fabric and batting etc. can improve the abluent efficiency of dacron surface fabric, can reduce the water consumption.
Further in order to solve the problem among the prior art, utilize drying structure can carry out the drying to the surface fabric after wasing, solved the problem that current cleaning equipment lacks drying function, avoid needing to shift the dacron surface fabric and carry out the drying, avoid shifting in-process liquid drip and influence the clean and tidy of operational environment on every side.
The utility model provides a polyester fabric production of water economy resource is with cleaning equipment, includes backup pad, removal wheelset and washs the structure, the equal rigid coupling in backup pad bottom four corners department has the removal wheelset, wash the structure including wasing casing, division board, first guide shaft subassembly, fixed casing, sprinkler head, second guide shaft subassembly, third guide shaft subassembly, axis of rotation, wringing axle subassembly, fourth guide shaft subassembly and mounting panel, it has a plurality of evenly distributed's sprinkler head to wash casing rigid coupling in backup pad top, it has the division board to wash casing inner chamber bottom rigid coupling, division board one side is provided with first guide shaft subassembly, fixed casing rotates with washing casing inner chamber lateral wall to be connected, first guide shaft subassembly side is provided with fixed casing, one side rigid coupling that fixed casing is close to first guide shaft subassembly has a plurality of evenly distributed's sprinkler head, fixed casing opposite side is connected with circulation subassembly, it connects the second guide shaft subassembly to wash casing inner chamber lateral wall rotation, second guide shaft subassembly one side is provided with the third guide shaft subassembly, third guide shaft subassembly rotates with washing casing inner chamber lateral wall to be connected, third guide shaft subassembly below is provided with the wringing axle subassembly top, the washing casing both ends are provided with the equal rigid coupling in the washing casing top and wash the casing lateral wall.
Further, it is connected with four first guide shaft subassemblies that are the distribution of rectangle structure to wash casing inner chamber lateral wall rotation, second guide shaft subassembly and third guide shaft subassembly are located the division board both sides respectively, it is connected with the axis of rotation that distributes about two to wash casing inner chamber lateral wall rotation, just auxiliary assembly is located the position between two axis of rotation, wash the intercommunication mouth that two symmetric distributions were seted up at casing top, it has a plurality of feed liquor pipe subassembly and play liquid pipe subassembly to wash the positive rigid coupling of casing.
Further, the circulation subassembly includes circulating water pump, first water pipe, circulation filter screen, second water pipe and installation pipe, the circulating water pump rigid coupling is in wasing casing one side, the first water pipe of circulating water pump's the end rigid coupling of intaking, first water pipe one side is provided with circulation filter screen, circulation filter screen rigid coupling is in wasing casing inner chamber lateral wall, circulating water pump's play water end rigid coupling second water pipe, second water pipe one end rigid coupling installation pipe, the installation pipe rigid coupling is in the one side that first guiding axle subassembly was kept away from to fixed casing, just wash casing one side and seted up a plurality of fixed orifices, first water pipe and second water pipe one end run through the fixed orifices respectively and extend to washing casing inner chamber department.
Further, the auxiliary assembly includes installation casing, driving sprocket, first chain, first motor, spliced pole and support casing, the installation casing rigid coupling is in wasing the casing back, installation casing inner chamber department is provided with three driving sprocket, driving sprocket side is connected with first chain meshing, and is three driving sprocket connects through first chain drive, one of them driving sprocket rigid coupling in the output of first motor, first motor rigid coupling is to the lateral wall in the installation casing, driving sprocket is close to the one side rigid coupling spliced pole of wasing the casing, the spliced pole rigid coupling is in eccentric wheel one side, and the operating room eccentric wheel rotates with wasing casing inner chamber lateral wall and is connected, just the mounting hole has been seted up at the washing casing back, spliced pole one end runs through the mounting hole and extends to washing casing inner chamber department.
Further, including the preliminary treatment structure, the preliminary treatment structure is including supporting casing, transfer axle subassembly, clean axle, second motor, rolling axle, clean sticky tape and putting the area axle, support the casing rigid coupling in wasing the casing top, support casing inner chamber lateral wall and rotate the transfer axle subassembly that is connected with two symmetric distributions, two be provided with clean axle between the transfer axle subassembly, clean axle swivelling joint is in supporting casing inner chamber lateral wall, the positive rigid coupling of support casing has the second motor, the output rigid coupling rolling axle of second motor, rolling axle surface mounting has clean sticky tape, clean sticky tape twines in putting the area axle surface, put the area axle rigid coupling in supporting casing inner chamber lateral wall.
Further, the feed inlet has been seted up at the support casing top, the second motor that distributes about the positive rigid coupling of support casing has two, the support casing openly sets up two and controls the preset hole that distributes, the output of second motor runs through preset hole and extends to support casing inner chamber department, support casing inner chamber lateral wall rotates and is connected with two clean axles.
Further, including dry structure, dry structure includes dry casing, dry axle, ejection of compact axle subassembly, circulation casing, circulating fan, first connecting pipe, central casing and second connecting pipe, dry casing rigid coupling in backup pad top, dry casing inner chamber lateral wall rotates and is connected with the dry axle, dry casing inner chamber lateral wall rotates and is connected with ejection of compact axle subassembly, dry casing top rigid coupling circulation casing, circulation casing inner chamber lateral wall rigid coupling has circulating fan, the circulating fan both sides all are provided with filtering component, circulation casing both sides all are provided with first connecting pipe, first connecting pipe rigid coupling is in central casing one side, one side rigid coupling that central casing is close to dry casing has the second connecting pipe, second connecting pipe rigid coupling is in dry casing side.
Further, the equal rigid coupling in dry casing both sides has dry mouthful, dry casing inner chamber lateral wall rigid coupling has a plurality of evenly distributed's heating member, dry casing inner chamber lateral wall rotates and is connected with the dry axle of a plurality of, one side rigid coupling that central casing is close to dry casing has a plurality of second connecting pipe, a plurality of vent has all been seted up to dry casing front and back.
Further, the filtering component comprises a filtering shell, a drying filter screen, a protective shell, a third motor, a first chain wheel, a second chain wheel, a threaded column, a movable plate, a limiting column and a cleaning brush, the filtering shell is fixedly connected to two sides of the circulating shell, the filtering shell is fixedly connected to the top of the drying shell, the inner cavity side wall of the filtering shell is fixedly connected with the drying filter screen, the protective shell is fixedly connected to one side of the filtering shell, the inner cavity side wall of the protective shell is fixedly connected with the third motor, the output end of the third motor is fixedly connected to the first chain wheel, the side face of the first chain wheel is meshed with the second chain, the side face of the second chain wheel is meshed with the second chain wheel, the threaded column is fixedly connected to one side of the first chain wheel and the second chain wheel, the surface of the threaded column is in threaded connection with the movable plate, the movable plate is slidably connected to the surface of the limiting column, the limiting column is fixedly connected to the inner cavity side wall of the filtering shell, and the movable plate is fixedly connected to one side of the drying filter screen and the cleaning brush.
Further, a plurality of evenly distributed ventilation holes are formed in the two sides of the drying shell and the two sides of the filtering shell, a preset hole is formed in one side, close to the filtering shell, of the protection shell, one end of the threaded column penetrates through the preset hole and is rotatably connected to the side wall of the inner cavity of the filtering shell, the first connecting pipe is fixedly connected to one side of the filtering shell, a plurality of limiting columns are fixedly connected to the side wall of the inner cavity of the filtering shell, a limiting hole is formed in the movable plate, and one ends of the limiting columns penetrate through the limiting holes and are fixedly connected to the side wall of the inner cavity of the filtering shell.
The application has the advantages that: the cleaning equipment for the production of the polyester fabric is convenient to clean and dry and saves water resources.
Drawings
In order to more clearly illustrate the embodiments of the present application or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the description below are only some embodiments of the present application, and for those skilled in the art, other drawings can be obtained according to the drawings without inventive labor.

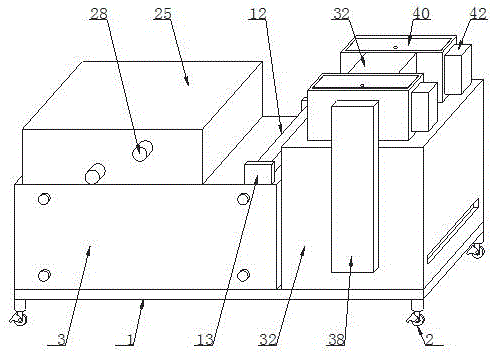

FIG. 1 is a schematic perspective view of a cleaning device for polyester fabric production for saving water resources according to an embodiment of the application;
FIG. 2 is a schematic plan view of the cleaning apparatus in the embodiment of FIG. 1;
FIG. 3 is a schematic side view of the cleaning structure of the embodiment shown in FIG. 1;
FIG. 4 is a structural schematic diagram showing the positional relationship among the mounting housing, the first sprocket, the first chain, the first motor and the connecting column in the embodiment shown in FIG. 1;
FIG. 5 is a schematic top view of the drying structure of the embodiment of FIG. 1;
FIG. 6 is a schematic side view of the drying configuration of the embodiment of FIG. 1;
FIG. 7 is an enlarged view of a portion A of the embodiment shown in FIG. 5;
FIG. 8 is a structural diagram illustrating the positional relationship among the third motor, the first chain wheel, the second chain wheel and the threaded post in the embodiment shown in FIG. 1;
FIG. 9 is a schematic structural diagram showing the positional relationship among the moving plate, the threaded post and the restraining post in the embodiment shown in FIG. 1;
fig. 10 is a structural diagram of the positional relationship among the second motor, the cleaning shaft, the cleaning tape and the unwinding shaft in the embodiment shown in fig. 1.
The meaning of the reference symbols in the figures: 1. a support plate; 2. moving the wheel set; 3. cleaning the shell; 4. a partition plate; 5. a first guide shaft assembly; 6. a stationary housing; 7. a sprinkler head; 8. a second guide shaft assembly; 9. a third guide shaft assembly; 10. a rotating shaft; 11. squeezing the shaft assembly; 12. a fourth guide shaft assembly; 13. mounting a plate; 14. a water circulating pump; 15. a first water pipe; 16. circulating the filter screen; 17. a second water pipe; 18. installing a pipe; 19. installing a shell; 20. a drive sprocket; 21. a first chain; 22. a first motor; 23. connecting columns; 24. an eccentric wheel; 25. a support housing; 26. a transfer shaft assembly; 27. cleaning the shaft; 28. a second motor; 29. a winding shaft; 30. cleaning the adhesive tape; 31. releasing the belt shaft; 32. drying the shell; 33. drying the shaft; 34. a discharge shaft assembly; 35. a circulating housing; 36. a circulating fan; 37. a first connecting pipe; 38. a center housing; 39. a second connecting pipe; 40. a filter housing; 41. drying the filter screen; 42. a protective housing; 43. a third motor; 44. a first sprocket; 45. a second chain; 46. a second sprocket; 47. a threaded post; 48. moving the plate; 49. a limiting column; 50. a cleaning brush.
Detailed Description
In order to make the objects, features and advantages of the present application more obvious and understandable, the technical solutions in the embodiments of the present application will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present application. All other embodiments obtained by a person of ordinary skill in the art based on the embodiments in the present application without making any creative effort belong to the protection scope of the present application.
The technical scheme of the application is further explained by the specific implementation mode in combination with the attached drawings.
In the description of the present application, it is to be understood that the terms "upper", "lower", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, are only for convenience in describing the present application and simplifying the description, and do not indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and thus, are not to be construed as limiting the present application.
Referring to fig. 1 to 2, a washing device for polyester fabric production of water saving resources, which comprises a support plate 1, a movable wheel set 2 and a washing structure, the movable wheel set 2 is fixedly connected to four corners of the bottom of the support plate 1, the washing structure comprises a washing shell 3, a partition plate 4, a first guide shaft assembly 5, a fixed shell 6, a spray head 7, a second guide shaft assembly 8, a third guide shaft assembly 9, a rotating shaft 10, a squeezing shaft assembly 11, a fourth guide shaft assembly 12 and a mounting plate 13, the washing shell 3 is fixedly connected to the top of the support plate 1, the bottom of an inner cavity of the washing shell 3 is fixedly connected to the partition plate 4, one side of the partition plate 4 is provided with the first guide shaft assembly 5, the fixed shell 6 is rotatably connected to a side wall of the inner cavity of the washing shell 3, the side wall of the inner cavity of the second guide shaft assembly 8 is provided with the fixed shell 6, the fixed shell 6 is fixedly connected to the spray head 7 which is uniformly distributed on one side close to the first guide shaft assembly 5, the other side of the fixed shell 6 is connected to a circulating assembly, the side wall of the inner cavity of the washing shell 3 is rotatably connected to the washing shell 3, the second guide shaft assembly 8, one side wall of the washing shell 3 is provided with the third guide shaft assembly 8, one side wall of the second guide shaft assembly 8 is provided with the third guide shaft assembly 9, the inner cavity of the rotating shaft assembly, the rotating shaft assembly is provided with the top of the rotating shaft assembly, the washing shell 3, the rotating shaft assembly 10, the rotating shaft assembly 12 is provided with the top of the four guide shaft assembly 10, the four guide shaft assembly 12, the top of the shell 3, the squeezing shaft assembly 12, the shell 3, the top of the four guide shaft assembly 12 and the top of the squeezing shaft assembly 12, the shell 3, the four guide shaft assembly 12, the squeezing shaft assembly 12 are provided with the top of the washing shell 3, the squeezing shaft assembly 12, the shell 3, the top, the washing shell 3, the top, the shell 3, the four guide shaft assembly 12 and the top are provided with the top, the washing shell 3, the top, the squeezing shaft assembly 12.
Through the technical scheme, utilize and wash the structure and can carry out high-efficient washing to polyester fabric, the cleaning performance is better, and partial water resource can cyclic utilization when wasing, can reduce the water yield of water simultaneously, effective water economy resource, utilize first guide shaft subassembly 5 to lead to polyester fabric when using, utilize sprinkler 7 to wash polyester fabric this moment, then utilize second guide shaft subassembly 8 and third guide shaft subassembly 9 to transmit the direction to polyester fabric, can utilize axis of rotation 10 to continue to lead to polyester fabric this moment, thereby make polyester fabric soak in the washing liquid, continue to soak and wash, increase polyester fabric's cleaning performance, can reduce the volume of water simultaneously, water economy resource, be convenient for polyester fabric's production.
Particularly, as shown in fig. 2, it is connected with four first guiding axle subassembly 5 that are the distribution of rectangle structure to wash 3 intracavity lateral walls of casing, first guiding axle subassembly 5 can be to the dacron surface fabric carry that leads, second guiding axle subassembly 8 and third guiding axle subassembly 9 are located division board 4 both sides respectively, wash 3 intracavity lateral walls of casing and rotate and be connected with the axis of rotation 10 that distributes about two, and the auxiliary assembly is located the position between two axis of rotation 10, wash 3 tops of casing and set up the intercommunication mouth of two symmetric distributions, it has a plurality of feed liquor pipe subassembly and play liquid pipe subassembly to wash the positive rigid coupling of casing 3, can be convenient for add and the discharge washing liquid in to backup pad 1 through feed liquor pipe subassembly and play liquid pipe subassembly.
As a further optimization scheme, as shown in fig. 2 and fig. 3, the circulation component includes a circulation water pump 14, a first water pipe 15, a circulation filter screen 16, a second water pipe 17 and an installation pipe 18, the circulation water pump 14 is fixedly connected to one side of the cleaning housing 3, a water inlet end of the circulation water pump 14 is fixedly connected to the first water pipe 15, the circulation filter screen 16 is disposed on one side of the first water pipe 15, the circulation filter screen 16 is fixedly connected to a side wall of an inner cavity of the cleaning housing 3, a water outlet end of the circulation water pump 14 is fixedly connected to the second water pipe 17, one end of the second water pipe 17 is fixedly connected to the installation pipe 18, the installation pipe 18 is fixedly connected to one side of the fixed housing 6 far away from the first guide shaft assembly 5, a plurality of fixing holes are formed in one side of the cleaning housing 3, one end of the first water pipe 15 and one end of the second water pipe 17 respectively penetrate through the fixing holes and extend to the inner cavity of the cleaning housing 3, when the cleaning liquid is used, the cleaning liquid can be pumped into the fixed housing 6 through the spray nozzle 7, the cleaning liquid can be sprayed on the surface, the surface of the terylene filter screen can be used for saving, and the terylene cleaning water can be used for cleaning, and the terylene filter screen 14 can be used for saving, and the terylene.
As a further optimization scheme, as shown in fig. 2 and fig. 4, the auxiliary assembly includes an installation housing 19, a transmission sprocket 20, a first chain 21, a first motor 22, a connection column 23 and a support housing 25, the installation housing 19 is fixedly connected to the back of the cleaning housing 3, three transmission sprockets 20 are arranged in an inner cavity of the installation housing 19, the side surfaces of the transmission sprockets 20 are meshed with the first chain 21, and the three transmission sprockets 20 are in transmission connection with the first chain 21, one of the transmission sprockets 20 is fixedly connected to an output end of the first motor 22, the first motor 22 is fixedly connected to an inward side wall of the installation housing 19, one side of the transmission sprocket 20 close to the cleaning housing 3 is fixedly connected to the connection column 23, the connection column 23 is fixedly connected to one side of the eccentric wheel 24, the operating room eccentric wheel 24 is rotatably connected to the inner cavity side wall of the cleaning housing 3, and a mounting hole is formed in the back of the cleaning housing 3, one end of the connection column 23 penetrates through the mounting hole and extends to the inner cavity of the cleaning housing 3, the first motor 22 drives the transmission sprocket 20 to rotate, thereby driving the three transmission sprockets 20 to rotate under the effect of the first chain 21 to drive the eccentric wheel 24 to rotate, thereby increasing the contact with the fabric, and facilitate the cleaning solution for cleaning of the polyester fabric.
As an optimized scheme, as shown in fig. 2, the device comprises a pretreatment structure, the pretreatment structure comprises a support shell 25, a transfer shaft assembly 26, a cleaning shaft 27, a second motor 28, a winding shaft 29, a cleaning tape 30 and a tape unwinding shaft 31, the support shell 25 is fixedly connected to the top of the cleaning shell 3, the side wall of the inner cavity of the support shell 25 is rotatably connected with the two transfer shaft assemblies 26 which are symmetrically distributed, the cleaning shaft 27 is arranged between the two transfer shaft assemblies 26, the cleaning shaft 27 is rotatably connected to the side wall of the inner cavity of the support shell 25, the second motor 28 is fixedly connected to the front surface of the support shell 25, the output end of the second motor 28 is fixedly connected with the winding shaft 29, the cleaning tape 30 is mounted on the surface of the winding shaft 29, the cleaning tape 30 is wound on the surface of the tape unwinding shaft 31, and the tape unwinding shaft 31 is fixedly connected to the side wall of the inner cavity of the support shell 25.
Through the technical scheme, utilize the preliminary treatment structure can clean polyester fabric, be convenient for handle ash and wool etc. on the polyester fabric, can improve the abluent efficiency of polyester fabric, can reduce the water consumption, when using, can lead to polyester fabric through transfer axle subassembly 26, can clean the superficial dirt and wool etc. on polyester fabric surface through clean axle 27 and clean sticky tape 30 this moment, utilize second motor 28 to drive rolling axle 29 simultaneously and rotate, thereby roll up the clean sticky tape 30 after using, be convenient for utilize clean sticky tape 30 to clean polyester fabric, be convenient for wash polyester fabric, the water consumption when reducing the washing dacron, be convenient for wash polyester fabric.
Specifically, as shown in fig. 2 and 10, a feed inlet is opened at the top of the supporting shell 25, two second motors 28 distributed left and right are fixedly connected to the front surface of the supporting shell 25, two preset holes distributed left and right are opened on the front surface of the supporting shell 25, the output end of the second motor 28 penetrates through the preset holes and extends to the inner cavity of the supporting shell 25, two cleaning shafts 27 are rotatably connected to the side wall of the inner cavity of the supporting shell 25, and the tape roll can be placed on the tape placing shaft 31 when the tape is used.
As an optimized scheme, as shown in fig. 2 and fig. 5, the drying device comprises a drying structure, the drying structure comprises a drying shell 32, a drying shaft 33, a discharge shaft assembly 34, a circulation shell 35, a circulation fan 36, a first connection pipe 37, a center shell 38 and a second connection pipe 39, the drying shell 32 is fixedly connected to the top of the support plate 1, the side wall of the inner cavity of the drying shell 32 is rotatably connected with the drying shaft 33, the side wall of the inner cavity of the drying shell 32 is rotatably connected with the discharge shaft assembly 34, the top of the drying shell 32 is fixedly connected with the circulation shell 35, the side wall of the inner cavity of the circulation shell 35 is fixedly connected with the circulation fan 36, both sides of the circulation fan 36 are provided with a filtering assembly, both sides of the circulation shell 35 are provided with the first connection pipe 37, the first connection pipe 37 is fixedly connected to one side of the center shell 38, one side of the center shell 38 close to the drying shell 32 is fixedly connected with the second connection pipe 39, and the second connection pipe 39 is fixedly connected to the side of the drying shell 32.
Through the technical scheme, utilize dry construction can carry out the drying to the surface fabric after wasing, avoid needing to shift the dacron surface fabric and carry out the drying, avoid shifting in-process liquid dripping and influence the clean and tidy of operational environment on every side, when using, utilize crowded dry axle subassembly 11 to extrude the dacron surface fabric, and utilize fourth guide axle subassembly 12 to lead to the dacron surface fabric, make the dacron surface fabric get into in the dry casing 32, and utilize dry axle 33 can increase the time that the dacron surface fabric dwelled in dry casing 32, can utilize the heating member to dry the dacron surface fabric this moment, then utilize ejection of compact axle subassembly 34 to derive dry casing 32 with the dacron surface fabric, accomplish the washing of dacron surface fabric, it is dry.
Particularly, as shown in fig. 5 and 7, the equal rigid coupling in dry casing 32 both sides has dry mouthful, dry casing 32 inner chamber lateral wall rigid coupling has a plurality of evenly distributed's heating body, can heat the space in dry casing 32 through the heating body, be convenient for dry to the dacron surface fabric, dry casing 32 inner chamber lateral wall rotates and is connected with a plurality of dry axle 33, one side rigid coupling that central casing 38 is close to dry casing 32 has a plurality of second connecting pipe 39, a plurality of vent has all been seted up at dry casing 32 openly and the back.
As a further optimized scheme, as shown in fig. 5 and 6, the filtering assembly includes a filtering housing 40, a drying filter screen 41, a protective housing 42, a third motor 43, a first chain wheel 44, a second chain 45, a second chain wheel 46, a threaded column 47, a moving plate 48, a limiting column 49 and a cleaning brush 50, the filtering housing 40 is fixedly connected to both sides of the circulating housing 35, two filter shells 40 are fixedly connected to the top of the drying shell 32, the side wall of the inner cavity of each filter shell 40 is fixedly connected with a drying filter screen 41, one side of each filter shell 40 is fixedly connected with a protective shell 42, the side wall of the inner cavity of the protective shell 42 is fixedly connected with a third motor 43, the output end of the third motor 43 is fixedly connected with a first chain wheel 44, the side surface of the first chain wheel 44 is meshed with a second chain 45, the second chain 45 is meshed with the side surface of a second chain wheel 46, threaded columns 47 are fixedly connected to one sides of the first chain wheel 44 and the second chain wheel 46, a movable plate 48 is in threaded connection with the surfaces of the threaded columns 47, the movable plate 48 is in sliding connection with the surfaces of limiting columns 49, the limiting columns 49 are fixedly connected to the side wall of the inner cavity of each filter shell 40, and a cleaning brush 50 is fixedly connected to one side of the movable plate 48, which is close to the drying filter screen 41, when the terylene material is dried, the air in the drying shell 32 can be circulated and circulated through the circulating fan 36, and the circulated air is filtered by the drying filter screen 41, then, the third motor 43 is used to drive the first chain wheel 44 to rotate, thereby driving the second chain 45 to rotate, thereby driving the second chain wheel 46 to rotate, the first chain wheel 44 and the second chain wheel 46 can rotate simultaneously through the threaded columns 47 on both sides when rotating, the movable plate 48 can be driven to move along the limiting column 49 when the threaded columns 47 rotate, thereby drive cleaning brush 50 syntropy and remove, can clean dry filter screen 41 when cleaning brush 50 removes, prevent that dry filter screen 41 from blockking up and influencing the use.
Specifically, as shown in fig. 7, fig. 8 and fig. 9, a plurality of uniformly distributed ventilation holes are respectively formed at two sides of the drying casing 32 and the filtering casing 40, a preset hole is formed at one side of the protective casing 42 close to the filtering casing 40, one end of the threaded post 47 penetrates through the preset hole and is rotatably connected to the inner cavity side wall of the filtering casing 40, the first connecting tube 37 is fixedly connected to one side of the filtering casing 40, a plurality of limiting posts 49 are fixedly connected to the inner cavity side wall of the filtering casing 40, a limiting hole is formed in the moving plate 48, one end of each limiting post 49 penetrates through the limiting hole and is fixedly connected to the inner cavity side wall of the filtering casing 40, and the moving track of the moving plate 48 can be limited by the limiting posts 49.

It will be evident to those skilled in the art that the present application is not limited to the details of the foregoing illustrative embodiments, and that the present application may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the application being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
The above embodiments are only used for illustrating the technical solutions of the present application, and not for limiting the same; although the present application has been described in detail with reference to the foregoing embodiments, it should be understood by those of ordinary skill in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; and such modifications or substitutions do not depart from the spirit and scope of the corresponding technical solutions in the embodiments of the present application.

Claims (10)

1.一种节约水资源的涤纶面料生产用清洗设备，其特征在于：包括支撑板（1）、移动轮组（2）和清洗结构，所述支撑板（1）底部四角处均固接有移动轮组（2），所述清洗结构包括清洗壳体（3）、分隔板（4）、第一导向轴组件（5）、固定壳体（6）、喷洒头（7）、第二导向轴组件（8）、第三导向轴组件（9）、转动轴（10）、挤干轴组件（11）、第四导向轴组件（12）和安装板（13），所述清洗壳体（3）固接于支撑板（1）顶部，所述清洗壳体（3）内腔底部固接有分隔板（4），所述分隔板（4）一侧设置有第一导向轴组件（5），所述固定壳体（6）与清洗壳体（3）内腔侧壁转动连接，所述第一导向轴组件（5）侧面设置有固定壳体（6），所述固定壳体（6）靠近第一导向轴组件（5）的一侧固接有若干个均匀分布的喷洒头（7），所述固定壳体（6）另一侧与循环组件连接，所述清洗壳体（3）内腔侧壁转动连接第二导向轴组件（8），所述第二导向轴组件（8）一侧设置有第三导向轴组件（9），所述第三导向轴组件（9）与清洗壳体（3）内腔侧壁转动连接，所述第三导向轴组件（9）下方设置有转动轴（10），所述转动轴（10）上方设置有挤干轴组件（11），所述转动轴（10）和挤干轴组件（11）均与清洗壳体（3）内腔侧壁转动连接，所述清洗壳体（3）内腔侧壁设置有辅助组件，所述清洗壳体（3）上方设置有第四导向轴组件（12），所述第四导向轴组件（12）两端均转动连接安装板（13），所述安装板（13）固接于清洗壳体（3）顶部。1. A water-saving cleaning equipment for polyester fabric production, characterized in that it includes a support plate (1), a moving wheel set (2) and a cleaning structure, and the four corners of the bottom of the support plate (1) are fixed with The moving wheel set (2), the cleaning structure includes a cleaning housing (3), a partition plate (4), a first guide shaft assembly (5), a fixed housing (6), a sprinkler head (7), a second The guide shaft assembly (8), the third guide shaft assembly (9), the rotating shaft (10), the squeeze shaft assembly (11), the fourth guide shaft assembly (12) and the mounting plate (13), the cleaning housing (3) Fixed on the top of the support plate (1), the bottom of the inner cavity of the cleaning shell (3) is fixed with a partition plate (4), and a first guide shaft is provided on one side of the partition plate (4) component (5), the fixed housing (6) is rotatably connected to the side wall of the inner cavity of the cleaning housing (3), the side of the first guide shaft assembly (5) is provided with a fixed housing (6), and the fixed The side of the casing (6) close to the first guide shaft assembly (5) is fixed with several evenly distributed spray heads (7), the other side of the fixed casing (6) is connected with the circulation assembly, and the cleaning The side wall of the inner cavity of the casing (3) is rotatably connected to the second guide shaft assembly (8), and a third guide shaft assembly (9) is arranged on one side of the second guide shaft assembly (8), and the third guide shaft assembly (9) (9) Rotately connected with the side wall of the inner cavity of the cleaning shell (3), a rotating shaft (10) is arranged below the third guide shaft assembly (9), and a squeeze shaft assembly is arranged above the rotating shaft (10) (11), the rotating shaft (10) and the squeeze shaft assembly (11) are both rotatably connected to the side wall of the inner cavity of the cleaning housing (3), and the side wall of the inner cavity of the cleaning housing (3) is provided with auxiliary components , a fourth guide shaft assembly (12) is arranged above the cleaning housing (3), both ends of the fourth guide shaft assembly (12) are rotatably connected to a mounting plate (13), and the mounting plate (13) is fixed Connect to the top of the cleaning housing (3). 2.根据权利要求1所述的一种节约水资源的涤纶面料生产用清洗设备，其特征在于：所述清洗壳体（3）内腔侧壁转动连接有四个呈矩形结构分布的第一导向轴组件（5），所述第二导向轴组件（8）和第三导向轴组件（9）分别位于分隔板（4）两侧，所述清洗壳体（3）内腔侧壁转动连接有两个左右分布的转动轴（10），且所述辅助组件位于两个转动轴（10）之间的位置，所述清洗壳体（3）顶部开设有两个对称分布的连通口，所述清洗壳体（3）正面固接有若干个进液管组件和出液管组件。2. A cleaning equipment for polyester fabric production that saves water resources according to claim 1, characterized in that: the side wall of the inner cavity of the cleaning housing (3) is rotatably connected with four first rectangular-shaped structures. The guide shaft assembly (5), the second guide shaft assembly (8) and the third guide shaft assembly (9) are respectively located on both sides of the partition plate (4), and the inner cavity side wall of the cleaning housing (3) rotates Two rotating shafts (10) distributed left and right are connected, and the auxiliary assembly is located between the two rotating shafts (10), and two symmetrically distributed communication ports are opened on the top of the cleaning housing (3). Several liquid inlet pipe assemblies and liquid outlet pipe assemblies are fixedly connected to the front of the cleaning housing (3). 3.根据权利要求1所述的一种节约水资源的涤纶面料生产用清洗设备，其特征在于：所述循环组件包括循环水泵（14）、第一水管（15）、循环过滤网（16）、第二水管（17）和安装管（18），所述循环水泵（14）固接于清洗壳体（3）一侧，所述循环水泵（14）的进水端固接第一水管（15），所述第一水管（15）一侧设置有循环过滤网（16），所述循环过滤网（16）固接于清洗壳体（3）内腔侧壁，所述循环水泵（14）的出水端固接第二水管（17），所述第二水管（17）一端固接安装管（18），所述安装管（18）固接于固定壳体（6）远离第一导向轴组件（5）的一侧，且所述清洗壳体（3）一侧开设有若干个固定孔，所述第一水管（15）和第二水管（17）一端分别贯穿固定孔并延伸至清洗壳体（3）内腔处。3. The water-saving cleaning equipment for polyester fabric production according to claim 1, characterized in that: the circulation component includes a circulation water pump (14), a first water pipe (15), and a circulation filter (16) , the second water pipe (17) and the installation pipe (18), the circulating water pump (14) is fixedly connected to one side of the cleaning shell (3), and the water inlet end of the circulating water pump (14) is fixedly connected to the first water pipe ( 15), the side of the first water pipe (15) is provided with a circulating filter (16), the circulating filter (16) is fixed on the side wall of the inner cavity of the cleaning shell (3), and the circulating water pump (14 ) is fixed to the second water pipe (17), one end of the second water pipe (17) is fixed to the installation pipe (18), and the installation pipe (18) is fixed to the fixed housing (6) away from the first guide One side of the shaft assembly (5), and several fixing holes are opened on one side of the cleaning housing (3), and one end of the first water pipe (15) and the second water pipe (17) respectively pass through the fixing holes and extend to Clean the inner cavity of the housing (3). 4.根据权利要求1所述的一种节约水资源的涤纶面料生产用清洗设备，其特征在于：所述辅助组件包括安装壳体（19）、传动链轮（20）、第一链条（21）、第一电机（22）、连接柱（23）和支撑壳体（25），所述安装壳体（19）固接于清洗壳体（3）背面，所述安装壳体（19）内腔处设置有三个传动链轮（20），所述传动链轮（20）侧面与第一链条（21）啮合连接，且三个所述传动链轮（20）通过第一链条（21）传动连接，其中一个所述传动链轮（20）固接于第一电机（22）的输出端，所述第一电机（22）固接于安装壳体（19）内向侧壁，所述传动链轮（20）靠近清洗壳体（3）的一侧固接连接柱（23），所述连接柱（23）固接于偏心轮（24）一侧，手术室偏心轮（24）与清洗壳体（3）内腔侧壁转动连接，且所述清洗壳体（3）背面开设有安装孔，所述连接柱（23）一端贯穿安装孔并延伸至清洗壳体（3）内腔处。4. A water-saving cleaning equipment for polyester fabric production according to claim 1, characterized in that: the auxiliary components include an installation housing (19), a transmission sprocket (20), a first chain (21 ), the first motor (22), the connecting column (23) and the support shell (25), the installation shell (19) is fixed on the back of the cleaning shell (3), and the inside of the installation shell (19) Three transmission sprockets (20) are arranged at the cavity, and the sides of the transmission sprockets (20) are meshed with the first chain (21), and the three transmission sprockets (20) are driven by the first chain (21) connection, one of the transmission sprockets (20) is fixed to the output end of the first motor (22), the first motor (22) is fixed to the inner side wall of the installation housing (19), and the transmission chain The side of the wheel (20) close to the cleaning shell (3) is fixed to the connecting column (23), and the connecting column (23) is fixed to the side of the eccentric wheel (24). The operating room eccentric wheel (24) and the cleaning shell The side wall of the inner cavity of the body (3) is rotatably connected, and an installation hole is opened on the back of the cleaning housing (3), and one end of the connecting column (23) passes through the installation hole and extends to the inner cavity of the cleaning housing (3). 5.根据权利要求1所述的一种节约水资源的涤纶面料生产用清洗设备，其特征在于：包括预处理结构，所述预处理结构包括支撑壳体（25）、转移轴组件（26）、清洁轴（27）、第二电机（28）、收卷轴（29）、清洁胶带（30）和放带轴（31），所述支撑壳体（25）固接于清洗壳体（3）顶部，所述支撑壳体（25）内腔侧壁转动连接有两个对称分布的转移轴组件（26），两个所述转移轴组件（26）之间设置有清洁轴（27），所述清洁轴（27）转动连接于支撑壳体（25）内腔侧壁，所述支撑壳体（25）正面固接有第二电机（28），所述第二电机（28）的输出端固接收卷轴（29），所述收卷轴（29）表面安装有清洁胶带（30），所述清洁胶带（30）缠绕于放带轴（31）表面，所述放带轴（31）固接于支撑壳体（25）内腔侧壁。5. A water-saving cleaning equipment for polyester fabric production according to claim 1, characterized in that it includes a pretreatment structure, and the pretreatment structure includes a support shell (25), a transfer shaft assembly (26) , a cleaning shaft (27), a second motor (28), a rewinding shaft (29), a cleaning tape (30) and an unwinding shaft (31), the supporting shell (25) is fixedly connected to the cleaning shell (3) At the top, two symmetrically distributed transfer shaft assemblies (26) are rotatably connected to the side wall of the inner cavity of the support housing (25), and a cleaning shaft (27) is arranged between the two transfer shaft assemblies (26). The cleaning shaft (27) is rotatably connected to the side wall of the inner cavity of the support housing (25), and a second motor (28) is fixedly connected to the front of the support housing (25), and the output end of the second motor (28) Fix the receiving reel (29), the surface of the take-up reel (29) is equipped with a cleaning tape (30), the cleaning tape (30) is wound on the surface of the unwinding reel (31), and the unwinding reel (31) is fixed On the side wall of the inner cavity of the support housing (25). 6.根据权利要求5所述的一种节约水资源的涤纶面料生产用清洗设备，其特征在于：所述支撑壳体（25）顶部开设有进料口，所述支撑壳体（25）正面固接有两个左右分布的第二电机（28），所述支撑壳体（25）正面开设有两个左右分布的预设孔，所述第二电机（28）的输出端贯穿预设孔并延伸至支撑壳体（25）内腔处，所述支撑壳体（25）内腔侧壁转动连接有两个清洁轴（27）。6. The cleaning equipment for producing water-saving polyester fabrics according to claim 5, characterized in that: the top of the supporting shell (25) is provided with a feeding port, and the front of the supporting shell (25) is Two second motors (28) distributed left and right are fixedly connected, and two preset holes distributed left and right are opened on the front of the support housing (25), and the output end of the second motor (28) passes through the preset holes And extend to the inner cavity of the support housing (25), the side wall of the inner cavity of the support housing (25) is rotatably connected with two cleaning shafts (27). 7.根据权利要求1所述的一种节约水资源的涤纶面料生产用清洗设备，其特征在于：包括干燥结构，所述干燥结构包括干燥壳体（32）、干燥轴（33）、出料轴组件（34）、循环壳体（35）、循环风机（36）、第一连接管（37）、中心壳体（38）和第二连接管（39），所述干燥壳体（32）固接于支撑板（1）顶部，所述干燥壳体（32）内腔侧壁转动连接有干燥轴（33），所述干燥壳体（32）内腔侧壁转动连接有出料轴组件（34），所述干燥壳体（32）顶部固接循环壳体（35），所述循环壳体（35）内腔侧壁固接有循环风机（36），所述循环风机（36）两侧均设置有过滤组件，所述循环壳体（35）两侧均设置有第一连接管（37），所述第一连接管（37）固接于中心壳体（38）一侧，所述中心壳体（38）靠近干燥壳体（32）的一侧固接有第二连接管（39），所述第二连接管（39）固接于干燥壳体（32）侧面。7. A water-saving cleaning equipment for polyester fabric production according to claim 1, characterized in that it includes a drying structure, and the drying structure includes a drying shell (32), a drying shaft (33), a discharge Shaft assembly (34), circulation housing (35), circulation fan (36), first connecting pipe (37), center housing (38) and second connecting pipe (39), the drying housing (32) Fixed on the top of the support plate (1), the inner cavity side wall of the drying shell (32) is rotatably connected with a drying shaft (33), and the inner cavity side wall of the drying shell (32) is rotatably connected with a discharge shaft assembly (34), the top of the drying shell (32) is fixed to the circulating shell (35), and the inner cavity side wall of the circulating shell (35) is fixed with a circulating fan (36), and the circulating fan (36) Filtration assemblies are arranged on both sides, first connecting pipes (37) are arranged on both sides of the circulation casing (35), and the first connecting pipes (37) are fixedly connected to one side of the central casing (38). A second connecting pipe (39) is affixed to the side of the central housing (38) close to the drying housing (32), and the second connecting pipe (39) is affixed to the side of the drying housing (32). 8.根据权利要求7所述的一种节约水资源的涤纶面料生产用清洗设备，其特征在于：所述干燥壳体（32）两侧均固接有干燥口，所述干燥壳体（32）内腔侧壁固接有若干个均匀分布的加热体，所述干燥壳体（32）内腔侧壁转动连接有若干个干燥轴（33），所述中心壳体（38）靠近干燥壳体（32）的一侧固接有若干个第二连接管（39），所述干燥壳体（32）正面和背面均开设有若干个通风口。8. The cleaning equipment for polyester fabric production that saves water resources according to claim 7, characterized in that: both sides of the drying shell (32) are fixedly connected with drying ports, and the drying shell (32) ) The side wall of the inner cavity is fixed with several evenly distributed heating bodies, the inner cavity side wall of the drying shell (32) is rotatably connected with several drying shafts (33), and the central shell (38) is close to the drying shell Several second connecting pipes (39) are fixedly connected to one side of the body (32), and several ventilation openings are opened on the front and back of the drying housing (32). 9.根据权利要求7所述的一种节约水资源的涤纶面料生产用清洗设备，其特征在于：所述过滤组件包括过滤壳体（40）、干燥过滤网（41）、防护壳体（42）、第三电机（43）、第一链轮（44）、第二链条（45）、第二链轮（46）、螺纹柱（47）、移动板（48）、限位柱（49）和清洁刷（50），所述循环壳体（35）两侧均固接有过滤壳体（40），且两个所述过滤壳体（40）均固接于干燥壳体（32）顶部，所述过滤壳体（40）内腔侧壁固接干燥过滤网（41），所述过滤壳体（40）一侧固接防护壳体（42），所述防护壳体（42）内腔侧壁固接第三电机（43），所述第三电机（43）的输出端固接第一链轮（44），所述第一链轮（44）侧面啮合连接第二链条（45），所述第二链条（45）啮合连接第二链轮（46）侧面，所述第一链轮（44）和第二链轮（46）一侧均固接有螺纹柱（47），所述螺纹柱（47）表面螺纹连接有移动板（48），所述移动板（48）滑动连接于限位柱（49）表面，所述限位柱（49）固接于过滤壳体（40）内腔侧壁，所述移动板（48）靠近干燥过滤网（41）的一侧固接有清洁刷（50）。9. A water-saving cleaning equipment for polyester fabric production according to claim 7, characterized in that: the filter assembly includes a filter housing (40), a drying filter (41), a protective housing (42 ), the third motor (43), the first sprocket (44), the second chain (45), the second sprocket (46), the threaded post (47), the moving plate (48), the limit post (49) and a cleaning brush (50), the filter housing (40) is fixed on both sides of the circulation housing (35), and the two filter housings (40) are fixed on the top of the drying housing (32) , the side wall of the filter housing (40) is fixed with a dry filter (41), one side of the filter housing (40) is fixed with a protective housing (42), and the protective housing (42) The side wall of the cavity is fixed to the third motor (43), the output end of the third motor (43) is fixed to the first sprocket (44), and the side of the first sprocket (44) is engaged with the second chain (45) ), the second chain (45) is meshed with the side of the second sprocket (46), and the first sprocket (44) and the second sprocket (46) are fixedly connected with threaded columns (47) on one side, The surface of the threaded column (47) is screwed with a moving plate (48), the moving plate (48) is slidably connected to the surface of the limiting column (49), and the limiting column (49) is fixed to the filter housing ( 40) The side wall of the inner cavity, the side of the moving plate (48) close to the drying filter (41) is fixedly connected with a cleaning brush (50). 10.根据权利要求9所述的一种节约水资源的涤纶面料生产用清洗设备，其特征在于：所述干燥壳体（32）和过滤壳体（40）两侧均开设有若干个均匀分布的换气孔，所述防护壳体（42）靠近过滤壳体（40）的一侧开设有预设孔，所述螺纹柱（47）一端贯穿预设孔并转动连接于过滤壳体（40）内腔侧壁，所述第一连接管（37）固接于过滤壳体（40）一侧，所述过滤壳体（40）内腔侧壁固接有若干个限位柱（49），所述移动板（48）开设有限位孔，所述限位柱（49）一端贯穿限位孔并固接于过滤壳体（40）内腔侧壁。10. The cleaning equipment for polyester fabric production that saves water resources according to claim 9, characterized in that: there are several uniformly distributed The air exchange hole of the protective housing (42) is provided with a preset hole on the side close to the filter housing (40), and one end of the threaded post (47) passes through the preset hole and is rotatably connected to the filter housing (40 ) side wall of the inner cavity, the first connecting pipe (37) is fixed on one side of the filter housing (40), and the inner cavity side wall of the filter housing (40) is fixed with several limit columns (49) , the moving plate (48) is provided with a limiting hole, and one end of the limiting column (49) passes through the limiting hole and is fixedly connected to the side wall of the inner cavity of the filter housing (40).
