Abstract

The invention relates to the technical field of weaving, in particular to a loom capable of automatically winding textile yarns, including a loom, and a tension mechanism and a winding mechanism are sequentially installed on one side of the loom; The winding mechanism includes a torque motor, and one end of the output shaft of the torque motor is sequentially installed with a left rotating shaft and a right rotating shaft, and a movable column is slidably installed inside the left rotating shaft and the right rotating shaft, and the outer side walls of the two movable columns are rotatably installed with There are several moving blocks, two concave rods are symmetrically hinged at one end of the bottom of the moving blocks, a moving platform is installed under the left and right rotating shafts, and a convex block is movably installed inside the moving platform. Under the action of the tension of the second spring, the bumps squeeze the cloth tape to fit on the outer side wall of the paper shaft, which can make the winding mechanism relatively tight and the relatively loose cloth tape in the early stage of winding, improve the winding effect, and does not require manual assistance Rewinding removes the hidden safety hazard of manual manual auxiliary pressing and rewinding, which is beneficial to safe production.

Description

A loom capable of automatically winding textile yarn

technical field

The invention relates to the technical field of weaving, in particular to a loom capable of automatically winding textile yarns.

Background technique

Looms are also called spinning machines, looms, cotton spinning machines, etc. The early looms were all driven by manpower. Shuttleless loom technology has been researched since the 19th century, and has been gradually introduced to the international market since the 1950s. Since the 1970s, many new shuttleless looms have been put into the market one after another. The shuttleless loom has achieved remarkable results in improving the fabric and increasing the efficiency of the loom.

The storage and transportation methods of cloth are mostly wound into rolls, which are convenient to move and occupy a small area. Therefore, some of the existing looms are equipped with automatic winding mechanisms to wind up the textile yarn produced by the looms into bundles in time. ,Increase productivity.

When the textile yarn is wound on the outer wall of the rotating roller for the first few turns, because the friction between the textile yarn and the rotating roller is small, it cannot overcome the gravity of the textile yarn itself, which leads to the occurrence of spinning and spinning in the winding process of the first few turns. The rollers slide relative to each other, so the winding work cannot be carried out smoothly. Without solving this problem, some manufacturers use manual pressing to increase the friction between the textile yarn and the rotating roller, so as to assist the winding work of the first few laps. This method has certain potential safety hazards and is not conducive to safe production.

Contents of the invention

To achieve the above object, the present invention is achieved through the following technical solutions:

The invention proposes a loom capable of automatically rewinding textile yarn, including a loom, one side of the loom is sequentially equipped with a tensioning mechanism and a rewinding mechanism;

The winding mechanism includes a torque motor, and one end of the output shaft of the torque motor is sequentially installed with a left rotating shaft and a right rotating shaft, and a movable column is slidingly installed inside the left rotating shaft and the right rotating shaft, and the outer walls of the two movable columns rotate A plurality of moving blocks are installed, two concave rods are symmetrically hinged at one end of the bottom of the moving block, a moving platform is installed under the left and right rotating shafts, and a protrusion is movably installed inside the moving platform.

Further, one end of the left rotating shaft is fixed and evenly installed with three arc-shaped connecting rods, and the adjacent ends of the three arc-shaped connecting rods are jointly fixed and installed on one end of the output shaft of the torque motor, and one end of the right rotating shaft is rotatably installed with a fixed ring, so Both the torque motor and the bottom side of the fixed ring are fixedly installed with a sliding base, and two sliding frames are slidably installed on the outer wall of one end of the bottom of the sliding base, and slots are opened inside the four sliding frames. The slots are all slidingly installed with latches inside.

Further, the outer walls of the left and right rotating shafts are fixed with limit rings, and the adjacent sides of the two limit rings are designed as arc surfaces, and a number of posts are fixedly installed on the adjacent sides of the right and left rotating shafts , the side of the left shaft and the right shaft are provided with slots that are equally fitted with the post, and the right shaft and the outer wall of the left shaft are co-rotated and installed with paper shafts, and the paper shafts are located at two limit positions. between rings.

Further, the inside of the left shaft and the right shaft are provided with movable grooves, and the two movable columns are slidably installed inside the movable groove, and the adjacent ends of the two movable columns are plug-fitted, and the concave rod A fixed column is installed through and rotated inside, and the two ends of the fixed column are fixedly installed inside the left or right rotating shaft, and a plurality of nail teeth are fixedly installed on one side of the concave rod.

Further, grooves are formed on one side of the left rotating shaft and the right rotating shaft, and the grooves are matched with the bumps, and the outer wall of the paper shaft is penetrated with openings matched with the grooves, and the inside of the mobile platform Two relief grooves are arranged symmetrically, and the two relief grooves cooperate with the two limiting rings.

Further, a casing is slidably installed on the outer side wall of the mobile platform, and a large electric telescopic rod is fixedly installed on the inner bottom side of the casing, and the telescopic end of the large electric telescopic rod is fixedly installed on the bottom side of the mobile platform. A small electric telescopic rod is symmetrically installed on one side of the platform, and a plurality of second springs are fixedly installed on one side of the bottom of the bump, and one end of the bottom of the second spring is fixedly installed on the inner side of the mobile platform together.

Further, the ends of the two movable columns apart from each other are provided with a lower matching hole, the ends of the left shaft and the right shaft are fixedly installed with two locking blocks, and the middle parts of the four locking blocks are provided with Fitting hole.

Further, the middle part of the right rotating shaft close to the fixed ring is hollowed out, and the middle part of the right rotating shaft is hollowed out to match the small electric telescopic rod directly below it, and the gap between the three arc-shaped connecting rods is directly below it. The small electric telescopic rod cooperates.

Further, two left fixed rods and two right fixed rods are sequentially installed on the output side of the loom, and a left rotating roller is installed between the two left fixed rods, and the two right fixed rods A right rotating roller is installed movable between them, and a slider is slidably installed inside the right fixed rod, and a first spring is fixedly installed on one side of the bottom of the slider, and one end of the bottom of the first spring is fixedly installed on the right rotating roller. On the inner side, the two ends of the right turning roller are fixedly installed on the adjacent side of the two slide blocks.

Further, a cloth tape is slidably installed on the outer wall of the left rotating roller, and one end of the cloth tape is sequentially wound on the bottom side of the left rotating roller and the top side of the right rotating roller, and then wound on the outer wall of the paper shaft.

The beneficial effects of the present invention are as follows:

(1) A loom that can automatically wind up the textile yarn according to the present invention, the cloth tape is squeezed into the groove by the bump, and then the end is clamped by the nail teeth, and the torque motor rotates to wind up the cloth tape, Under the tension of the second spring, the bump squeezes the cloth tape and sticks it to the outer wall of the paper shaft, which can make the winding mechanism tighter and the cloth tape looser in the early stage of winding, improve the winding effect, and does not require manual assistance Rewinding removes the safety hazard of manual auxiliary pressing and rewinding, which is conducive to safe production.

(2) A loom that can automatically rewind textile yarn according to the present invention, the worker presses down the two movable columns, so that the nail teeth are separated from the end of the cloth belt, pulls out the four pins, and the worker pulls The two sliding bases move away from each other, so that the left and right rotating shafts are separated from the paper shaft, and the paper shaft is used as the axis to store the rolled cloth tape, instead of using the roller to store the rolled cloth tape in the prior art, and the paper shaft The price is much lower than that of the roller, so the cost of storage and occupation is greatly reduced, and the weight of the tape roll is reduced, which is more convenient for handling and transportation.

Description of drawings

The present invention will be further described below in conjunction with the accompanying drawings and embodiments.

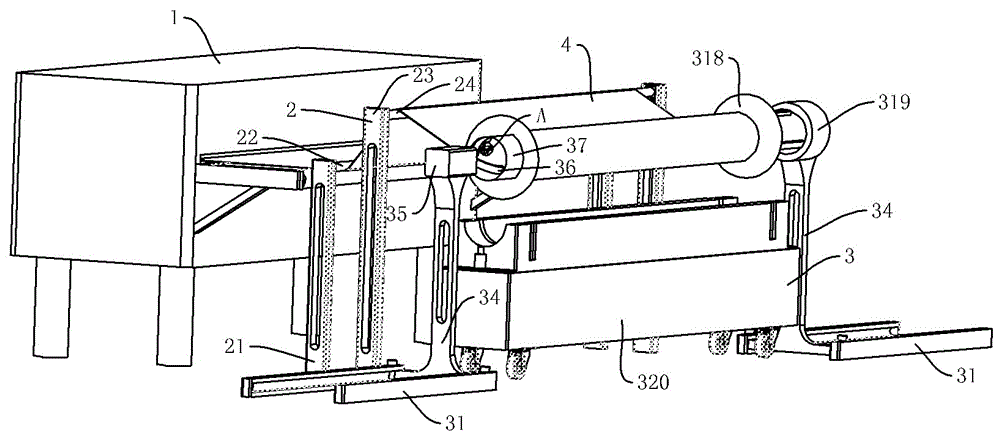

Fig. 1 is a schematic diagram of the overall structure of a loom that can automatically rewind textile yarn provided by the present invention;

Fig. 2 is a schematic diagram of connection of a mobile platform of a loom that can automatically rewind textile yarn provided by the present invention;

Fig. 3 is a schematic diagram of the carriage structure of a loom capable of automatically winding textile yarn provided by the present invention;

Fig. 4 is a schematic diagram of the stop ring structure of a loom capable of automatically winding textile yarn provided by the present invention;

Fig. 5 is a schematic diagram of the connection between the left and right rotating shafts of a loom capable of automatically winding textile yarn provided by the present invention;

Fig. 6 is a schematic diagram of the internal structure of the right shaft of a loom capable of automatically winding textile yarn provided by the present invention;

Fig. 7 is a schematic diagram of slider connection of a loom capable of automatically winding textile yarn provided by the present invention;

Figure 8 is an enlarged view of A in Figure 1;

Fig. 9 is an enlarged view of place B of Fig. 6;

Fig. 10 is a schematic diagram of the connection of two movable columns near one end of a loom that can automatically wind up textile yarn provided by the present invention;

Fig. 11 is a working schematic diagram of a concave rod of a loom capable of automatically winding textile yarn provided by the present invention.

Among the figure: 1, loom; 2, tension mechanism; 21, left fixed rod; 22, left rotating roller; 23, right fixed rod; 24, right rotating roller; 25, slider; 26, first Spring; 3, winding mechanism; 31, carriage; 32, slot; 33, latch; 34, sliding base; 35, torque motor; 36, arc connecting rod; 37, left shaft; 38, right shaft; 39 , paper shaft; 310, groove; 311, inserting column; 312, movable groove; 313, movable column; 314, moving block; 315, concave rod; 316, fixed column; 317, nail teeth; 318, limit ring 319, fixed ring; 320, housing; 321, large electric telescopic rod; 322, mobile platform; Fitting hole; 328, lower fitting hole; 329, locking block; 4, cloth belt.

Detailed ways

In order to make the purpose, technical means and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments of the present invention are clearly and completely described. Obviously, the described embodiments are part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without creative efforts fall within the protection scope of the present invention.

In order to better understand the above-mentioned technical solution, the above-mentioned technical solution will be described in detail below in conjunction with the accompanying drawings and specific implementation methods.

As shown in Figure 1, an embodiment of the present invention provides a loom that can automatically wind up textile yarns, including a loom 1, and one side of the loom 1 is sequentially installed with a tensioning mechanism 2 and a winding mechanism 3;

As shown in Fig. 1, Fig. 2, Fig. 3, Fig. 5, Fig. 8 and Fig. 10, the winding mechanism 3 comprises a torque motor 35, and one end of the output shaft of the torque motor 35 is successively equipped with a left rotating shaft 37 and a right rotating shaft 38, and the left rotating shaft 37 and the inside of the right shaft 38 are all slidably equipped with movable columns 313, and the outer walls of the two movable columns 313 are all rotatably equipped with some moving blocks 314, and one end of the bottom of the moving blocks 314 is symmetrically hinged with two concave rods 315, and the movable columns 313 are used for lifting Moving block 314, and then promote two moving blocks 314 ends, make two moving blocks 314 bottom clamping, left rotating shaft 37 and right rotating shaft 38 belows are equipped with moving platform 322, and moving platform 322 inside is movablely installed with projection 324.

As shown in Figures 1 and 3, specifically, one end of the left rotating shaft 37 is fixed and uniformly equipped with three arc-shaped connecting rods 36, and the adjacent ends of the three arc-shaped connecting rods 36 are jointly fixed and installed on one end of the output shaft of the torque motor 35, and the right rotating shaft 38 A fixed ring 319 is installed in rotation at one end, a sliding base 34 is fixedly installed on one side of the torque motor 35 and the bottom of the fixed ring 319, and two slide frames 31 are slidably installed on the outer wall of one end of the bottom of the sliding base 34, for the sliding base 34 to move, while limiting For the displacement direction and distance of the sliding base 34, slots 32 are provided inside the four sliding frames 31, and latches 33 are slidably installed inside the four slots 32, and the latches 33 are used for temporarily fixing the position of the sliding frame 31.

As shown in Figures 4 and 6, specifically, the outer walls of the left rotating shaft 37 and the right rotating shaft 38 are fixedly equipped with a limit ring 318, and the adjacent sides of the two limit rings 318 are designed with an arc surface, and the right rotating shaft 38 and the left rotating shaft 37 A plurality of stakes 311 are fixedly installed on the adjacent side, and the adjacent side of the left rotating shaft 37 and the right rotating shaft 38 is provided with slots that are equivalently inserted and matched with the inserting columns 311. The cooperation between the inserting columns 311 and the grooves is used for the right rotating shaft 38 and the The rotation of the left shaft 37 is linked, and the right shaft 38 and the outer wall of the left shaft 37 are jointly rotated to install a paper shaft 39. The paper shaft 39 is located between two limit rings 318. installation location.

As shown in Figure 6 and Figure 9, specifically, the inside of the left shaft 37 and the right shaft 38 are provided with a movable groove 312, and the two movable columns 313 are slidably installed inside the movable groove 312, and the two movable columns 313 are close to one end. Plug-in fit is used for the displacement linkage of the two movable columns 313. A fixed column 316 is installed through the interior of the concave rod 315 for rotation. One side is fixedly equipped with some nail teeth 317, which are used to hook the cloth belt 4.

As shown in Figure 2 and Figure 6, specifically, the left shaft 37 and the right shaft 38 are provided with grooves 310, the grooves 310 cooperate with the protrusions 324, and the outer wall of the paper shaft 39 is provided with grooves 310. Matching openings, the interior of the mobile platform 322 is symmetrically provided with two relief grooves 326, the two relief grooves 326 are matched with the two limit rings 318, and the space for the downward movement of the limit ring 318 is reserved by the relief grooves 326 .

As shown in Figure 2, specifically, the outer wall of the mobile platform 322 is slidably installed with a housing 320, and the inner bottom side of the housing 320 is fixedly installed with a large electric telescopic rod 321, and the telescopic end of the large electric telescopic rod 321 is fixedly installed at the bottom of the mobile platform 322 On one side, a large electric telescopic rod 321 is used for moving up and down of the mobile platform 322, and a small electric telescopic rod 325 is symmetrically installed on one side of the mobile platform 322, which is used for moving up the movable column 313. The second spring 323 and one end of the bottom of the second spring 323 are fixedly installed on the inner side of the mobile platform 322 together, and the second spring 323 is used for the downward movement of the protrusion 324 to give way and the upward movement to reset.

As shown in Figure 8, specifically, the ends of the two movable columns 313 apart from each other are provided with a lower matching hole 328, and the ends of the left shaft 37 and the right shaft 38 are fixedly installed with two locking blocks 329, four locking blocks. The middle part of 329 is provided with an upper matching hole 327. When the lower matching hole 328 moves up and is coaxial with the upper matching hole 327, the staff inserts the fixed iron column to fix the position of the movable column 313.

As shown in Figure 1, specifically, the middle part of the right rotating shaft 38 near the side of the fixed ring 319 is hollowed out, and the middle part of the right rotating shaft 38 is hollowed out to match the small electric telescopic rod 325 directly below it. The gap in the space cooperates with the small electric telescopic rod 325 directly below it, and the purpose of both is to reserve an ascending channel for the elongation of one end of the small electric telescopic rod 325.

As shown in Figure 1 and Figure 7, specifically, two left fixed rods 21 and two right fixed rods 23 are successively installed on the output side of the loom 1, and a left-handed rotation device is installed between the two left fixed rods 21. Roller 22, right rotating roller 24 is installed movablely between two right fixed rods 23, and slide block 25 is installed slidingly inside right fixed rod 23, and first spring 26 is fixedly installed on the bottom side of slide block 25, and first spring 26 For the resetting of the right turning roller 24 and the slide block 25, one end of the bottom of the first spring 26 is fixedly installed on one side inside the right turning roller 24, and the two ends of the right turning roller 24 are fixedly installed on the side close to the two sliders 25. On the other hand, when the loom 1 is stuck in the weaving or other reasons cause the weaving speed to be lower than the winding speed, the back of the cloth tape 4 is stretched beyond the standard, and the cloth tape 4 presses the right rotating roller 24 downward, and the right rotating roller 24 moves downwards to reduce the distance from the loom 1 to the winding mechanism 3, that is, to allow the cloth tape 4 of a certain length to be rolled up for the winding mechanism 3, thereby alleviating the excessive tension that the cloth tape 4 is subjected to.

As shown in Figure 1, specifically, a cloth belt 4 is slidably installed on the outer wall of the left rotating roller 22, and one end of the cloth belt 4 is sequentially wound around the bottom side of the left rotating roller 22 and the top side of the right rotating roller 24, To make the cloth tape 4 in a tight state, and then wrap it around the outer sidewall of the paper shaft 39 .

The specific working method:

When wrapping the cloth tape 4 for the first time, the staff holds one end of the cloth tape 4 and winds it around the lower side wall of the left rotating roller 22 and the upper side wall of the right rotating roller 24, and then covers the upper port of the mobile platform 322, and the large electric telescopic rod The elongation of one end of 321 drives the mobile platform 322 to rise, as shown in Figure 1, the staff presses the cloth tape 4 located on the left side of the upper port of the mobile platform 322, and the cloth tape 4 contacts and squeezes the paper shaft 39 as the mobile platform 322 rises , so that the right side port of the cloth tape 4 enters the large groove of the mobile platform 322, covers it on the bump 324, and then is squeezed into the groove 310 by the bump 324, and the large electric telescopic rod 321 stops extending. The bit ring 318 enters the step-off groove 326;

Start two small electric telescopic rods 325, one end of the small electric telescopic rods 325 stretches and squeezes the movable column 313 to move upwards, thereby driving the moving block 314 to move upwards, thereby driving the hinged ends of the two concave rods 315 to move upwards, thereby driving the two concave rods 315 to move upwards. The lower ends of the two concave rods 315 move toward each other, thereby driving two groups of nail teeth 317 to squeeze the cloth belt 4 on the outer wall of the protrusion 324 and the protrusion 324, and the tips of the nail teeth 317 hook the cloth belt 4, causing the cloth belt 4 to stay. In the groove 310, that is, the nail teeth 317 clamp the end of the cloth tape 4, but the surface of the projection 324 is smooth, and the groove 310 is squeezed out by the nail teeth 317, and the projection 324 moves down and squeezes the second spring 323. The matching hole 328 is moved up to between the two upper matching holes 327, and the staff inserts a fixed iron column between the upper matching hole 327 and the lower matching hole 328 to fix the position of the movable column 313, thereby ensuring that the nail teeth 317 always clamp the cloth belt 4 ends, one end of the small electric telescopic rod 325 shortens and resets;

Start the torque motor 35, as shown in Figure 1, the torque motor 35 drives the left shaft 37, the right shaft 38 and the paper shaft 39 to rotate counterclockwise, and then rolls up the cloth tape 4. At this time, the projection 324 acts under the tension of the second spring 323 The lower extrusion tape 4 is attached to the outer wall of the paper shaft 39. Due to the artificial pulling of the cloth tape 4 in the early stage, the cloth tape 4 in the first few turns is relatively loose, and the lamination and extrusion of the protrusion 324 can make the loose part of the cloth tape 4. It is more tightly wound on the outer wall of the paper shaft 39 and is not easy to wrinkle. After the cloth belt 4 is tight, one section of the large electric telescopic rod 321 is shortened to drive the mobile platform 322 to descend and reset.

When the shaft is fully wrapped, the staff needs to cut off the cloth tape 4, which causes the cloth tape 4 to loosen again at this time. The large electric telescopic rod 321 can be started 1-2 circles in advance to drive the mobile platform 322 to rise, thereby driving The bump 324 touches the cloth tape 4 to complete the tight winding of the cloth tape 4 at the end, the torque motor 35 is started to stop rotating, and one end of the large electric telescopic rod 321 continues to elongate, driving the large groove of the mobile platform 322 to touch the cloth after winding. The outer wall of the belt 4 greatly reduces the pressure of the cloth belt 4 on the left rotating shaft 37 and the right rotating shaft 38. The staff manually rotates the left rotating shaft 37 and the right rotating shaft 38 so that the groove 310 faces downward, and the staff pulls out the upper matching hole 327 and the fixed iron column between the lower matching hole 328, press down the two movable columns 313, so that the nail teeth 317 are separated from the ends of the cloth belt 4, pull out the four latches 33, and the staff pulls the two sliding bases 34 to separate Movement, so that the left shaft 37 and the right shaft 38 are separated from the paper shaft 39, the staff can use the housing 320 to move the finished cloth belt 4, and then pull the two sliding bases 34 to move toward each other, and the new paper shaft 39 is sleeved on the left shaft On 37 and right rotating shaft 38 outer walls, reset four latches 33, carry out the first lap winding work again.

In describing the present invention, it is to be understood that the terms "center", "front", "rear", "vertical", "horizontal", "top", "bottom", "inner", "outer", etc. indicate The orientation or positional relationship is based on the orientation or positional relationship shown in the drawings, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation or be configured in a specific orientation. and operation, and therefore cannot be construed as limiting the protection scope of the present invention.

The basic principles, main features and advantages of the present invention have been shown and described above. Those skilled in the industry should understand that the present invention is not limited by the above-mentioned embodiments. What are described in the above-mentioned embodiments and the description only illustrate the principle of the present invention. Without departing from the spirit and scope of the present invention, the present invention will also have Variations and improvements all fall within the scope of the claimed invention. The protection scope of the present invention is defined by the appended claims and their equivalents.

Claims (10)

1. A loom capable of automatically rolling textile yarns comprises a loom (1) and is characterized in that: a tensioning mechanism (2) and a winding mechanism (3) are sequentially arranged on one side of the loom (1);

winding mechanism (3) include torque motor (35), left pivot (37) and right pivot (38) are installed in proper order to torque motor (35) output shaft one end, inside equal slidable mounting of left pivot (37) and right pivot (38) has movable post (313), two movable post (313) lateral wall all rotates and installs a plurality of movable blocks (314), movable block (314) bottom one end symmetry articulates there are two spill poles (315), moving platform (322) are installed to left pivot (37) and right pivot (38) below, moving platform (322) inside movable mounting has lug (324).

2. A loom of automatically windable textile yarn according to claim 1, characterized in that: three arc connecting rod (36) are evenly installed to left-hand rotating shaft (37) one end fixed mounting, and are three the common fixed mounting of the close one end of arc connecting rod (36) is in torque motor (35) output shaft one end, right-hand rotating shaft (38) one end is rotated and is installed solid fixed ring (319), torque motor (35) and solid fixed ring (319) bottom one side equal fixed mounting has sliding bottom (34), sliding bottom (34) bottom one end lateral wall slidable mounting has two balladeur train (31), four inside all runs through of balladeur train (31) has seted up slot (32), four inside equal slidable mounting of slot (32) has bolt (33).

3. A loom of automatically windable textile yarn according to claim 1, characterized in that: the equal fixed mounting of left-hand rotary shaft (37) and right-hand rotary shaft (38) lateral wall has spacing ring (318), two the close one side of spacing ring (318) is the cambered surface design, the close one side fixed mounting of right-hand rotary shaft (38) and left-hand rotary shaft (37) has a plurality of posts (311) of inserting, the equal amount of and the post (311) complex groove of pegging graft mutually is seted up to close one side of left-hand rotary shaft (37) and right-hand rotary shaft (38), right-hand rotary shaft (38) rotates jointly with left-hand rotary shaft (37) lateral wall and installs paper axle (39), paper axle (39) are located between two spacing ring (318).

4. A loom of automatically windable textile yarn according to claim 1, characterized in that: the left rotating shaft (37) and the right rotating shaft (38) are internally provided with movable grooves (312) in a penetrating mode, the movable columns (313) are installed inside the movable grooves (312) in a sliding mode, the movable columns (313) are installed at the close ends of the movable columns (313) in an inserting and connecting mode in a penetrating and rotating mode, fixed columns (316) are installed inside the concave rod (315) in a penetrating and rotating mode, the two ends of the fixed columns (316) are fixedly installed inside the left rotating shaft (37) or the right rotating shaft (38), and a plurality of nail teeth (317) are fixedly installed on one side of the concave rod (315).

5. A loom of automatically windable textile yarn according to claim 1, characterized in that: left side pivot (37) all set up recess (310) with right pivot (38) one side, recess (310) cooperate with lug (324), paper axle (39) lateral wall runs through and sets up the opening with recess (310) matched with, two groove of stepping down (326) have been seted up to moving platform (322) inside symmetry, two groove of stepping down (326) cooperate with two spacing ring (318).

6. A loom of automatically windable textile yarn according to claim 1, characterized in that: moving platform (322) lateral wall slidable mounting has casing (320), the inside bottom side fixed mounting of casing (320) has big electric telescopic handle (321), the flexible end mounting of big electric telescopic handle (321) is in moving platform (322) bottom one side, little electric telescopic handle (325) are installed to moving platform (322) one side symmetry, lug (324) bottom one side fixed mounting has a plurality of second springs (323), common fixed mounting in moving platform (322) one side of second spring (323) bottom one end.

7. A loom of automatically windable textile yarn according to claim 1, characterized in that: two activity post (313) leave one end mutually and all run through and seted up lower mating holes (328), the equal fixed mounting in one end that leaves mutually of left-hand rotating shaft (37) and right-hand rotating shaft (38) has two locking blocks (329), four locking block (329) middle part all runs through and has seted up upper mating holes (327).

8. A loom of automatically windable textile yarn according to claim 1, characterized in that: the middle part that right side pivot (38) are close to solid fixed ring (319) one side is the fretwork, the middle part fretwork of right side pivot (38) matches with little electric telescopic handle (325) under rather than, three space between arc connecting rod (36) cooperates with little electric telescopic handle (325) under rather than.

9. A loom capable of automatically winding textile yarns according to claim 1, characterized in that: loom (1) output one side installs two left dead levers (21) and two right dead levers (23) in proper order, two rotate between left dead lever (21) and install left live-rollers (22), two movable mounting has right live-rollers (24) between right dead lever (23), right dead lever (23) inside slidable mounting has slider (25), slider (25) bottom one side fixed mounting has first spring (26), first spring (26) bottom one end fixed mounting is in the inside one side of right live-rollers (24), the both ends fixed mounting of right live-rollers (24) is in the close one side of two sliders (25).

10. A loom of automatically windable textile yarn according to claim 9, characterized in that: the outer side wall of the left rotating roller (22) is slidably provided with a cloth belt (4), one end of the cloth belt (4) is sequentially wound on one side of the bottom of the left rotating roller (22) and one side of the top of the right rotating roller (24), and then is wound on the outer side wall of the paper shaft (39).
