Neurology multifunctional exercise rehabilitation equipment

technical field

The invention relates to the field of rehabilitation equipment, in particular to a neurology multifunctional exercise rehabilitation equipment.

Background technique

Symptoms of neurology patients mainly include cerebrovascular disease (cerebral infarction, cerebral hemorrhage), migraine, brain inflammatory disease (encephalitis, meningitis), myelitis, epilepsy, dementia, metabolic disease and genetic predisposition disease, trigeminal nerve pain, sciatica, peripheral neuropathy, and myasthenia gravis. For patients with lower limb mobility, it is necessary to use exercise rehabilitation equipment for exercise rehabilitation to restore the mobility of their lower limbs.

Chinese patent CN201810206526.3 discloses a rehabilitation training device for neurology. The technical solution adopted is to include a base, a telescopic rod, a lower limb exercise assembly and an upper limb exercise assembly; Connected to one end of the base; the top of the telescopic rod is connected by a pole, and the upper limb exercise component is arranged on the pole; the lower limb exercise component includes a thigh exercise piece, a calf exercise piece and a pedal, which are arranged from top to bottom; the thigh exercise Both the leg training piece and the calf exercise piece are symmetrical semi-cylindrical pieces, connected to the connecting rod through a torsion spring hinge, and the connecting rod is fixed on the column; the pedal is arranged above the base and connected to the top surface of the base through a spring, and one end of the pedal is connected to the telescopic rod in rotation The thigh exercise piece and the calf exercise piece are made of the same material, including an outer plastic layer, a middle rubber layer, and an inner massage protrusion; the surface of the pedal is provided with checkered lines; the height of the column corresponds to the height of the waist of the human body , the upper part of the column is connected with a support bar.

During the use of this technical solution, it is very inconvenient for patients with mobility problems in the lower limbs to be supported by the staff on the machine; and during the exercise process, the patients need to rely on the strength of their upper limbs to hold the pole or hold the upper limb exercise components to maintain their own balance , For patients whose upper limbs need to be rehabilitated, there is a risk of falling due to their weak upper limb muscle strength, unable to maintain their own balance. And the spring under the pedal cannot be replaced, and the spring with a suitable elastic coefficient cannot be replaced according to the actual situation of the patient's own lower limbs. If the elastic coefficient is too high, the patient will not be able to step on the pedal to achieve the purpose of exercise. As a result, the patient cannot exercise further, and the recovery progress is slowed down, resulting in a decline in the rehabilitation effect.

Contents of the invention

In view of the problems existing in the prior art, the present invention discloses a neurology multifunctional exercise rehabilitation equipment, the technical solution adopted is that it includes a base plate, a bracket and a training device, and the bracket and the training device are installed on the On the base plate, a track is installed on the base plate, a wheelchair is arranged on the track, and a standing auxiliary mechanism, a guardrail, an anti-dumping mechanism and a plug-in mechanism are arranged on the wheelchair, and the wheelchair with the standing auxiliary mechanism can help patients with inconvenient lower limbs Standing, and the guardrail can bear part of the body weight when the patient is standing. If the patient's lower limb muscles cannot fully support their own weight, they can support it. The anti-dumping mechanism can prevent the wheelchair from falling off the track and fall forward or backward, protecting the patient. safety, the bracket is slidably connected with a docking device, and there is a linkage docking mechanism inside the docking device, the linkage docking mechanism is slidingly connected with the guardrail, and the linkage docking mechanism can be linked and docked according to the movement of the guardrail, and the guardrail can be removed from the wheelchair Transfer to the docking device, so that the patient can get on the machine from the wheelchair to the rehabilitation equipment. The docking device is connected with a lifting mechanism, which can be compatible with patients of different sizes. The guardrail is detachably connected with the wheelchair and the docking device .

As a preferred technical solution of the present invention, the guardrail includes a first railing, a second railing and a third railing, the third railing is detachably connected to the wheelchair, and the two ends of the third railing are connected to the wheelchair respectively. The ends of the first railing and the second railing are hinged, the first railing and the second railing have the same structure and are arranged symmetrically, the third railing is used to connect with the wheelchair, and the first railing and the second railing can be connected from The two sides are closed to form an enclosure to protect the patient.

As a preferred technical solution of the present invention, a first unlocking hole and a first positioning hole are arranged on the first railing; a second unlocking hole and a second positioning hole are arranged on the second railing, and the first unlocking hole and the second positioning hole are arranged on the second railing. The second unlocking hole is used to unlock the limit between the guardrail and the wheelchair, and the first positioning hole and the second positioning hole are used to cooperate with the linkage docking mechanism for further structural stability; the second railing is sequentially opened with the second An air chamber, a second air chamber and a guide groove, the first air chamber communicates with the second air chamber through a first air pipe, the second air chamber communicates with the guide groove, the The guide groove extends to the end of the second railing and communicates with the outside world, a first piston is slidably connected in the first air chamber, a first spring is pressed between the first piston and the first air chamber, The end of the first piston is connected to the first limit buckle through the first elastic plate, and the position of the first limit buckle corresponds to the second unlocking hole and the size matches; the second air chamber is slidably connected with The second piston, a second spring is pressed between the second piston and the second air chamber, and the end of the second piston is connected with a first guide rod, and the first guide rod is in the guide groove. Inner sliding connection, after releasing the limiting relationship between the first limit button and the second unlocking hole, the first piston slides along the first air chamber under the action of the first spring, and the gas in the first air chamber moves along the first The air pipe is pushed into the second air chamber, the second piston slides along the second air chamber under the action of the gas and the second spring 80213, the second piston pushes the first guide rod to slide and then pushes the structure in the third railing.

As a preferred technical solution of the present invention, a third air chamber, a fifth air chamber, and a second chute are opened in the third railing, and one end of the third air chamber communicates with the outside world through a tunnel, and the tunnel Corresponding to the position of the guide groove, the third air chamber communicates with the fifth air chamber, the fifth air chamber communicates with the second chute, and the third air chamber is slidably connected with The third piston, the end surface of the third piston is connected with a second guide rod, the second guide rod is slidably connected in the channel, the end surface of the second guide rod is slidably connected with the end surface of the first guide rod, and the The fifth air chamber is slidably connected with a fourth piston, the end face of the fourth piston is connected with an insertion rod, and the insertion rod is slidably connected in the second chute, and the third rail is also provided with an insertion hole. The jack is connected to the second chute, the first guide rod slides to push the second guide rod and then pushes the third piston to slide, so that the fourth piston slides, and the insertion rod is pushed to slide to release the restriction between the wheelchair and the guardrail. position; the fifth air chamber also has a sixth chute, the sixth chute is located at the front end of the fourth piston, the sixth chute communicates with the outside world, and the insertion rod is also connected with a grip rod, the said The grip bar is slidably connected in the sixth chute.

As a preferred technical solution of the present invention, the wheelchair includes a backrest, a seat board and legs, the backrest is connected to the seat board, the legs are below the seat board, and wheel set; there is a fourth installation groove on the backrest, the third railing of the guardrail is slidably connected in the fourth installation groove, the top surface of the fourth installation groove is provided with a first pin groove, and the first pin groove is opened on the top surface of the fourth installation groove. A first limit pin is slidably connected in a pin slot, a third spring is pressed between the first limit pin and the first pin slot, and the position of the first limit pin is the same as that of the socket. Correspondingly, the first limit pin is slidably connected to the insertion rod, and the insertion rod can press the first limit pin to release the limit of the first limit pin to the guardrail, so as to facilitate the separation of the guardrail and the backrest of the wheelchair.

As a preferred technical solution of the present invention, the first limit pin includes a first clamping plate and a pin body, the first clamping plate is located on the end surface of the pin body, the third spring and the first A clip is slidingly connected; the pin body has a first side, a second side, and a third side, the first side is opposite to the notch of the fourth installation groove, and the second side is located on the first side The opposite side of one side, the third side is opposite to the insertion rod, the first side and the second side are slopes, the third side is an arc surface, and the insertion rod has a slope , the inclined surface is slidingly connected with the third side surface, and the inclined surface of the first side is convenient to press the first side surface through the guardrail to move the first limit pin upward when the guardrail is installed into the backrest, so that it can be inserted into the jack Realize the limit; the slope on the third side can be matched with the slope on the insertion rod. When the insertion rod squeezes the third side, the upward force component received by the first limit pin can be greater, and the extrusion efficiency is higher. High; the second side is stressed on the third side, so that the first limit pin moves upward. After the limit is released, the guardrail is pulled outward, and the guardrail squeezes the second side. At this time, the second side does not constitute a limit to the guardrail. Under the extrusion of the guardrail, the first spacer pin continues to move up until the guardrail crosses the first spacer pin.

As a preferred technical solution of the present invention, there is a connecting groove on the vertical side of the docking device, and the connecting groove matches the size of the guardrail; Four chutes, two of the fourth chutes are arranged on both sides of the third chute, the third chute and the fourth chute are communicated through a gear groove, and the linkage docking mechanism includes the first A push rod, a fourth spring, a gear and a second push rod, the first push rod is slidably connected in the third chute, and the fourth spring is pressed between the third chute , there are teeth on both sides of the first push rod, a second push rod is slidably connected in the fourth chute, the second push rod has the same structure as the first push rod, and the second push rod has the same structure as the first push rod. There are positioning rods on the end face of the rod, and the two groups of positioning rods correspond to the positions and sizes of the first positioning hole and the second positioning hole on the guardrail respectively, and the inner shaft of the gear groove is connected with a gear , the gear meshes with the teeth on the side of the first push rod and the second push rod; the linkage docking mechanism is also connected with a linkage unlocking mechanism, and the linkage unlocking mechanism and the The first unlocking hole and the second unlocking hole are matched, the guardrail is inserted into the connecting groove, and the first push rod is squeezed to make it slide into the third chute. After the gear transmission, the second push rod slides along the fourth chute The slot slides outward, and the positioning rod is inserted into the first positioning hole and the second positioning hole to form a positioning, and at the same time, the linkage unlocking mechanism is triggered.

As a preferred technical solution of the present invention, the docking device is also provided with a dial groove, a third rod groove, and a fifth rod groove, and the dial groove, the third rod groove, the fourth rod groove and There are two groups of the fifth rod groove and the linkage unlocking mechanism, which are arranged symmetrically. The linkage unlocking mechanism also includes a driving rod, a striker, a pull rod, a fifth spring and an unlocking lever. The fifth rod groove is vertically Set on the docking device, the lower end of the fifth rod groove communicates with the connecting groove, and the upper end communicates with the outside world. The unlocking lever is slidably connected in the fifth rod groove, and the two sets of unlocking levers Corresponding to the position and size of the first unlocking hole and the second unlocking hole on the guardrail, the upper end of the unlocking lever has a third clamping plate, and the third clamping plate and the fifth rod The fifth spring is press-fitted between the grooves, and the pull rod and the spring buckle are also installed on the third clamping plate. The pull rod passes upward through the fifth rod groove, and the fifth rod groove passes through the buckle. The groove communicates with the third rod groove, and the spring buckle is fastened on the buckle groove; a lance is slidably connected in the third rod groove, and the lance is connected to the spring buckle and the driving lever. Slidingly connected, the third lever slot communicates with the fourth chute through the dial slot, the shift rod is slidably connected in the dial slot, and the end of the shift rod is connected to the second push rod The ram is also equipped with a reset mechanism; the second ejector rod drives the driving lever to slide, and the driving lever withstands the end face of the rotating plate and then pushes the rotating rod to slide, and the ram can release the limit of the spring buckle, so that the unlocking lever is in the fifth position. It moves downward under the action of the spring, inserts into the first unlocking hole and the second unlocking hole, releases the limit of the first limit buckle, and triggers the reset mechanism at the same time to reset the striker bar.

As a preferred technical solution of the present invention, the reset mechanism includes a rotary plate, a pressure rod and a sixth spring, a rotary plate is hinged on the lance, and a torsion spring is installed at the hinge, and the end surface of the rotary plate and the The driving rod is slidingly connected; there is also the fourth rod groove between the fifth rod groove and the third rod groove, the fourth rod groove is an L-shaped groove, and the sliding connection in the fourth rod groove is The pressure rod, the pressure rod includes an L-shaped rod and an L-shaped plate, one end of the L-shaped rod is connected to the pull rod, the other end is connected to the L-shaped plate, and the end surface of the L-shaped plate slides with the rotating plate Connected, during the downward movement of the plunger, the pressure rod presses down on the rotary plate to rotate the rotary plate to remove the blocking of the lever to the rotary plate, and the plunger resets under the action of the sixth spring, which facilitates the subsequent reset of the unlocking lever.

As a preferred technical solution of the present invention, the wheel set includes a moving wheel and a hinged seat, the moving wheel shaft is connected to the hinged seat, and the hinged seat is connected to the legs; the moving wheel includes a cylindrical end and a circular platform section, the circular platform section has two sections, which are arranged symmetrically on both sides of the cylindrical end; An inclined surface, the plane is connected to the cylindrical section, and the inclined surface is connected to the inclined surface of the circular platform section; the anti-dumping mechanism includes a connecting seat and a secondary wheel, and the lower end of the hinged seat is connected to the connecting seat , the connecting seat is an L-shaped seat, and there is a shaft plate on the connecting seat, and the shaft plate is connected to the auxiliary wheel, and the auxiliary wheel is connected to the bottom surface of the trapezoidal convex section, and the auxiliary wheel of the wheel set The wheel bears against the bottom surface of the trapezoidal raised section, and at the same time, the round table section on the moving wheel is connected to the inclined surface of the trapezoidal raised section, which can prevent the moving wheel from moving laterally and prevent the wheelchair from derailing.

As a preferred technical solution of the present invention, the trapezoidal protruding section is a movable bar, the track includes a T-shaped seat and the movable bar, and there are movable grooves on both sides of the upper end of the T-shaped seat, and the movable bar is The sliding connection in the movable groove, the seventh spring is pressed between the movable strip and the movable groove, when the wheelchair is installed, the wheelchair can be dropped from the track, and the connecting seat squeezes the slope of the movable strip to make the movable strip Compress the seventh spring and move into the movable groove. When the cylindrical end of the wheelchair moving wheel is in contact with the top surface of the T-shaped seat, the connecting seat, shaft plate and auxiliary wheel have reached the bottom of the movable bar, and the movable bar is reset under the action of the seventh spring. , the auxiliary wheel is connected with the bottom surface of the movable bar, and the wheelchair is put into orbit, and the operation is more convenient.

As a preferred technical solution of the present invention, the training device is a pedal-type lower limb training device, including a pedal, an eighth spring, and a sleeve rod, the sleeve rod is connected with the bottom plate, and the pedal is set on the The sleeve rod is slidably connected with the sleeve rod, the eighth spring is pressed between the pedal and the bottom plate, the upper end of the sleeve rod is equipped with a stud head, and the stud head and the sleeve rod They are all cylindrical rods, the diameter of the stud head is smaller than the diameter of the sleeve rod, and the vertical side of the lower part of the stud head is provided with a threaded groove, and a nut is engaged on the threaded groove, and the outer diameter of the nut is larger than that of the sleeve rod Diameter; the limit on the pedal can be released by turning the nut, the pedal can be removed upwards, and the spring can be replaced, so that the spring with a suitable elastic coefficient can be selected according to the actual situation of the patient to make rehabilitation more efficient.

Beneficial effects of the present invention: the present invention provides a wheelchair, a guardrail and a docking device, and an auxiliary standing mechanism is provided on the wheelchair, so that patients with inconvenient lower limbs can sit on the wheelchair first, protect the patient through the guardrail, and then assist the standing up through the auxiliary standing mechanism , Through the linkage docking mechanism, linkage unlocking mechanism and reset mechanism, the guardrail is transferred from the wheelchair to the docking device of the training equipment to realize convenient boarding, and the docking device and guardrail can bear part or all of the patient's weight, making the patient's standing easier It is easy, and will not cause falls or even injuries due to the inability to stand stably; the setting of the track can limit the movement track of the wheelchair, making the docking of the guardrail and the docking device easier and more accurate.

Description of drawings

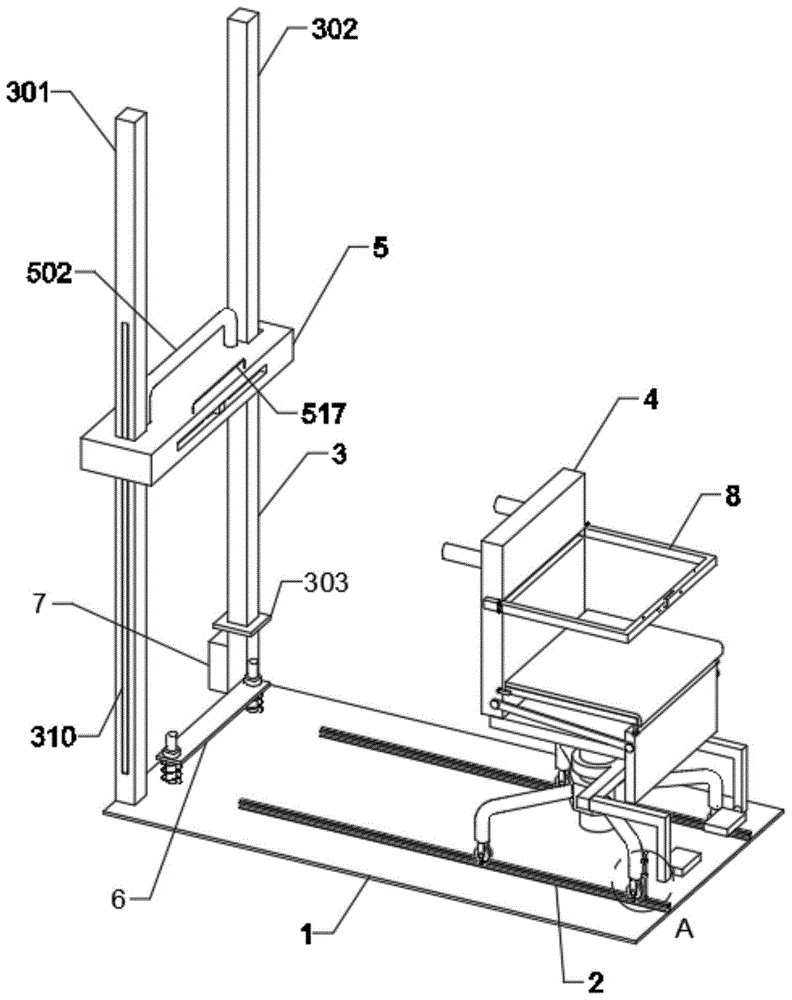

Fig. 1 is a structural representation of the present invention;

Fig. 2 is the structural representation of guardrail of the present invention;

Fig. 3 is a schematic diagram of the internal structure of the guardrail of the present invention;

Fig. 4 is the schematic diagram of enlarged structure at B place of the present invention;

Fig. 5 is a schematic diagram of the enlarged structure at C of the present invention;

Fig. 6 is a schematic diagram of the position-limiting structure of the backrest and guardrail of the present invention;

Fig. 7 is a structural schematic diagram of the first limit pin of the present invention;

Fig. 8 is a structural schematic diagram of the linkage docking mechanism of the present invention;

Fig. 9 is a schematic diagram of the structure of the linkage unlocking mechanism of the present invention;

Fig. 10 is a schematic diagram of an enlarged structure at D of the present invention;

Figure 11 is Figure 2 of the structure schematic diagram of the linkage unlocking mechanism of the present invention;

Figure 12 is a schematic diagram of the enlarged structure at E of the present invention;

Fig. 13 is a schematic diagram of the positional relationship between the rotating plate and the driving rod during the process of the driving rod in the present invention turning the rotating rod;

Figure 14 is a schematic diagram of the positional relationship between the rotating plate and the driving lever after the reset mechanism of the present invention works;

Fig. 15 is a schematic diagram of the structure of the standing state of the wheelchair according to the present invention;

Figure 16 is Figure 2 of the structure schematic diagram of the standing state of the wheelchair of the present invention;

Fig. 17 is a schematic diagram of the wheel set and track structure of the present invention;

Fig. 18 is a schematic diagram of the cross-sectional structure of the wheel set and the track of the present invention;

Fig. 19 is a schematic diagram of the structure of the first guide rod of the present invention;

Fig. 20 is a schematic diagram of the structure of the second guide rod of the present invention;

Fig. 21 is a schematic structural diagram of the trainer of the present invention;

Fig. 22 is a structural schematic diagram of the lifting mechanism of the present invention;

Fig. 23 is a structural schematic diagram of the plug mechanism of the present invention.

Among the figure: 1, bottom plate; 2, track; 201, T-shaped seat; 202, movable bar; 203, seventh spring; 3, bracket; 301, first pole; 302, second pole; 303, baffle plate ; 304, driven synchronous pulley; 305, drive synchronous pulley; 306, synchronous belt; 307, speed reducer; 308, motor; Wheelchair; 401, backrest; 402, seat plate; 4021, seat cushion; 403, fixed plate; 404, connecting rod; 405, base plate; 406, first electric push rod; 407, second electric push rod; 408, outrigger; 409, wheel group; 4091, moving wheel; 4092, hinged seat; 4093, connecting seat; 4094, shaft plate; 4095, auxiliary wheel; 410, connecting frame; 4101, pedal; 411, fifth chute; ;413, the first limit pin; 4131, the first clamping plate; 4132, the pin body; 41321, the first side; 41322, the second side; 41323, the third side; 414, the third spring; 415, the first pin Slot; 416, control box; 417, fourth installation slot; 5, butt joint; 501, connection slot; 502, handrail; 503, first rod slot; 5031, brush arm; 5032, carbon brush; 504, second rod Groove; 5041, rolling groove; 5042, roller; 505, the third chute; 506, the fourth chute; 507, the first push rod; 508, the second clamping plate; 509, the fourth spring; 510, the gear; 511, the second ejector rod; 5111, positioning rod; 512, driving rod; 513, the third rod groove; 514, ramming rod; 515, rotary plate; 516, pressing rod; 517, pull rod; 518, the fifth spring; , unlocking lever; 5191, third clamping plate; 5192, spring buckle; 520, fourth lever slot; 521, sixth spring; 522, firing pin; 523, third installation slot; 524, wire slot; 525, fifth lever Groove; 6, trainer; 601, stud head; 602, pedal; 603, the eighth spring; 604, cover rod; 605, nut; 7, control box; 8, guardrail; 801, first railing; 1 unlocking hole; 8012, the first pinch plate; 8013, the first positioning hole; 8014, the first magnet; 802, the second railing; 8021, the second unlocking hole; 8022, the second pinch plate; 8023, the second positioning hole ;8024, infrared transmitter; 8025, second magnet; 8026, first air chamber; 8027, first air pipe; 8028, second air chamber; 8029, guide groove; 80210, first piston; 802101, first spring ;802102, the first limit button; 80211, the first spring; 80212, the second piston; 80213, the second spring; 80214, the first guide rod; 802141, the first air guide hole; The second installation groove; 803, the third railing; 80 31. The third air chamber; 8032, the fourth air chamber; 8033, the second air pipe; 8034, the fifth air chamber; 8035, the second chute; 8036, the second guide rod; 80361, the second air guide hole; 8037, The third piston; 8038, the gas plate; 8039, the fourth piston; 80310, the plunger; 80311, the jack; 80312, the grip rod; Collar; 9031, notch groove; 904, lower collar.

Detailed ways

The technical solutions of the present invention will be clearly and completely described below in conjunction with the accompanying drawings. In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer" etc. The indicated orientation or positional relationship is based on the orientation or positional relationship shown in the drawings, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, or in a specific orientation. construction and operation, therefore, should not be construed as limiting the invention. In addition, the terms "first", "second", and "third" are used for descriptive purposes only, and should not be construed as indicating or implying relative importance.

In the description of the present invention, it should be noted that unless otherwise specified and limited, the terms "installation", "connection" and "connection" should be understood in a broad sense, for example, it can be a fixed connection or a detachable connection. Connected, or integrally connected; it may be mechanically connected or electrically connected; it may be directly connected or indirectly connected through an intermediary, and it may be the internal communication of two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present invention in specific situations.

Example 1

As shown in Fig. 1, the present invention discloses a neurology department multifunctional exercise rehabilitation equipment, adopting the technical scheme, comprising a base plate 1, a track 2, a bracket 3, a wheelchair 4, a docking device 5 and a trainer 6, the track 2. The bracket 3 and the trainer 6 are installed on the base plate 1. In order to facilitate the patient's standing, the wheelchair 4 has an auxiliary standing mechanism. As shown in Figures 15 and 16, the wheelchair 4 includes a backrest 401 and a seat plate 402 , the fixed plate 403, the base plate 405 and the legs 408, the fixed plate 403 is fixed on the base plate 405, in order to assist the patient to stand, this embodiment adopts the parallelogram principle, the backrest 401 and the base plate 405 are arranged in parallel, and the backrest 401 and the base plate Seat plate 402 and connecting rod 404 are hinged between 405, and the four hinges at the two ends of seat plate 402 and connecting rod 404 two ends are four vertices of parallelogram, and the end of seat plate 402 is provided with hinged arm for hinged, with Maintain the level of the seat plate 402 to make the patient’s sitting feeling more comfortable. A cushion 4021 is also arranged on the surface of the seat plate 402 to further optimize the feeling when sitting down. The sliding rod 412 is slidably connected in the 411, the base plate 405 and the sliding rod 412 are axially connected to the fixed end and the telescopic end of the first electric push rod 406 respectively, and the extension of the first electric push rod 406 can make the seat plate 402 wrap around and fix The hinge of the board 403 rotates, and under the effect of the parallelogram structure, the backrest 401 maintains a vertical state to assist the patient to stand up. In order to meet the needs of people of different sizes to use the device, a second electric push rod 407 is arranged under the base board 405. The second electric push rod 407 is also connected with the support leg 408 by the support leg ring, and the lower end of the support leg 408 is connected with the wheel group 409. A connecting frame 410 is also provided, and a pedal 4101 is arranged on the connecting frame 410. The patient can place his feet on the pedal 4101 so as to facilitate the transfer of the wheelchair 4. A control box 416 is also arranged on the wheelchair 4. There are power supply, microprocessor device and wireless communication module, the microprocessor is connected with the first electric push rod 406 and the second electric push rod 407 to control the expansion and contraction of the electric push rod, the power supply in the control box 416 is used to supply power to the power unit, and the wireless The communication module can control the expansion and contraction of the electric push rod through the remote control, which is more convenient to use.

In order to protect the patient, a guardrail 8 is also set on the backrest 401. As shown in Figure 2, the guardrail 8 includes a first railing 801, a second railing 802 and a third railing 803, the first railing 801 and the second railing 802 They are all L-shaped rod-shaped structures, the third railing 803 is a "匚"-shaped structure, the first railing 801 and the second railing 802 are hinged on the third railing 803, and the three form a guardrail 8 with a square frame structure. 8 After fastening, carry out preliminary fixation, and set a pinch plate at the junction of the first railing 801 and the second railing 802, set the first pinch plate 8012 on the first railing 801, and set the second pinch plate on the second railing 802 8022, the first pinch plate 8012 and the second pinch plate 8022 are fastened together, and the first magnet 8014 and the second magnet 8025 are arranged on the fastening surface, and the first magnet 8014 and the second magnet 8025 are opposite to each other, through the two Suction for preliminary positioning.

In order to facilitate the transfer of the patient from the wheelchair 4 to the rehabilitation training equipment, that is, for the convenience of the patient on the machine, a docking device 5 is provided on the support 3, and a detachable connection structure is adopted between the guardrail 8 and the backrest 401. For the convenience of the guardrail 8 Transferred from the backrest 401 to the docking device 5, the detachable connection structure adopts a linkage mechanism, the first railing 801 and the second railing 802 are provided with a first unlocking hole 8011 and a second unlocking hole 8021, the first railing 801 and the second railing 802 The internal structure of the railing 802 is basically the same. Taking the second railing 802 as an example, there is a backrest unlocking structure inside the second railing 802. The backrest unlocking structure includes a first elastic plate 802101 and a first limit buckle 802102. The first limit buckle 802102 is buckled on The second unlocking hole 8021 is provided to maintain the limit state between the backrest 401 and the guardrail 8 .

As shown in Figure 8, the shell of the docking device 5 has a square structure, and a connecting groove 501 is provided on the vertical side, and the size of the connecting groove 501 matches the size of the guardrail 8. There are also a third chute 505 and a fourth chute 506, the third chute 505 is arranged in the middle of the connecting groove 501, two fourth chute 506 are symmetrically arranged on both sides of the third chute 505, the third chute 505 and the fourth chute 506 communicate through the gear groove. In order to achieve the linkage effect when the guardrail 8 is inserted into the joint groove 501, the third chute 505 is slidably connected with the first push rod 507, and the outer end surface of the first push rod 507 It is level with the notch of connecting groove 501, in order to prevent the first push rod 507 from slipping out of the third chute 505, the inner end surface of the first push rod 507 is also provided with a second clamping plate 508, the width of the second clamping plate 508 is larger than The width of the first ejector pin 507, the third chute 505 is set as an outer groove and an inner groove, the size of the outer groove matches the size of the first ejector rod 507, and the size of the inner groove matches the size of the second clamping plate 508, which can To prevent the first push rod 507 from slipping out, a fourth spring 509 is pressed between the second clamping plate 508 and the inner groove to achieve the effect of elastic expansion and contraction. There are teeth on both sides of the first push rod 507, and the fourth chute 506 is slidingly connected with a second push rod 511, the second push rod 511 has the same structure as the first push rod 507, and the inner shaft of the gear groove is connected with a gear 510, and the gear 510 is connected to the first push rod 507 and the side of the second push rod 511. The teeth mesh with each other. When the guardrail 8 is inserted into the connecting groove 501, the guardrail 8 squeezes the first push rod 507, and the first push rod 507 slides into the third chute 505, which can drive the gear 510 to rotate so that the second push rod 507 The rod 511 slides outwards along the fourth chute 506, and there is a positioning rod 5111 on the end surface of the second ejector rod 511. The two groups of positioning rods 5111 correspond to the positions of the first positioning hole 8013 and the second positioning hole 8023 on the guardrail 8 respectively. The sizes match, and after the second push rod 511 slides outward, the positioning rod 5111 is inserted into the first positioning hole 8013 and the second positioning hole 8023, which can further limit the first railing 801 and the second railing 802 to prevent them from being pushed by the external force. Opening under the action loses the protective effect on the patient. At this time, the guardrail 8 is initially fixed on the docking device 5, but it will slide along the axis of the docking device 5, and the limit between the guardrail 8 and the backrest 401 has not yet been released. ; The linkage docking mechanism is also connected with a linkage unlocking mechanism for solving the above problems.

Concretely, as shown in Fig. 9 and Fig. 11, a dial slot, a third bar slot 513, and a fifth bar slot 525 are provided on the docking device 5, in order to release the limit on the first railing 801 and the second railing 802, dial Groove, the 3rd lever groove 513, the 4th lever groove 520 and the 5th lever groove 525, linkage unlocking mechanism are all provided with two groups and are arranged symmetrically, linkage unlocking mechanism has used driving lever 512, strike lever 514, pull rod 517, the fifth Spring 518 and unlocking lever 519, in order to facilitate unlocking the limit button in the unlocking hole, the fifth lever groove 525 is vertically opened on the docking device 5, the lower end of the fifth lever groove 525 communicates with the connecting groove 501, and the unlocking lever 519 Slidingly connected in the fifth rod slot 525, the two sets of unlocking rods 519 correspond to the first unlocking hole 8011 and the second unlocking hole 8021 on the guardrail 8, and their sizes match, in order to prevent the unlocking rod 519 from slipping out of the fifth rod slot 525, a third clamping plate 5191 is set on the upper end of the unlocking lever 519, its features and functions are the same as those of the second clamping plate 508, in order to prevent the unlocking lever 519 from falling under its own gravity, a spring buckle 5192 is installed on the third clamping plate 5191 , the fifth rod groove 525 is connected with the third rod groove 513 through the buckle groove, and the spring buckle 5192 is buckled on the buckle groove to form a limit, preventing the unlocking lever 519 from falling by itself, and the unlocking lever 519 is used to release the limit of the limit buckle. Therefore, the force exerted by the fall of its own gravity may not be enough to release the limit of the limit buckle, so the fifth spring 518 is pressed between the third clamping plate 5191 and the fifth rod groove 525 to increase the force of the unlocking rod 519. The force on the limit buckle is enough to release the limit; and at this time, it is necessary to set the structure for releasing the limit of the spring buckle 5192 to release the unlocking lever 519; The force applied when the guardrail 8 is inserted into the connecting groove 501 is used as power, the third rod groove 513 is connected with the fourth chute 506 through the dial groove, and the driving rod 512 is slidably connected in the dial groove, and one end of the driving rod 512 is connected to the connecting groove 501. The second ejector rod 511 is connected, and the other end slides in the third rod groove 513. Meanwhile, the third rod groove 513 is also slidably connected with a plunger 514. The front end of the plunger 514 is provided with a striker 522. The striker 522 is opposite to the spring buckle 5192. Drive the striker 514 to move through the driving lever 512, hit the spring buckle 5192 with the striker 522 to make it break away from the buckle groove, and release the unlocking lever 519; at this time, the part of triggering the linkage unlocking structure has been completed, but there will be retraction after the unlocking lever 519 is released. Requirements, this embodiment adopts the method of pulling back the unlocking lever 519, and connects the upper end of the fifth lever groove 525 with the outside world, and a pull rod 517 is installed on the third clamping plate 5191, and the pull rod 517 passes through the fifth lever groove 525 upwards. , by pulling the pull rod 517, the unlocking lever 519 can be pulled into the fifth lever groove 525, but at this time the striker 522 is still inserted in the buckle groove, and the spring buckle 5192 cannot be buckled into the buckle groove to form a limit, so it is necessary to move the lever 512 out of the way. In the case of moving, the plunger 514 is reset, so the sixth spring is pressed between the plunger 514 and the third rod groove 513 521, as shown in Figure 12, and on the lance 514, a rotary plate 515 is hinged, and a torsion spring is installed at the hinge, so that the rotary plate 515 maintains an angle of 30° with the lance 514 in the initial state, and the end surface of the rotary plate 515 and the dial The rod 512 is slidingly connected, and the end surface of the rotating plate 515 adopts an arc surface, and the center of the arc surface is located on the central axis of the hinge. In order to enable the driving rod 512 to apply a stable thrust, the driving rod 512 is connected to the upper half of the arc surface. As shown in Figure 13, the arc surface design here is to allow the rotary plate 515 to still rotate when the lever 512 is in contact with the rotary plate 515; Then, at this time, due to contact with the half part of the arc surface, the rotary plate 515 does not rotate in turn, and the driving rod 512 can apply a stable thrust to the rotary plate 515, that is, apply a stable thrust to the lance 514 to push the lance 514 to slide, compressing the sixth When the spring 521 needs to reset the ram 514 after releasing the unlocking lever 519, the sixth spring 521 cannot push the ram 514 to reset due to the blocking of the ram 512, and the rotary plate 515 needs to be rotated to remove the blocking of the ram 512. Here, the force when the unlocking lever 519 falls is used to rotate the rotating plate 515, because the unlocking lever 519 has begun to fall, indicating that the limit of the spring buckle 5192 has been released, and the lance 514 can be reset. A fourth rod groove 520 is opened between the three rod grooves 513. Because the unlocking rod 519 moves downward, the fourth rod groove 520 is set above the third rod groove 513. Because the position of the rotary plate 515 is low, the fourth rod The groove 520 is set as an L-shaped groove, and a pressure rod 516 is slidably connected in the fourth rod groove 520. Because the position of the rotary plate 515 is relatively biased, an L-shaped plate is added to the end of the L-shaped rod for the pressure rod 516, and the L-shaped rod One end is connected to the pull rod 517, and the other end is connected to the L-shaped plate. The end surface of the L-shaped plate is slidably connected to the upper top surface of the front end of the rotating plate 515. When the unlocking lever 519 drives the pulling rod 517 to move downward, the pulling rod 517 can drive the pressing rod 516 to fall, so that the rotating plate 515 can move downward. Plate 515 rotates, and it turns to level, as shown in Figure 14, at this moment, the rear end and the front end are higher than driving lever 512, and lance 514 resets under the action of the sixth spring 521, and after lance 514 moves, rotating plate 515 Leaving the pressing bar 516, reset under the action of the torsion spring, now the rear end of the rotating plate 515 is above the driving rod 512, and the driving rod 512 has been unable to block it. After crossing the driving rod 512, the rotating plate 515 is completely reset; When the second ejector rod 511 is reset, it drives the driving rod 512 to reset. When the driving rod 512 passes under the rotating plate 515, it squeezes the rotating plate 515 to make the rotating plate 515 rotate. After the driving rod 512 passes, the rotating plate 515 is under the action of the torsion spring. Reset; the unlocking rod 519 is inserted into the unlocking hole to finally position the guardrail 8 so that it will not slide; in order to facilitate the patient's standing, a handrail 502 is also provided on the docking device 5 .

With the fall of the unlocking lever 519, the limit state of the limit buckle has been released. Still taking the second railing 802 as an example, because the guardrail 8 has a bend, the unlocking hole and the limit position between the guardrail 8 and the backrest 401 are located at the guardrail. 8, so how to make the power generated by unlocking pass through the bend is the technical problem to be solved in the next step. This device adopts the gas transmission method, and uses the fluidity of the gas to pass through the bend, as shown in Figure 3 and Figure 3. 4, a first air chamber 8026, a second air chamber 8028 and a guide groove 8029 are sequentially opened in the second railing 802, and the first air chamber 8026 and the second air chamber 8028 are connected through the first air pipe 8027, and the second air chamber 8026 is connected with the second air chamber 8028. An air pipe 8027 is a 90° air passage, located at the bend, the second air chamber 8028 communicates with the guide groove 8029, the guide groove 8029 extends to the end of the second railing 802 and communicates with the outside world, and the first air chamber 8026 is slidingly connected There is a first piston 80210, and a first spring 80211 is pressed between the first piston 80210 and the first air chamber 8026. The end of the first piston 80210 is connected to the first limit buckle 802102 through the first elastic plate 802101, and the second air chamber The second piston 80212 is slidingly connected in the 8028, and the second spring 80213 is pressed between the second piston 80212 and the second air chamber 8028. The end of the second piston 80212 is connected with the first guide rod 80214, and the first guide rod 80214 is in the Sliding connection in the guide groove 8029, through the above-mentioned structure, the first spring 80211 can push the first piston 80210 to slide in the first air chamber 8026 after the first limit buckle 802102 is released, and the front end of the first piston 80210 The gas is sent into the second air chamber 8028 through the first air pipe 8027, and at the same time, the external air is filled into the rear end of the first piston 80210 of the first air chamber 8026 through the second unlocking hole 8021, and the gas entering the second air chamber 8028 and the second The spring 80213 together pushes the second piston 80212 to move in the second air chamber 8028, and then pushes the first guide rod 80214 to slide along the guide groove 8029. At this time, the gas at the front end of the second piston 80212 needs to be removed.

As shown in Figure 5, there are third air chamber 8031, fifth air chamber 8034 and second chute 8035 in the third railing 803, one end of the third air chamber 8031 communicates with the outside world through a tunnel, and the tunnel corresponds to the position of the guide groove 8029, The third air chamber 8031 communicates with the fifth air chamber 8034, the fifth air chamber 8034 communicates with the second chute 8035, the third air chamber 8031 is slidably connected with the third piston 8037, and the end surface of the third piston 8037 is connected with the first Two guide rods 8036, the second guide rod 8036 is slidingly connected in the tunnel, the end surface of the second guide rod 8036 is slidingly connected with the end surface of the first guide rod 80214, the movement of the first guide rod 80214 can push the movement of the second guide rod 8036 and then push The third piston 8037 moves, but at this time the rear end of the third piston 8037 needs to be supplemented with gas to maintain the air pressure, while the gas at the rear end of the second piston 80212 needs to be released, so it is decided to introduce the gas in the second air chamber 8028 into the third air chamber In 8031, both the first guide rod 80214 and the second guide rod 8036 are set as hollow air guide rods, as shown in Figure 19 and Figure 20, the first guide rod 80214 and the second guide rod 8036 are both hollow rods with two ends Open, the first guide rod 80214 has a first air guide hole 802141, the second guide rod 8036 has a second air guide hole 80361, the gas at the rear end of the second piston 80212 enters the first guide rod 80214 through the first air guide hole 802141 , and then enter the second guide rod 8036, and release into the third piston 8037 through the second air guide hole 80361 to realize the transfer of gas. The transfer process of the guide rod 8036, but the sealing of the joint between the first guide rod 80214 and the second guide rod 8036 does not need to be too demanding, even if there is air leakage here, as the third piston 8037 moves, its The vacuum formed at the rear end can also suck the outside gas into the third air chamber 8031 through the air leak to maintain the pressure stability; It cannot be too long, and at the same time, it is necessary to ensure that the third piston 8037 has a sufficient stroke, so a fourth air chamber 8032 is provided at the corner, and an air passage plate 8038 is provided at the junction of the third air chamber 8031 and the fourth air chamber 8032 for Prevent the third piston 8037 from entering the fourth air chamber 8032, the air passage plate 8038 is provided with air holes for ventilation, the fourth air chamber 8032 communicates with the fifth air chamber 8034 through the second air pipe 8033, and slides in the fifth air chamber 8034 The fourth piston 8039 is connected, and the end face of the fourth piston 8039 is connected with an insertion rod 80310, and the insertion rod 80310 is slidably connected in the second chute 8035, and the third railing 803 is also provided with a jack 80311, and the jack 80311 and the second slide The grooves 8035 are connected; in order to facilitate the reset of the insertion rod 80310, a sixth chute is opened on the fifth air chamber 8034, and the sixth chute is located at the front end of the fourth piston 8039 , the sixth chute communicates with the outside world. In order to ensure the airtightness of the front end of the fourth piston 8039, a distance greater than the stroke of the fourth piston 8039 is reserved between the initial position of the fourth piston 8039 and the sixth chute. A handle 80312 is also installed on the 80310, and the handle 80312 is slidably connected in the sixth chute, and the staff can control the insertion rod 80310 by pulling the handle 80312; the gas at the rear end of the third piston 8037 passes through the gas plate 8038 through the fourth The air chamber 8032 and the second air pipe 8033 enter the rear end of the fourth piston 8039 in the fifth air chamber 8034 to push the fourth piston 8039 to move, and the gas at the front end of the fourth piston 8039 is discharged to the outside through the sixth chute.

As shown in Figure 6, the limiting structure between the backrest 401 and the guardrail 8 includes a first limiting pin 413 and a third spring 414, a fourth mounting groove 417 is arranged on the backrest 401, and the third railing 803 of the guardrail 8 is on the Sliding connection in the installation groove 417, the first pin groove 415 is opened on the top surface of the fourth installation groove 417, the first stop pin 413 is slidably connected in the first pin groove 415, the first stop pin 413 and the first pin groove A third spring 414 is pressed between the 415, and the third spring 414 pushes the first limiting pin 413 into the insertion hole 80311 to form a limiting position.

As shown in Figure 7, in order to facilitate the installation and disassembly of the guardrail 8 on the backrest 401, the first limit pin 413 adopts a structure composed of the first clamping plate 4131 and the pin body 4132, the characteristics and functions of the first clamping plate 4131 Also the same as the second clamping plate 508, the first clamping plate 4131 is located on the end surface of the pin body 4132 to prevent the first limit pin 413 from slipping out, and the third spring 414 is slidably connected to the first clamping plate 4131 to prevent the first clamping pin 413 from slipping out. The limit pin 413 slides freely; the pin body 4132 has a first side 41321, a second side 41322, and a third side 41323, the notch of the first side 41321 and the fourth installation groove 417 are opposite, and the second side 41322 is located on the first side On the opposite surface of 41321, the third side 41323 is opposite to the insertion rod 80310. In order to facilitate the installation of the guardrail 8 into the fourth installation groove 417, the first side 41321 adopts a slope structure, and the first side can be squeezed by the guardrail 8 during installation. The limit pin 413 moves upwards. In order to facilitate the disassembly of the guardrail 8, the second side 41322 also adopts a slope, but there is a section of vertical surface above the slope for blocking under the limit state. The third side 41323 is an arc surface. There is an inclined surface on 80310, the inclined surface is slidingly connected with the third side 41323, and the inclined surface meets the arc surface, which can make the extrusion of the first limit pin 413 by the insertion rod 80310 more efficient. When the insertion rod 80310 slides, the first limit pin The pin 413 is pushed upwards so that the vertical surface above the second side 41322 enters the first pin groove 415 to release the limiting effect, and then the guardrail 8 and the wheelchair 4 are moved in the opposite direction, and the guardrail 8 can be squeezed into the second pin groove 415. The side 41322 makes it enter the first pin slot 415 .

It can be seen from the structure of the linkage docking mechanism and the guardrail 8 that the key to transfer the patient to the docking device 5 is the docking of the guardrail 8 and the docking device 5 slot 501, so in order to make the docking more convenient, the track 2 is laid on the base plate 1, so that The wheelchair 4 moves along the track 2. In this way, the position error between the guardrail 8 and the connecting groove 501 will be greatly reduced, but there are still two problems at this time, that is, the possibility of the wheelchair 4 toppling over and the need for the patient to get on the wheelchair 4. The problem of crossing the track 2, both of which have the risk of causing the patient to fall and be injured, is relatively simple to solve the latter, that is, to connect the outrigger ring and the second electric push rod 407 by means of a shaft connection, and the wheelchair 4 can be moved Rotate to make the patient get on the wheelchair 4 from the track 2 rear end opening without the track; and the solution of the former needs to be provided with an anti-dumping structure, as shown in Figure 17 and Figure 18, the wheel set 409 includes a moving wheel 4091 and a hinged seat 4092, and the moving wheel The 4091 shaft is connected to the hinged seat 4092, and the hinged seat 4092 is connected to the leg 408; in order to prevent the wheel set 409 from sliding laterally, the moving wheel 4091 is provided with a round table section on both sides of the cylindrical end; The inclined surface on the trapezoidal raised section is in contact with the inclined surface of the circular platform section, and the circular platform section can clamp the track 2 from both sides to prevent lateral sliding; furthermore, it is necessary to prevent the derailment of the wheel set 409 from upward tilting, and at the lower end of the hinged seat 4092 Connecting seat 4093 is provided, and connecting seat 4093 is an L-shaped seat. A shaft plate 4094 is installed on the connecting seat 4093. The upper axis of the shaft plate 4094 is connected to the auxiliary wheel 4095. The auxiliary wheel 4095 is connected to the bottom surface of the trapezoidal convex section, and can be lifted from below. Hold the track 2 to prevent the wheel set 409 from tilting up and derail; but another problem will occur at this time, that is, the installation of the wheelchair 4 can only slide in from the end of the track 2, and because the moving wheel 4091 and the secondary wheel 4095 must be moved from top to bottom. Both sides are connected with the track 2, which will cause the docking window to be too small, and it is very inconvenient for the wheelchair 4 to enter the track. In order to solve this problem, the trapezoidal raised section is arranged on the track 2 in the form of a movable bar 202. At this time, the track 2 includes a T-shaped seat 201 and a movable bar 202. There are movable grooves on both sides of the upper end of the T-shaped seat 201. The movable strip 202 is slidably connected in the movable groove, and the seventh spring 203 is pressed between the movable strip 202 and the movable groove. When the wheelchair 4 enters the rail, the wheelchair 4 can be dropped from the top of the rail 2, and the connecting seat 4093 is in contact with the movable After the slope of the bar 202, the movable bar 202 will be pressed into the movable slot and the seventh spring 203 will be compressed by the same time. The movable bar 202 will no longer block the wheelchair 4. When the wheelchair 4 is in place, the wheel set 409 will no longer block the movable bar 202, and the movable bar will no longer block the wheelchair 4. 202 can be reset and ejected under the action of the seventh spring 203, inserted between the moving wheel 4091 and the secondary wheel 4095, when it is necessary to make the wheelchair 4 detached from the track 2, slide it along the track 2 to the end from the end of the track 2 Just go out.

In order to prevent the wheelchair 4 from moving when the patient gets on the wheelchair 4, causing a fall, a plug mechanism 9 is provided on the leg 408, as shown in Figure 23, an upper collar 903 and a lower collar 904 are arranged on the leg 408, and the upper collar The ring 903 and the lower collar 904 are located on the same vertical axis, and a plug 901 is slidably connected inside. In order to maintain the unlocked state, a laterally protruding pull block 902 is provided on the plug 901, which can be mounted on the upper collar 903 The top prevents the plug 901 from falling. In order to achieve the positioning effect, a notch 9031 is also provided on the upper collar 903. The notch 9031 matches the size of the pull block 902. The pull block 902 can pass through the notch 9031 to make the plug 901 fall. Bolt holes are provided on the track 2, and the wheelchair 4 can be positioned by inserting the plug 901 into the bolt hole.

Because the wheelchair 4 adopts a lifting structure, the height of the guardrail 8 is no longer fixed, and the docking device 5 also needs to be provided with a lifting mechanism; A rod groove 503 and a second rod groove 504, the first rod 301 and the second rod 302 pass through the first rod groove 503 and the second rod groove 504 respectively and are slidably connected, and the first rod 301 is provided with Lifting mechanism, as shown in Figure 22, the driven synchronous pulley 304 and the driving synchronous pulley 305 are connected along the vertical axis in the first pole 301, and a synchronous belt 306 is set between the two, and the first pole 301 Also offer the first chute 310 on the top, the synchronous belt 306 is connected with the connection block 311, the connection block 311 passes through the first chute 310 and is connected with the docking device 5, and the driving synchronous pulley 305 is connected with the motor 308 through the speed reducer 307, The motor 308 adopts a stepper motor, and the synchronous belt 306 is driven by the motor 308 to rotate to pull the docking device 5 up and down. In order to prevent the docking device 5 from being excessively lowered, a baffle plate 303 is provided on the second pole 302 to limit the height of the docking device 5. Minimum height, as shown in Figure 8, in order to reduce the friction between the docking device 5 and the bracket 3, a rolling groove 5041 is provided in the first rod groove 503 and the second rod groove 504, and the shaft in the rolling groove 5041 The roller 5042 is connected, through which the roller 5042 is connected with the bracket 3, the sliding friction is changed into rolling friction, and the frictional force is reduced.

In order to facilitate the alignment of the docking device 5 and the guardrail 8, as shown in Figure 2, an infrared emitter 8024 is provided on the guardrail 8 to generate infrared rays outward, and the first railing 801 and the second railing 802 of the guardrail 8 are basically the same in structure, the difference is that The first installation groove 80215 and the second installation groove 80216 are also opened on the second railing 802, as shown in Figure 3, the two are connected through the through groove, the infrared emitter 8024 is installed in the first installation groove 80215, the second installation The microprocessor and the power supply are installed in the slot 80216, the microprocessor, the power supply, and the infrared emitter 8024 are connected, the power supply uses a battery, the second installation slot 80216 communicates with the outside world, the slot is connected with a slot door by bolts, and is used for replacing the battery . As shown in Figure 8, a third installation groove 523 is provided on the docking device 5, and the third installation groove 523 is used for installing an infrared receiver. As shown in Figure 10, a brush arm 5031 is installed on the inner wall of the first rod groove 503, and a carbon brush 5032 is arranged on the brush arm 5031. There are live wires, neutral wires, and signal wires in the wire groove 524, all of which are connected to the infrared receiver. Connected with the carbon brush 5032, the carbon brush 5032 has three groups, corresponding to the live line, neutral line, and signal line respectively. The contact wire 309 and the sliding contact wire 309 include live wire, neutral wire, and signal wire, which are respectively slidably connected with three groups of carbon brushes 5032, and a control box 7 is also arranged on the second pole 302, and there are microprocessors and Wireless communication module, microprocessor is connected with motor 308, trolley line 309, wireless communication module, the staff can start motor 308 by remote controller, when microprocessor receives the infrared signal that infrared emitter 8024 transmits through infrared receiver , indicating that the heights of the two are consistent at this time, and it is sufficient to control the motor 308 to pause. Since the wheelchair 4 is rotatable, the staff needs to adjust the orientation of the wheelchair 4 so that the infrared emitter 8024 faces the direction of the infrared receiver.

As shown in Figure 21, the trainer 6 adopts a stepping trainer, the sleeve rod 604 of the trainer 6 is fixed on the base plate 1, the sleeve rod 604 is set with an eighth spring 603, and the eighth spring 603 has a pedal 602, for Improve the recovery efficiency of the patient, make the eighth spring 603 replaceable, install the stud head 601 on the sleeve rod 604, the lower section of the stud head 601 has a thread groove, and engage the nut 605, in order to make the nut 605 can be tightened, the screw The diameter of the column head 601 is smaller than the diameter of the sleeve rod 604, and the nut 605 can press the sleeve rod 604 to realize tightening. In order to prevent the pedal 602 from coming out, the outer diameter of the nut 605 is larger than the diameter of the sleeve rod 604, so that the pedal 602 can be pressed from above When replacing the spring, only the nut 605 needs to be removed to take off the pedal 602 to replace the eighth spring 603;

Working principle of the present invention: select the eighth spring 603 with a suitable elastic coefficient according to the actual recovery situation of the patient, and remove the nut 605 to replace the eighth spring 603 .

Insert the plug 901 into the bolt hole at the upper wheelchair to fix the position of the wheelchair 4, make the patient sit on the wheelchair 4, fasten the first railing 801 and the second railing 802 on the chest of the patient, and pass through the first pinch plate 8012 The first magnet 8014 and the second magnet 8025 on the second buckle plate 8022 are attracted to achieve preliminary fixation, and the extension of the second electric push rod 407 is adjusted according to the patient's actual height, so that the patient's foot can be placed on the pedal 4101, Pull out the plug 901, rotate the wheelchair 4 and push the wheelchair 4 to move towards the trainer. After moving to the predetermined position, insert the plug 901 into the bolt hole at the machine position to fix the position of the wheelchair, and control the first electric push rod 406 to elongate. Turn the wheelchair 4 into a standing state to assist the patient to stand. At this time, the moving wheel 4091 on the wheel set 409 of the wheelchair 4 clamps the movable bar 202 of the track 2 to prevent sliding left and right, and the secondary wheel 4095 withstands the bottom surface of the movable bar 202 to prevent derailment. Dumping, the staff starts the motor 308 to control the docking device 5 to lift according to the relative position of the current docking device 5 and the guardrail 8, and when the infrared receiver on the docking device 5 receives the infrared signal emitted by the infrared transmitter 8024 on the guardrail 8, pause The motor 308, with the help of the staff, the patient steps on the pedal 602. During the movement, the guardrail 8 is inserted into the connecting groove 501 of the docking device 5. During the insertion, the guardrail 8 is squeezed into the third chute 505 The first push rod 507, the first push rod 507 makes the second push rod 511 pop out through the gear 510, and the positioning rod 5111 is inserted into the first positioning hole 8013 and the second positioning hole 8023 to realize secondary positioning; The rod 512 moves the plunger 514 to slide, and the striker 522 on the plunger 514 hits the spring buckle 5192 to release the limit, so that the unlocking rod 519 falls under the action of its own gravity and the fifth spring 518, and inserts the first unlocking hole 8011 and the second unlocking hole 8011 of the guardrail 8. The second unlocking hole 8021 realizes three positionings, while the pull rod 517 drives the pressure rod 516 to fall and rotate the rotary plate 515 to release the limit, and the ram 514 resets under the action of the sixth spring 521 .

The unlocking rod 519 is inserted into the unlocking hole to release the limit of the limit buckle. Taking the second railing as an example, after the limit of the first limit buckle 802102 is released, the first spring 80211 pushes the first piston 80210 to slide, and the air flow and the second spring 80213 pushes the second piston 80212 to move, then pushes the second guide rod 8036 through the first guide rod 80214 to make the third piston 8037 slide, pushes the fourth piston 8039 through the airflow and finally pushes the insertion rod 80310 to slide, and the insertion rod 80310 squeezes the first The limit pin 413 is inserted into the first pin slot 415, the plug 901 is pulled out, and the wheelchair 4 is pulled outward to separate the wheelchair 4 from the guardrail 8.

The patient holds the handrail 502 and steps on the pedal 602 to carry out rehabilitation training.

After the training is completed, when the guardrail 8 needs to be transferred from the docking device 5 to the wheelchair 4, the wheelchair 4 is pushed to the upper position of the patient, the third railing 803 of the guardrail 8 is inserted into the fourth installation groove 417, and the third railing 803 Squeeze the first inclined surface of the first limiting pin 413 to make it slide into the first pin groove 415, when the position of the first limiting pin 413 corresponds to the position of the insertion hole 80311, the first limiting pin 413 is in the position of the third spring 414 Under the action of reset, insert it into the socket 80311, connect with the insertion rod 80310, rotate the plug 901 to insert it into the bolt hole of the upper machine position to position the wheelchair 4, and the staff pulls the pull rod 417 upwards to release the unlocking lever 519 from the second unlocking Hole 8021, after the spring buckle 5192 of the unlocking lever 519 snaps into the buckle slot to limit, the staff pulls the handle 80312 to reset the insertion rod 80310, reset the first limit pin 413, and complete the limit between the guardrail 8 and the backrest 401 , the first piston 80210 is reset under the reverse push of the gas, and the first limit buckle 802102 is buckled into the second unlocking hole 8021 to complete the limit. Let the patient step on the pedal 4101. During the patient’s movement, the guardrail 8 Pull it out from the connecting groove 501, control the first electric push rod 406 to shorten, and switch the wheelchair 4 to a sitting state. The patient sits on the cushion 4021, pulls out the plug 901, moves the wheelchair 4, and gets off the machine.

The mechanical and circuit connections involved in the present invention are common means used by those skilled in the art, and technical inspiration can be obtained through a limited number of tests, which belong to common knowledge.

The microprocessor involved in the present invention adopts the Atmel 89C51 single-chip microcomputer, which is used for starting and stopping the motor, processing data, and controlling the infrared transmitter and infrared receiver. Those skilled in the art can refer to the teaching materials or the manufacturer's publication for the pins and connection methods of the 89C51. Get technical inspiration from the technical manual.

Components not specified herein are prior art.

Although the above-mentioned specific embodiments of the present invention have been described in detail, the present invention is not limited to the above-mentioned embodiments. Within the scope of knowledge possessed by those of ordinary skill in the art, various The modification or deformation without creative work is still within the protection scope of the present invention.
