Abstract

The invention proposes an intelligent preoperative continuous infusion device. The intelligent preoperative continuous infusion device includes an input module, a control module and an infusion action module. The control module determines the initial infusion rate and the initial infusion amount according to the patient information input by the input module, and controls the The infusion action module executes the infusion action, and at the same time, the control module also adjusts the infusion rate and the total amount of infusion during the infusion process. The intelligent preoperative continuous infusion device has the characteristics of automatically setting and adjusting the liquid volume and infusion speed during the infusion process according to patient information.

Description

An intelligent preoperative continuous infusion device

technical field

The invention provides an intelligent preoperative continuous infusion device, which belongs to the technical field of medical devices.

Background technique

In clinical medicine, although intravenous infusion is widely used, the commonly used infusion tool is still the traditional Murphy infusion set, and manual monitoring is the main method. During infusion, the infusion bottle (bag) needs to be hung on the infusion stand or higher than the puncture site of the patient, and the liquid medicine is injected into the patient by using the potential difference. Manually adjust the pulley on the infusion set to control the infusion rate based on experience. During the infusion process, nurses need to keep patrolling, and the patient or accompanying staff should observe the remaining amount of liquid medicine. When the liquid medicine is about to be infused or the dripping speed is abnormal, the nurse on duty should be notified in time to deal with it. This not only increases the labor intensity of medical staff, resulting in a greatly increased error rate, but also is not conducive to patients' rest, affecting the quality of treatment. If the nurse fails to deal with the situation such as the end of the drug infusion or the blockage of the infusion tube, it may cause blood return or other dangers, causing pain to the patient, and even leading to medical accidents.

For patients with different individual conditions, different infusion purposes and infusion drugs, the required infusion speed is different. For example, most patients need to fast from food and water for 6 to 8 hours while they wait for surgery. And the longer the wait time, the patient's blood volume will decrease with the waiting time. However, after a long period of fasting of food and water, during anesthesia induction, patients often experience post-induction hypotension after real-time anesthesia induction due to insufficient replenishment of the lost blood volume. Preoperative fluid replacement is an important part of perioperative fluid management, which can ensure the patient's blood volume. Therefore, how to provide an efficient and safe preoperative fluid replacement method is a technical problem to be solved by those skilled in the art.

SUMMARY OF THE INVENTION

The invention provides an intelligent preoperative continuous infusion device, which is used to solve the problem that the infusion speed and infusion time need to be adjusted manually in the existing infusion process, resulting in that the infusion speed and infusion time do not match the actual situation of the patient, and the patient is in the infusion process. It is very easy to cause discomfort during the operation, which will lead to the problem of reducing the safety and efficiency of preoperative infusion. The technical solutions adopted are as follows:

An intelligent preoperative continuous infusion device, the intelligent preoperative continuous infusion device comprises an input module, a control module and an infusion action module, and a signal output end of the input module is connected with a signal input end of the control module; The infusion control signal output end of the control module is connected to the infusion control signal input end of the input action module.

Further, the input module is used to input patient information of the patient;

The control module is configured to determine the initial infusion rate and the initial infusion amount according to the patient information, and control the infusion action module to perform infusion actions. Adjust the infusion rate and total infusion;

Further, the patient information includes weight information and fasting water time information of the patient.

Further, the control module adopts a single-chip system as the core control system.

Further, the operation control process of the control module includes:

According to a preset control rule, the infusion process is divided into multiple rate stages and liquid volume stages with different rates and liquid volumes; wherein, in the same rate stage, the infusion rate remains constant, and in the same In the liquid volume stage, the total amount of the infusion is kept constant;

Before the infusion starts, the control module calculates and obtains the corresponding infusion rate and the first rate stage of the first rate stage among the plurality of rate stages and liquid volume stages with different rates and liquid volumes according to the patient information input by the input module. The corresponding total amount of infusion in a liquid volume stage.

Further, the control rules include:

In a plurality of rate phases with different rates, the infusion rate corresponding to the later said rate phase is smaller than the corresponding infusion rate in the preceding said rate phase;

In a plurality of liquid volume stages with different rates, the total infusion volume corresponding to the later liquid volume stage is greater than the corresponding infusion volume in the previous liquid volume stage.

Further, the control rules also include:

Control the infusion to enter a steady state after a specific period of time after the infusion begins;

Wherein, the steady state refers to the increment of the total amount of the infusion after the end of each fluid volume stage, which is the same as the actual infusion volume infused into the patient in the fluid volume stage.

Further, the infusion action module includes a motor driver, a stepper motor and a peristalsis device; wherein, the drive signal output end of the motor driver is connected with the drive signal input end of the stepper motor; the kinetic energy of the stepper motor The output end is connected with the kinetic energy input end of the peristaltic device.

Further, the input device adopts a keyboard or a touch screen.

Further, the intelligent preoperative continuous infusion device further includes a detection module, an alarm module and a display module;

The detection module includes an infrared drop count sensor, a pressure sensor and/or an ultrasonic sensor, the infrared drop count sensor is used to detect the flow rate and flow of the liquid, the pressure sensor is used to detect blockage and leakage, and the ultrasonic sensor is used for to detect air bubbles;

The alarm module includes a photoelectric alarm device and/or a sound alarm device, the control module judges according to the signal input by the detection module, sends an alarm control signal, and the alarm module responds;

The display module includes a liquid crystal display screen for displaying parameters and system status.

Beneficial effects of the present invention:

An intelligent preoperative continuous infusion device proposed by the present invention sets the initial infusion rate and infusion volume of preoperative infusion through the control device combined with the actual information of the patient, and sets the infusion rate in each subsequent infusion stage. Adjusting the infusion volume and infusion time can effectively improve the matching of the infusion process with the actual physical condition and preoperative condition of the patient, thereby improving the scientificity and safety of the infusion. At the same time, using this energy-chemical preoperative continuous infusion device for infusion can effectively reduce the participation of medical staff during the infusion process, without the need for medical staff to manually adjust and calculate the infusion volume, which can effectively reduce the labor consumption of medical staff. At the same time, the infusion speed, infusion volume and infusion time can be adjusted automatically by combining the patient's actual physical information and preoperative information through intelligent computing, which can greatly improve the patient's preoperative infusion efficiency.

Description of drawings

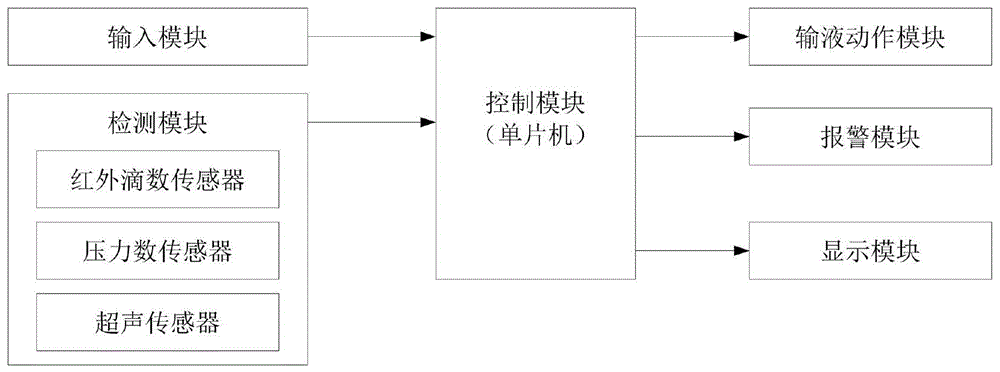

Fig. 1 is the system structure diagram of the intelligent preoperative continuous infusion device according to the present invention;

FIG. 2 is a schematic structural diagram of the infusion action module according to the present invention.

Detailed ways

In order to make the above objects, features and advantages of the present application more clearly understood, the specific embodiments of the present application will be described in detail below with reference to the accompanying drawings. In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present application. However, the present application can be implemented in many other ways different from those described herein, and those skilled in the art can make similar improvements without departing from the connotation of the present application. Therefore, the present application is not limited by the specific embodiments disclosed below. It should be noted that when an element is referred to as being "fixed to" or "disposed on" another element, it can be directly on the other element or an intervening element may also be present. When an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may also be present. The terms "vertical", "horizontal", "left", "right" and similar expressions used herein are for the purpose of illustration only and do not represent the only embodiment.

Unless otherwise defined, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the technical field to which this application belongs. The terms used herein in the specification of the present application are for the purpose of describing particular embodiments only, and are not intended to limit the present application. As used herein, the term "and/or" includes any and all combinations of one or more of the associated listed items.

Example 1

This embodiment proposes an intelligent preoperative continuous infusion device. As shown in FIG. 1 , the intelligent preoperative continuous infusion device includes an input module, a control module and an infusion action module. The control module is based on the input module. The input patient information determines the initial infusion rate and the initial infusion amount, and controls the infusion action module to perform the infusion action. At the same time, the control module also adjusts the infusion rate and infusion amount during the infusion process. The signal output end of the input module is connected with the signal input end of the control module; the infusion control signal output end of the control module is connected with the infusion control signal input end of the input action module.

Wherein, the control module adopts a single-chip microcomputer system as the core control system. The infusion action module, as shown in FIG. 2 , includes a motor driver, a stepping motor and a peristalsis device; the driving signal output end of the motor driver is connected with the driving signal input end of the stepping motor; the stepping motor The kinetic energy output end is connected with the kinetic energy input end of the peristaltic device. The input device adopts a keyboard or a touch screen, and the patient information input by the input device includes the patient's weight information and fasting water time information.

Meanwhile, the intelligent preoperative continuous infusion device further includes a detection module, an alarm module and a display module;

The detection module includes an infrared drop count sensor, a pressure sensor and/or an ultrasonic sensor, the infrared drop count sensor is used to detect the flow rate and flow of the liquid, the pressure sensor is used to detect blockage and leakage, and the ultrasonic sensor is used for to detect air bubbles;

The alarm module includes a photoelectric alarm device and/or a sound alarm device, the control module judges according to the signal input by the detection module, sends an alarm control signal, and the alarm module responds;

The display module includes a liquid crystal display screen for displaying parameters and system status.

The intelligent preoperative continuous infusion device proposed in this embodiment sets the initial infusion rate and infusion volume of preoperative infusion by combining the actual information of the patient with the control device, and sets the infusion rate in each subsequent infusion stage. Adjusting the infusion volume and infusion time can effectively improve the matching of the infusion process with the actual physical condition and preoperative condition of the patient, thereby improving the scientificity and safety of the infusion. At the same time, the use of this intelligent preoperative continuous infusion device for infusion can effectively reduce the participation of medical staff in the infusion process, without the need for medical staff to manually adjust and calculate the infusion volume, which can effectively reduce the manpower consumption of medical staff. At the same time, the infusion speed, infusion volume and infusion time can be adjusted automatically by combining the patient's actual physical information and preoperative information through intelligent computing, which can greatly improve the patient's preoperative infusion efficiency.

At the same time, the infusion monitoring through the detection module and the alarm module can further improve the safety of the patient infusion process and the real-time and timeliness of the patient state monitoring.

Example 2

This embodiment is a further limitation of Embodiment 1. The difference between this embodiment and Embodiment 1 is that the operation control process of the control module includes:

According to a preset control rule, the infusion process is divided into multiple rate stages and liquid volume stages with different rates and liquid volumes; wherein, in the same rate stage, the infusion rate remains constant, and in the same In the liquid volume stage, the total amount of the infusion is kept constant;

Before the infusion starts, the control module calculates and obtains the corresponding infusion rate and the first rate stage of the first rate stage among the plurality of rate stages and liquid volume stages with different rates and liquid volumes according to the patient information input by the input module. The corresponding total amount of infusion in a liquid volume stage.

Wherein, the control rules include:

Rule 1: In a plurality of rate stages with different rates, the infusion rate corresponding to the latter rate stage is smaller than the corresponding infusion rate in the previous rate stage;

Rule 2: In a plurality of fluid volume stages with different rates, the total infusion volume corresponding to the latter fluid volume stage is greater than the corresponding infusion volume in the previous fluid volume stage.

Rule 3: Control the infusion to enter a stable state after a specific period of time after the infusion begins;

Wherein, the steady state refers to the increment of the total amount of the infusion after the end of each fluid volume stage, which is the same as the actual infusion volume infused into the patient in the fluid volume stage. And, the specific time period is obtained by the following formula:

Among them, T ₀ represents a specific time period (min), t is the fasting time (h) of the patient before starting the infusion, and x is the weight of the patient (kg)

The intelligent preoperative continuous infusion device proposed in this embodiment sets the initial infusion rate and infusion volume of preoperative infusion by combining the actual information of the patient with the control device, and sets the infusion rate in each subsequent infusion stage. Adjusting the infusion volume and infusion time can effectively improve the matching of the infusion process with the actual physical condition and preoperative condition of the patient, thereby improving the scientificity and safety of the infusion. At the same time, using this energy-chemical preoperative continuous infusion device for infusion can effectively reduce the participation of medical staff during the infusion process, without the need for medical staff to manually adjust and calculate the infusion volume, which can effectively reduce the labor consumption of medical staff. At the same time, the infusion speed, infusion volume and infusion time can be adjusted automatically by combining the patient's actual physical information and preoperative information through intelligent computing, which can greatly improve the patient's preoperative infusion efficiency.

At the same time, through the above method, a specific time can be set according to the actual physical condition of the patient and the preoperative condition, which can ensure the infusion volume and time of the transition stage during the conversion process to the maximum extent in each rate stage and fluid volume stage during the conversion process. , to ensure that the time period for reaching a stable state is effectively matched with the actual physical condition of the patient, thereby maximizing the safety of the infusion.

It will be apparent to those skilled in the art that various modifications and variations can be made in the present invention without departing from the spirit and scope of the invention. Thus, provided that these modifications and variations of the present invention fall within the scope of the claims of the present invention and their equivalents, the present invention is also intended to include these modifications and variations.

Claims (10)

1. an intelligent preoperative continuous infusion device is characterized in that, the intelligent preoperative continuous infusion device comprises an input module, a control module and an infusion action module, and the signal output terminal of the input module and the signal output of the control module. The signal input end is connected; the infusion control signal output end of the control module is connected with the infusion control signal input end of the input action module. 2. The intelligent preoperative continuous infusion device according to claim 1, wherein the input module is used to input patient information of the patient; The control module is configured to determine the initial infusion rate and the initial infusion amount according to the patient information, and control the infusion action module to perform infusion actions. Adjust the infusion rate and total infusion; The input action module is configured to receive an infusion signal sent by the control module to perform an infusion action. 3. The intelligent preoperative continuous infusion device according to claim 2, wherein the patient information includes the patient's weight information and fasting water time information. 4 . The intelligent preoperative continuous infusion device according to claim 1 or 2 , wherein the control module adopts a control system with a single chip system as the core. 5 . 5. The intelligent preoperative continuous infusion device according to claim 1 or 2, wherein the operation control process of the control module comprises: According to a preset control rule, the infusion process is divided into multiple rate stages and liquid volume stages with different rates and liquid volumes; wherein, in the same rate stage, the infusion rate remains constant, and in the same In the liquid volume stage, the total amount of the infusion is kept constant; Before the infusion starts, the control module calculates and obtains the corresponding infusion rate and the first rate stage of the first rate stage among the plurality of rate stages and liquid volume stages with different rates and liquid volumes according to the patient information input by the input module. The corresponding total amount of infusion in a liquid volume stage. 6. The intelligent preoperative continuous infusion device according to claim 5, wherein the control rule comprises: In a plurality of rate phases with different rates, the infusion rate corresponding to the later said rate phase is smaller than the corresponding infusion rate in the preceding said rate phase; In a plurality of liquid volume stages with different rates, the total infusion volume corresponding to the later liquid volume stage is greater than the corresponding infusion volume in the previous liquid volume stage. 7. The intelligent preoperative continuous infusion device according to claim 5, wherein the control rule further comprises: Control the infusion to enter a steady state after a specific period of time after the infusion begins; Wherein, the steady state refers to the increment of the total amount of the infusion after the end of each fluid volume stage, which is the same as the actual infusion volume infused into the patient in the fluid volume stage. 8. The intelligent preoperative continuous infusion device according to claim 1 or 2, wherein the infusion action module comprises a motor driver, a stepping motor and a peristalsis device; wherein, the drive signal output end of the motor driver is connected to the The drive signal input end of the stepping motor is connected; the kinetic energy output end of the stepping motor is connected with the kinetic energy input end of the peristalsis device. 9 . The intelligent preoperative continuous infusion device according to claim 1 or 2 , wherein the input device adopts a keyboard or a touch screen. 10 . 10. The intelligent preoperative continuous infusion device according to claim 1, wherein the intelligent preoperative continuous infusion device further comprises a detection module, an alarm module and a display module; The detection module includes an infrared drop count sensor, a pressure sensor and/or an ultrasonic sensor, the infrared drop count sensor is used to detect the flow rate and flow of the liquid, the pressure sensor is used to detect blockage and leakage, and the ultrasonic sensor is used for to detect air bubbles; The alarm module includes a photoelectric alarm device and/or a sound alarm device, the control module judges according to the signal input by the detection module, sends an alarm control signal, and the alarm module responds; The display module includes a liquid crystal display screen for displaying parameters and system status.
