Abstract

The invention discloses a bird repellent that is easy to adjust, comprising a mounting frame, a rotating assembly, and a fastener for fixing the mounting frame on the pole cross arm, the fastener is installed on the mounting frame, and the mounting frame It is installed on the bottom of the rotating assembly, a bird repellent assembly is installed on the top of the rotating assembly, and a needle assembly is also installed on the top of the bird repellent assembly. The present invention can fix the device on the pole tower or the cross arm under the action of the installation frame, and at the same time realize the bird repelling effect under the mutual cooperation of the rotating assembly and the bird repelling device assembly, and the bird repelling device assembly can be adjusted as required , to ensure that the device is more suitable for a specific environment, and greatly guarantee the quality of bird repelling.

Description

Easily Adjustable Bird Repeller

technical field

The invention belongs to the technical field of bird repellers, in particular to a bird repeller that is easy to adjust.

Background technique

With the continuous strengthening of human awareness of the protection of the natural ecological environment, the number of birds is increasing year by year, and the scope of activities is expanding day by day, which has caused great harm to the power distribution lines, and the work of preventing bird damage on the lines is imminent; Birds start to build nests on the distribution line towers to lay eggs and hatch. Birds hold branches, iron wires, firewood and other debris in their mouths and fly back and forth over the road. When iron wires and other objects fall between the cross arm and the conductor, it will cause line failure. When the wind blows, the bird's nest on the tower is blown away by the wind and falls on the live wire or insulator, causing a short circuit ground fault, and the excrement of the bird pollutes the insulator, which is prone to occur in bad weather such as humid air, heavy fog, and haze. Flashover causes failure, therefore, it is necessary to install a bird repellent to keep the birds away from the distribution lines or poles; the existing bird repellent cannot be adjusted again according to the needs after the installation is completed, which affects the bird repellent effect of the bird repellent .

Contents of the invention

The purpose of the present invention is to overcome the deficiencies in the prior art and provide a bird repellent that is easy to adjust. Under the action of the mounting bracket, the device can be fixed on the pole tower or the cross arm, and at the same time, the rotating assembly and the bird repellent assembly are mutually connected. With cooperation, the bird repelling effect is realized, and the bird repelling device assembly can be adjusted according to needs, ensuring that the device is more suitable for a specific environment, and greatly ensuring the quality of bird repelling.

In order to achieve the above object, the technical scheme adopted in the present invention is:

The bird repellent that is easy to adjust includes a mounting frame, a rotating assembly, and fasteners for fixing the mounting frame on the cross-arm of the electric pole. The fastener is installed on the mounting frame, and the mounting frame is installed on the rotating assembly. At the bottom of the rotating assembly, a bird repellent assembly is installed on the top of the bird repellent assembly, and a needle assembly is also installed on the top of the bird repellent assembly.

Preferably, the mounting frame is a U-shaped frame, and the fastener includes a fastening bolt, the fastening bolt is installed on the U-shaped frame, and is threaded with the U-shaped frame, and the setting of the mounting frame and the fastening bolt The device is conveniently fixed on the pole tower, which ensures the stability of the device, thereby improving the bird repelling efficiency.

Preferably, the rotating assembly includes a motor, a driving wheel, a driven wheel, and a fixed plate. A mounting groove is opened in the middle of the fixed plate, and the motor is installed in the groove, and the driving wheel is installed on the output shaft of the motor. The driven wheel is installed in the installation groove through the rotating shaft, and the driven wheel is engaged with the driving wheel. The rotating assembly can drive the bird repellent assembly to rotate, preventing birds from landing on the pole tower or the cable, thereby realizing the effect of repelling birds.

Preferably, the bird repellent assembly includes a rotating disk and a connecting rod, the rotating disk is arranged above the fixed disk, and the rotating disk is fixedly mounted on the rotating shaft, and a rotating rod and a fixed column are installed on the rotating disk, so The rotating rod is rotatably installed on the edge of the rotating disk, the fixed column is fixedly installed in the middle of the rotating disk, a fixing piece is installed on the fixing column, and the fixing piece is slidably matched with the fixing column, and one end of the connecting rod is rotatably installed on the On the fixed part, the other end of the connecting rod is rotated and installed on the rotating rod, and the rotating wheel assembly is installed on the rotating rod. The bird repellent assembly can realize the effect of repelling birds, preventing birds from landing on the tower or cable, ensuring Safety of towers and cables.

Preferably, the runner assembly includes a fixed block, an impeller, and a wheel shaft. A fixed slot is opened on the rotating rod, and a limiting hole is opened on the side wall of the fixed slot. The fixed block matches the fixed slot. The limit piece is installed, and the limit piece is matched with the limit hole. The impeller is installed on the fixed block through the wheel shaft, and can drive the impeller to rotate around the wheel shaft under the action of natural wind. The rotation can play a role in warning birds, greatly improving the effect of driving birds.

Preferably, the limiting member includes a limiting block, a connecting rod, a tension spring and a sliding frame, and a fixing hole is opened on the fixing block, and the limiting block is symmetrically installed on both sides of the fixing hole, and the sliding frame Installed on the limit block, the connecting rod is installed crosswise in the fixing hole, and the middle part of the connecting rod is rotated and installed in the fixing hole through the fixing shaft. The ends are installed on the connecting rod respectively, and the limit piece is used to limit the movement of the fixed block, so as to ensure that the fixed block can be installed on the rotating rod, and can ensure the stability of the fixed block, thereby ensuring the stability of the runner assembly and the quality of bird repelling .

Preferably, the fixing part includes a sliding sleeve, a connecting plate and a thumb bolt, the sliding sleeve is fixedly mounted on the connecting plate, and one end of the connecting rod is rotatably mounted on the connecting plate, and a through hole is opened on the connecting plate, through which The hole is connected with the center hole of the sliding sleeve, and the sliding sleeve is fixed on the fixed column by hand-tightening bolts. The fixing piece is used to fix one end of the connecting rod on the fixed column, so as to ensure the inclination angle of the rotating rod and the driving rod. The normal operation of the runner assembly greatly ensures the efficiency and quality of bird repelling.

Preferably, the needle assembly includes a disk, a telescopic rod and a needle, and the telescopic rod is provided with a plurality of them, and the plurality of telescopic rods are evenly distributed on the edge of the disk, and a plurality of Threaded hole, one end of the needle is installed in the threaded hole, and threaded with the threaded hole, the needle assembly is used to drive birds, preventing birds from landing on the top of the fixed column, greatly ensuring the quality of bird driving.

Preferably, a fixing sleeve and a fixing bolt are also installed at the bottom of the disk, the fixing sleeve is fixed on the bottom of the disk, the fixing bolt is installed on one side of the fixing sleeve, and the fixing sleeve is fixed on the fixed sleeve by the fixing bolt. On the column, the setting of the fixing bolt and the fixing sleeve is convenient for fixing the disk on the fixing column, and the setting of the fixing bolt is convenient for the staff to replace the lancet assembly, ensuring the quality of bird repelling.

The beneficial effects of the present invention are:

1) The device can be fixed on the pole tower or the cross arm under the action of the installation frame, and at the same time, under the mutual cooperation of the rotating assembly and the bird repellent assembly, the effect of repelling birds can be realized, and the bird repellent assembly can be used as needed It is adjusted to ensure that the device is more suitable for a specific environment, which greatly ensures the quality of bird repelling.

2) The arrangement of the installation frame and fastening bolts of the device is convenient for fixing the device on the pole tower, which ensures the stability of the device, thereby improving the bird repelling efficiency.

3) The rotating assembly of the device can drive the rotation of the bird repelling device assembly to prevent birds from landing on the pole tower or cable, thereby realizing the effect of repelling birds.

4) The bird repellent component of the device can achieve the effect of repelling birds, prevent birds from landing on the tower or cable, and ensure the safety of the tower and cable.

5) The device can drive the impeller to rotate around the wheel shaft under the action of natural wind, the rotation of the impeller can prevent birds from landing, and at the same time, the rotation of the impeller can play a role in warning birds, which greatly improves the bird repelling effect.

6) The limiter of this device is used to limit the movement of the fixed block, to ensure that the fixed block can be installed on the rotating rod, and can ensure the stability of the fixed block, thereby ensuring the stability of the runner assembly and the quality of bird repelling.

7) The fixing part of this device is used to fix one end of the connecting rod on the fixed column, thereby ensuring the inclination angle of the rotating rod, ensuring the normal operation of the runner assembly on the driving rod, and greatly ensuring the efficiency and quality of bird repelling.

8) The lancet assembly of the device is used for bird repelling to prevent birds from landing on the top of the fixed column, thus greatly ensuring the quality of bird repelling.

9) The fixed sleeve of the device is fixed on the fixed column by the fixed bolt. The setting of the fixed bolt and the fixed sleeve is convenient for fixing the disk on the fixed column, and the setting of the fixed bolt is convenient for the staff to replace the lancet assembly, ensuring the bird repellent quality.

Description of drawings

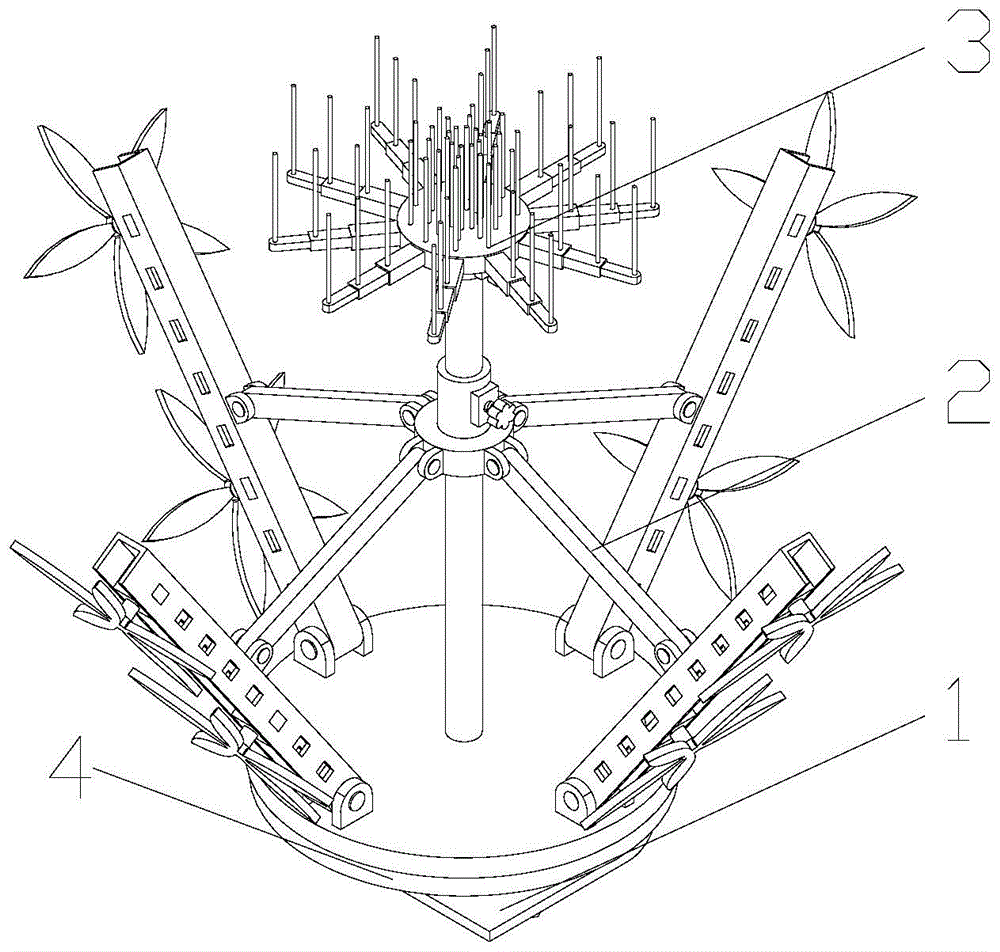

Accompanying drawing 1 is a structural schematic diagram 1 of the present invention.

Accompanying drawing 2 is the structure schematic diagram II of the present invention.

Accompanying drawing 3 is the schematic diagram of the installation structure of the rotating assembly in the present invention.

Accompanying drawing 4 is the structure diagram of the runner assembly in the present invention.

Accompanying drawing 5 is the schematic diagram of the installation structure of the limiting member in the present invention.

Accompanying drawing 6 is the front view of the limiting member in the present invention.

Accompanying drawing 7 is the structure schematic diagram of the lancet assembly in the present invention.

Among the figure: 1, mounting bracket; 2, bird repellent assembly; 201, connecting rod; 202, fixing member; 203, limit hole; 204, rotating rod; Screw bolt; 208, sliding sleeve; 209, connecting plate; 2010, impeller; 2011, axle; 2012, fixed block; 2013, limit block; 2014, fixed hole; 2015, connecting rod; 2016, extension spring; 2017, sliding Frame; 2018, fixed column; 3, needle assembly; 301, disc; 302, telescopic rod; 303, fixed sleeve; 304, fixed bolt; 305, needle; 4, rotating assembly; 401, driving wheel; 402, motor; 403, driven wheel; 5, fastener.

Detailed ways

The technical solutions in the embodiments of the present invention are clearly and completely described below in conjunction with the accompanying drawings 1-7. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. Based on the embodiments of the present invention, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present invention.

In describing the present invention, it should be understood that the terms "longitudinal", "transverse", "upper", "lower", "front", "rear", "left", "right", "vertical", The orientations or positional relationships indicated by "horizontal", "top", "bottom", "inner", "outer", etc. are based on the orientations or positional relationships shown in the drawings, and are only for the convenience of describing the present invention, rather than indicating or It should not be construed as limiting the invention by implying that a referenced device or element must have a particular orientation, be constructed, and operate in a particular orientation.

The bird repeller that is easy to adjust includes a mounting frame 1, a rotating assembly 4, a fastener 5 for fixing the mounting frame 1 on the pole cross arm, and the fastener 5 is installed on the mounting frame 1, and the installation The frame 1 is installed on the bottom of the rotating assembly 4, the bird repelling device assembly 2 is installed on the top of the rotating assembly 4, and the needle assembly 3 is also installed on the top of the bird repelling device assembly 2.

The mounting frame 1 is a U-shaped frame, and the fastener 5 includes fastening bolts, which are installed on the U-shaped frame and screwed with the U-shaped frame.

The setting of the mounting bracket 1 and the fastening bolt is convenient for fixing the device on the pole tower, which ensures the stability of the device, thereby improving the efficiency of driving birds.

The rotating assembly 4 includes a motor 402, a driving wheel 401, a driven wheel 403, and a fixed disk. The middle part of the fixed disk has a mounting groove, and the motor 402 is installed in the groove, and the driving wheel 401 is installed on the output shaft of the motor 402. Above, the driven wheel 403 is installed in the installation groove through the rotating shaft, and the driven wheel 403 is engaged with the driving wheel 401 .

The rotation assembly 4 can drive the bird repellent assembly 2 to rotate, preventing birds from landing on the pole tower or the cable, thereby realizing the effect of repelling birds.

The bird repellent assembly 2 includes a rotating disc 206 and a connecting rod 201, the rotating disc 206 is arranged above the fixed disc, and the rotating disc 206 is fixedly mounted on the rotating shaft, and the rotating disc 206 is equipped with a rotating rod 204 and Fixed post 2018, the rotating rod 204 is mounted on the edge of the rotating disc 206, the fixed post 2018 is fixedly installed in the middle of the rotating disc 206, the fixed part 202 is installed on the fixed post 2018, the fixed part 202 and the fixed post 2018 sliding fit, one end of the connecting rod 201 is rotatably mounted on the fixing part 202, and the other end of the connecting rod 201 is rotatably mounted on the rotating rod 204, and the rotating wheel assembly 205 is mounted on the rotating rod 204.

The bird repellent assembly 2 can realize the effect of repelling birds, prevent birds from landing on the tower or the cable, and ensure the safety of the tower and the cable.

A solar panel can also be installed on the rotating disk 206, and the solar panel is used to provide power for the motor 402 to ensure the normal operation of the motor.

By moving the fixing member 202 up and down along the fixing column 2018, the angle between the rotating rod and the rotating disk can be controlled, thereby realizing the adjustment of the device

The motor 402 is powered by the battery to ensure normal operation of the motor, and the solar cells are electrically connected to the battery and the motor respectively.

The runner assembly 205 includes a fixed block 2012, an impeller 2010, and an axle 2011. A fixed groove is formed on the rotating rod 204, and a limiting hole 203 is opened on the side wall of the fixed groove. The fixed block 2012 is matched with the fixed groove. A limiting member is installed on the fixing block 2012 , and the limiting member matches with the limiting hole 203 , and the impeller 2010 is installed on the fixing block 2012 through the axle 2011 .

Under the action of natural wind, the impeller 2010 can be driven to rotate around the axle 2011. The rotation of the impeller 2010 can prevent birds from landing, and at the same time, the rotation of the impeller 2010 can serve as a warning to birds, which greatly improves the bird repelling effect.

Wherein, a plurality of limiting holes 203 are provided, and the plurality of limiting holes 203 are evenly distributed on the rotating rod 204 .

The limiting member includes a limiting block 2013, a connecting rod 2015, a tension spring 2016, and a sliding frame 2017. The fixing block 2012 is provided with a fixing hole 2014, and the limiting block 2013 is symmetrically installed on both sides of the fixing hole 2014. , the sliding frame 2017 is installed on the limit block 2013, the connecting rod 2015 is installed crosswise in the fixing hole 2014, and the middle part of the connecting rod 2015 is rotated and installed in the fixing hole 2014 through the fixed shaft, and the two ends of the connecting rod 2015 slide respectively Installed on the sliding frame 2017, the two ends of the tension spring 2016 are respectively installed on the connecting rod 2015.

The limiter is used to limit the movement of the fixed block 2012, to ensure that the fixed block 2012 can be installed on the rotating rod 204, and can ensure the stability of the fixed block 2012, thereby ensuring the stability of the runner assembly 205 and ensuring the quality of bird repelling.

Described fixing member 202 comprises sliding sleeve 208, connecting plate 209 and thumb bolt 207, and described sliding sleeve 208 is fixedly installed on connecting plate 209, and one end of connecting rod 201 is installed on connecting plate 209 in rotation, on connecting plate 209 A via hole is provided, and the via hole communicates with the center hole of the sliding sleeve 208 , and the sliding sleeve 208 is fixed on the fixing column by a thumb bolt 207 .

The fixing part 202 is used to fix one end of the connecting rod 201 on the fixed column, thereby ensuring the inclination angle of the rotating rod 204, ensuring the normal operation of the running wheel assembly 205 on the driving rod, and greatly ensuring the efficiency and quality of driving birds.

The needle assembly 3 includes a disk 301, a telescopic rod 302 and a needle 305. The telescopic rod 302 is provided with a plurality of them, and the plurality of telescopic rods 302 are evenly distributed on the edge of the disk 301. Between the telescopic rod 302 and the disk 301 A plurality of threaded holes are opened on each of the tops, and one end of the needle 305 is installed in the threaded holes and threadedly engaged with the threaded holes.

The needle assembly 3 is used for bird repelling, preventing the birds from landing on the top of the fixed post, thus greatly ensuring the quality of bird repelling.

A fixing sleeve 303 and a fixing bolt 304 are also installed on the bottom of the disc 301, the fixing sleeve 303 is fixed on the bottom of the disc 301, the fixing bolt 304 is installed on one side of the fixing sleeve 303, and the fixing sleeve 303 passes through The fixing bolt 304 is fixed on the fixing column.

The arrangement of the fixing bolt 304 and the fixing sleeve 303 is convenient for fixing the disk 301 on the fixing column, and the setting of the fixing bolt 304 is convenient for the staff to replace the lancet assembly 3, which ensures the quality of bird repelling.

The above content is only an example and description of the structure of the present invention. Those skilled in the art will make various modifications or supplements to the described specific embodiments or replace them in similar ways, as long as they do not deviate from the principles of the present invention. Structures or beyond the scope defined in the claims shall belong to the protection scope of the present invention.

Claims (5)

1. The bird repellent that is easy to adjust is characterized in that it includes a mounting frame, a rotating assembly, a fastener for fixing the mounting frame on the pole cross-arm, and the fastener is installed on the mounting frame, and the The mounting bracket is installed on the bottom of the rotating assembly, the bird repellent assembly is installed on the top of the rotating assembly, and the needle assembly is also installed on the top of the bird repellent assembly; The rotating assembly includes a motor, a driving wheel, a driven wheel, and a fixed plate. There is a mounting groove in the middle of the fixed plate, and the motor is installed in the groove, and the driving wheel is installed on the output shaft of the motor. The driven wheel passes through the The rotating shaft is installed in the installation groove, and the driven wheel meshes with the driving wheel; The bird repellent assembly includes a rotating disk and a connecting rod. The rotating disk is arranged above the fixed disk, and the rotating disk is fixedly mounted on the rotating shaft. A rotating rod and a fixed column are installed on the rotating disk. The rotating rod Rotation is installed on the edge of the rotating disk, the fixed column is fixedly installed in the middle of the rotating disk, a fixed piece is installed on the fixed column, the fixed piece is slidingly matched with the fixed column, and one end of the connecting rod is rotatably installed on the fixed piece , the other end of the connecting rod is rotated and installed on the rotating rod, and a runner assembly is installed on the rotating rod; The lancet assembly includes a disc, a telescopic rod and a puncture needle. There are multiple telescopic rods, and the multiple telescopic rods are evenly distributed on the edge of the disc, and a plurality of threaded holes are opened on the telescopic rod and the disc. One end of the lancet is installed in the threaded hole, and threadedly matched with the threaded hole; The bottom of the disk is also equipped with a fixed sleeve and a fixed bolt, the fixed sleeve is fixed on the bottom of the disk, the fixed bolt is installed on one side of the fixed sleeve, and the fixed sleeve is fixed on the fixed column by the fixed bolt. 2. The easy-to-adjust bird repeller according to claim 1, wherein the mounting frame is a U-shaped frame, and the fasteners include fastening bolts, and the fastening bolts are installed on the U-shaped frame , and threaded with the U-frame. 3. The easy-to-adjust bird repeller according to claim 1, wherein the runner assembly includes a fixed block, an impeller, and a wheel shaft, and a fixed groove is formed on the rotating rod, and a fixed groove is formed on the side wall of the fixed groove. There is a limit hole, the fixed block is matched with the fixed groove, the limit member is installed on the fixed block, the limit member is matched with the limit hole, and the impeller is installed on the fixed block through the axle. 4. The easy-to-adjust bird repellent according to claim 3, wherein said limiting member comprises a limiting block, a connecting rod, a tension spring and a sliding frame, and said fixing block is provided with a fixing hole, so that The limit block is symmetrically installed on both sides of the fixing hole, the sliding frame is installed on the limit block, the connecting rod is installed in the fixing hole crosswise, and the middle part of the connecting rod is installed in the fixing hole through the fixed shaft rotation, and the connecting rod The two ends of the extension spring are respectively mounted on the sliding frame by sliding, and the two ends of the extension spring are respectively installed on the connecting rod. 5. The conveniently adjustable bird repellent according to claim 1, characterized in that, the fixing member comprises a sliding sleeve, a connecting plate and a thumb bolt, the sliding sleeve is fixedly installed on the connecting plate, and one end of the connecting rod The rotating device is installed on the connection plate, and a through hole is opened on the connection plate, and the through hole communicates with the central hole of the sliding sleeve, and the sliding sleeve is fixed on the fixed column by hand-tightening bolts.
