CN115153271A - Multi-angle teaching display device for environmental art design - Google Patents

Abstract

The invention discloses a multi-angle teaching display device for environmental art design. a platform, a placing platform arranged in the middle of the bearing platform, a guard matched with the bearing platform and the placing platform, and a hollow cylinder wrapping the bearing platform inside. The device of the present invention can make use of the self-weight of the work to raise the protective frame to protect it through the installation of the protective unit, and when there is no work placed, the protective frame can also protect the spotlight, preventing the spotlight from being damaged by other Object is damaged.

Description

A multi-angle teaching display device for environmental art design

technical field

The invention relates to the technical field of teaching display, in particular to a multi-angle teaching display device for environmental art design.

Background technique

Environmental art design uses certain organization and enclosure methods to artistically process the space interface, uses design languages such as natural light, artificial lighting, the arrangement and modeling of furniture and accessories, as well as the configuration of plants and flowers, water bodies, sketches, sculptures, etc. The indoor and outdoor space environment of the building reflects a specific atmosphere and a certain style to meet people's functional use and visual aesthetic needs.

Environmental art design focuses on the artistic design of people's living environment, mainly on interior furnishings, layout and decoration to create a beautiful and comfortable living and working space. With the development of the discipline, environmental art gradually covers the overall design of indoor and outdoor, large-scale unit environment design, the overall design of a region or urban environment and other aspects.

Therefore, many of the environmental art works are large models. Most of the traditional display devices are fixed and cannot display the works completely. At the same time, there are no protective devices. When someone touches the works by mistake, it is easy to cause the works Dropped from the stand and damaged the work.

SUMMARY OF THE INVENTION

The purpose of this section is to outline some aspects of embodiments of the invention and to briefly introduce some preferred embodiments. Some simplifications or omissions may be made in this section and the abstract and title of the application to avoid obscuring the purpose of this section, abstract and title, and such simplifications or omissions may not be used to limit the scope of the invention.

In view of the above-mentioned and/or existing problems in the multi-angle teaching display device for environmental art design, the present invention is proposed.

Therefore, the problem to be solved by the present invention is how to provide a multi-angle teaching display device for environmental art design.

In order to solve the above technical problems, the present invention provides the following technical solutions: a multi-angle teaching display device for environmental art design, which includes a protection unit, a bearing platform, a placing platform arranged in the middle of the bearing platform, and the bearing platform. a protective piece that matches the platform and the placing platform, and a hollow cylinder that wraps the carrying platform, the top of the hollow cylinder is provided with a second groove; A sliding rod fixed on the side wall of the bearing platform, a fourth hinged support slidably matched with the sliding rod, and a second hinged rod hinged with the fourth hinged support, arranged on the sliding rod The first spring, and a protective frame independently circumferentially arranged outside the placing table, the other end of the first hinge rod is hinged with the fourth hinge support, and the other end of the second hinge rod is hinged with The protective frame is hinged, the first spring is arranged between the fourth hinged support and the side wall of the bearing platform, and the bearing platform is provided with a first concave for the movement of the second hinge rod A slot; a lifting unit, comprising a first hinged support and a first sliding support fixed on the bottom of the carrying platform, a second hinged support and a second sliding support fixed on the top of the disc, and the two ends are respectively connected to the A first connecting rod hinged between the first hinged support and the second sliding support, a second connecting rod hinged with the second hinged support and the first sliding support at both ends, and a second connecting rod connected with the first connecting rod A connecting column, a third hinged support fixed at the center of the disc, and a telescopic piece hinged with the third hinged support and matched with the connecting column.

As a preferred solution of the multi-angle teaching display device for environmental art design of the present invention, wherein: the first connecting rod and the second connecting rod are crossed and connected by a first connecting piece at the intersection.

As a preferred solution of the multi-angle teaching display device for environmental art design of the present invention, wherein: the top surface of the hollow cylinder and the top surface of the carrying platform are on the same horizontal plane.

As a preferred solution of the multi-angle teaching display device for environmental art design according to the present invention, it further includes an irradiation unit, including an annular bearing plate fixed on the inner side wall of the hollow cylinder, and an annular bearing plate arranged on the annular Spotlights on the carrier plate, the spotlights are arranged obliquely and point to the placing table.

As a preferred solution of the multi-angle teaching display device for environmental art design of the present invention, wherein: the lamp head of the spotlight protrudes from the plane of the bearing platform, the hollow cylinder is provided with a support platform, and the support platform For supporting the protective frame, the spotlight is arranged directly below the protective frame.

As a preferred solution of the multi-angle teaching display device for environmental art design according to the present invention, a placing plate is arranged on the top surface of the placing table, and a third concave matching with the placing plate is arranged on the bearing platform. groove.

As a preferred solution of the multi-angle teaching display device for environmental art design according to the present invention, the side wall of the placing table is provided with a fourth groove that cooperates with the first hinge rod.

As a preferred solution of the multi-angle teaching display device for environmental art design of the present invention, it further includes a rotating unit, including a clamping member that clamps the disc in the middle, and drives the disc to rotate the driver.

As a preferred solution of the multi-angle teaching display device for environmental art design of the present invention, wherein: the clamping member includes a limit cylinder, a limit ring fixed on the inner side wall of the limit cylinder, and a limit ring arranged on the limit cylinder. The roller on the limit ring, the disk is clamped between the top surface of the limit cylinder and the limit ring.

As a preferred solution of the multi-angle teaching display device for environmental art design of the present invention, wherein: the driving member includes a first gear fixed at the center of the bottom of the disc, and a first gear meshed with the first gear. A second gear, and a motor that drives the second gear to rotate.

The beneficial effects of the present invention are: through the setting of the protection unit, the self-weight of the work can be used to raise the protection frame to protect it, and when there is no work placed, the protection frame can also protect the spotlights to prevent the spotlights from being damaged. Other objects are damaged.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the following briefly introduces the accompanying drawings used in the description of the embodiments. Obviously, the drawings in the following description are only some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained based on these drawings without any creative effort. in:

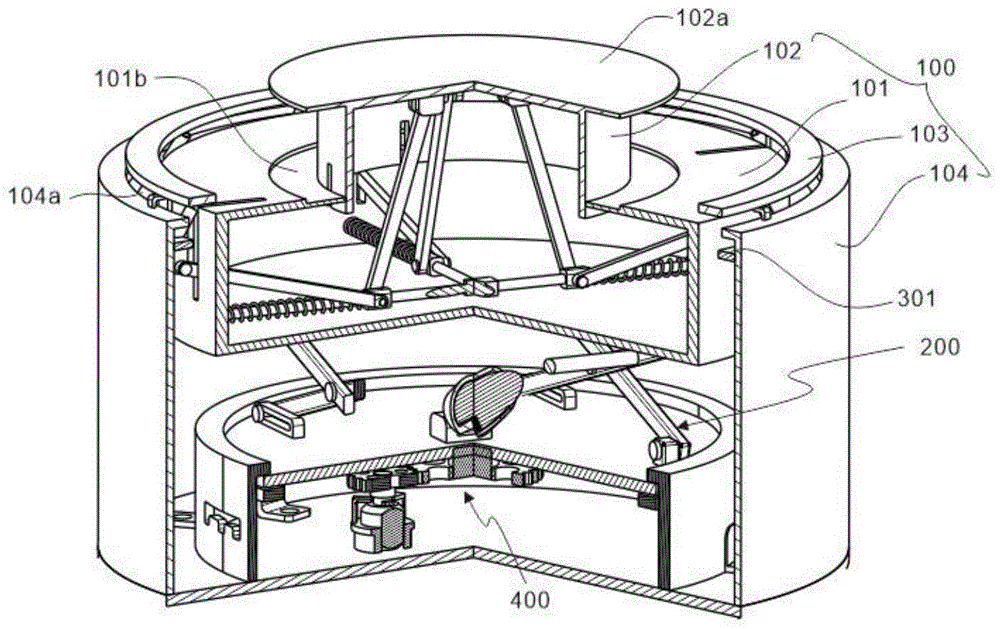

Figure 1 is a structural diagram of a multi-angle teaching display device for environmental art design.

Figure 2 is a structural diagram of the lifting unit and the irradiation unit of the multi-angle teaching display device for environmental art design.

FIG. 3 is a structural diagram of the lifting unit and the illuminating unit from another angle of view of the multi-angle teaching display device for environmental art design.

Figure 4 is a structural diagram of the protection unit of the multi-angle teaching display device for environmental art design.

FIG. 5 is a schematic diagram of the support table of the multi-angle teaching display device for environmental art design.

FIG. 6 is a schematic diagram of the structure of the rotating unit of the multi-angle teaching display device for environmental art design.

Detailed ways

In order to make the above objects, features and advantages of the present invention more clearly understood, the specific embodiments of the present invention will be described in detail below with reference to the accompanying drawings.

Many specific details are set forth in the following description to facilitate a full understanding of the present invention, but the present invention can also be implemented in other ways different from those described herein, and those skilled in the art can do so without departing from the connotation of the present invention. Similar promotion, therefore, the present invention is not limited by the specific embodiments disclosed below.

Second, reference herein to "one embodiment" or "an embodiment" refers to a particular feature, structure, or characteristic that may be included in at least one implementation of the present invention. The appearances of "in one embodiment" in various places in this specification are not all referring to the same embodiment, nor are they separate or selectively mutually exclusive from other embodiments.

Example 1

Referring to FIGS. 1 to 6 , it is the first embodiment of the present invention. This embodiment provides a multi-angle teaching display device for environmental art design. The multi-angle teaching display device for environmental art design includes a protection unit 100 and a lifting unit 200 And the irradiation unit 300, wherein the protection unit 100 is used to protect the work and the spotlight 302, the lift unit 200 is used to drive the work up or down, and the irradiation unit 300 is used to illuminate the work.

Specifically, the protection unit 100 includes a bearing platform 101, a placing platform 102 arranged in the middle of the bearing platform 101, a guard 103 matched with the bearing platform 101 and the placing platform 102, and wrapping the bearing platform 101 in a Inside the hollow cylinder 104, the top of the hollow cylinder 104 is provided with a second groove 104a, and the middle of the carrying platform 101 is empty. The top surface of the hollow cylinder 104 and the top surface of the bearing platform 101 are on the same level, and there is a gap between the top surface of the hollow cylinder 104 and the top surface of the bearing platform 101. This gap is used to place the protective frame 103f and the spotlight. 302's.

The guard 103 includes a first hinged rod 103a hinged to the bottom of the placing table 102, a sliding rod 103b fixed on the side wall of the carrying table 101, and a fourth hinged support 103c slidably matched with the sliding rod 103b , the second hinge rod 103d hinged with the fourth hinge support 103c, the first spring 103e provided on the sliding rod 103b, and the protective frame 103f independently circumferentially provided outside the placing table 102, so The other end of the first hinge rod 103a is hinged with the fourth hinge support 103c, the other end of the second hinge rod 103d is hinged with the protective frame 103f, and the first spring 103e is provided on the Between the four hinged supports 103c and the side wall of the bearing platform 101, the bearing platform 101 is provided with a first groove 101a for the second hinge rod 103d to move, and the second hinge rod 103d and the first groove The grooves 101a are engaged with each other.

It should be pointed out that the elastic force of the first spring 103e is not very large, and it can only make the protective frame 103f cooperate with the support table 104b when no objects are placed on the placing table 102 . Since the environmental art work usually has a certain weight, when the environmental art work is placed on the placing table 102 , the placing table 102 can be pressed down to fit with the bearing platform 101 .

Moreover, when no environmental artwork is placed on the placing table 102, the protective frame 103f is in a lower position, which is also convenient for placing the environmental artwork.

Preferably, the protective frame 103f includes a protective ring plate and a connecting plate disposed at the bottom end of the protective ring plate, and the connecting plate is hinged with the second hinge rod 103d. The reason for this setting is to reduce the length of the second hinge rod 103d extending from the bearing platform 101. , if the second hinge rod 103d is directly hinged with the guard ring plate, then when the guard ring plate rises, one end of the second hinge rod 103d will inevitably follow up, so that the contact point between the second hinge rod 103d and the top surface of the bearing platform 101 If it is closer to the placing table 102, it will take up the placement space of the work.

It should be noted that the protective frame 103f has three functions. One is to protect the spotlight 302. Since the lamp head of the spotlight 302 can only illuminate the work better if it extends out of the bearing platform 101, the light will not be blocked by the bearing platform. 101, if there is no protective frame 103f, when the work is placed, the work may touch the spotlight 302, or in normal times, human error, collision with other objects, etc. may cause damage to the spotlight 302; secondly, It plays the role of a fence. When the work is placed, the protective frame 103f is raised, and the protective frame 103f will surround the work inside, so the protective frame 103f can play the role of a fence to prevent people from touching the work at will; three It is to form a certain protection for the work, especially after the lifting unit 200 lifts the work, the accidental touch of people, the vibration during lifting, the blowing of strong wind, etc., may cause the work to fall, and after setting the protective frame 103f, It can form a certain protection for the work.

The lifting unit 200 includes a first hinged support 201 and a first sliding support 202 fixed on the bottom of the bearing platform 101, a second hinged support 203 and a second sliding support 204 fixed on the top of the disk A, and two ends. A first connecting rod 205 hinged with the first hinged support 201 and the second sliding support 204 respectively, and a second connecting rod with both ends hinged with the second hinged support 203 and the first sliding support 202 respectively 206. A connecting column 207 connecting the first connecting rod 205, a third hinged support 208 fixed at the center of the disk A, and hinged with the third hinged support 208 and with the connecting column 207 The matching telescopic element 209, in this embodiment, the telescopic element 209 adopts a hydraulic telescopic rod.

Preferably, the first connecting rod 205 and the second connecting rod 206 are arranged intersecting, and are connected by a first connecting member 210 at the intersection.

The irradiation unit 300 includes an annular bearing plate 301 fixed on the inner side wall of the hollow cylinder 104, and a spotlight 302 arranged on the annular bearing plate 301, the spotlight 302 is arranged obliquely and points to the placement For the stage 102, preferably, the spotlight 302 can be set to a rotatable structure, that is, it can be adjusted from pointing to the bottom end of the work to pointing to the top of the work, and the specific adjustable structure can adopt the prior art.

Preferably, the lamp head of the spotlight 302 protrudes from the plane of the bearing platform 101 , and the hollow cylinder 104 is provided with a support platform 104b, and the support platform 104b is used to support the protective frame 103f, and the spotlight 302 is disposed directly below the protective frame 103f.

A placing plate 102a is arranged on the top surface of the placing table 102, a third groove 101b is arranged on the bearing platform 101 to cooperate with the placing plate 102a, and a side wall of the placing table 102 is provided with a third groove 101b which is matched with the first The fourth groove 102b in which the hinge rod 103a fits.

In a preferred embodiment, it also includes a rotating unit 400, including a clamping member 401 that clamps the disc A in the middle, and a driving member 402 that drives the disc A to rotate. 401 includes a limit cylinder 401a, a limit ring 401b fixed on the inner side wall of the limit cylinder 401a, and a roller 401c disposed on the limit ring 401b, the disk A is clamped on the limit between the top surface of the barrel 401a and the limiting ring 401b.

Further, the driving member 402 includes a first gear 402a fixed at the center of the bottom of the disk A, a second gear 402b meshing with the first gear 402a, and a second gear 402b that drives the second gear 402b to rotate. Motor 402c.

When in use, the work is placed on the placing table 102, the placing table 102 is pressed down by the weight of the object until the bottom end is in contact with the carrying table 101, the protective frame 103f is raised, and the spotlight 302 is exposed to facilitate irradiation. The works are protected, and according to needs, it is selected whether to lift the works by the lifting unit 200 and whether to rotate the works by the rotating unit 400 .

It should be noted that the above embodiments are only used to illustrate the technical solutions of the present invention and not to limit them. Although the present invention has been described in detail with reference to the preferred embodiments, those of ordinary skill in the art should understand that the technical solutions of the present invention can be Modifications or equivalent substitutions without departing from the spirit and scope of the technical solutions of the present invention should be included in the scope of the claims of the present invention.

Claims (10)

1. The utility model provides an environment is multi-angle teaching display device for art design which characterized in that: comprises the steps of (a) preparing a mixture of a plurality of raw materials,

the protection unit (100) comprises a bearing table (101), a placing table (102) arranged in the middle of the bearing table (101), a protection part (103) matched with the bearing table (101) and the placing table (102), and a hollow cylinder (104) wrapping the bearing table (101), wherein a second groove (104 a) is formed in the top end of the hollow cylinder (104);

the protection part (103) comprises a first hinge rod (103 a) hinged with the bottom of the placing platform (102), a sliding rod (103 b) fixed on the side wall of the bearing platform (101), a fourth hinge support (103 c) in sliding fit with the sliding rod (103 b), a second hinge rod (103 d) hinged with the fourth hinge support (103 c), a first spring (103 e) arranged on the sliding rod (103 b), and a protection frame (103 f) independently and circumferentially arranged outside the placing platform (102), the other end of the first hinge rod (103 a) is hinged with the fourth hinge support (103 c), the other end of the second hinge rod (103 d) is hinged with the protection frame (103 f), the first spring (103 e) is arranged between the fourth hinge support (103 c) and the side wall of the bearing platform (101), and a first groove (101 a) for the second hinge rod (103 d) to move is arranged on the bearing platform (101);

the lifting unit (200) comprises a first hinged support (201) and a first sliding support (202) which are fixed at the bottom of the plummer (101), a second hinged support (203) and a second sliding support (204) which are fixed at the top of the disc (A), a first connecting rod (205) with two ends respectively hinged with the first hinged support (201) and the second sliding support (204), a second connecting rod (206) with two ends respectively hinged with the second hinged support (203) and the first sliding support (202), a connecting column (207) connected with the first connecting rod (205), a third hinged support (208) fixed at the circle center of the disc (A), and a telescopic piece (209) which is hinged with the third hinged support (208) and matched with the connecting column (207).

2. The multi-angle teaching display device for environmental art design as set forth in claim 1, wherein: the first connecting rod (205) and the second connecting rod (206) are arranged crosswise and are connected at the crossing point by a first connecting piece (210).

3. The multi-angle teaching display device for environmental art design as set forth in claim 1 or 2, wherein: the top surface of the hollow cylinder (104) and the top surface of the bearing platform (101) are positioned on the same horizontal plane.

4. The multi-angle teaching display device for environmental art design as set forth in claim 3, wherein: the hollow cylinder is characterized by further comprising an irradiation unit (300) which comprises an annular bearing plate (301) fixed on the inner side wall of the hollow cylinder (104) and a spot light (302) arranged on the annular bearing plate (301), wherein the spot light (302) is obliquely arranged and points to the placing table (102).

5. The multi-angle teaching display device for environmental art design as set forth in claim 4, wherein: the lamp holder of shot-light (302) stretches out plummer (101) plane, be provided with supporting bench (104 b) on hollow section of thick bamboo (104), supporting bench (104 b) are used for supporting protection frame (103 f), shot-light (302) set up in under protection frame (103 f).

6. The multi-angle teaching display device for environmental art design as set forth in claim 5, wherein: a placing plate (102 a) is arranged on the top surface of the placing table (102), and a third groove (101 b) matched with the placing plate (102 a) is arranged on the bearing table (101).

7. The multi-angle teaching display device for environmental art design as set forth in claim 6, wherein: a fourth groove (102 b) matched with the first hinge rod (103 a) is formed in the side wall of the placing table (102).

8. The multi-angle teaching display device for environmental art design as set forth in claim 6 or 7, wherein: the disc rotating device further comprises a rotating unit (400) which comprises a clamping piece (401) for clamping the disc (A) in the middle and a driving piece (402) for driving the disc (A) to rotate.

9. The multi-angle teaching display device for environmental art design as set forth in claim 8, wherein: the clamping piece (401) comprises a limiting cylinder (401 a), a limiting ring (401 b) fixed on the inner side wall of the limiting cylinder (401 a), and a roller (401 c) arranged on the limiting ring (401 b), and the disc (A) is clamped between the top surface of the limiting cylinder (401 a) and the limiting ring (401 b).

10. The multi-angle teaching display device for environmental art design as set forth in claim 9, wherein: the driving part (402) comprises a first gear (402 a) fixed at the circle center of the bottom of the disc (A), a second gear (402 b) meshed with the first gear (402 a), and a motor (402 c) driving the second gear (402 b) to rotate.
