Abstract

本发明公开了一种结合波浪能发电的生态旅游平台，包括搭载平台，所述搭载平台上端中部设有一个半球形建筑体，所述半球形建筑体外侧环绕有一环形的太阳能遮阳棚，所述太阳能遮阳棚的上端均匀设有若干风力发电机组，所述搭载平台外侧端面设有波浪能发电系统。本发明的平台可漂浮在海面，通过平台搭载的波浪能发电设备、风能发电设备、太阳能发电设备进行供电，从而独立运行，可作为娱乐休闲、科普教育一体的场所，创造可观的经济效益。

Figure 202210500602

The invention discloses an ecotourism platform combined with wave energy power generation, including a loading platform, a hemispherical building body is arranged in the middle of the upper end of the loading platform, and an annular solar awning is surrounded on the outside of the hemispherical building body. The upper end of the solar awning is evenly provided with a number of wind turbines, and the outer end face of the loading platform is provided with a wave energy power generation system. The platform of the present invention can float on the sea surface, and is powered by wave power generation equipment, wind power generation equipment, and solar power generation equipment mounted on the platform, so as to operate independently, and can be used as an integrated place for entertainment, leisure, and popular science education, creating considerable economic benefits.

Figure 202210500602

Description

Ecological tourism platform that combines wave energy power generation
Technical Field
The invention relates to the technical field of ocean wave energy, in particular to an ecological tourism platform combining wave energy power generation.
Background
With the economic development and the increase of resource demand in China, the total value of ocean production in China is increased every year. Coastal tourism has become the most important industry of marine economy in our country. The development of the project which has certain tourism function and tourism utilization value and can generate economic benefit, social benefit and environmental benefit is the basis for developing coastal tourism.
Ecological tourism is a tourism mode based on natural resources. On the premise of maintaining the sustainable development of the ecological environment, the ecological environment-friendly travel facility is combined to provide the items of natural landscape with original taste, strong local cultural characteristics, rich and colorful folk-custom activities and the like. Meanwhile, the method promotes the synchronous and coordinated development of economic, social and ecological benefits of tourist sites.
In the ocean, wave energy is a common green natural energy, and how to combine wave energy with ecological tourism is a big difficulty.
Disclosure of Invention
Aiming at the technical problems in the related art, the invention provides an ecological tourism platform combining wave energy power generation, which can solve the problems.
In order to achieve the technical purpose, the technical scheme of the invention is realized as follows:
the utility model provides a combine wave energy power generation's ecological tourism platform, includes carries on the platform, it is equipped with a hemisphere building body to carry on platform upper end middle part, hemisphere building body outside is around there being an annular solar energy sunshade, the upper end of solar energy sunshade evenly is equipped with a plurality of wind generating set, it is equipped with the guardrail to carry on platform upper end edge, it is equipped with wave energy power generation system to carry on platform outside terminal surface.
Furthermore, the solar sunshade is fixedly connected to the upper end of the carrying platform, and a first solar panel is paved on the top surface of the solar sunshade.
Further, the carrying platform comprises a platform deck at the upper end, a wave energy equipment mounting platform in the middle and an equipment cabin at the lower end.
Furthermore, solar panel two and wall glass window have been laid in proper order the layering on the ectosphere of hemisphere building body, hemisphere building body bottom is equipped with and falls to the ground glass window, has seted up a plurality of doors on the glass window that falls to the ground that shows.
Furthermore, the wave energy power generation system comprises a plurality of floating balls, and the floating balls are connected with the power generation assembly through a transmission assembly.
Furthermore, the transmission assembly comprises a rotating seat, the upper end of the rotating seat is connected with a rotating frame, one end of the rotating frame is connected with the floating ball, and the other end of the rotating frame is connected with a hydraulic cylinder; the power generation assembly comprises a hydraulic station, a hydraulic motor is arranged at the upper end of the hydraulic station, and a power generator (510) is arranged at the upper end of the hydraulic motor; the hydraulic cylinder is connected with the hydraulic station through an oil inlet pipe and an oil return pipe.
The invention has the beneficial effects that: the platform can float on the sea surface, and power is supplied through the wave energy power generation equipment, the wind energy power generation equipment and the solar power generation equipment carried by the platform, so that the platform can independently operate, can be used as a place integrating entertainment, leisure and science popularization education, and creates considerable economic benefits.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed in the embodiments will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art to obtain other drawings without creative efforts.
The invention is explained in further detail below with reference to the drawing.

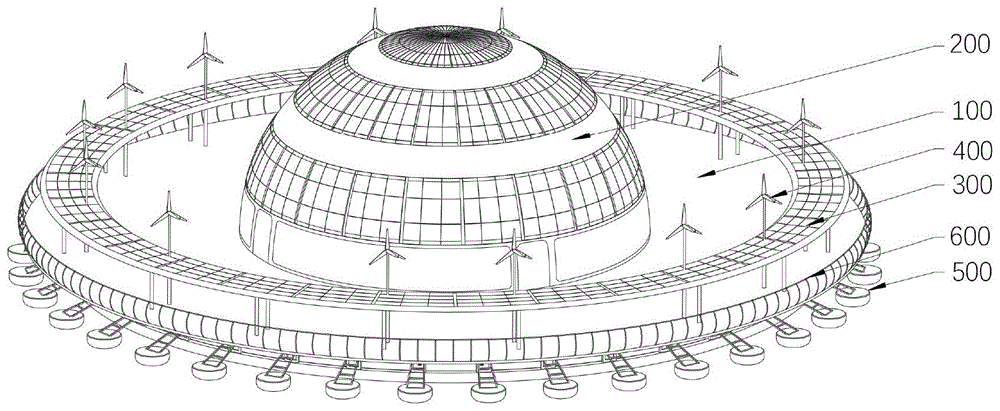

FIG. 1 is a schematic structural diagram of an ecological tourism platform combining wave energy power generation according to an embodiment of the present invention;
FIG. 2 is a schematic structural diagram of a mounting platform according to an embodiment of the present invention;
FIG. 3 is a schematic view illustrating a construction of a semi-spherical building body according to an embodiment of the present invention;
fig. 4 is a schematic structural diagram of a wave energy power generation system according to an embodiment of the invention.
In the figure:
100. carrying a platform; 110. a platform deck; 120. a wave energy equipment mounting table; 130. an equipment compartment;
200. a hemispherical building; 210. a second solar panel; 220. a partition glass window; 230. a floor glass window; 240. a door;
300. a solar sunshade; 400. a wind generating set;
500. a wave energy power generation system; 510. a generator; 520. a hydraulic motor; 530. a hydraulic station; 540. an oil inlet pipe; 550. an oil return pipe; 560. a hydraulic cylinder; 570. a rotating base; 580. a rotating frame; 590. a floating ball;
600. and (4) a guardrail.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. It should be apparent that the described embodiments are only some embodiments of the present invention, and not all embodiments. All other embodiments that can be derived by one of ordinary skill in the art from the embodiments given herein are intended to be within the scope of the present invention.
As shown in fig. 1, the ecological tourism platform combining wave energy power generation according to the embodiment of the invention comprises a carrying platform 100, wherein a hemispherical building body 200 is arranged in the middle of the upper end of the carrying platform 100, an annular solar sunshade 300 is arranged around the outer side of the hemispherical building body 200, a plurality of wind power generation units 400 are uniformly arranged at the upper end of the solar sunshade 300, a guardrail 600 is arranged at the edge of the upper end of the carrying platform 100, and a wave energy power generation system 500 is arranged at the end face of the outer side of the carrying platform 100.
In one embodiment of the present invention, as shown in fig. 2, the ride platform 100 includes an upper platform deck 110, a middle wave energy equipment mount 120, and a lower equipment bay 130. The upper end of the platform deck 110 can be used for bearing a building, such as a hemispherical building 200, has the functions of rain prevention, ultraviolet irradiation, noise, cold and hot wind and cold prevention, can provide functions of catering, accommodation, exhibition and the like for the travel platform, and a frame of the platform deck is formed by building and welding a steel structure or an aluminum alloy structure; the wave energy equipment mounting table 120 is used for mounting the wave energy power generation system 500; the equipment cabin 130 is used for placing power generation equipment and the like, and a circle of guardrail 600 is arranged around the edge of the platform deck 110 to surround the whole platform deck 110, so that the safety of users is guaranteed.
In an embodiment of the present invention, as shown in fig. 3, a second solar panel 210 and a partition glass window 220 are sequentially layered on an outer spherical surface of the hemispherical building 200, the second solar panel 210, the partition glass window 220, the second solar panel 210 are sequentially layered from top to bottom, the floor glass window 230 is disposed at the lowest end, and a plurality of doors 240 are disposed on the floor glass window 230, wherein the second solar panel 210 is disposed to convert solar energy into electric energy to supply power to the platform, the partition glass window 220 provides light to the hemispherical building 200 during the day, and facilities such as leisure, entertainment, science popularization education and the like can be arranged in the hemispherical building 200.
In one embodiment of the invention, a solar sunshade 300 is built on the outer ring of the platform deck 110 through a steel structure welding frame, a solar panel I is paved on the solar sunshade, on one hand, the solar sunshade and the photovoltaic power generation are carried out to supply power to the platform, on the other hand, a stand column is welded on the upper part of the steel structure and is used for installing a wind generating set 400, and the wind generating set 400 can be used for carrying out wind power generation to supply power to the platform; the hemispherical building 200 is spaced apart from the solar sunshade 300 so that there is an annular space for recreation, such as an open coffee seat, a sunbath, etc.
In one embodiment of the present invention, the wave energy power generation system 500 as shown in fig. 4 comprises a generator 510, a hydraulic motor 520, a hydraulic station 530, an oil inlet pipe 540, an oil return pipe 550, a hydraulic cylinder 560, a rotary base 570, a rotary frame 580, and a floating ball 590; the lower part of the rotary seat 570 is fixed on the wave energy equipment mounting table 120, the rotary frame 580 fluctuates up and down around the rotary shaft at the upper part of the rotary seat 570, and the floating ball 590 absorbs waves and fluctuates with the waves. The power generation process comprises the following steps: when the floating ball 590 rises, the rotating frame 580 drives the end of the hydraulic cylinder 560 to fall, the piston in the hydraulic cylinder 560 compresses, hydraulic oil is compressed into the chamber a of the hydraulic station 530 through the oil return pipe 550, the hydraulic station 530 continuously supplies the hydraulic oil to the hydraulic motor 520, the hydraulic motor 520 drives the generator 510 to generate electricity, when the floating ball 590 falls, the rotating frame 580 drives the end of the hydraulic cylinder 560 to rise due to the gravity effect, the piston in the hydraulic cylinder 560 rises, hydraulic oil in the chamber b of the hydraulic station 530 is supplied into the hydraulic cylinder 560 through the oil inlet pipe 540, and the system does not generate electricity.
The above description is only for the purpose of illustrating the preferred embodiments of the present invention and should not be taken as limiting the scope of the present invention, which is intended to cover any modifications, equivalents, improvements, etc. within the spirit and scope of the present invention.

Claims (6)

1.一种结合波浪能发电的生态旅游平台，其特征在于：包括搭载平台（100），所述搭载平台（100）上端中部设有一个半球形建筑体（200），所述半球形建筑体（200）外侧环绕有一环形的太阳能遮阳棚（300），所述太阳能遮阳棚（300）的上端均匀设有若干风力发电机组（400），所述搭载平台（100）上端边缘设有护栏（600），所述搭载平台（100）外侧端面设有波浪能发电系统（500）。1. An ecotourism platform combined with wave energy power generation, characterized in that it comprises a carrying platform (100), and a hemispherical building body (200) is arranged in the middle of the upper end of the carrying platform (100), and the hemispherical building body (200) A ring-shaped solar awning (300) is surrounded on the outside, the upper end of the solar awning (300) is evenly provided with a plurality of wind turbines (400), and the upper edge of the loading platform (100) is provided with a guardrail (600). ), and a wave energy power generation system (500) is provided on the outer end surface of the carrying platform (100). 2.根据权利要求1所述的一种结合波浪能发电的生态旅游平台，其特征在于：所述太阳能遮阳棚（300）固定连接于所述搭载平台（100）上端，所述太阳能遮阳棚（300）的棚顶面上铺设有太阳能板一。2. An ecotourism platform combined with wave energy power generation according to claim 1, characterized in that: the solar awning (300) is fixedly connected to the upper end of the carrying platform (100), and the solar awning (300) 300) a solar panel is laid on the roof surface. 3.根据权利要求1所述的一种结合波浪能发电的生态旅游平台，其特征在于：所述搭载平台（100）包括上端的平台甲板（110）、中部的波浪能设备安装台（120）和下端的设备舱（130）。3. An ecotourism platform combined with wave energy power generation according to claim 1, characterized in that: the carrying platform (100) comprises a platform deck (110) at the upper end and a wave energy equipment installation platform (120) in the middle and the lower end of the equipment compartment (130). 4.根据权利要求1所述的一种结合波浪能发电的生态旅游平台，其特征在于：所述半球形建筑体（200）的外球面上依次分层铺设有太阳能板二（210）和隔断玻璃窗（220），所述半球形建筑体（200）底部设有落地玻璃窗(230)，所示落地玻璃窗(230)上开设有多个门(240)。4. The ecotourism platform combined with wave energy power generation according to claim 1, characterized in that: the outer spherical surface of the hemispherical building body (200) is layered with two solar panels (210) and partitions in sequence. A glass window (220), a floor-to-ceiling glass window (230) is provided at the bottom of the hemispherical building body (200), and a plurality of doors (240) are opened on the floor-to-ceiling glass window (230). 5.根据权利要求1所述的一种结合波浪能发电的生态旅游平台，其特征在于：所述波浪能发电系统（500）包括若干浮球（590），所述浮球（590）通过传动组件连接发电组件。The ecotourism platform combined with wave energy power generation according to claim 1, characterized in that: the wave power generation system (500) comprises a plurality of floating balls (590), and the floating balls (590) are driven by The components are connected to the power generation components. 6.根据权利要求5所述的一种结合波浪能发电的生态旅游平台，其特征在于：所述传动组件包括旋转座（570），所述旋转座（570）上端连接旋转架（580），所述旋转架（580）一端连接所述浮球（590），所述旋转架（580）另一端连接液压缸（560）；所述发电组件包括液压站（530），所述液压站（530）上端设有液压马达（520），所述液压马达（520）上端设有发电机（510）；所述液压缸（560）通过进油管（540）和回油管（550）连接所述液压站（530）。6. The ecotourism platform combined with wave energy power generation according to claim 5, characterized in that: the transmission assembly comprises a rotating base (570), and the upper end of the rotating base (570) is connected to the rotating frame (580), One end of the rotating frame (580) is connected to the floating ball (590), and the other end of the rotating frame (580) is connected to a hydraulic cylinder (560); the power generation assembly includes a hydraulic station (530), and the hydraulic station (530) ) is provided with a hydraulic motor (520) at the upper end, and a generator (510) is arranged at the upper end of the hydraulic motor (520); the hydraulic cylinder (560) is connected to the hydraulic station through an oil inlet pipe (540) and an oil return pipe (550). (530).
