Abstract
The invention discloses a cleaning device and a cleaning method for mechanical parts, and relates to the technical field of machining. The automatic cleaning device comprises an external assembly, wherein a lifting mechanism is arranged inside the external assembly, the lifting mechanism is driven by two driving assemblies, the inside of the lifting mechanism is connected with a sliding assembly in a sliding manner, the bottom of the outer side of the external assembly is provided with a brake assembly, one side inside the external assembly is provided with a first stirring assembly, the other side inside the external assembly is provided with a second stirring assembly, the external assembly comprises a cleaning box, the lower surface of the cleaning box is provided with rollers, two side surfaces of the cleaning box are respectively and fixedly provided with a first motor base, a first driving motor is fixedly arranged on the first motor base, and two rectangular sliding grooves are respectively formed in one opposite inner wall of the cleaning box. The invention can not only make the mechanical parts in the cleaning frame do up-and-down reciprocating motion, but also make the mechanical parts in the cleaning frame slide left and right, thereby greatly improving the cleaning effect.
Description
Technical Field
The invention belongs to the technical field of machining, and particularly relates to a cleaning device and a cleaning method for mechanical parts.
Background
In the field of machinery, mechanical parts need to be cleaned to remove impurities and dust on the mechanical parts so as to avoid causing large assembly errors. However, the cleaning device for mechanical parts on the market cannot fully clean the mechanical parts, has poor cleaning effect, cannot promote the full flow of water, so that the water cannot fully contact with the mechanical parts, and has low cleaning efficiency and inconvenient use; the mechanical accessory cleaning device in the mechanical field is difficult to enable mechanical accessories inside a cleaning frame to do vertical reciprocating motion and slide left and right at the same time, so that the cleaning effect is poor, and the cleaning water is difficult to stir in the horizontal direction and the vertical direction at the same time, so that the cleaning efficiency is low.
Disclosure of Invention
The invention aims to provide a mechanical accessory cleaning device and a cleaning method thereof, which solve the problem of poor cleaning effect of the existing mechanical accessory cleaning device in the mechanical field by combining a lifting mechanism, a driving assembly and a sliding assembly.
In order to solve the technical problems, the invention is realized by the following technical scheme: the invention relates to a cleaning device for mechanical accessories, which comprises an external component, wherein a lifting mechanism is arranged inside the external component in a lifting manner, the lifting mechanism is driven by two driving components, a sliding component is connected inside the lifting mechanism in a sliding manner, a brake component is arranged at the bottom of the outer side of the external component, a first stirring component is arranged on one side inside the external component, and a second stirring component is arranged on the other side inside the external component;
the external component comprises a cleaning box, rollers are arranged on the lower surface of the cleaning box, a first motor base is fixedly mounted on each of two side surfaces of the cleaning box, a first driving motor is fixedly mounted on each first motor base, and two rectangular sliding grooves are formed in one opposite inner wall of the cleaning box respectively;
the lifting mechanism comprises a lifting assembly, a connecting assembly is fixedly mounted on each of two sides of the lifting assembly, the lifting assembly comprises a lifting frame, a strip-shaped plate is fixedly mounted on one opposite inner wall of the lifting frame, a threaded screw rod is rotatably connected onto the other opposite inner wall of the lifting frame, a toothed ring is fixedly sleeved at one end of the threaded screw rod, two rectangular sliding blocks are mounted on two side surfaces of the lifting frame respectively, and the rectangular sliding blocks are located inside rectangular sliding grooves; the connecting assembly comprises two vertical plates, the two vertical plates are fixedly arranged on the outer surface of the cleaning box, a sliding plate is connected between the two vertical plates in a sliding manner, a kidney-shaped groove is formed in the sliding plate, a U-shaped connecting plate is fixedly arranged above the sliding plate, and one end, far away from the sliding plate, of the U-shaped connecting plate is fixedly arranged on the lifting frame; an L-shaped plate is fixedly arranged on the U-shaped connecting plate, a second driving motor is fixedly arranged in the L-shaped plate, a gear is fixedly arranged at the output end of the second driving motor, and the gear and the toothed ring are driven by a chain;
the driving assembly comprises a second motor base, the second motor base is fixedly arranged on the outer surface of the cleaning box, a third driving motor is fixedly arranged above the second motor base, a rotary disc is fixedly arranged at the output end of the third driving motor, an eccentric column is fixedly arranged on one surface of the rotary disc, and the eccentric column is inserted into the kidney-shaped groove;
the sliding assembly comprises a sliding frame, the sliding frame is connected to the outer side of the threaded screw rod in a sliding mode, a threaded groove matched with the threaded screw rod is formed in the sliding frame, two placing grooves are formed in the sliding frame, two strip-shaped grooves matched with the strip-shaped plates are formed in the two side faces of the sliding frame, and the cleaning frame is placed in the placing grooves.
Preferably, the number of the rollers is four, and the four rollers are arranged in a rectangular shape.
Preferably, a shock pad is fixedly installed between the first motor base and the first driving motor, and the shock pad is a rubber component.
Preferably, each guide post is fixedly mounted inside the rectangular sliding groove, a guide groove is formed inside the rectangular sliding block, and the guide post penetrates through the guide groove.
Preferably, a notch is formed in the upper portion of the sliding frame, handles are fixedly mounted on two sides of the cleaning frame, and the handles are located inside the notch.
Preferably, the brake subassembly includes that one removes the frame, it cup joints in the outside of wasing the case to remove the frame slip, the lower fixed surface who removes the frame installs four brake posts, the bottom fixed mounting of brake post has a friction plate, the top fixed mounting who removes the frame has two electric telescopic handle, electric telescopic handle's top fixed mounting has the curb plate, curb plate fixed mounting is on the surface of wasing the case.
Preferably, first stirring subassembly includes a diaphragm, diaphragm fixed mounting is on the inner wall of wasing the case, it is connected with a first pivot to rotate between the interior bottom surface of diaphragm and washing case, an annular channel has been seted up at the middle part of first pivot, fixed mounting has a first bevel gear on the annular channel, week side fixed mounting of diaphragm has first stirring board, first stirring subassembly still includes a connecting axle, the connecting axle passes through a driving motor drive, the one end fixed mounting of connecting axle has a second bevel gear, second bevel gear and first bevel gear meshing connection.
Preferably, the second stirring assembly comprises a second rotating shaft, the second rotating shaft is driven by another first driving motor, and a second stirring plate is fixedly mounted on the peripheral side surface of the second rotating shaft.
Preferably, the cleaning method of the mechanical accessory cleaning device is characterized by comprising the following steps:
SS 001: when the mechanical accessories need to be cleaned, firstly, a worker places the mechanical accessories inside the cleaning frame, then places the cleaning frame inside the placing groove on the sliding frame, simultaneously places the handle on the notch, and then injects a proper amount of cleaning water into the cleaning box;
SS 002: then starting a control switch of a third driving motor, wherein the third driving motor drives the rotary table and the eccentric column to rotate, the rotation of the eccentric column can enable the sliding plate to do up-and-down reciprocating motion, and the sliding plate can drive the lifting assembly to integrally do up-and-down reciprocating motion through the U-shaped connecting plate, so that mechanical accessories inside the cleaning frame do up-and-down reciprocating motion;
and (4) SS 003: in addition, by starting a control switch of a second driving motor, the second driving motor can drive the threaded screw rod to rotate through the gear, the gear ring and the chain, so that the sliding assembly integrally slides left and right, and mechanical accessories inside the cleaning frame slide left and right;
SS 004: the connecting shaft can be driven to rotate by starting a first driving motor, and the connecting shaft can drive the first rotating shaft to rotate due to the meshing connection of the second bevel gear and the first bevel gear, so that the first stirring plate can stir the cleaning water at the bottom of the cleaning box in the horizontal direction;
SS 005: the second rotating shaft can be driven to rotate by starting another first driving motor, so that the second stirring plate on the circumferential side surface of the second rotating shaft can stir the cleaning water at the bottom of the cleaning box in the vertical direction.
The invention has the following beneficial effects:
1. according to the invention, by starting the control switch of the third driving motor, the third driving motor can drive the rotary table and the eccentric column to rotate, the rotation of the eccentric column can enable the sliding plate to reciprocate up and down, the sliding plate can reciprocate up and down and can drive the lifting assembly to integrally reciprocate up and down through the U-shaped connecting plate, so that mechanical accessories inside the cleaning frame can reciprocate up and down, and in addition, by starting the control switch of the second driving motor, the second driving motor can drive the threaded screw rod to rotate through the gear, the toothed ring and the chain, so that the sliding assembly can integrally slide left and right, and the mechanical accessories inside the cleaning frame can slide left and right.
2. According to the invention, through the combined use of the first stirring assembly and the second stirring assembly, the washing water at the bottom of the washing box can be stirred in the horizontal direction, and the washing water at the bottom of the washing box can be stirred in the vertical direction, so that the washing water in the washing box is in a flowing state, and the washing effect is greatly improved.
Of course, it is not necessary for any product in which the invention is practiced to achieve all of the above-described advantages at the same time.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to the drawings without creative efforts.
FIG. 1 is a schematic view showing a structure of a cleaning apparatus for machine parts.
Fig. 2 is a cross-sectional view of the present invention.
Fig. 3 is an exploded view of the present invention.
Fig. 4 is a schematic structural diagram of an external component according to the present invention.
Fig. 5 is a schematic structural view of the lifting mechanism of the present invention.
Fig. 6 is a schematic structural view of the lifting assembly of the present invention.
Fig. 7 is a schematic structural view of the connecting assembly of the present invention.
Fig. 8 is a schematic structural diagram of the driving assembly of the present invention.
Fig. 9 is a schematic structural view of the sliding assembly of the present invention.
FIG. 10 is a schematic structural diagram of a cleaning frame according to the present invention.

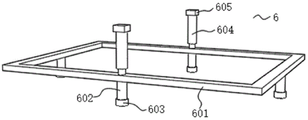

FIG. 11 is a schematic structural view of the brake assembly of the present invention.
FIG. 12 is a schematic view of a first stirring assembly according to the present invention.
FIG. 13 is a schematic structural view of a second stirring assembly according to the present invention.
In the drawings, the components represented by the respective reference numerals are listed below:
1. an external component; 101. a cleaning tank; 102. a roller; 103. a first motor mount; 104. a first drive motor; 105. a rectangular chute; 106. a guide post; 2. a lifting mechanism; 21. a lifting assembly; 211. a lifting frame; 212. a strip-shaped plate; 213. a threaded lead screw; 214. a toothed ring; 215. a rectangular slider; 216. a guide groove; 22. a connecting assembly; 221. a vertical plate; 222. a slide plate; 223. a kidney-shaped groove; 224. a U-shaped connecting plate; 23. an "L" shaped plate; 24. a second drive motor; 25. a gear; 26. a chain; 3. a drive assembly; 301. a second motor mount; 302. a third drive motor; 303. a turntable; 304. an eccentric column; 4. a sliding assembly; 401. a sliding frame; 402. a thread groove; 403. a placement groove; 404. a strip-shaped groove; 405. a notch; 5. cleaning the frame; 501. a handle; 6. a brake assembly; 601. moving the frame; 602. a brake post; 603. a friction plate; 604. an electric telescopic rod; 605. a side plate; 7. a first stirring assembly; 701. a transverse plate; 702. a first rotating shaft; 703. an annular groove; 704. a first bevel gear; 705. a first stirring plate; 706. a connecting shaft; 707. a second bevel gear; 8. a second stirring assembly; 801. a second rotating shaft; 802. a second stirring plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-13, the present invention is a mechanical fitting cleaning apparatus, including an external component 1, the internal of the external component 1 is lifted and lowered to form a lifting mechanism 2, the lifting mechanism 2 is driven by two driving components 3, the internal of the lifting mechanism 2 is slidably connected to a sliding component 4, the bottom of the external side of the external component 1 is provided with a brake component 6, one side of the internal of the external component 1 is provided with a first stirring component 7, and the other side of the internal of the external component 1 is provided with a second stirring component 8;
the external component 1 comprises a cleaning box 101, wherein rollers 102 are arranged on the lower surface of the cleaning box 101, a first motor base 103 is fixedly arranged on each of two side surfaces of the cleaning box 101, a first driving motor 104 is fixedly arranged on each first motor base 103, and two rectangular sliding grooves 105 are respectively formed in one opposite inner wall of the cleaning box 101;
the lifting mechanism 2 comprises a lifting component 21, a connecting component 22 is fixedly arranged on both sides of the lifting component 21, the lifting component 21 comprises a lifting frame 211, a strip-shaped plate 212 is fixedly arranged on one opposite inner wall of the lifting frame 211, a threaded screw rod 213 is rotatably connected on the other opposite inner wall of the lifting frame 211, a toothed ring 214 is fixedly sleeved on one end of the threaded screw rod 213, two rectangular sliding blocks 215 are respectively arranged on both side surfaces of the lifting frame 211, and the rectangular sliding blocks 215 are positioned inside the rectangular sliding grooves 105; the connecting assembly 22 comprises two vertical plates 221, the two vertical plates 221 are both fixedly installed on the outer surface of the cleaning tank 101, a sliding plate 222 is connected between the two vertical plates 221 in a sliding manner, a kidney-shaped groove 223 is formed in the sliding plate 222, a U-shaped connecting plate 224 is fixedly installed above the sliding plate 222, and one end, far away from the sliding plate 222, of the U-shaped connecting plate 224 is fixedly installed on the lifting frame 211; an L-shaped plate 23 is fixedly arranged on a U-shaped connecting plate 224, a second driving motor 24 is fixedly arranged inside the L-shaped plate 23, a gear 25 is fixedly arranged at the output end of the second driving motor 24, and the gear 25 and the toothed ring 214 are driven by a chain 26;
the driving assembly 3 comprises a second motor base 301, the second motor base 301 is fixedly installed on the outer surface of the cleaning box 101, a third driving motor 302 is fixedly installed above the second motor base 301, the output end of the third driving motor 302 is fixedly installed with a rotary disc 303, one surface of the rotary disc 303 is fixedly installed with an eccentric column 304, and the eccentric column 304 is inserted into the kidney-shaped groove 223;
the sliding assembly 4 comprises a sliding frame 401, the sliding frame 401 is slidably connected to the outer side of the threaded screw rod 213, a threaded groove 402 matched with the threaded screw rod 213 is formed in the sliding frame 401, two placing grooves 403 are formed in the sliding frame 401, two strip-shaped grooves 404 matched with the strip-shaped plates 212 are formed in two side faces of the sliding frame 401, and the cleaning frame 5 is placed in the placing grooves 403.
Further, as shown in fig. 4, the number of the rollers 102 is four, the four rollers 102 are arranged in a rectangular shape, the arrangement of the rollers 102 can improve the flexibility of the present invention, so that the present invention is convenient to move, and a shock pad is fixedly installed between the first motor base 103 and the first driving motor 104, and the shock pad is a rubber member.
Further, a guide column 106 is fixedly mounted inside each rectangular sliding groove 105, a guide groove 216 is formed inside each rectangular sliding block 215, the guide column 106 penetrates through the guide groove 216, a notch 405 is formed above the sliding frame 401, a handle 501 is fixedly mounted on two sides of the cleaning frame 5, and the handle 501 is located inside the notch 405.
Further, as shown in fig. 11, the brake assembly 6 includes a moving frame 601, the moving frame 601 is slidably sleeved outside the cleaning tank 101, four braking columns 602 are fixedly mounted on a lower surface of the moving frame 601, a friction plate 603 is fixedly mounted at a bottom end of the braking columns 602, two electric telescopic rods 604 are fixedly mounted above the moving frame 601, a side plate 605 is fixedly mounted at a top end of the electric telescopic rods 604, the side plate 605 is fixedly mounted on an outer surface of the cleaning tank 101, and the brake assembly 6 is arranged to fix the present invention and prevent the present invention from sliding.
Further, as shown in fig. 12, the first stirring assembly 7 includes a horizontal plate 701, the horizontal plate 701 is fixedly installed on the inner wall of the cleaning tank 101, a first rotating shaft 702 is rotatably connected between the horizontal plate 701 and the inner bottom surface of the cleaning tank 101, an annular groove 703 is formed in the middle of the first rotating shaft 702, a first bevel gear 704 is fixedly installed on the annular groove 703, a first stirring plate 705 is fixedly installed on the peripheral side surface of the horizontal plate 701, the first stirring assembly 7 further includes a connecting shaft 706, the connecting shaft 706 is driven by a first driving motor 104, a second bevel gear 707 is fixedly installed at one end of the connecting shaft 706, the second bevel gear 707 is in meshing connection with the first bevel gear 704, and the first stirring assembly 7 is configured to stir the cleaning water at the bottom of the cleaning tank in the horizontal direction.
Further, as shown in fig. 13, the second stirring assembly 8 includes a second rotating shaft 801, the second rotating shaft 801 is driven by another first driving motor 104, a second stirring plate 802 is fixedly mounted on the peripheral side surface of the second rotating shaft 801, and the second stirring assembly 8 is arranged to stir the washing water at the bottom of the washing tank in the vertical direction, so that the washing water inside the washing tank is in a flowing state, and the washing effect is greatly improved.
Further, a cleaning method of the machine accessory cleaning device comprises the following steps: when the mechanical parts need to be cleaned, firstly, a worker places the mechanical parts in the cleaning frame 5, then places the cleaning frame 5 in the placing groove 403 on the sliding frame 401, places the handle 501 on the notch 405, and then injects a proper amount of cleaning water into the cleaning box 101;
then, a control switch of the third driving motor 302 is started, the third driving motor 302 drives the turntable 303 and the eccentric column 304 to rotate, the rotation of the eccentric column 304 can enable the sliding plate 222 to reciprocate up and down, and the sliding plate 222 can drive the lifting assembly 21 to integrally reciprocate up and down through the U-shaped connecting plate 224 to enable mechanical accessories inside the cleaning frame 5 to reciprocate up and down;
in addition, by starting the control switch of the second driving motor 24, the second driving motor 24 can drive the threaded screw rod 213 to rotate through the gear 25, the toothed ring 214 and the chain 26, so that the whole sliding assembly 4 can slide left and right, and the mechanical accessories inside the cleaning frame 5 can slide left and right;
the connecting shaft 706 can be driven to rotate by starting a first driving motor 104, and the connecting shaft 706 can drive the first rotating shaft 702 to rotate due to the meshing connection of the second bevel gear 707 and the first bevel gear 704, so that the first stirring plate 705 can stir the cleaning water at the bottom of the cleaning box 101 in the horizontal direction;
the second rotating shaft 801 can be driven to rotate by starting another first driving motor 104, so that the second stirring plate 802 on the circumferential side surface of the second rotating shaft 801 can stir the washing water at the bottom of the washing tank 101 in the vertical direction.
The preferred embodiments of the invention disclosed above are intended to be illustrative only. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and the practical application, to thereby enable others skilled in the art to best utilize the invention. The invention is limited only by the claims and their full scope and equivalents.
Claims (9)
1. A machine part cleaning device, comprising an outer assembly (1), characterized in that: the lifting mechanism (2) is arranged in the external component (1) in a lifting mode, the lifting mechanism (2) is driven by two driving components (3), a sliding component (4) is connected to the inside of the lifting mechanism (2) in a sliding mode, a brake component (6) is arranged at the bottom of the outer side of the external component (1), a first stirring component (7) is arranged on one side of the inside of the external component (1), and a second stirring component (8) is arranged on the other side of the inside of the external component (1);
the external component (1) comprises a cleaning box (101), rollers (102) are arranged on the lower surface of the cleaning box (101), a first motor base (103) is fixedly mounted on each of two side surfaces of the cleaning box (101), a first driving motor (104) is fixedly mounted on each first motor base (103), and two rectangular sliding grooves (105) are respectively formed in one opposite inner wall of the cleaning box (101);
the lifting mechanism (2) comprises a lifting component (21), a connecting component (22) is fixedly mounted on each of two sides of the lifting component (21), the lifting component (21) comprises a lifting frame (211), a strip-shaped plate (212) is fixedly mounted on one opposite inner wall of the lifting frame (211), a threaded lead screw (213) is rotatably connected onto the other opposite inner wall of the lifting frame (211), a toothed ring (214) is fixedly connected to one end of the threaded lead screw (213), two rectangular sliding blocks (215) are respectively mounted on two side surfaces of the lifting frame (211), and the rectangular sliding blocks (215) are located inside the rectangular sliding grooves (105); the connecting assembly (22) comprises two vertical plates (221), the two vertical plates (221) are fixedly mounted on the outer surface of the cleaning box (101), a sliding plate (222) is connected between the two vertical plates (221) in a sliding mode, a kidney-shaped groove (223) is formed in the sliding plate (222), a U-shaped connecting plate (224) is fixedly mounted above the sliding plate (222), and one end, far away from the sliding plate (222), of the U-shaped connecting plate (224) is fixedly mounted on the lifting frame (211); an L-shaped plate (23) is fixedly installed on the U-shaped connecting plate (224), a second driving motor (24) is fixedly installed inside the L-shaped plate (23), a gear (25) is fixedly installed at the output end of the second driving motor (24), and the gear (25) and the toothed ring (214) are driven through a chain (26);
the driving assembly (3) comprises a second motor base (301), the second motor base (301) is fixedly installed on the outer surface of the cleaning box (101), a third driving motor (302) is fixedly installed above the second motor base (301), the output end of the third driving motor (302) is fixedly installed with a rotary disc (303), one surface of the rotary disc (303) is fixedly installed with an eccentric column (304), and the eccentric column (304) is inserted into the kidney-shaped groove (223);
the sliding assembly (4) comprises a sliding frame (401), the sliding frame (401) is connected to the outer side of the threaded screw rod (213) in a sliding mode, a threaded groove (402) matched with the threaded screw rod (213) is formed in the sliding frame (401), two placing grooves (403) are formed in the sliding frame (401), two strip-shaped grooves (404) matched with the strip-shaped plates (212) are formed in the two side faces of the sliding frame (401), and the cleaning frame (5) is placed in the placing grooves (403).
2. The machine-part cleaning device according to claim 1, wherein the number of the rollers (102) is four, and four rollers (102) are arranged in a rectangular shape.
3. The machine-accessory cleaning device according to claim 1, wherein a shock pad is fixedly mounted between the first motor base (103) and the first driving motor (104), and the shock pad is a rubber member.
4. The mechanical accessory cleaning device according to claim 1, wherein a guide post (106) is fixedly installed inside each rectangular sliding groove (105), a guide groove (216) is formed inside each rectangular sliding block (215), and the guide post (106) penetrates through the guide groove (216).
5. The mechanical accessory cleaning device according to claim 1, wherein a notch (405) is formed above the sliding frame (401), handles (501) are fixedly mounted on two sides of the cleaning frame (5), and the handles (501) are located inside the notch (405).
6. The machine accessory cleaning device according to claim 1, wherein the brake assembly (6) comprises a moving frame (601), the moving frame (601) is slidably sleeved outside the cleaning box (101), four brake columns (602) are fixedly mounted on the lower surface of the moving frame (601), a friction plate (603) is fixedly mounted at the bottom end of each brake column (602), two electric telescopic rods (604) are fixedly mounted above the moving frame (601), side plates (605) are fixedly mounted at the top ends of the electric telescopic rods (604), and the side plates (605) are fixedly mounted on the outer surface of the cleaning box (101).
7. The machine-part washing arrangement according to claim 1, wherein the first stirring element (7) comprises a transverse plate (701), the transverse plate (701) is fixedly arranged on the inner wall of the cleaning box (101), a first rotating shaft (702) is rotatably connected between the transverse plate (701) and the inner bottom surface of the cleaning box (101), an annular groove (703) is formed in the middle of the first rotating shaft (702), a first bevel gear (704) is fixedly mounted on the annular groove (703), a first stirring plate (705) is fixedly arranged on the peripheral side surface of the transverse plate (701), the first stirring component (7) also comprises a connecting shaft (706), the connecting shaft (706) is driven by a first driving motor (104), one end of the connecting shaft (706) is fixedly provided with a second bevel gear (707), the second bevel gear (707) is in meshed connection with the first bevel gear (704).
8. The machine accessory cleaning device according to claim 1, wherein the second stirring assembly (8) comprises a second rotating shaft (801), the second rotating shaft (801) is driven by another first driving motor (104), and a second stirring plate (802) is fixedly mounted on the peripheral side of the second rotating shaft (801).
9. A cleaning method of a machine parts cleaning device is characterized by comprising the following steps:
SS 001: when mechanical accessories need to be cleaned, firstly, a worker places the mechanical accessories inside a cleaning frame (5), then places the cleaning frame (5) inside a placing groove (403) on a sliding frame (401), places a handle (501) on a notch (405), and then injects a proper amount of cleaning water into the cleaning box (101);
SS 002: then a control switch of a third driving motor (302) is started, the third driving motor (302) drives the turntable (303) and the eccentric column (304) to rotate, the rotation of the eccentric column (304) enables the sliding plate (222) to do up-and-down reciprocating motion, and the sliding plate (222) can do up-and-down reciprocating motion and can drive the lifting assembly (21) to do up-and-down reciprocating motion through the U-shaped connecting plate (224), so that mechanical accessories inside the cleaning frame (5) do up-and-down reciprocating motion;
and (4) SS 003: in addition, by starting a control switch of the second driving motor (24), the second driving motor (24) can drive the threaded screw rod (213) to rotate through the gear (25), the toothed ring (214) and the chain (26), so that the sliding assembly (4) integrally slides left and right, and mechanical accessories inside the cleaning frame (5) slide left and right;
SS 004: the connecting shaft (706) can be driven to rotate by starting a first driving motor (104), and the connecting shaft (706) can drive the first rotating shaft (702) to rotate due to the meshing connection of the second bevel gear (707) and the first bevel gear (704), so that the first stirring plate (705) can stir the cleaning water at the bottom of the cleaning box (101) in the horizontal direction;
SS 005: the second rotating shaft (801) can be driven to rotate by starting the other first driving motor (104), so that the second stirring plate (802) on the peripheral side surface of the second rotating shaft (801) can stir the washing water at the bottom of the washing box (101) in the vertical direction.
