CN115078996A - A multi-group comparative micro-motor load driving winding temperature experimental detection device - Google Patents

Abstract

The invention discloses a multi-group comparison type micro-motor load driving winding temperature experimental detection device, which includes an operation table, a connection table, a sliding cylinder, a driving adjustment device, a load fixing device and a matching frame, and a connection slot is opened above the operation table. , and a controller is fixed on one side of the operating table, a mounting groove is opened above the connecting table, a connecting rod group is fixed on one side and the top of the sliding cylinder, and the sliding cylinder penetrates the sliding rod and is relatively movably connected with the installation groove, and at the same time sliding The cylinder is fixedly connected to the other end of the synchronizing cylinder through the connecting rod group. This multi-group comparative micro-motor load driving winding temperature experimental detection device is provided with a connecting slot, and the matching frame can be connected through the connecting slot to limit the effect of the connection. Therefore, when the supporting frame is placed directly above the operating table, it is easy to transmit the vibration force to the supporting frame when the operating table is under force. .

Description

A multi-group comparative micro-motor load driving winding temperature experimental detection device

technical field

The invention relates to the technical field of micromotors, in particular to a multi-group comparison type micromotor load driving winding temperature experimental detection device.

Background technique

A micro motor is a device that converts electrical energy into mechanical energy. It uses an energized coil (that is, a stator winding) to generate a rotating magnetic field and acts on the rotor (such as a squirrel-cage closed aluminum frame) to form a magneto-electric rotational torque. It consists of a stator and a rotor. The direction of the energized wire in the magnetic field is related to the direction of the current and the direction of the magnetic field line (magnetic field direction). All kinds of energy loss (copper loss, iron loss, additional loss, etc.) are all converted into heat, causing the temperature of the micromotor winding, iron core and bearing to rise, making the micromotor rotate. When the micromotor is overloaded or poorly cooled In the state, the temperature will soon exceed the rated value. At this time, even if it will not burn out immediately, the life of the micromotor will be shortened due to accelerated aging of the insulation, and the existing maintenance and operation personnel are most likely to ignore the detection of the motor winding temperature. , it is customary to touch the temperature of the motor casing with your hand. As long as the hand sticks to it, it can be considered that the micromotor is within the allowable temperature range; The temperature of the micromotor is very high, and this test method is imprecise and inaccurate.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a multi-group comparison type micro-motor load driving winding temperature experimental detection device for the shortcomings of the prior art, so as to solve the problem that the existing maintenance and operation personnel are most likely to ignore the above-mentioned background technology. For the detection of the motor winding temperature, it is customary to touch the temperature of the motor casing with your hand. As long as the hand is attached to it, it can be considered that the micro motor is within the allowable temperature range; Sound, it can be considered that the temperature of the micro motor is very high, this test method is not rigorous and inaccurate.

In order to achieve the above purpose, the present invention provides the following technical solutions: a multi-group comparison type micromotor load driving winding temperature experimental detection device, including an operating table, a connecting table, a sliding cylinder, a driving adjustment device, a load fixing device and a matching frame, so A connecting slot is opened above the operating table, and a controller is fixed on one side of the operating table, a mounting groove is opened above the connecting table, and the connecting table is fixedly connected with one end of the synchronizing cylinder through the mounting groove, and the connecting table is installed above the operating table. , a connecting rod group is fixed on one side and the top of the sliding cylinder, and the sliding cylinder penetrates the sliding rod and is relatively movably connected with the installation groove, and at the same time, the sliding cylinder is fixedly connected with the other end of the synchronizing cylinder through the connecting rod group;

By adopting the above technical solution, a connecting groove is provided, through which the matching frame can be connected and limited, so as to avoid that when the matching frame is directly placed above the operating table, the operating table is easily vibrated during the movement of the force. The force is transmitted to the supporting frame. When the supporting frame is subjected to force, it is easy to cause the thermometer and the micromotor to be in relative motion. When the thermometer and the micromotor are in relative motion, the temperature of the thermometer cannot accurately measure the surface temperature of the micromotor. Temperature detection, so it is impossible to obtain accurate winding temperature times during the loading process of the micro motor;

A touch connector is inlaid and fixed on the inner side of the supporting frame, a measuring bridge is fixed above the supporting frame, and a thermometer is inlaid and installed above the supporting frame, and the supporting frame is wrapped around the connection table and installed above the operating table;

By adopting the above technical solution, a touch connection head is provided, and the touch connection head not only has the effect of inlaid and fixed connection, but also has the effect of electrical connection with the measurement bridge by touching the connection head. At the same time, the touch connection The head and the positive and negative electrodes of the micro motor also have the same effect of through electrical connection. Touch the installation distance of the connector in turn and the connection direction of the positive and negative electrodes after the micro motor is fixed in a horizontal straight line, so as to avoid the connection deviation of the above two installation positions. In some cases, the positive and negative electrodes cannot be docked with the touch connector during the stressing process of the micromotor, resulting in the inability of the measuring bridge to accurately measure the winding temperature of the micromotor;

The drive adjusting device is installed above the connecting rod group;

The load fixing device is matched and connected with the drive adjusting device.

Preferably, the drive adjustment device includes a groove frame, a connecting plate, a through frame, a through-hole connecting block, a threaded concave block, a double-hole connecting piece, a micro motor and a driving motor, and one end of the groove frame is fixedly connected to the connecting plate , and the groove frame and the through frame are movably connected through, the micro motor is installed above the threaded concave block through the double-hole connecting piece and the connecting bolt, the threaded concave block is fixedly connected with the upper part of the through frame, and the through-hole connecting block passes through The drive motor penetrates through the through-hole mounting post and is movably connected to the through frame in relative rotation, and the connecting plate is fixedly connected to the sliding cylinder through another connecting rod group.

By adopting the above technical solution, a double-hole connecting piece is provided, and the double-hole connecting piece is used to achieve the effect of being driven by force, and the double-hole connecting piece has the effect of wrapping and connecting the upper part of the micro motor. The connecting piece has the effect of penetrating the thread limit, and the double-hole connecting piece is passed through in turn to avoid the load shaking or shaking when the micro motor is installed on the inside of the threaded concave block due to the force-driven process of the micro motor. The above situation without the movement limit will easily lead to the relative position deviation and drop of the micro motor and the thermometer. When the micro motor has the above situation, it not only affects the normal detection of the micro motor, but also easily damages the micro motor.

Preferably, the load fixing device includes a concave frame, a handwheel threaded rod, a connecting bearing, a concave block, abutting block and a sleeve, the two sides of the concave frame are fixed with threaded grooves, and the rear side of the concave frame is connected to the sleeve. Fixed connection, the inner side of the concave block is matched with the outer ring of the connecting bearing, and one side of the concave block is fixedly connected with the abutting block, one end of the threaded rod of the handwheel is fixedly connected with the connecting bearing through the threaded groove, and the concave frame passes through the sleeve. It is matched with the output end of the micro motor.

By adopting the above technical scheme, a connecting bearing is provided, and the connecting bearing not only has the effect of supporting and fixing the inner and outer rings, but also has the effect of being driven by force and relatively rotating by force through the connecting bearing. At the same time, the connecting bearing adopts a plastic bearing. Installation is performed to avoid the situation that the use of ceramic or metal bearings to install and connect the concave frame will not only increase the gravity of the overall concave frame, but also cause the concave frame to be connected to the micro motor, which will easily lead to the situation that the micro motor cannot be driven by force. It is not possible to measure the temperature of the windings of micromotors when modern times are driven by force.

Preferably, the synchronizing cylinder, the sliding cylinder, the connecting rod group and the sliding rod constitute a driving sliding mechanism, and the driving sliding distance of the driving sliding mechanism is 0-5 cm.

By adopting the above technical solution, a synchronizing cylinder is provided, and the synchronizing cylinder not only achieves the effect of fixed connection at both ends, but also achieves the effect of synchronizing force driving on the connecting rod through the synchronizing cylinder, at the same time avoiding the use of step-by-step cylinders or other cylinders for After installation, the driving time difference is prone to occur. When the movement time difference of other cylinders occurs, the micromotor and the touch connector are connected and detected, resulting in different temperature parameters of the same micromotor winding under the same load condition.

Preferably, the connecting shape of the sliding cylinder and the connecting rod group is a three-dimensional coordinate shape.

By adopting the above technical solution, a connecting rod group is provided, and the connecting rod group also has the effect of fixed connection at both ends, and the connecting rod group also has the effect of being driven by force and relatively moving by force. The connecting plate has the effect of being supported and connected by force, and the connecting rod groups are connected in a way of one long and two short in turn. Effect.

Preferably, the groove frame, the connecting plate, the through frame, the through-hole connecting block and the drive motor constitute a rotating lifting mechanism, and the rotating lifting distance of the rotating lifting mechanism ranges from 0 cm to 10 cm.

By adopting the above technical solution, a through-hole connecting block is provided, and the through-hole connecting block not only has the effect of penetrating and fixed connection, but also has the effect of being driven by force and relatively rotating by force through the through-hole connecting block. The overall shape of the block is a rounded triangle, and the overall shape of the above-mentioned structural members is rounded triangle in order to facilitate the above-mentioned structural members to change the rotating motion received by the frame to an up and down movement to adjust the relative movement distance between the micromotor and the thermometer.

Preferably, the vertical length of the threaded concave blocks ranges from 4 to 6 cm.

By adopting the above technical solution, a threaded concave block is provided, and the threaded concave block also has the effect of opening the connection, and the threaded concave block also has the effect of fixing the connection, and at the same time, the threaded concave block also has the effect of being driven and forced by force. The relative motion effect, the micro motor plays the installation and connection limit effect through the threaded concave block in turn, and the distance between the lateral diameter of the threaded concave block is smaller than the lateral diameter of the micro motor by 2cm, so as to avoid the distance between the lateral diameter of the thread concave block and the lateral diameter of the micro motor. When it is too large, the micromotor cannot normally drive the load to rotate during the force process.

Preferably, the connection shape of the concave frame and the sleeve is a "T" shape.

By adopting the above technical solution, a sleeve is provided, one end of the sleeve also has a fixed connection effect, and the other side of the sleeve has a force-penetrating supporting connection effect. Carry out through matching connection, in turn, avoid the situation that there is not only a corresponding connection gap but also a limited through matching connection through auxiliary fillers after the above two are connected in other ways. During the stressing process, there is a situation of forced extrusion and separation. When the filler is under forced extrusion and separation, the filler is easily accumulated inside the sleeve and causes internal blockage.

Preferably, the threaded rod of the handwheel, the connecting bearing, the concave block and the abutting block constitute a rotational movement mechanism, and the rotational movement distance of the rotational movement mechanism ranges from 0 to 8 cm.

By adopting the above technical solution, a concave block is provided, and the inner side of the concave block is connected to the outer ring of the bearing to achieve a through matching connection effect, and the side of the concave block also has the effect of fixed connection with the abutting block, and at the same time, the concave block also plays a role in The effect of force-driven and force-relative rotational motion passes through the concave frame in turn, thereby exerting a force-transmitting and squeezing effect on the abutting block.

Compared with the prior art, the beneficial effects of the present invention are: the multiple groups of comparative micro-motor load driving winding temperature experimental detection devices,

(1) A matching frame, a touch connector, a thermometer and a measuring bridge are provided. When the micromotor is installed inside the matching frame, the surface of the micromotor is brought into contact with the bottom of the thermometer through the adjusting device, and the surface of the micromotor is connected through the bottom of the thermometer. During the contact process, the thermometer can detect and observe the temperature on the surface of the micro motor in real time. When the surface temperature of the micro motor is observed multiple times in the same temperature range, the positive and negative electrodes of the micro motor are connected to the touch connector again through the synchronizing cylinder. When measuring the bridge to measure the lead resistance of the touch connector, and the thermal resistance of the lead (in units of R), when the micromotor "cools", that is, when it returns to the ambient temperature, read out the touch again. The resistance (represented by RC) between the leads of the bumping connector, the temperature corresponding to RC is TC, and then the "hot" winding temperature Th is obtained by the following formula: Th=Rh(K+Tc)/Rc, and K Expressing that the winding of the micro motor is copper wire, then K=2345. Through the above structural parts, the temperature of the load driving winding of the micro motor can be accurately obtained, and at the same time, the existing maintenance and operation personnel are most likely to ignore the detection of the temperature of the motor winding. Touch the temperature of the motor casing, as long as you can stick it with your hand, it can be considered that the micromotor is within the allowable temperature range; or if a few drops of water are dropped on the high temperature part, there is a "squeaking" sound, it can be considered that the temperature of the micromotor is very high. High, this test method is imprecise and inaccurate;

(2) An adjusting device is provided. When the micro motor is installed above the threaded recess, the controller controls the driving motor to work. During the working process of the driving motor, the through-hole connecting block drives the through-frame movement. During the through-frame movement, the micro-motor is driven to the same The relative movement distance between the micromotor and the thermometer is adjusted during the movement of the micromotor, so as to facilitate the thermometer to detect, monitor and observe the surface temperature of the micromotor;

(3) A load fixing device is provided. By manually rotating the threaded rod of the handwheel, the threaded rod of the handwheel drives the relative movement of the abutting block through the concave block during the force process. During the relative movement of the abutting block, different load objects are clamped In the process of connecting different loads to the same group of micromotors through the load fixing device, the winding temperature of the same group of micromotors under different load states can be measured;

(4) A synchronizing cylinder is provided, and the operation of the synchronizing cylinder is controlled by the controller. During the working process of the synchronizing cylinder, the sliding cylinder and the sliding rod are driven to move relative to each other through the connecting rod group, and the micro-motor and the touch connection are adjusted during the forced movement of the sliding cylinder. The relative moving distance between the heads, and at the same time, the micro-motor is connected to the touch connector in a short time through the synchronous cylinder to measure the effect.

Description of drawings

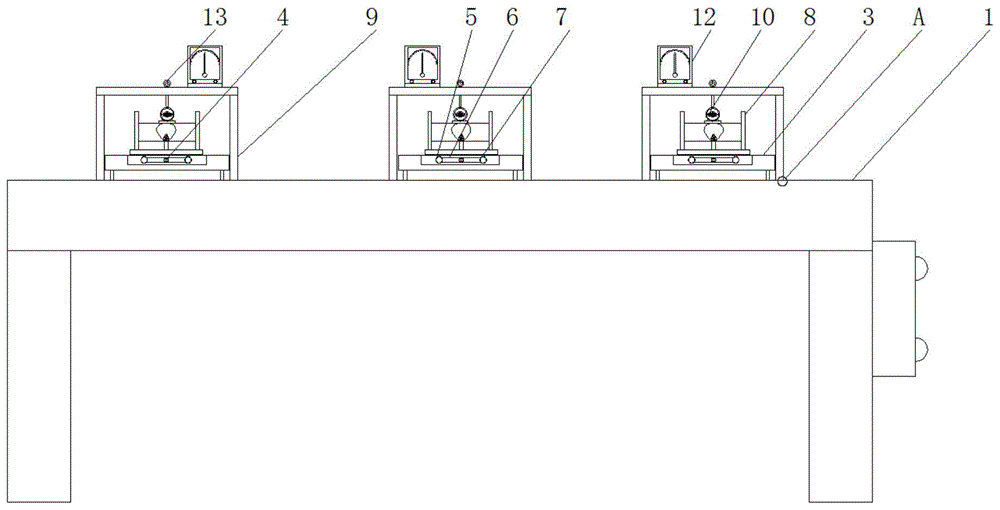

Fig. 1 is the front view sectional structure schematic diagram of the present invention;

Fig. 2 is the enlarged schematic diagram of the structure at place A in Fig. 1 of the present invention;

Fig. 3 is the structural schematic diagram of groove frame, connecting plate and through frame of the present invention;

4 is a schematic structural diagram of a through-hole connecting block and a driving motor according to the present invention;

5 is a schematic structural diagram of the load fixing device of the present invention;

6 is a schematic structural diagram of a matching frame and a touch connector according to the present invention;

FIG. 7 is a schematic structural diagram of the sliding cylinder, the connecting rod group and the sliding rod according to the present invention.

In the picture: 1. Operation table, 2. Connecting groove, 3. Connecting table, 4. Synchronous cylinder, 5. Slide cylinder, 6. Connecting rod group, 7. Slide rod, 8. Drive adjusting device, 801, groove frame , 802, connecting plate, 803, through frame, 804, through-hole connecting block, 805, threaded concave block, 806, double-hole connecting piece, 807, micro motor, 808, drive motor, 9, load fixing device, 901, concave Frame, 902, threaded rod for handwheel, 903, connecting bearing, 904, concave block, 905, abutting block, 906, sleeve, 10, matching frame, 11, touch connector, 12, measuring bridge, 13, thermometer .

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Please refer to FIGS. 1-7 , the present invention provides a technical solution: a multi-group comparative micro-motor load driving winding temperature experimental detection device, as shown in FIGS. 2 and 7 , a connection slot 2 is opened above the operating table 1 , The controller is fixed on one side of the operating table 1, a mounting slot is opened above the connecting table 3, and the connecting table 3 is fixedly connected with one end of the synchronizing cylinder 4 through the mounting groove, and at the same time the connecting table 3 is installed above the operating table 1, and the sliding cylinder 5 is one end. The connecting rod group 6 is fixed on the side and the top, the connection shape of the sliding cylinder 5 and the connecting rod group 6 is a three-way coordinate shape, and the connection shape between the above-mentioned two is a three-way coordinate shape, which not only reflects the relationship between the above-mentioned two. The vertical connectivity also reflects the horizontal force-driven and vertical and vertical force-supported connectivity effects of the connection between the above two, and again reflects the pressure synchronization and force co-movement of the connection between the two. At the same time, the shape of the connection between the above two is a three-way coordinate shape, and the three-way practical effect between the above-mentioned two is reflected in turn, and the sliding cylinder 5 is connected relatively movably through the sliding rod 7 and the installation groove, while the sliding cylinder 5 The connecting rod group 6 is fixedly connected with the other end of the synchronizing cylinder 4. The synchronizing cylinder 4, the sliding cylinder 5, the connecting rod group 6 and the sliding rod 7 constitute a driving sliding mechanism, and the driving sliding distance of the driving sliding mechanism is 0-5cm. 13 When the temperature is always maintained at a certain temperature after symmetrical observation, the controller controls the synchronous cylinder 4 to work. During the working process of the synchronous cylinder 4, the connecting rod group 6 drives the sliding cylinder 5 to move relative to the sliding rod 7 and the connecting table 3, and the sliding cylinder 5 moves relatively. During the movement, the connecting plate 802 and the micro motor 807 are driven to move in the same direction through another connecting rod group 6. When the micro motor 807 is in contact with the touch connector 11, the synchronizing cylinder 4 is stopped, and the overall driving sliding mechanism drives the sliding distance interval. It is 5cm, and the driving sliding distance interval of the overall driving sliding mechanism is the maximum flexion and extension distance of the synchronous cylinder 4.

As shown in FIGS. 1 and 6 , a touch connector 11 is inlaid and fixed on the inner side of the matching frame 10 , a measuring bridge 12 is fixed above the matching frame 10 , and a thermometer 13 is inlaid and installed above the matching frame 10 , and the matching frame 10 is wrapped The connection table 3 is installed above the operating table 1. After the micromotor 807 is installed, manually install the matching frame 10 on the upper side of the operating table 1 through the connecting slot 2. After the matching frame 10 is installed, repeat the above steps to connect the thermometer 13 and the micromotor 807. The surface contact connection can be used, and the temperature of the windings of the micromotor 807 can be accurately detected and measured during the measurement of the thermal resistance of the touch connector 11 through the measuring bridge 12 .

As shown in FIG. 3 , the drive adjusting device 8 is installed above the connecting rod group 6 , and the drive adjusting device 8 includes a groove frame 801 , a connecting plate 802 , a through frame 803 , a through hole connecting block 804 , a threaded concave block 805 , a double hole The connecting piece 806, the micro motor 807 and the driving motor 808, one end of the groove frame 801 is fixedly connected with the connecting plate 802, and the groove frame 801 is movably connected with the through frame 803, and the micro motor 807 is installed through the double-hole connecting piece 806 and connecting bolts Above the threaded concave block 805, the threaded concave block 805 is fixedly connected to the top of the through frame 803. The vertical length of the threaded concave block 805 ranges from 4 to 6 cm. If the vertical length of the threaded concave block 805 is too high, the When the 805 is installed on the top of the through frame 803, the lowest point of the threaded concave block 805 exceeds a certain relative distance from the highest point of the touch connector 11. At this time, when the micro motor 807 is installed inside the threaded concave block 805, only the The temperature of the surface of the micro motor 807 can be detected by the thermometer 13, but the micro motor 807 cannot be connected to the touch connector 11 horizontally. When the vertical length of the threaded concave block 805 is too low, it is necessary to adjust the threaded concave block frequently. The relative distance between 805 and the touch connector 11 enables the touch connector 11 and the micro motor 807 to be horizontally butted, so the above troubles and situations are avoided and the vertical length distance of the threaded recess 805 is set to 6cm.

As shown in FIG. 4 , the through-hole connecting block 804 is movably connected to the through-frame 803 through the through-hole mounting post through the drive motor 808 in relative rotation, the connecting plate 802 is fixedly connected to the sliding cylinder 5 through another connecting rod group 6 , and the groove frame 801 , connecting plate 802, through frame 803, through-hole connecting block 804 and driving motor 808 constitute a rotating lifting mechanism, and the rotating lifting distance of the rotating lifting mechanism ranges from 0 to 10 cm. When the micro motor 807 is installed, the driving motor 808 is controlled by the controller to work. , the drive motor 808 drives the through-frame 803 to move through the through-hole connecting block 804 during the working process, the through-frame 803 moves relative to the groove frame 801 and the connecting plate 802 during the forced movement, and the through-frame 803 passes through the thread concave during the forced movement. The block 805 drives the micromotor 807 to move in the same direction. When the micromotor 807 is in contact with the thermometer 13, the drive motor 808 stops working. When the overall rotation lifting mechanism is at 0 cm, the micromotor 807 is in the initial motion distance state at this time, thereby facilitating the micromotor 807. Connect with the touch connector 11 in horizontal contact, when the overall rotation lift mechanism is at 10 cm, the micromotor 807 is in a contact connection state with the thermometer 13, and the thermometer 13 can continuously monitor the surface temperature of the micromotor 807.

As shown in FIG. 5 , the load fixing device 9 is matched with the drive adjusting device 8 , and the load fixing device 9 includes a concave frame 901 , a handwheel threaded rod 902 , a connecting bearing 903 , a concave block 904 , abutting block 905 and a sleeve 906 Thread grooves are fixed on both sides of the concave frame 901, and the rear side of the concave frame 901 is fixedly connected with the sleeve 906, the inner side of the concave block 904 is matched with the outer ring of the connecting bearing 903, and the side of the concave block 904 is fixedly connected with the abutting block 905. , the threaded rod 902 of the handwheel, the connecting bearing 903, the concave block 904 and the abutting block 905 constitute a rotating moving mechanism, and the rotating moving distance of the rotating moving mechanism ranges from 0 to 8 cm. When the load is placed inside the concave frame 901, manually adjust the handwheel The threaded rod 902 moves, and the threaded rod 902 of the handwheel drives the relative movement of the concave block 904 and the abutment block 905 through the connecting bearing 903 during the force movement process, and the load is clamped and fixed during the relative movement of the concave block 904 and the abutment block 905. Yes, and the rotational movement distance interval of the overall rotational movement mechanism is 8cm, and the rotational movement distance interval of the overall rotational movement mechanism is the horizontal rotation movement distance length of the handwheel threaded rod 902. One end of the handwheel threaded rod 902 is fixedly connected to the connecting bearing 903 through the thread groove. , the concave frame 901 is matched with the output end of the micro motor 807 through the sleeve 906, the connection shape of the concave frame 901 and the sleeve 906 is a "T" shape, and the connection shape between the two is a "T" shape, which not only reflects the above The simplicity of the connection between the two also reflects the practicability of the connection between the two, and once again reflects the force-driven and force-driven effects of the connection between the two. The connection shape is a "T" shape, which in turn reflects the central symmetry between the above two and the effect of the axial core force connection.

Working principle: When using multiple sets of comparative micro-motor loads to drive the winding temperature experimental detection device, first manually place the load inside the concave frame 901, and manually adjust the movement of the handwheel threaded rod 902. During the movement of the handwheel threaded rod 902, the The block 905 clamps the load, and then the sleeve 906 is matched with the micro motor 807, and the micro motor 807 is installed above the threaded concave block 805 through the double-hole connecting piece 806, and the matching frame 10 is manually installed on the console. Above 1, the controller controls the driving motor 808 to work in turn. During the working process of the driving motor 808, the micromotor 807 is driven to contact the thermometer 13 through the frame 803. When the two are in contact, the driving motor 808 is stopped to work, and the micromotor 807 is controlled to rotate again. Either, the temperature of the surface of the micro motor 807 is detected by the thermometer 13 during the rotation of the micro motor 807. When the surface temperature of the micro motor 807 is repeated several times, the reverse operation above is repeated, and the synchronizing cylinder 4 is controlled by the controller to work again, and the working process of the synchronizing cylinder 4 The micromotor 807 is in contact with the touch connector 11, and the measuring bridge 12 detects and measures the thermal resistance and room temperature resistance of the touch connector 11, and at the same time obtains the precise temperature detection and measurement of the winding of the micromotor 807 through the corresponding calculation formula. Either, this completes the entire operation, and the content not described in detail in this specification belongs to the prior art known to those skilled in the art.

The terms "center", "portrait", "horizontal", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", The orientation or positional relationship indicated by "outside" is based on the orientation or positional relationship shown in the accompanying drawings, and is only a simplified description for the convenience of describing the present invention, rather than indicating or implying that the indicated device or element must have a specific orientation , are constructed and operated in a specific orientation, and therefore should not be construed as limiting the protection content of the present invention.

Although the present invention has been described in detail with reference to the foregoing embodiments, for those skilled in the art, it is still possible to modify the technical solutions described in the foregoing embodiments, or to perform equivalent replacements for some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included within the protection scope of the present invention.

Claims (9)

1. The utility model provides a multiunit contrast type micro motor load drive winding temperature experiment detection device, includes operation panel (1), connection platform (3), slide cartridge (5), drive adjusting device (8), load fixing device (9) and supporting frame (10), its characterized in that:

the automatic control device is characterized in that a connecting groove (2) is formed above the operating platform (1), a controller is fixed on one side of the operating platform (1), a mounting groove is formed above the connecting platform (3), the connecting platform (3) is fixedly connected with one end of the synchronous cylinder (4) through the mounting groove, the connecting platform (3) is mounted above the operating platform (1), connecting rod groups (6) are fixed on one side and above the sliding cylinder (5), the sliding cylinder (5) penetrates through the sliding rod (7) and is movably connected with the mounting groove relatively, and meanwhile the sliding cylinder (5) is fixedly connected with the other end of the synchronous cylinder (4) through the connecting rod groups (6);

a touch connector (11) is fixedly embedded in the inner side of the matching frame (10), a measuring bridge (12) is fixedly arranged above the matching frame (10), a thermometer (13) is installed above the matching frame (10) in a penetrating and embedding mode, and the matching frame (10) is wrapped by the connecting table (3) and is installed above the operating table (1);

the driving adjusting device (8) is arranged above the connecting rod group (6);

the load fixing device (9) is connected with the driving adjusting device (8) in a matching way.

2. The experimental detection device for the temperature of the load driving windings of the multiple groups of comparative micro motors as claimed in claim 1, wherein: drive adjusting device (8) include groove frame (801), connecting plate (802), lead to frame (803), through-hole connecting block (804), screw thread concave block (805), diplopore connection piece (806), micro motor (807) and driving motor (808), groove frame (801) one end and connecting plate (802) fixed connection, and groove frame (801) and lead to frame (803) run through swing joint, micro motor (807) are installed in screw thread concave block (805) top through diplopore connection piece (806) and connecting bolt, screw thread concave block (805) and lead to frame (803) top fixed connection, through-hole connecting block (804) run through the through-hole erection column through driving motor (808) and lead to frame (803) relative rotation swing joint, connecting plate (802) are through another connecting rod group (6) and slide cartridge (5) fixed connection.

3. The experimental detection device for the temperature of the load driving windings of the multi-group comparison type micro motor according to claim 1, wherein: the load fixing device (9) comprises a concave frame (901), a hand wheel threaded rod (902), a connecting bearing (903), a concave block (904), a resisting block (905) and a sleeve (906), threaded grooves are fixedly formed in two sides of the concave frame (901), the rear side of the concave frame (901) is fixedly connected with the sleeve (906), the inner side of the concave block (904) is connected with the outer ring of the connecting bearing (903) in a matched mode, one side of the concave block (904) is fixedly connected with the resisting block (905), one end of the hand wheel threaded rod (902) penetrates through the threaded grooves and is fixedly connected with the connecting bearing (903), and the concave frame (901) is connected with the output end of the micro motor (807) in a matched mode through the sleeve (906).

4. The experimental detection device for the temperature of the load driving windings of the multi-group comparison type micro motor according to claim 1, wherein: the synchronous cylinder (4), the sliding cylinder (5), the connecting rod group (6) and the sliding rod (7) form a driving sliding mechanism, and the driving sliding distance range of the driving sliding mechanism is 0-5 cm.

5. The experimental detection device for the temperature of the load driving windings of the multi-group comparison type micro motor according to claim 1, wherein: the connecting shape of the sliding cylinder (5) and the connecting rod group (6) is a three-way coordinate shape.

6. The experimental detection device for the temperature of the load driving windings of the multi-group comparison type micromotors as claimed in claim 2, wherein: the groove frame (801), the connecting plate (802), the through frame (803), the through hole connecting block (804) and the driving motor (808) form a rotary lifting mechanism, and the rotary lifting distance range of the rotary lifting mechanism is 0-10 cm.

7. The experimental detection device for the temperature of the load driving windings of the multi-group comparison type micromotors as claimed in claim 2, wherein: the distance range of the vertical length of the thread concave block (805) is 4-6 cm.

8. The experimental detection device for the temperature of the load driving windings of the multi-group comparison type micro motor according to claim 3, wherein: the connection shape of the concave frame (901) and the sleeve (906) is T-shaped.

9. The experimental detection device for the temperature of the load driving windings of the multi-group comparison type micro motor according to claim 3, wherein: the hand wheel threaded rod (902), the connecting bearing (903), the concave block (904) and the abutting block (905) form a rotary moving mechanism, and the rotary moving distance range of the rotary moving mechanism is 0-8 cm.
