Abstract

The invention discloses a twisting device with an automatic coil changing mechanism. A wire twisting device and a wire arranging device are fixedly connected in an equipment frame. Linear guide block, wire arrangement bracket, wire arrangement motor is fixedly connected on the left side of the upper end of the equipment rack, the end of the wire arrangement motor is fixedly connected with one end of the wire arrangement driving shaft, and two sets of wire arrangement synchronizing wheels are fixedly connected to the wire arrangement driving shaft The first synchronous belt is connected to the wire synchronous wheel, and the first synchronous belt is fixedly connected with a lifting plate. The two ends of the lifting plate are fixedly connected with a wire-arranging linear guide block, and the wire-arranging linear guide block sliding sleeve is connected to the wire-arranging rail. The two ends of the wire arrangement guide rail are fixedly connected in the equipment rack, the lower end of the wire arrangement linear guide block is fixedly connected with the wire arrangement bracket, and the lower end of the equipment rack is provided with a winding drum switching device. The purpose of the present invention is to provide a twisting device with simple process, good environmental protection, improved spinning effect and reduced generation of waste silk.

Description

A twisting device with automatic roll changing mechanism

technical field

The invention relates to the technical field of textile equipment, in particular to a twisting device with an automatic roll changing mechanism.

Background technique

If one end of the spinning yarn is held and the other end is turned around, a yarn is formed, a process called twisting. Twisting is the process of twisting the drawn thin sliver like a towel when washing your face by using a rotary motion, so as to fix the longitudinal connection between the fibers. Twisting is a process of winding raw silk into a thread. For example, a thread consists of 24 threads. The 24 threads must be intertwined to make the thread stronger and more delicate. The tighter the thread is wound, the higher the twist. The woven fabric is relatively tight, with good drape and good fastness. If there is no twisting, there is no threading, the silk and the silk are not entangled together, the cloth surface is loose, the drape is poor, and the fastness is poor.

The existing twisting device generally needs to twist the silk thread first, and then wind the twisted silk thread on the paper tube. After the paper tube silk cake is wound, the empty paper tube needs to be manually replaced manually. The whole production process is relatively It is cumbersome and complicated. The production process also includes the doffing process and the paddle removal process. There will be waste output in the production process, and the production process is not environmentally friendly enough.

SUMMARY OF THE INVENTION

In view of the above-mentioned shortcomings in the prior art, the purpose of the present invention is to provide a twisting device with simple process, good environmental protection, improved spinning effect and reduced waste silk generation.

The technical scheme adopted by the present invention to achieve the above purpose is: a twisting device with an automatic coil changing mechanism, comprising an equipment frame, a wire arrangement device, a wire twisting device, and a winding drum switching device, wherein the equipment frame is composed of 8mm steel plates and frame steel bars are connected, and there are functional structure positioning holes on the equipment rack. Four winding heads can be installed at 1200mm-1500mm above the equipment rack. The equipment rack is fixedly connected with twisted wires. Device and wire arrangement, the twisting device does one-way twisting, and the wire arrangement does up and down reciprocating motion. Bracket, the wire-arranging motor is a servo motor, a wire-arranging motor is fixedly connected to the left side of the upper end of the equipment rack, the end of the rotating shaft of the wire-arranging motor is fixedly connected to one end of the wire-arranging driving shaft, and the wire-arranging driving shaft is fixedly connected There are two sets of wire-arranging synchronizing wheels, a first synchronous belt is connected to the wire-arranging synchronizing wheel, and a lifting plate is fixedly connected to the first synchronous belt, and two ends of the lifting plate are respectively fixedly connected with a wire-arranging plate. Linear guide block, the sliding sleeve of the wire-arranging linear guide block is connected to the wire-arranging guide rail, both ends of the wire-arranging guide rail are relatively fixedly connected in the equipment rack, and the lower end of the wire-arranging linear guide block is connected to the outer side of the wire-arranging bracket. The edges are fixedly connected, and the lower end of the equipment rack is provided with a winding drum switching device.

In some implementations, the lower end of the equipment rack opposite to the wire-arranging active shaft is rotatably connected with a wire-arranging passive shaft, the wire-arranging passive shaft and the wire-arranging active shaft are relatively parallel to each other, and both ends of the wire-arranging passive shaft are respectively fixed. A wire-arrangement transmission wheel is connected, and the first synchronous belt is sleeved and connected to the wire-arrangement synchronous wheel and the wire-arrangement transmission wheel.

In some implementations, the twisting device includes a twisting motor, a twisting drive shaft, a twisting support arm, a twisting reciprocating guide rail, a twisting slider, and a program, and a twisting motor is fixedly connected to the upper right side of the assembly board. , the twisting motor is a high-speed adjustable electric spindle, the electric spindle is tentatively set at 50 turns/meter, and the twisting speed is 3000-8000 rpm/min, which can be adjusted according to the actual situation. The assembly board is fixedly connected with four sets of shaft sleeves, so Twisting transmission shafts are respectively rotatably connected in the shaft sleeves, the upper ends of the twisting transmission shafts pass through the shaft sleeve and are respectively fixedly connected with twisting synchronizing wheels, and between the twisting synchronizing wheels on the twisting transmission shafts They are respectively connected in sequence by synchronous belts, and a driving synchronous wheel is fixedly connected to the rotating shaft of the twisting motor. The lower end of the transmission shaft passes through the shaft sleeve and is fixedly connected to the middle of the twisting support arm, the two ends of the twisting support arm are respectively fixed with twisting reciprocating guide rails, and the opposite cable brackets of the twisting support arm are respectively provided with Through holes, the twisting reciprocating guide rails at both ends of the twisting arm are respectively arranged in the opposite through holes, the inner edge of the through hole is fixedly connected with a twisting rotating guide rail, and two twisting rotating guide rails are slidingly connected on the twisting rotating guide rail. A set of twisting sliders, the twisting sliders are respectively slidably connected to the opposite twisting reciprocating guide rails, and the twisting sliders are respectively fixed and connected to the side of the center of the through hole, and the twisting sliders are twisting. The stroke on the reciprocating rail is 160-220mm.

In some implementations, the winding drum switching device includes a mounting base plate, a ring gear, a pneumatic brake, a bobbin winding motor, a bobbin synchronizing wheel, an expansion shaft, a paper tube, a guide roller motor, and a guide roller transmission gear. The base plate is fixedly connected to the lower end of the equipment rack, the upper end of the installation base plate is respectively connected with two sets of relatively symmetrical fixing rings, the outer peripheral side wall of the fixing ring is fixedly connected with a gear ring, and the edge of the gear ring is provided with several pneumatic brakes , the pneumatic brakes are all fixedly connected to the upper end of the mounting substrate, the bottom of the mounting substrate on one side between the two sets of fixing rings is fixedly connected with a guide roller motor, the guide roller motor is a stepper motor, and the end of the rotating shaft of the guide roller motor A guide roller drive gear is fixedly connected, and the guide roller drive gear is meshed and connected with two sets of ring gears respectively, and a silk cake winding motor is fixedly connected to the installation base plate on the other side between the fixed rings, and the silk cake winding motor is a permanent A magnetic synchronous motor, the spinning shaft of the silk cake winding motor is fixedly connected with a silk cake synchronizing wheel, a plurality of linkage shafts are rotatably connected to the mounting base plate in the fixing ring, and the lower end of the linkage shaft is fixedly connected with a first synchronizing wheel, The first synchronizing wheel is drivingly connected with the silk cake synchronizing wheel through an annular toothed belt, the upper ends of the linkage shafts are respectively fixedly connected with second synchronizing wheels, the upper ends of the fixing rings are fixedly connected with a connecting ring, and the upper ends of the connecting rings are fixedly connected There is a mounting plate, four sets of guide roller shafts in an annular array are rotatably connected on the mounting plate, and a third synchronizing wheel is fixedly connected to the lower end of the guide roller shaft, and the third synchronizing wheel is respectively corresponding to the ring gear belt. The upper end of the guide roller shaft is fixedly connected with an expansion shaft, the sliding sleeve on the expansion shaft is connected with a paper tube, and the coiling line speed of the guide roller shaft is about 130-180 m/min.

In some implementations, a first rotating shaft is rotatably connected to one side of the edge of the mounting substrate, a first motor is fixedly connected to one end of the first rotating shaft, and a sniffer gun is drivingly connected to the first rotating shaft. Fixed connection at the edge of the mounting substrate.

In some implementations, a plurality of supporting foot pads are fixedly connected to the lower end of the mounting base plate for supporting the equipment rack and the winding drum switching device.

Beneficial effects of the present invention:

1. The device improves the spinning effect, can ensure the stability of the linear speed and tension of the thread winding, and the twist spinning has good tensile properties;

2. Through the suction gun, the generation of waste silk is reduced, the subsequent process equipment entering 2/3 is reduced, and the loss of personnel and venues is reduced;

3. During the production process of the equipment, no pollutants such as exhaust gas are produced, and it has good environmental protection;

4. Through the winding drum switching device, the paper tube replacement efficiency is improved, the production process is simplified, and the production efficiency is improved.

Description of drawings

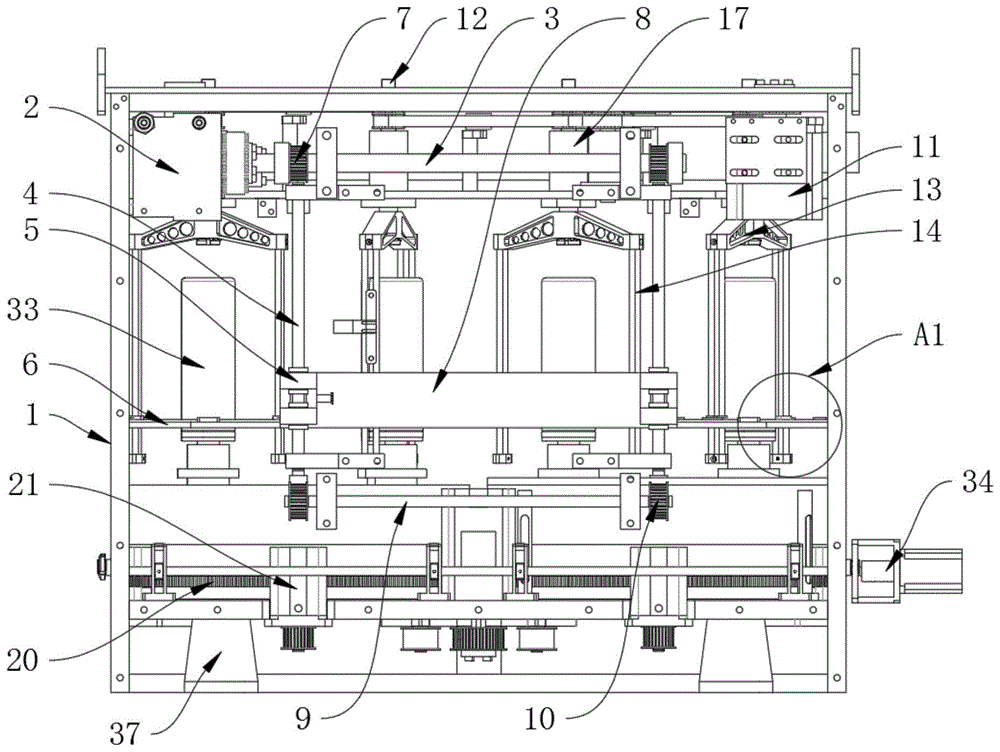

Fig. 1 is the front view structure schematic diagram of the present invention;

Fig. 2 is the detailed structure schematic diagram of A1 part in Fig. 1;

3 is a schematic structural diagram of a winding drum switching device according to the present invention;

FIG. 4 is a schematic diagram of the left side view of the structure of the present invention.

In the picture: 1 equipment rack, 2 rows of wire motors, 3 rows of wire drive shafts, 4 rows of wire guide rails, 5 rows of wire linear guide blocks, 6 rows of wire brackets, 7 rows of wire synchronization wheels, 8 lift plates, 9 rows of passive wire Shaft, 10 rows of wire guide wheels, 11 twisting motors, 12 twisting drive shafts, 13 twisting arms, 14 twisting reciprocating guide rails, 15 twisting sliders, 16 programs, 17 shaft sleeves, 18 twisting synchronous wheels , 19 mounting base plate, 20 ring gear, 21 pneumatic brake, 22 silk cake winding motor, 23 fixing ring, 24 expanding shaft, 25 paper tube, 26 guide roller motor, 27 guide roller drive gear, 28 linkage shaft, 29 first synchronization wheel, 30 second synchronizing wheel, 31 connecting ring, 32 mounting plate, 33 first rotating shaft, 34 first motor, 35 suction gun, 36 guide roller shaft, 37 foot pad.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Please refer to Figure 1-4, a twisting device with an automatic coil changing mechanism, including an equipment frame 1, a wire arrangement device, a wire twisting device, and a winding drum switching device. The equipment frame 1 is composed of 8mm steel plates and frame steel bars. It is connected, and there is a functional structure positioning hole on the equipment rack 1. Four winding heads can be installed at 1200mm-1500mm above the equipment rack 1. The equipment rack 1 is fixedly connected with a wire twisting device and a wire arranging device. , the twisting device does one-way twisting, and the threading device moves up and down. The wire-arranging motor 2 is a servo motor. The wire-arranging motor 2 is fixedly connected to the left side of the upper end of the equipment rack 1; A first synchronous belt is connected to the wire synchronous wheel 7, and a lifting plate 8 is fixedly connected to the first synchronous belt. The two ends of the lifting plate 8 are respectively fixedly connected with a wire-arranging linear guide block 5. The wire-arranging linear guide block 5 is slidably connected to the wire-arranging guide rail 4, both ends of the wire-arranging guide rail 4 are relatively fixedly connected in the equipment rack 1, and the lower end of the wire-arranging linear guide block 5 is fixedly connected to the outer edge of the wire-arranging bracket 6. , The lower end of the equipment rack 1 is provided with a winding drum switching device. The equipment rack is used to support and fix the equipment parts. During operation, the wire arrangement reciprocates up and down in the equipment frame 1, and the twisting device performs the twisting action at the same time. Therefore, the wire arrangement and twisting operations are completed on the paper tube 25. After the winding of the silk cake on the paper tube 25 is completed, the winding drum switching device can automatically complete the rotation switching, and the empty paper tube 25 and the formed silk cake paper tube 25 have been realized. Roller action, in the present invention, there are four sets of tension sensors above the device to provide tension fluctuation signals for the PLC of the electric control box (or to be completed by the twisting motor 11 and the bobbin winding motor 22 in coordination with speed regulation).

In some implementations, the lower end of the equipment rack 1 opposite to the wire-arranging active shaft 3 is rotatably connected with a wire-arranging passive shaft 9 , the wire-arranging passive shaft 9 is relatively parallel to the wire-arranging active shaft 3 , and the two ends of the wire-arranging passive shaft 9 are respectively fixed. A wire-arranging guide wheel 10 is connected, and the first synchronous belt is sleeved and connected to the wire-arranging synchronizing wheel 7 and the wire-arranging guide wheel 10, which is used to improve the stability of the up and down reciprocating motion of the wire-arranging device and improve the uniformity of the wire-arranging.

In some implementations, the twisting device includes a twisting motor 11, a twisting drive shaft 12, a twisting support arm 13, a twisting reciprocating guide rail 14, a twisting slider 15, and a program 16. The upper right side of the assembly plate is fixedly connected with a twisting arm. Twisting motor 11. The twisting motor 11 is a high-speed adjustable electric spindle. The electric spindle is tentatively set at 50 turns/m, and the twisting speed is 3000-8000 rpm. It can be adjusted according to the actual situation. Four sets of shaft sleeves are fixedly connected on the assembly board. 17. A twisting transmission shaft 12 is rotatably connected in the shaft sleeve 17. The upper end of the twisting transmission shaft 12 passes through the shaft sleeve 17 and is respectively fixedly connected with a twisting synchronous wheel 18. The twisting synchronization on the twisting transmission shaft 12 The wheels 18 are connected in turn by a synchronous belt, and a driving synchronous wheel is fixedly connected to the rotating shaft of the twisting motor 11, and the driving synchronous wheel is connected with the adjacent twisting synchronous wheel 18 through the second synchronous belt. The lower end of the transmission shaft 12 passes through the shaft sleeve 17 and is fixedly connected to the middle of the twisting support arm 13. The two ends of the twisting support arm 13 are respectively fixed with twisting reciprocating guide rails 14. Through holes are respectively opened, and the twisting reciprocating guide rails 14 at both ends of the twisting arm 13 are respectively arranged in the opposite through holes, the inner edge of the through hole is fixedly connected with a twisting rotating guide rail, and two groups are slidingly connected on the twisting rotating guide rail. The twisting sliders 15 are respectively slidably connected to the opposite twisting reciprocating guide rails 14. The twisting sliders 15 are respectively fixed and connected with the outlines 16 toward the center of the through hole. The stroke on the twisting reciprocating guide rail 14 is 160-220mm. During the specific operation, firstly, the wire row motor 2 drives the wire row drive shaft 3 to rotate, and the wire row drive shaft 3 drives the wire row synchronous wheel 7 to rotate. A synchronous belt drives the lifting plate 8 to reciprocate up and down, the lifting plate 8 drives the wire-arranging linear guide blocks 5 at both ends to move up and down repeatedly on the wire-arranging guide rail 4, and the wire-arranging linear guide block 5 drives the wire-arranging bracket 6 to reciprocate up and down. The twisting motor 11 drives the driving synchronous wheel to rotate, the driving synchronous wheel drives the twisting synchronous wheel 18 to rotate through the second synchronous belt, the twisting synchronous wheel 18 drives the twisting transmission shaft 12 to rotate, and the twisting synchronous shaft drives the twisting support arm 13 and the support The twisting reciprocating guide rails 14 at both ends of the arm rotate, and the twisting reciprocating guide rails 14 are driven by the twisting slider 15 to drive the program 16 to make a circular motion in the through hole in the middle of the wire arrangement bracket 6, so that the wire arrangement and twisting are carried out synchronously. On the paper tube 25, the wire arrangement and twisting are completed.

In some implementations, the winding drum switching device includes a mounting base plate 19 , a ring gear 20 , a pneumatic brake 21 , a bobbin winding motor 22 , a bobbin synchronizing wheel, an expanding shaft 24 , a paper tube 25 , a guide roller motor 26 , and a guide roller drive. Gear 27, the mounting base plate 19 is fixedly connected to the lower end of the equipment rack 1, the upper end of the mounting base plate 19 is respectively connected with two sets of relatively symmetrical fixing rings 23, the outer peripheral side wall of the fixing ring 23 is fixedly connected with the gear ring 20, and the edge of the gear ring 20 is fixedly connected. A plurality of pneumatic brakes 21 are provided, and the pneumatic brakes 21 are all fixedly connected to the upper end of the mounting base plate 19. The bottom of the mounting base plate 19 on one side between the two sets of fixing rings 23 is fixedly connected with a guide roller motor 26, and the guide roller motor 26 is a stepping motor. The end of the rotating shaft of the guide roller motor 26 is fixedly connected with a guide roller transmission gear 27, and the guide roller transmission gear 27 is meshed with the two groups of ring gears 20 respectively. The motor 22, the silk cake winding motor 22 is a permanent magnet synchronous motor, a silk cake synchronizing wheel is fixedly connected to the rotating shaft of the silk cake winding motor 22, and a plurality of linkage shafts 28 are rotatably connected to the mounting base plate 19 in the fixing ring 23, and the linkage shaft 28 The lower end is fixedly connected with a first synchronizing wheel 29, the first synchronizing wheel 29 is driven and connected with the silk cake synchronizing wheel through an annular toothed belt, the upper end of the linkage shaft 28 is respectively fixedly connected with a second synchronizing wheel 30, and the upper end of the fixing ring 23 is fixedly connected with a connecting ring. 31. A mounting plate 32 is fixedly connected to the upper end of the connecting ring 31. Four sets of guide roller shafts 36 in an annular array are rotatably connected to the mounting plate 32. The lower end of the guide roller shaft 36 is fixedly connected with a third synchronizing wheel, which passes through the ring. The toothed belts are respectively connected with the corresponding second synchronizing wheels 30 in a driving connection, the upper end of the guide roller shaft 36 is fixedly connected with the expansion shaft 24, the sliding sleeve on the expansion shaft 24 is connected with the paper tube 25, and the winding speed of the guide roller shaft 36 is 130- At about 180 m/min, during the specific operation, the silk cake winding motor 22 drives the silk cake synchronizing wheel to rotate, and the silk cake synchronizing wheel drives the linkage shaft 28 to rotate through the annular toothed belt, and the linkage shaft 28 drives the second synchronizing wheel 30 at the upper end to rotate. The second synchronizing wheel 30 drives the third synchronizing wheel to rotate through the annular toothed belt, the third synchronizing wheel drives the guide roller shaft 36 to rotate, the guide roller shaft 36 drives the expansion shaft 24 to rotate, and the expansion shaft 24 drives the sleeve-connected paper tube 25 to rotate, so that the The twisted yarn is evenly wound on the paper tube 25; after the winding of the silk cake on the paper tube 25 is completed, start the guide roller motor 26, the guide roller motor 26 drives the guide roller transmission gear 27 to rotate, the guide roller transmission gear 27 drives the ring gear 20 to rotate, and the The ring 20 drives the fixing ring 23 to rotate 180°, the fixing ring 23 drives the connecting ring 31 and the mounting plate 32 to rotate, and drives the four sets of expansion shafts 24 and the paper tube 25 on the mounting plate 32 to make a 180° circular motion, and the empty paper tube 25 has been realized. Do guide roller action with forming silk cake paper tube 25.

In some implementations, a first rotating shaft 33 is rotatably connected to one side of the edge of the mounting base 19, one end of the first rotating shaft 33 is fixedly connected to the first motor 34, and the first rotating shaft 33 is drivingly connected to a suction gun 35, and the suction gun 35 is fixed Connected to the edge of the mounting base plate 19, the first motor 34 drives the first rotating shaft 33 to rotate during the movement of the guide roller, the first rotating shaft 33 drives the suction gun 35 to suck away the waste wire, and drives the suction gun 35 again after the guide roller moves. The automatic winding action on the paper tube 25 is realized.

In some implementations, a plurality of supporting foot pads 37 are fixedly connected to the lower end of the mounting base plate 19 for supporting the equipment rack 1 and the winding drum switching device.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, but that the present invention may be embodied in other specific forms without departing from the spirit or essential characteristics of the invention. Therefore, the embodiments are to be regarded in all respects as illustrative and not restrictive, and the scope of the invention is to be defined by the appended claims rather than the foregoing description, which are therefore intended to fall within the scope of the claims. All changes within the meaning and scope of the equivalents of , are included in the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

In addition, it should be understood that although this specification is described in terms of embodiments, not each embodiment only includes an independent technical solution, and this description in the specification is only for the sake of clarity, and those skilled in the art should take the specification as a whole , the technical solutions in each embodiment can also be appropriately combined to form other implementations that can be understood by those skilled in the art.

Claims (5)

1. A twisting device with an automatic coil changing mechanism, comprising an equipment rack (1), a wire arrangement, a twisting device, and a winding drum switching device, characterized in that: the equipment rack (1) is fixed inside A yarn twisting device and a yarn arranging device are connected, the yarn twisting device is used for twisting the thread, the yarn arranging device reciprocates up and down during the twisting action of the yarn twisting device, and the row The wire arrangement comprises a wire arrangement motor (2), a wire arrangement drive shaft (3), a wire arrangement guide rail (4), a wire arrangement linear guide block (5), and a wire arrangement bracket (6). The wire arrangement motor (2) is a Servo motor, a wire-arranging motor (2) is fixedly connected to the left side of the upper end of the equipment rack (1), the end of the rotating shaft of the wire-arranging motor (2) is fixedly connected to one end of the wire-arranging driving shaft (3), the row Two sets of wire-arranging synchronizing wheels (7) are fixedly connected to the wire driving shaft (3), and a first synchronizing belt is drivingly connected to the wire-arranging synchronizing wheels (7), and a lifting plate is fixedly connected to the first synchronizing belt. (8), the two ends of the lifting plate (8) are respectively fixedly connected with wire-arranging linear guide blocks (5), and the wire-arranging linear guide blocks (5) are slidingly connected to the wire-arranging guide rail (4), Both ends of the wire-arranging guide rail (4) are relatively fixedly connected in the equipment rack (1), respectively, and the lower end of the wire-arranging linear guide block (5) is fixedly connected to the outer edge of the wire-arranging bracket (6). The lower end of the frame (1) is provided with a winding drum switching device. 2. A twisting device with an automatic rewinding mechanism according to claim 1, characterized in that: the lower end of the relative equipment rack (1) of the wire-arranging active shaft (3) is rotatably connected with a wire-arranging passive shaft (9), the wire-arranging passive shaft (9) and the wire-arranging active shaft (3) are arranged in parallel with each other, and the wire-arranging passive shaft (9) is fixedly connected with a wire-arranging guide wheel (10) at both ends respectively. The first synchronous belt is sleeved and connected to the wire-arranging synchronizing wheel (7) and the wire-arranging guide wheel (10), and is used for improving the stability of the up-and-down reciprocating motion of the wire-arranging device and improving the uniformity of the wire-arranging. 3. A twisting device with an automatic winding change mechanism according to claim 2, wherein the twisting device comprises a twisting motor (11), a twisting transmission shaft (12), a twisting support arm (13), twisting reciprocating guide rail (14), twisting slider (15), program (16), a twisting motor (11) is fixedly connected to the upper right side of the assembly plate, and the twisting motor (11) It is a high-speed adjustable electric spindle, and the electric spindle is tentatively set at 50 turns/meter. Four sets of shaft sleeves (17) are fixedly connected to the assembly plate, and a twisting transmission shaft is rotatably connected to the shaft sleeves (17). (12), after the upper end of the twisting transmission shaft (12) passes out of the shaft sleeve (17), a twisting synchronizing wheel (18) is respectively fixedly connected, and the twisting synchronizing wheel on the twisting transmission shaft (12) (18) are connected in sequence by a synchronous belt, and a driving synchronous wheel is fixedly connected to the rotating shaft of the twisting motor (11), and the driving synchronous wheel is synchronized with the adjacent twisting through the second synchronous belt. The wheel (18) is connected by transmission, the lower end of the twisting transmission shaft (12) passes through the shaft sleeve (17) and is fixedly connected to the middle of the twisting arm (13), and the two ends of the twisting arm (13) are respectively A twisting reciprocating guide rail (14) is fixedly connected, and through holes are respectively opened on the wire arrangement brackets (6) opposite to the twisting support arm (13), and the twisting reciprocating guide rails at both ends of the twisting support arm (13) (14) are respectively arranged in opposite through holes, the inner edges of the through holes are fixedly connected with twisting rotating guide rails, and two sets of twisting sliders (15) are slidably connected to the twisting rotating guide rails. The twisting sliders (15) are respectively slidably connected to the opposite twisting reciprocating guide rails (14), and the twisting sliders (15) are respectively fixed and connected with outlines (16) toward the center side of the through hole. 4. A twisting device with an automatic winding change mechanism according to claim 1, wherein the winding drum switching device comprises a mounting base plate (19), a ring gear (20), and a pneumatic brake (21) , silk cake winding motor (22), silk cake synchronizing wheel, expansion shaft (24), paper tube (25), guide roller motor (26), guide roller transmission gear (27), the mounting base plate (19) is fixedly connected At the lower end of the equipment rack (1), the upper end of the mounting base plate (19) is respectively rotatably connected with two sets of relatively symmetrical fixing rings (23), and the outer peripheral side wall of the fixing rings (23) is fixedly connected with a gear ring (20). ), a plurality of pneumatic brakes (21) are arranged on the edge of the ring gear (20), and the pneumatic brakes (21) are fixedly connected to the upper end of the mounting base plate (19), and one side between the two sets of the fixing rings (23) A guide roller motor (26) is fixedly connected to the bottom of the mounting base plate (19), the guide roller motor (26) is a stepping motor, and a guide roller transmission gear (27) is fixedly connected to the end of the rotating shaft of the guide roller motor (26). ), the guide roller drive gears (27) are respectively meshed and connected with two sets of ring gears (20), and a wire cake winding motor ( 22), the silk cake winding motor (22) is a permanent magnet synchronous motor, and a silk cake synchronous wheel is fixedly connected to the rotating shaft of the silk cake winding motor (22), and the mounting substrate ( 19) Several linkage shafts (28) are rotatably connected to the upper part, and the lower end of the linkage shaft (28) is fixedly connected with a first synchronizing wheel (29), and the first synchronizing wheel (29) is connected to the silk cake synchronizing wheel through an annular toothed belt. Transmission connection, the upper end of the linkage shaft (28) is respectively fixedly connected with a second synchronizing wheel (30), the upper end of the fixing ring (23) is fixedly connected with a connecting ring (31), and the upper end of the connecting ring (31) is fixedly connected There is a mounting plate (32), four sets of guide roller shafts (36) in a ring-shaped array are rotatably connected to the mounting plate (32), and a third synchronizing wheel is fixedly connected to the lower end of the guide roller shaft (36). The third synchronizing pulleys are respectively connected to the corresponding second synchronizing pulleys (30) by means of annular toothed belts. The upper end of the guide roller shaft (36) is fixedly connected with an expansion shaft (24), and the expansion shaft (24) slides upward. The sleeve is connected with a paper tube (25). 5. A twisting device with an automatic roll changing mechanism according to claim 4, characterized in that a first rotating shaft (33) is rotatably connected to the edge side of the mounting base plate (19), and the first rotating shaft (33) One end of the rotating shaft (33) is fixedly connected with a first motor (34), the first rotating shaft (33) is drivingly connected with a suction gun (35), and the suction gun (35) is fixedly connected to the edge of the mounting base plate (19) .
