CN115012601A - A wall hard-packed decorative structure based on a combined design substrate - Google Patents

Abstract

The invention discloses a wall hard-covered decorative structure based on a combined design substrate, comprising: an installation frame and a hard-covered decorative panel, the hard-covered decorative panel is hung on the installation frame, and the hard-covered decorative panel includes a substrate and a surface layer, The base plate includes a plurality of base plate units, the plurality of base plate units are spliced to form a base plate, the base plate unit is provided with a first groove, the plurality of first grooves are assembled to form a sound insulation material installation groove on the surface of the base plate, and the sound insulation material is installed in the sound insulation material installation groove , the end face of the base plate unit is provided with a locking block, the locking block on one base plate unit is inserted into the slot on another adjacent base plate unit, the locking block is fixedly installed in the slot by the fastener, and the surface layer is bonded to substrate surface. Compared with the prior art, the present invention adopts a combined substrate for the hard wrapping surface, which reduces maintenance costs and transportation costs, and avoids collision damage during transportation.

Description

A wall hard-packed decorative structure based on a combined design substrate

technical field

The invention belongs to the field of prefabricated buildings, and in particular relates to a wall hard-packed decorative structure based on a combined design substrate.

Background technique

The hard-covered decorative panel is usually a decorative panel that uses wood board or high-density fiberboard and other boards as the substrate, tailors it into the desired shape, and then wraps the fabric or leather and other fabrics on the substrate. It is a kind of plastic art and decoration. The combined decoration technology has the characteristics of various colors, rich patterns, strong three-dimensional sense, safety and environmental protection, etc., which can soften the overall space atmosphere and enhance the three-dimensional sense of depth. It can be widely used in residential, office, hotel, hotel and other interior decoration. Chinese patent CN202022391052.X discloses an installation structure for a wall fireproof hard-pack decorative panel, which includes a wall base and a hard-pack decorative layer, and a plurality of fixed card slots are fixed on the wall base, and the fixed card grooves are elastic , a plurality of fixed card slots are arranged vertically, and are evenly spaced along the horizontal direction of the wall base layer, the fixed card slot includes two symmetrically arranged horizontal parts, a vertical part is fixedly connected between the horizontal parts, and the vertical part Connected to one end of the horizontal part, grooves are respectively opened on the opposite sides of the two horizontal parts, and a plurality of installation holes for installing the fixed card grooves are opened on the vertical part. A plurality of clamping strips corresponding to the fixed clamping grooves are fixed on the side, the clamping strips are long strips, and two sides of the clamping strips along the vertical direction are provided with protrusions.

The area of the substrate in the existing hard-pack veneer is relatively large. Once the hard-pack veneer is damaged by collision, the entire substrate needs to be replaced, resulting in high maintenance costs and high transportation costs for large-area substrates, which are prone to collision damage during transportation.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a wall hardcover decorative structure based on a combined design substrate, and the hardcover decoration adopts a combined substrate to reduce maintenance costs and transportation costs, and avoid collision damage during transportation.

In order to achieve the above-mentioned purpose, the present invention adopts the following technical scheme: a wall hard-covered decorative structure based on a combined design substrate, comprising: an installation frame and a hard-covered decorative panel, the hard-covered decorative panel is hung on the installation frame, and the hard-covered decorative panel is mounted on the installation frame. The cladding panel includes a base plate and a surface layer, the base plate includes a plurality of base plate units, the plurality of base plate units are spliced to form a base plate, the base plate unit is provided with a first groove, and the plurality of first grooves are assembled to form a sound insulation material installation groove on the surface of the base plate, The sound insulation material is installed in the sound insulation material installation groove, the end face of the base plate unit is provided with a locking block, the locking block on one base plate unit is inserted into the slot on the other adjacent base plate unit, and the locking block is fixedly installed on the base plate unit through fasteners. In the slot, the surface layer is bonded to the surface of the substrate.

As a further description of the above technical solutions:

The base plate unit is also provided with a second groove, the first groove is set on the bottom surface of the second groove, and a plurality of second grooves are assembled to form functional material installation grooves on the surface of the base plate.

As a further description of the above technical solutions:

The end face of the base plate unit is provided with several plug connectors and several plug holes, and the plug connectors of one base plate unit are inserted into the plug holes on another adjacent base plate unit.

As a further description of the above technical solutions:

The plug connectors and the plug holes are arranged at intervals.

As a further description of the above technical solutions:

The edge of the substrate unit is provided with a stepped surface.

As a further description of the above technical solutions:

The width of the step surface is equal to the thickness of the surface layer.

As a further description of the above technical solutions:

The cover is leather.

As a further description of the above technical solutions:

The locking block is provided with a countersunk hole, and the fastener is installed in the countersunk hole.

As a further description of the above technical solutions:

The installation frame includes a vertical keel and a hanging keel, the vertical keel is fixedly installed on the base wall, the hanging keel is fixedly installed on the vertical keel, and the hard-pack decorative panel is hung on the hanging keel through a hanging piece.

To sum up, due to the adoption of the above-mentioned technical solutions, the beneficial effects of the present invention are:

1. In the present invention, when installing the hard-covered decorative panel, first insert the locking block into the slot on the base plate unit, then splicing several base plate units, and use the locking block to lock the position of two adjacent base plate units to form a A whole (substrate), at the same time, the first grooves on several substrate units are assembled to form the sound insulation material installation groove on the surface of the substrate, the sound insulation material is filled into the sound insulation material installation groove, and then the surface layer is bonded to the surface of the substrate to complete the hardening. Assembly of cladding panels. Finally, hang the hard-pack decorative panel on the mounting frame as a whole to complete the installation. There is no need to replace the entire base plate when the hard-packed finish is damaged by collision, but only the corresponding base plate unit needs to be replaced, which reduces maintenance costs. At the same time, the combined base plate is convenient for transportation, reducing transportation costs and avoiding collision damage during transportation.

2. In the present invention, the substrate unit is further provided with a second groove, the first groove is disposed on the bottom surface of the second groove, and a plurality of second grooves are assembled to form functional material installation grooves on the surface of the substrate. In the functional material installation slot, sound insulation material, flame retardant material or waterproof material can be installed according to requirements. When installing the sound insulation material, the sound insulation material in the sound insulation material installation groove is made of sound-absorbing cotton, and the ceramic fiber sound-absorbing board is installed in the functional material installation groove, so that the hard-pack decorative panel has the advantages of high strength and light weight. The flame retardant material can be made of nylon cotton flame retardant fabric, and the waterproof material can be made of waterproof membrane.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the following briefly introduces the accompanying drawings used in the embodiments. It should be understood that the following drawings only show some embodiments of the present invention, and therefore do not It should be regarded as a limitation of the scope, and for those of ordinary skill in the art, other related drawings can also be obtained according to these drawings without any creative effort.

FIG. 1 is a schematic structural diagram of a wall hard-packed decorative structure based on a combined design substrate.

FIG. 2 is a schematic structural diagram of a side-view angle of a substrate in a wall hard-pack decorative structure based on a combined design substrate.

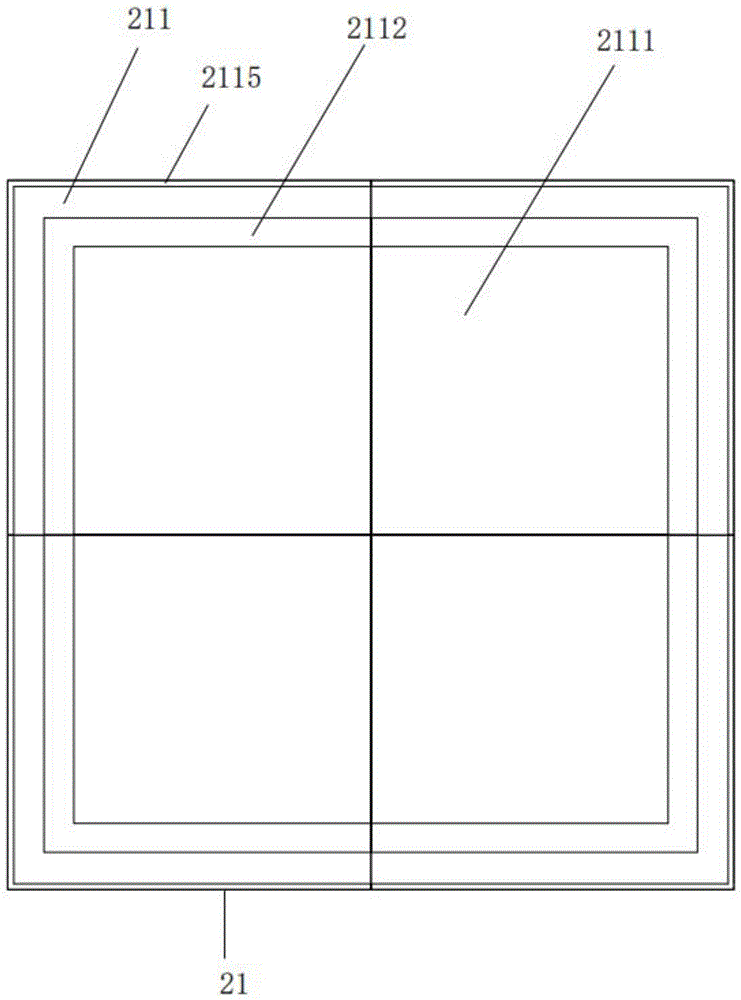

FIG. 3 is a schematic structural diagram of a main view angle of a substrate in a wall hard-packed decorative structure based on a combined design substrate.

FIG. 4 is a first structural schematic diagram of a substrate unit in a wall hard-pack decorative structure based on a combined design substrate.

FIG. 5 is a partial enlarged view of A in FIG. 4 .

FIG. 6 is a second structural schematic diagram of a substrate unit in a wall hard-pack decorative structure based on a combined design substrate.

illustration:

1. Mounting frame; 11. Vertical keel; 12. Mounting keel; 2. Hard-packed decorative panel; 21. Base plate; 211, Base plate unit; 2111, First groove; 2112, Second groove; ; 2114, plug hole; 2115, step surface; 22, surface layer; 3, locking block; 31, countersunk hole; 4, hooking piece.

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments These are some embodiments of the present invention, but not all embodiments. The components of the embodiments of the invention generally described and illustrated in the drawings herein may be arranged and designed in a variety of different configurations.

Thus, the following detailed description of the embodiments of the invention provided in the accompanying drawings is not intended to limit the scope of the invention as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

It should be noted that like numerals and letters refer to like items in the following figures, so once an item is defined in one figure, it does not require further definition and explanation in subsequent figures.

In the description of the embodiments of the present invention, it should be noted that the azimuth or positional relationship indicated by the terms "up" and "inside" are based on the azimuth or positional relationship shown in the accompanying drawings, or the azimuth or positional relationship that the product of the invention is habitually placed in use. The orientation or positional relationship is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore should not be construed as a limitation of the present invention. limit.

In the description of the present invention, it should also be noted that, unless otherwise expressly specified and limited, the terms "arranged", "installed", "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection, It can also be a detachable connection, or an integral connection; it can be directly connected, or indirectly connected through an intermediate medium, and it can be internal communication between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

1-6, the present invention provides a technical solution: a wall hard-covered decorative structure based on a combined design substrate, comprising: a mounting frame 1 and a hard-covered decorative panel 2, the hard-covered decorative panel 2 is hung on the On the mounting frame 1, the hard-covered decorative panel 2 includes a substrate 21 and a surface layer 22. The substrate 21 includes a plurality of substrate units 211. The substrate units 211 are spliced together to form the substrate 21. The first grooves 2111 are assembled to form a soundproof material installation groove on the surface of the base plate 21. The soundproof material is installed in the soundproof material installation groove. The end face of the base plate unit 211 is provided with a locking block 3, and the locking block 3 on one base plate unit 211 is inserted into the In a slot on another adjacent base plate unit 211 , the locking block 3 is fixedly installed in the slot by a fastener, and the surface layer 22 is adhered to the surface of the base plate 21 . The cross section of the locking block 3 is in a "T" shape, which effectively prevents the locking block 3 from leaving the slot and ensures the splicing effect of each substrate unit 211 .

The substrate unit 211 is also provided with a second groove 2112 , the first groove 2111 is disposed on the bottom surface of the second groove 2112 , and a plurality of second grooves 2112 are assembled to form functional material installation grooves on the surface of the substrate 21 . Sound insulation materials, flame retardant materials or waterproof materials can be installed in the functional material installation slot according to requirements. When installing sound insulation materials, the sound insulation material in the sound insulation material installation slot is made of sound-absorbing cotton, and the ceramic fiber sound-absorbing board is installed in the functional material installation slot. Hardcover veneer combines the advantages of high strength and light weight. The flame retardant material can be made of nylon cotton flame retardant fabric, and the waterproof material can be made of waterproof membrane.

The end face of the substrate unit 211 is provided with several plug connectors 2113 and several plug holes 2114 , and the plug connectors 2113 of one substrate unit 211 are inserted into the plug holes 2114 on another adjacent substrate unit 211 .

The plug connectors 2113 and the plug holes 2114 are arranged at intervals to ensure the splicing quality of the substrate unit 211 .

The edge of the substrate unit 211 is provided with a stepped surface 2115. The width of the stepped surface 2115 is equal to the thickness of the surface layer 22. The edge of the surface layer 22 pasted on the surface of the hard-covered decorative panel 2 is bent and pasted at the stepped surface 2115, which can not only hide the surface The installation gap of the layer 22 can improve the decorative effect, and can also improve the connection strength of the surface layer 22 to prevent the surface layer 22 from falling off.

The surface layer 22 is leather to improve the decorative effect.

The locking block 3 is provided with a countersunk head hole 31, and the fastener is installed in the countersunk head hole 31 to prevent the bolt head of the fastener from protruding from the edge of the hard-packed decorative panel 2, and to avoid affecting the splicing of adjacent hard-packed decorative panels 2.

The mounting frame 1 includes a vertical keel 11 and a hanging keel 12. The vertical keel 11 is fixedly installed on the base wall, the hanging keel 12 is fixedly installed on the vertical keel 11, and the hard-pack decorative panel 2 is hung on the hanging keel through the hanging piece 4. Solitaire 12 on. The cross section of the hooking keel 12 is in a "Z" shape, the hooking member 4 is hooked on the hooking keel 12 , and each base plate unit 211 is provided with the hooking member 4 .

Working principle: When installing the hard-covered decorative panel, first insert the locking block into the slot on the base plate unit, then splicing several base plate units, and use the locking block to lock the position of two adjacent base plate units to form a whole ( At the same time, the first grooves on several base plate units are assembled to form sound insulation material installation grooves on the surface of the base plate. assembly. Finally, hang the hard-pack decorative panel on the mounting frame as a whole to complete the installation. There is no need to replace the entire base plate when the hard-packed finish is damaged by collision, but only the corresponding base plate unit needs to be replaced, which reduces maintenance costs. At the same time, the combined base plate is convenient for transportation, reducing transportation costs and avoiding collision damage during transportation. The base plate unit is also provided with a second groove, the first groove is set on the bottom surface of the second groove, and a plurality of second grooves are assembled to form functional material installation grooves on the surface of the base plate. In the functional material installation slot, sound insulation material, flame retardant material or waterproof material can be installed according to requirements. When installing the sound insulation material, the sound insulation material in the sound insulation material installation groove is made of sound-absorbing cotton, and the ceramic fiber sound-absorbing board is installed in the functional material installation groove, so that the hard-pack decorative panel has the advantages of high strength and light weight. The flame retardant material can be made of nylon cotton flame retardant fabric, and the waterproof material can be made of waterproof membrane.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. The equivalent replacement or change of the inventive concept thereof shall be included within the protection scope of the present invention.

Claims (9)

1. The utility model provides a hard package of wall decorative structure based on combination formula design base plate which characterized in that includes: mounting bracket (1) and hard package decorative board (2), hard package decorative board (2) articulate on mounting bracket (1), hard package decorative board (2) include base plate (21) and surface course (22), base plate (21) include a plurality of base plate unit (211), a plurality of base plate unit (211) concatenation forms base plate (21), be provided with first recess (2111) on base plate unit (211), a plurality of first recess (2111) concatenation forms the acoustic material mounting groove on base plate (21) surface, acoustic material installs in the acoustic material mounting groove, be provided with locking block (3) on the terminal surface of base plate unit (211), one on base plate unit (211) locking block (3) insert adjacent another in the slot on base plate unit (211), locking block (3) pass through fastener fixed mounting in the slot, the surface layer (22) is adhered to the surface of the substrate (21).

2. The wall surface hard bag decoration structure based on the combined design substrate as claimed in claim 1, wherein a second groove (2112) is further provided on the substrate unit (211), the first groove (2111) is provided on the bottom surface of the second groove (2112), and a plurality of the second grooves (2112) are spliced to form a functional material installation groove on the surface of the substrate (21).

3. The wall surface hardpack decoration structure based on the combined design substrate as claimed in claim 1, wherein the substrate unit (211) has a plurality of plug connectors (2113) and a plurality of plug holes (2114) on its end surface, and the plug connector (2113) of one substrate unit (211) is inserted into the plug hole (2114) of another adjacent substrate unit (211).

4. The wall surface hardpack decorative structure based on the combined design substrate as claimed in claim 3, wherein the plug connector (2113) and the plug hole (2114) are arranged at intervals.

5. The wall surface hardpack decorative structure based on the combined design substrate as claimed in claim 1, wherein the edge of the substrate unit (211) is provided with a step surface (2115).

6. The wall surface hardpack decorative structure based on the combined design substrate as claimed in claim 5, wherein the width of the step surface (2115) is equal to the thickness of the face layer (22).

7. The wall surface hardpack decorative structure based on the combined design substrate as claimed in claim 1, wherein the surface layer (22) is leather.

8. The wall surface hard bag decoration structure based on the combined design substrate as claimed in claim 1, wherein the locking block (3) is provided with a counter bore (31), and the fastening member is installed in the counter bore (31).

9. The wall surface hard package decoration structure based on the combined design substrate is characterized in that the mounting frame (1) comprises a vertical keel (11) and a hanging keel (12), the vertical keel (11) is fixedly mounted on the wall surface of the base layer, the hanging keel (12) is fixedly mounted on the vertical keel (11), and the hard package decoration panel (2) is hung on the hanging keel (12) through a hanging piece (4).
