Abstract

The invention discloses a safety fire protection system device for super high-rise building core tube construction, and relates to the technical field of building construction fire protection. The invention includes a bottom plate, an annular groove is opened in the bottom plate, a turntable is arranged in the annular groove, the turntable is rotatably connected with the annular groove, the top of the turntable is provided with a threaded cylinder, and the surface of the bottom plate is provided with a disc. The present invention can make the camera and the smoke detector work together by setting the telescopic rod, the threaded barrel, the threaded rod, the driving motor, the stepping motor, the camera, the smoke detector, the controller, the locator, the alarm and the fire automatic alarm. Rising to different heights, it can monitor the different heights of the core tube of super high-rise buildings during construction. When a fire occurs, the fire alarm can be used to alert the firefighters, and the fire can be extinguished in time, and the locator can be used. The position of the fire point is transmitted to the fire alarm, which improves the safety of the entire fire protection system in use.

Description

A kind of safety fire protection system device for core tube construction of super high-rise building

technical field

The invention belongs to the technical field of fire prevention in building construction, and in particular relates to a safety fire protection system device for core tube construction of super high-rise buildings.

Background technique

The core tube of super high-rise buildings needs to use fire protection devices during construction. The fire protection devices can improve the safety of the core tubes of super high-rise buildings during construction and avoid fire hazards during construction. However, the existing fire protection devices still have certain problems in use. The disadvantage is that the existing fire protection devices have poor safety in use, and cannot carry out comprehensive fire protection monitoring for the core tubes of super high-rise buildings of different heights, which reduces the practicability and functionality of the fire protection devices in use. To improve this, a safety fire protection system device for the core tube construction of super high-rise buildings is proposed.

SUMMARY OF THE INVENTION

The object of the present invention is to provide a safety fire protection system device for the construction of a super high-rise building core tube, so as to solve the existing problems: the existing fire protection device has poor safety in use, and cannot be used for super high-rise building cores of different heights. Comprehensive fire monitoring is carried out on the barrel, reducing the practicality and functionality of the fire protection device when it is in use.

In order to solve the above-mentioned technical problems, the present invention is achieved through the following technical solutions:

The invention relates to a safety fire protection system device for the construction of a core tube of a super high-rise building, comprising a bottom plate, an annular groove is opened in the bottom plate, a turntable is arranged in the annular groove, the turntable is rotatably connected with the annular groove, and the turntable is A threaded barrel is arranged on the top of the bottom plate, a disk is arranged on the surface of the bottom plate, the disk is arranged right above the annular groove, a driven gear is arranged on the outside of the threaded barrel, and a threaded rod is arranged in the threaded barrel , the threaded rod is threadedly connected with the threaded barrel, the top of the bottom plate is provided with a stepping motor, the output end of the stepping motor is provided with a driving gear, the driving gear is arranged on the side of the driven gear, the driving The gear meshes with the driven gear, the top of the threaded rod is provided with a moving plate, and the bottom of the moving plate is respectively provided with a locator and a rotating seat.

Further, the top end of the threaded rod extends into the rotating base and is rotatably connected with the rotating base, the top of the moving plate is respectively provided with a fixed plate and a signal transmitter, and the side of the moving plate is provided with a smoke detector, so The fixed plate is provided with a sliding plate.

Further, the sliding plate is slidably connected with the fixing plate, the top of the sliding plate is provided with a cover plate, the top of the cover plate is provided with a camera, and the inner surface wall of the cover plate is provided with first teeth.

Further, a drive motor is installed on the top of the moving plate, the output end of the drive motor is provided with second teeth, the second teeth extend into the sleeve plate, and the second teeth are connected with the first teeth. Teeth meshing.

Further, a vertical plate is arranged on the surface of the bottom plate, the vertical plate is arranged on the side of the moving plate, a chute is opened in the vertical plate, a side plate is arranged on the side of the moving plate, and the side plate extends into the chute and slidingly connected with the chute.

Further, the surface of the bottom plate is provided with a display screen, an alarm, a controller and an automatic fire alarm, respectively, and the output ends of the stepping motor and the driving motor are respectively electrically connected with the input end of the controller.

Further, the input ends of the camera and the smoke detector are respectively electrically connected with the output end of the controller, the output end of the smoke detector is electrically connected with the input end of the alarm, and the output end of the camera is electrically connected with the positioning end. The input terminal of the device is electrically connected.

Further, the output end of the locator is electrically connected to the input end of the signal transmitter, the output end of the signal transmitter is electrically connected to the input end of the display screen, and the output end of the display screen is electrically connected to the automatic fire alarm. The input terminal of the device is electrically connected.

Further, the bottom of the bottom plate is provided with a telescopic rod, the bottom of the telescopic rod is provided with a universal wheel, and the universal wheel is movably connected with the telescopic rod.

Further, the lengths of the telescopic rod, the threaded barrel, the threaded rod and the vertical plate are all 50m.

The present invention has the following beneficial effects:

1. The present invention can make the camera and the smoke by setting the telescopic rod, the threaded barrel, the threaded rod, the driving motor, the stepping motor, the camera, the smoke monitor, the controller, the locator, the alarm and the automatic fire alarm. The monitor rises to different heights, and then it can monitor different heights of the core tube of super high-rise buildings. When there is a fire point, it can alarm the firefighters through the automatic fire alarm, and then the fire can be extinguished in time, and the locator The position of the ignition point can be transmitted to the automatic fire alarm to improve the safety of the entire fire protection system in use.

2. The present invention can display the picture taken by the camera by setting the display screen, which is convenient for people to observe. At the same time, the camera can move horizontally and circularly, so that the camera can take pictures at different positions at the same height, so as to avoid the existence of shooting dead angles, thereby improving the use of fire protection system devices. range of use.

Of course, it is not necessary for any product embodying the present invention to achieve all of the above-described advantages simultaneously.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the following briefly introduces the accompanying drawings used in the description of the embodiments. Obviously, the drawings in the following description are only some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without any creative effort.

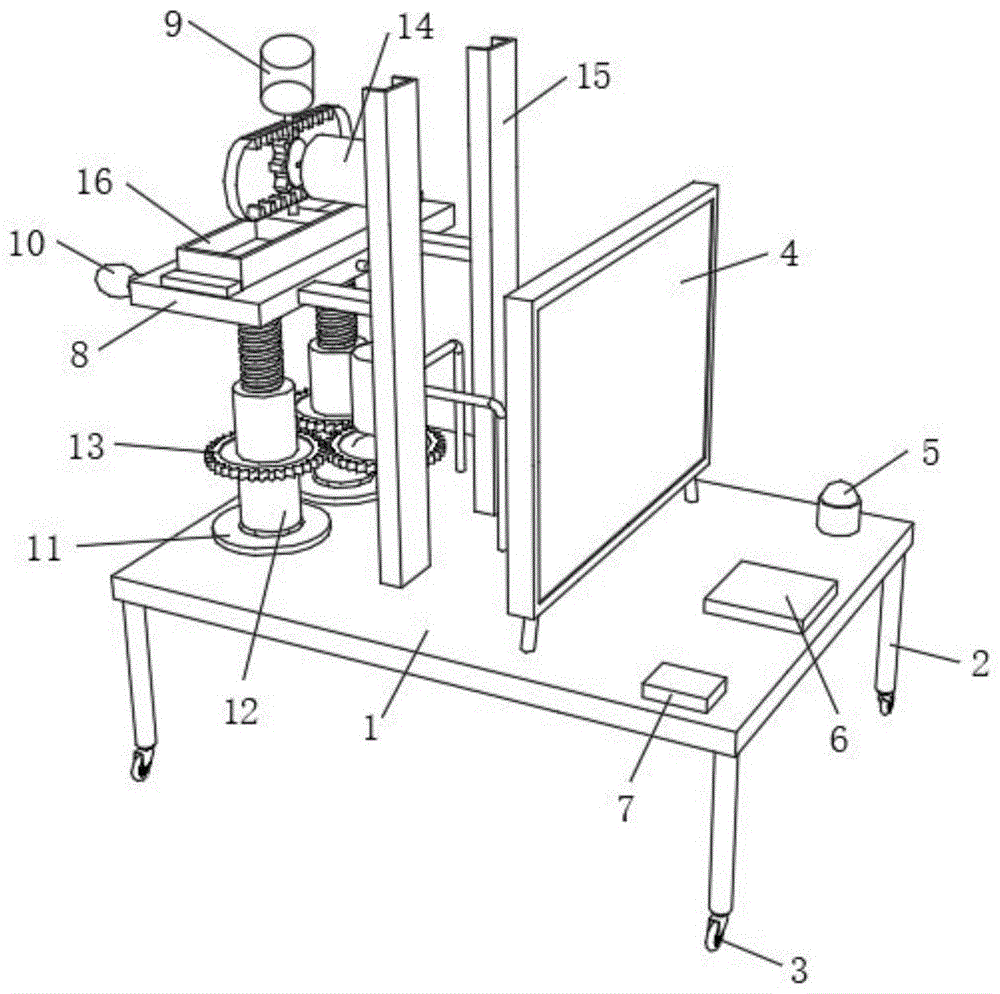

Fig. 1 is the overall structure schematic diagram of the present invention;

Fig. 2 is the left side view of the present invention;

Fig. 3 is the bottom view of the present invention;

Fig. 4 is the sectional view of the moving plate of the present invention;

Fig. 5 is the right side view of the present invention;

FIG. 6 is an overall control block diagram of the present invention.

In the accompanying drawings, the list of components represented by each number is as follows:

1. Bottom plate; 2. Telescopic rod; 3. Universal wheel; 4. Display screen; 5. Alarm; 6. Controller; 7. Fire alarm; 8. Mobile board; 9. Camera; 10. Smoke monitoring device; 11, disc; 12, threaded barrel; 13, driven gear; 14, drive motor; 15, vertical plate; 16, fixed plate; 17, slide plate; 18, sleeve plate; 19, first tooth; 20 , second tooth; 21, chute; 22, side plate; 23, threaded rod; 24, signal transmitter; 25, locator; 26, rotating seat; 27, annular groove; 28, turntable; 29, driving gear ; 30, stepper motor.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Please refer to FIGS. 1 to 6 , the present invention is a safety and fire protection system device for the construction of a core tube of a super high-rise building, comprising a bottom plate 1, an annular groove 27 is opened in the bottom plate 1, and a turntable 28 is arranged in the annular groove 27. 28 is rotatably connected to the annular groove 27, the top of the turntable 28 is provided with a threaded barrel 12, the surface of the bottom plate 1 is provided with a disk 11, the disk 11 is arranged just above the annular groove 27, and the outside of the threaded barrel 12 is provided with a driven gear 13. A threaded rod 23 is provided in the threaded barrel 12, and the threaded rod 23 is threadedly connected to the threaded barrel 12. The top of the bottom plate 1 is provided with a stepping motor 30, and the output end of the stepping motor 30 is provided with a driving gear 29, and the driving gear 29 is provided with On the side of the driven gear 13, the driving gear 29 meshes with the driven gear 13, the top of the threaded rod 23 is provided with a moving plate 8, and the bottom of the moving plate 8 is respectively provided with a positioner 25 and a rotating seat 26, and the top of the threaded rod 23 It extends into the rotating base 26 and is rotatably connected with the rotating base 26. The top of the moving plate 8 is provided with a fixed plate 16 and a signal transmitter 24, respectively. 17. The sliding plate 17 is slidably connected with the fixing plate 16, the top of the sliding plate 17 is provided with a cover plate 18, the top of the cover plate 18 is provided with a camera 9, and the camera 9 is an infrared camera, which can make the camera 9 and the smoke detector 10 rise to different levels. Height, and then can monitor the different heights of the super high-rise building core tube construction, when there is a fire point, you can alarm the firefighters through the fire alarm 7, and then the fire can be extinguished in time, and the locator 25 can The position is transmitted to the automatic fire alarm 7 to improve the safety of the entire fire protection system in use. The inner surface wall of the sleeve plate 18 is provided with first teeth 19, and the top of the moving plate 8 is installed with a drive motor 14. The drive motor 14 The output end of the base plate 1 is provided with second teeth 20, the second teeth 20 extend into the sleeve plate 18, the second teeth 20 are engaged with the first teeth 19, the surface of the bottom plate 1 is provided with a vertical plate 15, and the vertical plate 15 is provided with On the side of the movable plate 8, the vertical plate 15 is provided with a chute 21, the side of the movable plate 8 is provided with a side plate 22, the side plate 22 extends into the chute 21 and is slidably connected with the chute 21, and the surfaces of the bottom plate 1 are respectively A display screen 4, an alarm 5, a controller 6 and an automatic fire alarm 7 are provided. The output ends of the stepping motor 30 and the drive motor 14 are respectively electrically connected to the input ends of the controller 6. The camera 9 and the smoke detector 10 The input ends of the smoke detectors are respectively electrically connected to the output ends of the controller 6, the output ends of the smoke detectors 10 are electrically connected to the input ends of the alarm 5, the output ends of the camera 9 are electrically connected to the input ends of the locator 25, and the cameras 9 can be moved horizontally and circularly, so that the camera 9 can shoot at different positions at the same height, avoiding the existence of shooting dead angles, thereby improving the use range of the fire protection system device when it is in use. The output terminal of the signal transmitter 24 is electrically connected to the input terminal of the display screen 4, and the display screen The output end of 4 is electrically connected with the input end of the fire automatic alarm 7, the bottom of the bottom plate 1 is provided with a telescopic rod 2, the bottom of the telescopic rod 2 is provided with a universal wheel 3, and the universal wheel 3 is movably connected with the telescopic rod 2, The lengths of the telescopic rod 2, the threaded barrel 12, the threaded rod 23 and the vertical plate 15 are all 50m.

A specific application of this embodiment is as follows: the telescopic rod 2 is raised to a suitable height, and then the switches of the driving motor 14 and the stepping motor 30 are respectively turned on by the controller 6, and when the stepping motor 30 is working, the driving gear 29 is driven to circulate in a positive direction. Reverse rotation, since the driving gear 29 and the driven gear 13 are engaged, the driven gear 13 and the threaded barrel 12 can be driven to rotate, and when the threaded barrel 12 rotates, the threaded rod 23 is driven to move in the threaded barrel 12, and then the threaded rod 23 can be rotated. Drive the moving plate 8, the camera 9 and the smoke detector 10 to move up and down cyclically. When the driving motor 14 works, it drives the second teeth 20 to rotate. Since the second teeth 20 are engaged with the first teeth 19, the sleeve plate 18 can be driven. It moves cyclically with the camera 9, and the camera 9 and the smoke detector 10 can monitor the construction of the core tube of the super high-rise building. When a fire point occurs, the image captured by the camera 9 can be displayed through the display screen 4, and the locator 25, The signal transmitter 24 can make the automatic fire alarm 7 work, and alarm the fire department through the automatic fire alarm 7, and transmit the position of the fire to the fire department, so as to avoid the phenomenon of fire in the core tube of the super high-rise building during construction, and improve the efficiency of the fire. Safety of fire protection system installations in use.

In the description of this specification, description with reference to the terms "one embodiment," "example," "specific example," etc. means that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one aspect of the present invention. in one embodiment or example. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The above-disclosed preferred embodiments of the present invention are provided only to help illustrate the present invention. The preferred embodiments do not exhaust all the details, nor do they limit the invention to only the described embodiments. Obviously, many modifications and variations are possible in light of the content of this specification. The present specification selects and specifically describes these embodiments in order to better explain the principles and practical applications of the present invention, so that those skilled in the art can well understand and utilize the present invention. The present invention is to be limited only by the claims and their full scope and equivalents.

Claims (10)

1. A super high-rise building core tube construction safety fire protection system device, comprising a bottom plate (1), characterized in that: an annular groove (27) is provided in the bottom plate (1), and an annular groove (27) is provided in the There is a turntable (28), the turntable (28) is rotatably connected with the annular groove (27), the top of the turntable (28) is provided with a threaded cylinder (12), and the surface of the bottom plate (1) is provided with a disc ( 11), the disc (11) is arranged just above the annular groove (27), the outside of the threaded barrel (12) is provided with a driven gear (13), and the inside of the threaded barrel (12) is provided with a thread A rod (23), the threaded rod (23) is threadedly connected with the threaded cylinder (12), a stepper motor (30) is provided on the top of the bottom plate (1), and the output end of the stepper motor (30) is provided with There is a driving gear (29), the driving gear (29) is arranged on the side of the driven gear (13), the driving gear (29) meshes with the driven gear (13), and the top of the threaded rod (23) A moving plate (8) is provided, and the bottom of the moving plate (8) is respectively provided with a positioner (25) and a rotating seat (26). 2. The super high-rise building core tube construction safety fire protection system device according to claim 1, wherein the top end of the threaded rod (23) extends into the rotating seat (26) and is connected with the rotating seat (26) Rotationally connected, the top of the moving plate (8) is provided with a fixed plate (16) and a signal transmitter (24) respectively, the side of the moving plate (8) is provided with a smoke detector (10), and the fixed plate A slide plate (17) is provided in (16). 3. A safety fire protection system device for super high-rise building core tube construction according to claim 2, characterized in that: the sliding plate (17) is slidably connected to the fixing plate (16), and the top of the sliding plate (17) is provided with There is a cover plate (18), the top of the cover plate (18) is provided with a camera (9), and the inner surface wall of the cover plate (18) is provided with first teeth (19). 4. The super high-rise building core tube construction safety fire protection system device according to claim 3, characterized in that: a drive motor (14) is installed on the top of the moving plate (8), and the drive motor (14) The output end of the device is provided with second teeth (20), the second teeth (20) extend into the sleeve plate (18), and the second teeth (20) are engaged with the first teeth (19). 5. The super high-rise building core tube construction safety fire protection system device according to claim 1, characterized in that: the surface of the bottom plate (1) is provided with a vertical plate (15), and the vertical plate (15) is provided with a vertical plate (15). On the side of the moving plate (8), the vertical plate (15) is provided with a chute (21), the side of the moving plate (8) is provided with a side plate (22), and the side plate (22) extends into the chute (21) and slidingly connected with the chute (21). 6. A super high-rise building core tube construction safety fire protection system device according to claim 1, characterized in that: the surface of the bottom plate (1) is respectively provided with a display screen (4), an alarm (5), a control The output end of the stepping motor (30) and the driving motor (14) are respectively electrically connected with the input end of the controller (6). 7. A super high-rise building core tube construction safety fire protection system device according to claim 3, characterized in that: the input ends of the camera (9) and the smoke detector (10) are respectively connected with the input ends of the controller (6). The output end is electrically connected, the output end of the smoke detector (10) is electrically connected with the input end of the alarm (5), the output end of the camera (9) is electrically connected with the input end of the locator (25) connect. 8. A super high-rise building core tube construction safety fire protection system device according to claim 7, characterized in that: the output end of the positioner (25) is electrically connected with the input end of the signal transmitter (24), The output end of the signal transmitter (24) is electrically connected with the input end of the display screen (4), and the output end of the display screen (4) is electrically connected with the input end of the automatic fire alarm (7). 9. A safety fire protection system device for super high-rise building core tube construction according to claim 1, characterized in that: the bottom of the bottom plate (1) is provided with a telescopic rod (2), and the telescopic rod (2) has a A universal wheel (3) is arranged at the bottom, and the universal wheel (3) is movably connected with the telescopic rod (2). 10. The super high-rise building core tube construction safety fire protection system device according to claim 9, characterized in that: the telescopic rod (2), the threaded cylinder (12), the threaded rod (23) and the vertical plate (15) ) are 50m in length.
