Abstract
The invention relates to a modularized assembled multifunctional sunlight room, which comprises a room frame and a glass plate arranged on the room frame, wherein the room frame comprises a ridge frame, a ridge frame supporting frame, a wing frame and a wing frame supporting frame; the lower part of the wing frame is connected with a lifting component which is used for driving the wing frame to rotate so as to enable the wing frame to have an opening state and a closing state, and the inside and the outside of the sunshine room are communicated when the wing frame is in the opening state; the ridge frame support frame and the wing frame support frame are provided with heat insulation plates on the inner sides of the glass plates; the unit frames of the ridge frame and the wing frame are provided with sunshade curtain components on the inner sides of the glass plates; through carrying out the modularized design to the sunshine room, improved the construction efficiency in sunshine room, it is thermal-insulated to keep warm through glass board, heated board, sunshade screen simultaneously, realizes being fit for not only building convenient but also the sunshine room that suitable four seasons leisure was planted of popularizing and applying in the place of community.
Description
Technical Field
The invention relates to the technical field of greenhouse buildings, in particular to a modular and assembled multifunctional sunlight room.
Background
In the prior art, in order to adapt to plant growth in different seasons, plants are cultivated in sunlight rooms, meanwhile, the sunlight rooms are also suitable for soilless culture technology with small occupied area, and due to the fact that products planted by the soilless culture technology are environment-friendly and good in taste, the sunlight rooms have the advantages of being easy to master, capable of decorating space and particularly suitable for residential houses and communities lack of land conditions to conduct leisure planting, and are popular among household people. Therefore, the soilless culture technology is gradually popularized in the home life, people in the community have more and more demands on the soilless culture technology, the sunlight room is very suitable for application and popularization in the community as the soilless culture place, no matter in urban communities or rural communities, a courtyard, a terrace, a roof and other idle spaces can be built for the sunlight room, the sunlight room can provide a planting environment and a leisure activity space, so that the sunlight room suitable for four-season planting and four-season leisure is built in the community, and more market demands are met.
Sunshine room among the prior art comprises the frame that metal crate formed and the glass board of installing on the frame usually, utilize the section bar to accomplish the installation of glass again after putting up of frame at the job site, as authorizing the chinese utility model patent that bulletin number is CN205922239U disclose a greenhouse glass room, it constitutes a sunshine room, including frame and glass, the frame is including supporting the frame, roof-rack (wing frame), glass inlays respectively to be established on supporting frame and roof-rack in order to form the top enclosure and the lateral part enclosure of sunshine room respectively, an organic whole is fixed with the tripod on the supporting frame, be equipped with telescopic component between roof-rack and the supporting frame, the roof-rack is rotatable and place in on the tripod, drive the roof-rack upset and then realize the function that the roof was opened through telescopic component to guarantee indoor good air permeability.
The roof of the sunlight room with the structure is of a whole liftable structure, so the ridge of the sunlight room is only formed by a cross beam of the triangular frame, the structural strength of the ridge is weaker, the reinforcing effect on the whole roof frame is limited, the ridge is unreliable in the actual construction and use process, in the field construction, after the building of the roof frame is completed, for the partial roof frame integrally fixed with the supporting roof frame, the glass installation on the ridge is in need of working on the roof by installers, while the working on the large-slope roof is dangerous, the installation is inconvenient, the construction period is long, large-scale equipment and more manpower are required to be invested, moreover, the sunlight room is only surrounded by glass, the heat insulation and preservation capacity is poorer, the temperature in the sunlight room is higher in winter and summer, particularly when the sunlight ratio is stronger in summer, the temperature in the sunlight room is very high, and the sunlight room is not suitable for people to move in the sunlight room, especially, hollow glass or laminated glass serving as a top enclosure filters out ultraviolet UVB wave bands inhibiting plant growth, and easily causes that plants grow and leaves do not fall down finally, so that the requirements of people for cultivation experience of flower and vegetable cultivation and the like in a sunlight room cannot be met. Therefore, the sunlight room in the prior art is not suitable for popularization in communities, is inconvenient to build and install on site, and cannot meet the requirements of people in the communities on multiple functions of being suitable for leisure in four seasons and meeting cultivation experience.
Disclosure of Invention
The invention aims to provide a modular and spliced multifunctional sunlight room to solve the problems that the existing sunlight room is inconvenient to build and cannot meet the requirements of people in communities on multiple functions of the sunlight room, such as being suitable for leisure in four seasons, meeting cultivation experience and the like.
The technical scheme of the modularized assembled multifunctional sunlight room is as follows:
a modular assembly type multifunctional sunshine room comprises a room frame and a glass plate arranged on the room frame, wherein the room frame comprises a ridge frame, a ridge frame supporting frame and a wing frame, the multifunctional sunlight room comprises a ridge frame, a ridge frame and a bearing beam frame, wherein the ridge frame is fixedly connected with the ridge frame supporting frame to form the bearing beam frame; the wing frame, the ridge frame and the glass plates arranged on the wing frame and the ridge frame are jointly used for forming a roof; a lifting assembly is connected below the wing frame and is used for driving the wing frame to rotate so as to enable the wing frame to have an opening state and a closing state, the inside and the outside of the sunlight room are communicated when the wing frame is in the opening state, a wing frame support frame is arranged on the lower side of the wing frame so as to support the wing frame when the wing frame is in the closing state, and the wing frame support frame is fixedly connected with a ridge frame support frame; insulation boards are arranged on the ridge frame supporting frame and the wing frame supporting frame on the inner sides of the glass plates; the unit frames of the ridge frame and the wing frame are respectively provided with a sunshade screen component on the inner side of the glass plate, and the sunshade screen component comprises a sunshade screen and a sunshade screen driving component for driving the sunshade screen to open or close.
Has the beneficial effects that: the sunlight house is modularly designed, the house frame is divided into a relatively independent bearing beam frame, a wing frame and a wing frame support frame, a ridge frame module is formed on the basis of installing a glass plate and a sunshade component on the ridge frame, the wing frame module is formed by installing the glass plate and the sunshade component on the wing frame, the ridge frame module and the wing frame module form top enclosure, the ridge frame support frame module is formed by installing the glass plate and the insulation board on the basis of the ridge frame support frame, the wing frame support frame module is formed by installing the glass plate and the insulation board on the wing frame support frame, and the ridge frame support frame module and the wing frame support frame module form side enclosure; because each module can be assembled respectively, the volume of each module is smaller, the modules can be pre-assembled and then transported to the site for assembly of the sunlight room, the installation of glass and a sunshade curtain on the roof is not needed on the site, the safe construction is facilitated, the site construction is convenient, and the construction efficiency of the sunlight room is improved; the fixed ridge frame and the movable wing frame jointly form a roof, and the ridge frame supporting frame are fixed to form a bearing beam frame connected with the top and the bottom, so that the overall structural strength of the roof frame is guaranteed; simultaneously, cooperation through heated board and glass board, make lateral part enclosure form bilayer structure, it is thermal-insulated to form the heat preservation, cooperation through sunshade screen and glass board, the sunshade screen forms bilayer structure with the glass board when opening, make the top enclosure possess the thermal insulation ability that keeps warm, warm in winter and cool in summer, can satisfy vegetation needs suitable indoor temperature, satisfy the needs that people carry out the leisure planting activity in the sunshine room simultaneously, the realization is fit for not only suiting the four seasons leisure but also satisfying the sunshine room that multiple functions needs such as cultivation experience are experienced to people in the sunshine room at the site construction convenience of community that popularizes and applies and satisfy the community.
Furthermore, the unit frame is of a frame structure, a sunshade curtain mounting groove with a notch facing the center of the unit frame is formed in the unit frame, and the sunshade curtain driving assembly is mounted in the sunshade curtain mounting groove.
Has the advantages that: the sunshade curtain driving assembly can be hidden in the sunshade curtain mounting groove, the sunshade curtain driving assembly is prevented from occupying the light transmission area, and therefore a high daylighting rate is obtained, the spaces of the upper side and the lower side of the unit frame are not occupied, and the space height in a sunlight room is not affected.
Further, the unit frame is the frame of rectangle, two unit frame crossbeams that the interval set up around including and control two unit frame longerons that the interval set up, two unit frame crossbeams, all be equipped with the limit groove on the two unit frame longerons in order enclosing the sunshade screen mounting groove, the sunshade screen has fixed part and removal portion, the sunshade screen is opened when the fixed part removal is kept away from to the removal portion, sunshade screen drive assembly includes sunshade screen driving motor and drive belt, the limit inslot at two unit frame crossbeams is installed respectively to the fixed part of sunshade screen and sunshade screen driving motor, the sunshade screen driving motor's the left and right sides all has the output shaft, the interval is equipped with two about the drive belt, the limit inslot at two unit frame longerons is installed respectively to two drive belts, two drive belt are connected with sunshade screen driving motor's two output shaft transmission respectively, the drive belt is used for driving the removal of sunshade screen.
Has the advantages that: through set up all around the limit groove on the frame at the rectangle to make things convenient for the fixed part of sunshade screen driving motor, two drive belts and sunshade screen to carry out hidden installation, and when the sunshade screen was closed, can utilize the limit groove on the unit frame crossbeam that corresponds to hold partial sunshade screen, be favorable to improving the light transmission area of unit frame.
Further, the sunshade screen includes full sunshade screen, half sunshade screen, remove the strip, the middle strip, the fixed strip, remove the strip, the fixed strip is located the both sides of middle strip respectively, full sunshade screen both ends are fixed with removal strip, middle strip respectively, the both ends of half sunshade screen are fixed with middle strip, fixed strip respectively, remove the removal portion that the strip formed the sunshade screen, the fixed strip forms the fixed part of sunshade screen, rotate on the middle strip and install the couple, remove the strip, be equipped with respectively on the fixed strip be used for with couple complex projection.
Has the beneficial effects that: when the rotating hook is matched with the upper convex column hook of the movable strip, the sunshade curtain driving motor can drive the movable strip to move through the transmission belt, so as to drive the middle strip to move, and accordingly the half-shading curtain cloth is opened; when the rotating hook is matched with the convex column hook on the fixed strip in a hanging way, the sunshade curtain driving motor can drive the movable strip to move through the transmission belt, and the middle strip and the fixed strip are relatively fixed, so that the full sunshade curtain is opened; therefore, the sunshade curtain has three modes of full lighting, half shading and full shading, so that the sunshade curtain can obtain higher illumination intensity through the full lighting mode when the illumination is not strong, obtain certain illumination intensity through the half shading mode when the illumination is strong, and obtain shade through the full shading mode when the illumination is strong.
Furthermore, the full-shading curtain is an organ curtain, and the half-shading curtain is a yarn curtain.
Has the advantages that: the organ curtain has good heat preservation and insulation effects, and the yarn curtain can diffuse light, so that the illumination intensity is ensured to be appropriate.
Furthermore, the connecting structure is a connecting frame, and the connecting frame and each unit frame are arranged in a split mode.
Has the beneficial effects that: all the unit frames are connected together through the connecting frame, the connecting strength is guaranteed, and meanwhile the size of the unit frames is reduced while the area of the whole covering surface of the wing frame can be guaranteed through the connecting frame, so that the unit frames are convenient to install and operate.
Furthermore, the upper surface of the connecting frame and the upper surface of the unit frame form an included angle, and a reinforcing inclined strut is arranged between the connecting frame and the unit frame.
Has the advantages that: the connecting frame and the unit frame are arranged in an included angle, and the reinforcing inclined strut is arranged between the connecting frame and the unit frame, so that a triangular structure can be formed, and the structural strength of the wing frame can be guaranteed.
Furthermore, the unit frame is rotatably installed on the ridge frame through a hinge, the hinge comprises a rotating shaft and a sleeve, one of the rotating shaft and the sleeve is fixed on the ridge frame, the other one of the rotating shaft and the sleeve is fixed on the unit frame, and the sleeve is sleeved on the rotating shaft along the left-right direction so that the unit frame is installed on the ridge frame; in two adjacent unit framves, be equipped with the sealing strip mounting groove on one of them, be equipped with the sealing fit groove on another, the sealing strip mounting groove is relative about with the sealing fit groove notch, is equipped with the sealing strip in the sealing strip mounting groove, and the sealing strip has the sealed portion of stretching out that stretches out the sealing strip mounting groove, stretches out the sealed portion and is used for stretching into the sealing fit inslot when unit frame is installed on the backbone.
Has the advantages that: the sleeve of hinge is established in the pivot along left right direction cover, and on unit frame removed and installed the backbone along left right direction promptly, simultaneously, because the sealing strip mounting groove was relative about with sealed cooperation groove notch to when unit frame installation, can utilize the unit frame to remove the extension that makes the sealing strip about getting into sealed cooperation inslot and form sealedly.
Further, back timber and boundary beam that the ridge frame set up including the interval around, back timber and boundary beam all extend and be higher than the boundary beam in the upper and lower direction along left right direction, and the back timber is used for forming the ridge, and the glass board on the ridge frame is installed between back timber and boundary beam, and the wing frame is located one side of keeping away from the ridge of ridge frame.
Has the beneficial effects that: set up the ridge frame slope, form the ridge through the higher back timber of ridge frame to can make the roof have certain slope, conveniently take away the dust under rainwash, realize the self-cleaning function in roof in sunshine room, and guarantee through assorted ridge frame support frame that it is reliable to support.
Furthermore, the lifting assembly comprises a base, a lifting motor, a screw nut mechanism and a gas spring supporting rod, the lifting motor is installed on the base, the screw nut mechanism comprises a transmission screw and a transmission nut, the gas spring supporting rod comprises a cylinder body and a piston rod, the bottom end of the transmission screw is in transmission connection with an output shaft of the lifting motor, a cylinder body guide seat is fixed at the top end of the transmission screw, the cylinder body guide is arranged on the cylinder body guide seat in a penetrating mode, the bottom end of the cylinder body is fixed with the transmission nut, the top end of the cylinder body is connected with the wing frame, and the piston rod is fixed with the base.
Has the advantages that: through elevator motor, lead screw nut mechanism piece cooperation air spring bracing piece, when needs go up and down to the wing frame, usable lead screw nut mechanism drives the cylinder body and realizes that the flexible of air spring bracing piece is in order to drive the wing frame and lift or close, when need not drive the wing frame, the gravity of wing frame can be offset to the damping force that air spring bracing piece itself has, realize the balance, avoid the wing frame overweight to lead screw nut mechanism to damage, can reduce lifting unit's quantity, and simultaneously, because the air spring bracing piece exists always to the wing frame holding power, thereby when carrying out lift drive to the wing frame, only need very little drive power just can drive the wing frame, adopt the elevator motor of less power just can satisfy the user demand, be favorable to reduce cost.
Drawings

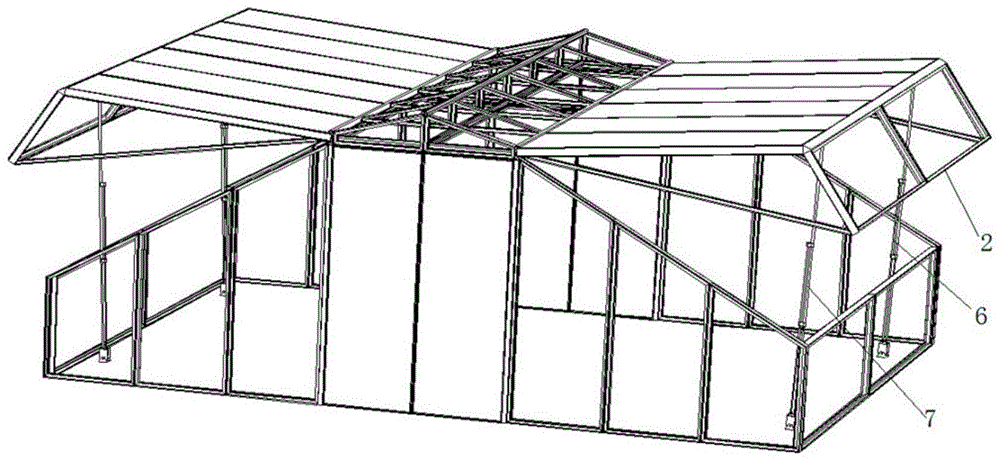

FIG. 1 is a schematic structural view of a wing frame of a modular assembly type multifunctional sunlight room of the present invention in a closed state;
FIG. 2 is a schematic structural view of a wing frame of the modular assembly type multifunctional sunlight room of the present invention in an unfolded state;
FIG. 3 is a schematic view of the configuration of the wing frame of the single frame module of FIG. 1 in a closed position;
FIG. 4 is a schematic view of the wing frame of the single frame module of FIG. 1 in an open position;
FIG. 5 is an exploded view of the structure of FIG. 3;
FIG. 6 is an exploded view of a backbone support module body;
FIG. 7 is a schematic cross-sectional view of FIG. 3;
FIG. 8 is an enlarged view of a portion of FIG. 7 at A;
FIG. 9 is an enlarged partial view of FIG. 4 at B of the location of the attachment of the wing frame to the spine;
FIG. 10 is an exploded view of a cell frame module;
FIG. 11 is an exploded view of the shade assembly;
FIG. 12 is a schematic view of a portion of the sub-transmission housing of FIG. 11;
FIG. 13 is a structural view of the sunshade of FIG. 11 at the hook on the back of the shade;
fig. 14 is a schematic structural view of the lifting assembly.
In the figure: 1. a spine frame; 11. a connecting beam; 12. crimping the sealing strip; 13. pressing the sealing strip; 2. a spine support frame; 21. connecting columns; 22. a spine support frame body; 201. a strength plate; 202. a rubber gasket is sealed by the endurance plate; 203. a ridge frame support frame glass mounting frame; 204. a ridge frame support frame glass plate; 3. a wing frame; 31. a unit frame; 311. an L-shaped protrusion; 322. a C-shaped body; 32. a connecting strip; 33. a connecting frame; 34. reinforcing the inclined strut; 4. a wing frame support frame; 41. a side frame; 42. a side frame; 5. a unit frame glass plate; 51. a unit frame glass mounting frame; 6. a first lifting assembly; 7. a second lifting assembly; 61. a base; 62. a transmission screw rod; 63. a drive nut; 64. a cylinder body guide seat; 65. a cylinder body; 66. a piston rod; 67. the top is hinged with a base; 8. a unit frame sealing strip; 9. a hinge; 10. a sunshade assembly; 101. a guide rail; 102. a plush sealing strip; 103. a transmission belt; 104. an auxiliary transmission case; 105. a sun screen; 106. an end mounting frame; 107. a main transmission case; 108. a sunshade curtain driving motor; 109. an output shaft of the sunshade screen driving motor; 1010. driving the slide block; 1011. a fixing strip; 1012. a middle strip; 1013. a moving bar; 1051. a screen curtain; 1052. an organ curtain; 1014. hooking; 1015. moving the strip convex column; 1016. and fixing strip convex columns.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more apparent, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the detailed description and specific examples, while indicating the preferred embodiment of the invention, are intended for purposes of illustration only and are not intended to limit the scope of the invention. The components of embodiments of the present invention generally described and illustrated in the figures herein may be arranged and designed in a wide variety of different configurations.
The present invention will be described in further detail with reference to examples.
as shown in fig. 1, 2, 3 and 4, the modular assembly type multifunctional sunlight room comprises a room frame and a glass plate arranged on the room frame, the room frame is an aluminum alloy framework, the room frame comprises two frame modules which are symmetrically arranged front and back, the frame modules comprise a ridge frame 1, a ridge frame supporting frame 2, a wing frame 3 and a wing frame supporting frame 4, the ridge frame 1 and the ridge frame supporting frame 2 are fixedly connected to form a force bearing beam frame, the wing frame 3, the wing frame supporting frame 4 and the force bearing beam frame are arranged in a split manner, the force bearing beam frame, the wing frame 3 and the wing frame supporting frame 4 are all frame structures formed by welding sectional materials, the ridge frame 1, the ridge frame supporting frame 2, the wing frame 3 and the wing frame supporting frame 4 are respectively provided with a glass installation frame for installing the glass plate, after the ridge frame 1, the ridge frame supporting frame 2, the wing frame 3 and the wing frame supporting frame 4 are assembled together, a frame module is formed, and the two frame modules are connected together in a butt joint mode to form the house frame. Insulation boards are further installed on the ridge frame supporting frame 2 and the wing frame supporting frame 4, and sunshade curtain components are arranged on the ridge frame 1 and the wing frames 3. The ridge frame support frame 2, the wing frame support frame 4, the glass plate and the heat insulation plate which are arranged on the ridge frame support frame and the wing frame support frame form a side enclosure of the sunlight room, and the ridge frame 1, the wing frame 3, the glass plate and the sun shading curtain assembly which are arranged on the ridge frame support frame and the wing frame form a top enclosure of the sunlight room.
As shown in fig. 5, 6 and 9, the spine support frame 2 is installed at the lower side of the spine 1 for supporting the spine 1, the spine support frames 2 are respectively arranged at the lower parts of the left end and the right end of the spine 1, the spine 1 and the spine support frame 2 are separately arranged, the upper end of the spine support frame 2 is connected with the spine 1, and the lower end is supported on the ground. Ridge frame support frame 2 wholly is the rectangle, including ridge frame support frame main part 22 and spliced pole 21, ridge frame support frame main part 22 is rectangular frame, and vertical setting is at the downside of ridge frame 1, and spliced pole 21 sets up in ridge frame support frame main part 22 one side in order to be used for supporting the tie-beam 11 of ridge frame 1. The ridge frame 1 and the ridge frame supporting frames 2 on two sides are integrally fixed to form a 'door' -shaped force bearing beam frame which is used as a main force bearing part of the house frame, and the structure is stable. Ridge frame support frame glass installing frame 203 is equipped with in the outside of ridge frame support frame main part 22, install ridge frame support frame glass board 204 on the ridge frame support frame glass installing frame 203, endurance plate 201 is installed to the inboard of ridge frame support frame main part 22, endurance plate 201 passes through the sealed rubber ring 202 seal installation of endurance plate, endurance plate 201 is high transparent endurance plate 201, endurance plate 201 forms the heated board, endurance plate 201 and ridge frame support frame glass board 204 form inside and outside double-deck plane skylight, endurance plate 201 and ridge frame support frame glass board 204 form bilayer structure, be favorable to thermal-insulated heat preservation, and the air interlayer thickness that forms between the double-deck plane skylight is greater than 80 millimeters, such big hollow sandwich structure can effectively guarantee the thermal-insulated heat preservation ability in sunshine room compared in prior art ordinary sandwich glass. The strength plate 201, the strength plate sealing rubber ring 202, the ridge frame support frame main body 22, the ridge frame support frame glass installation frame 203 and the ridge frame support frame glass plate 204 form a ridge frame support frame 2 module main body.
As shown in fig. 5, 7, 8 and 9, the wing frame 3 is rotatably assembled on the ridge frame 1, the rotation axis of the wing frame 3 extends in the left-right direction, the wing frame 3 is located on one side of the ridge frame 1 far away from the ridge, the wing frame 3 has an opening state and a closing state, the inside and the outside of the sunlight room are communicated when the wing frame 3 is in the opening state, and the wing frame 3, the ridge frame 1 and glass plates installed on the wing frame 3 and the ridge frame 1 are jointly used for forming the roof of the sunlight room. When the wing frame 3 is in the closed state, the side of the wing frame 3 close to the ridge is higher than the side far away from the ridge to form a roof with a certain gradient in cooperation with the ridge frame 1, so that dust is conveniently taken away under the rain wash, the roof self-cleaning function of the sunshine room is realized, and the roof is convenient to clean.
The wing frame 3 includes a plurality of unit frames 31 and a connecting frame 33 connecting the unit frames 31 together, the unit frames 31 are arranged separately and arranged side by side in the left-right direction, and the unit frames 31 are rectangular frames. One side of unit frame 31 that is close to ridge frame 1 rotates and installs on ridge frame 1, and link 33 sets up the one side of keeping away from ridge frame 1 at unit frame 31, and link 33 forms connection structure, and each unit frame 31 all can be dismantled and fix on link 33, and link 33 is formed by the connection frame butt joint of two rectangles, all is equipped with the glass installing frame on every connection frame in order to install the glass board, and at the inboard installation endurance plate of glass board. By providing each unit frame 31, each unit frame 31 can be installed separately when installing the wing frame 3, thereby facilitating the rotating assembly operation on the spine 1. Each unit frame 31 is connected together through the connecting frame 33, so that the connecting strength is ensured, and meanwhile, the size of the unit frame 31 is reduced while the whole covering surface area of the wing frame 3 can be ensured by the connecting frame 33, so that the unit frame 31 is convenient to install and operate.
The unit frame 31 and the connecting frame 33 are arranged at a certain included angle, the upper surface of the connecting frame 33 and the upper surface of the unit frame 31 are provided with included angles, reinforcing inclined struts 34 are respectively arranged between the rightmost unit frame 31, the leftmost unit frame 31 and the connecting frame 33, the reinforcing inclined struts 34, the connecting frame 33 and the corresponding unit frame 31 can form a triangular structure, and the structural strength of the wing frame 3 is guaranteed.
Because the unit frame 31 and the connecting frame 33 are arranged at an included angle, in order to facilitate connection, a connecting strip 32 is arranged at the joint of the unit frame 31 and the connecting frame 33, the connecting strip 32 extends along the left-right direction, the cross section of the connecting strip 32 is triangular, and the connecting strip 32 is respectively fixed with the unit frame 31 and the connecting frame 33.
One end of the unit frame 31 close to the ridge frame 1 is rotatably installed on a connecting beam 11 of the ridge frame 1 through a hinge 9, the connecting beam 11 is formed by a C-shaped section bar, so that the connecting beam 11 is provided with an inner groove with a groove opening facing the wing frame 3, the hinge 9 comprises a rotating shaft and a sleeve, the rotating shaft is fixed in the inner groove of the connecting beam 11, the sleeve is fixed at the end part of the unit frame 31, and the sleeve is sleeved on the rotating shaft along the left and right directions so as to realize the rotating assembly of the unit frame 31 on the ridge frame 1. The end part of the unit frame 11 close to the connecting beam 11 is provided with an upward turned edge and a downward turned edge, the upper and lower sides of the rotating shaft in the inner groove of the connecting beam 11 are respectively provided with a jacking sealing strip 13, the upper jacking sealing strip is arranged at the groove bottom of the inner groove of the connecting beam 11, the lower jacking sealing strip is arranged at the notch of the inner groove of the connecting beam 11, so that when the wing frame 3 is in an opening state, the upward turned edge at the end part of the unit frame 31 is jacked on the upper jacking sealing strip 13, and the downward turned edge is jacked on the lower jacking sealing strip to realize sealing; the upper side and the lower side of the rotating shaft in the inner groove of the connecting beam 11 are respectively provided with a crimping sealing strip 12, the upper side crimping sealing strip is arranged at the notch of the inner groove of the connecting beam 11, the lower side crimping sealing strip is arranged at the groove bottom of the inner groove of the connecting beam 11, so that when the wing frame 3 is in a closed state, the upturned edge of the end part of the unit frame 31 is pressed on the upper side crimping sealing strip, and the downturned edge is pressed on the lower side crimping sealing strip to realize sealing.
The wing frame support frame 4 is arranged at the lower side of the wing frame 3 to support the wing frame 3 when the wing frame 3 is in a closed state, the wing frame support frame 4 comprises two side frames 41 and two side frames 42, the two side frames 41 are respectively arranged at the left side and the right side of the wing frame 3, the side frames 42 are arranged at one side of the wing frame 3, which is far away from a ridge, and the side frames 41 of the wing frame support frame 4 are detachably and fixedly connected with the ridge support frame 2. The upper surface of the side frame 41 of the wing frame support frame 4 is an inclined surface to be matched with the reinforcing inclined strut 34, the side frame 42 of the wing frame support frame 4 is formed by butting two rectangular frames, when the wing frame 3 is in a closed state, the reinforcing inclined strut 34 is attached to the side frame 41, and the connecting frame 33 is attached to the side frame 42.
As shown in fig. 8, 10, 11, 12 and 13, the unit frame 31 is provided with a unit frame glass mounting frame 51, the unit frame glass plate 5 is mounted on the unit frame glass mounting frame 51, the sunshade assembly 10 is provided inside the unit frame glass plate 5, the unit frame 31, the unit frame glass mounting frame 51, the unit frame glass plate 5 and the sunshade assembly 10 constitute a unit frame 31 module, and when mounting, the unit frame 31 module can be modularly assembled.
The unit frame 31 comprises two unit frame cross beams arranged at intervals in the front and back direction and two unit frame longitudinal beams arranged at intervals in the left and right direction, the unit frame cross beams and the unit frame longitudinal beams have the same cross-sectional structure and are all aluminum alloy sections, each unit frame longitudinal beam comprises a C-shaped main body 322 and an L-shaped bulge 311, the C-shaped main bodies 322 and the L-shaped bulges 311 are integrally formed, each C-shaped main body 322 is provided with an installation inner cavity, each installation inner cavity is provided with an opening facing to the center of the unit frame 31, the C-shaped main bodies 322 of the adjacent unit frame longitudinal beams of the two adjacent unit frames 31 are arranged back to back, the L-shaped bulges 311 are arranged on the upper sides of the C-shaped main bodies 322, each L-shaped bulge 311 comprises a vertical side and a horizontal side, the vertical sides are connected with the C-shaped main bodies 322, the horizontal sides are arranged facing to the center of the unit frame 31, the L-shaped bulges 311 and the upper sides of the C-shaped main bodies 322 form a sealing groove in a sealing strip mounting groove, one of the two adjacent unit frames 31, seal groove on another is the sealing fit groove, the sealing strip mounting groove is relative about with sealing fit groove notch, unit frame sealing strip 8 is equipped with in the sealing strip mounting groove, unit frame sealing strip 8 when the installation, at first the intussuseption of sealing strip mounting groove is sealed to be filled again and is imbedded unit frame sealing strip 8, unit frame sealing strip 8 has the sealing portion that stretches out of the sealing strip mounting groove, stretch out the sealing portion and be used for stretching into the sealing fit inslot when unit frame 31 is installed ridge frame 1 on, furthermore, because hinge 9's sleeve is established in the pivot along controlling the direction cover, the sealing strip mounting groove is relative about with sealing fit groove notch, thereby when installing ridge frame 1 along controlling the direction removal at unit frame 31, can utilize about unit frame 31 to control the extension that makes unit frame sealing strip 8 to get into the sealing fit inslot and form sealedly.
The sunshade assembly 10 is a wing frame sunshade assembly, and the wing frame sunshade assembly and the spine frame sunshade assembly have the same composition structure.
The sunshade 105 includes a full-shade curtain 1052, a half-shade curtain 1051, a movable strip 1013, an intermediate strip 1012, and a fixed strip 1011. Organ curtain 1052's heat preservation and thermal insulation effect is better, and yarn curtain 1051 can carry out the diffused light, is favorable to guaranteeing that illumination intensity is suitable. The movable strip 1013 and the fixed strip 1011 are respectively positioned at two sides of the middle strip 1012, two ends of the full-sunshade curtain are respectively fixed with the movable strip 1013 and the middle strip 1012, two ends of the half-sunshade curtain are respectively fixed with the middle strip 1012 and the fixed strip 1011, the movable strip 1013 forms a movable part of the sunshade curtain 105, the fixed strip 1011 forms a fixed part of the sunshade curtain 105, the sunshade curtain 105 is provided with the fixed part and the movable part, the sunshade curtain 105 is opened when the movable part is far away from the fixed part, and the sunshade curtain driving assembly can drive the movable part to move.
The sunshade curtain driving assembly comprises a sunshade curtain driving motor 108, a sunshade curtain driving motor output shaft 109, a main transmission box 107, a transmission belt 103, an auxiliary transmission box 104, an end part installation frame 106, a guide rail 101 and a plush sealing strip 102, wherein sunshade curtain driving motor output shafts 109 are arranged on the left side and the right side of the sunshade curtain driving motor 108, two transmission belts 103 are arranged on the left side and the right side at intervals, the two transmission belts 103 are respectively in transmission connection with the two sunshade curtain driving motor output shafts 109 through the main transmission box 107, and the auxiliary transmission box 104 is arranged at one end, far away from the main transmission box 107, of the transmission belt 103. A drive block 1010 is fixed to the belt 103, and the drive block 1010 is fixedly connected to the traveling bar 1013 to drive the traveling bar 1013 to move under the driving of the belt 103. The sunshade curtain driving motor 108 is connected with a control center line, so that the sunshade curtain driving motor 108 is controlled to be started by the control center to drive the sunshade curtain 105 to be opened or closed.
The inner side surface of the middle strip 1012 is rotatably provided with a hook 1014, the moving strip 1013 is provided with a moving strip convex column 1015, and the fixed strip 1011 is provided with a fixed strip convex column 1016. When the hook 1014 is rotated to be matched with the upper stud hook of the moving strip 1013, the sunshade curtain driving motor 108 can drive the moving strip 1013 to move through the transmission belt 103, and further drive the middle strip 1012 to move, so that the half-sunshade curtain is opened; when the hook 1014 is rotated to be hooked and matched with the convex column on the fixed bar 1011, the sunshade curtain driving motor 108 can drive the movable bar 1013 to move through the transmission belt 103, and the middle bar 1012 and the fixed bar 1011 are relatively fixed, so that the opened sunshade curtain is a full-sunshade curtain, so that the sunshade curtain 105 has three modes of full lighting, diffused light and full shading, and can obtain higher illumination intensity through the full-lighting mode when the illumination is not strong, and can obtain certain illumination intensity through the diffused light mode when the illumination is strong, so that the sunshade curtain can obtain shade through the full-shading mode when the illumination is strong.
The fixing bar 1011 and the sunshade curtain driving motor 108 are respectively fixed on the two end mounting frames 106, and the end mounting frames 106 are mounted in the mounting inner cavity of the unit frame beam. The two transmission belts 103 are respectively installed on the left guide rail 101 and the right guide rail 101, sliding grooves are formed in the guide rails 101, the transmission belts 103 move in the sliding grooves, vertical surfaces facing the center of the unit frame 31 are arranged on the guide rails 101, pile sealing strips 102 are attached to the vertical surfaces, and the pile sealing strips 102 are used for sealing lateral openings when the organ curtains 1052 are opened so as to guarantee heat insulation and preservation effects. The guide rail 101, the transmission belt 103 and the plush sealing strip 102 are all arranged in an installation cavity of the unit frame longitudinal beam. Like this through set up all around the side slot on the frame of rectangle to form the installation inner chamber, thereby make things convenient for sunshade screen driving motor 108, drive belt 103 and sunshade screen 105's fixed strip 1011 to carry out hidden installation, and when sunshade screen 105 closed, can utilize the side slot on the unit frame crossbeam that corresponds to hold partial sunshade screen 105, be favorable to improving the light transmission area of unit frame 31. The components are hidden in the groove as much as possible, the daylighting rate is increased as much as possible, and the soilless culture type cultivation in a sunlight room is very necessary.
As shown in fig. 2 and 14, a first lifting unit 6 and a second lifting unit 7 are provided on the lower side of the wing frame 3, the first lifting unit 6 and the second lifting unit 7 are provided side by side in the left-right direction and have the same structure, and the first lifting unit 6 is taken as an example in the present embodiment for explanation. The first lifting assembly 6 comprises a base 61, a lifting motor, a screw nut mechanism, an air spring support rod, a top hinged seat 67, an upper limit switch and a lower limit switch, wherein the screw nut mechanism comprises a transmission screw 62 and a transmission nut 63, the base 61 comprises a motor case and a fixed seat, the fixed seat is fixed with the ground, the motor case is hinged on the fixed seat, the lifting motor is installed in the motor case in a suspension mode, an output shaft of the lifting motor extends out of the motor case, an output shaft of the lifting motor is sleeved with a pressure bearing, the pressure bearing is seated on the motor case, a coupler is sleeved on the output shaft and is in pin joint with the output shaft, the coupler is seated on the pressure bearing, the upper end of the coupler is fixedly connected with the transmission screw 62, a cylinder body guide seat 64 is arranged at the top end of the transmission screw 62, the bottom end of the transmission screw 62 is rotatably installed on the motor case through a conical bearing, and the top end of the transmission screw 62 is rotatably installed on the cylinder body guide seat 64 through the pressure bearing, the gas spring support rod comprises a cylinder body 65 and a piston rod 66, the cylinder body 65 is guided by a linear bearing and penetrates through a cylinder body guide seat 64, the bottom end of the cylinder body 65 is fixed with a transmission nut 63, a top hinged seat 67 is hinged to the top end of the cylinder body 65, the top hinged seat 67 is fixedly connected with the wing frame 3 and connected to the joint of the unit frame 31 and the connecting frame 33 of the wing frame 3, and the piston rod 66 is fixed with the motor case. The upper limit switch is fixed on the linear bearing, the lower limit switch is fixed on the motor case, the upper limit switch and the lower limit switch are respectively connected with a motor circuit, the motor is connected with a control center circuit, the motor drives the transmission rod to rotate through the coupler by controlling the control center switch, the transmission rod drives the transmission nut 63 to move up and down, the transmission nut 63 drives the cylinder body 65 of the air spring support rod to move up and down, and when the transmission nut 63 touches the upper limit switch or the lower limit switch, the motor can automatically power off and stop running. Through elevator motor, lead screw nut mechanism piece cooperation air spring bracing piece, when needs go up and down to the pterygoid frame 3, usable lead screw nut mechanism drives cylinder body 65 and realizes that the flexible of air spring bracing piece is in order to drive pterygoid frame 3 and lift or close, when need not drive pterygoid frame 3, the damping force that air spring bracing piece itself has can offset the gravity of pterygoid frame 3, realize the balance, avoid the overweight lead screw nut mechanism of leading to of pterygoid frame 3 to damage, can reduce the quantity of lifting unit, and simultaneously, because the air spring bracing piece exists always to the holding power of pterygoid frame 3, thereby when going up and down to the pterygoid frame 3 and drive, only need very little drive power just can drive pterygoid frame 3, adopt the elevator motor of less power just can satisfy the user demand, be favorable to reduce cost, reduce the noise.
The control center that sets up in sunshine room includes control panel and central processing unit, control panel is provided with control button in order to be used for the operation information input, on the one hand, control system's central processing unit and control panel, lifting unit's permanent magnet synchronous motor, go up travel switch and down travel switch electricity and be connected, on the other hand, control system's central processing unit and control panel, sunshade screen driving motor 108 electricity are connected, thereby make the user control the power drive part of corresponding system in the sunshine room through control system's control panel according to particular case, in order to realize corresponding action drive.
When a sunlight room needs to be built, a ridge frame module is formed by installing a glass plate and a sunshade curtain component on the basis of a ridge frame, a wing frame module is formed by installing the glass plate and the sunshade curtain component on the basis of a wing frame, a top enclosure is formed by the ridge frame module and the wing frame module, a ridge frame support frame module is formed by installing the glass plate and a heat insulation plate on the basis of a ridge frame support frame, a wing frame support frame module is formed by installing the glass plate and the heat insulation plate on the basis of a ridge frame support frame, and a side enclosure is formed by the ridge frame support frame module and the wing frame support frame module; because each module can be assembled respectively, the volume of single module is less, can accomplish the pre-assembly back in advance on each module, transport to the scene and carry out the rearmost operation of assembling in sunshine room, wherein, spine and spine support frame, spine support frame and wing frame support frame are in the same place through expansion bolts fixed at the scene, and in order to guarantee that there is operating space on the frame section bar to squeeze into expansion bolts, when carrying out the pre-assembly to corresponding module in the factory building, do not adorn the heated board earlier, utilize expansion bolts to install the heated board after with section bar fixed connection at the scene, the rethread is beaten to glue on the frame.
Because the installation of glass and the sun-shading curtain on the roof is not needed on site, the safe construction is facilitated, the construction efficiency of the sunlight room is improved, and the sunlight room can be quickly, safely and civilized constructed; the fixed ridge frame and the movable wing frame jointly form a roof, and the ridge frame supporting frame are fixed to form a bearing beam frame connected with the top and the bottom, so that the overall structural strength of the roof frame is guaranteed; the adjacent modules are sealed, so that the overall heat insulation, heat preservation and water leakage prevention effects of the sunlight room can be effectively realized; simultaneously, cooperation through heated board and glass board, make lateral part enclosure form bilayer structure, it is thermal-insulated to form the heat preservation, cooperation through sunshade screen and glass board on wing frame and the ridge frame, the sunshade screen forms bilayer structure with the glass board when opening, make top enclosure possess heat preservation thermal-insulated ability, warm in winter and cool in summer, can satisfy vegetation needs suitable indoor temperature, satisfy the needs that people carry out the leisure planting activity in the sunshine room simultaneously, very suitable community, courtyard, the scenic spot, the roof, the balcony, personnel such as room front and back are intensive, the less place in space is built, satisfy people and carry out the needs that amusement and plant the experience in the effective place of residence.
The wing frame module and the side enclosure form an open-close space, the height of a side enclosure system below the wing frame module is reduced, the indoor space can be changed, good indoor ventilation and wide indoor visual field are guaranteed, a sunlight room with a large slope surface is built at a lower height and has a certain self-cleaning function, the purposes of building a sunlight room with a low height and a large slope surface and easy cleaning, building an open-type ventilated sunlight room and building a sunlight room with a changeable space are met, and the wing frame module is suitable for people to plant in the sunlight room for leisure.
The wing frame module on the top layer is set to be a mode of combining single-layer toughened glass and the organ curtain, the organ curtain guide rail is hidden in the frame, the organ curtain has three modes of full lighting, diffused light and full shading, and plush sealing strips are preset between the organ curtain guide rail and the full shading organ curtain cloth, so that the three modes of the organ curtain are selectively controlled under different lighting conditions and different temperature conditions, and the indoor environment has the capability of obtaining proper lighting and temperature. Under the full-shading state, the glass has the functions of heat preservation, heat insulation, shading, cooling, sound insulation, noise reduction and color decoration. When light is weak, indoor temperature is rapidly raised and indoor plants are sufficiently illuminated through a large lighting area and strong illumination intensity in the full lighting mode, illumination intensity and illumination energy are obtained through selectively carrying out large-area full lighting or diffused light or full shading according to the change of seasons and illumination intensity when the light is weak, and heat insulation and heat preservation are carried out in the full shading mode, so that the purpose of meeting the requirement of proper illumination intensity for plant growth is achieved.
The pressure value of the gas spring support rod is set to be in a state of offsetting the pressure of the wing frame, so that the wing frame can be driven to move around the rotating shaft on the ridge frame 1 in a mute manner by being assembled with a permanent magnet synchronous motor with smaller power.
The lateral enclosure is arranged to be the frame outer layer made of toughened glass, the frame inner layer made of the high-transparency strength plate, and a large sealed hollow space is formed in the middle of the lateral enclosure, so that the lateral enclosure has good heat preservation and heat insulation performance, and the wing frame module of the top enclosure is combined with the heat preservation and heat insulation performance in the full-shading mode, so that the whole sunlight room has good heat preservation and heat insulation performance, the requirement of plant growth on proper indoor temperature is met, and the purpose of constructing the sunlight room suitable for four-season planting is further met.
In summer, through opening the wing frame module, reach and enlarge indoor space, keep the open-type to ventilate, possess the purpose in preferred field of vision, agree with the space demand of user in summer mutually, furtherly, be favorable to rapid cooling, combine together with the thermal-insulated and shading function that the organ curtain formed again, can reach just as the effect of enjoying the cool under the wayside pavilion at indoor life, also be favorable to the sun-proof of indoor plant. In winter, after the wing frame module is closed, the indoor space can be reduced, heat preservation is facilitated, the wing frame module is matched with the psychology of a user that too large space is not needed in winter, and cold defense of indoor plants is facilitated.
Such multi-functional sunshine room of modularization pin-connected panel is fit for building in the place of community, accords with the demand that people planted to four seasons leisure, and suitable soilless culture technique fuses into the life at home, has realized being fit for not only building convenient but also the sunshine room that suitable four seasons leisure was planted of using widely in the place of community, satisfies people in the community and to sunshine room both suitable four seasons leisure and satisfy multiple function needs such as cultivation experience.
the difference between this embodiment and embodiment 1 lies in that, in embodiment 1, the ridge frame includes top beam and boundary beam that the front and back interval set up, and top beam and boundary beam all extend along left right direction and top beam is higher than the boundary beam in upper and lower direction, and the top beam is used for forming the ridge, and the ridge frame slope sets up. In this embodiment, the upper surface of the ridge frame is a plane parallel to the ground of the sunlight room.
the difference between the embodiment and the embodiment 1 is that in the embodiment 1, the ridge frame and the ridge frame supporting frame are separately arranged, and the ridge frame supporting frame are detachably and fixedly connected together through expansion bolts. In this embodiment, the spine and the spine support frame are welded into an integrated frame.
Embodiment 4 of the modular and assembled multifunctional sunlight room of the present invention:
the difference between this embodiment and embodiment 1 lies in that, in embodiment 1, the modular pin-connected panel sunshine room includes two frame module that symmetrical set up around, and both sides are domatic around the roofing, and whole sunshine room has great space, is fit for having the independent condition of constructing in some places in corresponding construction space. In the embodiment, the modular assembly type sunlight room is provided with only one frame module, the roof is an inclined plane, and the modular assembly type sunlight room is suitable for being supported on the existing building due to limited space and building the sunlight room on the side face of the wall body of the existing building.
the difference between the embodiment and the embodiment 1 is that in the embodiment 1, the heat-insulating plate is a strength plate, and the strength plate on the inner layer and the glass plate on the outer layer are matched to form a double-layer structure to play a role in heat insulation. In the embodiment, the heat preservation plate is an inner-layer glass plate, and the inner-layer glass plate and the outer-layer glass plate are matched to form a double-layer structure to play a role in heat insulation.
the difference between the embodiment and the embodiment 1 is that in the embodiment 1, through the matching of the sunshade curtain and the glass plate on the wing frame and the ridge frame, the sunshade curtain and the glass plate form a double-layer structure when being opened, so that the top enclosure has heat preservation and insulation capabilities. And in this embodiment, still be equipped with the heated board in the inboard of glass board on wing frame, the ridge frame, the heated board is the endurance board, and the sunshade screen setting is between inlayer endurance board and outer glass board, through the cooperation of the endurance board and the outer glass board of sunshade screen, inlayer on wing frame and the ridge frame, the sunshade screen forms three layer construction with endurance board, glass board when opening for the top enclosure possesses heat preservation thermal-insulated ability.
Finally, it should be noted that the above-mentioned embodiments are only preferred embodiments of the present invention, and not intended to limit the present invention, and although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and equivalents can be made to the technical solutions described in the foregoing embodiments without inventive effort, or some technical features thereof can be replaced with equivalents. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (10)
1. A modularized assembly type multifunctional sunshine room comprises a room frame and a glass plate arranged on the room frame, the sunlight room is characterized in that the room frame comprises a ridge frame, a ridge frame supporting frame, a wing frame and a wing frame supporting frame, wherein the ridge frame and the ridge frame supporting frame are fixedly connected to form a force-bearing beam frame; the wing frame, the ridge frame and the glass plates arranged on the wing frame and the ridge frame are jointly used for forming a roof; the lifting assembly is connected below the wing frame and used for driving the wing frame to rotate so that the wing frame is in an opening state and a closing state, the inside and the outside of the sunlight room are communicated when the wing frame is in the opening state, the wing frame support frame is positioned at the lower side of the wing frame so as to support the wing frame when the wing frame is in the closing state, and the wing frame support frame is fixedly connected with the ridge frame support frame; insulation boards are arranged on the ridge frame support frame and the wing frame support frame on the inner sides of the glass plates; the inner sides of the glass plates are respectively provided with a sunshade curtain component on the unit frames of the ridge frame and the wing frame, and the sunshade curtain component comprises a sunshade curtain and a sunshade curtain driving component for driving the sunshade curtain to open or close.
2. The modular sectional type multifunctional sunlight room as claimed in claim 1 wherein said unit frame is a frame structure, said unit frame is provided with a sunshade installation groove with a notch facing to the center of said unit frame, and said sunshade driving unit is installed in said sunshade installation groove.
3. The modular assembly type multifunctional sunlight room as claimed in claim 2, wherein the unit frame is a rectangular frame, comprising two unit frame beams spaced from each other in the front-rear direction and two unit frame longitudinal beams spaced from each other in the left-right direction, the two unit frame beams, all be equipped with the limit groove on two unit frame longerons in order to enclose into the sunshade screen mounting groove, the sunshade screen has fixed part and removal portion, the sunshade screen is opened when the removal portion is kept away from the fixed part and is removed, sunshade screen drive assembly includes sunshade screen driving motor and drive belt, the fixed part of sunshade screen and sunshade screen driving motor install respectively in the limit inslot of two unit frame crossbeams, sunshade screen driving motor's the left and right sides all has the output shaft, the interval is equipped with two about the drive belt has, the limit inslot at two unit frame longerons is installed respectively to two drive belts, two drive belts are connected with sunshade screen driving motor's two output shaft transmission respectively, the drive belt is used for driving the removal portion removal of sunshade screen.
4. The modular assembled multifunctional sunlight room of claim 3 wherein the sun shade comprises a full sun shade, a half sun shade, a moving bar, a middle bar, and a fixing bar, the moving bar and the fixing bar are respectively located on both sides of the middle bar, both ends of the full sun shade are respectively fixed with the moving bar and the middle bar, both ends of the half sun shade are respectively fixed with the middle bar and the fixing bar, the moving bar forms a moving part of the sun shade, the fixing bar forms a fixing part of the sun shade, the middle bar is rotatably provided with a hook, and the moving bar and the fixing bar are respectively provided with a convex column for matching with the hook.
5. The modular sectional type multifunctional sunlight room as claimed in claim 4 wherein said full-shading curtain is an organ curtain and said half-shading curtain is a screen curtain.
6. The modular split-mounting type multifunctional sunlight room as claimed in any one of claims 1 to 5, wherein the connecting structure is a connecting frame, and the connecting frame and each unit frame are arranged in a split manner.
7. The modular and sectional type multifunctional sunlight room as claimed in claim 6, wherein the upper surface of the connecting frame and the upper surface of the unit frame are arranged at an angle, and a reinforcing diagonal brace is arranged between the connecting frame and the unit frame.
8. The modular assembly type multifunctional sunlight room as claimed in any one of claims 1 to 5, wherein the unit frame is rotatably mounted on the ridge frame by a hinge, the hinge comprises a rotating shaft and a sleeve, one of the rotating shaft and the sleeve is fixed on the ridge frame, the other one of the rotating shaft and the sleeve is fixed on the unit frame, and the sleeve is sleeved on the rotating shaft in the left-right direction to enable the unit frame to be mounted on the ridge frame; in two adjacent unit framves, be equipped with the sealing strip mounting groove on one of them, be equipped with the sealing fit groove on another, the sealing strip mounting groove is relative about with the sealing fit groove notch, is equipped with the sealing strip in the sealing strip mounting groove, and the sealing strip has the sealed portion of stretching out that stretches out the sealing strip mounting groove, stretches out the sealed portion and is used for stretching into the sealing fit inslot when unit frame is installed on the backbone.
9. The modular assembled multifunctional sunlight room as claimed in any one of claims 1 to 5, wherein the ridge frame comprises a top beam and an edge beam which are arranged at a distance from each other in the front-back direction, the top beam and the edge beam both extend in the left-right direction and are higher than the edge beam in the up-down direction, the top beam is used for forming the ridge, the glass plate on the ridge frame is arranged between the top beam and the edge beam, and the wing frame is positioned on one side of the ridge frame, which is far away from the ridge.
10. The modular assembly type multifunctional sunlight room of any one of claims 1 to 5 wherein the lifting assembly comprises a base, a lifting motor, a feed screw nut mechanism and a gas spring support rod, wherein the lifting motor is mounted on the base, the feed screw nut mechanism comprises a transmission feed screw and a transmission nut, the gas spring support rod comprises a cylinder body and a piston rod, the bottom end of the transmission feed screw is in transmission connection with an output shaft of the lifting motor, a cylinder body guide seat is fixed at the top end of the transmission feed screw, the cylinder body is guided and arranged on the cylinder body guide seat in a penetrating manner, the bottom end of the cylinder body is fixed with the transmission nut, the top end of the cylinder body is connected with the wing frame, and the piston rod is fixed with the base.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202210688073.9A CN114922477A (en) | 2022-06-16 | 2022-06-16 | Modular assembled multifunctional sunlight room |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202210688073.9A CN114922477A (en) | 2022-06-16 | 2022-06-16 | Modular assembled multifunctional sunlight room |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN114922477A true CN114922477A (en) | 2022-08-19 |
Family
ID=82814077
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202210688073.9A Pending CN114922477A (en) | 2022-06-16 | 2022-06-16 | Modular assembled multifunctional sunlight room |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN114922477A (en) |
Citations (6)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JP2003129771A (en) * | 2001-10-26 | 2003-05-08 | Matsushita Electric Works Ltd | Roll screen device |
| CN202012264U (en) * | 2011-02-28 | 2011-10-19 | 宁波信泰机械有限公司 | Electric drive mechanism for vehicle tail door |
| CN205922239U (en) * | 2016-08-23 | 2017-02-08 | 平湖东郁园林科技有限公司 | Greenhouse glass room |
| CN214423566U (en) * | 2020-11-25 | 2021-10-19 | 杭州耀住营造科技有限公司 | Modularization assembly's variable intelligent sunshine room |
| CN214697624U (en) * | 2021-03-23 | 2021-11-12 | 森丰建设有限公司 | Light-sensitive electric curtain for construction industry |
| CN215803506U (en) * | 2021-07-23 | 2022-02-11 | 佛山市艾臣家居科技有限公司 | Sunshine room |
-
2022
- 2022-06-16 CN CN202210688073.9A patent/CN114922477A/en active Pending
Patent Citations (6)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| JP2003129771A (en) * | 2001-10-26 | 2003-05-08 | Matsushita Electric Works Ltd | Roll screen device |
| CN202012264U (en) * | 2011-02-28 | 2011-10-19 | 宁波信泰机械有限公司 | Electric drive mechanism for vehicle tail door |
| CN205922239U (en) * | 2016-08-23 | 2017-02-08 | 平湖东郁园林科技有限公司 | Greenhouse glass room |
| CN214423566U (en) * | 2020-11-25 | 2021-10-19 | 杭州耀住营造科技有限公司 | Modularization assembly's variable intelligent sunshine room |
| CN214697624U (en) * | 2021-03-23 | 2021-11-12 | 森丰建设有限公司 | Light-sensitive electric curtain for construction industry |
| CN215803506U (en) * | 2021-07-23 | 2022-02-11 | 佛山市艾臣家居科技有限公司 | Sunshine room |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN201260321Y (en) | Sun-shading energy-saving type beam-connected greenhouse with completely opened roof | |
| CN103299861A (en) | Greenhouse | |
| CN111794562B (en) | Ventilating sunlight room | |
| CN105239704B (en) | A kind of multifunctional green integrates curtain wall system | |
| US8381449B1 (en) | Modular roof structural units and use thereof | |
| CN2833078Y (en) | Multifunctional outdoor curtain | |
| CN114922477A (en) | Modular assembled multifunctional sunlight room | |
| CN209742427U (en) | Multifunctional energy-saving landscape corridor frame suitable for forest park or wetland park environment | |
| CN208792485U (en) | A kind of adjustable view corridor cool in summer and warm in winter | |
| CN101881071A (en) | Building sunshade umbrella | |
| CN201343891Y (en) | Tent used all the year round | |
| CN217400472U (en) | Corridor frame with adjustable sun shading device | |
| CN201095879Y (en) | Electric folding sky dome | |
| CN110485606A (en) | The ventilation double-skin glass curtain wall of water proof and dust proof | |
| CN210737868U (en) | Waterproof and dustproof double-layer ventilating glass curtain wall | |
| CN201313496Y (en) | Simple automobile awning | |
| CN112983052B (en) | Environment-friendly building structure based on humanized design | |
| CN209603355U (en) | Multifunctional modular curtain wall | |
| CN210342788U (en) | Landscape corridor frame structure based on garden design | |
| CN112005774A (en) | Greenhouse shade device | |
| CN217564298U (en) | Vegetable greenhouse ventilation structure | |
| CN218715486U (en) | Pavilion with openable top | |
| CN209749296U (en) | Greenhouse | |
| CN220336563U (en) | Corridor frame device | |
| CN221576233U (en) | Composite cone type multifunctional greenhouse |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination |
