A kind of elevator corridor bridge integral welding construction hoisting auxiliary device

technical field

The invention relates to the related technical field of elevator corridor bridge construction, in particular to an elevator corridor bridge integral welding construction hoisting auxiliary device.

Background technique

Old residential buildings need to install elevators in order to facilitate users to go up and downstairs. Generally, an additional elevator includes an elevator shaft 2, an elevator system, and a covered bridge 3 connected between the elevator shaft steel structure and the outer wall masonry 1, as shown in Figure 1. The construction process of installing an elevator is generally as follows: first build the elevator shaft, and debug the elevator car, and then weld and overlap the steel structure of the corridor bridge between the shaft steel structure and the masonry. Based on the principle of reducing the impact on residential areas, generally covered bridges will be prefabricated into structural units, which will be hoisted by cranes before being transported to the floors, and then welded and lapped as a whole. However, the use of cranes will still cause a greater impact on residential areas. In some old communities, crane construction is very difficult, or even impossible to perform, and the use of cranes is expensive.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide an auxiliary device for hoisting and welding construction of an elevator corridor bridge, so as to solve the problems raised in the above background technology.

To achieve the above object, the present invention provides the following technical solutions:

An auxiliary device for integral welding construction and hoisting of an elevator gallery bridge, comprising a device body, the device body, the device body comprising: a bottom support, a top support and a top platform installed on the top support, wherein a shearing mechanism is arranged in the bottom support type lifting mechanism, the top support is connected to the scissor type lifting mechanism, and the top platform and the top support are slidably connected;

The top platform is provided with a hoisting device and a strut assembly, and the strut assembly includes: a secondary strut, a main strut and an adjustment strut, and the ends of the main strut and the adjustment strut both rotate with the top platform The other end of the adjusting strut is detachably connected to the top of the main strut, and the adjusting strut is a length-adjustable rod body; the end of the main strut is installed with a main pulley, and the end of the auxiliary strut is rotatably connected to the main strut. The rod is close to the top position; a secondary guide wheel is installed at the end of the secondary strut, and the hoisting equipment is connected with a double-strand cable, which respectively bypasses the main pulley and the secondary guide wheel and connects to the boom.

As a further solution of the present invention, the auxiliary strut is provided with a chute, and the auxiliary guide wheel is slidably connected in the chute.

As a further solution of the present invention, a locking bolt mechanism for fixing the position of the auxiliary guide wheel is arranged on the auxiliary guide wheel.

As a further solution of the present invention: it also includes a guide device, the guide device is provided with installation holes and guide rollers, the guide rollers are arranged in two groups, the angle between the axes of the two groups of guide rollers is 90°, the installation holes and the bridge The prefabricated holes on the bottom side of the unit are matched accordingly.

As a further solution of the present invention, a driving mechanism for driving the sliding of the top platform is arranged in the top support.

As a further solution of the present invention: the driving mechanism may be a human-driven lead screw or an electric-driven lead screw.

As a further solution of the present invention, the main strut and the auxiliary strut are provided with a matching latch rod structure.

As a further solution of the present invention, prefabricated holes are arranged on the bottom support of the device body.

Compared with the prior art, the beneficial effects of the present invention are as follows: the present invention adopts the method of hoisting and welding the elevator corridor bridges one by one, and the auxiliary device is constructed on site, which can not only lift, but also hoist and adjust the corridor bridge units. It meets the needs of on-site construction of elevator corridor bridges, solves the problem that cranes are not easy to use in old residential areas, and the use cost is lower; the device itself is small in size, easy to transport, and can be directly lifted with the help of on-site elevators, which is convenient to use.

Description of drawings

FIG. 1 is a schematic structural diagram of an elevator corridor bridge in the present invention.

FIG. 2 is a schematic structural diagram of the device body in the present invention.

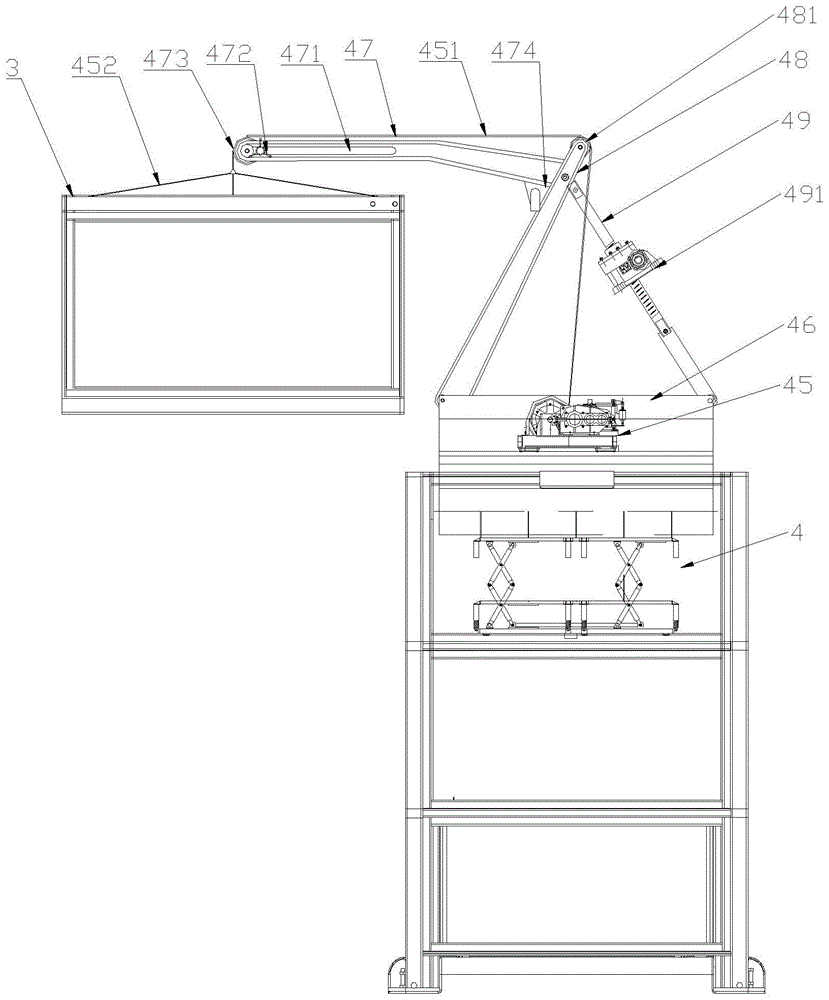

FIG. 3 is a schematic structural diagram of the completed hoisting of the device body in the present invention.

FIG. 4 is a schematic structural diagram of the device body completing the initial adjustment in the present invention.

FIG. 5 is a schematic structural diagram of the device body completing the secondary adjustment in the present invention.

FIG. 6 is an enlarged structural view of A in FIG. 5 .

FIG. 7 is a schematic structural diagram of the guiding device in the present invention.

In the figure, 1. Outer wall masonry; 2. Elevator shaft; 3. Elevator bridge; 4. Device body; 41, Bottom support; 42, Scissor lift mechanism; 43, Top support; 44, Drive mechanism; 45 , hoisting equipment; 46, top platform; 47, auxiliary support rod; 471, chute; 472, locking bolt mechanism; 473, auxiliary guide wheel; 474, latch rod structure; 48, main support rod; 481, main pulley ; 49, adjust the strut; 491, adjuster; 5, guide device; 51, installation hole; 52, guide roller.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Referring to FIGS. 1 and 2 , in an embodiment of the present invention, an auxiliary device for integral welding construction and hoisting of an elevator corridor bridge includes a device body 4 . The device body 4 includes a bottom support 41 and a top support 43 . And the top platform 46 installed on the top support 43, the bottom support 41 is provided with a manually driven or mechanically driven scissor lift mechanism 42, the lift height of the scissor lift mechanism 42 should not be less than a single-story residential building height; the top support 43 is connected to the scissor lift mechanism 42, the top platform 46 and the top support 43 are slidably connected, and a drive mechanism 44 for driving the top platform 46 to slide is provided in the top support 43, and the The mechanism 44 can be a human-driven lead screw or an electric-driven lead screw;

As shown in FIG. 3 , the top platform 46 is provided with a hoisting device 45 and a strut assembly. The strut assembly includes: a secondary strut 47 , a main strut 48 and an adjustment strut 49 . The main strut 48 and The ends of the adjustment struts 49 are all rotatably connected to the top platform 46, and the other end of the adjustment struts 49 is detachably connected to the top of the main strut 48 through a pin. There is an adjuster 491 for adjusting the length. Specifically, the adjusting strut 49 may include a threaded rod segment. One end of the threaded rod segment is threadedly connected to the bottom section of the adjusting strut 49, and the other end is rotatably connected to the top section, and is rotated through the adjuster 491. The length of the adjusting strut 48 is changed by the threaded rod segment; a main pulley 481 is installed at the end of the main strut 48, and the end of the auxiliary strut 47 is rotatably connected to the position near the top of the main strut 48, and is connected with the main strut 48. The auxiliary strut 47 is provided with a matching latch rod structure 474. The secondary brace 47 can be turned to the inner side of the main brace 48 and folded up. After unfolding, the auxiliary brace 47 can be fixed by the latch rod structure 474; A secondary guide pulley 473 is installed at the top, and the hoisting device 45 is connected with a double-stranded cable 451. The double-stranded cable 451 bypasses the primary pulley 481 and the secondary guide pulley 473 respectively and is connected to the boom 452. The boom 452 is used for connecting Covered bridge unit 3.

During the construction of the covered bridge, firstly, for the covered bridge unit 3 on the ground floor, the covered bridge unit 3 is lifted to a predetermined height by the device body 4, and then the covered bridge unit 3 on the ground floor is welded, assembled and fixed, so that it is assembled to the shaft. Between the steel structure 2 and the outer wall masonry 1, the installation of the ground floor bridge unit 3 is completed; then, use the elevator system to transfer the device body 4 to the ground floor bridge unit 3, and process and install it on the steel frame on the bottom surface of the ground floor bridge unit 3 The hole is connected and fixed with the prefabricated hole on the bottom support 41 of the device body 4 through the connector, and the device body 4 is fixed to the bottom covered bridge unit 3, and then the support rod assembly on the top platform 46 is unfolded, that is, the main support rod 48 and After the adjusting brace 49 is unfolded, connect the adjusting brace 49 to the main brace 48, then unfold and fix the auxiliary brace 47, and wind the double-stranded cable 451 on the hoisting device 45 over the main pulley 481 and the auxiliary guide pulley 473 respectively. , connect the suspension rod 452 to the covered bridge unit 3 to be hoisted, and hoist the covered bridge unit 3 to a height not lower than the top of the bottom covered bridge unit through the hoisting device 45 to stop;

Change the length of the adjusting strut 49 to make the main strut 48 rotate, the secondary strut 47 is lowered in height and moves to one side at the same time, when the length of the strut 49 is adjusted to the shortest, the hoisting gallery bridge unit 3 moves down and moves to the right for a certain distance at the same time, Complete the initial adjustment, as shown in Figure 4, then drive the top platform 46 to move as a whole through the driving mechanism 44, and drive the covered bridge unit 3 to continue to move to one side, so that most of the covered bridge unit 3 is located above the lower covered bridge unit 3, complete For the second adjustment, in order to avoid the interference between the special-shaped pipe on the bottom side of the bridge unit 3 and the device body 4, the steel pipe at this place can be not welded in advance, and the steel pipe at this place can be welded after it is hoisted in place;

The above-mentioned adjustment methods can also be reversed, that is, the position of the top platform 46 can be translated as a whole first, and then the support rod can be adjusted downward and displaced.

As shown in FIGS. 5 and 6 , a sliding groove 471 is provided on the auxiliary strut 47 , the auxiliary guide wheel 473 is slidably connected in the sliding groove 471 , and a locking bolt mechanism 472 for fixing its position is provided on the auxiliary guide wheel 473 , During the hoisting process, the secondary guide wheel 473 is locked and fixed by the locking bolt mechanism 472. After the above-mentioned adjustment process is completed, the locking bolt is loosened, and the hoisting device 45 is started. At this time, the double-strand cable 451 will pull the secondary guide wheel. 473 move slowly, and at the same time move the pulling bridge unit 3 as a whole until it basically corresponds to the position of the lower covered bridge, complete the three-position adjustment, and then lower the covered bridge to the lower covered bridge.

As shown in FIG. 7 , the present invention also includes a guide device 6 , which is provided with mounting holes 61 and guide rollers 62 , two groups of guide rollers 62 are arranged, and the included angle between the axes of the two groups of guide rollers 62 is 90°, The mounting holes 61 are matched with the prefabricated holes on the bottom side of the bridge unit 3 to connect the guide device 6 to the bridge unit 3. During hoisting, the lateral guide rollers 62 can correspond to the steel structure columns to slide and connect. The guiding function prevents the covered bridge unit 3 from rotating arbitrarily during the hoisting process. When adjusting the position, the bottom guide rollers 62 are in contact with the steel pipe on the covered bridge below. On the one hand, it is more convenient to move the covered bridge, and on the other hand To limit the guiding role, to avoid the angle of the covered bridge is not correct during the moving process, the guide device 6 can be removed before the covered bridge is completely lowered.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, but that the present invention may be embodied in other specific forms without departing from the spirit or essential characteristics of the invention. Therefore, the embodiments are to be regarded in all respects as illustrative and not restrictive, and the scope of the invention is to be defined by the appended claims rather than the foregoing description, which are therefore intended to fall within the scope of the claims. All changes within the meaning and scope of the equivalents of , are included in the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

In addition, it should be understood that although this specification is described in terms of embodiments, not each embodiment only includes an independent technical solution, and this description in the specification is only for the sake of clarity, and those skilled in the art should take the specification as a whole , the technical solutions in each embodiment can also be appropriately combined to form other implementations that can be understood by those skilled in the art.

Claims (8)

1. An auxiliary device for integral welding construction and hoisting of an elevator corridor bridge, comprising a device body (4), characterized in that: the device body (4) comprises: a bottom support (41), a top support (43) and a device installed on the top support (43) on the top platform (46), the bottom support (41) is provided with a scissor lift mechanism (42), and the top support (43) is connected to the scissor lift mechanism (42), so the sliding connection between the top platform (46) and the top support (43); The top platform (46) is provided with a hoisting device (45) and a strut assembly, and the strut assembly includes: a secondary strut (47), a main strut (48), and an adjustment strut (49). The ends of the main support rod (48) and the adjustment support rod (49) are rotatably connected to the top platform (46), and the other end of the adjustment support rod (49) is detachably connected to the top of the main support rod (48), and the adjustment support The rod (49) is a length-adjustable rod body; the end of the main strut (48) is provided with a main pulley (481), and the end of the auxiliary strut (47) is rotatably connected to the position near the top of the main strut (48); A secondary guide pulley (473) is installed at the end of the secondary strut (47), the hoisting device (45) is connected with a double-stranded cable (451), and the double-stranded cable (451) bypasses the primary pulley (481) and the auxiliary pulley respectively. Guide pulley (473) and connecting boom (452). 2. An auxiliary device for hoisting and hoisting of an elevator corridor bridge integrally welded according to claim 1, characterized in that: the auxiliary strut (47) is provided with a chute (471), and the auxiliary guide wheel (473) is provided with a chute (471). The sliding connection is in the chute (471). 3 . An auxiliary device for hoisting and welding construction of an elevator corridor bridge according to claim 2 , wherein the auxiliary guide wheel ( 473 ) is provided with a locking bolt mechanism ( 472 ) for fixing its position. 4 . 4. An auxiliary device for integral welding construction and hoisting of an elevator corridor bridge according to claim 1, characterized in that: it further comprises a guide device (6), and the guide device (6) is provided with a mounting hole (61) and a guide Rollers (62), the guide rollers (62) are provided in two groups, the included angle between the axes of the two groups of guide rollers (62) is 90°, and the installation holes (61) correspond to the prefabricated holes on the bottom side of the bridge unit (3) Cooperate. 5 . An auxiliary device for hoisting and welding construction of an elevator gallery bridge according to claim 1 , wherein a driving mechanism ( 44 ) for driving the top platform ( 46 ) to slide is provided in the top support ( 43 ). 6 . 6 . An auxiliary device for hoisting and welding construction of an elevator corridor bridge according to claim 5 , wherein the driving mechanism ( 44 ) is a human-driven lead screw or an electric-driven lead screw. 7 . 7. An auxiliary device for integral welding construction and hoisting of an elevator corridor bridge according to claim 1, characterized in that: said main strut (48) and auxiliary strut (47) are provided with a matching latch rod structure (474). ). 8 . An auxiliary device for integral welding construction and hoisting of an elevator gallery bridge according to claim 1 , wherein a prefabricated hole is provided on the bottom support ( 41 ) of the device body ( 4 ). 9 .
