CN114902888A - An adjustable municipal landscape flower stand - Google Patents

Abstract

The invention relates to the technical field of flower stands, and discloses an adjustable municipal landscape flower stand, comprising a base, a flower pot and an adjusting device, the lower end of the base is connected to the existing ground, and the upper part of the base is equally spaced from left to right Several flower pots are arranged, and an adjusting device is arranged between the flower pot and the base. The present invention can manually rotate the rotating handle, so that the rotating disc drives the rotating shaft and the gear to rotate. Under the mutual cooperation of the rod, the limit rod and the annular slider, the annular slider drives the support rod and the flower pot to move up and down, so as to realize the function of adjusting the height of the flower pot, so that the flower stand can be suitable for many This kind of municipal landscape design improves the practicability of the flower stand, and also provides convenience for municipal construction personnel who cultivate and trim flowers and plants.

Description

An adjustable municipal landscape flower stand

technical field

The invention relates to the field of flower stands, in particular to an adjustable municipal landscape flower stand.

Background technique

The flower stand is a garden facility that uses rigid materials to form a certain shape of the frame for climbing plants to climb, while the municipal landscape flower stand is a flower stand used to beautify the city. On our municipal roads and municipal garden landscape design, you will see some There are many flower stands for growing flowers and plants.

However, at present, most of the municipal landscape flower stands have the following defects: 1. The height of the poles used to support the flowerpots on the flower stand cannot be adjusted according to the actual needs. Basically, the size is designed and customized according to the scene needs. The flower stand is only suitable for one occasion and has low practicability. At the same time, if the height of the flower stand is too high, municipal construction personnel are required to climb the ladder to cultivate and trim flowers and plants in the flowerpot, which is likely to cause harm to the personal safety of municipal construction personnel; 2. The flowerpots on many municipal landscape flower stands are welded together with the supporting trunk of the flower stand, so that the flowerpot cannot be disassembled from the supporting trunk of the flower stand, so that the flowerpot cannot be replaced as required.

SUMMARY OF THE INVENTION

In order to solve the above-mentioned problems, the present invention provides an adjustable municipal landscape flower stand.

An adjustable municipal landscape flower stand provided by the present invention adopts the following technical scheme:

An adjustable municipal landscape flower stand, comprising a base, a flower pot and an adjusting device, the lower end of the base is connected to the existing ground, and a number of flower pots are arranged at equal intervals from left to right above the base, and the flowers An adjustment device is arranged between the basin and the base.

The adjusting device includes a support column, a gear, a transmission chain, a rotating shaft, a threaded rod, a rotating disk, a rotating handle, a limit rod, an annular slider and a support rod, and a cavity is opened inside the base, and the cavity is A number of support columns are installed from left to right inside, the upper end of the support column is rotatably installed with a gear, the outer end of the gear is meshed with a transmission chain, and the upper end of the gear located at the rightmost end of the base is installed with a gear. The upper end of the other gears is equipped with a threaded rod, the upper end of the rotating shaft rotates through the upper end of the base and is installed with a rotating disk, and a rotating handle is installed on the upper edge of the rotating disk, and the threaded rod The upper end of the threaded rod rotates through the upper end surface of the base, and the outer wall of the threaded rod is connected with an annular slider through threaded fitting, and the rear end of the annular slider is slidably connected to a limit rod, and the lower end of the limit rod is connected to the The bases are connected, and the upper end of the annular sliding block is symmetrically installed with a support rod, and the support rod is connected with the bottom end of the flower pot.

Preferably, a locking sleeve is connected to the part of the rotating shaft between the base and the rotating disk through screw fitting.

Preferably, the outer end of the annular slider is connected with a protective shell in a sliding fit manner, the lower end of the protective shell is connected with the base, and the upper end of the protective shell is slidably fitted with the outer wall of the support rod, The height of the protective shell is the same as the height of the threaded rod inside, and the height of the protective shell located in the center of the base is higher than that of the other protective shells.

Preferably, the bottom end of the flower pot is symmetrically provided with insertion grooves, the upper end of the support rod is inserted into the insertion groove, the bottom end of the flower pot is connected with a support plate by bolts, and the support The support plate is fixedly connected with the outer wall of the support rod.

Preferably, the height of the protective case is the same as the height of the threaded rod inside, and the height of the protective case located in the center of the base is higher than that of the other protective cases.

Preferably, load-bearing rods are installed symmetrically on the upper end of the base, and a canopy is installed between the upper ends of the two load-bearing rods, and the canopy is always located above the flowerpot.

Preferably, the canopy is composed of a mounting frame and several tempered glass panels.

To sum up, the present invention includes at least one of the following beneficial technical effects:

1. The present invention can manually rotate the rotating handle, so that the rotating disk drives the rotating shaft and the gear to rotate, and under the cooperation of the transmission chain and other gears, threaded rods, limit rods and annular sliders, the annular slider drives the support. The rod and the flower pot move up and down, so as to realize the function of adjusting the height of the flower pot, which can make the flower stand suitable for various municipal landscape designs, improve the practicability of the flower stand, and at the same time, it can also be used for cultivation and trimming of flowers and plants. of municipal construction workers provides convenience;

2. Through the mutual cooperation between the support rod, the insertion slot and the support plate, this scheme can make the connection between the flowerpot and the trunk of the flower stand detachable, instead of the traditional welding method, so that it can be used according to actual needs. To replace different flowerpots, the support plate and the flowerpot are connected by bolts, which ensures the stability of the flowerpot while being detachable.

Description of drawings

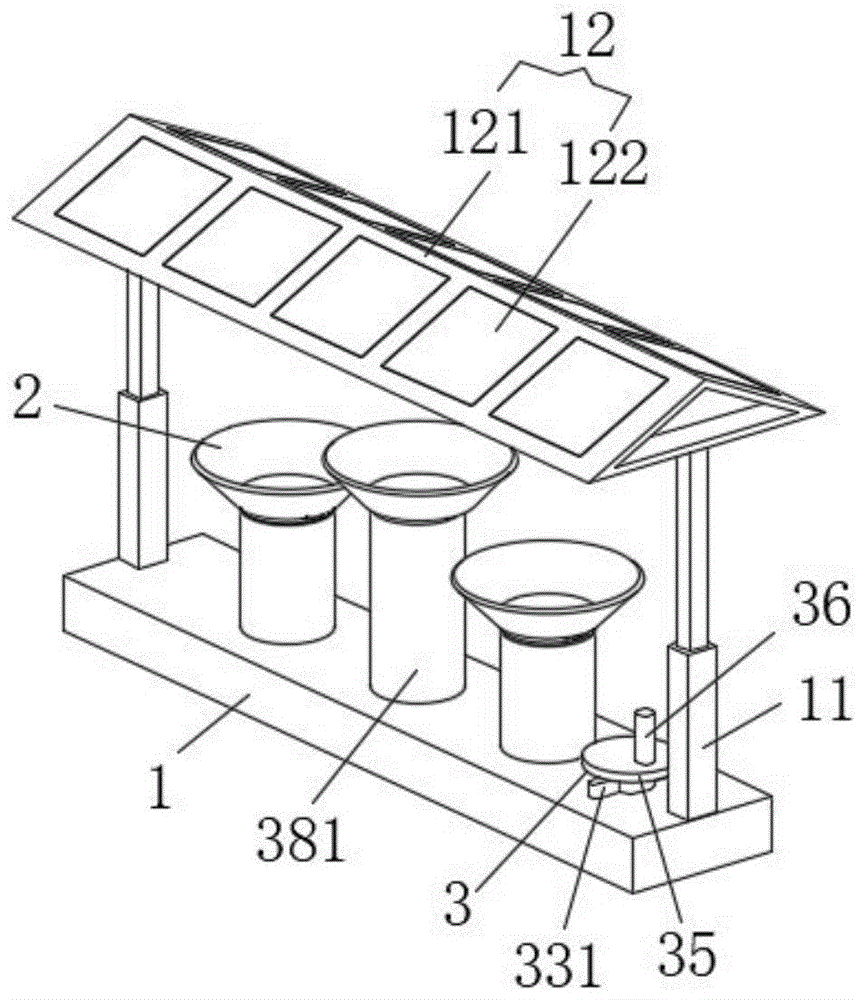

1 is a perspective view of an embodiment of the present invention;

2 is a front view of an embodiment of the present invention;

3 is a partial cross-sectional view of an embodiment of the present invention;

Fig. 4 is A-A sectional view of Fig. 2;

5 is a perspective view of a partial structure such as a threaded rod and an annular slider according to an embodiment of the present invention;

FIG. 6 is a bottom view of the flowerpot, the support plate and the support rod structure according to the embodiment of the present invention.

Description of reference numerals: 1, base; 2, flower pot; 3, adjustment device; 11, load-bearing rod; 12, canopy; 21, support plate; 30, support column; 31, gear; 32, transmission chain; 33, rotating shaft; 34, threaded rod; 35, rotating disc; 36, rotating handle; 37, limit rod; 38, annular slider; 39, support rod; 121, mounting frame; 122, glass panel; 331, lock Tight sleeve; 381, protective shell.

Detailed ways

The present invention will be further described in detail below in conjunction with accompanying drawings 1-6.

The embodiment of the present invention discloses an adjustable municipal landscape flower stand. 1, an adjustable municipal landscape flower stand includes a base 1, a flower pot 2 and an adjustment device 3. The lower end of the base 1 is connected to the existing ground, and the top of the base 1 is provided with a number of flower pots at equal intervals from left to right. 2. An adjusting device 3 is arranged between the flowerpot 2 and the base 1. A load-bearing rod 11 is installed on the upper end of the base 1 symmetrically on the left and right sides, and a canopy 12 is installed between the upper ends of the two load-bearing rods. Above the flowerpot 2, the canopy 12 is composed of a mounting frame 121 and a plurality of tempered glass panels 122. The canopy 12 can prevent the flowers and plants in the flowerpot 2 from being damaged by heavy rain or snow, and the tempered glass panel 122 can ensure that the When it rains, it can give flowers and plants sufficient sunlight. In addition, municipal construction personnel can also install several small solar lights in the installation frame 121, so that we can enjoy the flowers and plants in the flowerpot 2 at night.

1 to 6 , the adjusting device 3 includes a support column 30, a gear 31, a transmission chain 32, a rotating shaft 33, a threaded rod 34, a rotating disk 35, a rotating handle 36, a limit rod 37, an annular slider 38 and a support rod 39, the interior of the base 1 is provided with a cavity, and a number of support columns 30 are installed in the cavity from left to right. The upper end of the support column 30 is rotated and installed with a gear 31, and the outer end of the gear 31 is meshed with a transmission chain 32. , and a rotating shaft 33 is installed on the upper end of the gear 31 at the rightmost end of the base 1, and a threaded rod 34 is installed on the upper end of the remaining gears 31. The part between the base 1 and the rotating disk 35 is connected with a locking sleeve 331 by means of threaded fitting, a rotating handle 36 is installed at the upper edge of the rotating disk 35, and the upper end of the threaded rod 34 rotates through the upper end surface of the base 1, and the thread The outer wall of the rod 34 is connected with an annular slider 38 by means of threaded fitting. The support rod 39, the bottom end of the flower pot 2 is symmetrically provided with a plug slot, the upper end of the support rod 39 is plugged into the plug groove, the bottom end of the flower pot 2 is connected with a supporting plate 21 by bolts, and the supporting plate 21 It is fixedly connected with the outer wall of the support rod 39. When the flower stand has been transported to the designated place, the municipal construction personnel can cultivate flowers and plants in the flower pot 2, and then loosen the locking sleeve 331 and the rotating shaft 33, and according to the It is required to rotate the rotary handle 36 to make the rotary disk 35 rotate at an appropriate angle, and the rotary disk 35 drives the rotary shaft 33 and the gear 31 to rotate. Under the action of the transmission chain 32, the remaining gears 31 drive the threaded rod 34 to rotate. Under the cooperation of the threaded rod 34, the annular slider 38 is driven to rise, and the annular slider 38 drives the support rod 39 and the flower pot 2 to rise to a certain height synchronously, so as to realize the function of adjusting the height of the flower pot 2, and thus can adjust the height of the flower pot 2. The flower stand can be applied to a variety of municipal landscape designs, and the practicability of the flower stand is improved. Then, the locking sleeve 331 is manually tightened, so that the rotating shaft 33 cannot be rotated, which can ensure that the gear 31 and the threaded rod 34 will not easily occur. Rotating, when the municipal construction personnel need to trim and replace the flowers and plants in the flowerpot 2, they only need to lower the flowerpot 2 to the initial height by rotating the handle 36 again, so that the construction is convenient for the municipal construction personnel, and there is no need for the construction personnel to climb the ladder. The construction reduces the risk of operation, and through the mutual cooperation between the support rod 39, the insertion groove and the support plate 21, the connection between the flowerpot 2 and the trunk of the flower stand can be detachable, replacing the traditional Therefore, different flowerpots 2 can be replaced according to actual needs, and the support plate 21 and the flowerpot 2 are connected by bolts, which ensures the stability of the flowerpot 2 when the shell is disassembled.

3, the outer end of the annular slider 38 is connected with a protective shell 381 by sliding fit, the lower end of the protective shell 381 is connected with the base 1, the upper end of the protective shell 381 is slidingly fitted with the outer wall of the support rod 39, the protective shell 381 The height of the inner threaded rod 34 is consistent with the height of the inner threaded rod 34, and the height of the protective shell 381 located in the center of the base 1 is higher than the height of the other protective shells 381, and the height of all protective shells 381 is not more than 1.3 meters. The flowerpot 2 of the initial height plays a role of stable support, which is convenient for construction, and at the same time, it can also prevent rainwater and moisture from eroding the threaded rod 34 and the annular slider 38, so that the lifting process of the annular slider 38 on the surface of the threaded rod 34 will not be hindered. It can also further ensure the stability of the annular slider 38 during the movement, and the height limit of the protective shell 381 can ensure the convenience of the construction personnel to operate. In addition, the outer wall of the protective shell 381 can also be engraved with some patterns to improve the beauty of the flower stand. Spend.

The implementation principle of an adjustable municipal landscape flower stand according to the embodiment of the present invention is as follows: after the flower stand has been transported to a designated place, the flower pot 2 is firstly installed on the support plate 21 by bolts by the municipal construction personnel and placed in the flower pot. 2. Cultivate flowers and plants in it, then loosen the locking sleeve 331 and the rotating shaft 33, and rotate the rotating handle 36 as required, so that the rotating disk 35 rotates at a suitable angle, and the rotating disk 35 drives the rotating shaft 33 and the gear 31 to rotate, Under the action of the transmission chain 32, the remaining gears 31 drive the threaded rod 34 to rotate. Under the cooperation of the limit rod 37, the threaded rod 34 drives the annular slider 38 to rise, and the annular slider 38 drives the support rod 39 and the flower pot 2 to move. Synchronously rise to a certain height, and then manually tighten the locking sleeve 331, so that the rotating shaft 33 cannot rotate, which can ensure that the gear 31 and the threaded rod 34 will not rotate easily. When the flowers and plants are trimmed and replaced, it is only necessary to lower the flower pot 2 to the initial height by rotating the turning handle 36 again. 2 Lift up to remove.

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus.

Although embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes, modifications, and substitutions can be made in these embodiments without departing from the principle and spirit of the invention and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. An adjustable municipal landscape flower stand, comprising a base (1), a flowerpot (2) and an adjusting device (3), characterized in that: the lower end of the base (1) is connected with the existing ground, and the base A number of flower pots (2) are arranged at equal intervals from left to right above (1), and an adjusting device (3) is arranged between the flower pot (2) and the base (1); The adjusting device (3) comprises a support column (30), a gear (31), a transmission chain (32), a rotating shaft (33), a threaded rod (34), a rotating disk (35), a rotating handle (36), a limiter A position rod (37), an annular slider (38) and a support rod (39), a cavity is opened inside the base (1), and a number of support columns (30) are installed in the cavity from left to right , the upper end of the support column (30) is rotatably mounted with a gear (31) through a bearing, the outer end of the gear (31) is meshed with a transmission chain (32), and the gear located at the far right end of the base (1) A rotating shaft (33) is installed on the upper end of (31), and a threaded rod (34) is installed on the upper end of the other gears (31). The upper end of the rotating shaft (33) rotates through the upper end of the base (1) and A rotating plate (35) is installed, a rotating handle (36) is installed on the upper edge of the rotating plate (35), the upper end of the threaded rod (34) rotates through the upper end surface of the base (1), and the thread An annular sliding block (38) is connected to the outer wall of the rod (34) by means of screw fitting, and the rear end of the annular sliding block (38) is slidably connected to a limit rod (37), and the lower end of the limit rod (37) is connected to the limit rod (37). The base (1) is connected, the upper end of the annular slider (38) is symmetrically installed with a support rod (39) left and right, and the support rod (39) is connected with the bottom end of the flower pot (2). 2. An adjustable municipal landscape flower stand according to claim 1, characterized in that: the part of the rotating shaft (33) located between the base (1) and the rotating disk (35) is threaded A locking sleeve (331) is connected in a matching manner. 3. An adjustable municipal landscape flower stand according to claim 1, characterized in that: the outer end of the annular slider (38) is connected with a protective shell (381) by sliding fit, and the protective shell (381) The lower end of 381) is connected with the base (1), and the upper end of the protective shell (381) is in sliding fit with the outer wall of the support rod (39). 4. An adjustable municipal landscape flower stand according to claim 1, wherein the bottom end of the flower pot (2) is symmetrically provided with insertion slots, and the upper end of the support rod (39) is inserted into Connected to the insertion slot, the bottom end of the flower pot (2) is connected with a support plate (21) through bolts, and the support plate (21) is fixedly connected with the outer wall of the support rod (39). 5. An adjustable municipal landscape flower stand according to claim 3, characterized in that: the height of the protective shell (381) is consistent with the height of the threaded rod (34) inside, and is located at the base (381). 1) The height of the protective shell (381) in the center is higher than that of the remaining protective shells (381). 6. An adjustable municipal landscape flower stand according to claim 1, characterized in that: the upper end of the base (1) is symmetrically installed with load-bearing rods (11), and two of the load-bearing rods (11) are provided with load-bearing rods (11). A rain shelter (12) is installed between the upper ends, and the rain shelter (12) is always located above the flower pot (2). 7 . The adjustable municipal landscape flower stand according to claim 6 , wherein the canopy ( 12 ) is composed of a mounting frame ( 121 ) and a plurality of tempered glass panels ( 122 ). 8 .
