本发明公开了一种食用菌培育用原料混合装置，属于食用菌培养技术领域，本发明通过设在筛选箱内设置连接板，连接板上设置的四个凹槽用于分批存储一定量的碎屑，连接板带动凹槽上的碎屑进行持续的翻转，配合可加热的金属板以及热风机，对凹槽上的碎屑进行充分的烘干，四个凹槽将批量的碎屑隔开，使得碎屑烘干更加高效，进一步提高了烘干效率；连接板上的四个档杆用于刮动筛选箱底部的碎屑，使得碎屑可以从筛选板上的筛孔落下，多次翻转避免大颗粒碎屑将筛孔堵塞，影响筛选板的过滤效率，实现在对碎屑筛选的同时对碎屑进行烘干，缩短了工艺步骤，提高了原料的加工效率；本发明用于解决现有方案中加工工艺繁多影响原料混合效率的技术问题。
The invention discloses a raw material mixing device for edible fungi cultivation, which belongs to the technical field of edible fungi cultivation. In the invention, a connecting plate is arranged in a screening box, and four grooves arranged on the connecting plate are used to store a certain amount of edible fungi in batches. Chips, the connecting plate drives the chips on the grooves to turn over continuously, and cooperates with the heatable metal plate and the hot air blower to fully dry the chips on the grooves. The four grooves separate the batches of chips. open, making the debris drying more efficient and further improving the drying efficiency; the four gear bars on the connecting plate are used to scrape the debris at the bottom of the screening box, so that the debris can fall from the sieve holes on the screening plate, and more The second inversion avoids clogging of the sieve holes by large particles of debris, which affects the filtration efficiency of the screening plate, realizes the drying of the debris while screening the debris, shortens the process steps, and improves the processing efficiency of raw materials; the invention is used for It solves the technical problem that many processing techniques affect the mixing efficiency of raw materials in the existing solution.
Description
Technical Field
The invention relates to the technical field of edible fungus culture, in particular to a raw material mixing device for edible fungus culture.
Background
The edible fungus is cultivated by using timber, corncob, corn stalk, wheat straw, rice straw, peanut shell, cottonseed shell and other main materials as material and through mechanical processing into chip, adding certain supplementary material, such as wheat bran, rice bran, bean cake, peanut cake, cane sugar, gypsum, calcium carbonate, magnesium sulfate, slicing, crushing, stirring, bag making and other steps. Before the edible fungi are cultivated, the raw materials need to be treated, and the larger raw materials are crushed, so that the raw materials are fully mixed in water.
The edible fungi have certain requirements on the grain size of the culture material, and the grain size requirements of different materials are different, while the culture material in the prior art is usually screened one by utilizing a screening machine after raw materials are sequentially crushed, so that the screening efficiency of the raw materials is influenced; meanwhile, the existing raw material mixing device does not have the function of drying the raw materials, and the next processing step can be continued after the raw materials are processed by a dryer, so that the processing steps are increased, and the raw material mixing efficiency is reduced.
Disclosure of Invention
Aiming at the defects in the prior art, the invention aims to provide a raw material mixing device for edible fungus cultivation, which solves the following technical problems: (1) raw materials are required to be sequentially crushed and then are screened one by using a screening machine, so that the screening efficiency of the raw materials is influenced; (2) after the raw materials are treated by the dryer, the next treatment step can be continued, so that the processing steps are increased, and the raw material mixing efficiency is reduced.
The purpose of the invention can be realized by the following technical scheme:
a raw material mixing device for edible fungus cultivation comprises a crushing box for crushing raw materials and a mixing box for mixing raw material fragments, wherein a crushing mechanism for crushing wood is arranged at the top of the crushing box, the bottom of the crushing box is communicated with a screening box, and a screening mechanism for screening particle sizes of the fragments is arranged in the screening box;
the screening mechanism is characterized in that a plurality of grooves for storing scraps are formed in a connecting plate of the screening mechanism, the connecting plate is fixedly arranged on a screening shaft, the screening shaft is rotatably arranged on a screening box, an output shaft of a screening motor fixedly arranged on one side of the screening box is fixedly connected with the end part of the screening shaft, a stop lever is formed between every two adjacent grooves, the connecting plate is of a hollow structure, a plurality of electric heating rods are arranged in the connecting plate, metal plates are arranged at the positions of the grooves of the connecting plate, and a hot air fan is communicated with one side of the screening box;
the bottom of the screening box is provided with a detachable screening plate; screening bottom of the case portion fixed mounting is used for getting rid of clastic discharge frame.
Further, the equal fixed mounting in screening board both sides has the arc fixed block, and two arc fixed blocks are respectively slidable mounting in two sliding trays that the screening bottom of the case portion was seted up, a plurality of sieve meshes have been seted up on the screening board, two locating levers of screening board one side fixed mounting pass through the bolt and install in screening case lateral wall.
Furthermore, a discharge plate is rotatably installed in a discharge port formed in one side of the screening box, and a piston rod of a driving cylinder rotatably installed on one side of the discharge frame is rotatably installed on one side of the discharge plate.
Furthermore, a material guide plate is slidably mounted on the discharging frame, the material guide plate is obliquely arranged in the discharging frame, a lifting cylinder is fixedly mounted in the discharging frame, a pressure sensor is arranged on a bearing block fixedly mounted at the bottom of the material guide plate, and a piston rod of the lifting cylinder is fixedly mounted at the bottom of the bearing block.
Further, slidable mounting has the apron in the play work or material rest, the apron set up in the screening board below and with screening board sliding fit, the fixed cylinder piston rod fixed connection connecting rod of the outer one side fixed mounting of play work or material rest, connecting rod fixed connection is in apron one side, set up the opening that the apron shifted out on the play work or material rest.
Further, fixed mounting has the rotation motor on the mount of mixing box top installation, the mount bottom is rotated and is installed the fixed axle, rotate motor output shaft fixed connection fixed shaft end portion, equidistant a plurality of stirring leaf subassembly that is provided with on the fixed axle, stirring leaf subassembly includes a plurality of stirring leaf, the equal fixed mounting of a plurality of stirring leaf on the fixed axle.
Further, go out work or material rest bottom fixed mounting have two carrier bars, and two carrier bars bear a frame fixed mounting in mixing box lateral wall through a plurality of, go out the work or material rest and set up in mixing box top one side.
Further, rubbing crusher constructs including two crushing rollers, and impartial interval is provided with a plurality of crushing teeth on two crushing rollers, and a plurality of crushing teeth on two crushing rollers crisscross setting each other, and two crushing rollers set up respectively in two axis of rotation, and two axis of rotation are all rotated and are installed on smashing the case, and two axis of rotation tip all run through crushing case and fixed cover are equipped with drive gear, two drive gear intermeshing.
Furthermore, a transmission motor is fixedly installed on one side, away from the transmission gear, of the crushing box, and an output shaft of the transmission motor is fixedly connected with the end part of one of the rotating shafts.
Compared with the prior art, the invention has the beneficial effects that:
1. according to the invention, the connecting plate is arranged in the screening box, the four grooves formed in the connecting plate are used for storing a certain amount of scraps in batches, the connecting plate drives the scraps on the grooves to be continuously turned over, the scraps on the grooves are sufficiently dried by matching with the heatable metal plate and the hot air blower, and the four grooves separate the batches of scraps, so that the scraps are dried more efficiently, and the drying efficiency is further improved; four shelves poles on the connecting plate are used for scraping the piece of screening bottom of the case portion for the piece can be followed the sieve mesh on the screening board and fallen, and the upset is avoided large granule piece many times and is blocked up the sieve mesh, influences the filtration efficiency of screening board, realizes drying the piece when screening the piece, has shortened process steps, has improved the machining efficiency of raw materials.
2. Through setting up dismantled and assembled screening plate, the screening plate dismouting is convenient, can filter the raw materials of different particle diameters, avoids the thickness of raw materials to influence the cultivation of domestic fungus.
3. The bottom of the screening box is provided with the discharge frame, and the liftable guide plate in the discharge box is used for storing the scraps discharged from the screening box and weighing and metering the scraps, so that the subsequent material proportioning is facilitated, and the raw material mixing efficiency is improved.
Drawings

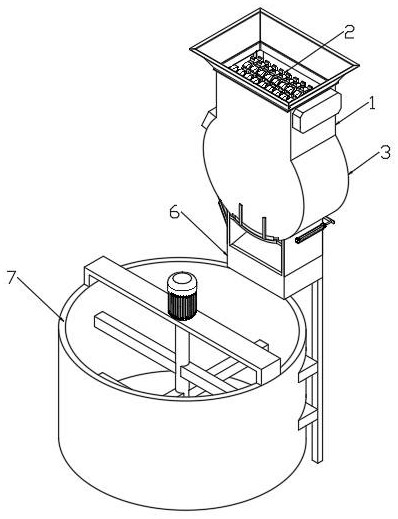

FIG. 1 is a view showing a raw material mixing apparatus for edible mushroom cultivation according to the present invention.
FIG. 2 is a schematic view of the crushing box of the present invention.
Fig. 3 is a schematic view of the crushing mechanism according to the present invention.
FIG. 4 is a schematic structural view of a screening mechanism according to the present invention.
Fig. 5 is a schematic structural view of the discharging frame of the present invention.
FIG. 6 is a schematic view of the structure of the screening plate of the present invention.
FIG. 7 is a schematic view of the mixing box of the present invention.
In the figure: 1. a crushing box; 2. a crushing mechanism; 21. a crushing roller; 22. a rotating shaft; 23. a transmission gear; 24. a protective cover; 25. a drive motor; 3. a screening box; 31. a discharge port; 32. a discharge plate; 33. a driving cylinder; 4. a screening mechanism; 41. a connecting plate; 42. a groove; 43. a screening shaft; 44. a gear lever; 45. an electric heating rod; 46. a metal plate; 5. screening the plate; 51. an arc-shaped fixed block; 52. positioning a rod; 6. a discharging frame; 61. a material guide plate; 62. a lifting cylinder; 63. a bearing block; 7. a mixing box; 71. a fixed mount; 72. rotating the motor; 73. a fixed shaft; 74. a stirring blade assembly; 8. a hot air blower; 9. a cover plate; 10. and (5) fixing the air cylinder.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings and specific embodiments. The embodiments of the present invention have been presented for purposes of illustration and description, and are not intended to be exhaustive or limited to the invention in the form disclosed. Many modifications and variations will be apparent to those of ordinary skill in the art. The embodiment was chosen and described in order to best explain the principles of the invention and the practical application, and to enable others of ordinary skill in the art to understand the invention for various embodiments with various modifications as are suited to the particular use contemplated.
Referring to fig. 1 to 7, the present invention is a raw material mixing apparatus for edible mushroom cultivation, including a pulverizing tank 1 for pulverizing raw materials and a mixing tank 7 for mixing raw material scraps; smash 1 top of case and be provided with the rubbing crusher structure 2 that is used for smashing timber, rubbing crusher structure 2 includes two crushing rollers 21, impartial interval is provided with a plurality of crushing teeth on two crushing rollers 21, and a plurality of crushing teeth on two crushing rollers 21 crisscross setting each other, two crushing rollers 21 set up respectively on two axis of rotation 22, two axis of rotation 22 all rotate and install on crushing case 1, two axis of rotation 22 tip all run through crushing case 1 and fixed cover are equipped with drive gear 23, two drive gear 23 intermeshing, 1 one side fixed mounting of crushing case has protection casing 24, two drive gear 23 all set up in protection casing 24, protection casing 24 has played the effect of protection drive gear 23, crushing case 1 deviates from drive gear 23 one side fixed mounting has drive motor 25, drive motor 25 output shaft fixed connection one of them axis of rotation 22 tip.
Referring to fig. 2 and 4, the bottom of the crushing box 1 is communicated with a screening box 3, a screening mechanism 4 for screening the particle size of the scraps is arranged in the screening box 3, the screening mechanism 4 comprises a connecting plate 41, a plurality of grooves 42 for storing the scraps are formed in the connecting plate 41, the number of the grooves 42 is four in the invention, the four grooves 42 separate batches of scraps, so that the scraps are dried more efficiently, and the drying efficiency is further improved, the connecting plate 41 is fixedly arranged on a screening shaft 43, the screening shaft 43 is rotatably arranged on the screening box 3, a screening motor is fixedly arranged on one side of the screening box 3, an output shaft of the screening motor is fixedly connected with the end part of the screening shaft 43, a blocking rod 44 is formed between every two adjacent grooves 42, the blocking rod 44 is used for scraping the scraps at the bottom of the screening box 3, the screening of the scraps is convenient, the blocking of screen holes is avoided, the connecting plate 41 is of a hollow structure, and a plurality of electric heating rods 45 are arranged in the connecting plate 41, the metal plates 46 are arranged at the plurality of grooves 42 of the connecting plate 41, the metal plates 46 are convenient for heat emitted by the electric heating rod 45 to be transferred to the metal plates 46, one side of the screening box 3 is communicated with the hot air blower 8, and the electric heating rod 45 is matched with the hot air blower 8 to improve the drying efficiency of the scraps;
during the use, start the screening motor, screening motor output shaft drives screening axle 43 and rotates, screening axle 43 rotates and drives connecting plate 41 and rotate, timber is at crushing in-process, the piece is even falls into in four recesses 42 on connecting plate 41, electric hot rod 45 heats on with heat transfer to metal sheet 46, hot-blast air heater 8 is with hot-blast transmission to screening case 3 in simultaneously, connecting plate 41 rotates the piece that drives on the recess 42 and lasts the upset, make the piece obtain abundant stoving under the effect of hot-blast air heater 8 and electric hot rod 45, the realization is being dried the piece when screening the piece, process steps have been shortened, the machining efficiency of raw materials has been improved.
Referring to fig. 4 and 6, the bottom of the screening box 3 is provided with a detachable screening plate 5, arc-shaped fixed blocks 51 are fixedly mounted on both sides of the screening plate 5, the arc-shaped fixed blocks 51 on both sides of the screening plate 5 are respectively slidably mounted in two sliding grooves formed in the bottom of the screening box 3, a plurality of screening holes are formed in the screening plate 5, two positioning rods 52 are fixedly mounted on one side of the screening plate 5, and the two positioning rods 52 are mounted on the side wall of the screening box 3 through bolts; when smashing different raw materials, need to change the mesh aperture size of screening board 5, wherein the change step of screening board 5 is as follows: the bolts on the two positioning rods 52 are removed, the screening plates 5 are taken out from the bottom of the screening box 3, the screening plates 5 with different aperture screening holes are replaced, and the screening plates 5 are loaded into the bottom of the screening box 3, so that the replacement of the screening plates 5 is completed.
Referring to fig. 4, a discharge port 31 formed at one side of the screening box 3 is internally provided with a discharge plate 32, the discharge plate 32 is rotatably mounted on the discharge port 31, the bottom of the screening box 3 is fixedly provided with a discharge frame 6, one side of the discharge frame 6 is rotatably provided with a driving cylinder 33, a piston rod of the driving cylinder 33 is rotatably mounted at one side of the discharge plate 32, and the screening plate 5 at the bottom of the screening box 3 is arranged above a material guide plate 61; when in use: the start drives actuating cylinder 33, drives actuating cylinder 33 and drives out flitch 32 and rotate, and shelves pole 44 will be greater than the piece drive of sieve mesh particle diameter to discharge gate 31 department this moment, and the piece that is greater than the sieve mesh size is discharged along going out flitch 32 from discharge gate 31 department.
Referring to fig. 2 and 5, a discharging frame 6 for removing debris is fixedly installed at the bottom of the screening box 3, a material guide plate 61 is slidably installed on the discharging frame 6, the material guide plate 61 is obliquely arranged in the discharging frame 6, the screened raw materials can conveniently fall into the mixing box 7 along the material guide plate 61, a lifting cylinder 62 is fixedly installed in the discharging frame 6, a pressure sensor is arranged on a bearing block 63 fixedly installed at the bottom of the material guide plate 61 and used for detecting the weight of the debris discharged from the screening box 3, the subsequent raw material proportioning is facilitated, a piston rod of the lifting cylinder 62 is fixedly installed at the bottom of the bearing block 63, a cover plate 9 is slidably installed in the discharging frame 6, the cover plate 9 is arranged below the screening plate 5 and is in sliding fit with the bottom of the screening plate 5, a fixed cylinder 10 is fixedly installed at one side of the discharging frame 6, a piston rod of the fixed cylinder 10 is fixedly connected with a connecting rod, the connecting rod is fixedly connected with one side of the cover plate 9, an opening for moving out the cover plate 9 is arranged on the discharging frame 6.
Referring to fig. 1, the bottom of the discharging frame 6 is fixedly provided with two bearing rods, the two bearing rods are fixedly arranged on the side wall of the mixing box 7 through a plurality of bearing frames, and the discharging frame 6 is arranged on one side above the mixing box 7.
Referring to fig. 7, a fixing frame 71 is fixedly mounted at the top of the mixing box 7, a rotating motor 72 is fixedly mounted on the fixing frame 71, a fixing shaft 73 is rotatably mounted at the bottom of the fixing frame 71, an output shaft of the rotating motor 72 is fixedly connected with the end portion of the fixing shaft 73, a plurality of stirring blade assemblies 74 are arranged on the fixing shaft 73 at equal intervals, each stirring blade assembly 74 comprises a plurality of stirring blades, and the plurality of stirring blades are fixedly mounted on the fixing shaft 73.
Referring to fig. 1 to 7, the operation principle of the raw material mixing device for cultivating edible fungi of the present invention is as follows:
adding raw materials into the bottom of the crushing box 1, starting a transmission motor 25, driving one of the rotating shafts 22 to rotate by an output shaft of the transmission motor 25, driving the other transmission gear 23 to rotate by a transmission gear 23 at the end part of the rotating shaft 22, further driving the other rotating shaft 22 to rotate, relatively rotating the crushing rollers 21 on the two rotating shafts 22, crushing the added raw materials to obtain fragments, and enabling the fragments to fall into the screening box 3; starting a screening motor, driving a screening shaft 43 to rotate by an output shaft of the screening motor, driving a connecting plate 41 to rotate by the rotation of the screening shaft 43, driving chips to fall into four grooves 42 on the connecting plate 41 uniformly in the process of crushing wood, heating by an electric heating rod 45 to transfer heat to a metal plate 46, simultaneously transmitting hot air into a screening box 3 by an air heater 8, driving the chips on the grooves 42 to turn over continuously by the rotation of the connecting plate 41, fully drying the chips under the action of the air heater 8 and the electric heating rod 45, starting a fixed air cylinder 10 after the chips are dried for a set time, driving a cover plate 9 to slide by the fixed air cylinder 10 through a connecting rod, enabling the chips to fall from sieve holes on the screening plate 5, enabling the chips to fall onto the screening plate 5 at the bottom of the screening box 3 along the rotating connecting plate 41, enabling the chips to fall onto a guide plate 61 at the bottom of the sieve holes on the screening plate 5, and starting a lifting air cylinder 62, the lifting cylinder 62 drives the material guide plate 61 to move upwards, so that the scraps on the material guide plate 61 fall into the mixing box 7 along the material guide plate 61, and the pressure sensor records the weight of the scraps; when the raw materials are added into the mixing box 7, the rotating motor 72 is started, the output shaft of the rotating motor 72 drives the fixed shaft 73 to rotate, and the fixed shaft 73 rotates to drive the stirring blade assemblies 74 on the fixed shaft 73 to rotate, so that the chips are uniformly mixed in the water.
The above description is only a preferred embodiment of the present invention, and the protection scope of the present invention is not limited to the above embodiments, and all technical solutions belonging to the idea of the present invention belong to the protection scope of the present invention. It should be noted that modifications and embellishments within the scope of the invention may occur to those skilled in the art without departing from the principle of the invention, and are considered to be within the scope of the invention.
