CN114831531A

CN114831531A - Sealed disinfection wet piece of cloth section of thick bamboo

Info

Publication number: CN114831531A
Application number: CN202210580294.4A
Authority: CN
Inventors: 吕晓颖
Original assignee: Shenwei Innovation Beijing Biotechnology Co ltd
Current assignee: Shenwei Innovation Beijing Technology Co ltd; Siyi Jiaye Beijing International Consulting Co ltd
Priority date: 2022-05-25
Filing date: 2022-05-25
Publication date: 2022-08-02
Anticipated expiration: 2042-05-25
Also published as: CN114831531B

Abstract

The invention discloses a sealed disinfection wet wipes cartridge, which relates to the technical field of sealing and disinfection. A relay controller is fixedly installed, the relay controller is electrically connected to an external power supply, a control switch is fixedly installed on the outside of the counterweight cover, and the control switch is electrically connected to the relay controller. Mixing tank, the mixing tank is filled with disinfectant, the outer side of the base is fixedly installed with a motor, the motor is electrically connected to the relay controller, the output end of the motor is fixedly installed with a winding assembly, and the counterweight cover A cutting assembly is arranged above, and a paper outlet is provided at the connection between the base and the counterweight cover. The invention has a simple structure, is convenient to use, has a larger capacity, and is easy to disassemble and clean.

Description

Sealed disinfection wet piece of cloth section of thick bamboo

Technical Field

The invention belongs to the field of sealing disinfection, and particularly relates to a sealing disinfection wet tissue barrel.

Background

A disposable disinfectant wet towel is prepared from non-woven fabric through sterilizing with disinfectant liquid, sealing and packing.

The Chinese patent with the publication number of CN205366421U discloses a sealed disinfection wet tissue barrel, which comprises a barrel body, a barrel cover, a connecting belt, a sealing cover and wet tissues, wherein the wet tissues are placed in the barrel body, the barrel cover is installed on the upper part of the barrel body, a wet tissue extraction opening is formed in the barrel cover, the sealing cover is buckled on the barrel cover, the sealing cover is positioned above the wet tissue extraction opening, one end of the connecting belt is connected with the sealing cover, the other end of the connecting belt is connected with the outer wall of the barrel cover, a silica gel block is embedded in the wet tissue extraction opening of the barrel cover, and a through hole communicated with the inside of the barrel body is formed in the silica gel block. The utility model relates to a design science, rational in infrastructure, convenient to use, sealed effectual sealed disinfection wet piece of cloth section of thick bamboo uses this wet piece of cloth section of thick bamboo can avoid wet piece of cloth and liquid medicine to be contaminated, ensure patient's safe in utilization, realize the reasonable extraction of wet piece of cloth, reduce unnecessary extravagant and reduce use cost.

However, when the device is actually used, the usage amount of the wet tissue is limited, and the size of the wet tissue cannot be changed according to needs, when the disinfection amount is small, the larger wet tissue wastes resources, and when the disinfection amount is large, the size of the wet tissue is limited, and the practicability is low.

Disclosure of Invention

The invention provides a sealed disinfection wet tissue barrel, which is used for solving the technical problems that the use amount of wet tissues in the prior art is limited, the sizes of the wet tissues cannot be changed according to needs when the disinfection amount is small, the larger wet tissues can cause resource waste, the sizes of the wet tissues are limited when the disinfection amount is large, and the practicability is low when the disinfection amount is large.

In order to solve the technical problem, the invention provides a sealed disinfection wet tissue cartridge which comprises a base, wherein universal wheels are fixedly mounted below the base, a counterweight cover is detachably mounted above the base, a relay controller is fixedly mounted above the counterweight cover and electrically connected with an external power supply, a control switch is fixedly mounted on the outer side of the counterweight cover and electrically connected with the relay controller, a mixing tank is formed below the base and filled with disinfectant, a motor is fixedly mounted on the outer side of the base and electrically connected with the relay controller, a winding assembly is fixedly mounted at the output end of the motor, a cutting assembly is arranged above the counterweight cover, and a paper outlet is formed in the joint of the base and the counterweight cover.

Preferably, the winding assembly comprises a spline shaft, a winding roller and a nut, the spline shaft is fixedly mounted at the output end of the motor, the winding roller is arranged on the spline shaft, a spline hole is formed in the middle of the winding roller, the winding roller is connected with the spline shaft in a clamped mode, external threads are machined on the top end of the spline shaft, and the nut is mounted on the top end of the spline shaft in a meshed mode.

Preferably, the winding roller is symmetrically provided with mounting holes.

Preferably, base four corners department fixed mounting has the lifter, lifter electric connection relay controller, the welding of lifter output has the ring flange, the counterweight cover corresponds the position with the ring flange and has seted up the screw hole, be equipped with fastening bolt in the ring flange, fastening bolt and screw hole meshing.

Preferably, a sealing seat is fixedly installed below the counterweight cover, and the sealing seat is in a shape like a Chinese character 'hui'.

Preferably, the universal wheels are four, the four universal wheels are arranged at four corners of the base, and braking pieces are arranged in the universal wheels.

Preferably, the cutting assembly comprises a gas rod and a cutting knife, the gas rod is fixedly mounted above the counterweight cover, the output end of the gas rod penetrates through the counterweight cover, the cutting knife is fixedly mounted at the output end of the gas rod, and a sealing knife groove is formed in the position, corresponding to the cutting knife, of the base.

Preferably, a status light is fixedly mounted above the counterweight cover, and the status light is electrically connected with the relay controller.

Compared with the prior art, the invention has the following advantages:

1. according to the sealed disinfection wet tissue barrel, the winding assembly is arranged, more non-woven fabric tissues can be wound and stored through the winding roller, the winding roller is inserted into the spline shaft, and the winding roller can be fixed on the spline shaft through the nut, so that the sealed disinfection wet tissue barrel is simple to install and convenient to disassemble.

2. According to the sealed disinfection wet tissue barrel, the air rod and the cutting knife are arranged, so that the sealed disinfection wet tissue barrel can be conveniently cut to be in proper length according to actual needs, the sealed disinfection wet tissue barrel is convenient to reasonably utilize, and disinfection resources are prevented from being wasted.

3. According to the sealed disinfection wet tissue barrel, the lifting rod is arranged, and the lifting rod is detachably connected with the counterweight cover, so that the sealed disinfection wet tissue barrel is convenient to detach and open and is convenient to replace, clean and disinfect.

Drawings

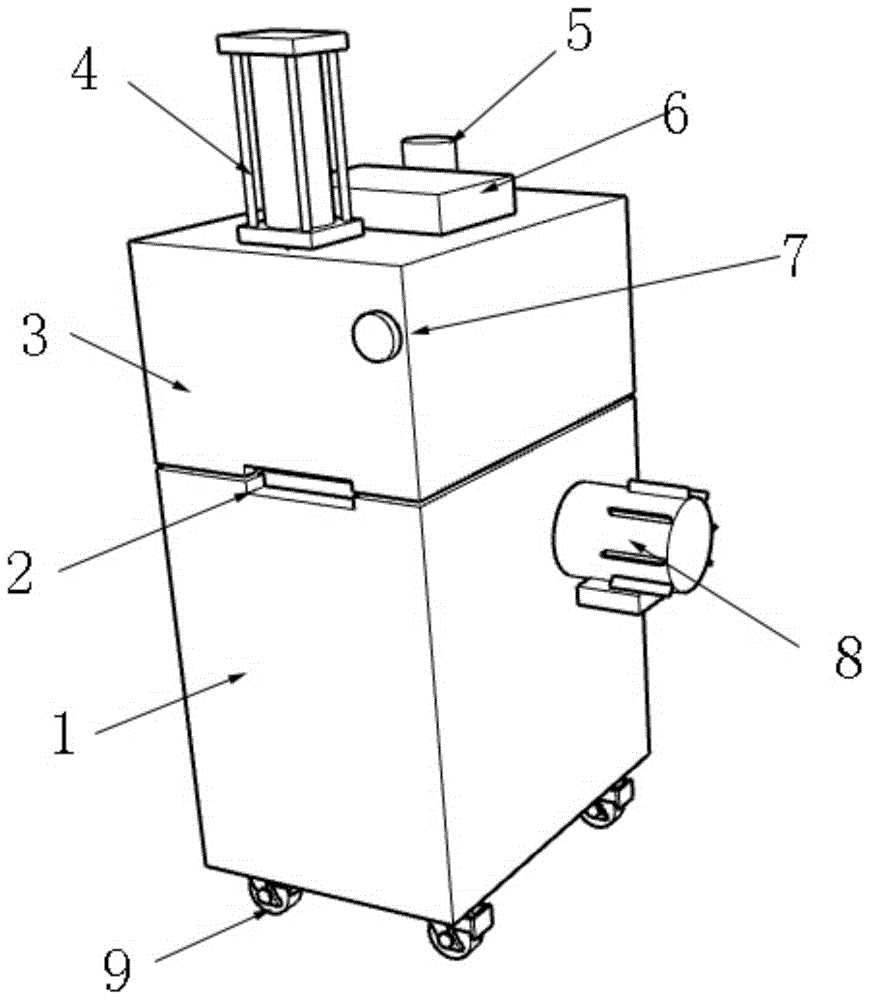

FIG. 1 is a block diagram of a sealed, sterilized wet wipes cartridge of the present invention;

FIG. 2 is an expanded view of a sealed sterilized wet wipes cartridge of the present invention;

FIG. 3 is a schematic view of a weight cap in a sealed sterilized wet wipes cartridge of the present invention;

FIG. 4 is a schematic view of the base of a sealed sterilized wet wipe cartridge of the present invention;

FIG. 5 is a view of the internal structure of the base of the sealed sterilized wet wipe cartridge of the present invention;

FIG. 6 is a schematic view of the winding assembly of the sealed sterilized wet wipes cartridge of the present invention;

reference numbers in the figures: 1. a base; 2. a paper outlet; 3. a counterweight cover; 4. a gas lever; 5. a status light; 6. a relay controller; 7. a control switch; 8. a motor; 9. a universal wheel; 10. a lifting rod; 11. a mixing tank; 12. a winding component; 13. a sealing seat; 14. a cutting knife; 16. sealing the cutter groove; 121. a spline shaft; 122. a wind-up roll; 123. mounting holes; 124. a splined bore; 125. and a nut.

Detailed Description

Referring to fig. 1-6, the present invention provides a technical solution: the utility model provides a wet piece of cloth section of thick bamboo of sealed disinfection, which comprises a

base

1, 1 below fixed mounting of base has

universal wheel

9, 1 top demountable installation of base has

counter weight lid

3, 3 top fixed mounting of counter weight lid has

relay controller

6, 6 electric connection external power supply of relay controller, 3 outside fixed mounting of counter weight lid has

control switch

7, 7 electric connection relay controller 6 of control switch, mixing tank 11 has been seted up to 1 below of base, the intussuseption of mixing tank 11 is filled with the antiseptic solution, 1 outside fixed mounting of base has

motor

8, 8 electric connection relay controller 6 of motor, 8 output end fixed mounting of motor has rolling

component

12, 3 tops of counter weight lid are equipped with cutting assembly, paper outlet 2 has been seted up to

base

1 and 3 junctions of counter weight lid.

In this embodiment, through setting up rolling subassembly 12, at first can receive the book through wind-up roll 122 and deposit more non-woven fabrics paper handkerchiefs, secondly insert integral key shaft 121 with wind-up roll 122, can fix wind-up roll 122 on integral key shaft 121 through nut 125, the installation is simple, it is convenient to dismantle, through being equipped with gas pole 4 and cutting knife 14, be convenient for cut suitable length according to actual need, be convenient for rational utilization, avoid the waste of disinfection resource, through setting up lifter 10, and lifter 10 can dismantle connection counter weight lid 3, convenient to detach opens, be convenient for change cleaning and disinfecting.

Further, the winding assembly 12 comprises a spline shaft 121, a winding roller 122 and a nut 125, the spline shaft 121 is fixedly mounted at the output end of the motor 8, the winding roller 122 is arranged on the spline shaft 121, a spline hole 124 is formed in the middle of the winding roller 122, the winding roller 122 is clamped with the spline shaft 121, an external thread is processed at the top end of the spline shaft 121, and the nut 125 is mounted at the top end of the spline shaft 121 in a meshed mode.

Further, mounting holes 123 are symmetrically formed in the winding roller 122.

Further, base 1 four corners department fixed mounting has lifter 10, lifter 10 electric connection relay controller 6, and the welding of lifter 10 output has the ring flange, and the position that counter weight lid 3 corresponds with the ring flange has seted up the screw hole, is equipped with fastening bolt in the ring flange, and fastening bolt and screw hole mesh.

Further, a sealing seat 13 is fixedly installed below the counterweight cover 3, and the sealing seat 13 is shaped like a Chinese character 'hui'.

Further, the universal wheels 9 are four, the four universal wheels 9 are arranged at four corners of the base 1, and braking pieces are arranged in the universal wheels 9.

Further, cutting assembly includes gas pole 4 and

cutting knife

14, and 3 top fixed mounting of counter weight lid have

gas pole

4, and 4 output ends of gas pole run through

counter weight lid

3, and 4 output ends of gas pole fixed mounting have cutting knife 14, and base 1 has seted up sealed sword groove 16 with cutting knife 14 corresponding position.

Further, a status light 5 is fixedly mounted above the counterweight cover 3, and the status light 5 is electrically connected with the relay controller 6.

The working principle is as follows:

firstly, the winding roller 122 is inserted into the mounting hole 123 through an external clamp, the spline hole 124 of the winding roller 122 is inserted in alignment with the spline shaft 121, then the nut 125 is meshed with the spline shaft 121, the winding roller 122 can be fixed on the spline shaft 121, disinfectant is put into the mixing tank 11, at the moment, the lifting rod 10 drives the counterweight cover 3 to move downwards through the lifting rod 10, and then is in contact fit with the base 1, the sealing seat 13 is arranged, the air tightness is improved, when the wet tissue drying device is used, the control switch 7 is pressed, the control switch 7 controls the air rod 4 to ascend and the motor 8 to rotate, a user pulls the wet tissue, when the wet tissue reaches a proper length, the control switch 7 is pressed again, at the moment, the motor 8 stops rotating, the air rod 4 moves downwards, the output end of the air rod 4 drives the cutting knife 14 to move downwards, and further cuts the wet tissue, after cutting, the cutting knife 14 is positioned in the sealing knife groove 16, and the air tightness is effectively improved, after the wet tissue is used up, the lifting rod 10 circuit is started, the counterweight cover 3 can be lifted, the flange plate can be detached, the counterweight cover 3 can be detached, and disinfectant can be added conveniently, the wind-up roller 122 can be replaced, and the inside of the wet tissue can be cleaned and disinfected conveniently.

Claims

1. A sealed disinfecting wet wipes cartridge, comprising a base (1), characterized in that: a universal wheel (9) is fixedly installed below the base (1), and a counterweight is detachably installed above the base (1) A cover (3), a relay controller (6) is fixedly installed above the counterweight cover (3), the relay controller (6) is electrically connected to an external power supply, and the outer side of the counterweight cover (3) is fixed A control switch (7) is installed, the control switch (7) is electrically connected to the relay controller (6), a mixing tank (11) is opened under the base (1), and the mixing tank (11) is filled with There is disinfectant, a motor (8) is fixedly installed on the outside of the base (1), the motor (8) is electrically connected to the relay controller (6), and the output end of the motor (8) is fixedly installed with a winding assembly (12), a cutting assembly is arranged above the counterweight cover (3), and a paper outlet (2) is opened at the connection between the base (1) and the counterweight cover (3).

2. A sealed disinfecting wipes cartridge according to claim 1, wherein the winding assembly (12) comprises a spline shaft (121), a winding roller (122) and a nut (125), A spline shaft (121) is fixedly installed at the output end of the motor (8), a winding roller (122) is arranged on the spline shaft (121), and a spline hole is provided in the middle of the winding roller (122). (124), the winding roller (122) and the spline shaft (121) are clamped, the top of the spline shaft (121) is machined with an external thread, and the top of the spline shaft (121) is engaged with a nut ( 125).

3. The sealed disinfectant wet wipes cartridge according to claim 1, wherein installation holes (123) are symmetrically opened on the winding roller (122).

4. A sealed disinfecting wet wipes cartridge according to claim 1, characterized in that a lifting rod (10) is fixedly installed at four corners of the base (1), and the lifting rod (10) is electrically connected to a relay The controller (6), the output end of the lift rod (10) is welded with a flange plate, the counterweight cover (3) is provided with threaded holes corresponding to the flange plate, and the flange plate is provided with fastening Bolts, the fastening bolts are engaged with the threaded holes.

5. A sealed disinfecting wet wipes cartridge according to claim 1, characterized in that a sealing seat (13) is fixedly installed under the counterweight cover (3), and the sealing seat (13) is in a back-shaped shape .

6. A sealed disinfectant wet wipes cartridge according to claim 1, characterized in that, the universal wheels (9) are provided with four, and the four universal wheels (9) are arranged on the base (1) The four corners and the universal wheel (9) are provided with brakes.

7. The sealed disinfectant wet wipes cartridge according to claim 1, wherein the cutting assembly comprises a gas rod (4) and a cutting knife (14), and a counterweight cover (3) is fixedly mounted above the A gas rod (4), the output end of the gas rod (4) penetrates the counterweight cover (3), the output end of the gas rod (4) is fixedly installed with a cutting knife (14), the base (1) and the cutting knife (14) A sealing knife groove (16) is provided at the corresponding position.

8. A sealed disinfecting wipes cartridge according to claim 1, wherein a status light (5) is fixedly installed above the counterweight cover (3), and the status light (5) is electrically connected to a relay Electric controller (6).
