Plug-in hybrid heavy tractor chassis
Technical Field
The invention belongs to the technical field of vehicle frame chassis for operation transportation railways, and particularly relates to a plug-in hybrid power heavy tractor chassis.
Background
The plug-in hybrid power is a new energy automobile between a pure electric automobile and a fuel automobile, and comprises an engine, a transmission system, an oil way and an oil tank of the traditional automobile, and also comprises a battery, a motor and a control circuit of the pure electric automobile.
In the prior art, an increase form hybrid commercial vehicle chassis arrangement structure disclosed as CN215097822U belongs to a series increase form hybrid vehicle according to energy flow, and has the disadvantages that: the engine drives the generator to generate electricity, then the electric energy is transmitted to the driving motor through the inverter, and then the driving motor provides power to drive the automobile. Because the engine can not directly drive the vehicle, the energy conversion between the mechanical energy and the electric energy is repeated, and the energy loss in the charging and discharging processes of the battery is caused, the energy utilization rate is low, and the mechanical efficiency is low.
The chassis arrangement structure of the hybrid power heavy tractor disclosed in the publication No. CN108058588A has no pure electric mode, and cannot meet the requirement of hanging green plates; meanwhile, the high-voltage battery device is laterally arranged, the center of gravity of a load is offset, and the battery capacity is limited. In view of this, the following improvement is proposed.
Disclosure of Invention
The technical problems solved by the invention are as follows: the plug-in hybrid heavy tractor chassis has a pure electric driving function and meets the requirement of hanging green cards; the energy utilization rate and the mechanical efficiency are effectively improved; the problem of current hybrid vehicle battery biasing and the endurance mileage that battery capacity is limited leads to is short is solved.
The technical scheme adopted by the invention is as follows: the plug-in hybrid heavy tractor chassis comprises a front axle, a middle axle and a drive axle which are sequentially arranged on a frame from front to back; an engine is arranged at the center of the upper part of the front axle; the rear end of the engine is connected with the input end of the drive axle through a motor, a gearbox, a middle axle transmission shaft and a drive axle middle transmission shaft in sequence; high-voltage battery devices are arranged on the upper end of the gearbox and the upper wing surfaces of the left beam and the right beam of the cab rear side frame and are connected with the motor circuit.
In the above technical solution, further: still including arranging urea case, BMS controller, the fuel tank that sets gradually in the frame left side from the front to back.
In the above technical solution, further: the urea tank is disposed adjacent to the engine.
In the above technical solution, further: the device also comprises an exhaust aftertreatment device, a storage battery, a three-in-one electric cooling system, a three-in-one controller and an upper vehicle step assembly which are arranged on the right side of the frame from front to back in sequence.
In the above technical solution, further: the exhaust gas aftertreatment device is arranged close to the engine, and an independent engine cooling device is arranged on the front side of the engine.
In the above technical solution, further: the three-electric cooling system is used for heat dissipation of the motor, the high-voltage battery device, the three-in-one controller and the upper step assembly.
In the above technical solution, further: the exhaust aftertreatment device is provided with a heat shield; the three-in-one controller and the upper pedal combined piece are provided with a protective cover.
In the above technical solution, further: the three-electric cooling system expansion water tank is also included; the three electric cooling system expansion water tanks are arranged in a protective cover of the high-voltage battery device.
In the above technical solution, further: the electric steering device and the electric air-conditioning compressor are arranged on the left side and the right side of the front end of the frame.
In the above technical solution, further: also comprises an air storage cylinder device; the air storage cylinder devices are respectively arranged on the left inner side and the right inner side of the frame and on the lower wing surface of the tail beam of the frame.
Compared with the prior art, the invention has the advantages that:
1. the invention is a parallel hybrid power system, integrates the advantages of pure electric vehicles and hybrid power vehicles, and can realize pure electric and zero emission driving; the driving range of the vehicle can be increased through the hybrid mode; the problem of endurance of the pure electric vehicle and the problem of high oil consumption of the traditional vehicle are effectively solved; meanwhile, the requirements of users on hanging green plates, enjoying government subsidies and local road administration right of way can be met, and the method is another development direction of new energy automobiles.
2. The motor is not directly connected with the drive axle any more, unsprung weight load is reduced, control is facilitated, and improvement of the control stability of the whole vehicle is facilitated.
3. The motor, the high-voltage battery device and the engine do not share one set of cooling system: in turn, designing an independent engine cooling device for the engine; the motor, the high-voltage battery device, the three-in-one controller and the boarding stepping assembly are cooled and radiated through the three electric cooling systems, and the radiating performance is effectively improved.
4. The air cylinder devices are not arranged on the side face of the frame, but are distributed, and under the combined action of the upper high-voltage battery device, the volumes of the oil tank and the high-voltage battery device are not sacrificed, the endurance mileage of a mixed mode is not limited, the driving mileage can be prolonged in the mixed mode, and the problem of short endurance mileage is solved.
5. Under the conventional condition, the invention has the function of accelerating and boosting, can make up the defect of insufficient instantaneous response of the power of the engine and improve the power performance of the whole vehicle.
6. The invention adopts the electric air-conditioning compressor, can reduce the fuel consumption, save the fuel cost and improve the dynamic property and the economical efficiency of the automobile.
7. The invention has simple structure, reasonable arrangement of chassis parts and high space utilization rate, can be directly refitted on a conventional vehicle and realize the electricity changing function, is convenient to assemble, can realize serialization and modularization and is suitable for popularization.
Drawings

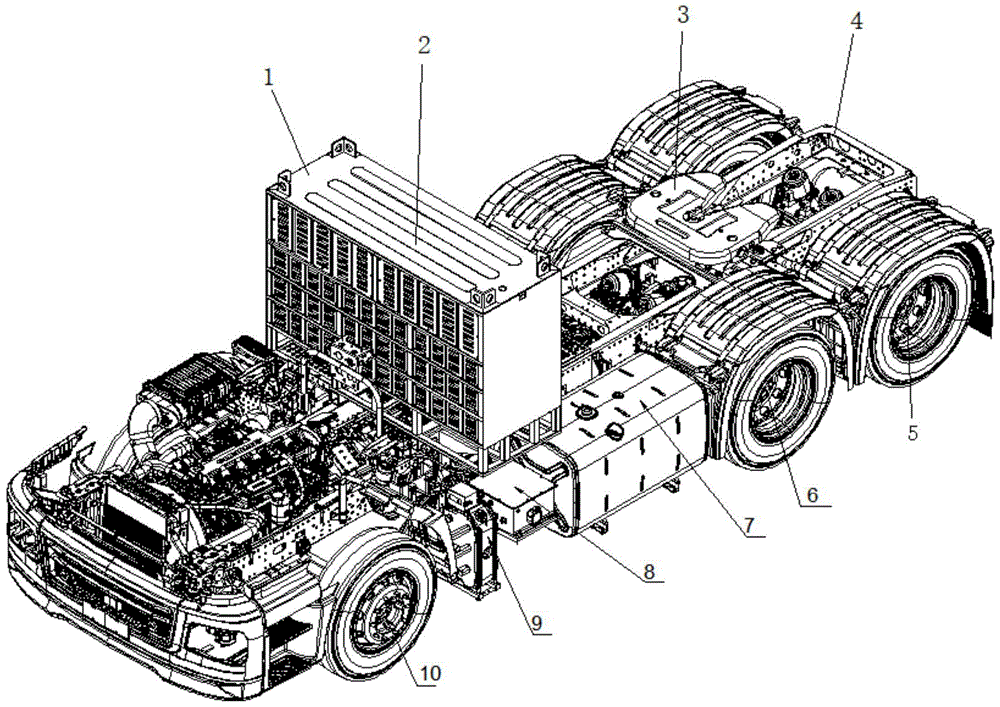

Fig. 1 is an isometric view of the arrangement of the high voltage battery device of the present invention;
FIG. 2 is a top view of the present invention;
in the figure: 1-three electric cooling system expansion water tank, 2-high voltage battery device, 3-saddle, 4-frame, 5-drive axle, 6-middle axle, 7-fuel tank, 8-BMS controller, 9-urea tank, 10-front axle, 11-three-in-one controller and upper car step assembly, 12-three electric cooling system, 13-storage battery, 14-exhaust gas after-treatment device, 15-gearbox, 16-motor, 17-electric air-conditioning compressor, 18-engine, 19-engine cooling device, 20-air storage cylinder device, 21-drive axle middle transmission shaft, 22-middle axle transmission shaft, 23-electric steering gear.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to fig. 1-2 in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
The plug-in hybrid heavy-duty tractor chassis (shown in fig. 1) has a front axle 10, a middle axle 6 and a drive axle 5 which are arranged on a frame 4 in sequence from front to back.
A saddle 3 is arranged between the middle axle 6 and the drive axle 5 and on the upper part of the frame 4. Trailer pressure acts on the saddle 3 flat plate, and the driving safety and the stability of the trailer are ensured.
(with reference to fig. 2) an engine 18 is arranged at the center of the upper part of the front axle 10; the center of gravity is ensured to be stable. The rear end of the engine 18 is connected with the input end of the drive axle 5 through a motor 16, a gearbox 15, a middle axle transmission shaft 22 and a drive axle middle transmission shaft 21 in sequence.
The invention is a parallel hybrid power system, integrates the advantages of pure electric vehicles and hybrid power vehicles, and can realize pure electric and zero emission driving; the driving range of the vehicle can be increased through the hybrid mode; the problems of endurance of the pure electric vehicle and high oil consumption of the traditional vehicle are effectively solved; meanwhile, the requirements of a user on hanging green plates, enjoying government subsidies and local road administration right can be met, and the method is another development direction of the new energy automobile. Under the conventional condition, the system has a basic acceleration assisting function, can make up the defect that the instantaneous response of the power of an engine is not fast enough, and improves the power performance of the whole vehicle.
Specifically, the method comprises the following steps: the hybrid power system has three driving modes of pure electricity, fuel oil and hybrid power, can save energy and reduce emission to the maximum extent, has high economic benefit, and meets specific requirements of users; the safety of the whole vehicle is improved through the aspects of battery thermal management optimization, brake recovery capacity, active speed limiting function design and the like.
The tractor is under pure electric mode: the invention is driven by the motor 16, the high-voltage battery device 2 provides power for the motor 16, and the vehicle can run for 50km when being fully loaded at a constant speed of 40km/h, thereby meeting the requirements of users on hanging green plates, enjoying government subsidies and local road administration rights.
In the fuel mode: the invention is driven by the engine 18, and the fuel tank 7 provides fuel for the engine 18, thereby effectively solving the problem of endurance of the pure electric vehicle.
In the mixed mode: the invention is driven by the motor 16, and is purely driven after starting, and the engine 18 does not participate in the work; until reaching the set speed, the engine 18 is switched in; when the vehicle speed is lower than the cut-in vehicle speed of the engine 18, the whole vehicle is in a main driving state of the motor 16. The motor 16 drive torque varies with throttle opening and speed: when the tractor needs to be accelerated, the high-voltage battery device 2 supplies power to the motor 16, and the motor 16 and the engine 18 drive the vehicle to run together, so that the tractor can be accelerated rapidly; meanwhile, compared with the traditional vehicle, the fuel consumption is reduced to some extent, and the fuel economy can be improved. When the tractor decelerates, if the tractor needs to decelerate slowly, the braking force is mainly provided by the motor 16, the motor 16 plays a role of a generator, part of braking energy is converted into electric energy, the electric energy is stored in the high-voltage battery device 2 after being processed by the charging circuit and used for supplying when needed, and the braking system does not participate in the process and is used for reducing the loss of braking components. If the tractor needs to be decelerated considerably in a short period of time, the braking system provides a braking force in conjunction with the electric motor 16. Compared with the conventional tractor, the tractor can obtain larger braking force due to the fact that the motor 16 participates in braking, namely the retarder device of the conventional tractor is equivalent, and the thermal attenuation condition of a braking system can be reduced.
Moreover, the motor 16 is not directly connected with the drive axle 5 any more, so that unsprung weight load is reduced, control is facilitated, and improvement of the control stability of the whole vehicle is facilitated.
Therefore, the hybrid electric vehicle solves the problems that the hybrid electric vehicle has no pure electric mode, cannot meet the requirement of hanging green plates, cannot enjoy government subsidies and local road administration rights and the like, simultaneously does not need to reduce the volume of an oil tank, can prolong the driving mileage in the hybrid mode and solves the problem of short driving mileage.
The upper end of the gearbox 15 and the upper wing surfaces of the left beam and the right beam of the cab rear side frame 4 are provided with a high-voltage battery device 2, and the high-voltage battery device 2 is connected with a motor 16 circuit.
Therefore, the power battery, namely the high-voltage battery device 2 is arranged in front of the central line of the rear axle, and the technical scheme of the left side and the right side of the frame is as follows: the gravity center is stable, the space is sufficient, the battery capacity is large, the endurance mileage is long, and the maintenance is convenient.
This patent tractor is driven by motor 16 under pure electric mode, and high-voltage battery device 2 provides the power for motor 16, when fully loaded with constant speed 40km/h, can travel 50km, can satisfy the user and hang green brand, enjoy government subsidy and local road administration right of way requirement.
The high-voltage battery device 2 provides power for the motor 16, and the motor 16 can respectively provide motor torque and braking torque in a starting working condition, an accelerating working condition and a braking working condition so as to improve the dynamic performance and the braking performance of the vehicle.
In the above embodiment, further: the automobile frame further comprises a urea box 9, a BMS controller 8 and a fuel tank 7 which are arranged on the left side of the frame 4 from front to back in sequence.
In the above embodiment, further: the urea box 9 is arranged close to the engine 18, the urea box 9 and the fuel tank 7 are arranged on the same side of the car 4, and the urea box 9 is convenient to supplement when refueling.
There is a BMS controller 8 for managing the battery cells. For example, a system that balances the voltages of the cells, regulates the voltage, and ensures that the battery is not overloaded. When a certain specific battery unit breaks down, the battery cell balancing function of the BMS controller 8 can control other battery units to replace the battery units to work so as not to affect the battery cells.
Meanwhile, in the above embodiment, further: the engine 18 is provided with a separate engine cooling device 19 on the front side.
It can be seen that the electric machine 16, the high-voltage battery device 2 and the engine 18 no longer share a set of cooling systems: in turn, a separate engine cooling device 19 is designed for the engine 18; effectively improve whole car heat dispersion.
In the above embodiment, further: the device also comprises an exhaust aftertreatment device 14, a storage battery 13, a three-in-one electric cooling system 12 and a three-in-one controller and upper step closing piece 11 which are arranged on the right side of the frame 4 from front to back in sequence.
In the above embodiment, further: the three-electric cooling system 12 is used for heat dissipation of the motor 16, the high-voltage battery device 2, the three-in-one controller and the upper step assembly 11.
The motor 16, the high-voltage battery device 2, the three-in-one controller and the boarding step assembly 11 are cooled and radiated by the three-electric cooling system 12, and the heat radiation performance of a large three-electric system is effectively ensured. Namely, the three-electric cooling system 12 is used for cooling the three large electric systems, so that the heat dissipation performance of the three large electric systems is improved.
In the above embodiment, further: the exhaust aftertreatment device 14 is located proximate to the engine 18 to improve exhaust efficiency.
In the above embodiment, further: the exhaust aftertreatment device 14 is provided with a heat shield; preventing the exhaust aftertreatment device 14 from dissipating heat from the exhaust gases to the surrounding equipment. The three-in-one controller and the boarding step piece 11 are provided with a protective cover which effectively protects the three-in-one controller.
In the above embodiment, further: the three-electric cooling system expansion water tank 1 is also included; the three-electric cooling system expansion tank 1 is arranged in a protective cover provided in the high-voltage battery device 2.
The expansion water tank 1 of the three-electric cooling system changes the cooling system into a permanent closed system, so that the loss of cooling liquid is reduced; air is prevented from entering continuously, and the oxidation corrosion of parts is avoided; cavitation erosion is reduced; the water and steam in the cooling system are separated, the pressure in the system is kept stable, the water pump water quantity of the water pump is improved, and the cooling system is more stable and reliable in operation.
In the above embodiment, further: and the electric steering gear 23 and the electric air-conditioning compressor 17 are arranged at the left and right sides of the front end of the frame 4. The electric power steering 23 and the electric air conditioner compressor 17 are small three-electric systems. Therefore, the electric air-conditioning compressor 17 is adopted, so that the fuel consumption can be reduced, the fuel cost is saved, and the dynamic property and the economical efficiency of the automobile are improved.
In the above embodiment, further: also includes an air reservoir device 20; the air storage cylinder device 20 is respectively arranged on the left inner side and the right inner side of the frame 4 and on the lower wing surface of the tail beam of the frame.
The air cylinder device 20 is not arranged on the side surface of the frame 4, but a distributed arrangement mode is adopted, and the air cylinder device 20 arranged in a distributed mode is cooperated with the upper high-voltage battery device 2, so that the installation volumes of the fuel tank 7 and the high-voltage battery device 2 are not sacrificed, the endurance mileage of a mixed mode is not limited, the driving mileage can be prolonged in the mixed mode, and the problem that the endurance mileage of a hybrid vehicle is short is solved.
From the above description it can be found that: the invention is mainly suitable for tractors, has an accelerating and boosting function under the conventional condition, can make up the defect of insufficient instantaneous response of the power of an engine and improves the power performance of the whole vehicle.
When the vehicle is accelerated, the high-voltage battery device 2 supplies power to the motor 16, and the motor 16 and the engine 18 drive the vehicle together, so that the tractor is accelerated rapidly, the fuel consumption is reduced compared with the traditional vehicle, and the fuel economy can be improved.
When the tractor decelerates, if the tractor needs to decelerate slowly, the braking force can be mainly provided by the motor 16, the motor 16 plays a role of a generator at the moment, partial braking energy is converted into electric energy, the electric energy is stored in the high-voltage battery device 2 after being processed by the charging circuit for use when needed, the braking system does not participate in the process, and the loss of braking components can be reduced.
If the tractor needs to decelerate in a short time by a wide margin, then braking system and motor 16 provide braking force jointly, compare with traditional tractor, because motor 16 participates in the braking, the tractor can obtain bigger braking force, is equivalent to the retarder device of traditional tractor promptly, can alleviate braking system's the thermal decay condition.
The chassis arrangement structure of the invention adds the motor 16, the high-voltage battery device 2, the three-in-one controller and upper car step assembly 11, the three-in-one cooling system 12 and the electric steering gear 23 on the basis of not changing the existing arrangement structure of the traditional sample car. Not only can the power performance, the economic performance and the braking performance of the automobile be improved; the problems of endurance of the pure electric vehicle and high oil consumption of the traditional vehicle are effectively solved; meanwhile, the requirements of users on hanging green cards, enjoying government subsidies and local road administration right of way can be met; the three-electric cooling system 12 directly provides a heat dissipation function for the motor 16, the high-voltage battery device 2, the three-in-one controller and the upper step assembly 11, and the engine cooling device 19 independently provides heat dissipation for the engine; the comprehensive heat dissipation performance of the whole vehicle can be improved.
Meanwhile, the high-voltage battery device 2 is arranged at the upper end of the gearbox 15, the rear side of the cab and the upper wing surfaces of the left beam and the right beam of the frame 4 fully utilize the space between the rear end of the cab and the trailer, the layout is reasonable, and the space utilization rate is high; the safety is high, the battery replacement function can be conveniently realized at the later stage, and the serialized and modularized operation can be realized; the center of gravity is stable, and the battery capacity is sufficient.
In conclusion, the vehicle-mounted power exchange device is simple in structure, reasonable in chassis part arrangement, high in space utilization rate, capable of being directly refitted and used for achieving the power exchange function on a conventional vehicle, convenient to assemble, capable of achieving serialization and modularization and suitable for popularization.
All the embodiments in the present specification are described in a related manner, and the same and similar parts among the embodiments may be referred to each other, and each embodiment focuses on differences from other embodiments.
The above description is only for the preferred embodiment of the present invention, and is not intended to limit the scope of the present invention. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention shall fall within the protection scope of the present invention.

Claims (10)

1. Insert heavy tractor chassis of electric formula hybrid, its characterized in that: the front axle (10), the middle axle (6) and the drive axle (5) are sequentially arranged on the frame (4) from front to back; an engine (18) is arranged at the center of the upper part of the front axle (10); the rear end of the engine (18) is connected with the input end of the drive axle (5) through a motor (16), a gearbox (15), a middle axle transmission shaft (22) and a drive axle middle transmission shaft (21) in sequence; high-voltage battery devices (2) are arranged on the upper end of the gearbox (15) and the upper wing surfaces of the left beam and the right beam of the cab rear side frame (4), and the high-voltage battery devices (2) are connected with a motor (16) through circuits.
2. The plug-in hybrid heavy haul vehicle chassis of claim 1, wherein: the automobile frame is characterized by further comprising a urea box (9), a BMS controller (8) and a fuel tank (7) which are arranged on the left side of the automobile frame (4) in sequence from front to back.
3. The plug-in hybrid heavy haul vehicle chassis of claim 2, wherein: the urea tank (9) is disposed adjacent to the engine (18).
4. The plug-in hybrid heavy haul vehicle chassis of claim 1, wherein: the automobile exhaust post-treatment device is characterized by further comprising an exhaust post-treatment device (14), a storage battery (13), a three-in-one cooling system (12), a three-in-one controller and an upper automobile step closing piece (11), wherein the exhaust post-treatment device, the storage battery (13), the three-in-one cooling system and the three-in-one controller are arranged on the right side of the automobile frame (4) from front to back in sequence.
5. The plug-in hybrid heavy haul vehicle chassis of claim 4, wherein: the exhaust aftertreatment device (14) is disposed proximate to an engine (18); an independent engine cooling device (19) is arranged on the front side of the engine (18).
6. The plug-in hybrid heavy haul vehicle chassis of claim 4, wherein: the three-electric cooling system (12) is used for heat dissipation of the motor (16), the high-voltage battery device (2), the three-in-one controller and the boarding step closing piece (11).
7. The plug-in hybrid heavy haul vehicle chassis of claim 4, wherein: the exhaust gas aftertreatment device (14) is provided with a heat shield; the three-in-one controller and the upper pedal assembly (11) are provided with protective covers.
8. The plug-in hybrid heavy haul vehicle chassis of claim 1, wherein: the three-electric cooling system expansion water tank (1) is also included; the three-electric cooling system expansion water tank (1) is arranged in a protective cover of the high-voltage battery device (2).
9. The plug-in hybrid heavy haul vehicle chassis of claim 1, wherein: the electric steering gear is arranged on the left side and the right side of the front end of the frame (4), and the electric air-conditioning compressor (17) is arranged on the left side and the right side of the front end of the frame.
10. The plug-in hybrid heavy haul vehicle chassis of claim 1, wherein: also comprises an air storage cylinder device (20); the air storage cylinder devices (20) are respectively arranged on the left inner side and the right inner side of the frame (4) and on the lower wing surface of the tail beam of the frame.
CN202210550973.7A 2022-05-18 2022-05-18 Plug-in hybrid heavy tractor chassis Pending CN114801697A (en)

Priority Applications (1)

Application Number Priority Date Filing Date Title
CN202210550973.7A CN114801697A (en) 2022-05-18 2022-05-18 Plug-in hybrid heavy tractor chassis

Applications Claiming Priority (1)

Application Number Priority Date Filing Date Title
CN202210550973.7A CN114801697A (en) 2022-05-18 2022-05-18 Plug-in hybrid heavy tractor chassis

Publications (1)

Publication Number Publication Date
CN114801697A true CN114801697A (en) 2022-07-29

Family

ID=82517109

Family Applications (1)

Application Number Title Priority Date Filing Date
CN202210550973.7A Pending CN114801697A (en) 2022-05-18 2022-05-18 Plug-in hybrid heavy tractor chassis

Country Status (1)

Country Link
CN (1) CN114801697A (en)

Cited By (1)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN115384620A (en) * 2022-08-23 2022-11-25 中国重汽集团济南动力有限公司 Be applied to autopilot pure electric flat plate collection card of harbour transportation

Cited By (2)

* Cited by examiner, † Cited by third party
Publication number Priority date Publication date Assignee Title
CN115384620A (en) * 2022-08-23 2022-11-25 中国重汽集团济南动力有限公司 Be applied to autopilot pure electric flat plate collection card of harbour transportation
CN115384620B (en) * 2022-08-23 2024-01-23 中国重汽集团济南动力有限公司 Be applied to pure electronic dull and stereotyped integrated circuit of autopilot of harbour transportation

Similar Documents

Publication Publication Date Title
EP3736151B1 (en) Hybrid drive system and vehicle
CN101797884A (en) Duel-clutch stepless speed change series parallel hybrid power system
CN102358201A (en) Extended range type electric vehicle power system based on fuel battery and control method for extended range type electric vehicle power system
CN110154733B (en) Hybrid engineering vehicle
CN210234640U (en) Hybrid engineering vehicle
CN114801697A (en) Plug-in hybrid heavy tractor chassis
CN110816309A (en) Range-extending electric automobile and drive control method
CN101830183A (en) Hydrogen-electric heavy truck
CN112319616A (en) Pure [ electric ] motor coach chassis
CN217294238U (en) Plug-in hybrid heavy tractor chassis
CN217917633U (en) Fuel cell tractor
CN212796547U (en) Heavy tractor chassis and vehicle of range extending power
CN110182038A (en) A kind of two-way hybrid power three type chassis
CN116061708A (en) Driving method of electric automobile and related components
CN210554155U (en) Coaxial series composite driving vehicle
CN214325223U (en) Pure electric motor car chassis
CN210047319U (en) Bidirectional hybrid power three-class chassis
CN210970711U (en) Vehicle with a steering wheel
CN114104114A (en) Distributed chassis of port container transport vehicle
CN220374276U (en) Tractor chassis and tractor
CN219467515U (en) Electric heavy truck chassis structure and battery-powered electric heavy truck
CN217170453U (en) Multi-power hybrid transmission system and electric wheel device
CN215622255U (en) New forms of energy passenger train and chassis thereof
CN218055153U (en) Scooter chassis follow-up vehicle based on tractor formation system
CN221316436U (en) Range-extending type hybrid power tractor

Legal Events

Date Code Title Description
PB01 Publication
PB01 Publication
SE01 Entry into force of request for substantive examination
SE01 Entry into force of request for substantive examination
