Abstract

The invention discloses a multifunctional electric nursing bed, which belongs to the field of nursing beds. The multifunctional electric nursing bed of the present invention has functions such as electric lifting, lifting, bending legs, sitting on toilet, folding table board, etc., and the closing or opening of the toilet seat of the toilet seat mechanism is linked with the telescopic movement of the bedpan support plate. Design, the bedpan support plate can expand and contract with the opening and closing of the toilet mouth, and the structure design is simple and ingenious. When the toilet seat function is not used, the entire electric toilet mechanism has a compact structure and small space occupation, which does not affect the original electric nursing bed. When using the toilet function, the distance between the bedpan and the toilet mouth is more reasonable, it is not easy to cause problems such as the patient's excrement splashing out, and the use is convenient and hygienic. In addition, with the electric folding table board mechanism arranged at the end of the bed, it is further convenient for patients to eat, study and entertain on the nursing bed, and the electric folding table board can be used as the foot board of the nursing bed after being folded, which further simplifies the structure of the nursing bed.

Description

A multifunctional electric nursing bed

technical field

The present invention relates to a nursing bed, more particularly, to a multifunctional electric nursing bed, in particular to an electrically controlled nursing bed with functions such as lifting, lifting, bending legs, sitting on toilet and table board.

Background technique

With the continuous improvement of living standards, people's life expectancy is greatly prolonged, and the population is aging. More and more patients need long-term bedridden treatment or rehabilitation. These long-term bedridden patients who have lost their ability to take care of themselves mainly rely on hospitals, welfare institutions and families. It is difficult for them to get up and down, and they need staff to take care of their meals and daily life. For the medical staff and the family members of the patients, the daily nursing work of the patients is very heavy.

Because of this, nursing beds have become the main tool to help care for long-term bedridden patients, and the demand for nursing beds is increasing. Most of the existing electric nursing beds have basic functions such as lifting and getting up, but these basic functions are currently difficult to meet the needs of daily life and diet of long-term bedridden patients, among which the defecation problem of patients is particularly prominent. In order to solve the problem of patient's urination and defecation care, some nursing beds with toilet function have appeared on the market, but most nursing beds with toilet function are equipped with toilets at the bottom of the nursing bed. This method is not only structural It is complicated and will occupy the space at the bottom of the nursing bed, so that the nursing bed loses its original height lifting function; some nursing beds directly open a toilet hole in the middle of the nursing bed, and set an openable cover at the bottom of the toilet hole. When in use, open the cover on the toilet hole and place the bedpan under the toilet hole. This method is usually difficult to control the distance from the bedpan to the toilet hole. When the distance from the bedpan to the toilet hole is too far, the patient's excrement is also prone to occur. Problems such as external splashing make it inconvenient to use.

In addition, for long-term bedridden patients, their daily diet, entertainment and learning are often completed on the bed. In the existing nursing bed, a detachable table is usually placed on the guardrails on both sides of the nursing bed or is set beside the bed. A movable table board. The detachable table board can only be used on a horizontal nursing bed. It is difficult to apply to a nursing bed that can be tilted back and forth to facilitate the patient to get up and down. On the one hand, the table board is difficult to fix on the guardrail, on the other hand The inclined table board is difficult to place tableware and other items stably; although the movable table board can be used flexibly, it increases the space occupation, and usually adopts a single-sided cantilever support structure, and the stability and load-bearing capacity of the table board are also poor. It is also not convenient enough to use.

Based on the above problems of the existing electric nursing beds, it is necessary to propose solutions to the above pain points to improve and enrich the functions of the nursing beds.

SUMMARY OF THE INVENTION

1. The technical problem to be solved by the invention

The purpose of the present invention is to overcome the shortcomings of the existing electric nursing bed, such as complicated defecation structure, unreasonable spatial layout and easy interference with other functions, etc., and to provide a multifunctional electric nursing bed, adopting the technical scheme of the present invention, the nursing bed has an electric The functions of lifting, lifting, bending legs, sitting on the toilet and folding the table board, etc., and the closing or opening of the toilet mouth of the toilet mechanism and the telescopic movement of the bedpan support plate are designed in linkage, and the bedpan support plate can be opened with the toilet mouth. Closing and telescopic motion, when the toilet mouth is closed, the bedpan support plate shrinks upward, and when the toilet mouth is opened, the bedpan support plate expands downward. The structure design is simple and ingenious. When the toilet seat function is not used, the structure of the entire electric toilet mechanism is compact. , occupies less space, and does not affect the original functions of the electric nursing bed, such as lifting and sleeping; when using the toilet function, the bedpan support plate can be expanded, which is convenient for placing the bedpan, and the distance between the bedpan and the toilet mouth is more reasonable, and it is not easy to cause The patient's excrement splashes and other problems, and it is convenient and hygienic to use. In addition, with the electric folding table board mechanism arranged at the end of the bed, it is further convenient for patients to eat, study and entertain on the nursing bed, and the electric folding table board can be used as the foot board of the nursing bed after being folded, which further simplifies the structure of the nursing bed.

2. Technical solutions

In order to achieve the above object, the technical scheme provided by the invention is:

The multifunctional electric nursing bed of the present invention includes a bed frame, an electric lifting mechanism, an electric back lifting mechanism, an electric leg bending mechanism, an electric toilet seat mechanism, an electric folding table plate mechanism and an electric guardrail mechanism. The frame is installed on the electric lifting mechanism, and the electric back lifting mechanism, the electric leg bending mechanism, the electric toilet seat mechanism, the electric folding table plate mechanism and the electric guardrail mechanism are all installed on the bed frame; The back mechanism is located on the head side of the bed frame, and is used to support the patient and drive the patient to lift the back; the electric leg bending mechanism is located at the tail side of the bed frame, and is used to support the patient and drive the patient to bend their legs. movement; the electric guardrail mechanism is located on the left and right sides of the bed frame;

The electric toilet mechanism is located in the middle of the bed frame, and includes a toilet fixing frame, a fixed cover plate, a pull rod assembly, a scissor-type telescopic assembly, a bedpan support plate and a toilet opening and closing driver. It is fixed on the bed frame, the fixed cover is arranged on the left and right sides of the toilet fixing frame, and a toilet mouth is formed in the middle of the toilet fixing frame, and the pull rod assembly is arranged in the toilet mouth. The tie rod assembly is formed by four tie rods hinged at the end of the tie rod seat, and the two tie rod seats opposite on one diagonal line of the tie rod assembly are respectively slidingly installed on the toilet fixing frame through the guide rod, and the other diagonal line is opposite. The pull rods on the two pull rod bases are meshed and driven by a linkage gear, the toilet mouth opening and closing driver is provided with one on the left and right sides of the toilet fixing frame, and one end of the toilet mouth opening and closing driver is hinged at one end. On the toilet fixing frame, the other end is connected with the guide rod on the corresponding side through the connecting seat, and the telescopic movement of the two toilet mouth opening and closing drivers drives the pull rod assembly to close or open; Each end is installed under the toilet mouth through a set of scissor-type telescopic assemblies, and the upper part of the scissor-type telescopic assembly is connected with the pull rod assembly in a transmission, so that the scissor style telescopic assembly is closed with the pull rod assembly to drive the bedpan support plate to shrink upwards or follow the pull rod assembly. The pull rod assembly is opened to drive the bedpan support plate to expand downward;

The electric folding table board mechanism is located at the end of the bed frame and can be folded at the end of the bed frame to serve as the bed end of the nursing bed.

Further, the scissor telescopic assembly is connected by an "X"-shaped link unit that is hinged by the first link and the second link, wherein the first link of the "X"-shaped link unit located on the upper part is connected. The upper end of a connecting rod is connected with the draw rod seat on the corresponding side through the movable connecting rod, and the upper end of the second connecting rod is hinged with the toilet fixing frame; The corresponding ends of the second connecting rod are hinged, and the lower end of the second connecting rod is slidably matched with the supporting plate chute provided on the bedpan supporting plate.

Further, the electric folding table board mechanism includes a fixed frame, a telescopic frame, a first slide rail, an up and down telescopic driver, a support rod, a support arm, a table board connection frame, an angle adjustment driver, a telescopic table board, a second slide The rail and table board telescopic driver, the fixed frame is vertically fixed on the bed end of the bed frame, the telescopic frame is installed on the fixed frame by sliding up and down through the first sliding rail, and the up and down telescopic driver is installed on the fixed frame. The space between the fixed frame and the telescopic frame is used to drive the up and down movement of the telescopic frame; one end of the support arm is hinged to the lower part of the fixed frame through a hinge, and the other end is hinged to the table connection frame, and one end of the support rod is hinged. It is hinged with the telescopic frame, and the other end is hinged with the middle and upper part of the support arm. The angle adjustment driver is arranged between the support arm and the table board connecting frame, and is used to drive the table board connecting frame to change the angle of the table board; the The telescopic table board is slidably installed on the table board connecting frame through the second sliding rail, and the table board telescopic driver is arranged between the table board connecting frame and the telescopic table board, and is used to drive the front and rear telescopic movement of the telescopic table board.

Further, the left and right inner widths of the telescopic frame are slightly larger than the left and right outer widths of the support arms, so that when the telescopic frame moves upward, the support arms are folded on the inner side of the telescopic frame by the support rods, and the left and right support arms of the support arms are folded inside the telescopic frame. The cross-sectional shape and the cross-sectional shape of the left and right arms of the table connection frame are "凵" shapes that can be fitted with each other. intracavity.

Further, the electric lifting mechanism includes a bottom frame, an upper frame, a head side lifting assembly and a bed tail side lifting assembly, and the head side lifting assembly is arranged between the bottom frame and the upper frame, and the head side lifting assembly is located between the bottom frame and the upper frame. The lifting assembly is located on the head side of the nursing bed, the lifting assembly at the end of the bed is arranged between the bottom frame and the upper frame, and the lifting assembly at the end of the bed is located at the tail side of the nursing bed. The lifting assembly is independently controlled, and can drive the upper frame to move up and down in parallel with the bottom frame or to tilt forward and backward, and the bed frame is fixedly installed on the upper frame.

Further, the bedside lifting assembly includes a bedside long support rod, a bedside short support rod, a bedside connecting rod, a bedside swing arm and a bedside lifting driver. The lower end of the side long support rod is hinged with the bottom frame, the upper end of the bed head side long support rod is slidingly matched with the upper frame, the lower end of the bed head side short support rod is hinged with the middle of the bed head side long support rod, the bed The upper end of the head side short support rod is hinged with the head end of the upper frame, the bed head side connecting rod is fixed on the bed head side short support rod, and one end of the bed head side swing arm is fixed on the bed head side On the connecting rod, the other end is hinged with the driving end of the bedside lifting driver, and the lower end of the bedside lifting driver is hinged on the bottom frame;

The bed end side lifting assembly includes a bed end side long support rod, a bed end side short support rod, a bed end side connecting rod, a bed end side swing arm and a bed end side lifting driver, and the lower end of the bed end side long support rod and the bed end of the bottom frame. The upper end of the long support rod at the tail side of the bed is slidingly matched with the upper frame, the lower end of the short support rod at the tail side of the bed is hinged with the middle part of the long support rod at the tail side of the bed, and the upper end of the short support rod at the tail side of the bed is connected with the end of the bed of the upper frame. The ends are hinged, the connecting rod at the tail side of the bed is fixed on the short support rod at the tail side of the bed, one end of the swing arm at the tail side of the bed is fixed on the connecting rod at the tail side of the bed, and the other end is hinged with the driving end of the lifting driver at the tail side of the bed , the lower end of the bed tail side lift driver is hinged on the bottom frame.

Further, the four corners of the bottom frame are also provided with casters.

Further, the electric back-lifting mechanism includes a back-lifting support frame, a back-lifting rotating shaft, a back-lifting swing arm and a back-lifting driver, and the back-lifting support frame is rotated and installed on the bed frame through the back-lifting shaft, so The back-lifting swing arm is fixed on the back-lifting rotating shaft, one end of the back-lifting driver is hinged on the bed frame, and the other end is hinged with the back-lifting swing arm, and the telescopic motion of the back-lifting driver drives the back-lifting support The frame flips upwards;

The electric leg bending mechanism includes a thigh supporting frame, a lower leg bending frame, a bending leg driver, a bending leg rotating shaft, a bending leg swing arm, a bending leg supporting rod and a bending leg connecting rod, and the front end of the thigh supporting frame is hinged on the On the bed frame, the rear end is hinged with the lower leg bending frame, the bending leg rotating shaft is rotatably installed on the bed frame, and the bending leg swing arm and the bending leg support rod are respectively fixed on the bending leg rotating shaft, so The flexion link is fixed on the side of the calf flexion frame close to the thigh support frame, the flexion support rod is hinged with the flexion link, and one end of the flexion driver is hinged on the bed frame, The other end is hinged with the leg bending arm, and the telescopic motion of the leg bending driver drives the thigh support frame and the lower leg bending frame to lift up together, forming an inverted "V"-shaped bulge between the thigh support frame and the lower leg bending frame.

Further, the electric guardrail mechanism includes a fixed crossbar, a movable crossbar, a folding vertical rod, a baffle plate and a folding driver, the fixed crossbar is fixed on the side of the bed frame, and the movable crossbar passes through the frame. At least two folding vertical rods are connected with the fixed horizontal rods to form a parallelogram linkage mechanism, and the fixed horizontal rods and/or the movable horizontal rods are also provided with baffles for unilateral limiting of the folding vertical rods. The folding driver is installed inside the fixed crossbar, and the driving end of the folding driver is hinged with the bottom extension of one of the folding vertical bars, and the movable crossbar is folded or unfolded through the telescopic motion of the folding driver.

Further, a headboard is also provided on the head side of the bed frame.

3. Beneficial effects

Adopting the technical scheme provided by the present invention, compared with the existing known technology, has the following remarkable effects:

(1) A multifunctional electric nursing bed of the present invention includes a bed frame, an electric lifting mechanism, an electric back-lifting mechanism, an electric leg bending mechanism, an electric toilet seat mechanism, an electric folding table plate mechanism and an electric guardrail mechanism. It has functions such as electric lifting, lifting, bending legs, sitting on the toilet and folding the table board, and the toilet mouth of the toilet mechanism is closed or opened and the telescopic movement of the bedpan support plate adopts a linkage design, and the bedpan support plate can follow the toilet seat. The mouth opens and closes and expands and contracts. When the toilet mouth is closed, the bedpan support plate shrinks upward, and when the toilet mouth is opened, the bedpan support plate expands downward. The structure design is simple and ingenious. When the toilet seat function is not used, the whole electric toilet mechanism The structure is compact and the space occupied is small, which does not affect the original functions of the electric nursing bed, such as lifting and sleeping; when using the toilet function, the bedpan support plate can be unfolded, which is convenient for placing the bedpan, and the distance between the bedpan and the toilet mouth is more reasonable. It is not easy to cause problems such as the patient's excrement splashing out, and it is convenient and hygienic to use; in addition, with the electric folding table board mechanism set at the end of the bed, it is further convenient for patients to eat, study and entertain on the nursing bed, and the electric folding table board can be used as nursing care after being folded. The footboard of the bed further simplifies the structure of the nursing bed;

(2) In a multifunctional electric nursing bed of the present invention, the toilet mouth is closed or opened by a pull rod assembly, and the pull rod assembly is formed by four pull rods hinged end to end through the pull rod seat, and the pull rod assemblies are opposite to each other on a diagonal line. The two pull rod seats are respectively installed on the toilet fixing frame through the guide rod, and the pull rods on the two opposite pull rod seats on the other diagonal are meshed and driven through the linkage gear. The pull rod assembly has a simple structure and can be closed or opened. The movement is stable and reliable, the control is convenient, and it can support the patient after closing; in addition, the bedpan support plate adopts the scissor telescopic assembly and the linkage of the pull rod assembly, the structure is simple and compact, and the transmission is stable;

(3) A multifunctional electric nursing bed of the present invention, the electric folding table board mechanism includes a fixed frame, a telescopic frame, a first slide rail, an upper and lower telescopic driver, a support rod, a support arm, a table board connection frame, and an angle adjustment driver , Telescopic table board, second slide rail and table board telescopic drive, the table board height, angle and front and rear position can be adjusted, which can better meet the needs of patients, even when the electric nursing bed is tilted back and forth, the table board is also It can be adjusted to a horizontal state, which makes the table board of the nursing bed more flexible and convenient to use; and the electric folding table board mechanism has a compact structure after being folded, and can be completely used as a bed end board, killing two birds with one stone, and has the advantages of simple structure design, flexible and convenient use, etc.;

(4) A multifunctional electric nursing bed of the present invention, its electric lifting mechanism includes a bottom frame, an upper frame, a head side lifting assembly and a bed tail side lifting assembly, and the bed head side lifting assembly and the bed tail side lifting assembly are independently controlled, and can Drive the upper frame to move up and down or tilt forward and backward in parallel with respect to the bottom frame, so that the patient can have a larger angle adjustment range for getting up and down, which is more comfortable, and is also convenient for the patient to get up and move;

(5) In the multifunctional electric nursing bed of the present invention, the head-side lifting component and the bed-side lifting mechanism are designed to be lifted by struts, and the bed-side lifting mechanism has one more sliding degree of freedom than the bed-side lifting mechanism. Under the condition that the electric nursing bed can be tilted back and forth, the supporting structure of the lifting device to the nursing bed is more stable and reliable, and the bearing capacity of the nursing bed is higher; at the same time, more space can be left at the bottom of the nursing bed to facilitate the arrangement of the toilet device ;

(6) A multifunctional electric nursing bed of the present invention, the electric back lifting mechanism and the electric leg bending mechanism adopt the swing arm design, the structure is simple and compact, and the movement of back lifting and leg bending is stable and reliable;

(7) A multifunctional electric nursing bed of the present invention, the electric guardrail mechanism includes a fixed crossbar, a movable crossbar, a folding vertical rod, a baffle and a folding driver, and the movable crossbar is connected to the fixed horizontal rod through at least two folding vertical rods The rod is connected into a parallelogram linkage mechanism, and the telescopic motion of the folding driver is used to drive the movable cross rod to fold or unfold, the guardrail has a simple structure, and the folding and unfolding control is simple and convenient.

Description of drawings

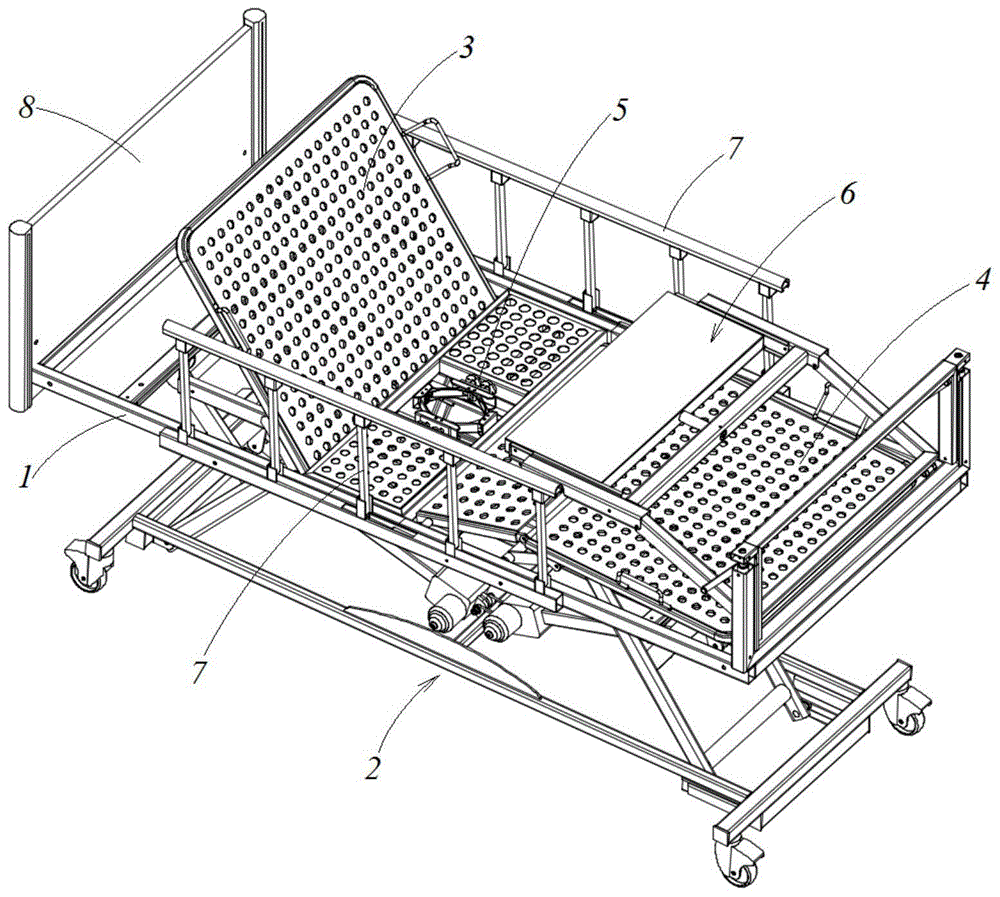

Fig. 1 is the overall structure schematic diagram of a kind of multifunctional electric nursing bed of the present invention;

2 is a schematic diagram of the installation structure of the electric toilet mechanism, the electric back-lifting mechanism and the electric leg bending mechanism on the bed frame of the present invention;

Fig. 3 is the three-dimensional structure schematic diagram of the electric toilet mechanism in the present invention;

Fig. 4 is the sectional structure schematic diagram of the electric toilet mechanism in the present invention;

Fig. 5 is the structural representation of electric back-lifting mechanism and electric leg bending mechanism in the present invention;

6 is a schematic structural diagram of an electric lift mechanism in the present invention;

7 is a schematic top view of the unfolded state of the electric folding table top mechanism in the present invention;

FIG. 8 is a schematic view from a bottom view of the unfolded state of the electric folding table board mechanism in the present invention;

FIG. 9 is a schematic diagram of the folding state of the electric folding table board mechanism in the present invention;

Figure 10 is a schematic structural diagram of the electric folding table board mechanism in the present invention after being folded as a bed foot board;

FIG. 11 is a schematic structural diagram of the electric guardrail mechanism in the present invention.

Description of the labels in the diagram:

1. Bed frame; 2. Electric lifting mechanism; 2-1, Bottom frame; 2-1-1, Bottom chute; 2-1-2, Casters; 2-2, Upper frame; 2-2-1, Upper chute; 2-3, bedside lifting assembly; 2-3-1, bedside long support rod; 2-3-2, bedside short support rod; 2-3-3, bedside connection Rod; 2-3-4, bedside swing arm; 2-3-5, bedside lift drive; 2-4, bedside lift assembly; 2-4-1, bedside long support rod; 2-4 -2. Short support rod at the end of the bed; 2-4-3. Connecting rod at the end of the bed; 2-4-4. Swing arm at the end of the bed; 2-4-5. Lifting drive at the end of the bed; 3. Electric back-lifting mechanism; 3 -1. Back-lifting support frame; 3-2. Back-lifting shaft; 3-3. Back-lifting swing arm; 3-4. Back-lifting driver; 4. Electric leg bending mechanism; 4-1. Thigh support frame; 4- 2. Calf bend frame; 4-3, bend leg drive; 4-4, bend leg pivot; 4-5, bend leg swing arm; 4-6, bend leg support rod; 4-7, bend leg link; 5. Electric toilet mechanism; 5-1, toilet fixing frame; 5-2, fixed cover plate; 5-3, tie rod assembly; 5-3-1, tie rod; 5-3-2, tie rod seat; 5- 3-3, linkage gear; 5-4, scissor telescopic assembly; 5-4-1, first connecting rod; 5-4-2, second connecting rod; 5-4-3, movable connecting rod; 5- 5. Bedpan tray; 5-5-1, tray chute; 5-6, toilet mouth opening and closing driver; 5-7, connecting seat; 5-8, guide rod; 6, electric folding table plate mechanism; 6-1, fixed frame; 6-2, telescopic frame; 6-3, first slide rail; 6-4, up and down telescopic drive; 6-5, support rod; 6-6, support arm; 6-7, hinge ;6-8, table board connection frame; 6-9, angle adjustment driver; 6-10, telescopic table board; 6-11, second slide rail; 6-12, table board telescopic driver; 7, electric guardrail mechanism; 7-1, fixed cross bar; 7-2, movable cross bar; 7-3, folding vertical bar; 7-4, baffle; 7-5, folding driver; 8, headboard.

Detailed ways

In order to further understand the content of the present invention, the present invention will be described in detail with reference to the accompanying drawings and embodiments.

[Example]

1 to 4, a multifunctional electric nursing bed of this embodiment includes a bed frame 1, an electric lifting mechanism 2, an electric back lifting mechanism 3, an electric leg bending mechanism 4, an electric toilet seat mechanism 5, Electric folding table mechanism 6 and electric guardrail mechanism 7, bed frame 1 is installed on electric lifting mechanism 2, electric back lifting mechanism 3, electric leg bending mechanism 4, electric toilet mechanism 5, electric folding table plate mechanism 6 and electric The guardrail mechanisms 7 are all installed on the bed frame 1; wherein, the electric back-lifting mechanism 3 is located on the head side of the bed frame 1, and is used to support the patient and drive the patient to lift the back; the electric leg bending mechanism 4 is located on the bed. The rear side of the bed of the frame 1 is used to support the patient and drive the patient to bend their legs; the electric guardrail mechanism 7 is located on the left and right sides of the bed frame 1 to protect the patient; the electric toilet mechanism 5 is located on the bed body The middle of the frame 1 is convenient for the patient to defecate without getting out of bed, reducing the pain of the patient and the labor intensity of the nursing staff; the electric folding table board mechanism 6 is located at the end of the bed frame 1 and can be folded on the bed frame The foot of the bed of 1 acts as the footboard of the nursing bed. As shown in Figures 3 and 4, the electric toilet mechanism 5 includes a toilet fixing frame 5-1, a fixed cover plate 5-2, a pull rod assembly 5-3, a scissor-type telescopic assembly 5-4, and a bedpan support plate 5- 5 and the toilet opening and closing driver 5-6, the toilet fixing frame 5-1 is a rectangular structure, which is fixed on the bed frame 1, and the fixed cover plate 5-2 is arranged on the left and right sides of the toilet fixing frame 5-1. A toilet mouth is formed in the middle of the toilet seat holder 5-1, and the toilet seat holder 5-1 is provided with a toilet hole support bar on the left and right sides of the toilet mouth, so as to enhance the peripheral surface of the toilet mouth to the patient. Support; the pull rod assembly 5-3 is arranged in the toilet mouth, and the pull rod assembly 5-3 is formed by four pull rods 5-3-1 hinged end to end through the pull rod seat 5-3-2, between the adjacent pull rods 5-3-1 The two tie rod seats 5-3-2 opposite to each other on a diagonal line of the tie rod assembly 5-3 are respectively slidably mounted on the toilet fixing frame 5-3 through the guide rod 5-8. 1, the guide rod 5-8 can be slidably installed on the support cross rod of the toilet hole, and the pull rods 5-3-1 on the two opposite pull rod seats 5-3-2 on the other diagonal line pass through the linkage gear. 5-3-3 meshing transmission, the linkage gear 5-3-3 has two gears that mesh with each other, and the two gears are fixedly connected with the corresponding pull rods 5-3-1, so that the left and right pull rods 5-3-1 are opened. Or during the closing movement, the linkage gear 5-3-3 can keep the left and right pull rods 5-3-1 move synchronously. A toilet mouth opening and closing driver 5-6 is provided on the left and right sides of the toilet fixing frame 5-1, one end of the toilet mouth opening and closing driver 5-6 is hinged on the toilet fixing frame 5-1, and the other end passes through The connecting seat 5-7 is connected with the guide rod 5-8 on the corresponding side, the two toilet mouth opening and closing drivers 5-6 are telescopic and drive the pull rod assembly 5-3 to close or open, and the two toilet mouth opening and closing drivers 5 -6 Synchronous telescopic movement, the guide rod 5-8 drives the corresponding side pull rod seat 5-3-2 to move, and then controls the pull rod assembly 5-3 to open or close. The left and right ends of the bedpan support plate 5-5 are respectively installed under the toilet mouth through a set of scissor-type telescopic components 5-4. The plate 5-5 is installed under the toilet mouth through four scissor telescopic assemblies 5-4, and the upper part of the scissor telescopic assembly 5-4 is connected with the pull rod assembly 5-3, so that the scissor telescopic assembly 5-4 follows the pull rod. The assembly 5-3 is closed to drive the bedpan support plate 5-5 to shrink upwards or to drive the bedpan support plate 5-5 to expand downward when the pull rod assembly 5-3 is opened. In this way, the pull rod assembly 5-3 and the scissors telescopic assembly 5-4 form a linkage relationship: when the pull rod assembly 5-3 closes the toilet mouth, the scissors telescopic assembly 5-4 shrinks and drives the bedpan support plate 5-5 to move upward, When the pull rod assembly 5-3 opens the toilet mouth, the scissor telescopic assembly 5-4 stretches and drives the bedpan support plate 5-5 to move down, leaving room for bedpan installation. The above-mentioned pull rod assembly 5-3 has a simple structure, stable and reliable closing or opening movement, convenient control, and can support the patient after closing; -3 linkage, simple and compact structure, stable transmission.

3 and 4, in this embodiment, the above-mentioned scissor telescopic assembly 5-4 is hinged by the first link 5-4-1 and the second link 5-4-2 to form an "X" "-shaped connecting rod unit is connected, wherein the upper end of the first connecting rod 5-4-1 of the "X"-shaped connecting rod unit located on the upper part is connected to the tie rod seat 5-3 on the corresponding side through the movable connecting rod 5-4-3 -2 is connected, the upper end of the second link 5-4-2 is hinged with the toilet fixing frame 5-1; the lower end of the first link 5-4-1 of the "X"-shaped link unit located at the lower part is connected with the bedpan holder The corresponding ends of the plate 5-5 are hinged to each other, and the lower end of the second connecting rod 5-4-2 is slidably matched with the supporting plate chute 5-5-1 provided on the bedpan supporting plate 5-5. Specifically, as shown in FIG. 4 , when the pull rod assembly 5-3 is closed, the movable connecting rod 5-4-3 drives the upper end of the first connecting rod 5-4-1 and the upper end of the second connecting rod 5-4-2 to move away from each other. When the scissor telescopic assembly 5-4 shrinks, the bedpan support plate 5-5 moves up to the bottom of the toilet mouth; when the pull rod assembly 5-3 is opened, the first link 5-4-1 and the second link 5-4 The upper ends of -2 are close to each other. At this time, the scissor telescopic assembly 5-4 stretches and drives the bedpan support plate 5-5 to move downward, so that a space for placing the bedpan is formed between the bedpan support plate 5-5 and the toilet mouth. The above-mentioned toilet mouth opening and closing driver 5-6 preferably adopts an electric push rod.

As shown in FIG. 7 to FIG. 10 , the electric folding table board mechanism 6 in this embodiment includes a fixed frame 6-1, a telescopic frame 6-2, a first sliding rail 6-3, an up and down telescopic driver 6-4, and a support rod 6-5, support arm 6-6, table board connection frame 6-8, angle adjustment driver 6-9, telescopic table board 6-10, second slide rail 6-11 and table board telescopic driver 6-12, fixed frame 6-1 is vertically fixed on the bed end of the bed frame 1, the telescopic frame 6-2 is installed on the fixed frame 6-1 by sliding up and down through the first sliding rail 6-3, the fixed frame 6-1 and the telescopic frame 6- The main structures of 2 are all in the shape of "凵", the opening of the fixed frame 6-1 is upward, the opening of the telescopic frame 6-2 is downward, and the upper and lower telescopic drives 6-4 are installed between the fixed frame 6-1 and the telescopic frame 6-2. , is used to drive the up and down movement of the telescopic frame 6-2; one end of the support arm 6-6 is hinged to the lower part of the fixed frame 6-1 through the hinge 6-7, and the other end is hinged with the table connection frame 6-8, supporting the pull rod One end of 6-5 is hinged with the telescopic frame 6-2, and the other end is hinged with the middle and upper part of the support arm 6-6. When the telescopic frame 6-2 moves upward, the support arm 6-6 is pulled by the support rod 6-5. Rotate and fold, when the telescopic frame 6-2 moves downward, the support arm 6-6 is driven to tilt and unfold toward the head of the bed through the support rod 6-5; the angle adjustment driver 6-9 is arranged on the support arm 6-6 to connect with the table board Between the frames 6-8, it is used to drive the table board connection frame 6-8 to change the angle of the table board; the telescopic table board 6-10 is slidably installed on the table board connection frame 6-8 through the second slide rail 6-11, The table board telescopic driver 6-12 is arranged between the table board connecting frame 6-8 and the telescopic table board 6-10, and is used to drive the retractable table board 6-10 to move forward and backward. Using the above-mentioned electric folding table mechanism 6, the height, angle and front and rear position of the table can be adjusted, which can better meet the needs of patients. Even when the electric nursing bed is tilted back and forth, the table can be adjusted to a horizontal state. The use of the table board of the nursing bed is more flexible and convenient; and the electric folding table board mechanism 6 has a compact structure after being folded, and can be used as a bed foot board, killing two birds with one stone, and has the advantages of simple structure design, flexible and convenient use, and the like. The above-mentioned up and down telescopic driver 6-4, angle adjustment driver 6-9 and table plate telescopic driver 6-12 are preferably electric push rods. Further, the left and right inner widths of the telescopic frame 6-2 are slightly larger than the left and right outer widths of the support arms 6-6, so that when the telescopic frame 6-2 moves upward, the support arms 6-6 are folded on the telescopic frame 6 by the support rods 6-5. On the inner side of -2, the cross-sectional shape of the left and right arms of the support arm 6-6 and the cross-sectional shape of the left and right arms of the table board connecting frame 6-8 are "Bang" shapes that can be fitted with each other, and the angle adjustment driver 6-9 is provided on the support The left and right arm cavities of the arms 6-6 and the left and right arm cavities of the table board connecting frame 6-8 are in the left and right support arm cavities, so that the support arms 6-6 and the table board connecting frame 6-8 can be overlapped together after being folded, as shown in Figure 9 and shown in Figure 10. In this way, the electric folding table board mechanism 6 has a more compact overall structure after being folded.

As shown in FIG. 6 , the electric lifting mechanism 2 in this embodiment includes a bottom frame 2-1, an upper frame 2-2, a bedside lifting assembly 2-3, and a bedside lifting assembly 2-4. The headside lifting assembly 2-3 is located between the bottom frame 2-1 and the upper frame 2-2, and the head side lifting component 2-3 is located at the head side of the nursing bed, and the bed end side lifting component 2-4 is located at the bottom frame 2-1 and the upper frame 2-2, and the bed end side lifting assembly 2-4 is located at the bed end side of the nursing bed, the bed head side lifting assembly 2-3 and the bed end side lifting assembly 2-4 are independently controlled, and can drive the upper frame 2-2 Relative to the bottom frame 2-1, the bed frame 1 is fixedly mounted on the upper frame 2-2 to move up and down in parallel or tilt forward and backward. In this way, the bed frame 1 can have a larger angle adjustment range, so that the patient can have a larger range of up and down angles, and the lying down is more comfortable, and it is also convenient for the patient to get up and move. Further, the above-mentioned bedside lifting assembly 2-3 includes a bedside long support rod 2-3-1, a bedside short support rod 2-3-2, a bedside connecting rod 2-3-3, and a bedside connecting rod 2-3-3. The head side swing arm 2-3-4 and the bed head side lift driver 2-3-5, the lower end of the bed head side long support rod 2-3-1 is hinged with the bottom frame 2-1, the bed head side long support rod 2 - The upper end of 3-1 is slidingly matched with the upper frame 2-2. Specifically, a roller can be arranged on the upper end of the long support rod 2-3-1 on the head side of the bed, and the inner side of the upper frame 2-2 is arranged with the above-mentioned roller. The upper chute 2-2-1, the lower end of the bedside short support rod 2-3-2 is hinged with the middle of the bedside long support rod 2-3-1, the bedside short support rod 2-3- The upper end of 2 is hinged with the bed head end of the upper frame 2-2, the bed head side connecting rod 2-3-3 is fixed on the bed head side short support rod 2-3-2, the bed head side swing arm 2-3- One end of 4 is fixed on the bedside connecting rod 2-3-3, the other end is hinged with the driving end of the bedside lifting driver 2-3-5, and the lower end of the bedside lifting driver 2-3-5 is hinged on the bedside. Bottom frame 2-1 on. The bed end side lift assembly 2-4 includes the bed end side long support rod 2-4-1, the bed end side short support rod 2-4-2, the bed end side connecting rod 2-4-3, the bed end side swing arm 2-4-4 and The lift driver 2-4-5 at the tail side of the bed, the lower end of the long support rod 2-4-1 at the tail side of the bed is slidingly matched with the tail end of the bottom frame 2-1, and the upper end of the long support rod 2-4-1 at the tail side of the bed and the upper frame 2 -2 Sliding fit, specifically, rollers can be provided at both ends of the long support rod 2-4-1 at the end of the bed, and the rollers at the upper end of the long support rod 2-4-1 at the tail side of the bed are rolling fit with the upper chute 2-2-1. The lower end of the short support rod 2-4-2 at the tail side of the bed is hinged with the middle of the long support rod 2-4-1 at the tail side of the bed. , the upper end of the short support rod 2-4-2 at the tail side of the bed is hinged with the tail end of the upper frame 2-2, and the connecting rod 2-4-3 at the tail side of the bed is fixed on the short support rod 2-4-2 at the tail side of the bed. One end of the swing arm 2-4-4 is fixed on the connecting rod 2-4-3 at the tail side of the bed, and the other end is hinged with the driving end of the lift driver 2-4-5 at the tail side of the bed. The lower end is hinged to the bottom frame 2-1. The above-mentioned head-side lifting driver 2-3-5 and the bed-side lifting driver 2-4-5 are preferably electric push rods. The telescopic motion controls the lifting motion and front and rear tilting motion of the nursing bed, and the lifting mechanism 2-4 at the end of the bed has one more sliding freedom than the lifting mechanism 2-3 at the head side, which ensures that the electric nursing bed can be tilted back and forth. The supporting structure of the lifting device to the nursing bed is more stable and reliable, and the bearing capacity of the nursing bed is higher; at the same time, a larger space can be reserved at the bottom of the nursing bed to facilitate the arrangement of the toilet device. In order to facilitate the movement of the electric nursing bed, four corners of the bottom frame 2-1 are also provided with casters 2-1-2, and the casters 2-1-2 preferably adopt universal casters with self-locking function.

As shown in FIG. 2 and FIG. 5 , in this embodiment, the above-mentioned electric back-up mechanism 3 includes a back-up support frame 3-1, a back-up rotation shaft 3-2, a back-up swing arm 3-3 and a back-up driver 3 -4, the back-lifting support frame 3-1 is rotated and installed on the bed frame 1 through the back-lifting shaft 3-2, the back-lifting swing arm 3-3 is fixed on the back-lifting shaft 3-2, and the back-lifting drive 3-4 is One end is hinged on the bed frame 1, and the other end is hinged with the back lifting swing arm 3-3. The retracting motion of the back lifting driver 3-4 drives the back lifting support frame 3-1 to flip upward. The electric leg bending mechanism 4 includes a thigh supporting frame 4-1, a lower leg bending frame 4-2, a bending leg driver 4-3, a bending leg rotating shaft 4-4, a bending leg swing arm 4-5, and a bending leg supporting rod 4-6 and the leg bending link 4-7, the front end of the thigh support frame 4-1 is hinged on the bed frame 1, the rear end is hinged with the lower leg bending frame 4-2, and the leg bending shaft 4-4 is rotatably installed on the bed frame 1, the flexion arm 4-5 and the flexion support rod 4-6 are respectively fixed on the flexion shaft 4-4, and the flexion link 4-7 is fixed on the calf flexion frame 4-2 close to the thigh support frame 4 On one side of -1, the bending leg support rod 4-6 is hinged with the bending leg link 4-7, one end of the bending leg driver 4-3 is hinged on the bed frame 1, and the other end is hinged with the bending leg swing arm 4-5 Hinged, the telescoping motion of the leg bending driver 4-3 drives the thigh supporting frame 4-1 and the calf bending frame 4-2 to lift up in linkage, forming an inverted shape between the thigh supporting frame 4-1 and the lower leg bending frame 4-2. V" shaped bulge. The electric back lifting mechanism 3 and the electric leg bending mechanism 4 adopt the swing arm design, the structure is simple and compact, and the back lifting and leg bending movements are stable and reliable. Both the above-mentioned back-lifting driver 3-4 and the leg bending driver 4-3 are preferably electric push rods.

As shown in FIG. 11 , the electric guardrail mechanism 7 in this embodiment includes a fixed crossbar 7-1, a movable crossbar 7-2, a folding vertical rod 7-3, a baffle plate 7-4 and a folding driver 7-5. The cross bar 7-1 is fixed on the side of the bed frame 1, the movable cross bar 7-2 is connected with the fixed cross bar 7-1 through at least two folding vertical bars 7-3 to form a parallelogram linkage mechanism, and the fixed cross bar 7- 1 and/or the movable cross bar 7-2 is also provided with a baffle plate 7-4 for limiting the position of the folding vertical bar 7-3 on one side, and the folding driver 7-5 is installed inside the fixed cross bar 7-1, and The driving end of the folding driver 7-5 is hinged with the bottom extension of one of the folding vertical rods 7-3, and the movable crossbar 7-2 is folded or unfolded by the telescopic movement of the folding driver 7-5. The folding driver 7-5 preferably adopts an electric push rod. The folding driver 7-5 extends to drive the folding vertical rod 7-3 to incline, and then drives the movable horizontal rod 7-2 to fold in parallel, and the folding driver 7-5 shrinks to drive the folding vertical rod 7-3. 3 is erected and kept in the expanded state of the guardrail by the limit of the baffle plate 7-4. As shown in FIG. 1 and FIG. 10 , a headboard 8 is further provided on the headboard side of the bed frame 1 .

The multifunctional electric nursing bed of the present invention has functions such as electric lifting, lifting back, bending legs, sitting on toilet, folding table board, etc., and the toilet seat mouth of the toilet seat mechanism is closed or opened with the telescopic motion of the bedpan support plate. With the linkage design, the bedpan support plate can expand and contract with the opening and closing of the toilet mouth. When the toilet mouth is closed, the bedpan support plate contracts upward, and when the toilet mouth is opened, the bedpan support plate unfolds downward. When using the toilet function, the entire electric toilet mechanism has a compact structure and occupies a small space, which does not affect the original functions of the electric nursing bed, such as lifting and sleeping; when using the toilet function, the bedpan support plate can be unfolded, which is convenient for placing the bedpan Moreover, the distance between the bedpan and the toilet mouth is more reasonable, it is not easy to cause problems such as the patient's excrement splashing out, and the use is convenient and hygienic. In addition, with the electric folding table board mechanism arranged at the end of the bed, it is further convenient for patients to eat, study and entertain on the nursing bed, and the electric folding table board can be used as the foot board of the nursing bed after being folded, which further simplifies the structure of the nursing bed.

It should be noted that when an element is referred to as being "fixed to" another element, it can be directly on the other element or intervening elements may also be present. When an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may also be present. The terms "vertical", "horizontal", "left", "right" and similar expressions used herein are for the purpose of illustration only and do not represent the only embodiment.

Unless otherwise defined, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs. The terminology used herein is for the purpose of describing particular embodiments only and is not intended to limit the present invention.

The present invention and its embodiments have been described above schematically, and the description is not restrictive, and what is shown in the accompanying drawings is only one of the embodiments of the present invention, and the actual structure is not limited thereto. Therefore, if those of ordinary skill in the art are inspired by it, and without departing from the purpose of the present invention, creatively design structures and embodiments similar to this technical solution, all should belong to the protection scope of the present invention. .

Claims (10)

1. A multi-functional electronic nursing bed which characterized in that: the electric folding bed comprises a bed body frame (1), an electric lifting mechanism (2), an electric back lifting mechanism (3), an electric leg bending mechanism (4), an electric toilet mechanism (5), an electric folding table plate mechanism (6) and an electric guardrail mechanism (7), wherein the bed body frame (1) is installed on the electric lifting mechanism (2), and the electric back lifting mechanism (3), the electric leg bending mechanism (4), the electric toilet mechanism (5), the electric folding table plate mechanism (6) and the electric guardrail mechanism (7) are all installed on the bed body frame (1); the electric back lifting mechanism (3) is positioned on the bed head side of the bed body frame (1) and is used for supporting a patient and driving the patient to carry out back lifting movement; the electric leg bending mechanism (4) is positioned at the bed tail side of the bed body frame (1) and is used for supporting a patient and driving the patient to perform leg bending movement; the electric guardrail mechanisms (7) are positioned at the left side and the right side of the bed body frame (1);

the electric toilet mechanism (5) is positioned in the middle of the bed body frame (1) and comprises a toilet fixing frame (5-1), a fixing cover plate (5-2), a pull rod assembly (5-3), a scissor type telescopic assembly (5-4), a toilet supporting plate (5-5) and a toilet opening and closing driver (5-6), wherein the toilet fixing frame (5-1) is fixed on the bed body frame (1), the fixing cover plate (5-2) is arranged on the left side and the right side of the toilet fixing frame (5-1), a toilet opening is formed in the middle of the toilet fixing frame (5-1), the pull rod assembly (5-3) is arranged in the toilet opening, the pull rod assembly (5-3) is formed by hinging four pull rods (5-3-1) end to end through pull rod seats (5-3-2), two opposite pull rod seats (5-3-2) on one diagonal of the pull rod assembly (5-3) are respectively arranged on the pedestal pan fixing frame (5-1) in a sliding manner through guide rods (5-8), the pull rods (5-3-1) on the two opposite pull rod seats (5-3-2) on the other diagonal are in meshing transmission through linkage gears (5-3-3), the pedestal pan opening and closing driver (5-6) is respectively arranged on the left side and the right side of the pedestal pan fixing frame (5-1), one end of the pedestal pan opening and closing driver (5-6) is hinged on the pedestal pan fixing frame (5-1), the other end of the pedestal pan opening and closing driver is connected with the guide rods (5-8) on the corresponding side through connecting seats (5-7), and the two pedestal pan opening and closing drivers (5-6) stretch and move to drive the pull rod assemblies (5-3) to be closed or opened; the left end and the right end of the bedpan supporting plate (5-5) are respectively arranged below the bedpan opening through a group of scissor type telescopic assemblies (5-4), the upper parts of the scissor type telescopic assemblies (5-4) are in transmission connection with the pull rod assembly (5-3), so that the scissor type telescopic assemblies (5-4) drive the bedpan supporting plate (5-5) to contract upwards along with the closing of the pull rod assembly (5-3) or drive the bedpan supporting plate (5-5) to expand downwards along with the opening of the pull rod assembly (5-3);

The electric folding table plate mechanism (6) is positioned at the bed tail end of the bed body frame (1) and can be folded at the bed tail of the bed body frame (1) to be used as a bed tail plate of a nursing bed.

2. The multifunctional electric nursing bed of claim 1, wherein: the scissor type telescopic assembly (5-4) is formed by connecting X-shaped connecting rod units formed by hinging a first connecting rod (5-4-1) and a second connecting rod (5-4-2), wherein the upper end of the first connecting rod (5-4-1) of the X-shaped connecting rod unit positioned at the upper part is connected with a pull rod seat (5-3-2) at the corresponding side through a movable connecting rod (5-4-3), and the upper end of the second connecting rod (5-4-2) is hinged with a pedestal pan fixing frame (5-1); the lower end of a first connecting rod (5-4-1) of the X-shaped connecting rod unit at the lower part is hinged with the corresponding end of the bedpan supporting plate (5-5), and the lower end of a second connecting rod (5-4-2) is in sliding fit with a supporting plate sliding groove (5-5-1) arranged on the bedpan supporting plate (5-5).

3. The multifunctional electric nursing bed of claim 1, wherein: the electric folding table plate mechanism (6) comprises a fixed frame (6-1), a telescopic frame (6-2), a first sliding rail (6-3), an upper telescopic driver (6-4), a lower telescopic driver (6-4), a supporting pull rod (6-5), a supporting arm (6-6), a table plate connecting frame (6-8), an angle adjusting driver (6-9), a telescopic table plate (6-10), a second sliding rail (6-11) and a table plate telescopic driver (6-12), wherein the fixed frame (6-1) is vertically fixed at the bed tail end of the bed body frame (1), the telescopic frame (6-2) is vertically slidably installed on the fixed frame (6-1) through the first sliding rail (6-3), and the upper telescopic driver (6-4) and the lower telescopic driver (6-4) are installed between the fixed frame (6-1) and the telescopic frame (6-2), is used for driving the telescopic frame (6-2) to move up and down; one end of the supporting arm (6-6) is hinged to the lower part of the fixed frame (6-1) through a hinge (6-7), the other end of the supporting arm is hinged to the table board connecting frame (6-8), one end of the supporting pull rod (6-5) is hinged to the telescopic frame (6-2), the other end of the supporting pull rod is hinged to the middle upper part of the supporting arm (6-6), and the angle adjusting driver (6-9) is arranged between the supporting arm (6-6) and the table board connecting frame (6-8) and used for driving the table board connecting frame (6-8) to change the angle of the table board; the telescopic table plate (6-10) is slidably mounted on the table plate connecting frame (6-8) through a second sliding rail (6-11), and the table plate telescopic driver (6-12) is arranged between the table plate connecting frame (6-8) and the telescopic table plate (6-10) and used for driving the telescopic table plate (6-10) to perform front and back telescopic motion.

4. The multifunctional electric nursing bed of claim 3, wherein: the width of the left inner side and the right inner side of the telescopic frame (6-2) is slightly larger than the width of the left outer side and the right outer side of the supporting arm (6-6), so that the supporting arm (6-6) is driven by the supporting pull rod (6-5) to be folded on the inner side of the telescopic frame (6-2) when the telescopic frame (6-2) moves upwards, the cross section shapes of the left and the right supporting arms of the supporting arm (6-6) and the cross section shapes of the left and the right supporting arms of the table board connecting frame (6-8) are U-shaped and can be mutually embedded, and the angle adjusting driver (6-9) is arranged in the concave cavities of the left and the right supporting arms of the supporting arm (6-6) and the concave cavities of the left and the right supporting arms of the table board connecting frame (6-8).

5. The multifunctional electric nursing bed according to any one of claims 1 to 4, wherein: the electric lifting mechanism (2) comprises a bottom frame (2-1), an upper frame (2-2), a bed head side lifting assembly (2-3) and a bed tail side lifting assembly (2-4), the bed head side lifting assembly (2-3) is arranged between the bottom frame (2-1) and the upper frame (2-2), the bed head side lifting assembly (2-3) is positioned on the bed head side of the nursing bed, the bed tail side lifting assembly (2-4) is arranged between the bottom frame (2-1) and the upper frame (2-2), the bed tail side lifting assembly (2-4) is positioned on the bed tail side of the nursing bed, the bed head side lifting assembly (2-3) and the bed tail side lifting assembly (2-4) are independently controlled and can drive the upper frame (2-2) to move up and down or tilt back and forth in parallel relative to the bottom frame (2-1), the bed body frame (1) is fixedly arranged on the upper frame (2-2).

6. The multifunctional electric nursing bed of claim 5, wherein: the bed head side lifting assembly (2-3) comprises a bed head side long supporting rod (2-3-1), a bed head side short supporting rod (2-3-2), a bed head side connecting rod (2-3-3), a bed head side swing arm (2-3-4) and a bed head side lifting driver (2-3-5), the lower end of the bed head side long supporting rod (2-3-1) is hinged with the bottom frame (2-1), the upper end of the bed head side long supporting rod (2-3-1) is in sliding fit with the upper frame (2-2), the lower end of the bed head side short supporting rod (2-3-2) is hinged with the middle of the bed head side long supporting rod (2-3-1), the upper end of the bed head side short supporting rod (2-3-2) is hinged with the bed head end of the upper frame (2-2), the bedside side connecting rod (2-3-3) is fixed on the bedside side short supporting rod (2-3-2), one end of the bedside side swing arm (2-3-4) is fixed on the bedside side connecting rod (2-3-3), the other end of the bedside side swing arm is hinged with the driving end of the bedside side lifting driver (2-3-5), and the lower end of the bedside side lifting driver (2-3-5) is hinged on the bottom frame (2-1);

the bed tail side lifting assembly (2-4) comprises a bed tail side long supporting rod (2-4-1), a bed tail side short supporting rod (2-4-2), a bed tail side connecting rod (2-4-3), a bed tail side swing arm (2-4-4) and a bed tail side lifting driver (2-4-5), the lower end of the bed tail side long supporting rod (2-4-1) is in sliding fit with the bed tail end of the bottom frame (2-1), the upper end of the bed tail side long supporting rod (2-4-1) is in sliding fit with the upper frame (2-2), the lower end of the bed tail side short supporting rod (2-4-2) is hinged with the middle of the bed tail side long supporting rod (2-4-1), the upper end of the bed tail side short supporting rod (2-4-2) is hinged with the bed tail end of the upper frame (2-2), the bed tail side connecting rod (2-4-3) is fixed on the bed tail side short supporting rod (2-4-2), one end of the bed tail side swing arm (2-4-4) is fixed on the bed tail side connecting rod (2-4-3), the other end of the bed tail side swing arm is hinged with the driving end of the bed tail side lifting driver (2-4-5), and the lower end of the bed tail side lifting driver (2-4-5) is hinged on the bottom frame (2-1).

7. The multifunctional electric nursing bed of claim 6, wherein: casters (2-1-2) are further arranged at four corners of the bottom frame (2-1).

8. The multifunctional electric nursing bed of claim 5, wherein: the electric back lifting mechanism (3) comprises a back lifting support frame (3-1), a back lifting rotating shaft (3-2), a back lifting swing arm (3-3) and a back lifting driver (3-4), wherein the back lifting support frame (3-1) is rotatably arranged on the bed body frame (1) through the back lifting rotating shaft (3-2), the back lifting swing arm (3-3) is fixed on the back lifting rotating shaft (3-2), one end of the back lifting driver (3-4) is hinged on the bed body frame (1), the other end of the back lifting driver is hinged with the back lifting swing arm (3-3), and the back lifting driver (3-4) moves in a telescopic mode to drive the back lifting support frame (3-1) to turn upwards;

the electric leg bending mechanism (4) comprises a thigh supporting frame (4-1), a shank leg bending frame (4-2), a leg bending driver (4-3), a leg bending rotating shaft (4-4), a leg bending swinging arm (4-5), a leg bending supporting rod (4-6) and a leg bending connecting rod (4-7), wherein the front end of the thigh supporting frame (4-1) is hinged on the bed body frame (1), the rear end of the thigh supporting frame is hinged with the shank leg bending frame (4-2), the leg bending rotating shaft (4-4) is rotatably arranged on the bed body frame (1), the leg bending swinging arm (4-5) and the leg bending supporting rod (4-6) are respectively fixed on the leg bending rotating shaft (4-4), the leg bending connecting rod (4-7) is fixed on one side, close to the thigh supporting frame (4-1), of the shank leg bending frame (4-2), the leg bending support rods (4-6) are hinged with leg bending connecting rods (4-7), one end of the leg bending driver (4-3) is hinged to the bed body frame (1), the other end of the leg bending driver is hinged with the leg bending swing arm (4-5), the leg bending driver (4-3) moves in a telescopic mode to drive the thigh support frame (4-1) and the shank leg bending frame (4-2) to be in linkage lifting, and an inverted V-shaped bulge is formed between the thigh support frame (4-1) and the shank leg bending frame (4-2).

9. The multifunctional electric nursing bed of claim 5, wherein: the electric guardrail mechanism (7) comprises a fixed cross rod (7-1), a movable cross rod (7-2), folding vertical rods (7-3), baffles (7-4) and folding drivers (7-5), wherein the fixed cross rod (7-1) is fixed on the side face of the bed body frame (1), the movable cross rod (7-2) is connected with the fixed cross rod (7-1) through at least two folding vertical rods (7-3) to form a parallelogram link mechanism, the fixed cross rod (7-1) and/or the movable cross rod (7-2) are further provided with the baffle (7-4) for limiting the single side of the folding vertical rod (7-3), the folding drivers (7-5) are installed inside the fixed cross rod (7-1), and the driving ends of the folding drivers (7-5) and the bottom of one of the folding vertical rods (7-3) The extension section is hinged, and the movable cross rod (7-2) is driven to fold or unfold by the telescopic motion of the folding driver (7-5).

10. The multifunctional electric nursing bed of claim 9, wherein: a headboard (8) is arranged on the bedside side of the bed body frame (1).
