Abstract
本发明涉及物联网技术领域，具体来说是一种包含冷热即饮机、空气净化器和增湿器的物联网智能一体机，包括受水设备层、水处理设备层和空气净化及主控设备层，受水设备层包括：载水器，设置于本体外壳内，且与本体外壳的内壁通过滑轨连接，载水器呈凹槽状，用于放置水箱；重力感应模块，设置于载水器底部；所述水箱两侧均设有易碎孔，分别用于穿过复合薄膜水袋插入式出水口和复合薄膜水袋旋塞水龙头；唯一识别码设置于水箱上；插入式受水器用于连接复合薄膜水袋插入式出水口，通过物联网科技通过受水设备层内的唯一码扫码识别设备对换入的水箱进行扫描识别，确保换入的水箱为生产厂家的合格有效产品，保证了消费者的健康安全。
The invention relates to the technical field of the Internet of Things, in particular to an Internet of Things intelligent all-in-one machine including a hot and cold drink machine, an air purifier and a humidifier, including a water receiving equipment layer, a water treatment equipment layer, an air purification and a main The control equipment layer, the water receiving equipment layer includes: a water carrier, which is arranged in the main body shell and is connected with the inner wall of the main body shell through a slide rail. The water carrier is in the shape of a groove and is used to place the water tank; The bottom of the water carrier; the two sides of the water tank are provided with fragile holes, which are respectively used to pass through the composite film water bag plug-in water outlet and the composite film water bag cock faucet; the unique identification code is set on the water tank; the plug-in water receiving The device is used to connect the plug-in water outlet of the composite film water bag. Through the Internet of Things technology, the exchanged water tank is scanned and identified by the unique code scanning identification device in the water receiving equipment layer, so as to ensure that the exchanged water tank is a qualified and effective product of the manufacturer. , to ensure the health and safety of consumers.
Description
Technical Field
The invention relates to the technical field of Internet of things, in particular to an Internet of things intelligent all-in-one machine comprising a hot and cold drink dispenser, an air purifier and a humidifier.
Background
At present, no comprehensive device organically combining a cold and hot instant drink machine, an air purifier and a humidifier is available on the market. The film packaging water of the cold and hot instant drinking machine system can not be heated and refrigerated under the condition of no external pollution for drinking. The manager can not remotely replace the water tank in time and can not manage a plurality of devices. In order to ensure the health and safety of consumers, the problem that the water tank which is changed into is a qualified and effective product of a manufacturer is ensured by scanning and identifying the code identification equipment through the unique code in the water receiving equipment layer by the technology of the Internet of things, uploading identification information to a cloud network and comparing and authenticating the identification information is urgently solved. There is currently no intelligent device on the market that incorporates portable humidifier storage and charging holes.
Disclosure of Invention
The invention aims to solve the defects of the prior art and provides an Internet of things intelligent all-in-one machine comprising a cold and hot instant drink machine, an air purifier and a humidifier.
In order to realize above-mentioned purpose, design an thing networking intelligence all-in-one that contains cold and hot drink promptly, air purifier and humidifier, including body shell and water tank, its characterized in that is including receiving water equipment layer, water treatment facilities layer and air purification and master control equipment layer, it includes to receive the water equipment layer: the water carrier is arranged in the body shell and is connected with the inner wall of the body shell through a sliding rail, and the water carrier is in a groove shape and used for placing the water tank; the gravity sensing module is arranged at the bottom of the water carrier; the two sides of the water tank are respectively provided with a fragile hole for penetrating through the plug-in water outlet of the composite film water bag and a faucet of the composite film water bag; the unique identification code is arranged on the water tank; and the plug-in water receiver is used for connecting a plug-in water outlet of the composite film water bag and is connected with the water treatment equipment layer through a pipeline.
The invention also has the following preferable technical scheme:
1. the water treatment equipment layer comprises a water pump, and the water pump is connected with an inserted water receiver, a temperature control heating module, a refrigeration module, a mixer, a controllable lifting main water outlet pipe and a local humidifier module of the air purification and main control equipment layer through pipelines.
2. The controllable lifting main water outlet pipe is connected with an internal thread transmission cross arm, the internal thread transmission cross arm is connected with a screw motor, and lifting is controlled by the screw motor.
3. The upper part and the lower part of the controllable lifting main water outlet pipe are provided with an upper travel limit switch and a lower travel limit switch, and the internal thread transmission cross arm is provided with a fixed rod.
4. The air purification and main control equipment layer comprises an air purifier, an ultraviolet sterilization module, an anion module, a temperature, humidity and air quality analysis module, a power supply voltage stabilization distribution module, a refrigeration and heating control module, a main control module and a humidifier module.
5. The humidifier module is connected with a water pump of the water treatment equipment layer through a pipeline, and an ultrasonic atomization module and a humidifier exhaust fan are arranged in the humidifier module.
6. An air purifying filter element, an ultraviolet sterilization module, a negative ion module, a temperature and humidity and air quality analysis module and an air purifier fan are arranged in the air purifier.
7. The body shell is internally divided into a three-layer structure from bottom to top, and is sequentially provided with a water receiving equipment layer, a water treatment equipment layer, an air purification and main control equipment layer, a side cabin door is arranged on one side of the body shell and used for moving a water carrier and a water tank to the outside of the side cabin door through a sliding rail, a body humidifier air outlet, an air purifier air outlet and an air purifier air inlet are arranged on the upper portion of the body shell, a portable humidifier is arranged at the top of the body shell, and a detachable water receiving disc is arranged on one side of the front portion of the body shell.
Compared with the prior art, the invention has the advantages that:
1. the invention solves the problem that the film packaging water can not be drunk after being heated and refrigerated under the condition of no external pollution (namely, the film packaging water is not poured into other containers);
2. according to the invention, a manager can be remotely informed of the weight change value of the water tank provided by the gravity sensing device under the water tank through the technology of the Internet of things, the water tank can be replaced in time, and a plurality of devices can be managed simultaneously;
3. the replaced water tank is scanned and identified through unique code scanning identification equipment in the water receiving equipment layer through the technology of the Internet of things, identification information is uploaded to a cloud network for comparison and authentication, the replaced water tank is guaranteed to be a qualified and effective product of a manufacturer, and the health and safety of consumers are guaranteed;
4. the invention enables the film packaging water to simply discharge water through the cock tap on the water tap to drink normal temperature water, and also can be effectively connected with the plug-in water receiving port of the machine through the plug-in water outlet, and cold and hot water with required temperature can be obtained from the liftable total water outlet pipe after being processed by the water processing layer equipment;
5. the height of the total water outlet pipe can be adjusted according to the heights of different cups by lifting the total water outlet pipe. The problem that the height of a suitable cup container is limited due to too low fixed height of the discharged water is solved;
6. the method comprises the following steps that a water tank weight change provided by a gravity sensing device under a water tank is from no to full weight value, and meanwhile, network time is obtained and water tank replacement time is recorded;
7. the cold and hot instant drinking machine, the air purifier and the humidifier are organically combined together, and the desktop is naturally placed on a desktop, so that the air purification system carried by the equipment is in a higher position, and the air purification effect is improved. The cold and hot instant drinking machine is provided with a water tank so as to automatically provide the required working water for the humidifier of the machine;
8. the portable humidifier is also combined with the storage and charging holes of the portable humidifier, and when the portable humidifier is not used, the portable humidifier is placed in the portable humidifier for charging, and is taken out before going out or being used, and the water quantity is supplemented at the position of the lifting main water outlet pipe of the portable humidifier.
Drawings

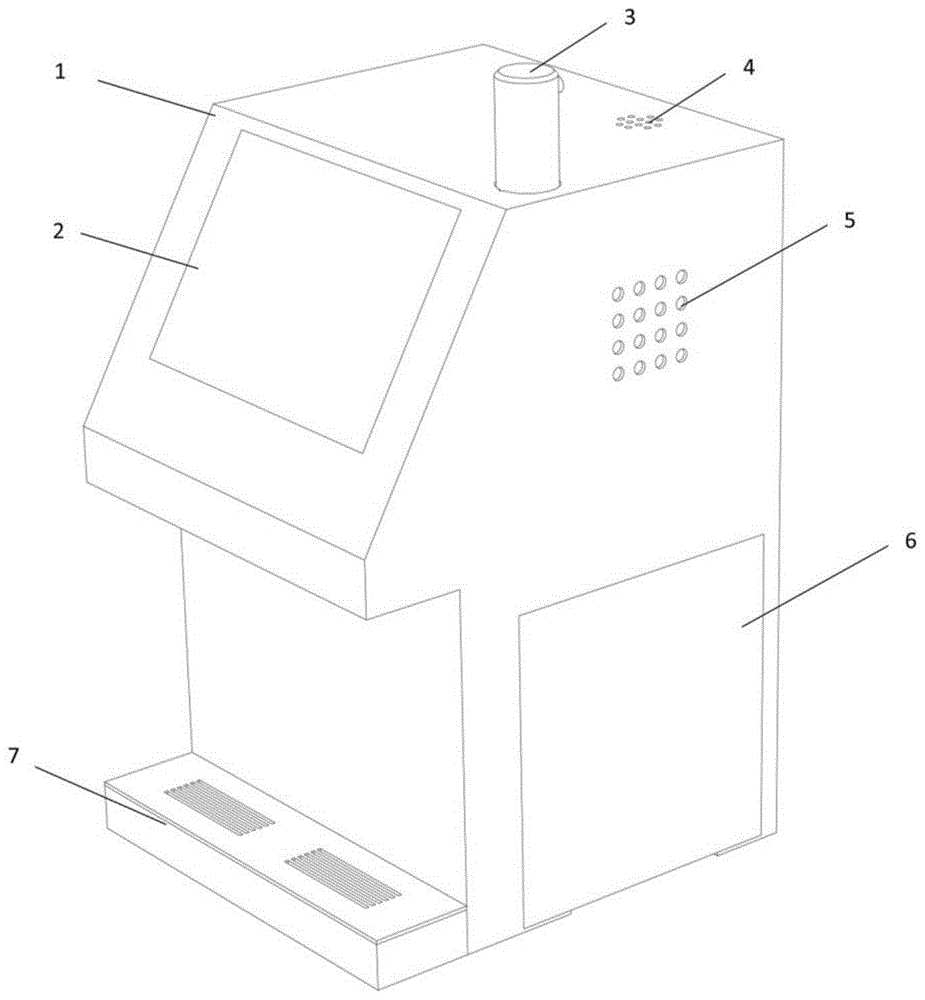

FIG. 1 is a schematic diagram of the overall structure of an intelligent all-in-one machine of the Internet of things;
FIG. 2 is a schematic view of the overall structure of the intelligent all-in-one machine of the Internet of things at another angle;
FIG. 3 is a schematic view of a side hatch door opening of the IOT smart phone;
FIG. 4 is a schematic diagram of replacement of an internal water tank of the IOT smart all-in-one machine;
FIG. 5 is a state diagram of the water tank of the IOT smart all-in-one machine placed on a slide rail;
FIG. 6 is a state diagram of the intelligent all-in-one machine of the Internet of things with a water tank put into the all-in-one machine;
FIG. 7 is an external structure view of the IOT smart phone;
FIG. 8 is a schematic view of a composite film ice bag construction;
FIG. 9 is another perspective view of the composite film ice bag;
FIG. 10 is a schematic view of a tank configuration;
FIG. 11 is a schematic view of a water tank mounted plug-in outlet;
FIG. 12 is a schematic view of another angular configuration of the water tank;
FIG. 13 is a schematic view of a tank mounted faucet;
FIG. 14 is a state diagram of the water tank separated from the plug-in water receiver;
FIG. 15 is an exploded view of an intelligent all-in-one housing of the Internet of things;
FIG. 16 is a schematic view of the layered structure of the water receiving equipment;
FIG. 17 is a schematic view of a layer structure of a water treatment apparatus
FIG. 18 is a schematic diagram of the air purification and main control equipment layer structure;
FIG. 19 is a schematic view of the bottom structure of the water receiving equipment layer;
FIG. 20 is an exploded view of the bottom of the water accepting equipment layer;
FIG. 21 is a schematic view of a top structure of the water carrier;
FIG. 22 is a schematic view of the bottom structure of the water carrier;
FIG. 23 is a schematic view of a side hatch door closed condition;
FIG. 24 is a schematic view showing a state where the side hatch door is opened;
FIG. 25 is a state diagram of the principle of operation of the water tank;
FIG. 26 is a schematic view of a layer structure of a water treatment apparatus;
FIG. 27 is a schematic view of a water pump configuration;
FIG. 28 is a state diagram of the principle of operation of the water treatment facility layer;
FIG. 29 is another perspective view of the operation of the water treatment facility;
FIG. 30 is a schematic view of a controllable lifting main water outlet pipe;
FIG. 31 is a diagram showing the operating principle of the controllable elevation main outlet pipe;
FIG. 32 is a schematic diagram of an air purification and master control device layer structure;
FIG. 33 is a view of the humidifier module and water pump connection configuration of the present machine;
FIG. 34 is a schematic view showing the construction of an air cleaning section;
FIG. 35 is a bottom schematic view of an IOT smart phone;
in the figure: 1. the portable water purifier comprises a body shell, a touch screen, a portable humidifier outlet, an air purifier outlet, a side cabin door (used for replacing a water tank), a detachable water pan, an air purifier inlet, an air purification filter element, a main power switch socket, a device cabin rear cover, a side cabin door upturning hinge mechanism, a water carrier, a sliding rail, a fixed rail, a gravity sensing module, a gravity sensing signal male seat interface, a gravity sensing signal female seat interface, a water tank, a composite film water bag, a faucet 16.2, a plug-in water outlet 16.3, a plug-in water outlet 16.5, a plug-in water outlet 16.7, a carrying handle, a plug-in water faucet 16.8, a frangible hole, a water receiving device layer 17.1, a plug-in water receiver, a unique code scanner 17.2, a detachable water tank, a detachable water receiving tray 7, an air purifier inlet 9, an air purification filter element, a main power switch socket, a device socket 11, a device rear cover, a device cover 12, a side cabin door upturning hinge mechanism, a water carrier, a water outlet, a, 17.3. The air purifier comprises a fixed supporting wall, a 17.4 universal roller, a 17.5 screw motor, a 17.6 internal thread transmission cross arm, a 17.7 upper travel limit switch, a 17.8 lower travel limit switch, a 18 water treatment equipment layer, a 18.1 water pump, a 18.2 water pump inlet, a 18.3 water pump outlet, a 18.4 normal-temperature water control electromagnetic valve, a 18.5 hot water control electromagnetic valve, a 18.6 temperature control heating module, a 18.61 temperature control heating module inlet, a 18.62 temperature control heating module outlet, a 18.7 cold water control electromagnetic valve, a 18.8 refrigeration module, a 18.81 refrigeration module inlet, a 18.82 refrigeration module outlet, a 18.83 refrigeration module radiating fin, a 18.84 refrigeration module radiating fan, a 18.9 mixer, a 18.91 controllable lifting main water outlet pipe, a 18.92 fixed rod, a 18.93 upper travel limit switch, a 18.94 lower travel limit switch, a 18.95 screw motor, a 18.96 screw motor, a 19 internal thread transmission cross arm, and a main control equipment layer, 19.1. The intelligent air conditioner comprises an ultraviolet sterilization module, a 19.2 negative ion module, a 19.3 temperature, humidity and air quality analysis module, a 19.4 power supply voltage stabilization distribution module, a 19.5 refrigeration and heating control module, a 19.6 main control module, a 19.7 local humidifier module, a 19.71 humidifier water control electromagnetic valve, a 19.72 ultrasonic atomization module, a 19.73 pipeline, a 19.74 humidifier exhaust fan, a 19.8 air purifier fan, a 20 human body sensing device and a 20.1 illuminating lamp controlled by the human body sensing device.
Detailed Description
The present invention is further described below in conjunction with the following drawings, the structure and principle of which will be apparent to those skilled in the art. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
The invention designs an intelligent all-in-one machine of the internet of things, which comprises a cold and hot instant drinking machine, an air purifier and a humidifier, and comprises a body shell, a water tank, a water receiving equipment layer, a water treatment equipment layer and an air purification and main control equipment layer, wherein the water receiving equipment layer comprises: the water carrier is arranged in the body shell and is connected with the inner wall of the body shell through a sliding rail, and the water carrier is in a groove shape and used for placing a water tank; the gravity sensing module is arranged at the bottom of the water carrier; the two sides of the water tank are respectively provided with a fragile hole for penetrating through the plug-in water outlet of the composite film water bag and a faucet of the composite film water bag; the water tank is provided with a unique identification code, the plug-in water receiver is used for connecting with a plug-in water outlet of the composite film water bag, and the plug-in water receiver is connected with the water treatment equipment layer through a pipeline.
As shown in fig. 1 and 2, a touch screen is arranged above the front side of the shell, a detachable water pan is arranged below the front side of the shell, a portable humidifier and a humidifier body air outlet are arranged at the top of the shell, an air purification filter element, a main power switch socket and an equipment compartment rear cover are arranged at the back side of the shell, and an air purifier air outlet and a side compartment door are arranged on the side surface of the shell.
As shown in fig. 3-6, the side cabin door is connected with the body shell through an upturning hinge mechanism, a water carrier is arranged in the body shell and is connected with the inner wall of the body shell through a sliding rail, the water carrier is in a groove shape and is used for placing a water tank, and a gravity sensing module is arranged at the bottom of the water carrier.
As shown in fig. 23 and 24, the side cabin door is connected with the body shell through an upturning hinge mechanism, the shell is provided with a screw motor, a transmission cross arm with internal threads, an upper travel limit switch and a lower travel limit switch, the screw motor controls the transmission cross arm to move up and down so as to realize the overturning of the side cabin door, the upper travel limit switch is used for limiting the transmission cross arm, and the lower travel limit switch is used for limiting the screw motor.
As shown in figures 8 and 10, the composite film water bag is provided with a faucet and a plug-in water outlet.
As shown in fig. 11-13, the water tank has frangible holes on both sides for passing through the composite film water bag plug-in outlet and the composite film water bag cock tap, respectively, and a carrying handle is provided on the top of the water tank.
As shown in fig. 14, the plug-in water receiver is used to connect with a plug-in water outlet of the composite film water bag, and the plug-in water receiver is connected with the water treatment device layer through a pipeline.
As shown in fig. 15, the body shell is internally divided into three layers from bottom to top, and is sequentially provided with a water receiving equipment layer, a water treatment equipment layer and an air purification and main control equipment layer, one side of the body shell is provided with a side cabin door for the water carrier and the water tank to move to the outside of the side cabin door through a sliding rail, the upper part of the body shell is provided with a body humidifier air outlet, an air purifier air outlet and an air purifier air inlet, the top of the body shell is provided with a portable humidifier, and one side of the front part of the body shell is provided with a detachable water pan.
As shown in fig. 16, 19 and 20, the water receiving device layer includes: the water carrier is arranged in the body shell and is connected with the inner wall of the body shell through a sliding rail, and the water carrier is in a groove shape and used for placing the water tank; the gravity sensing module is arranged at the bottom of the water carrier; the two sides of the water tank are respectively provided with a fragile hole for penetrating through the plug-in water outlet of the composite film water bag and a faucet of the composite film water bag; the unique identification code is arranged on the water tank; the plug-in water receiver is used for connecting with a plug-in water outlet of the composite film water bag and is connected with the water treatment equipment layer through a pipeline.
As shown in fig. 21 and 22, the bottom of the water carrier is provided with a gravity sensing module, the water carrier is further provided with a gravity sensing signal female seat interface, the bottom of the water carrier is provided with universal rollers, and two sides of the water carrier are both connected with sliding rails.
As shown in fig. 17, 25 and 26, the water treatment device layer includes a water pump, a normal temperature water control solenoid valve, a hot water control solenoid valve, a temperature control heating module, a cold water control solenoid valve, a refrigeration module heat sink fan, a mixer, a controllable lifting main water outlet pipe, and a local humidifier module of the air purification and main control device layer.
As shown in fig. 28, the outlet of the water pump is connected to the hot water control solenoid valve, the other end of the hot water control solenoid valve is connected to the inlet of the temperature control heating module, and the outlet of the temperature control heating module is connected to the mixer.
As shown in fig. 29, the outlet of the water pump is further connected to a cold water control solenoid valve, the other end of the cold water control solenoid valve is connected to the inlet of the refrigeration module, the outlet of the refrigeration module is connected to the mixer, and the refrigeration module comprises a refrigeration module cooling fin and a refrigeration module cooling fan.
As shown in fig. 30 and 31, the controllable lifting main water outlet pipe is connected with an internal thread transmission cross arm, the internal thread transmission cross arm is connected with a screw motor, lifting is controlled by the screw motor, an upper stroke limit switch and a lower stroke limit switch are arranged on the upper portion and the lower portion of the controllable lifting main water outlet pipe, and a fixed rod is arranged on the internal thread transmission cross arm.
As shown in fig. 18 and 32, the air purification and main control device layer includes an air purifier, an ultraviolet sterilization module, an anion module, a temperature, humidity and air quality analysis module, a power supply voltage stabilization distribution module, a refrigeration and heating control module, a main control module, and a local humidifier module.
As shown in fig. 33, the local humidifier module is connected to the water pump of the water treatment facility layer through a pipe, and an ultrasonic atomization module and a humidifier exhaust fan are provided in the local humidifier module.
As shown in fig. 34, the air purifier is provided with an air purifying filter element, an ultraviolet sterilizing module, an anion module, a temperature, humidity and air quality analyzing module and an air purifier fan.
As shown in fig. 35, the upper portion of the front side of the housing is provided with a touch screen, the lower portion of the front side of the housing is provided with a detachable water pan, the bottom of the upper structure of the front side of the housing is provided with a controllable lifting total water outlet pipe, a human body sensing device and a lighting lamp controlled by the human body sensing device, the top of the housing is provided with a portable humidifier, the side of the housing is provided with an air outlet of an air purifier, and the bottom of the housing is provided with universal rollers.
Claims (8)
Applications Claiming Priority (2)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN2021108589989 | 2021-07-28 | ||
| CN202110858998 | 2021-07-28 |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN114732281A true CN114732281A (en) | 2022-07-12 |
Family
ID=82277370
Family Applications (2)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202220710855.3U Active CN219147335U (en) | 2021-07-28 | 2022-03-30 | Internet of things integrated machine comprising cold and hot instant drink machine, air purifier and humidifier |
| CN202210321752.2A Pending CN114732281A (en) | 2021-07-28 | 2022-03-30 | Internet of things intelligent all-in-one machine comprising cold and hot instant drinking machine, air purifier and humidifier |
Family Applications Before (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202220710855.3U Active CN219147335U (en) | 2021-07-28 | 2022-03-30 | Internet of things integrated machine comprising cold and hot instant drink machine, air purifier and humidifier |
Country Status (1)
| Country | Link |
|---|---|
| CN (2) | CN219147335U (en) |
Families Citing this family (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN219147335U (en) * | 2021-07-28 | 2023-06-09 | 上海亲启科技有限公司 | Internet of things integrated machine comprising cold and hot instant drink machine, air purifier and humidifier |
Citations (19)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN2568091Y (en) * | 2002-09-04 | 2003-08-27 | 程鹏 | Sterilizing water drinker and its water breaker |
| CN2666318Y (en) * | 2003-06-16 | 2004-12-29 | 程文鹏 | Negative pressur supplying water drinker |
| CN1718140A (en) * | 2004-07-11 | 2006-01-11 | 朱秀川 | Non-pollution drinking-water machine |
| CN101053487A (en) * | 2007-05-11 | 2007-10-17 | 凌晨 | Closed type barrel water drinking machine |
| CN101549228A (en) * | 2009-04-07 | 2009-10-07 | 黄樟焱 | Water storage bag type water purifier |
| CN101603317A (en) * | 2008-06-11 | 2009-12-16 | 上海奇谋能源技术开发有限公司 | A kind of disposable sanitary water fitting |
| CN104433802A (en) * | 2014-11-28 | 2015-03-25 | 浙江沁园水处理科技有限公司 | Intelligent water dispenser and intelligent water dispenser faucet with adjustable height |
| CN204678574U (en) * | 2015-05-11 | 2015-09-30 | 邵长江 | Multi-functional air conditioner drinking all-in-one machine |
| CN106936912A (en) * | 2017-03-14 | 2017-07-07 | 上海城市水资源开发利用国家工程中心有限公司 | A kind of secondary water-supply information monitoring method and system |
| CN207276220U (en) * | 2017-08-29 | 2018-04-27 | 宁波欧琳厨具有限公司 | A kind of water purifier |
| CN108297649A (en) * | 2018-04-08 | 2018-07-20 | 厦门市卓晔科技有限公司 | A kind of vehicle-mounted integral cup with air-cleaning function and heating and refrigerating function |
| CN207721687U (en) * | 2017-09-11 | 2018-08-14 | 内蒙古农业大学职业技术学院 | A kind of water dispenser with air cleaning unit |
| CN110801154A (en) * | 2019-11-12 | 2020-02-18 | 呼伦贝尔山富饮品有限责任公司 | Disposable drinking water bucket, bucket mounting structure and water dispenser |
| CN210727535U (en) * | 2019-07-23 | 2020-06-12 | 朱用梁 | Water purification tea bar machine |
| CN212673423U (en) * | 2019-09-10 | 2021-03-09 | 张晓雅 | Novel humidifier |
| CN213030500U (en) * | 2020-07-04 | 2021-04-23 | 龙岩市瑞泽环保科技有限公司 | A tea drinking machine with purification function and heating function |
| CN213309074U (en) * | 2020-06-15 | 2021-06-01 | 浙江艾波特环保科技股份有限公司 | Tea bar machine integrating water purification, heating and air purification |
| CN213326967U (en) * | 2020-07-27 | 2021-06-01 | 浙江艾波特环保科技股份有限公司 | Water purifier with air purification function |
| CN219147335U (en) * | 2021-07-28 | 2023-06-09 | 上海亲启科技有限公司 | Internet of things integrated machine comprising cold and hot instant drink machine, air purifier and humidifier |
-
2022
- 2022-03-30 CN CN202220710855.3U patent/CN219147335U/en active Active
- 2022-03-30 CN CN202210321752.2A patent/CN114732281A/en active Pending
Patent Citations (19)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN2568091Y (en) * | 2002-09-04 | 2003-08-27 | 程鹏 | Sterilizing water drinker and its water breaker |
| CN2666318Y (en) * | 2003-06-16 | 2004-12-29 | 程文鹏 | Negative pressur supplying water drinker |
| CN1718140A (en) * | 2004-07-11 | 2006-01-11 | 朱秀川 | Non-pollution drinking-water machine |
| CN101053487A (en) * | 2007-05-11 | 2007-10-17 | 凌晨 | Closed type barrel water drinking machine |
| CN101603317A (en) * | 2008-06-11 | 2009-12-16 | 上海奇谋能源技术开发有限公司 | A kind of disposable sanitary water fitting |
| CN101549228A (en) * | 2009-04-07 | 2009-10-07 | 黄樟焱 | Water storage bag type water purifier |
| CN104433802A (en) * | 2014-11-28 | 2015-03-25 | 浙江沁园水处理科技有限公司 | Intelligent water dispenser and intelligent water dispenser faucet with adjustable height |
| CN204678574U (en) * | 2015-05-11 | 2015-09-30 | 邵长江 | Multi-functional air conditioner drinking all-in-one machine |
| CN106936912A (en) * | 2017-03-14 | 2017-07-07 | 上海城市水资源开发利用国家工程中心有限公司 | A kind of secondary water-supply information monitoring method and system |
| CN207276220U (en) * | 2017-08-29 | 2018-04-27 | 宁波欧琳厨具有限公司 | A kind of water purifier |
| CN207721687U (en) * | 2017-09-11 | 2018-08-14 | 内蒙古农业大学职业技术学院 | A kind of water dispenser with air cleaning unit |
| CN108297649A (en) * | 2018-04-08 | 2018-07-20 | 厦门市卓晔科技有限公司 | A kind of vehicle-mounted integral cup with air-cleaning function and heating and refrigerating function |
| CN210727535U (en) * | 2019-07-23 | 2020-06-12 | 朱用梁 | Water purification tea bar machine |
| CN212673423U (en) * | 2019-09-10 | 2021-03-09 | 张晓雅 | Novel humidifier |
| CN110801154A (en) * | 2019-11-12 | 2020-02-18 | 呼伦贝尔山富饮品有限责任公司 | Disposable drinking water bucket, bucket mounting structure and water dispenser |
| CN213309074U (en) * | 2020-06-15 | 2021-06-01 | 浙江艾波特环保科技股份有限公司 | Tea bar machine integrating water purification, heating and air purification |
| CN213030500U (en) * | 2020-07-04 | 2021-04-23 | 龙岩市瑞泽环保科技有限公司 | A tea drinking machine with purification function and heating function |
| CN213326967U (en) * | 2020-07-27 | 2021-06-01 | 浙江艾波特环保科技股份有限公司 | Water purifier with air purification function |
| CN219147335U (en) * | 2021-07-28 | 2023-06-09 | 上海亲启科技有限公司 | Internet of things integrated machine comprising cold and hot instant drink machine, air purifier and humidifier |
Also Published As
| Publication number | Publication date |
|---|---|
| CN219147335U (en) | 2023-06-09 |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN206333756U (en) | Hydromel mixing beverage-making apparatus | |
| CN108645114B (en) | An intelligent energy-saving refrigeration equipment with air-assisted refrigeration | |
| ZA200407934B (en) | Combination dehydrator and condensed water dispenser | |
| CN209960568U (en) | Oil smoke processing apparatus and machine of cooking | |
| CN103735040A (en) | Mobile hot-cold heat-preserving dining cart | |
| CN109431250A (en) | Cooking machine | |
| CN107348790A (en) | Water cup processed | |
| CN219147335U (en) | Internet of things integrated machine comprising cold and hot instant drink machine, air purifier and humidifier | |
| CN203601082U (en) | Food heat preservation device of truck | |
| CN211857622U (en) | Self-service milk tea machine | |
| CN208550923U (en) | A kind of temperature control cup | |
| KR20170000272A (en) | Water dispenser equipped with ice maker | |
| CN118723244A (en) | A self-cleaning, sterilizing and fresh-keeping multi-capacity filling integrated device | |
| JP5728776B2 (en) | Dispenser capable of heat sterilization | |
| KR100896597B1 (en) | Multi-sided Uniform Rapid Cooling Drinking Machine | |
| CN111536692A (en) | Hot water receiving and taking device with purification structure for train carriage | |
| CN212962355U (en) | Multipurpose rapid cooling equipment | |
| CN211999638U (en) | Wine mixing machine | |
| CN209610800U (en) | cooking machine | |
| KR101189635B1 (en) | Water dispenser equipped with ice maker | |
| CN2579275Y (en) | Multifunction electronic cold and warm kettle | |
| CN209090656U (en) | A kind of intelligence adjusts the cup of water temperature | |
| CN217946010U (en) | Self-heating rice cooling equipment | |
| CN108433481A (en) | A kind of temperature control cup | |
| CN113080705B (en) | Water dispenser for sharing campus |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination |
