Abstract

本发明涉及横向骨搬运术技术领域，公开了横向骨搬运术用的辅助测量工具，包括主杆，主杆中部一侧设置有固定块，固定块的外端设置有延伸板，延伸板的上方水平设置有横板，且延伸板上竖直设置有第一调节螺栓，第一调节螺栓与延伸板转动连接，且第一调节螺栓贯穿横板，第一调节螺栓与横板螺纹连接；横板的两端均滑动安装有滑套，滑套中插设有提拉螺钉，提拉螺钉与滑套转动连接；主杆靠近固定块的一侧滑动安装有多个内螺纹管，内螺纹管中插设有固定骨针。本发明在使用时，通过对双螺纹丝杆进行转动，可带动刻度尺露出主杆，由刻度尺对手术部位进行测量标记，同时，通过拉动刻度尺，可使刻度尺与连接部脱离，从而提高了测量的范围。

Figure 202210366243

The invention relates to the technical field of lateral bone transport, and discloses an auxiliary measurement tool for lateral bone transport. A horizontal plate is arranged horizontally, and a first adjustment bolt is vertically arranged on the extension plate, the first adjustment bolt is rotatably connected with the extension plate, the first adjustment bolt penetrates through the horizontal plate, and the first adjustment bolt is threadedly connected with the horizontal plate; A sliding sleeve is slidably installed at both ends of the sliding sleeve, and a pulling screw is inserted into the sliding sleeve, and the pulling screw is rotatably connected with the sliding sleeve; the side of the main rod close to the fixing block is slidably installed with a plurality of internally threaded pipes, and the inner threaded pipe is slidably installed A fixed bone pin is inserted. When the invention is in use, by rotating the double-threaded screw rod, the scale can be driven to expose the main rod, and the scale can measure and mark the surgical site. At the same time, by pulling the scale, the scale can be separated from the connecting part, thereby Increased measurement range.

Figure 202210366243

Description

Auxiliary measuring tool for transverse bone transport operation
Technical Field
The invention relates to the technical field of transverse bone transport, in particular to an auxiliary measuring tool for transverse bone transport.
Background
The tibia transverse bone carrying technology is a therapy developed on the basis of tension and stress laws, and the therapy can slowly and continuously draw bones, so that cell proliferation and biosynthesis functions are stimulated to a certain extent, the effect of promoting tissue regeneration is positively influenced, the metabolism of regenerated tissues can be increased to a certain extent, and the effect of promoting the normal function of the tissues is well promoted. In addition, many researches prove that the transverse tibial bone transportation technology can promote the growth of bones, blood vessels, nerves and the like, is beneficial to the natural reconstruction of the microcirculation of damaged tissues of an organism and has a positive influence on the regeneration of nerve tissues. Therefore, the transverse bone transportation of the tibia can be widely applied to the treatment of diabetic foot, lower limb vascular occlusion and the like. The conventional transverse bone transport is to install a transverse bone transport external fixing frame in an operation, and at present, the existing transverse bone transport external fixing frame does not have a measuring structure and cannot mark a bone taking position, so that an auxiliary measuring tool for the transverse bone transport is provided to solve the problems.
Disclosure of Invention
The invention aims to solve the defects that the transverse bone transport external fixing bracket in the prior art does not have a measuring structure and cannot mark a bone taking position, and provides an auxiliary measuring tool for transverse bone transport.
In order to achieve the purpose, the invention adopts the following technical scheme:
the auxiliary measuring tool for the transverse bone carrying operation comprises a main rod, wherein a fixed block is arranged on one side of the middle of the main rod, an extension plate is arranged at the outer end of the fixed block, a transverse plate is horizontally arranged above the extension plate, a first adjusting bolt is vertically arranged on the extension plate and is rotatably connected with the extension plate, the first adjusting bolt penetrates through the transverse plate, and the first adjusting bolt is in threaded connection with the transverse plate;
sliding sleeves are slidably mounted at two ends of the transverse plate, lifting screws are inserted in the sliding sleeves and rotatably connected with the sliding sleeves, the lifting screws penetrate through the extension plate and are in sliding fit with the extension plate, and a bone taking plate is fixed between the lower ends of the two lifting screws;
a plurality of internal thread pipes are slidably mounted on one side of the main rod close to the fixed block, and fixing spicules are inserted in the internal thread pipes;
the bottom of mobile jib is provided with the fluting along its length direction, rotates between the grooved both ends inner wall and installs two screw lead screws, the equal threaded mounting in both ends on the two screw lead screws has the connecting block, two all rotate on the connecting block and install connecting portion, two the outer end of connecting portion is rotated and is installed same scale.
Preferably, first openings are formed in two ends of the transverse plate, the sliding sleeve is inserted into the first openings, and the sliding sleeve is in sliding fit with the first openings.
Preferably, the second opening has all been seted up at the both ends of extension board, and second adjusting bolt is all installed in the rotation in second open-ended both ends, threaded connection has the slider on the second adjusting bolt, carry the drawing screw and run through the slider, and carry drawing screw and slider sliding fit.
Preferably, the vertical section that the mobile jib is "T" font, just one side of internal thread pipe is fixed with the slide, and the slide slidable mounting is in on the mobile jib, and be provided with locking screw on the slide.
Preferably, the fixing spicule is provided with a thread part, and the thread part is matched with the internal thread pipe.
Preferably, the screw thread directions of the two ends of the double-thread screw rod are opposite to each other, and the two connecting blocks are respectively provided with a threaded hole matched with the screw threads of the two ends.
Preferably, connecting portion include that one end rotates to be installed connecting pipe on the connecting block, and the other end of connecting pipe inserts and is equipped with the joint pole to be provided with solid fixed ring on the inner wall of connecting pipe, gu fixed ring keeps away from one side of joint pole is provided with the movable block, movable block and connecting pipe sliding fit, and is provided with the spring between movable block and the solid fixed ring, and the movable block with through being connected rope fixed connection between the joint pole.
Preferably, the outer wall of the clamping rod is provided with a limiting block.
Preferably, the graduated scale is rotatably connected with the connecting part in the up-and-down direction.
Preferably, bone taking holes are uniformly formed in the edge of the bone taking plate.
The invention has the beneficial effects that:
1. when the double-thread screw rod measuring instrument is used, the double-thread screw rod is rotated to drive the graduated scale to expose the main rod, the graduated scale measures and marks the surgical site, and meanwhile, the graduated scale is pulled to be separated from the connecting part, so that the measuring range is improved.
2. According to the invention, the positions of the two lifting screws can be respectively adjusted by rotating the second adjusting bolts at the two sides, so that the bone taking position is adjusted, and the convenience of the operation is improved.
Drawings

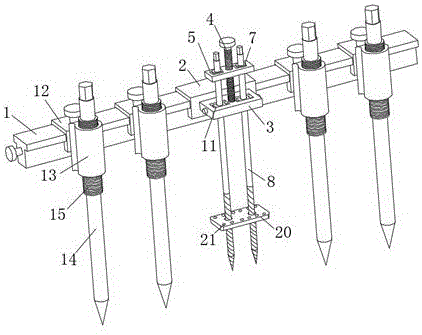

FIG. 1 is a schematic view of an auxiliary measuring tool for lateral bone transfer according to the present invention;
FIG. 2 is a schematic view of the structure of the measuring ruler installed in the auxiliary measuring tool for transverse bone transportation according to the present invention;
FIG. 3 is a cross-sectional structural view of a cross plate of the auxiliary measuring tool for lateral bone transfer according to the present invention;
FIG. 4 is a schematic top view of an extension plate of the auxiliary measuring tool for lateral bone transfer according to the present invention;
fig. 5 is a schematic structural view of a connection part of an auxiliary measuring tool for lateral bone transfer according to the present invention.
In the figure: 1. a main rod; 2. a fixed block; 3. an extension plate; 4. a first adjusting bolt; 5. a transverse plate; 6. a first opening; 7. a sliding sleeve; 8. lifting the screw; 9. a second opening; 10. a second adjusting bolt; 11. a slider; 12. a slide base; 13. an internally threaded tube; 14. fixing the spicules; 15. a threaded portion; 16. a double-threaded screw rod; 17. connecting blocks; 18. a connecting portion; 181. a connecting pipe; 182. a clamping and connecting rod; 183. a fixing ring; 184. a movable block; 185. a spring; 186. connecting ropes; 19. a graduated scale; 20. taking a bone plate; 21. and taking bone holes.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like, indicate orientations and positional relationships based on those shown in the drawings, and are used only for convenience of description and simplicity of description, and do not indicate or imply that the equipment or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be considered as limiting the present invention.
Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically defined otherwise.
Referring to fig. 1-5, the auxiliary measuring tool for the transverse bone transfer comprises a main rod 1, wherein a fixed block 2 is arranged on one side of the middle of the main rod 1, an extension plate 3 is arranged at the outer end of the fixed block 2, a transverse plate 5 is horizontally arranged above the extension plate 3, second openings 9 are formed in two ends of the extension plate 3, second adjusting bolts 10 are rotatably arranged at two ends of each second opening 9, a sliding block 11 is connected to each second adjusting bolt 10 in a threaded manner, the sliding block 11 is inserted into each second opening 9, threaded holes matched with the second adjusting bolts 10 are formed in the sliding block 11, first adjusting bolts 4 are vertically arranged on the extension plate 3, the first adjusting bolts 4 are rotatably connected with the extension plate 3, the first adjusting bolts 4 penetrate through the transverse plate 5, and the first adjusting bolts 4 are in threaded connection with the transverse plate 5;
sliding sleeves 7 are arranged at two ends of the transverse plate 5 in a sliding mode, first openings 6 are formed in two ends of the transverse plate 5, the sliding sleeves 7 are inserted into the first openings 6, the vertical cross section of each sliding sleeve 7 is in an I shape, the sliding sleeves 7 are in sliding fit with the first openings 6, lifting screws 8 are inserted into the sliding sleeves 7 and are connected with the sliding sleeves 7 in a rotating mode, the lifting screws 8 penetrate through the sliding blocks 11, the lifting screws 8 are in sliding fit with the sliding blocks 11, bone taking plates 20 are fixed between the lower ends of the two lifting screws 8, and bone taking holes 21 are evenly formed in the edges of the bone taking plates 20.
A plurality of internal thread pipes 13 are slidably mounted on one side, close to the fixed block 2, of the main rod 1, a fixed bone pin 14 is inserted into each internal thread pipe 13, a thread part 15 is arranged on each fixed bone pin 14, the thread part 15 is matched with each internal thread pipe 13, so that the upper position and the lower position of each fixed bone pin 14 can be conveniently fixed, the vertical section of the main rod 1 is T-shaped, a sliding seat 12 is fixed on one side of each internal thread pipe 13, the sliding seat 12 is slidably mounted on the main rod 1, and a locking screw is arranged on each sliding seat 12, so that the sliding seat 12 can be moved by loosening the locking screw, and the position of each fixed bone pin 14 can be adjusted;
the bottom of the main rod 1 is provided with a groove along the length direction, a double-thread screw 16 is rotatably arranged between the inner walls of two ends of the groove, one end of the double-thread screw 16 extends to the outer side of the main rod 1, connecting blocks 17 are respectively and threadedly arranged at two ends of the double-thread screw 16, the screwing directions of two ends of the double-thread screw 16 are opposite to each other, threaded holes matched with the threads of the two ends are respectively arranged on the two connecting blocks 17, connecting parts 18 are respectively and rotatably arranged on the two connecting blocks 17, the outer ends of the two connecting parts 18 are rotatably provided with the same scale 19, the connecting part 18 comprises a connecting pipe 181 with one end rotatably arranged on the connecting block 17, a clamping rod 182 is inserted at the other end of the connecting pipe 181, a limiting block is arranged on the outer wall of the clamping rod 182, a fixing ring 183 is arranged on the inner wall of the connecting pipe 181, and a movable block is arranged at one side of the fixing ring 183 away from the clamping rod 184, the movable block 184 is in sliding fit with the connecting pipe 181, a spring 185 is arranged between the movable block 184 and the fixing ring 183, the movable block 184 is fixedly connected with the clamping rod 182 through a connecting rope 186, and the graduated scale 19 is rotatably connected with the connecting part 18 in the up-and-down direction.
In this embodiment, when in use, the double-threaded screw 16 is rotated, the double-threaded screw 16 drives the two connecting blocks 17 to approach each other, and the graduated scale 19 is pushed by the connecting portion 18 to expose the main rod 1, the locking screw on the sliding seat 12 is loosened, the sliding seat 12 can be moved, the fixing bone needle 14 is moved at the same time, the second adjusting bolt 10 at the two ends of the extending plate 3 is rotated, the second adjusting bolt 10 drives the sliding block 11 to move, and the lifting screw 8 is driven to move (when the lifting screw 8 moves, the sliding sleeve 7 moves on the transverse plate 5), so as to adjust the position of the lifting screw 8, and the operative site is measured and marked by the graduated scale 19 by observing the graduated scale 19, and meanwhile, the graduated scale 19 can be pulled as required, so that the clamping rod 182 is separated from the connecting pipe 181, and the graduated scale 19 is taken down, so as to improve the measuring range, after the measurement is completed, the graduated scale 19 is loosened, the spring 185 can drive the connecting rope 186 to retract, and simultaneously the clamping rod 182 is driven to be clamped in the connecting pipe 181, so that the graduated scale 19 is fixed.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and the technical solutions and the inventive concepts thereof according to the present invention should be equivalent or changed within the scope of the present invention.

Claims (10)

1.横向骨搬运术用的辅助测量工具，包括主杆（1），其特征在于，所述主杆（1）中部一侧设置有固定块（2），固定块（2）的外端设置有延伸板（3），所述延伸板（3）的上方水平设置有横板（5），且延伸板（3）上竖直设置有第一调节螺栓（4），第一调节螺栓（4）与延伸板（3）转动连接，且第一调节螺栓（4）贯穿所述横板（5），第一调节螺栓（4）与横板（5）螺纹连接；1. An auxiliary measuring tool for transverse bone transport, comprising a main rod (1), characterized in that a fixing block (2) is provided on one side of the middle part of the main rod (1), and an outer end of the fixing block (2) is provided with There is an extension plate (3), a horizontal plate (5) is arranged horizontally above the extension plate (3), and a first adjustment bolt (4) is vertically arranged on the extension plate (3), and the first adjustment bolt (4) ) is rotatably connected with the extension plate (3), and the first adjustment bolt (4) penetrates the transverse plate (5), and the first adjustment bolt (4) is threadedly connected with the transverse plate (5); 所述横板（5）的两端均滑动安装有滑套（7），滑套（7）中插设有提拉螺钉（8），所述提拉螺钉（8）与滑套（7）转动连接，且提拉螺钉（8）贯穿所述延伸板（3），提拉螺钉（8）与延伸板（3）滑动配合，并且两根提拉螺钉（8）的下端之间固定有取骨板（20）；Both ends of the horizontal plate (5) are slidably installed with sliding sleeves (7), and a pulling screw (8) is inserted into the sliding sleeve (7), and the pulling screw (8) is connected to the sliding sleeve (7). Rotationally connected, and the pull screw (8) penetrates the extension plate (3), the pull screw (8) is slidingly matched with the extension plate (3), and a pull-up screw (8) is fixed between the lower ends of the two pull screws (8). bone plate (20); 所述主杆（1）靠近所述固定块（2）的一侧滑动安装有多个内螺纹管（13），内螺纹管（13）中插设有固定骨针（14）；A plurality of internally threaded pipes (13) are slidably installed on one side of the main rod (1) close to the fixing block (2), and fixed bone pins (14) are inserted in the internally threaded pipes (13); 所述主杆（1）的底部沿其长度方向设置有开槽，开槽的两端内壁之间转动安装有双螺纹丝杆（16），所述双螺纹丝杆（16）上的两端均螺纹安装有连接块（17），两块所述连接块（17）上均转动安装有连接部（18），两个所述连接部（18）的外端转动安装有同一个刻度尺（19）。The bottom of the main rod (1) is provided with a slot along its length direction, a double-threaded screw (16) is rotatably installed between the inner walls of both ends of the slot, and the two ends of the double-threaded screw (16) are rotatably installed. A connecting block (17) is threadedly installed on each of the two connecting blocks (17), a connecting portion (18) is rotatably installed on the two connecting blocks (17), and the same scale (18) is rotatably installed on the outer ends of the two connecting portions (18). 19). 2.根据权利要求1所述的横向骨搬运术用的辅助测量工具，其特征在于，所述横板（5）的两端均开设有第一开口（6），所述滑套（7）插设在第一开口（6）中，且滑套（7）与第一开口（6）滑动配合。2. The auxiliary measuring tool for transverse bone transport according to claim 1, characterized in that, both ends of the transverse plate (5) are provided with first openings (6), and the sliding sleeve (7) It is inserted into the first opening (6), and the sliding sleeve (7) is slidably matched with the first opening (6). 3.根据权利要求1所述的横向骨搬运术用的辅助测量工具，其特征在于，所述延伸板（3）的两端均开设有第二开口（9），第二开口（9）的两端均转动安装有第二调节螺栓（10），所述第二调节螺栓（10）上螺纹连接有滑块（11），所述提拉螺钉（8）贯穿滑块（11），且提拉螺钉（8）与滑块（11）滑动配合。3 . The auxiliary measuring tool for transverse bone transport according to claim 1 , characterized in that, both ends of the extension plate ( 3 ) are provided with second openings ( 9 ), and the second opening ( 9 ) A second adjusting bolt (10) is rotatably installed on both ends, a sliding block (11) is threadedly connected to the second adjusting bolt (10), and the pulling screw (8) penetrates the sliding block (11) and lifts the sliding block (11). The pull screw (8) is slidingly matched with the slider (11). 4.根据权利要求1所述的横向骨搬运术用的辅助测量工具，其特征在于，所述主杆（1）为的竖截面为“T”字形，且所述内螺纹管（13）的一侧固定有滑座（12），滑座（12）滑动安装在所述主杆（1）上，且滑座（12）上设置有锁紧螺钉。4. The auxiliary measuring tool for transverse bone transport according to claim 1, wherein the vertical section of the main rod (1) is a "T" shape, and the inner threaded pipe (13) has a "T" shape in vertical section. A sliding seat (12) is fixed on one side, the sliding seat (12) is slidably mounted on the main rod (1), and a locking screw is arranged on the sliding seat (12). 5.根据权利要求1所述的横向骨搬运术用的辅助测量工具，其特征在于，所述固定骨针（14）上设置有螺纹部（15），螺纹部（15）与所述内螺纹管（13）相适配。5 . The auxiliary measurement tool for transverse bone transport according to claim 1 , wherein a threaded portion ( 15 ) is provided on the fixed bone pin ( 14 ), and the threaded portion ( 15 ) is connected to the internal thread. 6 . The tube (13) is adapted. 6.根据权利要求1所述的横向骨搬运术用的辅助测量工具，其特征在于，所述双螺纹丝杆（16）上的两端螺纹旋向互为相反，且两块所述连接块（17）上分别开设有与两端螺纹相适配的螺纹孔。6 . The auxiliary measuring tool for transverse bone transport according to claim 1 , characterized in that the two ends of the double-threaded screw ( 16 ) have opposite screw threads to each other, and the two connecting blocks (17) are respectively provided with threaded holes adapted to the threads at both ends. 7.根据权利要求1所述的横向骨搬运术用的辅助测量工具，其特征在于，所述连接部（18）包括一端转动安装在所述连接块（17）上的连接管（181），且连接管（181）的另一端插设有卡接杆（182），并且连接管（181）的内壁上设置有固定环（183），所述固定环（183）远离所述卡接杆（182）的一侧设置有活动块（184），活动块（184）与连接管（181）滑动配合，且活动块（184）与固定环（183）之间设置有弹簧（185），并且活动块（184）与所述卡接杆（182）之间通过连接绳（186）固定连接。7. The auxiliary measuring tool for transverse bone transport according to claim 1, characterized in that, the connecting portion (18) comprises a connecting pipe (181), one end of which is rotatably mounted on the connecting block (17), And the other end of the connecting pipe (181) is inserted with a clamping rod (182), and a fixing ring (183) is provided on the inner wall of the connecting pipe (181), and the fixing ring (183) is far away from the clamping rod (183). One side of 182) is provided with a movable block (184), the movable block (184) is slidingly matched with the connecting pipe (181), and a spring (185) is arranged between the movable block (184) and the fixing ring (183), and the movable block (184) is movable. The block (184) and the clamping rod (182) are fixedly connected by a connecting rope (186). 8.根据权利要求7所述的横向骨搬运术用的辅助测量工具，其特征在于，所述卡接杆（182）的外壁上设置有限位块。8 . The auxiliary measurement tool for transverse bone transport according to claim 7 , wherein a limiting block is provided on the outer wall of the clamping rod ( 182 ). 9 . 9.根据权利要求1所述的横向骨搬运术用的辅助测量工具，其特征在于，所述刻度尺（19）与所述连接部（18）上、下方向转动连接。9 . The auxiliary measuring tool for transverse bone transport according to claim 1 , wherein the scale ( 19 ) is connected with the connecting portion ( 18 ) in an up-down direction in rotation. 10 . 10.根据权利要求1所述的横向骨搬运术用的辅助测量工具，其特征在于，所述取骨板（20）的边缘处均匀开设有取骨孔（21）。10 . The auxiliary measurement tool for transverse bone transport according to claim 1 , characterized in that bone extraction holes ( 21 ) are uniformly opened at the edge of the bone extraction plate ( 20 ). 11 .
