Abstract

The invention discloses a safety protective firefighting clothing, which aims to solve the problems of heat stress and high-altitude fall of the firefighting clothing. Between the comfort layer and the heat insulation layer of the firefighting clothing, there is a flame-retardant elastic stretchable deformation pipeline that can be used for dual intelligent regulation functions of cooling liquid flow and anti-drop inflation. The realization principle is: during the fire fighting and rescue process, when the temperature of the air layer under the clothes is higher than the comfortable temperature of the human body, the pipes are used for the flow of cooling water, so as to realize the thermal perception of the firefighting clothing and intelligently control the temperature of the air layer under the clothes and ensure its micro The ambient temperature is constant and comfortable; when an accidental fall occurs, the soft, elastic and stretchable pipe can act as a safety airbag to absorb and buffer external forces to form a protective effect to protect firefighters from accidental fall injuries. The safety fire protection clothing of the present invention can avoid the problems of easy fall, injury and death and heat stress caused by accidental falling from high altitude during the rescue process of firefighters, ensure the personal safety of rescuers, and realize the double protection of heat stress and high altitude fall by using the telescopic pipeline purpose, and the overall cost is low.

Description

A kind of safe and intelligent protective fire-fighting clothing

technical field

The invention belongs to the technical field of protective functional clothing, in particular to an intelligently regulated safety protective fire-fighting clothing and a control method thereof.

Background technique

As we all know, firefighting clothing belongs to the protective clothing worn by firefighters in the process of fire rescue. Its use scene is a harsh environment where open flames, thick smoke and high temperature and high radiant heat are combined. Thermogenic phenomenon. Moreover, during the rescue process, firefighters also have to engage in high-intensity activities such as climbing and rescue, carrying heavy objects, and brisk walking and sprinting, which further aggravates the body's heat generation and sweat discharge. If the large amount of heat and sweat produced by the body cannot be eliminated in time, it is easy to cause the core temperature of the human body to rise to a dangerous critical temperature (40°C) within the tolerance range of the human body. Therefore, it is very necessary to develop fire-fighting clothing with functions of thermal perception and intelligent regulation of the temperature of the air layer under the clothing and to ensure a constant and comfortable micro-environment temperature. At the same time, in the process of fire fighting and rescue, firefighters are often faced with open flames and dense smoke, which may lead to the risk of accidentally falling or falling from a high altitude. Moreover, during the rescue process (especially high-altitude rescue), firefighters will use safety ropes or rescue safety belts. If the flame touches the safety rope or rescue safety belt or the temperature of the environment is too high, there will be safety ropes or rescue safety belts. The fusing of seat belts has caused rescue personnel to fall from high altitudes and caused casualties, which seriously threatens the safety of firefighters themselves. Therefore, the anti-fall performance of firefighters wearing their clothing cannot be ignored. In addition, with the continuous advancement of my country's urbanization process, while people's living conditions have been improved, the height, scale and density of buildings such as residences and shopping malls are also increasing, which makes the danger of fire and the difficulty of rescue greatly increased. , especially the problems of heat stress and falling from heights. To sum up, it can be seen that it is very important to solve the problems of high temperature protection and fall prevention in the work of fire rescue personnel. Therefore, the present invention provides an intelligently regulated safety protective firefighting clothing and its production method to solve the problems of thermal stress in consumer clothing and falling from high altitudes that are easy to fall and fall to death in the above-mentioned background technology.

Contents of the invention

The purpose of the present invention is to provide an intelligent regulation and control safety protection fire-fighting clothing and its production method to solve the problems of thermal stress in consumer clothing and falling from high altitudes that are easy to fall and fall to death in the above-mentioned background technology. A soft elastic stretchable pipe (composed of polyester, aramid, spandex blended fibers) is arranged between the comfort layer and the heat insulation layer. During the fire fighting and rescue process, a soft, elastic and stretchable pipe is arranged between the comfort layer and the heat insulation layer of the firefighting clothing as a heat dissipation water cooling pipe for the flow of cooling water, realizing the thermal perception of the firefighting clothing and intelligently regulating the air layer under the clothing Temperature and ensure the constant and comfortable function of its micro-environment temperature; when accidentally falling, the soft, elastic and stretchable pipe can also be used as an airbag, absorbing and buffering external forces to form a protective effect, so as to protect firefighters from accidental falling injuries.

In order to solve the problem of easy falling and falling to death when falling from a high altitude, the present invention provides the following technical solution: use the MPU9250 integrated inertial sensor to collect the multi-dimensional human body motion posture data of firefighters, and transmit it to the STM32F103VDT microprocessor through the I ² C bus. The processor matches the received signal with the high-altitude fall posture model. If it judges that the current action posture belongs to the category of falling danger, its microprocessor will activate the miniature high-pressure gas cylinder and complete the inflation of the retractable airbag within 50ms to ensure accidental fall The soft, elastic and stretchable airbag can absorb and buffer external force to form a protective effect, so as to protect firefighters from accidental fall injuries. And start the safety alarm module at the same time, that is, the TMB12A buzzer continues to alarm and the LED light continues to flash, so as to inform the surrounding personnel and the police to take immediate action to rescue the falling high-altitude firefighters. In addition, in order to maximize the protection of the personal safety of firefighters when they fall from high altitudes in different emergencies. The air bag opening mode of the present invention also increases the manual opening mode. That is, the airbag activation mode of the present invention is divided into a manual activation mode and an automatic activation mode, wherein the manual activation mode: the staff can manually open the air bag according to the actual emergency situation; When falling, a control command will be issued, and the airbag will be opened by the controller. The above two working modes for starting the airbag can work independently and complement each other. For the manual start mode, set the highest priority for opening the airbags for the smart safety fire suit. At this time, no matter whether a high-altitude fall occurs or not, the wearer can trigger the airbag to work by pulling the device, which enhances the protection. When firefighters accidentally fall from high altitude, if their hands are occupied at this time, they cannot manually open the protective device. At this time, the automatic start mode will be started, that is, the multi-dimensional human motion posture data of firefighters will be collected with the help of the MPU9250 integrated inertial sensor, and transmitted to the STM32F103VDT microprocessor through the I ² C bus, and the microprocessor will receive the signal and the high-altitude The falling posture model is matched. If the current action posture is judged to be in the dangerous category of falling, its microprocessor will activate the miniature high-pressure gas cylinder to complete the inflation of the retractable airbag within 50ms, ensuring that the soft, elastic and retractable airbag will be inflated in case of an accidental fall. It can absorb and buffer external forces to form a protective effect, so as to protect firefighters from accidental fall injuries. And start the safety alarm module at the same time, that is, the TMB12A buzzer continues to alarm and the LED light continues to flash, so as to inform the surrounding personnel and the police to take immediate action to rescue the falling high-altitude firefighters.

In order to solve the problem of heat stress in firefighting clothing, the present invention provides the following technical solutions: with semiconductor refrigeration technology as the core, a soft, elastic and scalable pipe is arranged between the comfort layer and the heat insulation layer of the firefighting clothing as a heat dissipation water cooling pipe for cooling For the flow of water, use common electronic components in the market to design a set of economical, small, efficient, comfortable, heat-sensing and self-regulating firefighting clothing. The radiator and the power supply supply power to the equipment. The cold generated by the cold surface is introduced into the water-cooled liquid through the water-cooled head. The water-cooled liquid circulates in the cooling water pipe through the water pump and then enters the interior of the comfort layer to exchange heat with the human body, thereby producing a cooling effect on the body; and The heat exchange occurs when the body contacts, and the liquid heated by the body is driven by the water pump to return to the water cooling head and cool down again. This reciprocating cycle realizes the continuous cooling of the body. The water pipes all come in and out from the back waist, which does not affect human activities and precise operations. The temperature sensor senses the microclimate temperature inside the firefighting clothing, intelligently changes the power of the semiconductor refrigeration chip and the water pump water control valve, and realizes the regulation of the water temperature and flow rate. Realize the constant temperature of the microclimate in the firefighting clothing. Its characteristics are summarized as heat conduction and heat dissipation, semiconductor refrigeration, intelligent temperature control, and overall lightweight. In addition, since the body surface temperature and comfortable temperature of different parts of the human body are different, the degree of sparseness of the arrangement of the heat exchange pipes in different parts of the present invention is different. The pipes are relatively dense, the temperature is relatively low (the heat stress problem is relatively light), and the heat exchange pipes are sparsely arranged.

Description of drawings

Figure 1 is an overall front view of the garment;

Fig. 2 is the overall rear view of the garment;

Figure 3 is a comparison diagram before and after inflation;

Figure 4 is a comparison cross-sectional view before and after the pipeline is inflated;

Fig. 5 is a pipeline layout diagram of safety protection fire fighting clothing;

Fig. 6 is a schematic diagram of the structure of the protective clothing body layer;

Figure 7 is a front view of the garment after inflation;

Figure 8 is a rear view of the garment after inflation;

Fig. 9 is a structural schematic diagram of a charger generating device;

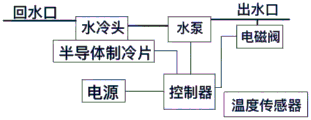

Fig. 10 is a structural schematic diagram of a refrigeration device;

Figure 11 is a schematic diagram of the control assembly;

Figure 12 is a flow chart of intelligent control for falling from a height;

Figure 13 is a flow chart of intelligent temperature control under clothing

The marks in the above figures are: manual pull ring device 1, LED light 2, TMB12A buzzer 3, flame protection layer 4, waterproof and breathable layer 5, heat insulation layer 6, moisture absorption and breathable comfort layer 7, temperature regulation pipeline 8 , basic clothing layer 9, temperature regulating pipeline 8, human skin 10, charger generating device 11, refrigeration device 12.

Detailed ways

Referring to the accompanying drawings, through the description of the embodiments, the specific embodiments of the present invention include the shape, structure, mutual position and connection relationship of each part, the function and working principle of each part, and the manufacturing process of the various components involved. And the method of operation and use, etc., are described in further detail to help those skilled in the art have a more complete, accurate and in-depth understanding of the inventive concepts and technical solutions of the present invention.

Please refer to Figures 1-13. The present invention provides an intelligently regulated safety protective firefighting clothing and its control method. The entire clothing is designed in one piece, as shown in Figures 1 and 2, which includes a manual pull ring device 1 and an LED light 2. , TMB12A buzzer 3. The clothing body is provided with a flame protection layer 4, a waterproof and breathable layer 5, a heat insulation layer 6, a moisture-absorbing and breathable comfort layer 7, a basic clothing layer 9, a temperature-regulating pipeline 8, and human skin from the inside to the outside. 10. Charger generating device 11 and refrigeration device 12, in order to meet the requirements of constant temperature and protection at the same time, the temperature-regulating pipeline 8 is fixed between the heat insulation layer 6 and the moisture-absorbing and breathable comfort layer 7, and the moisture-absorbing and breathable comfort layer 7 and the insulation The heat layer 6 is sealed around the periphery, and there are fewer connections in the middle, so as to avoid the connection being too tight and press the temperature regulation pipeline 8 to expand. During the fire fighting and rescue process, a soft, elastic, and scalable temperature-regulating pipeline 8 is arranged between the moisture-absorbing and breathable comfort layer 7 of the fire-fighting clothing and the heat-insulating layer 6 as a heat-dissipating water-cooling pipe for cooling water flow, so as to realize the heat dissipation of the fire-fighting clothing. Sensing and intelligently regulating the temperature of the air layer under the clothes and ensuring the constant and comfortable micro-environment temperature; when accidentally falling, the soft, elastic and stretchable temperature-regulating pipeline 8 can also be used as an airbag to absorb and buffer external forces to form a protective effect, achieving To protect firefighters from accidental fall injuries, the temperature-regulating pipeline 8 is evenly coiled and then inside the clothing. The control core of the whole device is divided into a charger generator 11 and a refrigeration device 12, which are fixed at the back waist of the safety protective firefighting clothing. A water-cooling mechanism is provided between the water outlet and the water return port of the refrigeration device 12, and a compressed gas bottle is provided in the control assembly. One end of the temperature regulating pipeline 8 is connected to the water outlet of the control assembly, and the other end is connected to the water return port of the control assembly, that is, the end is connected to the control assembly to form a circulation loop. , as a circulation loop of cooling liquid, and when abnormality occurs (drop occurs), the charger generating device 11 will work, and the temperature-regulating pipeline 8 will act as a protection pipeline, which will expand immediately to form a protective layer, reducing the fire protection to a certain extent. Injury from falls.

The specific working principle is as follows:

Aiming at the problem of high-altitude falling, easy to fall and fall to death, the MPU9250 integrated inertial sensor included in the charger generating device 11 is used to collect the multi-dimensional human motion posture data of firefighters, and transmit them to the STM32F103VDT microprocessor through the I ² C bus, and the microprocessor The sensor matches the received signal with the high-altitude fall posture model. If it judges that the current action posture belongs to the category of falling danger, its microprocessor will start the miniature high-pressure gas cylinder, and complete the inflation of the retractable airbag in the temperature regulation pipeline 8 within 50ms. , to ensure that in the event of an accidental fall, the soft, elastic and stretchable airbag can absorb and buffer external forces to form a protective effect, so as to protect firefighters from accidental fall injuries. And start the safety alarm module at the same time, that is, the TMB12A buzzer continues to alarm 3 and the LED light 2 continues to flash, so as to inform the surrounding personnel and the police to take immediate action to rescue the falling high-altitude firefighters. In addition, in order to maximize the protection of the personal safety of fire fighters when they fall from a height under different emergencies, the airbag opening method of the present invention also adds a manual opening method. That is, the airbag activation mode of the present invention is divided into a manual activation mode and an automatic activation mode, wherein the manual activation mode: the staff can manually open the air bag according to the actual emergency situation; When falling, a control command will be issued, and the airbag will be opened by the controller. The above two working modes for starting the airbag can work independently and complement each other. For the manual start mode, it is set as the highest priority of opening the airbag in the smart safety firefighting clothing. At this time, no matter whether a high-altitude fall occurs, the wearer can trigger the airbag to work by pulling the manual pull ring device 1, which enhances the protection.

To solve the heat stress problem of firefighting clothing, semiconductor refrigeration technology is used as the core, and a soft, elastic and scalable temperature-regulating pipe 8 is arranged between the comfort layer and the heat insulation layer of the firefighting clothing as a heat dissipation water cooling pipe for the flow of cooling water. The principle of refrigeration device 12 is as follows: the cold surface of the semiconductor refrigeration chip is attached to the water cooling head, and the hot surface is attached to the radiator. The power supply supplies power to the equipment. The circulation in the tube enters into the comfort layer to exchange heat with the human body, thereby producing a cooling effect on the body; the liquid heated by the body is driven by the water pump to return to the water cooling head and cool down again. This reciprocating cycle realizes Continuous cooling of the body. The water pipes come in and out from the back waist, which does not affect human activities and precise operations. The temperature sensor is connected to the controller. By sensing the microclimate temperature inside the firefighting clothing, the power of the semiconductor refrigeration chip and the water volume control valve of the water pump can be intelligently changed to realize the water flow temperature and flow rate. control, and then realize the constant temperature of the microclimate in the firefighting clothing. Its characteristics are summarized as heat conduction and heat dissipation, semiconductor refrigeration, intelligent temperature control, and overall lightweight. In addition, since the surface temperature and comfortable temperature of different parts of the human body are different, the degree of sparseness of the arrangement of the temperature-regulating pipelines 8 in different parts of the present invention is different. The warming pipes 8 are relatively dense, the temperature is relatively low (the problem of heat stress is relatively light), and the arrangement of the temperature regulating pipes 8 is relatively sparse.

The present invention has been exemplarily described above in conjunction with the accompanying drawings. Obviously, the specific implementation of the present invention is not limited by the above methods, as long as various insubstantial improvements are adopted in the method concept and technical solutions of the present invention, or there is no improvement Directly applying the conception and technical solutions of the present invention to other occasions falls within the protection scope of the present invention.

Claims (6)

1. A safe and intelligent protective fire-fighting clothing, the protective clothing body is a one-piece garment, characterized in that: the protective clothing body has a four-layer structure of a flame-retardant protective layer, a waterproof breathable layer, a heat insulation layer, and a moisture-absorbing and breathable comfortable layer , and between the heat insulation layer and the moisture-absorbing and breathable comfort layer, there are embedded flame-retardant elastic scalable deformation pipelines that can be used for cooling liquid water flow and anti-drop inflation dual intelligent control functions; The temperature adjustment mechanism of the protective clothing body includes a water cooling head, a water pump, a semiconductor refrigeration chip, a solenoid valve, a controller power supply, a controller input terminal, and a temperature adjustment pipeline. A water cooling head and a water pump, the other ends of the water cooling head and the water pump are respectively a water return port and a water outlet, and the water cooling head is attached to a semiconductor cooling chip; The pipe wall of the temperature regulating pipeline is a soft and specific elastic pipe, the temperature regulating pipeline is a wavy structure along the peripheral surface of the pipe, the water pressure provided by the water pump is lower than the expansion pressure of the temperature regulating water pipe, The air pressure in the compressed gas bottle is greater than the pressure that the thermostat water pipe expands. 2. The safety intelligent protective fire-fighting clothing according to claim 1, characterized in that: the protective clothing body is provided with a safety intelligent control device, and the safety intelligent control device is composed of liquid water flow for cooling and anti-drop inflation Dual-function flame-retardant elastic scalable deformation pipeline, power supply for safety control device, semiconductor cooling sheet and radiator for water temperature adjustment, temperature sensor for temperature monitoring of the air layer under clothing, MPU9250 integrated inertial sensor for attitude data acquisition, Composed of STM32F103VDT microprocessor for posture data processing, miniature high-pressure gas cylinder inflated by falling, TMB12A buzzer and LED light for remote output of danger alarm and signal, it has real-time monitoring of external temperature and human body posture, rapid judgment and response of danger, and intelligent control , alarm, positioning, signal transmission functions. 3. The safe and intelligent protective fire-fighting clothing according to claim 2, characterized in that: the flexible temperature sensor installed on the waist of the fire-absorbing and breathable comfortable layer of fire-fighting clothing and the inertial sensor installed on the waist can monitor and obtain the air layer under the inner layer of clothing The temperature and human body posture data are compared with the set comfortable temperature and posture of the human body. If the temperature exceeds the tolerance range of the human body, the safety intelligent control device starts the temperature adjustment mechanism. If the human body posture is judged to be a fall, the safety intelligent control device Activate the anti-drop adjustment mechanism of the airbag. 4. The safe and intelligent protective fire-fighting clothing according to claim 3, characterized in that: the control terminals of the semiconductor refrigeration chip, the water pump and the solenoid valve are all connected to the controller in the control assembly, and the power supply terminal of the controller is connected to the control The power supply in the assembly, the input end of the controller is connected with the sensor assembly, and the water cooling head and the temperature regulating pipeline are filled with cooling water. 5. The safe and intelligent protective fire-fighting clothing according to claim 3, characterized in that: the airbag anti-drop adjustment mechanism of the protective clothing body includes an inertial sensor, a drawstring switch, a drawstring end, and a safety control device, and the inertial sensor It is used to sense whether the fireman falls. The body of the protective clothing is equipped with a manual pull rope. The outer end of the pull rope is provided with a pull ring and placed outside the body of the protective clothing. The pull rope switch is connected and outputs an induction signal to the controller, and the safety control device is provided with a positioning mechanism and an alarm mechanism connected to the controller. 6. The safe and intelligent protective fire-fighting clothing according to claim 3, characterized in that: the protective clothing body is a one-piece fire-fighting clothing, the safety control device of the protective clothing body is fixed at the rear waist position, and the temperature sensor Fastened between a moisture-wicking breathable comfort layer and insulation on the chest.
