Abstract

The invention discloses a valve core, which comprises a main body and is provided with an accommodating cavity, the bottom of the main body is provided with a first water inlet, a second water inlet and a water outlet; a control part is movably arranged in the accommodating cavity to drive a moving valve piece to synchronize rotating; a mixing cavity is arranged between the moving valve plate and the control part, and the first water-passing hole and the second water-passing hole are respectively communicated with the mixing cavity; the fixed valve plate is provided with a first through hole and a second through hole. Holes and water passages; the drawing pipe of the faucet can pass through the through passages and be connected with the water outlet. The invention also discloses a pull-out faucet. The valve core and the faucet have a relatively simple overall structure, are easy to process, and have a large flow rate.

Description

A valve core and a pull-out faucet

technical field

The invention relates to a valve core, in particular to a valve core; the present invention also relates to a pull-out faucet.

Background technique

The pull-out faucet is one of the existing faucets. The water outlet of the faucet is connected with the pull-out pipe and can be pulled out from the faucet to facilitate flushing. The existing pull-out faucets all use traditional valve cores, and a separate valve core cavity needs to be set on the faucet body for installing the valve core. Multiple pipes need to be connected in the faucet body to introduce the cold and hot water from the outside into the faucet body. At the same time, it is also necessary to set up a pipeline to lead out the mixed water in the valve core, and then connect the pulling hose, and pass the pulling hose into the main body of the faucet to connect with the water outlet. As a result, the main structure of the faucet is large, there are many internal pipes, and the connection is more troublesome. At the same time, the pull hose and other pipes are prone to jam.

The Chinese Patent No. 202022048003.6 discloses a hollow valve core with a through hole penetrating the valve core in the middle of the valve core, so that the pulling hose can be pulled directly through the through hole for pulling. Although the valve core can simplify the waterway structure inside the main body of the faucet and facilitate the connection of pipes, the moving piece of the valve core is provided with two first water inlet holes and a water mixing chamber on the front, and two blind grooves are set on the back of the moving piece The two ends of each blind groove are respectively connected with one water inlet hole 1 and one end of the mixed water cavity, so that the water of the two water inlet holes 1 can flow into the mixed water cavity. The blind groove overlaps with the first part of the water inlet hole and the end of the mixing chamber respectively through the two ends, and connects the two, resulting in a complex overall structure of the moving piece, inconvenient processing, and limited flow.

Due to the unreasonable waterway design scheme of the above-mentioned patent, it is necessary to set up a complex waterway on the small moving valve plate, so that the flow rate of the valve is greatly reduced; at the same time, precise coordination is required between the moving valve plate and the fixed valve plate to achieve rotary sealing , The complex waterway is set in the moving valve plate and the fixed valve plate, the flatness of this valve plate or fixed valve plate is not easy to control, so that the valve leaks during use.

SUMMARY OF THE INVENTION

In view of the deficiencies in the prior art, the purpose of the present invention is to provide a valve core with reasonable waterway design, the valve is not easy to leak water during use, and the valve core has a large flow rate.

The above-mentioned technical purpose of the present invention is achieved through the following technical solutions:

A valve core, comprising a main body provided with a through channel, the main body is provided with a accommodating cavity, a first water inlet, a second water inlet and a water outlet, and the accommodating cavity is provided with a control member, a movable valve plate and a fixed valve The movable valve plate rotates relative to the fixed valve plate under the control of the control member, and is provided with a first water-passing hole and a second water-passing hole; the fixed valve plate is provided with a The water inlet and the second water inlet are correspondingly connected to the first through hole and the second through hole, and the valve core further includes a mixing chamber and a water passage, wherein: part or all of the mixing chamber is provided on the control member, The liquid in the first through hole and the second through hole is mixed in the mixing chamber and flows through the second water passage; the water passage is set between the movable valve plate and the fixed valve plate to communicate with each other the second water passage hole and the water outlet hole.

Preferably, the through channel passes through the main body, the control member, the movable valve plate and the fixed valve plate, and the drawing pipe can pass through the through channel and then communicate with the water outlet.

Preferably, the mixing chamber is provided on the control member to communicate with the first water passage hole and the second water passage hole.

Preferably, the mixing chamber consists of the space formed by the control member and the movable valve plate to communicate with the first water passage hole and the second water passage hole.

Preferably, the mixing chamber is formed by an annular mixing groove provided on the control member and the upper surface of the movable valve plate.

Preferably, the liquid in the first through hole and the second through hole enters the mixing chamber after passing through the first water passage hole.

Preferably, an inner sealing ring and an outer sealing ring are arranged between the control member and the movable valve plate, and the mixing chamber is arranged between the inner sealing ring and the outer sealing ring.

Preferably, the main body includes a casing and a base, the casing and the base are fixedly connected to form the accommodating cavity, and the first water inlet, the second water inlet and the water outlet are all arranged in on the base.

Preferably, the casing is provided with a positioning groove, and the fixed valve plate is correspondingly provided with a positioning block, and the fixed valve plate is circumferentially limited relative to the casing through the matching of the positioning groove with the positioning block.

The invention also discloses a pull-out faucet, which comprises a pull-out pipe, a water outlet end and the valve core according to the invention. After the pull-out pipe passes through the through channel, one end of the pull-out pipe is connected to the water outlet end, and the other end is connected to the water outlet end. One end is connected with the water outlet of the valve core.

Compared with the prior art, the technical solution of the present invention has the following beneficial effects:

1. Since part or all of the mixing chamber of the present invention is provided on the control member, the water path on the movable valve plate is greatly simplified, and finally the yield of the movable valve plate is improved, and the production cost of the valve and the valve cost are reduced. At the same time, because the mixing chamber is provided on the control part, the mixing capacity can be larger, and the corresponding flow rate of the valve can also be increased.

2. In the present invention, the mixing chamber is arranged between the inner sealing ring and the outer sealing ring to further ensure that the water in the mixing chamber will not leak out, and the sealing performance of the valve is maintained.

3. After the valve core of the present invention is used in the pull-out faucet of the present invention, the volume is smaller, the cost is lower, and the flow rate is larger.

Description of drawings

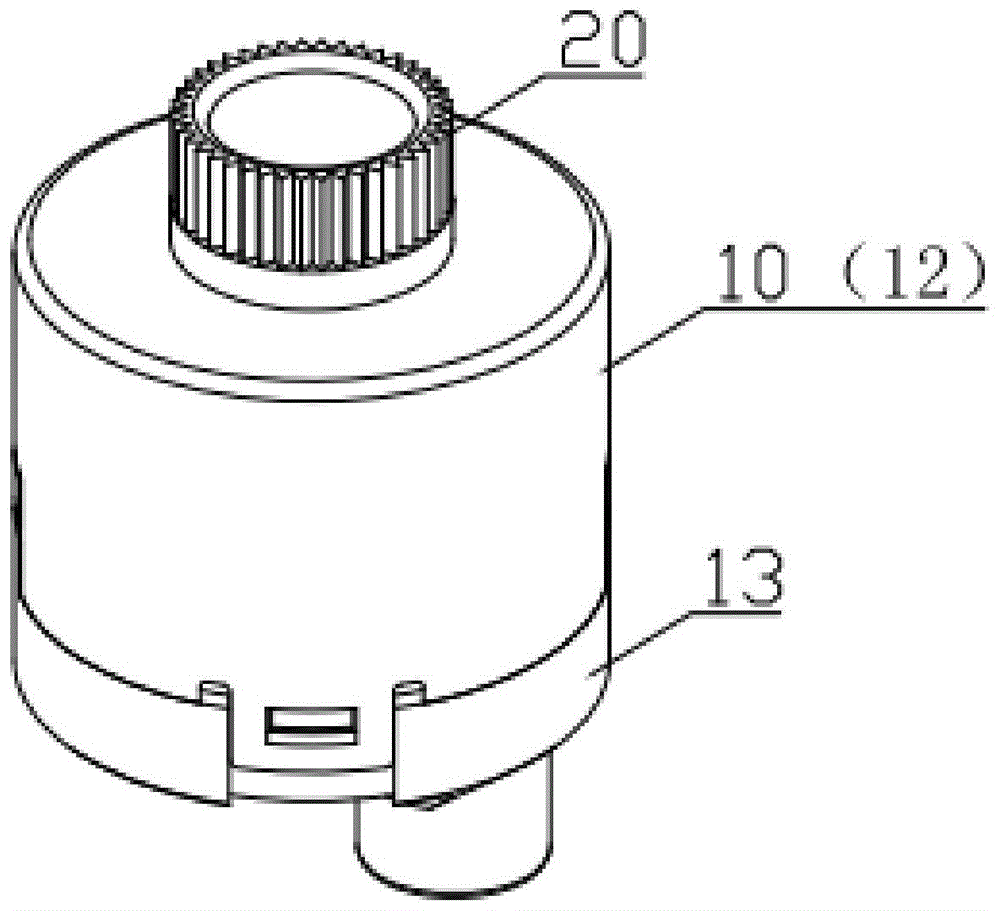

Fig. 1 is the assembly drawing of a kind of valve core of the present invention;

Figure 2 is an exploded view of a valve core of the present invention;

3 is a cross-sectional view of a valve core of the present invention;

4 is a bottom view of a valve core of the present invention;

FIG. 5 is a schematic diagram of a water-passing state of a valve core according to the present invention;

FIG. 6 is a perspective view of the control member of the present invention.

Reference numerals: 10, main body; 11, accommodating cavity; 12, shell; 121, spring buckle; 122, positioning groove; 13, base; 131, first water inlet; 132, second water inlet; 133, water outlet ; 134, the bump; 135, the fourth through hole; 20, the control part; 21, the operation part; 22, the limit part; 23, the first through hole; 32, the second water hole; 33, the clamping part; 34, the second through hole; 40, the fixed valve plate; 41, the first through hole; 42, the second through hole; 43, the water passage; 44, the positioning block; 45, third through hole; A, through channel; 50, spring pin; 60, mixing chamber; 61, outer sealing ring; 62, inner sealing ring.

Detailed ways

The present invention will be further described in detail below with reference to the accompanying drawings.

This specific embodiment is only an explanation of the present invention, and it does not limit the present invention. Those skilled in the art can make modifications without creative contribution to the present embodiment as needed after reading this specification, but as long as the rights of the present invention are used All claims are protected by patent law.

As shown in FIGS. 1-5 , a valve core includes a main body 10 , a accommodating cavity is opened in the main body 10 , and a fixed valve plate 40 , a movable valve plate 30 and a control member 20 are installed in the accommodating cavity. The bottom of the main body 10 is provided with a first water inlet 131 , a second water inlet 132 and a water outlet 133 , and the fixed valve plate 40 is provided with a first through hole 41 , a second through hole 42 and a water passage 43 . The first through hole 41 communicates with the first water inlet 131 , the second through hole 42 communicates with the second water inlet 132 , and the water passage 43 communicates with the water outlet 133 . The movable valve plate 30 is provided with a first water passage hole 31 and a second water passage hole 32 . A relatively closed mixing chamber is formed between the upper surface of the movable valve plate 30 and the lower surface of the control member 20, the mixing chamber is annular, and the mixing chamber is connected to the first water passage hole 31 and the second water passage hole 32 at the same time. An inner sealing ring 62 and an outer sealing ring 61 are also installed between the upper surface of the movable valve plate 30 and the lower surface of the control member 20. The inner sealing ring 62 and the outer sealing ring 61 enclose an annular area. 31 and the second water passage hole 32 are between the annular areas.

In the present invention, the mixing cavity can be formed in various ways. One is that the cavity of the mixing cavity can be opened on the control member 20 alone; together to form a mixing chamber. At the same time, the shape of the mixing chamber can be annular or arc shape, as long as the mixing chamber can communicate with the first water passage hole 31 and the second water passage hole 32, the shape of the mixing chamber can be various. Another preferred solution in this embodiment is shown in FIG. 6 , the control member 20 is provided with the installation grooves 21 and 22 of the inner sealing ring 62 and the outer sealing ring 61, and the annular mixing groove 61. The annular mixing groove 61 on the control member 20 and the upper surface of the movable valve plate 30 are formed. The control member 20 is located above the movable valve plate 30, and the control member 20 can drive the movable valve plate 30 to rotate synchronously when the control member 20 rotates.

In the present invention, the first water passage hole 31 is used to connect the water in the first through hole 41 and the second through hole 42 with the mixing chamber, so the first water passage hole 31 may be one or may be The shape is not limited to a through hole, and it can also be an arc-shaped through slot or the like.

When the valve core rotates from the closed state to the open state, the movable valve plate 30 first rotates a small angle, and then the movable valve plate 30 enters the first angle range. At this time, the first water hole 31 is only connected to the first through hole. 41 is communicated with the first water inlet 131 through the first through hole 41, while the second water passage 32 is communicated with the water outlet 133 through the water passage 43, and the water entering from the first water inlet 131 can flow out from the water outlet 133. . In use, the first water inlet 131 is connected with the cold water pipeline, so that when the valve core rotates within the first angle range, the valve core realizes full cold water outflow.

When the movable valve plate 30 continues to rotate in the opening direction, the movable valve plate 30 enters the second angle range, at this time the first water passage hole 31 communicates with the first through hole 41 and the second through hole 42 at the same time, and passes through the first through hole 41 and the second through hole 42. The hole 41 and the second through hole 42 communicate with the first water inlet 131 and the second water inlet 132 at the same time. Meanwhile, the second water passage 32 communicates with the water outlet 133 through the water passage 43 , and the water in the first water inlet 131 and the second water inlet 132 enters the valve core and flows out from the water outlet 133 . The second water inlet 132 is connected to the hot water pipeline, and the valve core enters the temperature regulation state at this time. By controlling the overlap of the first water hole 31 with the first through hole 41 and the second through hole 42, the outlet water temperature can be controlled .

When the movable valve plate 30 continues to rotate in the opening direction, the movable valve plate 30 enters the third angle range. At this time, the first water passage hole 31 only communicates with the second through hole 42 , and communicates with the second through hole 42 through the second through hole 42 . The nozzle 132 communicates. At the same time, the second water passage 32 communicates with the water outlet 133 through the water passage 43 , and the water in the second water inlet 132 enters the large water outlet and flows out from the water outlet 133 . At this time, the valve core is in the state of full hot water outlet, and the outlet flow of hot water can be controlled by controlling the overlapping amount of the first water passage hole 31 and the second through hole 42 .

The middle of the valve core is provided with a through channel A that runs through the upper and lower ends of the valve core, and the pulling hose can pass through the through channel A from the lower end of the valve core to the upper end of the valve core. The through passage A is located in the center of the valve core, and when the movable valve plate 30 rotates, the cross section of the valve core does not change. In order to form the through channel A, a first through hole 23 is provided in the center of the control member 20 , a second through hole 34 is provided in the center of the movable valve plate 30 , a third through hole 45 is provided in the center of the fixed valve plate 40 , and the center of the main body 10 is provided with The fourth through-hole 135 , the first through-hole 23 , the second through-hole 34 , the third through-hole 45 and the fourth through-hole 135 overlap and communicate with each other in the axial direction to form a through-channel A.

The upper end of the control member 20 is provided with an operation part 21 , and the operation part 21 extends out of the main body 10 from the upper part of the main body 10 and is used for connecting with other components to drive the control part 20 to rotate. The lower end of the control member 20 is located inside the main body 10 , the lower end of the control member 20 is provided with a limiting portion 22 , the periphery of the movable valve piece 30 is provided with a retaining portion 33 that cooperates with the limiting portion 22 , and the gap between the control member 20 and the movable valve piece 30 is Through the circumferential limit cooperation of the limiting portion 22 and the locking portion 33 , the movable valve plate 30 can rotate synchronously with the control member 20 .

The main body 10 includes a casing 12 and a base 13 , which can be fixedly connected with the base 13 to form the accommodating cavity 11 . The shell 12 is provided with an elastic buckle 121 , and the base 13 is provided with a protrusion 134 which is engaged with the elastic buckle 121 .

The lower end of the housing 12 is provided with a positioning groove 122 , and a positioning block 44 is correspondingly provided on the side of the fixed valve plate 40 . , to achieve circumferential limit.

The control member 20 is provided with a spring pin 50, and the inner wall of the housing 12 is provided with a screw gear groove. The mutual cooperation between the positioning groove 122 and the spring pin 50 can prompt the position of the control member 20 and facilitate the use of the valve core.

The present invention also discloses a pull-out faucet. The faucet includes a pull-out pipe, a water outlet and a valve core of the present invention disposed therein. After the pull-out pipe passes through the through passage (A), the One end is connected to the water outlet, and the other end is connected to the water outlet (133) of the valve core.

The above descriptions are only exemplary embodiments of the present invention, and are not intended to limit the protection scope of the present invention, which is determined by the appended claims.

Claims (10)

1. A valve core, comprising a main body (10) provided with a through channel (A), the main body (10) being provided with a accommodating cavity, a first water inlet (131), a second water inlet (132) and an outlet a water port (133), a control member (20), a movable valve plate (30) and a fixed valve plate (40) are arranged in the accommodating cavity; The movable valve plate (30) rotates relative to the fixed valve plate (40) under the control of the control member (20), and is provided with a first water passage hole (31) and a second water passage hole (32); The fixed valve plate (40) is provided with a first through hole (41) and a second through hole (42) corresponding to the first water inlet (131) and the second water inlet (132). In that, the valve core further comprises a mixing chamber and a water passage (43), wherein: Part or all of the mixing chamber is provided on the control member (20), and the liquids in the first through hole (41) and the second through hole (42) are mixed in the mixing chamber and flow through the second water passage hole(32); The water passage (43) is provided between the movable valve plate (30) and the fixed valve plate (40) to communicate with the second water passage hole (32) and the water outlet hole (133). 2 . The valve core according to claim 1 , wherein the through passage (A) passes through the main body ( 10 ), the control member ( 20 ), the moving valve plate ( 30 ) and the fixed valve plate ( 2 . 40), the drawing pipe can pass through the through channel (A) and then communicate with the water outlet (133). 3. The valve core according to claim 2, wherein the mixing chamber is provided on the control member (20) to communicate with the first water passage hole (31) and the second water passage hole (32) ). 4. A valve core according to claim 2, characterized in that, the mixing chamber is composed of the space formed by the control member (20) and the movable valve plate (30) to communicate with the first water passage hole ( 31) and the second water passage hole (32). 5 . The valve core according to claim 4 , wherein the mixing chamber is formed by an annular mixing groove provided on the control member ( 20 ) and the upper surface of the movable valve plate ( 30 ). 6 . 6. The valve core according to any one of claims 1 to 5, wherein the liquid in the first through hole (41) and the second through hole (42) passes through the first water passage hole (31) and then enter the mixing chamber. 7 . The valve core according to claim 6 , wherein an inner sealing ring ( 62 ) and an outer sealing ring ( 61 ) are arranged between the control member ( 20 ) and the movable valve plate ( 30 ). 8 . ), the mixing chamber is provided between the inner sealing ring (62) and the outer sealing ring (61). 8. The valve core according to claim 1, wherein the main body (10) comprises a casing (12) and a base (13), the casing (12) and the base (13) The accommodating cavity is formed by the fixed connection, and the first water inlet (131), the second water inlet (132) and the water outlet (133) are all arranged on the base (13). 9. The valve core according to any one of claims 7 or 8, characterized in that, the housing (12) is provided with a positioning groove (122), and the fixed valve plate (40) is correspondingly provided with a positioning groove (122). A block (44) is matched with the positioning block (44) through the positioning groove (122) so that the fixed valve plate (40) is circumferentially limited relative to the housing (12). 10. A pull-out faucet, comprising a pull-out pipe and a water outlet, characterized in that it further comprises the valve core according to any one of claims 1 to 9, the pull-out pipe passing through the through passage ( After A), one end is connected to the water outlet, and the other end is connected to the water outlet (133) of the valve core.
