Abstract

The invention relates to a compression-type double urination-controlling male wearable shorts based on liquid circulation, comprising shorts and a urethral control device; the shorts are provided with a connecting part, and the connecting part is used to fix the penis upward; the urethral control device The device includes an elastic control end and an elastic execution end, the elastic execution end is provided with a cavity, and the cavity is used to sleeve a penis, the elastic control end is connected with the elastic execution end, and the elastic control end passes through a liquid The size of the cavity of the elastic execution end is cyclically controlled, so that the elastic execution end can realize the closure of the penis urethra. High flexibility.

Description

A compression-type dual continence male wearable shorts based on fluid circulation

technical field

The invention relates to the technical field of urine leakage prevention, in particular, to a compression-type double urine-controlling male wearable shorts based on liquid circulation.

Background technique

In medicine, urinary dysfunction and bladder protection dysfunction often lead to leakage of urine, especially for the elderly, who have poor self-care ability and are prone to odor, and the existing external penis clips, etc. Compression is performed to achieve closure of the urethra, but is only suitable for short-term treatment, and prolonged use can cause pain, swelling, and breakage of the skin of the penis.

Chinese patent document: CN210992091U discloses a portable urinary drainage device for male indwelling urinary catheter, including a urine catcher for receiving the leaked urine, and a urine storage device for storing the leaked urine in the urine catcher and tying it to the legs Described urine catcher comprises condom, the outer casing that is used for putting on urethral tube and sealing and the gap between urethral tube, is used to guide the leaking urine collecting tube of leaking urine flow direction, and described outer casing and leaking urine collecting tube are arranged Below the condom, the condom, the outer sleeve, and the leakage urine collection tube are connected to form a three-way structure; the lower end of the urine leakage collection tube is communicated with the inner cavity of the urine storage piece through a drainage tube, and the upper part of the drainage tube is provided with There are drainage branches. The device can be fixed on the body and is easy to carry, but its principle is to collect urine leakage and prevent it from leaking to places other than the urine storage device. convenient.

Chinese patent document: CN213851259U discloses a male urethral built-in anti-leakage device, including an intubation tube, a fixing ring, a pull ring, a guide wire, a plug, and a spring; the intubation tube is a silicone hose, and the end of the intubation tube is connected to There is a fixing ring, two convex rings are arranged on the inner side of the cannula, and a plug and a spring are arranged in the middle of the two convex rings, and the plug is pressed against the convex ring by the spring to realize the blocking of urine , the bottom of the plug is connected with a guide wire, the guide wire is connected to the pull ring through the side of the fixing ring, and the pull ring pulls the plug through the guide wire to realize the blocking and circulation of the cannula, and the front end of the cannula is set There are small holes through which the urine flows. The technical solution recorded in this document realizes the controllability of catheterization by establishing an "artificial urethra" in the urethra; first of all, it is troublesome to operate, easily causing psychological pressure to the patient, and it is consistent with the placement of the catheter, which is not effective. Prevent urine from flowing out between the urethra and the outer wall of the cannula.

Chinese patent document: CN211561241U discloses a leak-proof urinary catheterization device, including a urinary catheter, the front end of the urinary catheter is slidably connected with a balloon fixing sleeve, and most of the leakage-proof urinary catheterization devices in the prior art are The balloon is fixedly connected to the front end of the catheter, and after the catheter is inserted, the balloon is inflated to make the outer wall of the balloon fit with the urethral opening, reducing the gap between the urethral tube and the inner wall of the urethral opening, and then wrapping diapers on the outside of the balloon , suck out the urine, but the part where the air bag contacts the urethra is easy to breed bacteria and cause infection. When using, you can first select the catheter according to your needs, then insert the catheter into the patient's urethra, and put the diaper cover On the glans of the patient, the airbag fixing sleeve is then sleeved on the outside of the diaper, and the airbag is inflated with an inflator, so that the airbag tightly wraps the diaper and the glans of the patient, and reduces the gap between the catheter and the urethra. To prevent leakage of urine; but it uses a balloon to fix the sleeve on the glans to narrow the gap between the urethral tube and the inner wall of the urethral orifice, which is consistent with the principle of preventing leakage of urine by tightening the inner balloon of the catheter. It needs to cooperate with a urinary catheter, and is not suitable for patients who do not need a urinary catheter, and is not convenient for ordinary patients to urinate daily.

Chinese patent document: CN101437475A discloses a penis compression device for preventing urine leakage and a method thereof. The penile compression device includes a cuff member and an absorbent member. The penis compression device compresses the penis and achieves a closure effect on the urethra. As a result of this compression, urine leakage in people suffering from stress incontinence can be controlled. Urethral pressure can be concentrated on the urethra by a penile compression device, wherein the device can be opened between a smaller (compressed) configuration and a larger (non-compressed) configuration for penile insertion. The absorbent member can capture and contain any inadvertent urine that may leak through the cuff member. The technical solution described in this patent document provides a component that compresses the penis to close the urethra, but it operates independently and is inconvenient to operate, and it still needs to be improved in the treatment process of the leakage caused by incomplete closure.

To sum up, there is an urgent need for male wearable shorts that can prevent urine leakage without affecting normal urination, are convenient to operate, comfortable to use, and have high flexibility.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a pressure-type double continence male wearable shorts based on liquid circulation, which can prevent leakage of urine without affecting normal urination, is convenient to operate, comfortable to use, and has high flexibility.

For realizing the above-mentioned purpose, the technical scheme that the present invention takes is:

A compression type double urination-controlling male wearable shorts based on liquid circulation, characterized in that it includes shorts and a urethral control device; the urethral control device is arranged on the shorts, and includes an elastic control end and a plurality of elastic execution ends, and the The elastic execution end is provided with a cavity, the cavity is used to sleeve the penis, the elastic control end is connected with each elastic execution end, and the elastic control end controls the cavity of the elastic execution end by controlling the elastic execution end. The size of the urethra controls the opening and closing of the urethra.

As a preferred technical solution, the shorts are provided with a connecting portion, and the connecting portion is used to fix the penis upward.

As a preferred technical solution, the connecting portion is provided on the inner side of the shorts.

As a preferred technical solution, the connecting portion is provided on the outer side of the shorts, and the shorts are provided with a through hole, wherein the connecting portion is provided above the through hole, and the through hole is used for For the penis to pierce out.

As a preferred technical solution, the inside of the elastic execution end is a cavity structure, and the elastic control end includes a control balloon, a connecting tube, and a valve; the control balloon is connected to the elastic execution through the connecting tube. At the end, the valve is arranged on the control balloon to control the closing of the pipeline.

As a preferred technical solution, flowing liquid or gas circulates in the control balloon, the connecting tube, and the elastic execution end.

As a preferred technical solution, a liquid storage balloon is also included, and the liquid storage balloon is connected to the control balloon through a connecting tube.

As a preferred technical solution, the elastic execution end is provided with a fitting portion adapted to the connecting portion, and the fitting portion is detachably connected to the connecting portion.

As a preferred technical solution, the connecting portion is a snap ring, and the snap ring is used for engaging the penis.

The advantages of the present invention are:

1. A male wearable shorts for compressive dual urination based on liquid circulation, comprising shorts and a urethral control device; the urethral control device comprises an elastic control end and an elastic execution end, and the elastic execution end is provided with a penis for sleeves. The elastic control end directly controls the closure of the urethra by controlling the size of the cavity; there are several elastic execution ends, which can not only ensure the reliability of urethral control, but also improve the operation efficiency of the elastic control end.

2. The shorts are provided with a through hole and a connecting part; the through hole is used for the penetration of the penis, and the connecting part is used for fixing the penis, wherein the connecting part is arranged above the through hole; The connecting part can fix the penis upward; the connecting part cooperates with the urethra control device to keep the penis upward while controlling the urethra, thereby effectively preventing urine leakage.

3. The inside of the elastic execution end is a cavity structure, and the elastic control end includes a control balloon, a connecting pipe, and a valve; the control balloon is connected to the elastic execution end through the connecting pipe, and the valve is set. On the connecting tube, it is used to control the closing of the pipeline; so that the user can flexibly control the tightness of the tightness and tightness of the actuator end by controlling the balloon. One is that the tightness can be adjusted according to actual needs to ensure the effectiveness of preventing leakage of urine, and the other is that it can One-handed operation, and the elastic control end can be located on the outer layer of the clothing, which is convenient to control at any time and flexible to use.

4. Flowing liquid or gas circulates in the control balloon, connecting tube and elastic execution end, which has high reliability and can provide high comfort.

5. The elastic execution end is provided with a fitting part adapted to the connection part, and the fitting part is detachably connected to the connection part; The fixing operation is more convenient; and the connecting portion can also be a snap ring, which is used to directly engage the penis, and can also realize the upward fixation of the penis.

6. The male wearable shorts based on compression type dual urination based on liquid circulation further include a fluid storage balloon, the fluid storage balloon is connected with the control balloon through a connecting tube, and the fluid storage balloon can control the balloon The bladder adjusts the fluid reserve to control the control force of the slack actuator.

Description of drawings

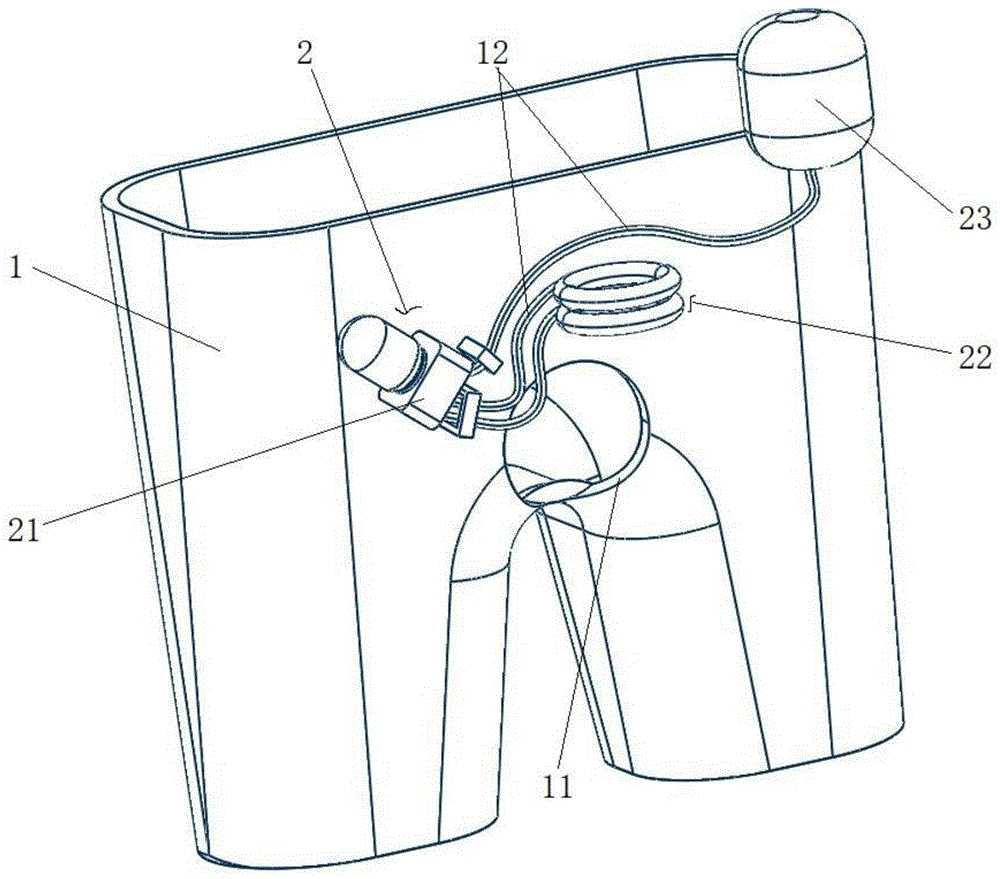

FIG. 1 is a schematic diagram of the male wearable shorts of a compression type dual continence based on liquid circulation according to the present invention.

FIG. 2 is a partial schematic diagram of a compression type double continence male wearable shorts based on liquid circulation according to the present invention.

FIG. 3 is a schematic diagram of another compression type double continence male wearable shorts based on liquid circulation according to the present invention.

FIG. 4 is a schematic diagram of another male wearable shorts of the present invention based on the compression type double continence based on liquid circulation.

Detailed ways

The present invention will be further described below in conjunction with specific embodiments. It should be understood that these examples are only used to illustrate the present invention and not to limit the scope of the present invention. In addition, it should be understood that those skilled in the art can make various changes or modifications to the present invention after reading the contents described in the present invention, and these equivalent forms also fall within the scope defined by the appended claims of the present application.

The reference numerals and components involved in the drawings are as follows:

1. Shorts 2. Urethral Controls 11. Through Holes

12. Connection part 21. Elastic control end 22. Elastic execution end

211. Control balloon 212. Connecting tube 213. Valve

221. Cavity 222. Fitting part 23. Reservoir balloon

Example 1

Please refer to accompanying drawing 1 and accompanying drawing 2; accompanying drawing 1 is a schematic diagram of a male wearable shorts of the present invention based on compression type double continence based on liquid circulation; Partial schematic diagram of men's wearable shorts. A compression type dual urination male wearable shorts based on liquid circulation, comprising shorts 1 and a urethral control device 2; the shorts 1 can be boxer shorts 1, triangle shorts 1, etc. The carrier, the shorts 1 are provided with a through hole 11, the through hole 11 can be used for the penis and the scrotum to pass through, so that the patient is not affected by the shorts 1 when urinating, and the outer side of the shorts 1 is provided with a urethral control device 2.

The urethral control device 2 includes an elastic control end 21 and an elastic execution end 22. The elastic execution end 22 is provided with a cavity 221, which can be sheathed on the outer surface of the penis. The elastic control end 21 is connected to the elastic execution end. 22 is connected to control the size of the cavity 221, that is, when the cavity 221 shrinks, squeeze the penis inside it, that is, tighten the urethra, and when the cavity 221 enlarges, open the urethra to return the state of the urethra to before tightening ; The elastic execution end 22 is an annular cavity, at least the inner side of the elastic execution end 22 is a flexible material, which can expand and contract, and its outer side can be either a hard material or a flexible material;

The elastic control end 21 includes a control balloon 211, a connecting pipe 212, and a valve 213. The control balloon 211 is connected to the elastic execution end 22 through the connecting pipe 212, and the valve 213 is used to control the opening of the pipeline. In other words, when the valve 213 is opened, the control balloon 211 can be operated to control the degree of expansion of the elastic execution end 22. Preferably, the control balloon 211, the connecting pipe 212, and the elastic execution end 22 have flow flowing in them. Liquids such as pure water, physiological saline, etc., when the control balloon 211 is squeezed, the liquid in the ball flows into the cavity of the elastic execution end 22 to expand the volume and increase the wall thickness, finally assisting the closure of the penis urethra.

Preferably, there are several elastic actuator ends 22. In this embodiment, there are two groups of the elastic actuator ends 22, which are respectively connected with the control balloon 211 through the connecting pipe 212, and the opening and closing of the interface is controlled by the valve 213. Preferably, in some other embodiments, the compression-type male wearable shorts for continence based on liquid circulation also include a fluid storage balloon 23, and the fluid storage balloon 23 is connected to the control ball through a connecting tube 212. The bladders 211 are connected, and a valve 213 is also provided to control the opening and closing of its pipeline.

It should be noted that: in this embodiment, the valve is a one-way valve that can change the flow direction and is in the prior art, that is, in a normal state, the liquid in the control balloon 211 directly passes through under the action of squeezing The valve 213 enters the connecting pipe 212; and the one-way valve passage can be changed by manipulating the valve 213, so that the liquid in the elastic actuator end 22 flows back into the control balloon through the connecting pipe 212; The shorts 1 are described above, and the penis is passed through the through hole 11, and the elastic execution end 22 is sequentially sleeved on the neck of the penis. In the initial state, the elastic execution end 22 is in a relaxed state, and the control balloon 211 There is liquid stored in it. Squeeze the control balloon 211, so that the liquid in the control balloon 211 enters the elastic execution end 22 through the connecting pipe 212, and the liquid will not flow back under the action of the one-way valve, so that the elastic execution end 22 is kept. Filling, thereby changing the diameter of the cavity 221, so that the penis in it is compressed to close the urethra; when the urethra needs to be opened, the valve 213 is controlled to change the one-way valve passage, the liquid at the elastic execution end is returned, and the urethra is opened; It should be noted that the degree of tightness can be grasped by controlling the volume of the liquid. For example, by slowly squeezing the control balloon 211, the degree of filling of the tightness execution end 22 can be grasped, so as to adjust a suitable tightness. In this embodiment, rapid filling can also be achieved by cooperating with the liquid storage balloon 23 to save time. For example, the usage amount at an appropriate degree of tightness can be adjusted in advance, and the excess liquid in the control balloon 211 can be passed through with the liquid storage balloon 211. The valve 213 connected to the balloon 23 is discharged into the liquid storage balloon 23, so that the liquid content in the control balloon 211 is just the content to maintain the tightness of the elastic execution end 22, that is, during use, it can be directly and quickly Squeeze the control balloon 211 to achieve rapid filling, and the liquid in the same liquid storage balloon 23 can also be adjusted into the control balloon.

It should be noted that the urethral control device 2 of the male wearable shorts based on compression type dual continence based on liquid circulation includes an elastic control end 21 and an elastic execution end 22, and the elastic control end 2 is realized by the water circulation control in the balloon. The diameter of the elastic execution end 22 is controlled to control the closure of the urethra. It is easy to control, has a high affinity with the penis, and is not easy to cause damage. Under certain premise, reduce the amount of liquid used and speed up the operation efficiency.

Example 2

Please refer to FIG. 3 . FIG. 3 is a schematic diagram of another compression-type double continence male wearable shorts based on liquid circulation of the present invention. This embodiment is basically the same as the first embodiment, the difference lies in that the outer wall of the elastic execution end 22 is provided with a fitting part 222 adapted to the connecting part 12 , and the fitting part 222 is compatible with the The connecting portion 12 is detachably connected, and the connecting portion 12 can be a hook surface Velcro. Correspondingly, the fitting portion 222 is a hook surface Velcro; the fitting portion 222 and the connecting portion 12 can also be buttons. etc. connection. And the valve 213 in the embodiment 1 adopts the design of a one-way valve, which greatly improves the convenience of operation, but the valve 213 can also be an ordinary control valve, which is used to directly control the opening and closing of the pipeline. As shown in the figure of this embodiment.

The usage mode of the present invention: the user wears the shorts 1, passes the penis through the through hole 11, puts the elastic execution end 22 on the neck of the penis, and connects the elastic execution end 22 with the fitting portion 222 to the neck of the penis. The connecting portion 12 is connected, and its fitting portion 222 can be fitted on any part of the connecting portion 12, and the fitting position can be adjusted flexibly, so that the penis is fixed upward on the outer wall of the shorts 1, and the elastic control end 21 can be suspended on the outside of the clothing, which is convenient for manipulation , when it is necessary to further close the urethra, open the valve 213, squeeze the control balloon 211, and make the elastic execution end 22 more inflated to further close the urethra; when there is no need to prevent urine leakage, such as when urinating, the fit can be separated Part 222 and connecting part 12 are connected, and the valve 213 is kept open, the elastic actuator end 22 is in a relaxed state, so that it can perform normal urination. After urination, it is re-fixed and squeezed.

It should be noted that: the compression-type dual urination-based male wearable shorts based on liquid circulation in the present invention include shorts 1 and a urethral control device 2. The urethral control device 2 uses the shorts 1 as a carrier and is attached to the shorts 1 through the connecting portion 12. The connection of the parts 222 can realize the upward fixation of the penis, which can avoid the situation that the urine leakage cannot be completely prevented in the case of the compression type urine leakage prevention. Upward, it can effectively avoid occasional dripping, so there is no need to wrap extra cloth on the head of the penis to absorb dripping urine, realize double urination, and obviously, greatly increase the flexibility of urination operation, The complexity of operation is significantly reduced; the urethral control device 2 includes an elastic control end 21 and an elastic execution end 22, and the elastic control end 21 is used to control the elastic execution end 22, so that the elastic control end 21 can be located outside the clothes In this way, the tightness can be adjusted in the state of wearing clothes, without exposing the penis for adjustment; the elastic execution end 22 is a circular cavity, and at least the inner side of the elastic execution end 22 is a flexible material, which can be expanded and contracted. The outer side can be either a hard material or a flexible material, which can ensure the comfort of the pressing surface; the elastic control end 21 is adapted to the elastic execution end 22, including the control balloon 211 and the connecting tube 212 , valve 213, the control balloon 211 is connected to the elastic execution end 22 through the connecting pipe 212, the valve 213 is provided on the connecting pipe 212 for the closing of the control pipeline, the operation is simple, the use is convenient, The shorts 1 can also be provided with a buckle for fixing the connecting pipe 212 . The male wearable shorts of the compression type dual continence based on liquid circulation of the present invention can prevent leakage of urine without affecting normal urination, and have convenient operation, comfortable use and high flexibility.

Example 3

Please refer to FIG. 4 . FIG. 4 is a schematic diagram of another male wearable shorts of the present invention based on the compression type double continence based on liquid circulation. This embodiment is basically the same as Embodiment 1, the difference lies in that the connecting portion is a snap ring, and when the snap ring fits the elastic actuator end, the elastic actuator end can be snapped as a whole. In the snap ring, the upward fixation of the penis is realized. Preferably, the snap ring can also directly engage the penis, which can also realize the upward fixation of the penis.

The above are only the preferred embodiments of the present invention. It should be pointed out that for those skilled in the art, without departing from the principles of the present invention, several improvements and supplements can be made, and these improvements and supplements should also be considered as It is the protection scope of the present invention.

Claims (8)

1. A pair of male wearable shorts of urine of oppression formula accuse based on liquid circulation, characterized by, including shorts, urethra controlling means; the urethra control device is arranged on the shorts and comprises a tightness control end and a plurality of tightness execution ends, the tightness execution ends are provided with cavities, the cavities are used for sleeving the penis, the tightness control ends are connected with the tightness execution ends, and the tightness control ends control opening and closing of the urethra by controlling the sizes of the cavities of the tightness execution ends.

2. The male wearable panty of claim 1, wherein the panty is provided with a connection portion for securing a penis upward.

3. The male wearable pant of claim 2, wherein the connection portion is disposed on an outer side of the pant, and the pant has a through hole, wherein the connection portion is disposed above the through hole, and the through hole is used for allowing penis to pass through.

4. The male wearable shorts with compression type dual urine control based on liquid circulation of claim 1, wherein the elastic actuation end has a cavity structure inside, and the elastic actuation end comprises a control balloon, a connecting tube and a valve; the control sacculus passes through the connecting pipe is connected elasticity execution end, the valve is located be used for controlling the closure of pipeline on the control sacculus.

5. The male wearable pant of claim 4, wherein the control balloon, the connecting tube, and the elastic actuation end are filled with a flowing liquid or gas.

6. The hydronic-based compression-type dual-incontinence male wearable pant of claim 4, further comprising a reservoir balloon connected to the control balloon by a connecting tube.

7. The press type dual urine control male wearable short pants based on liquid circulation as claimed in claim 2, wherein the elastic actuation end is provided with a fitting part matched with the connecting part, and the fitting part is detachably connected with the connecting part.

8. The male wearable pant of claim 2, wherein the connection portion is a snap ring for engaging the penis.
