Abstract
The utility model discloses a welding device for producing a dish washing basket, which comprises a workbench, wherein a control panel is arranged on the side wall of the workbench, a groove is formed in the top of the workbench, sliding grooves are formed in the two sides of the groove in parallel, a pull handle is loosened, a push plate is pushed to move under the action of the resilience force of a spring, a clamping plate is abutted against the side wall of the dish washing basket, the clamping plate is clamped and fastened, the welding device is convenient and quick to use, is suitable for dish washing baskets with different specifications and sizes, has wide universality and is worthy of popularization, a sliding block drives a sliding plate to slide on the groove, the sliding grooves play a limiting role simultaneously, the linear motion of the sliding plate is ensured, the welding is more accurate, the linear distance between the dish washing basket and a welding gun can be adjusted, the rotary motor drives an adjusting box to rotate through a rotating shaft by starting a rotary motor, the dish washing basket can be driven to rotate, the cylinder drives a lifting plate to linearly lift through a telescopic rod, and the lifting plate drives the welding gun to linearly lift, the flexibility is high, and welding efficiency is high, and degree of automation is high.
Description
Technical Field
The utility model relates to the technical field of welding equipment, in particular to a welding device for producing a dish washing basket.
Background
The dish washer is a device for automatically cleaning tableware such as dishes, chopsticks, plates, dishes, knives and forks, the full-automatic dish washer on the market can be divided into two types of household and commercial use, the household full-automatic dish washer is only suitable for families and mainly comprises a cabinet type, a desk type and a sink integrated type, a dish washing basket is an important component of the dish washing basket, the dish washing basket rack on the market at present is generally formed by mutually welding a cross rod and a longitudinal rod and is arranged in a grid shape, and a welding technology, also called as a connection engineering, is an important material processing technology, the material of a workpiece to be welded is heated or pressurized or used together with the cross rod and the longitudinal rod, and the process engineering that the material of the workpiece achieves the interatomic combination to form permanent connection is called welding by using or not using a filling material;
in view of the above, the utility model patent with the publication number CN214769822U discloses an automatic welding device for assembling and welding parts of a dish-washing basket, which comprises a frame, wherein a clamping jig for clamping the dish-washing basket frame is arranged on the frame, a welding through hole is arranged on the clamping jig and corresponding to the connecting position of a cross rod and a longitudinal rod of the dish-washing basket frame, a driving device capable of driving the clamping jig to move to a welding station is further arranged on the frame, and a welding device capable of moving relative to the clamping jig, entering the welding through hole and welding the cross rod and the longitudinal rod is further arranged on the frame; during welding, the dish washing basket frame to be welded is placed on the clamping jig, then the driving device drives the clamping jig to move towards the welding station, then the welding device performs welding work on the dish washing basket frame on the clamping jig of the welding station, and after welding is completed, the driving device drives the clamping jig and the welded dish washing basket frame to move towards one side away from the welding station and then to be detached;
the manual welding operation is adopted for the dish washing basket frame in the market at present, the defects that the welding intensity is insufficient, the manual labor intensity is high, the labor cost is high, the appearance is not enough, the welding efficiency is low and the like exist, the automation degree is very low, and therefore the welding device for producing the dish washing basket is provided for solving the problems.
Disclosure of Invention
The utility model aims to provide a welding device for producing a dish washing basket, which aims to solve the problems in the background technology.
In order to achieve the purpose, the utility model provides the following technical scheme: a welding set is used in production of dish washing basket, includes embodiment 1:
referring to fig. 1-6, the present invention provides a technical solution: a welding device for producing a dish washing basket comprises a workbench, wherein a control panel is arranged on the side wall of the workbench, a groove is formed in the top of the workbench, and sliding grooves are formed in parallel in two sides of the groove;
an adjusting motor is arranged inside the groove, the output end of the adjusting motor is fixedly connected with a first screw rod, the side end of the first screw rod is movably connected to the inner wall of the groove through a bearing, a sliding block is movably connected to the first screw rod, and a sliding plate is fixedly connected to the top of the sliding block;
slide bottom both sides fixedly connected with convex part, convex part bottom activity joint are in the spout, slide top fixedly connected with backup pad, and the backup pad sets up for L shape structure, and backup pad top fixedly connected with supporting box has placed the rotating electrical machines inside the supporting box, and rotating electrical machines output fixedly connected with pivot, pivot side activity run through the supporting box lateral wall and extend outward.
Preferably, the rotating shaft side wall is provided with an adjusting component, the adjusting component is internally provided with an adjusting box, one side wall of the adjusting box is fixedly connected to the rotating shaft, and the middle part of the other side wall of the adjusting box is provided with a movable groove.
Preferably, adjusting box inner wall fixedly connected with baffle, baffle one side are provided with positive and negative motor, positive and negative motor output end fixedly connected with second screw rod, and the second screw rod side passes through bearing swing joint on the adjusting box inner wall, and the activity of second screw rod middle part is run through there is the riser, and riser bottom fixed connection is on the bottom surface in the adjusting box.
Preferably, the direction of rotation of the threads on the second screw rod is opposite to the direction of rotation of the threads on the second screw rod relative to the vertical plate, the second screw rod is movably connected with a movable block, the movable block is provided with two groups, the movable block is symmetrically arranged on the second screw rod relative to the vertical plate, a movable rod is highly connected onto the movable block, the side end of the movable rod extends to the outer side of the adjusting box through the activity of a movable groove, and the outer end of the movable rod is fixedly connected with a clamping component.
Preferably, the clamping assembly contains the regulating block in, the regulating block is the setting of spill structure, and the regulating block lateral wall is embedded to have the sleeve, and the sleeve inner wall is provided with the spacing groove, and sliding connection has the push pedal in the spacing groove, fixedly connected with push rod in the push pedal side.
Preferably, the adjusting block is run through in the activity of push rod side end and outwards extends, and push rod side end fixed connection is on the splint lateral wall, splint lateral wall fixedly connected with slipmat.
Preferably, fixedly connected with pull rod in the push pedal opposite side, the regulating block outwards extends is run through in the activity of pull rod side, and pull rod side fixed connection has cup jointed the spring on pulling the handle, and spring one end fixed connection is on the push pedal, on spring other end fixed connection sleeve inner wall, and the centre gripping subassembly is provided with two sets ofly.
Preferably, the fixed case of workstation top side fixedly connected with, the guide way has been seted up towards recess one side to the fixed case, fixed roof portion fixedly connected with roof, fixedly connected with cylinder in the roof end.
Preferably, cylinder bottom output end fixedly connected with telescopic link, telescopic link bottom fixedly connected with lifter plate, the activity of lifter plate side is extended to the guide way in, and the inboard fixedly connected with stopper of lifter plate, and the stopper diameter is greater than guide way diameter distance, lifter plate lateral wall fixedly connected with welding rifle.
Compared with the prior art, the utility model has the beneficial effects that:
according to the utility model, the distance between two groups of clamping components is adjusted through the specification and the size of the dish washing basket, the positive and negative motors are started, the positive and negative motors drive the second screw to rotate, the second screw drives two groups of movable blocks to rotate, the movable blocks are fixedly connected with movable rods, the movable rods are slidably connected in the movable grooves, as the positive and negative threads are arranged on the second screw, the movable rods are close to or far away from each other on the second screw, after the distance between the movable rods is adjusted to a proper position, the positive and negative motors are closed, the side walls of the dish washing basket are clamped and fixed through the two groups of clamping components, the subsequent welding operation is convenient, a worker pulls the pull handle, the pull handle drives the push plate to slide in the limiting groove through the pull rod, the push plate drives the push rod to move towards the sleeve, at the moment, the inner wall of the adjusting block of the clamping plate box is close to place the side edges of the dish washing basket into the middle of the two groups of clamping plates, and the anti-slip mat provides higher friction force, the dish washing machine is convenient to follow-up fix, the pull handle is loosened, the push plate is pushed to move under the action of the resilience force of the spring, the clamping plate is abutted against the side wall of the dish washing basket, the dish washing basket is clamped and fastened, the dish washing machine is convenient and quick to use and suitable for dish washing baskets with different specifications and sizes, the universality is wide, the promotion is worthy, in the welding process, the adjusting motor is started, the adjusting motor drives the first screw rod to rotate, the first screw rod drives the sliding block to move on the first screw rod, the sliding block drives the sliding plate to slide on the groove, meanwhile, the sliding groove has a limiting effect, the linear motion of the sliding plate is ensured, the welding is more accurate, the linear distance between the dish washing basket and the welding gun can be adjusted, the dish washing basket can be driven to rotate by driving the adjusting box through the rotating shaft through the rotating motor, the air cylinder drives the lifting plate to linearly lift through the telescopic rod, the lifting plate drives the welding gun to linearly lift, and the flexibility is high, the welding efficiency is high, and degree of automation is high.
Drawings
FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the inner structure of the working table according to the present invention;

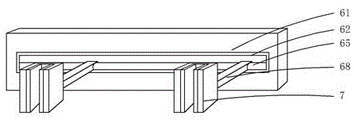

FIG. 3 is a schematic view of the overall structure of the adjusting assembly of the present invention;
FIG. 4 is a schematic view of the internal structure of the conditioning tank of the present invention;
FIG. 5 is a schematic view of the overall structure of the clamping block of the present invention;
FIG. 6 is a schematic view of the internal structure of the clamping block of the present invention.
In the figure: 1. a work table; 101. a control panel; 102. a groove; 103. a chute; 2. adjusting the motor; 201. a first screw; 202. a slider; 3. a slide plate; 301. a convex portion; 4. a support plate; 5. a rotating electric machine; 501. a support box; 502. a rotating shaft; 6. an adjustment assembly; 61. an adjusting box; 62. a movable groove; 63. a partition plate; 64. a positive and negative motor; 65. a second screw; 66. a movable block; 67. a vertical plate; 68. a movable rod; 7. a clamping assembly; 71. an adjusting block; 72. a splint; 73. a non-slip mat; 74. a sleeve; 75. a limiting groove; 76. pushing the plate; 77. a push rod; 78. a pull rod; 79. a spring; 710. pulling a handle; 8. a fixed box; 801. a guide groove; 802. a top plate; 9. a cylinder; 901. a telescopic rod; 902. a lifting plate; 903. a limiting block; 10. and (6) welding a gun.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be obtained by a person skilled in the art without making any creative effort based on the embodiments in the present invention, belong to the protection scope of the present invention.
Example 1:
referring to fig. 1-3, the present invention provides a technical solution: a welding device for producing a dish washing basket comprises a workbench 1, wherein a control panel 101 is arranged on the side wall of the workbench 1, a groove 102 is formed in the top of the workbench 1, and sliding grooves 103 are formed in parallel in two sides of the groove 102;
it should be noted that the adjusting motor 2 is arranged inside the groove 102, the output end of the adjusting motor 2 is fixedly connected with a first screw 201, the side end of the first screw 201 is movably connected to the inner wall of the groove 102 through a bearing, the first screw 201 is movably connected with a slide block 202, and the top of the slide block 202 is fixedly connected with a slide plate 3;
it should be noted that, 3 bottom both sides fixedly connected with convex part 301 of slide, convex part 301 bottom activity joint are in spout 103, 3 top fixedly connected with backup pad 4 of slide, and backup pad 4 sets up for L shape structure, and 4 top fixedly connected with support box 501 of backup pad, support box 501 inside have placed rotating electrical machines 5, and rotating electrical machines 5 output end fixedly connected with pivot 502, the activity of pivot 502 side runs through support box 501 lateral wall and outwards extends.
Example 2:
referring to fig. 4 to 6, a second embodiment of the present invention is based on the previous embodiment;
specifically, the side wall of the rotating shaft 502 is provided with an adjusting component 6, the adjusting component 6 contains an adjusting box 61, one side wall of the adjusting box 61 is fixedly connected to the rotating shaft 502, and the middle part of the other side wall of the adjusting box 61 is provided with a movable groove 62.
It should be noted that, adjusting box 61 inner wall fixedly connected with baffle 63, baffle 63 one side is provided with positive and negative motor 64, positive and negative motor 64 output end fixedly connected with second screw rod 65, and second screw rod 65 side passes through bearing swing joint on adjusting box 61 inner wall, and the activity of second screw rod 65 middle part is run through there is riser 67, riser 67 bottom fixed connection on the bottom surface in adjusting box 61.
It should be noted that the rotation directions of the threads on the second screw rod 65 are symmetrically and oppositely arranged relative to the vertical plate 67, the second screw rod 65 is movably connected with the movable blocks 66, the movable blocks 66 are arranged in two groups, the movable blocks 66 are symmetrically arranged on the second screw rod 65 relative to the vertical plate 67, the movable blocks 66 are highly connected with the movable rods 68, the side ends of the movable rods 68 movably extend to the outer side of the adjusting box 61 through the movable grooves 62, and the outer ends of the movable rods 68 are fixedly connected with the clamping assemblies 7.
In addition, the clamping assembly 7 contains an adjusting block 71, the adjusting block 71 is arranged in a concave structure, a sleeve 74 is embedded in the side wall of the adjusting block 71, a limiting groove 75 is formed in the inner wall of the sleeve 74, a push plate 76 is connected in the limiting groove 75 in a sliding mode, and a push rod 77 is fixedly connected in the side of the push plate 76.
Specifically, the side end of the push rod 77 movably penetrates through the adjusting block 71 to extend outwards, the side end of the push rod 77 is fixedly connected to the side wall of the clamping plate 72, and the side wall of the clamping plate 72 is fixedly connected with the anti-skid pad 73.
It should be noted that a pull rod 78 is fixedly connected in the other side of the push plate 76, the side end of the pull rod 78 movably penetrates through the adjusting block 71 and extends outwards, the side end of the pull rod 78 is fixedly connected to the pull handle 710, a spring 79 is sleeved on the pull rod 78, one end of the spring 79 is fixedly connected to the push plate 76, the other end of the spring 79 is fixedly connected to the inner wall of the sleeve 74, and the clamping assemblies 7 are provided in two sets.
It should be noted that the top side of the workbench 1 is fixedly connected with the fixing box 8, the fixing box 8 is provided with a guide groove 801 towards one side of the groove 102, the top of the fixing box 8 is fixedly connected with the top plate 802, and the bottom of the top plate 802 is fixedly connected with the cylinder 9.
In addition, 9 bottom output ends of cylinder fixedly connected with telescopic link 901, telescopic link 901 bottom fixedly connected with lifter plate 902, in the activity of lifter plate 902 side extended to guide way 801, and the inboard fixedly connected with stopper 903 of lifter plate 902, stopper 903 diameter were greater than guide way 801 diameter distance, lifter plate 902 lateral wall fixedly connected with welding rifle 10.
Example 3:
referring to fig. 1 to 6, a third embodiment of the present invention is shown, which is based on the above two embodiments;
when the utility model is used, according to the specification and size of a dish washing basket, the distance between two groups of clamping components 7 is adjusted, the positive and negative motor 64 is started, the positive and negative motor 64 drives the second screw 65 to rotate, the second screw 65 drives two groups of movable blocks 66 to rotate, the movable blocks 66 are fixedly connected with the movable rods 68, the movable rods 68 are slidably connected in the movable grooves 62, as the second screw 65 is in positive and negative thread arrangement, the movable rods 68 are close to or far away from each other on the second screw 65, after the distance between the movable rods 68 is adjusted to a proper position, the positive and negative motor 64 is closed, the side wall of the dish washing basket is clamped and fixed through the two groups of clamping components 7, the subsequent welding operation is convenient, a worker pulls the pull handle 710, the pull handle 710 drives the push plate 76 to slide in the limiting groove 75 through the pull rod 76, the push rod 77 is driven by the push plate 76 to move towards the sleeve 74, and the inner wall of the box adjusting block 71 of the clamp plate 72 is close, the side edge of the dish washing basket is placed between the two groups of clamping plates 72, the anti-slip pad 73 provides higher friction force to facilitate subsequent fixation, the pull handle 710 is loosened, the push plate 76 is pushed to move under the action of the resilience force of the spring 79, the clamping plates 72 are abutted against the side wall of the dish washing basket to be clamped and fastened, the dish washing basket is convenient and quick to use, wide in universality and worthy of popularization, in the welding process, the adjusting motor 2 is started, the adjusting motor 2 drives the first screw rod 201 to rotate, the first screw rod 201 drives the sliding block 202 to move on the first screw rod 201, the sliding block 202 drives the sliding plate 3 to slide on the groove 102, meanwhile, the sliding groove 103 plays a limiting role to ensure the linear motion of the sliding plate 3, the welding is more accurate, so that the linear distance between the dish washing basket and the welding gun 10 can be adjusted, and by starting the rotating motor 5, the rotating motor 5 drives the adjusting box 61 to rotate through the rotating shaft 502, can drive the dish washing basket and rotate, through cylinder 9, cylinder 9 drives lifter plate 902 straight line through telescopic link 901 and goes up and down, and lifter plate 902 drives welding rifle 10 straight line and goes up and down, and the flexibility is high, and welding efficiency is high, and degree of automation is high.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (9)
1. The utility model provides a welding set is used in basket production washes dishes, includes workstation (1), its characterized in that: a control panel (101) is arranged on the side wall of the workbench (1), a groove (102) is formed in the top of the workbench (1), and sliding grooves (103) are arranged on two sides of the groove (102) in parallel;
an adjusting motor (2) is arranged on the inner side of the groove (102), a first screw rod (201) is fixedly connected to the output end of the adjusting motor (2), the side end of the first screw rod (201) is movably connected to the inner wall of the groove (102) through a bearing, a sliding block (202) is movably connected to the first screw rod (201), and a sliding plate (3) is fixedly connected to the top of the sliding block (202);
slide (3) bottom both sides fixedly connected with convex part (301), convex part (301) bottom activity joint is in spout (103), slide (3) top fixedly connected with backup pad (4), backup pad (4) set up for L shape structure, backup pad (4) top fixedly connected with supporting box (501), rotating electrical machines (5) have been placed to supporting box (501) inside, rotating electrical machines (5) output end fixedly connected with pivot (502), pivot (502) side activity runs through supporting box (501) lateral wall and outwards extends.
2. The welding device for producing the dish washing basket as claimed in claim 1, wherein: pivot (502) lateral wall is provided with adjusting part (6), contain regulating box (61) in adjusting part (6), regulating box (61) a lateral wall fixed connection is on pivot (502), movable groove (62) have been seted up in the middle part of another lateral wall of regulating box (61).
3. The welding device for producing the dish washing basket as claimed in claim 2, wherein: adjusting box (61) inner wall fixedly connected with baffle (63), baffle (63) one side is provided with positive and negative motor (64), positive and negative motor (64) output end fixedly connected with second screw rod (65), just second screw rod (65) side passes through bearing swing joint on adjusting box (61) inner wall, riser (67) have been run through in the activity of second screw rod (65) middle part, riser (67) bottom fixed connection is on adjusting box (61) inner bottom surface.
4. The welding device for producing the dish washing basket as claimed in claim 3, wherein: the screw thread direction of rotation on the second screw rod (65) sets up about riser (67) symmetry is opposite, states swing joint on second screw rod (65) and has movable block (66), movable block (66) are provided with two sets ofly, just movable block (66) set up on second screw rod (65) about riser (67) symmetry, highly be connected with movable rod (68) on movable block (66), movable rod (68) side extends to regulating box (61) outside through activity groove (62) activity, movable rod (68) outer end fixedly connected with centre gripping subassembly (7).
5. The welding device for producing the dish washing basket as claimed in claim 4, wherein: interior regulating block (71) of containing of centre gripping subassembly (7), regulating block (71) set up for the concave structure, regulating block (71) lateral wall is embedded to have sleeve (74), sleeve (74) inner wall is provided with spacing groove (75), sliding connection has push pedal (76) in spacing groove (75), fixedly connected with push pedal (76) in push pedal (76) side.
6. The welding device for producing the dish washing basket as claimed in claim 5, wherein: the side end of the push rod (77) movably penetrates through the adjusting block (71) to extend outwards, the side end of the push rod (77) is fixedly connected to the side wall of the clamping plate (72), and the side wall of the clamping plate (72) is fixedly connected with an anti-skid pad (73).
7. The welding device for producing the dish washing basket as claimed in claim 6, wherein: fixedly connected with pull rod (78) in push pedal (76) opposite side, pull rod (78) side activity runs through regulating block (71) and outwards extends, pull rod (78) side fixed connection is on drawing handle (710), spring (79) have been cup jointed on pull rod (78), spring (79) one end fixed connection is on push pedal (76), on spring (79) other end fixed connection sleeve (74) inner wall, just centre gripping subassembly (7) are provided with two sets ofly.
8. The welding device for producing the dish washing basket as claimed in claim 1, wherein: workstation (1) top side fixedly connected with fixed case (8), guide way (801) have been seted up towards recess (102) one side to fixed case (8), fixed case (8) top fixedly connected with roof (802), fixedly connected with cylinder (9) in roof (802) end.
9. The welding device for producing the dish washing basket as claimed in claim 6, wherein: the welding gun is characterized in that an output end at the bottom of the air cylinder (9) is fixedly connected with a telescopic rod (901), the bottom end of the telescopic rod (901) is fixedly connected with a lifting plate (902), the side end of the lifting plate (902) movably extends into the guide groove (801), a limiting block (903) is fixedly connected to the inner side of the lifting plate (902), the diameter of the limiting block (903) is larger than the diameter distance of the guide groove (801), and a welding gun (10) is fixedly connected to the side wall of the lifting plate (902).
