本发明公开了一种用于室内设计的环境艺术景墙施工装置及其使用方法，属于室内设计技术领域，包括U型座、过滤组件和抽吸组件，所述U型座的内侧固定连接有安装板，所述安装板的顶部一侧固定连接有抽吸组件。本发明中，第一电机带动第一转动轴、主动锥齿轮和第二主动带轮转动，使第二主动带轮经过第二传送带带动第二从动带轮和第一丝杆转动，使导轨带动打磨组件和喷漆头进行左右移动，且同时主动锥齿轮与从动锥齿轮相啮合，第一主动带轮经过第一传送带带动第一从动带轮、第三转动轴和凸轮产生转动，空气通过第二出风管道和第二连接管道进入到滑动块的内部，带动斜形齿块、连接杆和打磨本体进行转动，进行打磨，使用方便。

Figure 202210095580

The invention discloses an environmental art scene wall construction device for interior design and a method of using the same, belonging to the technical field of interior design, comprising a U-shaped seat, a filter assembly and a suction assembly. The inner side of the U-shaped seat is fixedly connected with a An installation plate, the top side of the installation plate is fixedly connected with a suction component. In the present invention, the first motor drives the first rotating shaft, the driving bevel gear and the second driving pulley to rotate, so that the second driving pulley drives the second driven pulley and the first screw to rotate through the second conveyor belt, so that the guide rail is rotated. Drive the grinding assembly and the paint spraying head to move left and right, and at the same time the driving bevel gear meshes with the driven bevel gear, the first driving pulley drives the first driven pulley, the third rotating shaft and the cam to rotate through the first conveyor belt, and the air The second air outlet duct and the second connecting duct enter into the interior of the sliding block, and drive the oblique tooth block, the connecting rod and the grinding body to rotate for grinding, which is convenient to use.

Figure 202210095580

Description

Environment art landscape wall construction device for indoor design and use method thereof
Technical Field
The invention belongs to the technical field of indoor design, and particularly relates to an environment artistic landscape wall construction device for indoor design and a use method thereof.
Background
The landscape wall is a common gadget in the environmental art wall, the form of the landscape wall is not limited, the functions are set according to needs, the interior and exterior range is divided, the interior space is divided, and poor scenes are shielded in the room, the culture can be reflected, the landscape wall has the functions of attractiveness and permeability, and a lot of cities are more important ways of building city culture and improving city appearance and city appearance, and are more and more common in the modern society.
Present interior design's environment artistic landscape wall construction equipment inconvenient simultaneously when using polishes it, still need artifical manual polishing when polishing, lead to polishing thickness nonconformity easily, after polishing, inconvenient directness is cleaned the wall after polishing, partly dust still adheres on the wall surface, cause the influence to the adhesion effect of later stage paint, and the inconvenient harmful gas machine to dust and the production of spraying paint handles, directly discharge indoor, cause the influence to its indoor environment, need carry out certain improvement.
Disclosure of Invention
The invention aims to: in order to solve the problem that the environment artistic landscape wall construction device of the existing indoor design is inconvenient to polish when in use, the polishing is carried out manually, the polishing is easy to cause inconsistent polishing thickness, after the polishing is carried out, the wall surface after polishing is inconvenient to directly clean, part of dust is still adhered to the surface of the wall body, the influence is caused on the adhesion effect of later-period paint, the dust and a harmful gas machine generated by paint spraying are inconvenient to treat, the dust and the harmful gas machine are directly discharged indoors, and the influence is caused to the indoor environment of the dust and the wall surface.
In order to achieve the purpose, the invention adopts the following technical scheme:
the construction device comprises a U-shaped seat, a filtering assembly and a suction assembly, wherein the filtering assembly is fixedly connected to one side of the top of the U-shaped seat, the other side of the top of the U-shaped seat is fixedly connected with a stirring box, the inner side of the U-shaped seat is fixedly connected with an installation plate, and one side of the top of the installation plate is fixedly connected with the suction assembly;
the suction assembly comprises a piston box, a plurality of first springs are linearly distributed on one side of the interior of the piston box, a piston is fixedly connected to one side of the center of the interior of the first spring relative to the piston box, the piston is connected to the interior of the piston box in a sliding mode, two piston rods are fixedly connected to one side of the piston, which deviates from the first springs, one ends of the piston rods, which deviate from the piston, extend to a sliding plate fixedly connected to the outer side of the piston box, and the piston rods are connected to the piston box in a sliding mode.
As a further description of the above technical solution:
the all fixedly connected with universal wheel in bottom four corners of U type seat, one side fixedly connected with connecting plate of U type seat, one side fixedly connected with first in command that the connecting plate deviates from the U type seat, the first in command sets up the top at the connecting plate.
As a further description of the above technical solution:
a vertical plate is fixedly connected to one side of the top of the mounting plate, a first motor is fixedly connected to one side of the vertical plate, which is far away from the center of the U-shaped seat, a first rotating shaft is fixedly connected to an output shaft of the first motor, a driving bevel gear is fixedly sleeved on the position, which is close to the first motor, of the first rotating shaft and is meshed with a driven bevel gear, a second rotating shaft is fixedly sleeved inside the driven bevel gear and is rotatably connected to the top of the mounting plate, a first driving belt wheel is fixedly sleeved on the second rotating shaft and is arranged below the driven bevel gear, the first driving belt wheel is connected with a second driven belt wheel through a first transmission belt, a third rotating shaft is fixedly sleeved inside the second driven belt wheel and is rotatably connected to the top of the mounting plate, and a cam is fixedly sleeved on the position, which is close to the second driven belt wheel, of the third rotating shaft, and the cam setting is in the top of second driven pulley, the fixed cover in inside that extends to the agitator tank after the U type seat is passed on the top of third axis of rotation has been cup jointed and has been stirred the subassembly, the rotation of third axis of rotation is connected on U type seat and agitator tank.
As a further description of the above technical solution:
the fixed cover of one end that deviates from first motor in the first axis of rotation has connect the second driving pulley, the second driving pulley is connected with the second driven pulleys through second drive belt transmission, the fixed cover in inside of second driven pulleys has connect first lead screw, second driven pulleys and first lead screw setting are in inside one side of U type seat, and first lead screw rotates the inside of connecting at U type seat, threaded connection has the guide rail on the first lead screw, fixedly connected with rectangular block on the guide rail, the top fixedly connected with install bin of rectangular block.
As a further description of the above technical solution:
the improved structure of the polishing machine is characterized in that a second motor is fixedly connected to the bottom side of the interior of the installation box, a second lead screw is fixedly connected to an output shaft of the second motor, a threaded sleeve is connected to the outer portion, extending to the installation box, of the top end of the second lead screw in a threaded mode, a second limiting rod is connected to the two sides of the interior of the threaded sleeve in a sliding mode, the second limiting rod is fixedly connected to the top of the installation box, and a polishing assembly is fixedly connected to the top of the threaded sleeve.
As a further description of the above technical solution:
the polishing component comprises a polishing shell, one side of the interior of the polishing shell is provided with a plurality of second springs in a linear distribution mode, the other side of each second spring is fixedly connected with a sliding block, the sliding block is connected to the interior of the polishing shell in a sliding mode, an oblique tooth block is arranged inside the sliding block, a connecting rod is fixedly sleeved inside the oblique tooth block in a fixed mode, one end of the connecting rod is connected to the sliding block in a rotating mode, and the other end of the connecting rod sequentially penetrates through the sliding block and the polishing shell fixedly connected with polishing body.
As a further description of the above technical solution:
the inside bottom side of the casing of polishing communicates with each other there is the dust absorption pipeline, the one end that the dust absorption pipeline deviates from the casing of polishing is linked together with filtering component, filtering component is including filtering the casing, the inside of filtering the casing has set gradually first filter screen, second filter screen and active carbon filter layer net from the right side to a left side, the top of first filter screen, second filter screen and active carbon filter layer net extends to the top outside fixedly connected with flat board of filtering the casing, dull and stereotyped top fixed weld has the second handle.
As a further description of the above technical solution:
one side intercommunication that dust absorption pipeline was kept away from to the filter housing has first air-out pipeline, first air-out pipeline is linked together with one side of piston case, the position department that is close to the piston case on the first air-out pipeline is provided with first check valve, one side intercommunication that the relative first air-out pipeline of piston case has the second air-out pipeline, the position department that is close to the piston case on the second air-out pipeline is provided with the second check valve, the one end that deviates from the piston case on the second air-out pipeline communicates with each other there is the three-way valve, it has third air-out pipeline and second connecting tube to communicate with each other on the three-way valve respectively, the one end that the second connecting tube deviates from the three-way valve passes the inner chamber of casing of polishing, and second connecting tube is linked together with the sliding block, the top of casing of polishing communicates with each other and has the air-blowing pipeline.
As a further description of the above technical solution:
the utility model discloses a polishing machine, including casing, pump, infusion pump, heating cabinet, the one side fixedly connected with of casing of polishing, the inside of propping up the ear piece is close to casing one side of polishing and is provided with the pipeline of spraying paint, the one end intercommunication that the pipeline of spraying paint deviates from a ear piece has the drawing liquid pump, drawing liquid pump fixed connection is in top one side of U type seat, the other end and the agitator tank of drawing liquid pump communicate with each other, it has a plurality of stoving holes to deviate from casing one side of polishing on the ear piece, one side that the ear piece deviates from the stoving hole communicates with each other has first connecting tube, the one end that first connecting tube deviates from a ear piece communicates with each other has the heating cabinet, heating cabinet fixed connection is in top one side of mounting panel, the inside of heating cabinet is provided with heating element, one side that the heating cabinet deviates from first connecting tube is linked together with third air-out pipeline.
As a further description of the above technical solution:
the guide rail is characterized in that a first limiting rod is connected to one side of the inside of the guide rail in a sliding mode, and the first limiting rod is fixedly connected to one side of the inside of the U-shaped seat.
A use method of an environmental art landscape wall construction device for indoor design comprises the following steps:
s1, pushing the first handle to move the device to a proper place, and then conveying the spray paint to be stirred and mixed to the interior of the stirring box;
s2, controlling a second motor to start working, driving a second screw rod to rotate, and transmitting power to the threaded sleeve to enable the threaded sleeve to drive the polishing assembly and the spray header to move up and down;
s3, controlling the first motor to start working to drive the first rotating shaft, the driving bevel gear and the second driving belt pulley to rotate, so that the second driving belt pulley transmits power to the second driven belt pulley through the second conveying belt to drive the first screw rod to rotate, and the guide rail drives the polishing assembly to move left and right;
s4, the driving bevel gear is meshed with the driven bevel gear, power on the driving bevel gear is transmitted to the second rotating shaft and the first driving belt wheel, the first driving belt wheel transmits the power to the first driven belt wheel and the third rotating shaft through the first conveying belt, the stirring assembly and the cam are rotated, the piston rod and the sliding plate slide in the piston box through the cam, the piston rod and the sliding plate enter the sliding block through the second air outlet pipeline and the second connecting pipeline, the oblique tooth block, the connecting rod and the polishing body are driven to rotate, and the wall body is polished;
s5, the cam rotates for a certain angle, the acting force of the first spring drives the piston, the piston rod and the sliding plate to slide to the left side in the piston box, external air enters the piston box through the dust absorption pipeline and the filter shell, and meanwhile, the first filter screen, the second filter screen and the activated carbon filter screen filter the external air;
s6, controlling the liquid pump to work, spraying paint on the wall through the paint spraying pipeline in the stirring box, conveying a small part of gas in the second air outlet pipeline to a drying hole through the third air outlet pipeline, the heating box and the first connecting pipeline, and quickly drying the sprayed wall.
In summary, due to the adoption of the technical scheme, the invention has the beneficial effects that:
1. in the invention, through a first motor, a driving bevel gear, a driven bevel gear, a first driving pulley, a first driven pulley, a cam, a piston box, a piston rod, a sliding plate, a second air outlet pipeline, a sliding block, an inclined tooth block, a connecting rod, a polishing body and an air blowing pipeline, the first motor drives a first rotating shaft to rotate, power is transmitted to the driving bevel gear and the driven bevel gear, the power is transmitted to a second rotating shaft, the first driving pulley is driven to rotate, then the power is transmitted to the first driven pulley through a first conveyor belt, the cam is driven to rotate, the cam drives the piston, the piston rod and the sliding plate to move towards the right side in the piston box, gas in the piston box is transmitted to the inside of the sliding block through the second air outlet pipeline, the fluidity of the air drives the inclined tooth block to rotate, and the power is transmitted to the connecting rod, the body of polishing is driven and is polished the wall, and cleans the wall after polishing through blowing pipe way simultaneously, replaces the manual work and polishes, differs in thickness when polishing in case the manual work, practices thrift the cost of labor, and is convenient for increase the adhesive force of later stage paint.
2. In the invention, through the arrangement of the first spring, the cam, the piston box, the piston rod, the sliding plate, the second air outlet pipeline, the sliding block, the dust suction pipeline, the filtering shell, the flat plate and the first air outlet pipeline, when the cam rotates for a certain angle, the acting force of the first spring drives the piston rod, the sliding plate and the piston to move towards the left side in the piston box, external air enters the piston box through the dust suction pipeline and the filtering shell, meanwhile, the dust generated during polishing is conveyed to the inside of the filtering shell through the dust suction pipeline, the dust generated during polishing and harmful gas generated by spraying are filtered through the first filter layer net, the second filter net and the active carbon filter net so as to prevent direct discharge and influence the indoor environment of the dust, and the flat plate, the first filter net, the second filter net and the active carbon filter net are regularly cleaned and replaced by manually operating the second handle, so as to prevent the blockage from influencing the filtering effect of the device.
3. According to the invention, through the arranged stirring box, the heating box, the second air outlet pipeline, the third air outlet pipeline, the first connecting pipeline and the liquid pump, after polishing, the liquid pump starts to work, so that paint in the stirring box is sprayed on the wall through the paint spraying pipeline, meanwhile, gas in the piston box enters the heating box through the second air outlet pipeline and the third air outlet pipeline, after the air is heated by the heating element, the gas is conveyed into the drying hole through the first connecting pipeline, and the sprayed wall is dried, so that the use efficiency of the device is improved.
4. According to the invention, through the arrangement of the first motor, the second driving belt wheel, the second driven belt wheel, the first lead screw, the guide rail, the installation box, the second motor, the second lead screw and the threaded sleeve, when the first motor drives the first rotating shaft to rotate, the second driving belt wheel is driven to rotate, power is transmitted to the second driven belt wheel through the second transmission belt, the first lead screw is driven to rotate, so that the polishing component is driven to move left and right, the second motor drives the second lead screw to rotate, the power is transmitted to the threaded sleeve, so that the polishing component is driven to move up and down, the polishing position and the spraying position are adjusted, and the applicability of the device is improved.
Drawings

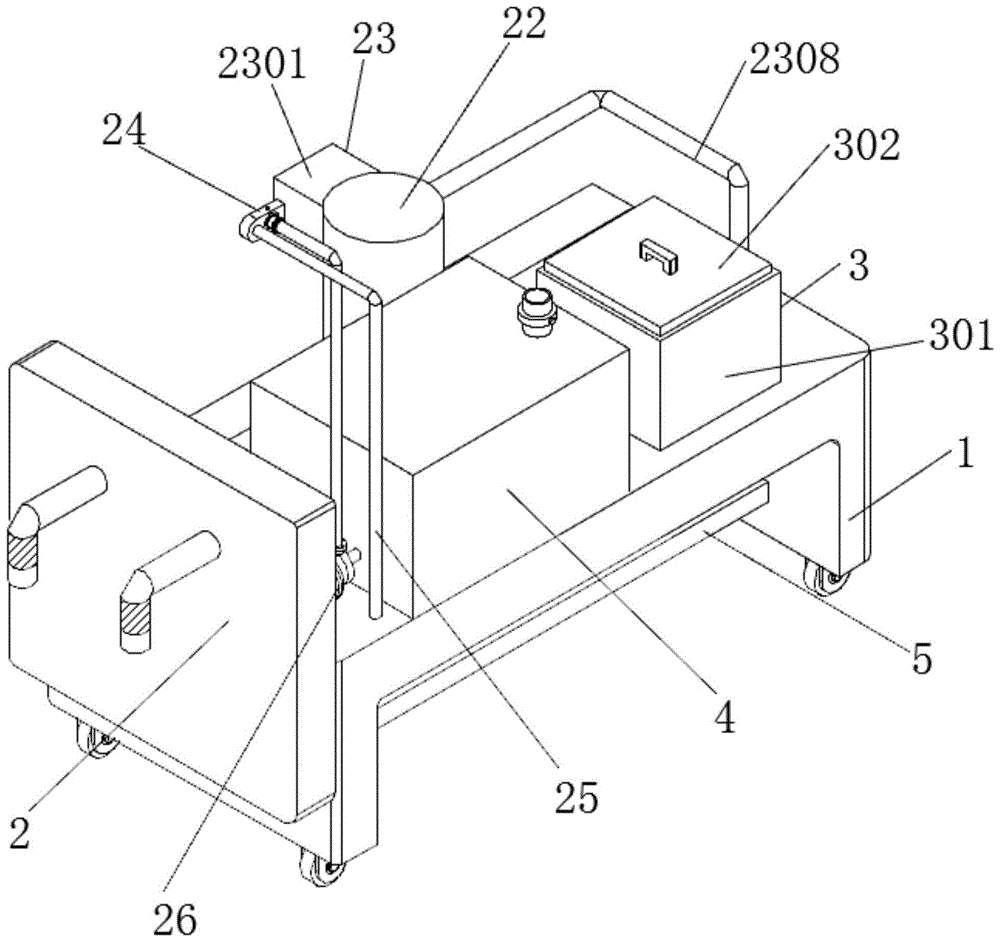

Fig. 1 is a schematic perspective view of an environmental art landscape wall construction device for indoor design and a method for using the same according to the present invention;
FIG. 2 is a schematic structural diagram of a polishing assembly in an environmental artistic landscape wall construction apparatus for indoor design and a method for using the same according to the present invention;
FIG. 3 is a schematic structural diagram of a filter assembly of the present invention for an indoor environment artistic wall construction device and a method for using the same;
FIG. 4 is a schematic structural diagram of a mounting plate in the apparatus for constructing an artistic landscape wall for indoor design and the method of using the same according to the present invention;
FIG. 5 is a schematic structural diagram of an installation box in the apparatus for constructing an artistic landscape wall for indoor design and the method of using the same according to the present invention;
FIG. 6 is a schematic view illustrating a suction assembly of the present invention applied to an interior design of an environmental art landscape wall construction apparatus and a method for using the same;
fig. 7 is a schematic structural view of an oblique tooth block in the environmental art landscape wall construction device for indoor design and the use method thereof according to the present invention.
Illustration of the drawings:
1. a U-shaped seat; 2. a connecting plate; 3. a filter assembly; 301. a filter housing; 302. a flat plate; 303. a first air outlet pipeline; 4. a stirring box; 5. mounting a plate; 6. a suction assembly; 601. a piston case; 602. a first spring; 603. a piston; 604. a piston rod; 605. a sliding plate; 606. a second air outlet pipeline; 607. a second connecting pipe; 7. a heating box; 8. a vertical plate; 9. a first motor; 10. a drive bevel gear; 11. a driven bevel gear; 12. a first driving pulley; 13. a first driven pulley; 14. a cam; 15. a second driving pulley; 16. a second driven pulley; 17. a first lead screw; 18. a guide rail; 19. installing a box; 20. a second motor; 21. a second lead screw; 22. a threaded sleeve; 23. polishing the assembly; 2301. polishing the shell; 2302. a second spring; 2303. a slider; 2304. a skewed tooth block; 2305. a connecting rod; 2306. polishing the body; 2307. a blowing duct; 2308. a dust collection duct; 24. an ear supporting block; 25. a first connecting pipe; 26. and (4) a liquid pump.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-7, the present invention provides a technical solution: a construction device for an environment art landscape wall for indoor design and a using method thereof comprise a U-shaped seat 1, a filtering component 3 and a suction component 6, wherein the filtering component 3 is fixedly connected to one side of the top of the U-shaped seat 1, the other side of the top of the U-shaped seat 1 is fixedly connected with a stirring box 4, the inner side of the U-shaped seat 1 is fixedly connected with an installation plate 5, and one side of the top of the installation plate 5 is fixedly connected with the suction component 6;
suction assembly 6 includes piston box 601, there are a plurality of first springs 602 on one side of the inside of piston box 601 linear distribution, one side fixedly connected with piston 603 of the inside center of piston box 601 of first spring 602, piston 603 sliding connection is in the inside of piston box 601, one side fixedly connected with two piston rods 604 that piston 603 deviates from first spring 602, the one end that piston rod 604 deviates from piston 603 extends to the outside fixedly connected with sliding plate 605 of piston box 601, piston rod 604 sliding connection is on piston box 601.
As shown in fig. 1, the universal wheels are fixedly connected to four corners of the bottom of the U-shaped seat 1, the connecting plate 2 is fixedly connected to one side of the U-shaped seat 1, the first handle is fixedly connected to one side of the connecting plate 2, which deviates from the U-shaped seat 1, and the first handle is arranged at the top of the connecting plate 2.
As shown in fig. 1-4, a vertical plate 8 is fixedly connected to one side of the top of the mounting plate 5, a first motor 9 is fixedly connected to one side of the vertical plate 8 away from the center of the U-shaped seat 1, an output shaft of the first motor 9 is fixedly connected to a first rotating shaft, a driving bevel gear 10 is fixedly sleeved on the first rotating shaft near the first motor 9, the driving bevel gear 10 is engaged with a driven bevel gear 11, a second rotating shaft is fixedly sleeved inside the driven bevel gear 11, the second rotating shaft is rotatably connected to the top of the mounting plate 5, a first driving pulley 12 is fixedly sleeved on the second rotating shaft, the first driving pulley 12 is arranged below the driven bevel gear 11, the first driving pulley 12 is connected to a second driven pulley 16 through a first transmission, a third transmission belt is fixedly sleeved inside the second driven pulley 16, and the third transmission belt is rotatably connected to the top of the mounting plate 5, the fixed cam 14 that has cup jointed in position department that is close to second driven pulley 16 on the third axis of rotation, and cam 14 sets up in the top of second driven pulley 16, and the inside that extends to agitator tank 4 after U type seat 1 is passed on the top of third axis of rotation is fixed to be cup jointed the stirring subassembly, and the rotation of third axis of rotation is connected on U type seat 1 and agitator tank 4.
As shown in fig. 1-4, a second driving pulley 15 is fixedly sleeved on one end of the first rotating shaft away from the first motor 9, the second driving pulley 15 is connected with a second driven pulley 16 through a second transmission belt, a first lead screw 17 is fixedly sleeved on the inside of the second driven pulley 16, the second driven pulley 16 and the first lead screw 17 are arranged on one side of the inside of the U-shaped seat 1, the first lead screw 17 is rotatably connected inside the U-shaped seat 1, a guide rail 18 is connected to the first lead screw 17 through a thread, a rectangular block is fixedly connected to the guide rail 18, and a mounting box 19 is fixedly connected to the top of the rectangular block.
As shown in fig. 1 to 5, a second motor 20 is fixedly connected to the bottom side of the interior of the mounting box 19, an output shaft of the second motor 20 is fixedly connected to a second lead screw 21, a threaded sleeve 22 is connected to an external thread extending from the top end of the second lead screw 21 to the mounting box 19, a second limiting rod is slidably connected to both sides of the interior of the threaded sleeve 22, the second limiting rod is fixedly connected to the top of the mounting box 19, and a polishing assembly 23 is fixedly connected to the top of the threaded sleeve 22.
As shown in fig. 2, the polishing assembly 23 includes a polishing housing 2301, a plurality of second springs 2302 are linearly distributed on one side of the interior of the polishing housing 2301, a sliding block 2303 is fixedly connected to the other side of the second springs 2302, the sliding block 2303 is slidably connected to the interior of the polishing housing 2301, an oblique toothed block 2304 is arranged inside the sliding block 2303, a connecting rod 2305 is fixedly sleeved inside the oblique toothed block 2304, one end of the connecting rod 2305 is rotatably connected to the sliding block 2303, and the other end of the connecting rod 2305 sequentially penetrates through the sliding block 2303 and the polishing housing 2301 and is fixedly connected with a polishing body 2306.
As shown in fig. 1-7, the inside bottom side of casing 2301 of polishing communicates with each other there is dust absorption pipeline 2308, dust absorption pipeline 2308 deviates from the one end of casing 2301 of polishing and is linked together with filtering component 3, filtering component 3 is including filtering casing 301, the inside of filtering casing 301 has set gradually first filter screen from the right side to left side, second filter screen and active carbon filter layer net, first filter screen, the top of second filter screen and active carbon filter layer net extends to the dull and stereotyped 302 of the top outside fixedly connected with of filtering casing 301, the fixed welding in top of dull and stereotyped 302 has the second handle.
As shown in fig. 1 to 7, a first air outlet pipe 303 is communicated with one side of the filter housing 301, which is far from the dust suction pipe 2308, the first air outlet pipe 303 is communicated with one side of the piston box 601, a first one-way valve is arranged at a position on the first air outlet pipe 303, which is close to the piston box 601, a second air outlet pipe 606 is communicated with one side of the piston box 601, which is opposite to the first air outlet pipe 303, a second one-way valve is arranged at a position on the second air outlet pipe 606, which is close to the piston box 601, one end of the second air outlet pipe 606, which is far from the piston box 601, is communicated with a three-way valve, a third air outlet pipe and a second connecting pipe 607 are respectively communicated with the three-way valve, one end of the second connecting pipe 607, which is far from the three-way valve, passes through an inner cavity of the polishing housing 2301, and the second connecting pipe 607 is communicated with a sliding block 2303, and a blowing pipe 2307 is communicated with the top of the polishing housing 2301.
As shown in fig. 1-7, a supporting lug block 24 is fixedly connected to one side of a polishing housing 2301, the inside of the supporting lug block 24 is close to the polishing housing 2301, one end of a paint spraying pipeline departing from the supporting lug block 24 is communicated with a liquid pumping pump 26, the liquid pumping pump 26 is fixedly connected to one side of the top of a U-shaped seat 1, the other end of the liquid pumping pump 26 is communicated with a stirring box 4, one side of the supporting lug block 24 departing from the polishing housing 2301 is provided with a plurality of drying holes, one side of the supporting lug block 24 departing from the drying holes is communicated with a first connecting pipeline 25, one end of the first connecting pipeline 25 departing from the supporting lug block 24 is communicated with a heating box 7, the heating box 7 is fixedly connected to one side of the top of a mounting plate 5, a heating element is arranged inside of the heating box 7, and one side of the heating box 7 departing from the first connecting pipeline 25 is communicated with a third air outlet pipeline.
As shown in fig. 1-5, a first limiting rod is slidably connected to one side of the inside of the guide rail 18, and the first limiting rod is fixedly connected to one side of the inside of the U-shaped seat 1.
A use method of an environmental art landscape wall construction device for indoor design comprises the following steps:
s1, pushing the first handle to move the device to a proper place, and then conveying the paint to be stirred and mixed to the inside of the stirring box 4;
s2, controlling the second motor 20 to start working, driving the second screw rod 21 to rotate, and transmitting power to the threaded sleeve 22, so that the threaded sleeve 22 drives the polishing assembly 23 and the spray header to move up and down;
s3, controlling the first motor 9 to start working to drive the first rotating shaft, the driving bevel gear 10 and the second driving belt wheel 15 to rotate, so that the second driving belt wheel 15 transmits power to the second driven belt wheel 16 through the second conveying belt to drive the first screw rod 17 to rotate, and the guide rail 18 drives the grinding assembly 23 to move left and right;
s4, the driving bevel gear 10 is meshed with the driven bevel gear 11, power on the driving bevel gear 10 is transmitted to the second rotating shaft and the first driving belt wheel 12, the first driving belt wheel 12 transmits the power to the first driven belt wheel 13 and the third rotating shaft through the first conveying belt, the stirring assembly and the cam 14 rotate, the cam 14 enables the piston 603, the piston rod 604 and the sliding plate 605 to slide in the piston box 601, the power enters the sliding block 2303 through the second air outlet pipeline 606 and the second connecting pipeline 607, the inclined tooth block 2304, the connecting rod 2305 and the grinding body 2306 are driven to rotate, and the wall body is ground;
s5, the cam 14 rotates for a certain angle, the acting force of the first spring 602 drives the piston 603, the piston rod 604 and the sliding plate 605 to slide to the left side in the piston box 601, the external air enters the piston box 601 through the dust suction pipe 2308 and the filter shell 301, and meanwhile, the first filter screen, the second filter screen and the activated carbon filter screen filter the external air;
s6, controlling the liquid pump 26 to work, spraying paint on the wall through the paint spraying pipeline in the stirring box 4, conveying a small part of air in the second air outlet pipeline 606 to the drying hole through the third air outlet pipeline, the heating box 7 and the first connecting pipeline 25, and rapidly drying the sprayed wall.
The working principle is as follows: when the device is used, the first handle is manually operated, the device is moved to a proper position, paint is conveyed to the inside of the stirring box 4, the first motor 9 drives the first rotating shaft, the driving bevel gear 10 and the second driving pulley 15 to rotate, the second driving pulley 15 transmits power to the second driven pulley 16 through the second conveying belt, the second driving pulley drives the first screw rod 17 to rotate, the guide rail 18 converts the rotating force of the first screw rod 17 into transverse moving force, the grinding assembly 23 and the paint spraying head are driven to move left and right, the left and right using positions of the grinding assembly 23 and the paint spraying head are adjusted, the driving bevel gear 10 is meshed with the driven bevel gear 11, the first driving pulley 12 drives the first driven pulley 13 to rotate through the first conveying belt, the power is transmitted to the third rotating shaft, the stirring assembly in the stirring box 4 is driven to work, and the cam 14 is driven to rotate, the piston 603, the piston rod 604 and the sliding plate 605 are driven to slide in the piston box 601, when the cam 14 compresses the first spring 602, air enters the inside of the sliding block 2303 through the second air outlet pipe 606 and the second connecting pipe 607, the oblique tooth block 2304, the connecting rod 2305 and the polishing body 2306 are driven to rotate, then the wall polishing position is blown through the blowing pipe 2307 to clean the wall surface, the acting force of the first spring 602 drives the piston 603, the piston rod 604 and the sliding plate 605 to slide to the left side in the piston box 601 after the cam 14 rotates for a certain angle, dust generated after polishing is sucked out through the dust suction pipe 2308, the dust is filtered through the first filter screen, the second filter screen and the activated carbon filter screen in the filter shell 301 and then is conveyed to the inside of the piston box 601, after the wall is polished, make drawing liquid pump 26 work, paint vehicle with agitator tank 4 inside sprays paint to the wall through the pipeline that sprays paint, and the drying hole department is carried through third air-out pipeline, heating cabinet 7 and first connecting tube 25 to a small part of gas of second air-out pipeline 606 simultaneously, carries out fast drying, convenient to use to the wall after spraying paint.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be able to cover the technical scope of the present invention and the equivalent alternatives or modifications according to the technical solution and the inventive concept of the present invention within the technical scope of the present invention.

Claims (10)

1.一种用于室内设计的环境艺术景墙施工装置，包括U型座(1)、过滤组件(3)和抽吸组件(6)，其特征在于，所述过滤组件(3)固定连接在U型座(1)的顶部一侧，所述U型座(1)的顶部另一侧固定连接有搅拌箱(4)，所述U型座(1)的内侧固定连接有安装板(5)，所述安装板(5)的顶部一侧固定连接有抽吸组件(6)；1. An environmental art scene wall construction device for interior design, comprising a U-shaped seat (1), a filter assembly (3) and a suction assembly (6), wherein the filter assembly (3) is fixedly connected On one side of the top of the U-shaped seat (1), the other side of the top of the U-shaped seat (1) is fixedly connected with a stirring box (4), and the inner side of the U-shaped seat (1) is fixedly connected with a mounting plate ( 5), a suction assembly (6) is fixedly connected to the top side of the mounting plate (5); 所述抽吸组件(6)包括活塞箱(601)，所述活塞箱(601)的内部一侧呈线性分布有多个第一弹簧(602)，所述第一弹簧(602)相对活塞箱(601)内部中心的一侧固定连接有活塞(603)，所述活塞(603)滑动连接在活塞箱(601)的内部，所述活塞(603)背离第一弹簧(602)的一侧固定连接有两个活塞杆(604)，所述活塞杆(604)背离活塞(603)的一端延伸至活塞箱(601)的外侧固定连接有滑动板(605)，所述活塞杆(604)滑动连接在活塞箱(601)上。The suction assembly (6) includes a piston box (601), and a plurality of first springs (602) are linearly distributed on the inner side of the piston box (601), and the first springs (602) are opposite to the piston box One side of the inner center of (601) is fixedly connected with a piston (603), the piston (603) is slidably connected to the interior of the piston box (601), and the side of the piston (603) facing away from the first spring (602) is fixed Two piston rods (604) are connected, the end of the piston rod (604) facing away from the piston (603) extends to the outside of the piston box (601) and a sliding plate (605) is fixedly connected, and the piston rod (604) slides Connected to the piston case (601). 2.根据权利要求1所述的一种用于室内设计的环境艺术景墙施工装置，其特征在于，所述U型座(1)的底部四角均固定连接有万向轮，所述U型座(1)的一侧固定连接有连接板(2)，所述连接板(2)背离U型座(1)的一侧固定连接有第一把手，所述第一把手设置在连接板(2)的顶部。2. A kind of environmental art scenery wall construction device for interior design according to claim 1, is characterized in that, the bottom four corners of described U-shaped seat (1) are all fixedly connected with universal wheels, and the U-shaped One side of the seat (1) is fixedly connected with a connecting plate (2), and a side of the connecting plate (2) facing away from the U-shaped seat (1) is fixedly connected with a first handle, and the first handle is arranged on the connecting plate (2) the top of. 3.根据权利要求1所述的一种用于室内设计的环境艺术景墙施工装置，其特征在于，所述安装板(5)的顶部一侧固定连接有竖板(8)，所述竖板(8)背离U型座(1)中心的一侧固定连接有第一电机(9)，所述第一电机(9)的输出轴固定连接有第一转动轴，所述第一转动轴上靠近第一电机(9)的位置处固定套接有主动锥齿轮(10)，所述主动锥齿轮(10)与从动锥齿轮(11)相啮合，所述从动锥齿轮(11)的内部固定套接有第二转动轴，所述第二转动轴转动连接在安装板(5)的顶部，所述第二转动轴上固定套接有第一主动带轮(12)，且第一主动带轮(12)设置在从动锥齿轮(11)的下方，所述第一主动带轮(12)经过第一传动带传动连接有第二从动带轮(16)，所述第二从动带轮(16)的内部固定套接有第三转动轴，所述第三转动轴转动连接在安装板(5)的顶部，所述第三转动轴上靠近第二从动带轮(16)的位置处固定套接有凸轮(14)，且凸轮(14)设置在第二从动带轮(16)的上方，所述第三转动轴的顶端穿过U型座(1)后延伸至搅拌箱(4)的内部固定套接有搅拌组件，所述第三转动轴转动连接在U型座(1)和搅拌箱(4)上。3. A kind of environmental art scenery wall construction device for interior design according to claim 1, characterized in that, a vertical plate (8) is fixedly connected on one side of the top of the mounting plate (5), and the vertical A first motor (9) is fixedly connected to the side of the plate (8) away from the center of the U-shaped seat (1), and a first rotating shaft is fixedly connected to the output shaft of the first motor (9). A driving bevel gear (10) is fixedly sleeved at a position close to the first motor (9), the driving bevel gear (10) is meshed with the driven bevel gear (11), and the driven bevel gear (11) A second rotating shaft is fixedly sleeved inside the second rotating shaft, the second rotating shaft is rotatably connected to the top of the mounting plate (5), and a first driving pulley (12) is fixedly sleeved on the second rotating shaft, and the first driving pulley (12) is fixedly sleeved on the second rotating shaft. A driving pulley (12) is arranged below the driven bevel gear (11), the first driving pulley (12) is connected with a second driven pulley (16) through the first transmission belt, and the second driving pulley (16) A third rotating shaft is fixedly sleeved inside the driven pulley (16), the third rotating shaft is rotatably connected to the top of the mounting plate (5), and the third rotating shaft is close to the second driven pulley ( A cam (14) is fixedly sleeved at the position of 16), and the cam (14) is arranged above the second driven pulley (16), and the top of the third rotating shaft passes through the U-shaped seat (1). A stirring assembly is fixedly sleeved inside the stirring box (4), and the third rotating shaft is rotatably connected to the U-shaped seat (1) and the stirring box (4). 4.根据权利要求3所述的一种用于室内设计的环境艺术景墙施工装置，其特征在于，所述第一转动轴上背离第一电机(9)的一端固定套接有第二主动带轮(15)，所述第二主动带轮(15)经过第二传动带传动连接有第二从动带轮(16)，所述第二从动带轮(16)的内部固定套接有第一丝杆(17)，所述第二从动带轮(16)和第一丝杆(17)设置在U型座(1)的内部一侧，且第一丝杆(17)转动连接在U型座(1)的内部，所述第一丝杆(17)上螺纹连接有导轨(18)，所述导轨(18)上固定连接有矩形块，矩形块的顶部固定连接有安装箱(19)。4. An environmental art scene wall construction device for interior design according to claim 3, characterized in that, the end of the first rotating shaft that is away from the first motor (9) is fixedly sleeved with a second drive Pulley (15), the second driving pulley (15) is connected with a second driven pulley (16) through the second transmission belt, and the inner fixed sleeve of the second driven pulley (16) is connected with The first screw rod (17), the second driven pulley (16) and the first screw rod (17) are arranged on the inner side of the U-shaped seat (1), and the first screw rod (17) is rotatably connected Inside the U-shaped seat (1), a guide rail (18) is threadedly connected to the first screw rod (17), a rectangular block is fixedly connected to the guide rail (18), and an installation box is fixedly connected to the top of the rectangular block (19). 5.根据权利要求4所述的一种用于室内设计的环境艺术景墙施工装置，其特征在于，所述安装箱(19)的内部底侧固定连接有第二电机(20)，所述第二电机(20)的输出轴固定连接有第二丝杆(21)，所述第二丝杆(21)的顶端延伸至安装箱(19)的外部螺纹连接有螺纹套(22)，所述螺纹套(22)的内部两侧均滑动连接有第二限位杆，所述第二限位杆固定连接在安装箱(19)的顶部，所述螺纹套(22)的顶部固定连接有打磨组件(23)。5. An environmental art scene wall construction device for interior design according to claim 4, characterized in that, a second motor (20) is fixedly connected to the inner bottom side of the installation box (19), and the The output shaft of the second motor (20) is fixedly connected with a second screw rod (21), and the top end of the second screw rod (21) extends to the outside of the installation box (19) and is threadedly connected with a threaded sleeve (22), so Both inner sides of the threaded sleeve (22) are slidably connected with a second limit rod, the second limit rod is fixedly connected to the top of the installation box (19), and the top of the threaded sleeve (22) is fixedly connected with a Grinding assembly (23). 6.根据权利要求5所述的一种用于室内设计的环境艺术景墙施工装置，其特征在于，所述打磨组件(23)包括打磨壳体(2301)，所述打磨壳体(2301)的内部一侧呈线性分布有多个第二弹簧(2302)，所述第二弹簧(2302)的另一侧固定连接有滑动块(2303)，且滑动块(2303)滑动连接在打磨壳体(2301)的内部，所述滑动块(2303)的内部设置有斜形齿块(2304)，所述斜形齿块(2304)的内部固定套接有连接杆(2305)，所述连接杆(2305)的一端转动连接在滑动块(2303)上，所述连接杆(2305)的另一端依次穿过滑动块(2303)和打磨壳体(2301)固定连接有打磨本体(2306)。6. An environmental art scene wall construction device for interior design according to claim 5, characterized in that, the grinding assembly (23) comprises a grinding shell (2301), and the grinding shell (2301) A plurality of second springs (2302) are linearly distributed on one side of the inner side of the second spring (2302), and the other side of the second springs (2302) is fixedly connected with a sliding block (2303), and the sliding block (2303) is slidably connected to the grinding shell Inside (2301), the inside of the sliding block (2303) is provided with an oblique tooth block (2304), the inside of the oblique tooth block (2304) is fixedly sleeved with a connecting rod (2305), the connecting rod One end of (2305) is rotatably connected to the sliding block (2303), and the other end of the connecting rod (2305) passes through the sliding block (2303) and the grinding shell (2301) in turn and is fixedly connected with the grinding body (2306). 7.根据权利要求6所述的一种用于室内设计的环境艺术景墙施工装置，其特征在于，所述打磨壳体(2301)的内部底侧相通有吸尘管道(2308)，所述吸尘管道(2308)背离打磨壳体(2301)的一端与过滤组件(3)相连通，所述过滤组件(3)包括过滤壳体(301)，所述过滤壳体(301)的内部从右到左依次设置有第一过滤网、第二过滤网和活性炭过滤层网，所述第一过滤网、第二过滤网和活性炭过滤层网的顶部延伸至过滤壳体(301)的顶部外侧固定连接有平板(302)，所述平板(302)的顶部固定焊接有第二把手。7. An environmental art scene wall construction device for interior design according to claim 6, characterized in that, a dust suction duct (2308) is communicated with the inner bottom side of the grinding shell (2301), and the One end of the dust suction pipe (2308) facing away from the grinding shell (2301) is communicated with the filter assembly (3), and the filter assembly (3) includes a filter shell (301), and the inside of the filter shell (301) extends from the inside of the filter shell (301). A first filter screen, a second filter screen and an activated carbon filter layer screen are arranged in sequence from right to left, and the tops of the first filter screen, the second filter screen and the activated carbon filter layer screen extend to the outside of the top of the filter housing (301). A flat plate (302) is fixedly connected, and a second handle is fixedly welded on the top of the flat plate (302). 8.根据权利要求7所述的一种用于室内设计的环境艺术景墙施工装置，其特征在于，所述过滤壳体(301)远离吸尘管道(2308)的一侧连通有第一出风管道(303)，所述第一出风管道(303)与活塞箱(601)的一侧相连通，所述活塞箱(601)相对第一出风管道(303)的一侧连通有第二出风管道(606)，所述第二出风管道(606)上背离活塞箱(601)的一端相通有三通阀，所述三通阀上分别相通有第三出风管道和第二连接管道(607)，所述第二连接管道(607)背离三通阀的一端穿过打磨壳体(2301)的内腔，且第二连接管道(607)与滑动块(2303)相连通，所述滑动块(2303)和打磨壳体(2301)的顶部相通有吹风管道(2307)。8. An environmental art scene wall construction device for interior design according to claim 7, characterized in that the filter housing (301) is connected with a first outlet on the side away from the dust suction duct (2308). An air duct (303), the first air outlet duct (303) is communicated with one side of the piston box (601), and a side of the piston box (601) opposite to the first air outlet duct (303) is communicated with a first air outlet duct (303). Two air outlet ducts (606), the end of the second air outlet duct (606) facing away from the piston box (601) is communicated with a three-way valve, and the three-way valve is communicated with a third air outlet duct and a second connection respectively. Pipe (607), the end of the second connecting pipe (607) facing away from the three-way valve passes through the inner cavity of the grinding housing (2301), and the second connecting pipe (607) is communicated with the sliding block (2303), so A blowing duct (2307) communicates with the top of the sliding block (2303) and the grinding shell (2301). 9.根据权利要求8所述的一种用于室内设计的环境艺术景墙施工装置，其特征在于，所述打磨壳体(2301)的一侧固定连接有支耳块(24)，所述支耳块(24)的内部靠近打磨壳体(2301)一侧设置有喷漆管道，所述喷漆管道背离支耳块(24)的一端连通有抽液泵(26)，所述抽液泵(26)固定连接在U型座(1)的顶部一侧，所述抽液泵(26)的另一端与搅拌箱(4)相连通，所述支耳块(24)上背离打磨壳体(2301)一侧开设有多个烘干孔，所述支耳块(24)背离烘干孔的一侧相通有第一连接管道(25)，所述第一连接管道(25)背离支耳块(24)的一端相通有加热箱(7)，所述加热箱(7)固定连接在安装板(5)的顶部一侧，所述加热箱(7)的内部设置有加热元件，所述加热箱(7)背离第一连接管道(25)的一侧与第三出风管道相连通，所述导轨(18)的内部一侧滑动连接有第一限位杆，所述第一限位杆固定连接在U型座(1)的内部一侧。9. An environmental art scene wall construction device for interior design according to claim 8, characterized in that a lug block (24) is fixedly connected to one side of the grinding shell (2301), and the The inside of the lug block (24) close to the side of the grinding shell (2301) is provided with a paint spraying pipe, and the end of the paint spraying pipe facing away from the lug block (24) is communicated with a liquid suction pump (26), and the liquid suction pump ( 26) It is fixedly connected to the top side of the U-shaped seat (1), the other end of the suction pump (26) is communicated with the stirring box (4), and the lug block (24) faces away from the grinding shell ( 2301) one side is provided with a plurality of drying holes, the side of the lug block (24) facing away from the drying hole is communicated with a first connecting pipe (25), and the first connecting pipe (25) is away from the lug block One end of (24) communicates with a heating box (7), the heating box (7) is fixedly connected to the top side of the mounting plate (5), and a heating element is arranged inside the heating box (7), and the heating box (7) is The side of the box (7) facing away from the first connecting duct (25) is communicated with the third air outlet duct, the inner side of the guide rail (18) is slidably connected with a first limiting rod, and the first limiting rod It is fixedly connected to the inner side of the U-shaped seat (1). 10.根据权利要求1-9任一项所述的一种用于室内设计的环境艺术景墙施工装置的使用方法，其特征在于，包括以下步骤：10. the using method of a kind of environment art scenery wall construction device for interior design according to any one of claim 1-9, is characterized in that, comprises the following steps: S1、推动第一把手将装置移动到合适地方，然后将待搅拌混合的喷漆输送到搅拌箱(4)的内部；S1, push the first handle to move the device to a suitable place, and then transport the spray paint to be stirred and mixed into the inside of the mixing box (4); S2、控制第二电机(20)开始工作，带动第二丝杆(21)产生转动，将动力传输到螺纹套(22)上，使螺纹套(22)带动打磨组件(23)和喷淋头进行上下移动；S2. Control the second motor (20) to start working, drive the second screw (21) to rotate, and transmit the power to the threaded sleeve (22), so that the threaded sleeve (22) drives the grinding assembly (23) and the shower head to move up and down; S3、控制第一电机(9)开始工作，带动第一转动轴、主动锥齿轮(10)和第二主动带轮(15)转动，使第二主动带轮(15)经过第二传送带将动力传输到第二从动带轮(16)上，带动第一丝杆(17)转动，从而使导轨(18)带动打磨组件(23)进行左右移动；S3, control the first motor (9) to start to work, drive the first rotating shaft, the driving bevel gear (10) and the second driving pulley (15) to rotate, so that the second driving pulley (15) passes the power through the second conveyor belt. It is transmitted to the second driven pulley (16) to drive the first screw rod (17) to rotate, so that the guide rail (18) drives the grinding assembly (23) to move left and right; S4、主动锥齿轮(10)与从动锥齿轮(11)相啮合，将主动锥齿轮(10)上的动力传输到第二转动轴和第一主动带轮(12)上，第一主动带轮(12)经过第一传送带将动力传输至第一从动带轮(13)和第三转动轴上，使搅拌组件和凸轮(14)进行转动，凸轮(14)使活塞(603)、活塞杆(604)和滑动板(605)在活塞箱(601)的内部进行滑动，通过第二出风管道(606)和第二连接管道(607)进入到滑动块(2303)的内部，带动斜形齿块(2304)、连接杆(2305)和打磨本体(2306)进行转动，对墙体进行打磨；S4. The driving bevel gear (10) is meshed with the driven bevel gear (11), and the power on the driving bevel gear (10) is transmitted to the second rotating shaft and the first driving pulley (12), and the first driving belt The wheel (12) transmits power to the first driven pulley (13) and the third rotating shaft through the first conveyor belt, so that the stirring assembly and the cam (14) rotate, and the cam (14) makes the piston (603), the piston The rod (604) and the sliding plate (605) slide inside the piston box (601), enter the inside of the sliding block (2303) through the second air outlet pipe (606) and the second connecting pipe (607), and drive the inclined The shaped tooth block (2304), the connecting rod (2305) and the grinding body (2306) are rotated to grind the wall; S5、凸轮(14)转动一定角度，第一弹簧(602)的作用力带动活塞(603)、活塞杆(604)和滑动板(605)在活塞箱(601)的内部向左侧滑动，外部空气通过吸尘管道(2308)和过滤壳体(301)进入到活塞箱(601)的内部，同时第一过滤网、第二过滤网和活性炭过滤网对外部空气进行过滤；S5. The cam (14) rotates at a certain angle, and the force of the first spring (602) drives the piston (603), the piston rod (604) and the sliding plate (605) to slide to the left inside the piston box (601), and the outside Air enters the interior of the piston box (601) through the dust suction duct (2308) and the filter housing (301), while the first filter screen, the second filter screen and the activated carbon filter screen filter the outside air; S6、控制抽液泵(26)进行工作，将搅拌箱(4)内部的漆料经过喷漆管道对墙壁进行喷漆，且同时第二出风管道(606)的一小部分气体通过第三出风管道、加热箱(7)和第一连接管道(25)输送到烘干孔处，对喷漆后的墙壁进行快速烘干。S6. Controlling the pumping pump (26) to work, spraying the paint inside the stirring box (4) through the paint spraying pipe to the wall, and at the same time a small part of the gas from the second air outlet pipe (606) passes through the third air outlet The pipeline, the heating box (7) and the first connecting pipeline (25) are transported to the drying hole to quickly dry the painted wall.
