Abstract
本发明公开了一种可调式的气管切开术后伤口封闭装置，包括软胶定位粘板一，软胶定位粘板一的右侧可拆分式卡接有多规格压合板，多规格压合板的右端可拆分式卡接有与软胶定位粘板一为相同结构的软胶定位粘板二，软胶定位粘板一和软胶定位粘板二的顶面均固定安装有可调式闭合绑带。上述方案，软胶定位粘板一通过两个定位卡板配合两个尼龙绑带以及两个可调卡扣与软胶定位粘板二为可拆分式活动连接，软胶定位粘板一和软胶定位粘板二分别粘接于术后伤口的两侧，通过拉动两个尼龙绑带并通过两个可调卡扣将其固定，便可自由调节术后伤口的张力大小，有利于术后伤口的生长愈合，且可调卡扣可重复启闭，方便了医护人员打开装置观察伤口生长情况。
The invention discloses an adjustable wound closure device after tracheotomy. The right end of the plywood is detachably clamped with the soft-adhesive positioning-adhesive plate 2, which has the same structure as the soft-adhesive positioning-adhesive plate 1. The top surfaces of the soft-adhesive positioning-adhesive plate 1 and the soft-adhesive positioning-adhesive plate 2 are fixedly installed with an adjustable type. Close the straps. In the above scheme, the first soft glue positioning and sticking board is detachably connected to the second soft glue positioning sticking board through two positioning clips with two nylon straps and two adjustable buckles, and the first soft glue positioning sticking board and The soft glue positioning adhesive plate 2 is respectively bonded to both sides of the postoperative wound. By pulling two nylon straps and fixing them with two adjustable buckles, the tension of the postoperative wound can be adjusted freely, which is beneficial to the operation. After the wound grows and heals, and the adjustable buckle can be opened and closed repeatedly, it is convenient for medical staff to open the device to observe the growth of the wound.
Description
Technical Field
The invention relates to the technical field of wound suturing after tracheotomy, in particular to an adjustable wound closing device after tracheotomy.
Background
The tracheotomy is a common operation for relieving dyspnea caused by laryngeal dyspnea, respiratory dysfunction or lower respiratory secretion retention, a postoperative wound can exist at the position of the tracheal skin of the neck of a patient after the tracheotomy, the postoperative wound can grow and close under external force extrusion, a device specially for closing the wound after the tracheotomy is absent at present, and the clinical practice usually adopts a band-aid or an adhesive tape for postoperative wound closing operation or a wound suturing mode for wound closing operation, but adopts the band-aid or the adhesive tape for postoperative wound closing operation, so that medical workers need to repeatedly replace the band-aid or the adhesive tape, thereby easily causing wound infection and increasing the workload of the medical workers; adopt the sutural mode of wound to carry out wound closure operation, strengthened patient's pain greatly on the one hand, the later stage still needs to go to the hospital and removes the line, and on the other hand relies on doctor's operation technique quite, sews up badly, and the scar that the later stage was left is very ugly, can cause psychological burden to the patient.
In order to solve the defects in the prior art, people have long-term exploration and provide various solutions: for example, the zipper-type band-aid (201921238990.7) and the tracheotomy sealing strip (201620240603.3) disclosed in the chinese patent documents both achieve the purpose of wound closure without injury after operation, but both devices are disposable, and there is no way to repeatedly open the device without destroying the device so that medical staff can observe the progress of wound closure and wound growth, and the medical staff can not apply medicine to the wound, and the practicability is poor.
Disclosure of Invention
In order to overcome the above defects in the prior art, an embodiment of the present invention provides an adjustable wound closure device after tracheotomy, so as to solve the problems that the existing wound closure device after tracheotomy is disposable, cannot be repeatedly opened without damaging the device, so that medical staff can observe the wound growth and closure progress, and the medical staff cannot apply medicine to the wound conveniently.
In order to solve the technical problems, the invention provides the following technical scheme:
an adjustable wound closing device after tracheotomy comprises a first soft rubber positioning adhesive plate, wherein a multi-specification press plate is detachably clamped on the right side of the first soft rubber positioning adhesive plate, a second soft rubber positioning adhesive plate which has the same structure as the first soft rubber positioning adhesive plate is detachably clamped on the right end of the multi-specification press plate, and adjustable closing binding bands are fixedly mounted on the top surfaces of the first soft rubber positioning adhesive plate and the second soft rubber positioning adhesive plate;
the first flexible glue positioning adhesive plate comprises a first flexible glue positioning adhesive sheet, the bottom surfaces of two support legs at the outer side of the first flexible glue positioning adhesive sheet are coated with a first adhesive sheet, the middle part of the bottom surface at the inner side of the first flexible glue positioning adhesive sheet is provided with a fastening clamping groove, and two corners of the bottom surface at the inner side are coated with second adhesive sheets positioned at two sides of the fastening clamping groove;
the multi-specification press-fit plate comprises a multi-specification soft rubber press-fit frame, buckling side lugs are formed on the left and right side of the multi-specification soft rubber press-fit frame, and a visual conveniently-detachable cover plate is detachably mounted in the middle of the multi-specification soft rubber press-fit frame;
the adjustable closed bandage comprises a positioning clamping plate, a nylon bandage is fixedly mounted on one side of the positioning clamping plate, and an adjustable buckle is detachably clamped at the movable end of the nylon bandage.
The positioning clamping plates, the nylon binding bands and the adjustable buckles are two in number, the positioning clamping plates and the nylon binding bands are fixedly installed on the top surfaces of the first soft rubber positioning adhesive plate and the second soft rubber positioning adhesive plate side by side, the positioning clamping plates are respectively arranged by two, the nylon binding bands and the two adjustable buckles are detachably connected, and the first soft rubber positioning adhesive plate is matched with the two nylon binding bands and the two adjustable buckles through the two positioning clamping plates and is movably connected with the second soft rubber positioning adhesive plate in a detachable mode.
Wherein, adjustable buckle includes the buckle seat, the both sides homogeneity of buckle seat top surface is formed with the location curb plate that is the symmetry and sets up, the middle part of buckle seat top surface is through two location curb plate movable mounting has the buckle of stirring, the middle part fixed mounting that stirs the buckle bottom surface with the barb buckle that the nylon bandage links to each other is colluded.
The positioning clamping plate and the adjustable buckle are both hard PP plastic components, the nylon binding band is woven by nylon tow mixed non-woven cotton yarns, and the nylon binding band is integrally paved and unfolded to form an isosceles trapezoid shape.
The multi-specification soft rubber press-fit frame and the buckling side lug are both made of medical-grade soft silica gel, and the middle part of the multi-specification soft rubber press-fit frame is provided with a medicine applying area in seamless joint with the visual easy-to-detach cover plate.
The visual easy-to-detach cover plate is matched with the two buckling and pressing side lugs through the multi-specification soft rubber press-fit frame and is detachably mounted between the first soft rubber positioning adhesive plate and the second soft rubber positioning adhesive plate.
Wherein, the visual easy-to-detach cover plate is made of a medical grade transparent silica gel plate.
Compared with the prior art, the technical scheme at least has the following beneficial effects:
in the above scheme, but flexible glue location adhesive plate one is through two nylon bandages of two location cardboard cooperations and two adjustable buckles and flexible glue location adhesive plate two for split type swing joint, flexible glue location adhesive plate one and flexible glue location adhesive plate two bond respectively in the both sides of postoperative wound, fix it through two nylon bandages of pulling and through two adjustable buckles, alright freely adjust the tension size of postoperative wound, let the wound independently closed, be favorable to the growth healing of postoperative wound, and adjustable buckle can repeatedly be opened and close, it observes the wound growth condition to have made things convenient for medical personnel's opening device, the practicality of device has been improved.
Simultaneously, visual just, tear apron open and cover in the postoperative wound department between flexible glue location adhesive sheet one and the flexible glue location adhesive sheet two through two withholding side ears of many specifications flexible glue pressfitting frame cooperation, many specifications flexible glue pressfitting frame all adopts medical grade soft silica gel preparation to form with withholding side ear, the region of applying medicine of seamless joint with visual just tearing apron is seted up at the middle part of many specifications flexible glue pressfitting frame, visual just, tear the apron and adopt medical grade transparent silica gel board preparation to form, the pressfitting guard shield that constitutes through visual just, tear the apron cooperation many specifications flexible glue pressfitting frame of just, cover the wound, wound infection has both been avoided, also made things convenient for personnel to observe the wound healing state, and visual just, tear the setting of apron open, made things convenient for medical personnel to carry out medical treatment on the medicine operation, improved the practicality of device.
Drawings

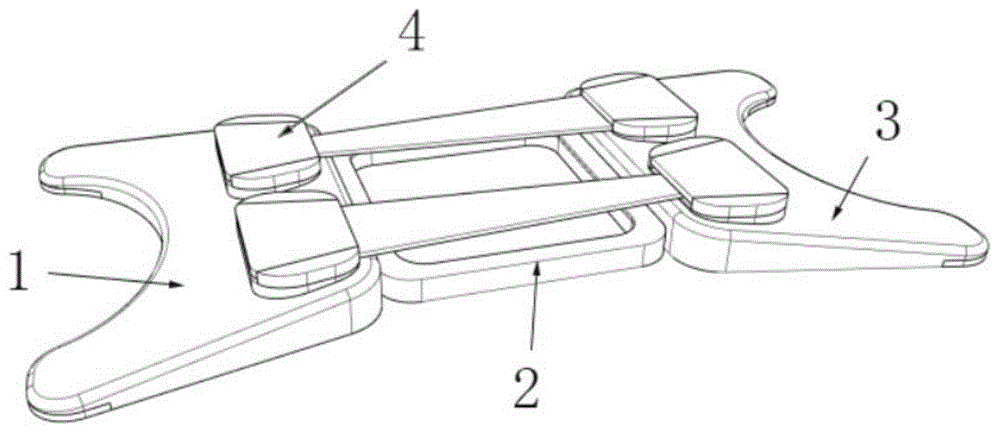

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of an adjustable closure strap configuration of the present invention;
FIG. 3 is a schematic view of the construction of the nylon strap of the present invention;
FIG. 4 is a schematic view of an adjustable buckle structure of the present invention;
FIG. 5 is a structural schematic view of the soft glue positioning adhesive plate of the present invention;
fig. 6 is a schematic structural view of the multi-specification laminated board of the present invention.
[ reference numerals ]
1. A first soft rubber positioning adhesive plate; 2. a multi-specification laminated board; 3. a second soft glue positioning adhesive plate; 4. an adjustable closure strap; 11. soft glue positioning paster; 12. a first adhesive sheet; 13. fastening the clamping groove; 14. a second adhesive sheet; 21. a multi-specification soft rubber press frame; 22. buckling and pressing the side lug; 23. the cover plate is convenient to disassemble; 41. positioning a clamping plate; 42. a nylon binding band; 43. an adjustable buckle; 431. a buckling seat; 432. positioning the side plate; 433. turning over the buckle plate; 434. a barb buckle plate.
Detailed Description
In order to make the technical problems, technical solutions and advantages of the present invention more apparent, the following detailed description is given with reference to the accompanying drawings and specific embodiments.
As shown in fig. 1 to 6, an embodiment of the invention provides an adjustable post-tracheotomy wound closure device, which comprises a first soft glue positioning adhesive plate 1, a multi-specification press plate 2 is detachably clamped on the right side of the first soft glue positioning adhesive plate 1, a second soft glue positioning adhesive plate 3 having the same structure as the first soft glue positioning adhesive plate 1 is detachably clamped on the right end of the multi-specification press plate 2, and adjustable closure straps 4 are fixedly mounted on the top surfaces of the first soft glue positioning adhesive plate 1 and the second soft glue positioning adhesive plate 3.
The first flexible glue positioning adhesive plate 1 comprises a flexible glue positioning adhesive sheet 11, adhesive sheets 12 are coated on the bottom surfaces of two support legs outside the flexible glue positioning adhesive sheet 11, a fastening clamping groove 13 is formed in the middle of the bottom surface inside the flexible glue positioning adhesive sheet 11, and adhesive sheets 14 located on two sides of the fastening clamping groove 13 are coated on two corners of the bottom surface inside the flexible glue positioning adhesive sheet 11.
The multi-specification press-fit plate 2 comprises a multi-specification soft rubber press-fit frame 21, the left and right side uniformity of the multi-specification soft rubber press-fit frame 21 is provided with buckling side lugs 22, and the middle part of the multi-specification soft rubber press-fit frame 21 is detachably provided with a visual conveniently-detachable cover plate 23.
The adjustable closed bandage 4 comprises a positioning clamping plate 41, a nylon bandage 42 is fixedly mounted on one side of the positioning clamping plate 41, and an adjustable buckle 43 is detachably clamped at the movable end of the nylon bandage 42.
As shown in fig. 2 to 4, the number of the positioning clamping plates 41, the nylon binding bands 42 and the adjustable buckles 43 is two, the two positioning clamping plates 41 and the two nylon binding bands 42 are respectively and fixedly mounted on the top surfaces of the first soft rubber positioning adhesive plate 1 and the second soft rubber positioning adhesive plate 3 and are distributed side by side, the two positioning clamping plates 41 are respectively detachably connected with the two adjustable buckles 43 through the two nylon binding bands 42, and the first soft rubber positioning adhesive plate 1 is detachably and movably connected with the second soft rubber positioning adhesive plate 3 through the two positioning clamping plates 41 in cooperation with the two nylon binding bands 42 and the two adjustable buckles 43; the adjustable buckle 43 comprises a buckle seat 431, wherein positioning side plates 432 which are symmetrically arranged are formed on the two side uniformity of the top surface of the buckle seat 431, a turning buckle plate 433 is movably arranged in the middle of the top surface of the buckle seat 431 through the two positioning side plates 432, and a barb buckle plate 434 hooked with the nylon binding band 42 is fixedly arranged in the middle of the bottom surface of the turning buckle plate 433; the positioning clamping plate 41 and the adjustable buckle 43 are both hard PP plastic components, the nylon binding band 42 is woven by nylon tow mixed non-woven cotton yarn, and the nylon binding band 42 is integrally tiled and unfolded to be in an isosceles trapezoid shape.
Specifically, but flexible glue location adhesive plate 1 is detachable fraction swing joint through two nylon bandage 42 of two location cardboards 41 cooperation and two adjustable buckle 43 and two flexible glue location adhesive plate 3, flexible glue location adhesive plate 1 and two 3 flexible glue location adhesive plate bond respectively in the both sides of postoperative wound, fix it through two nylon bandage 42 of pulling and through two adjustable buckle 43, alright freely adjust the tension size of postoperative wound, let the wound independently closed, be favorable to the growth healing of postoperative wound, and adjustable buckle 43 can repeatedly be opened and close, it observes the wound growth condition to have made things convenient for medical personnel's opening device, the practicality of device has been improved.
As shown in fig. 6, many specifications flexible glue pressfitting frame 21 all adopts the preparation of medical grade soft silica gel with withholding side ear 22 and forms, and the middle part of many specifications flexible glue pressfitting frame 21 is seted up with visual just tearing open the medicine application district of the seamless joint of apron 23, and visual just tearing open apron 23 is through two withholding side ears 22 demountable installation of many specifications flexible glue pressfitting frame 21 cooperation between flexible glue location adhesive sheet one 1 and flexible glue location adhesive sheet two 3, and visual just tearing open apron 23 adopts the preparation of medical grade transparent silica gel board to form.
Specifically, visual just, tear apron 23 open and detain through two cooperation of many specifications flexible glue pressfitting frame 21 and press the side ear 22 and cover in the postoperative wound department between flexible glue location adhesive sheet 1 and the flexible glue location adhesive sheet two 3, many specifications flexible glue pressfitting frame 21 all adopts medical grade soft silica gel preparation to form with detaining pressing side ear 22, the region of applying medicine of the seamless joint of visual just tearing apron 23 is seted up at the middle part of many specifications flexible glue pressfitting frame 21, visual just, tear apron 23 open and adopt medical grade transparent silica gel plate preparation to form, the pressfitting guard shield that constitutes through visual just, tear apron 23 open and cooperate many specifications flexible glue pressfitting frame 21 to cover the postoperative wound, wound infection has both been avoided, also made things convenient for medical staff to observe wound healing state, and visual just, the setting of tear apron 23 open, medical staff has made things convenient for the operation of adding medicine to the wound, the practicality of device has been improved.
The working process of the invention is as follows:
but flexible glue location adhesive sheet 1 is two nylon bandage 42 of two location cardboards 41 cooperations and two adjustable buckle 43 and flexible glue location adhesive sheet two 3 split type swing joint, flexible glue location adhesive sheet 1 and two 3 both sides that bond respectively in the postoperative wound of flexible glue location adhesive sheet, fix it through two nylon bandage 42 of pulling and through two adjustable buckle 43, alright freely adjust the tension size of postoperative wound, let the wound independently closed, be favorable to the growth healing of postoperative wound, and adjustable buckle 43 can repeatedly be opened and close, it observes the wound growth condition to have made things convenient for medical personnel's opening device, the practicality of device has been improved.
Visual just, tear apron 23 open and detain through two of many specifications flexible glue pressfitting frame 21 cooperations and press the side ear 22 and cover in the postoperative wound between flexible glue location adhesive sheet 1 and the flexible glue location adhesive sheet two 3, many specifications flexible glue pressfitting frame 21 all adopts medical grade soft silica gel preparation to form with detaining pressing side ear 22, the middle part of many specifications flexible glue pressfitting frame 21 is seted up with visual just, the dressing district of the seamless joint of apron 23 is torn open to the vision, visual just, tear apron 23 open and adopt medical grade transparent silica gel plate preparation to form, the pressfitting guard shield that constitutes through visual just, tear apron 23 cooperation many specifications flexible glue pressfitting frame 21 covers the postoperative wound, wound infection has both been avoided, also made things convenient for medical staff to observe the wound healing state, and visual just, the setting of apron 23 is torn open to the vision, medical staff has made things convenient for the wound operation of adding medicine, the practicality of device has been improved.
The points to be finally explained are: first, in the description of the present application, it should be noted that, unless otherwise specified and limited, the terms "mounted," "connected," and "connected" should be understood broadly, and may be a mechanical connection or an electrical connection, or a communication between two elements, and may be a direct connection, and "upper," "lower," "left," and "right" are only used to indicate a relative positional relationship, and when the absolute position of the object to be described is changed, the relative positional relationship may be changed;
secondly, the method comprises the following steps: in the drawings of the disclosed embodiments of the invention, only the structures related to the disclosed embodiments are referred to, other structures can refer to common designs, and the same embodiment and different embodiments of the invention can be combined with each other without conflict;
and finally: the above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the invention, and any modifications, equivalents, improvements and the like that are within the spirit and principle of the present invention are intended to be included in the scope of the present invention.
Claims (8)
