Abstract

The invention discloses a high-resilience and easily-bent sole, and relates to the technical field of shoes. The sole comprises a sole body, wherein the sole body comprises a front palm part and a rear heel part, the front palm part is provided with a high resilience piece, and the rear heel part is provided with a cushioning piece; the half sole of the front sole part is provided with a bending guide groove which runs through the side walls at two sides and the high resilience piece; the invention also discloses a pair of skipping rope shoes. The invention can be bent according to the posture of the foot when a user jumps a rope, thereby reducing the pressure on the foot.

Description

High-resilience and easy-bending sole and rope skipping shoes

technical field

The invention relates to the technical field of shoes, in particular to a high-resilience and easy-bending sole and rope skipping shoes.

Background technique

Rope skipping is a kind of exercise that is very popular among fitness people. There are many benefits of skipping rope for the human body: 1. The benefits of skipping rope, it can burn calories very well, and is an effective weight loss and fat loss exercise. 2. Rope skipping can enhance physical fitness and promote blood circulation at the same time. Rope skipping is beneficial to the strengthening of the body's respiratory system and circulatory system, which can increase lung capacity and improve the blood supply function of the heart. 3. Skipping rope can also enhance the hand-eye coordination function and exercise the coordination and sensitivity of the body. 4. Rope skipping can increase the body's mental metabolism and strengthen the function of blood vessels, so it has a good preventive effect on diseases. 5. Rope skipping is a systemic exercise, which can have a certain coordinated movement effect and exercise purpose for the upper limbs, lower limbs, waist and buttocks.

In order to better perform skipping, a pair of skipping shoes with suitable performance is necessary. The existing rope skipping shoes use a soft sole, which can buffer when the user skips rope, so as to protect the knee from impact injury. However, the existing rope skipping shoes still have certain defects. For example, since the foot posture is toe to the ground when skipping rope, the foot needs to be bent at a certain angle, so the sole also needs to be slightly bent. Existing shoes lack flex guides, which can create obstructive pressure on foot posture when skipping rope.

SUMMARY OF THE INVENTION

In order to solve at least one technical problem mentioned in the background art, the purpose of the present invention is to provide a high-resilience and easy-bending sole and rope skipping shoes, which can be bent according to the posture of the foot when the user skips rope, reducing the pressure on the feet.

To achieve the above object, the present invention provides the following technical solutions:

A high-resilience and easily bendable sole, comprising a sole body, the sole body comprising a forefoot and a rear heel, the forefoot is provided with a high-resilience member, and the rear heel is provided with a shock absorbing member; The palm part is provided with a bending guide groove penetrating through the side walls on both sides and the high resilience piece at one third of the sole.

Further, the cross section of the bending guide groove is in an inverted "V" shape.

Further, the sole body includes a midsole and an outsole; the outsole fully covers the midsole at the forefoot, and the outsole is retracted inward at the heel to expose the edge of the midsole.

Further, the midsole and the outsole are provided with a first through groove in the front palm for installing the high resilience piece, the bottom of the high resilience piece is flush with the bottom of the outsole, and the top extends upward. midsole.

Further, the midsole and the outsole are provided with a second through groove at the heel for installing the shock absorbing member, the bottom of the shock absorbing member is flush with the bottom of the outsole, and the top extends upward out of the midsole.

Further, the high resilience element is inclined toward the upper and front of the sole, and the shock absorbing element is inclined toward the upper and rear of the sole.

Further, the bottom of the outsole is provided with anti-slip texture.

A rope skipping shoe comprises an upper and the above-mentioned sole, and the upper is sewn on the sole.

Further, the shoe upper is provided with a shoe opening, and the front side of the shoe opening is provided with a tightening belt.

Compared with the prior art, the beneficial effects of the present invention are: when the user skips the rope, the present invention can adapt to the posture of the feet to bend, thereby reducing the pressure on the feet; The rebound and shock-absorbing members can provide a rebound effect, that is, a shock-absorbing effect, to protect the user's knee from impact damage.

Description of drawings

FIG. 1 is a schematic diagram of the structure of the bottom surface of the sole of the present invention.

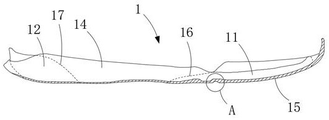

FIG. 2 is a schematic view of the side structure of the sole of the present invention.

FIG. 3 is a partial enlarged view of part A in FIG. 2 .

FIG. 4 is a schematic diagram of the shoe structure of the present invention.

In the figure: 1, sole body; 11, high resilience part; 12, cushioning part; 13, bending guide groove; 14, midsole; 15, outsole; 16, first through groove; 17, second through groove Slot; 2. Upper; 21. Mouth; 22. Tightening belt.

Detailed ways

The technical solutions in the embodiments of the present invention will be described clearly and completely below. Obviously, the described embodiments are only a part of the embodiments of the present invention, rather than all the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Example 1:

Please refer to FIG. 1 and FIG. 2 , the present embodiment provides a high-resilience and easily bendable sole, including a sole body 1, and the sole body 1 includes a forefoot and a heel, and the forefoot is provided with a high-resilience The elastic piece 11 is provided with a shock absorbing piece 12 on the heel part; the forefoot part is provided with a bending guide groove 13 penetrating the side walls on both sides and the high resilience piece at one third of the sole, so that when the user skips the rope, it can According to the posture of the toes on the ground, the forefoot can be more directly bent and guided, and it can be bent according to the posture of the feet to reduce the pressure on the feet.

It is worth mentioning that the resilient member 1 is made of high-resilience thermoplastic nylon elastomer microcellular foam material (MPEBA), which provides excellent resilience for rope skipping.

The shock absorbing member 12 adopts American Rogers shock absorbing material to provide better shock absorption for the heel.

As shown in Figures 2 and 3, the cross section of the bending guide groove is an inverted "V" shape, and the bottom is open, so that debris, dust and other debris are not easily accumulated in the groove during walking.

As shown in FIG. 1 and FIG. 2 , the sole body includes a midsole 14 and an outsole 15 from top to bottom; the outsole 15 fully covers the midsole 14 at the forefoot, and the outsole 15 faces toward the heel at the heel. The indentation exposes the edges of the midsole 14 .

In order to realize the installation of the resilient member 11 , the midsole 14 and the outsole 15 are provided with a first through groove 16 in the front palm for installing the high resilience member 11 . The bottom of the high resilience member 11 is connected to the The bottom of the outsole 15 is flush, and the top extends upward out of the midsole 14 .

Similarly, in order to realize the installation of the shock absorbing member 12 , the midsole 14 and the outsole 15 are provided with a second through groove 17 at the heel portion for installing the shock absorbing member 12 . The bottom of the outsole 15 is flush, and the top extends upward out of the midsole 14 .

The opening of the first through grooves 16 and the second through grooves 17 makes the bottom of the outsole 15 have two openings, and the outsole 15 has an "8"-shaped structure.

In this embodiment, the high-resilience member 11 is inclined toward the upper and front of the sole, and the shock absorbing member 12 is inclined toward the upper and rear of the sole. The pressure can act on the high-resilience member 11 and the shock-absorbing member 12, and the two are inclined in opposite directions. Since the shapes of the first through groove 16 and the second through-groove 17 are respectively similar to the high-resilience member 11 and the shock-absorbing member 12 Adaptation, when the high-resilience member 11 and the shock-absorbing member 12 are deformed, the stability of the overall structure of the shoe can be enhanced instead, and degumming is less likely to occur.

The bottom of the outsole 15 is also provided with an anti-slip texture, which is not easy to shift and slip.

Embodiment 2:

As shown in FIG. 4 , this embodiment provides a rope skipping shoe, which includes an upper 2 and the sole described in the first embodiment, and the upper 2 is sewn on the sole body 1 . The heel of the rope skipping shoes is set with thickened foam to prevent the feet from falling off during the jumping process.

In this embodiment, the shoe upper 2 is provided with a shoe opening 21 , and the front side edge of the shoe opening 21 is provided with a tightening belt 22 .

The tightening straps 22 are inclined at the instep so as to better fit the shoe tongue. The upper adopts a highly breathable cross-check mesh design, which is easy to wick away sweat. The tongue is designed with a swaddle structure to minimize foreign body sensation.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, but that the present invention may be embodied in other specific forms without departing from the spirit or essential characteristics of the invention. Therefore, the embodiments are to be regarded in all respects as illustrative and not restrictive, and the scope of the invention is defined by the appended claims rather than the foregoing description, which are therefore intended to fall within the scope of the appended claims. All changes within the meaning and scope of the equivalents of , are included in the present invention.

Claims (9)

1. A high-resilience and easy-bending sole comprises a sole body, wherein the sole body comprises a front sole part and a rear heel part, and is characterized in that the front sole part is provided with a high-resilience piece, and the rear heel part is provided with a cushioning piece; the half sole of the front sole part is provided with a bending guide groove which runs through the side walls on the two sides and the high resilience piece.

2. The high resilience and easy bending sole according to claim 1, wherein the cross section of the bending guide groove is inverted "V".

3. The high resilience and easy bending sole according to claim 1, wherein the sole body comprises a mid sole and an outsole; the big sole covers the insole in the front of the sole, and the big sole retracts inwards at the heel part to expose the edge of the insole.

4. The high resilience and easy-bending sole according to claim 3, wherein the midsole and the outsole are provided with a first through groove at the front sole for mounting the high resilience member, the bottom of the high resilience member is flush with the bottom of the outsole, and the top of the high resilience member extends upwards to form the midsole.

5. The high-resilience and easy-bending sole according to claim 3 or 4, wherein the midsole and the outsole are provided with a second through groove for mounting the cushioning member at the heel part, the bottom of the cushioning member is flush with the bottom of the outsole, and the top of the cushioning member extends upwards to form the midsole.

6. A high resilience resilient sole according to claim 5, wherein the high resilience member is inclined towards the upper front of the sole and the cushioning member is inclined towards the upper rear of the sole.

7. The high resilience and easy bending sole according to claim 1, wherein the bottom of the outsole is provided with anti-slip textures.

8. A skipping rope shoe, comprising an upper and a sole as claimed in any one of claims 1 to 7, the upper being stitched to the sole.

9. The skipping rope shoe of claim 8, wherein said upper is provided with a welt, and a tightening strip is provided along the edge of the front side of said welt.
