Abstract
本发明涉及一种电厂用电气二次控制柜的清灰装置，包括柜体，所述柜体的右侧面安装有壳体，所述柜体与壳体之间设置有连接组件，所述壳体的内部设置有清理组件，所述壳体的右端卡接有集尘盒，所述集尘盒与壳体之间设置有一组卡接组件，所述集尘盒的内部设置有过滤组件。本设备通过卡槽、压板、滑杆、卡块和集尘盒的配合设置，向下按动压板能够带动两个滑杆向下移动，滑杆移动能够带动卡块向下移动，卡块的左端将脱离卡槽的内部，然后向右拽动就能够将集尘盒进行拆卸，从而能够便于对集尘盒内部的灰尘进行清理，进而在过滤结构与壳体设置了卡接结构，避免过滤结构出现松动的情况，提高了清灰装置的密封性。
The invention relates to an ash cleaning device for an electrical secondary control cabinet used in a power plant, comprising a cabinet body, a casing is installed on the right side of the cabinet body, and a connection component is arranged between the cabinet body and the casing, and the The interior of the casing is provided with a cleaning assembly, the right end of the casing is clamped with a dust collecting box, a set of clamping assemblies is disposed between the dust collecting box and the casing, and a filter assembly is disposed inside the dust collecting box . This equipment is set by the cooperation of the card slot, the pressure plate, the sliding rod, the clamping block and the dust collecting box. Pressing the pressure plate downward can drive the two sliding rods to move down, and the movement of the sliding rod can drive the clamping block to move down. The left end will be separated from the inside of the card slot, and then the dust box can be disassembled by pulling it to the right, so that the dust inside the dust box can be easily cleaned, and then the filter structure and the shell are provided with a clamping structure to avoid filtering The looseness of the structure improves the sealing performance of the cleaning device.
Description
Technical Field
The invention relates to the field of control cabinets, in particular to a dust cleaning device of an electric secondary control cabinet for a power plant.
Background
The control cabinet is formed by assembling switch equipment, measuring instruments, protective electrical appliances and auxiliary equipment in a closed or semi-closed metal cabinet or on a screen according to the electrical wiring requirements, and the arrangement of the control cabinet meets the requirements of normal operation of an electric power system, is convenient to overhaul and does not endanger the safety of people and surrounding equipment.
After the control cabinet is used for a long time, dust is easily accumulated in the control cabinet, normal operation of electronic elements is influenced, and a dust cleaning device needs to be installed to clean dust in the control cabinet.
The prior patent document (application number: 202021555399.7) discloses an ash removal device for an electrical secondary control cabinet, which adsorbs dust in the cabinet through the rotation of a fan, so as to provide guarantee for the normal operation of the cabinet and achieve the effect of adsorbing the dust.
According to the existing patent document, a clamping structure is not arranged between the filtering structure and the shell, the filtering structure is easy to loosen and fall off, and the sealing performance is low.
Therefore, a dust removing device for an electrical secondary control cabinet for a power plant is needed to solve the technical problems.
Disclosure of Invention
The invention provides a dust removing device of an electric secondary control cabinet for a power plant, aiming at solving the technical problems in the prior art that a clamping structure is not arranged between a filtering structure and a shell, the filtering structure is easy to loosen and fall off, and the sealing performance is low.
The technical scheme for solving the technical problems is as follows: the utility model provides a deashing device of power plant's electric secondary control cabinet, includes the cabinet body, the casing is installed to the right flank of the cabinet body, be provided with coupling assembling between the cabinet body and the casing, the inside of casing is provided with the clearance subassembly, the right-hand member joint of casing has the dust collection box, be provided with a set of joint subassembly between dust collection box and the casing, the inside of dust collection box is provided with filtering component.
Preferably, in the ash removal device for the electrical secondary control cabinet for a power plant, a group of first baffles arranged equidistantly is fixedly connected to the inner wall of the housing, and the first baffles are located on the left side of the inner wall of the housing.
Preferably, foretell ash removal device of electrical secondary switch board for power plant, wherein coupling assembling includes the installation piece, installation piece fixed connection is in the surface of casing, the inside sliding connection of installation piece has the bolt, the left end of bolt runs through the installation piece and extends to the left side of installation piece, and the right flank threaded connection of installation piece and the cabinet body.
Preferably, the ash removal device of above-mentioned electrical secondary control cabinet for power plant, wherein the clearance subassembly includes the motor, motor fixed connection is in the inner wall of casing, the flabellum is installed to the output of motor.
Preferably, foretell ash removal device of electrical secondary control cabinet for power plant, wherein the joint subassembly includes two draw-in grooves and spring, two the inner wall of casing is all seted up to the draw-in groove, spring fixed connection is in the surface of dust collection box, the one end fixedly connected with clamp plate of dust collection box is kept away from to the spring, the clamp plate is close to two slide bars of a side fixedly connected with of dust collection box, every the one end that the slide bar is close to the dust collection box runs through the surface of dust collection box and extends to the inside of dust collection box, and slide bar and dust collection box sliding connection, every the slide bar is close to the equal fixedly connected with fixture block of one end of dust collection box, and the left end joint of fixture block is in the inside of draw-in groove.
Preferably, the ash removal device of the electrical secondary control cabinet for the power plant comprises a filter assembly, a dust collection box and a dust removal device, wherein the filter assembly comprises a set of second baffles, a filter sponge and two chutes, each second baffle is fixedly connected to the inner wall of the dust collection box, and the filter sponge is slidably connected to the inside of the dust collection box.
Preferably, foretell ash removal device of electrical secondary switch board for power plant, wherein two the inner wall of dust-collecting box is all seted up to the spout, every the inside sliding connection of spout has L type draw runner, and filters the sponge joint in the inside of L type draw runner, the left side of filtering the sponge is equipped with the brace, the right flank and two of brace the equal fixed connection of left end of L type draw runner.
The invention has the beneficial effects that: this equipment passes through the draw-in groove, the clamp plate, the slide bar, the cooperation setting of fixture block and dust collection box, press the clamp plate downwards, the clamp plate downstream can drive two slide bars downstream, the slide bar removes and can drive the fixture block downstream, the left end of fixture block will break away from the inside of draw-in groove, then drag the clamp plate right, the clamp plate removes and can drive slide bar and dust collection box and remove right, just can dismantle the dust collection box, thereby can be convenient for clear up the inside dust of dust collection box, and then set up the joint structure at filtration and casing, avoid the not hard up condition to appear in filtration, the leakproofness of ash removal device has been improved.
Drawings

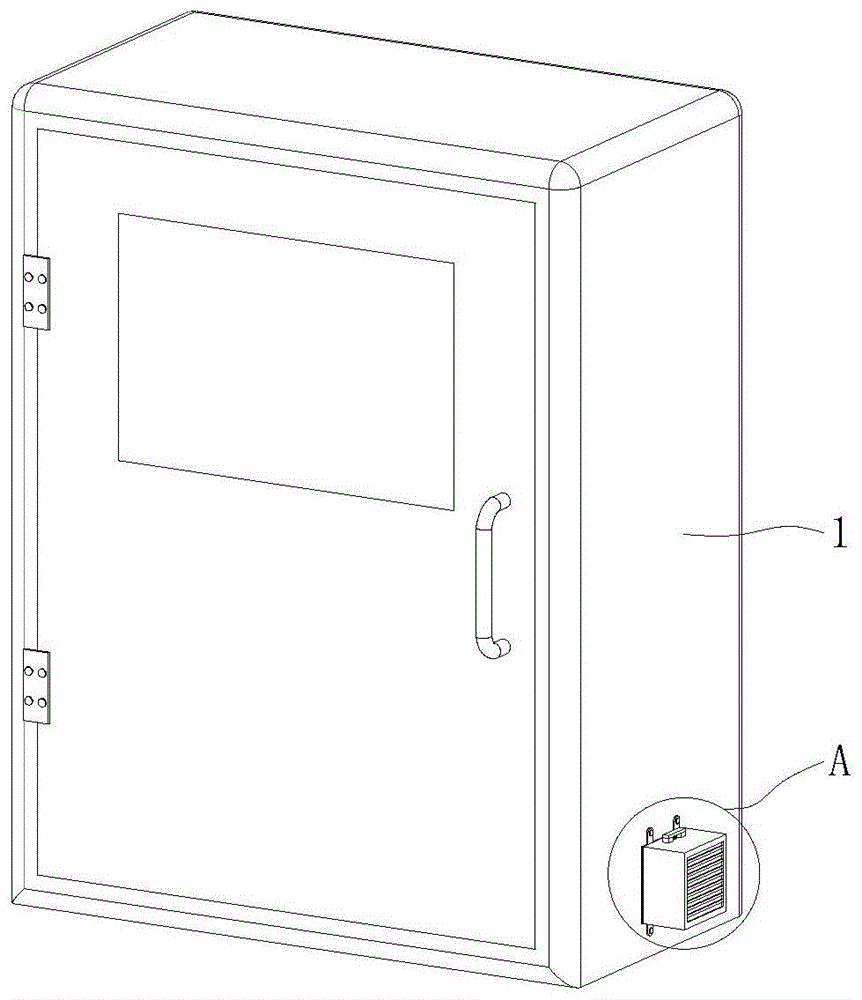

FIG. 1 is a schematic front view of a three-dimensional structure according to the present invention;
FIG. 2 is a schematic right-view of the ash removal device of the present invention;
FIG. 3 is a schematic left-side view of the ash removal device of the present invention;
FIG. 4 is a schematic perspective view of a filter sponge according to the present invention;
FIG. 5 is an enlarged view of the structure at A in FIG. 1 according to the present invention.
In the drawings, the components represented by the respective reference numerals are listed below:
1. a cabinet body; 2. a housing; 3. cleaning the assembly; 301. a motor; 302. a fan blade; 4. a dust collecting box; 5. a clamping assembly; 501. a card slot; 502. a spring; 503. pressing a plate; 504. a slide bar; 505. a clamping block; 6. a connecting assembly; 601. mounting a sheet; 602. a bolt; 7. a filter assembly; 701. a second baffle; 702. filtering the sponge; 703. a chute; 704. an L-shaped slider; 705. bracing; 8. a first baffle.
Detailed Description
The principles and features of this invention are described below in conjunction with the following drawings, which are set forth by way of illustration only and are not intended to limit the scope of the invention.
Referring to fig. 1, a dust cleaning device of electric secondary control cabinet for power plant, includes the cabinet body 1, and casing 2 is installed to the right flank of the cabinet body 1, utilizes casing 2 can clear up the dust of the cabinet body 1 inside.
Referring to fig. 5, a connection assembly 6 is arranged between the cabinet body 1 and the housing 2, the connection assembly 6 includes a mounting piece 601, the mounting piece 601 is fixedly connected to the outer surface of the housing 2, and a bolt 602 is slidably connected to the inside of the mounting piece 601.
The left end of bolt 602 runs through mounting piece 601 and extends to the left side of mounting piece 601, is provided with the screw hole on the right flank of cabinet body 1, and the left end of bolt 602 and the inner wall threaded connection of screw hole.
Here, the cabinet 1 and the case 2 can be fixed by the screw holes, the mounting pieces 601, and the bolts 602.
Referring to fig. 2, a cleaning assembly 3 is arranged inside the housing 2, the cleaning assembly 3 includes a motor 301, the motor 301 is fixedly connected to the inner wall of the housing 2, and fan blades 302 are mounted at the output end of the motor 301.
Here, the motor 301 is activated, the motor 301 is operated to drive the fan blades 302 to rotate, and the air mixed with dust inside the cabinet 1 can be drawn into the inside of the housing 2 by the rotating fan blades 302.
Referring to fig. 3, a group of first baffles 8 arranged equidistantly is fixedly connected to the inner wall of the housing 2, and the first baffles 8 are positioned on the left side of the inner wall of the housing 2.
The first baffle 8 can prevent sundries in the cabinet 1 from being sucked into the shell 2 during ash removal, and prevent damage to the rotating fan blades 302.
Referring to fig. 2 and 3, a dust collecting box 4 is clamped at the right end of the housing 2, a set of clamping components 5 is arranged between the dust collecting box 4 and the housing 2, and the dust collecting box 4 can be fixed at the right side of the housing 2 by the aid of the clamping components 5.
Referring to fig. 2, the clamping assembly 5 includes two clamping grooves 501 and a spring 502, wherein the two clamping grooves 501 are both opened on the inner wall of the housing 2, and the positions of the two clamping grooves 501 are symmetrical.
Referring to fig. 3, the spring 502 is fixedly connected to the outer surface of the dust collecting box 4, one end of the spring 502 far away from the dust collecting box 4 is fixedly connected with the pressing plate 503, and the outer surface of the pressing plate 503 is provided with anti-slip threads.
One side of the pressing plate 503 close to the dust box 4 is fixedly connected with two sliding rods 504, one end of each sliding rod 504 close to the dust box 4 penetrates through the outer surface of the dust box 4 and extends into the dust box 4, and the sliding rods 504 are connected with the dust box 4 in a sliding manner.
A latch 505 is fixedly connected to one end of each sliding rod 504 close to the dust collection box 4, and the left end of the latch 505 is latched inside the latching groove 501.
When the dust collection box 4 needs to be disassembled, the pressing plate 503 is pressed downwards, the pressing plate 503 moves downwards to drive the two sliding rods 504 to move downwards, the sliding rods 504 move to drive the clamping blocks 505 to move downwards, the left ends of the clamping blocks 505 are separated from the inner parts of the clamping grooves 501, then the pressing plate 503 is pulled rightwards, the pressing plate 503 moves to drive the sliding rods 504 and the dust collection box 4 to move rightwards, and then the dust collection box 4 can be disassembled.
Referring to fig. 2, a filter assembly 7 is disposed inside the dust box 4, the filter assembly 7 includes a set of second baffles 701, a filter sponge 702 and two chutes 703, and each second baffle 701 is fixedly connected to an inner wall of the dust box 4.
Referring to fig. 3, the filter sponge 702 is slidably connected to the inside of the dust box 4, and the right side surface of the filter sponge 702 is attached to the left side surface of the second barrier 701.
Two symmetrical sliding grooves 703 are formed in the inner wall of the dust collection box 4, and an L-shaped sliding strip 704 is connected to the inside of each sliding groove 703 in a sliding manner.
The filtering sponge 702 is clamped between the two L-shaped sliding bars 704, the right side surface of the filtering sponge 702 is contacted with the right side wall of the L-shaped sliding bars 704, and a brace 705 is arranged at the left end of the L-shaped sliding bars 704.
When the filtering sponge 702 needs to be taken out, the pull strip 705 is pulled leftwards, the pull strip 705 moves to drive the two L-shaped slide bars 704 to slide in the sliding groove 703 and move leftwards, the L-shaped slide bars 704 move to drive the filtering sponge 702 to move leftwards, and then the filtering sponge 702 can be taken out.
The working principle is as follows: when the device is used, firstly, the motor 301 is started, the motor 301 can drive the fan blades 302 to rotate when working, air mixed with dust in the cabinet body 1 can be drawn into the dust collection box 4 through the shell 2 by utilizing the rotating fan blades 302, then the dust can be filtered by utilizing the filtering sponge 702 arranged in the dust collection box 4, the dust is collected in the dust collection box 4, when the dust in the dust collection box 4 needs to be cleaned, the pressing plate 503 is pressed downwards, the pressing plate 503 moves downwards to drive the two sliding rods 504 to move downwards, the sliding rods 504 move to drive the clamping block 505 to move downwards, the left end of the clamping block 505 is separated from the inside of the clamping groove 501, then the pressing plate 503 is pulled rightwards, the pressing plate 503 moves to drive the sliding rods 504 and the dust collection box 4 to move rightwards, the dust collection box 4 can be detached, and the dust in the dust collection box 4 can be cleaned conveniently, and then set up the joint structure at filtration and casing 2, avoided the not hard up condition to appear in filtration, improved ash removal device's leakproofness.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "left", "right", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, are only for convenience in describing the present invention and simplifying the description, and do not indicate or imply that the referred device or element must have a specific orientation and a specific orientation configuration and operation, and thus, should not be construed as limiting the present invention. Furthermore, "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless otherwise specified.
In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and the like are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be directly connected or indirectly connected through an intermediate member, or they may be connected through two or more elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.
While one embodiment of the present invention has been described in detail, the description is only a preferred embodiment of the present invention and should not be taken as limiting the scope of the invention. All equivalent changes and modifications made within the scope of the present invention shall fall within the scope of the present invention.
Claims (7)
1. The utility model provides a deashing device of power plant's electric secondary control cabinet, includes the cabinet body (1), its characterized in that: casing (2) are installed to the right flank of the cabinet body (1), be provided with coupling assembling (6) between the cabinet body (1) and casing (2), the inside of casing (2) is provided with clearance subassembly (3), the right-hand member joint of casing (2) has dust collection box (4), be provided with a set of joint subassembly (5) between dust collection box (4) and casing (2), the inside of dust collection box (4) is provided with filtering component (7).
2. The ash removal device for the electric secondary control cabinet for the power plant according to claim 1, characterized in that: the inner wall of the shell (2) is fixedly connected with a group of first baffles (8) which are arranged equidistantly, and the first baffles (8) are positioned on the left side of the inner wall of the shell (2).
3. The ash removal device for the electric secondary control cabinet for the power plant according to claim 1, characterized in that: coupling assembling (6) are including installation piece (601), installation piece (601) fixed connection is in the surface of casing (2), the inside sliding connection of installation piece (601) has bolt (602), the left end of bolt (602) runs through installation piece (601) and extends to the left side of installation piece (601), and the right flank threaded connection of installation piece (601) and the cabinet body (1).
4. The ash removal device for the electric secondary control cabinet for the power plant according to the claim cabinet body (1), characterized in that: clearance subassembly (3) include motor (301), motor (301) fixed connection is in the inner wall of casing (2), flabellum (302) are installed to the output of motor (301).
5. The ash removal device for the electric secondary control cabinet for the power plant according to claim 1, characterized in that: the clamping assembly (5) comprises two clamping grooves (501) and a spring (502), wherein the two clamping grooves (501) are formed in the inner wall of the shell (2), the spring (502) is fixedly connected to the outer surface of the dust collection box (4), one end, far away from the dust collection box (4), of the spring (502) is fixedly connected with a pressing plate (503), one side face, close to the dust collection box (4), of the pressing plate (503) is fixedly connected with two sliding rods (504), one end, close to the dust collection box (4), of each sliding rod (504) penetrates through the outer surface of the dust collection box (4) and extends into the dust collection box (4), each sliding rod (504) is in sliding connection with the dust collection box (4), one end, close to the dust collection box (4), of each sliding rod (504) is fixedly connected with a clamping block (505), and the left end of each clamping block (505) is clamped in the clamping groove (501).
6. The ash removal device for the electric secondary control cabinet for the power plant according to claim 1, characterized in that: the filtering component (7) comprises a group of second baffles (701), a filtering sponge (702) and two sliding grooves (703), each second baffle (701) is fixedly connected to the inner wall of the dust collection box (4), and the filtering sponge (702) is connected to the inside of the dust collection box (4) in a sliding mode.
7. The ash removal device for the electric secondary control cabinet for the power plant as claimed in claim 6, wherein: the two sliding grooves (703) are arranged on the inner wall of the dust collection box (4), an L-shaped sliding strip (704) is connected to the inner portion of each sliding groove (703) in a sliding mode, the filtering sponge (702) is clamped inside the L-shaped sliding strip (704), a brace (705) is arranged on the left side of the filtering sponge (702), and the right side face of the brace (705) is fixedly connected with the left ends of the two L-shaped sliding strips (704).
