The invention relates to the technical field of yarn drying, in particular to textile yarn conduction drying equipment which comprises a bearing plate, a guide unit, a drying unit, a traction unit and a wool absorption unit, wherein the guide unit and the drying unit are installed on the right side of the bearing plate, the traction unit is installed on the left side of the bearing plate, and the wool absorption unit is installed at the lower end of the drying unit; secondly, when the dryer dries the textile yarn, the wool on the textile yarn is blown up frequently, and the wool floats in the air, which affects the working environment.
Description
Technical Field
The invention relates to the technical field of yarn drying, in particular to a textile yarn conduction drying device.
Background
The yarn is a textile and can be used for weaving, rope making, thread making and embroidery, after the textile yarn is processed, in order to remove dust stained on the textile yarn, the textile yarn needs to be cleaned, and after the cleaning, moisture attached to the textile yarn can influence subsequent processing.
However, the following problems exist in the drying operation process of the textile yarns at present, firstly, the textile yarns are generally hung on a frame in a manual mode at present, then a dryer is used for drying the textile yarns, and the textile yarns are not dried thoroughly due to the mutual close contact of the textile yarns, so that moisture still remains on the yarns, and the subsequent processing of the textile yarns is influenced; secondly, when the dryer dries the textile yarn, the wool on the textile yarn is blown up frequently, and the wool floats in the air, which affects the working environment.
Disclosure of Invention
In order to solve the technical problem, the invention provides a textile yarn conduction drying device which comprises a bearing plate, a guide unit, a drying unit, a traction unit and a wool absorption unit, wherein the guide unit and the drying unit are installed on the right side of the bearing plate, the traction unit is installed on the left side of the bearing plate, and the wool absorption unit is installed at the lower end of the drying unit.
The drying unit comprises an L-shaped frame, a drying circular tube, a U-shaped arc plate, an air pump, a T-shaped air outlet circular tube, an arc circular tube, a drying circular tube and an electric heating wire, the back and forth symmetrical L-shaped frames are arranged at the right end of the bearing plate, the L-shaped frames are connected through a drying circular tube, a plurality of U-shaped arc plates are uniformly arranged at the upper end of the drying circular tube from left to right, heating wires are arranged on the inner walls of the U-shaped arc plates along the tracks of the U-shaped arc plates, an air pump is arranged at the rear side of the right end of the bearing plate, the output end of the air pump is connected with a T-shaped air outlet circular tube, the upper end of the T-shaped air outlet circular tube penetrates through the L-shaped frame at the rear end of the bearing plate and is uniformly provided with an arc-shaped circular tube from left to right, and one side of the arc-shaped circular tube, which is close to the U-shaped arc plate, is uniformly provided with a plurality of drying circular tubes along the circumferential direction, and the drying circular tube penetrates through the U-shaped arc plate, so that comprehensive drying operation can be performed on the textile yarns, and the drying efficiency and quality of the textile yarns are improved.
The hair absorbing unit comprises a hair absorbing frame, an L-shaped plate, a rolling motor, a rotary round shaft, a tape roll, a rolling round roller, an anti-skidding spring rod, a T-shaped block, a filter screen, a bearing round rod and a bearing round roller, wherein the hair absorbing frame communicated with the drying round pipe is arranged at the lower end of the drying round pipe, a plurality of bearing round rods are uniformly arranged between the inner walls of the front end and the rear end of the hair absorbing frame from left to right, the bearing round rollers are arranged on the bearing round rods in a rotating fit manner, the filter screen is arranged on the lower side of the inner wall of the hair absorbing frame, the L-shaped plates are symmetrically arranged on the left side and the right side of the outer wall of the front end of the hair absorbing frame, the rotary round shaft is arranged at the rear end of the L-shaped plate in a rotating fit manner, the rolling motor is arranged at the front end of the L-shaped plate at the right end of the hair absorbing frame through a motor base, an output shaft of the rolling motor is connected with the front end of the rotary round shaft, T-shaped grooves are symmetrically arranged at the front end and the rear end of the rotary round shaft, the anti-skidding spring rod is arranged on the inner wall of the T-shaped groove, install T type piece on the anti-skidding spring lever, and T type piece is installed at T type inslot through sliding fit's mode, be located and install the sticky tape book on the rotatory circle of the L template of wool sucking frame left end, be located and install rolling circle roller on the rotatory circle of rolling motor output, and the sticky tape on the sticky tape book runs through wool sucking frame and connects on rolling circle roller, sticky tape book lower extreme supports tightly on bearing circle roller, rolling circle roller, sticky tape book and T type piece use of mutually supporting, can adsorb the batting that produces when drying textile yarn.
As a preferred technical scheme of the invention, the guide unit comprises a square rod, a connecting rod, a square frame, a butt joint spring rod, a U-shaped frame, a positioning round rod and a butt joint wheel, a plurality of groups of square frames are arranged in the drying circular tube from left to right, each group of square frames comprises a plurality of square frames which are evenly distributed along the circumferential direction of the drying circular tube and a square frame which is superposed with the central line of the drying circular tube, connect through the connecting rod between the square frame with stoving pipe central line coincidence and the other square frame, be connected through the square pole between the square frame that the position leaned on most and the stoving pipe, the butt joint spring beam is installed to the symmetry on the square frame inner wall, is connected through U form frame between the butt joint spring beam on the same inner wall of square frame, installs the location pole through normal running fit's mode on the U form frame opposite face, is connected through the docking wheel between the location pole, can stabilize the transport operation to weaving yarn.
As a preferred technical scheme of the invention, the traction unit comprises a positioning plate, a telescopic cylinder, a sliding frame, a traction circular tube, a collecting box, a water outlet pipe, a traction rod, an auxiliary rod and a traction circular ring, wherein the left end of the bearing plate is provided with a sliding groove, the positioning plate is arranged on the bearing plate at the right side of the sliding groove, the telescopic cylinder is arranged at the left side of the positioning plate, the output end of the telescopic cylinder is provided with the sliding frame through a flange, the sliding frame is arranged in the sliding groove in a sliding fit manner, the upper end of the sliding frame is provided with the traction circular tube, the lower end of the traction circular tube is uniformly provided with a plurality of water outlet pipes from left to right, the collecting box is arranged on the sliding frame at the lower side of the traction circular tube, the collecting box and the water outlet pipes are mutually matched for use, a plurality of groups of traction circular rings are arranged in the traction circular tube from left to right, each group of traction circular rings comprises a plurality of traction circular rings uniformly distributed along the circumferential direction of the traction circular tube and one traction circular ring superposed with the central line of the traction circular tube, the traction circular ring which is superposed with the central line of the traction circular pipe is connected with the rest traction circular rings through the auxiliary rod, and the traction circular ring which is positioned at the most upper position is connected with the traction circular pipe through the traction rod, so that the stable traction operation can be carried out on the textile yarns.
As a preferred technical scheme of the invention, the right end of the traction round pipe is connected with the left end of the drying round pipe through the shutter round pipe so as to adjust the distance between the traction round pipe and the drying round pipe.
As a preferable technical scheme of the invention, the height difference exists between the left and right adjacent traction rings, so that the textile yarns are prevented from being wound together.
As a preferable technical scheme of the invention, the height difference exists between the left and right adjacent square frames, so that the heating area of the textile yarns is increased.
As a preferable technical scheme of the invention, the inner wall of the drying circular pipe is symmetrically provided with closed circular plates at left and right sides, and the closed circular plates are provided with circular through holes, so that textile yarns can be prevented from being wound together.
As a preferable technical scheme of the invention, the bearing circular roller between the inner walls of the front end and the rear end of the hair absorbing frame is in an inverted V shape as a whole, so that the adsorption area of the adhesive tape is increased.
The invention has the beneficial effects that: 1. the drying unit and the guide unit are designed to heat air into hot air through the electric heating wires, so that yarns are dried, the height difference exists between the butting wheels, and textile yarns pass through the butting wheels staggered in height, so that the heating area of the textile yarns is increased, the hot air can be uniformly sprayed on the yarns, and the yarns can be thoroughly dried.
2. The traction unit and the wool absorption unit are designed to traction the textile yarns through the traction circular rings which are staggered in height, the phenomenon that the textile yarns are wound together is avoided, and the wool fibers generated during drying of the textile yarns are absorbed through the adhesive tapes, so that the wool fibers are not scattered in the air, and the working environment is protected.
Drawings
The invention is further illustrated with reference to the following figures and examples.

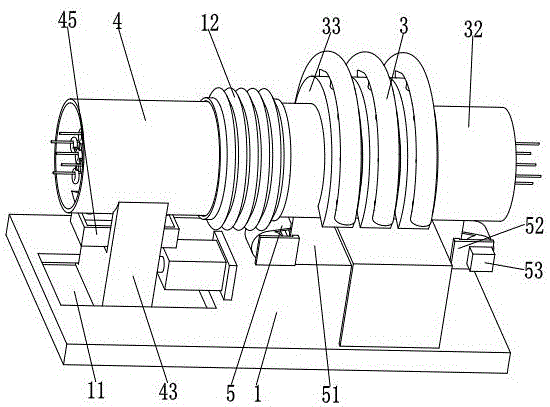

Fig. 1 is a perspective view of the present invention.
Fig. 2 is a top view of fig. 1 of the present invention.
Fig. 3 is a sectional view taken along line a-a of fig. 2 in accordance with the present invention.
Fig. 4 is a sectional view taken along line B-B of fig. 2 in accordance with the present invention.
Fig. 5 is a cross-sectional view taken along line C-C of fig. 2 of the present invention.
Fig. 6 is a partial cross-sectional view of the hair-plucking unit of the present invention.
Fig. 7 is a schematic view of the construction of the traction unit of the present invention.
Fig. 8 is a schematic structural view of a drying unit according to the present invention.
Fig. 9 is a partial cross-sectional view of a guide unit of the present invention.
Fig. 10 is an enlarged view of the invention at M of fig. 9.
In the figure: 1. a support plate; 11. a chute; 12. a shutter round tube; 2. a guide unit; 21. a square bar; 22. a connecting rod; 23. a square frame; 24. butting the spring rods; 25. a U-shaped frame; 26. positioning the round rod; 27. a docking wheel; 3. a drying unit; 31. an L-shaped frame; 32. drying the round tube; 33. a U-shaped arc plate; 34. an air pump; 35. a T-shaped air outlet circular pipe; 36. an arc-shaped circular tube; 37. drying the round tube; 38. an electric heating wire; 39. closing the circular plate; 391. round perforation; 4. a traction unit; 41. positioning a plate; 42. a telescopic cylinder; 43. a carriage; 44. dragging the circular tube; 45. a collection box; 46. a water outlet pipe; 47. a draw bar; 48. an auxiliary lever; 49. a traction ring; 5. a hair suction unit; 51. a hair absorbing frame; 52. an L-shaped plate; 53. a winding motor; 54. rotating the circular shaft; 541. a T-shaped groove; 55. an adhesive tape roll; 56. a winding round roller; 57. an anti-skid spring bar; 58. a T-shaped block; 59. filtering with a screen; 510. supporting the round rod; 511. and bearing the round roller.
Detailed Description
The embodiments of the invention will be described in detail below with reference to the drawings, but the invention can be implemented in many different ways as defined and covered by the claims.
Referring to fig. 1 and 3, a textile yarn conduction drying device includes a supporting plate 1, a guiding unit 2, a drying unit 3, a traction unit 4 and a wool absorption unit 5, wherein the guiding unit 2 and the drying unit 3 are installed on the right side of the supporting plate 1, the traction unit 4 is installed on the left side of the supporting plate 1, and the wool absorption unit 5 is installed at the lower end of the drying unit 3.
Referring to fig. 3, 4 and 7, the traction unit 4 includes a positioning plate 41, a telescopic cylinder 42, a sliding bracket 43, a traction circular tube 44, a collection box 45, a water outlet pipe 46, a traction rod 47, an auxiliary rod 48 and a traction circular ring 49, the left end of the support plate 1 is provided with a sliding slot 11, the positioning plate 41 is arranged on the support plate 1 at the right side of the sliding slot 11, the telescopic cylinder 42 is arranged at the left side of the positioning plate 41, the sliding bracket 43 is arranged at the output end of the telescopic cylinder 42 through a flange, the sliding bracket 43 is arranged in the sliding slot 11 through a sliding fit manner, the traction circular tube 44 is arranged at the upper end of the sliding bracket 43, the plurality of water outlet pipes 46 are uniformly arranged at the lower end of the traction circular tube 44 from left to right, the collection box 45 is arranged at the lower side of the traction circular tube 44 on the sliding bracket 43, the collection box 45 and the water outlet pipes 46 are matched with each other for use, a plurality of groups of traction circular rings 49 are arranged in the traction circular tube 44 from left to right, each group of traction rings 49 comprises a plurality of traction rings 49 evenly distributed along the circumferential direction of the traction circular tube 44 and one traction ring 49 coinciding with the central line of the traction circular tube 44, the traction rings 49 coinciding with the central line of the traction circular tube 44 are connected with the rest traction rings 49 through auxiliary rods 48, the traction ring 49 positioned at the most upper position is connected with the traction circular tube 44 through a traction rod 47, and a height difference exists between the left and right adjacent traction rings 49.
During specific work, the artifical weaving yarn that uses current traction equipment after will wasing pulls and passes traction unit 4 in proper order, guide unit 2 and drying unit 3 are connected on current weaving yarn rolling equipment, when weaving yarn rolling equipment carries out the rolling operation to the weaving yarn that runs through behind the traction ring 49, the weaving yarn carries out the extrusion operation on the crisscross traction ring 49 of height, traction ring 49 extrudes the moisture in the weaving yarn, the water of extruding in the weaving yarn flows into collection box 45 through outlet pipe 46, can carry out preliminary extrusion drying operation to the weaving yarn.
Referring to fig. 5 and 8, the drying unit 3 includes an L-shaped frame 31, a circular drying tube 32, a U-shaped arc plate 33, an air pump 34, a T-shaped circular air outlet tube 35, a circular arc tube 36, a circular drying tube 37, and heating wires 38, the L-shaped frame 31 is symmetrically installed at the front and back of the right end of the supporting plate 1, the L-shaped frame 31 is connected with the circular drying tube 32, a plurality of U-shaped arc plates 33 are uniformly installed at the upper end of the circular drying tube 32 from left to right, the heating wires 38 are installed on the inner wall of the U-shaped arc plate 33 along the track, the air pump 34 is installed at the rear side of the right end of the supporting plate 1, the output end of the air pump 34 is connected with the circular T-shaped air outlet tube 35, the circular drying tube 35 penetrates through the L-shaped frame 31 at the rear end of the supporting plate 1 and uniformly installs the circular arc tube 36 from right, and the circular drying tube 37 is uniformly installed at the side of the circular arc tube 36 close to the U-shaped arc plate 33 along the circumferential direction, and the circular drying tube 37 penetrates through the U-shaped arc plate 33, the inner wall of the drying circular pipe 32 is symmetrically provided with a closed circular plate 39 from left to right, and the closed circular plate 39 is provided with a circular perforation 391.
The right end of the traction round tube 44 is connected with the left end of the drying round tube 32 through the shutter round tube 12.
Referring to fig. 9 and 10, the guiding unit 2 includes a square bar 21, a connecting rod 22, a square frame 23, a butt spring bar 24, a U-shaped frame 25, a positioning round bar 26 and a butt wheel 27, a plurality of sets of square frames 23 are arranged in the drying round tube 32 from left to right, each set of square frames 23 includes a plurality of square frames 23 uniformly arranged along the circumferential direction of the drying round tube 32 and a square frame 23 coinciding with the center line of the drying round tube 32, the square frames 23 coinciding with the center line of the drying round tube 32 are connected with the other square frames 23 through the connecting rod 22, the square frame 23 positioned at the top is connected with the drying round tube 32 through the square bar 21, the butt spring bars 24 are symmetrically installed on the inner walls of the square frames 23, the butt spring bars 24 on the same inner walls of the square frames 23 are connected through the U-shaped frame 25, the positioning round bar 26 is installed on the opposite surface of the U-shaped frame 25 through a rotation fit manner, the positioning round rods 26 are connected with each other through butting wheels 27.
Referring to fig. 3, the adjacent left and right square frames 23 have a height difference.
During specific work, textile yarns penetrate through gaps between the butting wheels 27 in the same square frame 23, and when the textile yarns penetrating through the gaps of the butting wheels 27 are wound by the textile yarn winding device, the butting wheels 27 conduct stable guiding on the textile yarns under the buffering effect of the butting spring rods 24.
During specific work, when the tightness of the spinning yarns needs to be adjusted, the telescopic cylinder 42 is started to drive the sliding frame 43 to move, the sliding frame 43 drives the traction circular tube 44 to move, the traction circular tube 44 pulls or extrudes the louver circular tube 12, the traction circular tube 44 drives the traction circular ring 49 to move through the traction rod 47 and the auxiliary rod 48, the tightness of the spinning yarns on the traction circular ring 49 and the butt-joint wheel 27 is adjusted, and convenience is brought to the drying operation of the spinning yarns.
When the textile yarn passes through the round perforation 391 and the drying round tube 37, the heating wire 38 is started, the air pump 34 is started to blow air to the surface of the heating wire 38 through the T-shaped air outlet round tube 35, the arc-shaped round tube 36 and the drying round tube 37, the heating wire 38 heats the air, the drying round tube 37 blows the heated air to the surface of the textile yarn to dry the textile yarn, the butt joint wheel 27 with staggered height and the drying round tube 37 are arranged evenly, comprehensive drying operation can be performed on the textile yarn, and the drying efficiency and the quality of the textile yarn are improved.
Referring to fig. 3 and 6, the fur absorbing unit 5 includes a fur absorbing frame 51, L-shaped plates 52, a winding motor 53, a rotating circular shaft 54, an adhesive tape roll 55, a winding circular roller 56, an anti-slip spring rod 57, a T-shaped block 58, a filter screen 59, a supporting circular rod 510 and a supporting circular roller 511, the lower end of the drying circular pipe 32 is provided with the fur absorbing frame 51 communicated with the drying circular pipe, a plurality of supporting circular rods 510 are uniformly installed between the inner walls of the front and rear ends of the fur absorbing frame 51 from left to right, the supporting circular rods 510 are provided with the supporting circular roller 511 in a rotation fit manner, the supporting circular rollers 511 are integrally inverted V-shaped, the filter screen 59 is installed on the lower side of the inner wall of the fur absorbing frame 51, the L-shaped plates 52 are symmetrically installed on the left and right sides of the outer wall of the front end of the fur absorbing frame 51, the rotating circular shaft 54 is installed on the rear end of the L-shaped plates 52 in a rotation fit manner, and the front end of the L52 at the right end of the fur absorbing frame 51 is provided with the winding motor 53 through a motor base, an output shaft of the winding motor 53 is connected with the front end of the rotary circular shaft 54, the front end and the rear end of the outer wall of the rotary circular shaft 54 are symmetrically provided with T-shaped grooves 541, anti-skid spring rods 57 are installed on the inner walls of the T-shaped grooves 541, T-shaped blocks 58 are installed on the anti-skid spring rods 57 and in the T-shaped grooves 541 in a sliding fit mode, adhesive tape rolls 55 are installed on the rotary circular shaft 54 on the L-shaped plate 52 at the left end of the hair absorbing frame 51, winding circular rollers 56 are installed on the rotary circular shaft 54 at the output end of the winding motor 53, adhesive tapes on the adhesive tape rolls 55 penetrate through the hair absorbing frame 51 and are connected to the winding circular rollers 56, the lower ends of the adhesive tape rolls 55 abut against the bearing circular rollers 511, and the winding circular rollers 56, the adhesive tape rolls 55 and the T-shaped blocks 58 are matched with one another.
During specific work, when the air pump 34 blows the gas of heating to the textile yarn surface through the dry circular tube 37, start winding motor 53 and make it drive rotatory round axle 54 and slowly rotate, rotatory round axle 54 drives the slow rotation of rolling circle roller 56, rolling circle roller 56 drives the sticky tape and supports tightly on bearing circle roller 511, rolling circle roller 56 drives sticky tape book 55 and slowly rotates, because there is the batting on the textile yarn surface, under hot-blast blowing, the batting on textile yarn surface floats to the sticky tape, collect the batting on textile yarn surface through the sticky tape, repeat the above-mentioned operation, can carry out conduction stoving operation to the textile yarn in succession.
When in work: the first step is as follows: the cleaned textile yarn is drawn by the existing drawing device to pass through the drawing unit 4, the guide unit 2 and the drying unit 3 in sequence and then is connected to the existing textile yarn winding device.
The second step is that: when the textile yarn winding device winds the textile yarns penetrating through the traction circular rings 49, water in the textile yarns is extruded out through the traction circular rings 49 which are staggered in height, and the water extruded out of the textile yarns is collected through the water outlet pipe 46 and the collecting box 45.
The third step: textile yarns penetrate through gaps between the butting wheels 27 in the same square frame 23, and when the textile yarns penetrating through the gaps of the butting wheels 27 are wound by the textile yarn winding device, the butting wheels 27 stably guide the textile yarns under the buffering action of the butting spring rods 24.
The fourth step: when the tightness of the textile yarns needs to be adjusted, the telescopic cylinder 42 drives the traction rod 47 and the traction ring 49 to move through the sliding frame 43 and the traction circular tube 44, the tightness of the textile yarns on the traction ring 49 and the butt-joint wheel 27 is adjusted, and convenience is brought to the drying operation of the textile yarns.
The fifth step: when the textile yarn passes through the round perforation 391 and the drying round tube 37, the heating wire 38 is started, the air pump 34 blows air to the surface of the heating wire 38, and the heated air blows to the surface of the textile yarn to dry the textile yarn, so that the drying efficiency and the quality of the textile yarn are improved.
And a sixth step: when the air pump 34 blows heated air to the surface of the textile yarn through the drying circular tube 37, the winding motor 53 winds the adhesive tape through the rotating circular shaft 54 and the winding circular roller 56, and the winding circular roller 56 drives the adhesive tape to be tightly abutted to the supporting circular roller 511.
The seventh step: because there is the fibre on the weaving yarn surface, under the blowing of hot-blast, the fibre on weaving yarn surface floats on the sticky tape, collects the fibre on weaving yarn surface through the sticky tape, repeats above-mentioned operation, can carry out conduction stoving operation to the weaving yarn in succession.
The above description is only a preferred embodiment of the present invention, and is not intended to limit the present invention, and it will be apparent to those skilled in the art that various modifications and variations can be made in the present invention; any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (8)
1. The utility model provides a weaving yarn conduction drying equipment, includes bearing board (1), guide unit (2), drying unit (3), traction unit (4) and inhale hair unit (5), its characterized in that: a guide unit (2) and a drying unit (3) are installed on the right side of the bearing plate (1), a traction unit (4) is installed on the left side of the bearing plate (1), and a hair absorbing unit (5) is installed at the lower end of the drying unit (3); wherein:
the drying unit (3) comprises an L-shaped frame (31), a drying round pipe (32), U-shaped arc plates (33), an air pump (34), a T-shaped air outlet round pipe (35), arc-shaped round pipes (36), drying round pipes (37) and heating wires (38), the L-shaped frame (31) is symmetrically installed around the right end of the bearing plate (1), the L-shaped frame (31) is connected with the drying round pipe (32), the upper end of the drying round pipe (32) is uniformly installed with the U-shaped arc plates (33) from left to right, the heating wires (38) are installed on the inner wall of the U-shaped arc plates (33) along the track of the U-shaped arc plates, the air pump (34) is installed on the rear side of the right end of the bearing plate (1), the output end of the air pump (34) is connected with the T-shaped air outlet round pipe (35), the upper end of the T-shaped air outlet round pipe (35) penetrates through the L-shaped frame (31) at the rear end of the bearing plate (1) and is uniformly installed with the arc-shaped round pipe (36) from left to right, a plurality of drying circular pipes (37) are uniformly arranged on one side, close to the U-shaped arc plate (33), of the arc circular pipe (36) along the circumferential direction of the arc circular pipe, and the drying circular pipes (37) penetrate through the U-shaped arc plate (33);
the hair absorbing unit (5) comprises a hair absorbing frame (51), L-shaped plates (52), a winding motor (53), a rotating circular shaft (54), an adhesive tape roll (55), a winding circular roller (56), an anti-skidding spring rod (57), T-shaped blocks (58), a filter screen (59), a bearing circular rod (510) and a bearing circular roller (511), wherein the hair absorbing frame (51) communicated with the drying circular pipe (32) is arranged at the lower end of the drying circular pipe (32), a plurality of bearing circular rods (510) are uniformly arranged between the inner walls of the front end and the rear end of the hair absorbing frame (51) from left to right, the bearing circular rods (510) are provided with the bearing circular roller (511) in a rotation fit mode, the filter screen (59) is arranged on the lower side of the inner wall of the hair absorbing frame (51), the L-shaped plates (52) are symmetrically arranged on the left side and the right side of the outer wall of the front end of the hair absorbing frame (51), and the rotating circular shaft (54) is arranged at the rear end of the L-shaped plates (52) in a rotation fit mode, and the front end of the L-shaped plate (52) positioned at the right end of the hair absorbing frame (51) is provided with a rolling motor (53) through a motor base, the output shaft of the rolling motor (53) is connected with the front end of a rotary round shaft (54), the front end and the rear end of the outer wall of the rotary round shaft (54) are symmetrically provided with T-shaped grooves (541), the inner wall of each T-shaped groove (541) is provided with an anti-skid spring rod (57), the anti-skid spring rod (57) is provided with a T-shaped block (58), the T-shaped block (58) is arranged in the T-shaped groove (541) in a sliding fit mode, an adhesive tape roll (55) is arranged on a rotary circular shaft (54) on the L-shaped plate (52) at the left end of the hair absorbing frame (51), a winding circular roller (56) is arranged on the rotary circular shaft (54) at the output end of the winding motor (53), the adhesive tape on the adhesive tape roll (55) penetrates through the hair absorbing frame (51) and is connected to the winding round roller (56), and the lower end of the adhesive tape roll (55) is tightly propped against the bearing round roller (511).
2. A textile yarn conduction drying apparatus as claimed in claim 1, wherein: the guiding unit (2) comprises square rods (21), connecting rods (22), square frames (23), butt joint spring rods (24), U-shaped frames (25), positioning round rods (26) and butt joint wheels (27), a plurality of groups of square frames (23) are arranged in the drying round tubes (32) from left to right, each group of square frames (23) comprises a plurality of square frames (23) which are uniformly distributed along the circumferential direction of the drying round tubes (32) and a square frame (23) which coincides with the central line of the drying round tubes (32), the square frames (23) which coincide with the central line of the drying round tubes (32) are connected with the rest square frames (23) through the connecting rods (22), the square frame (23) which is the most leaned on is connected with the drying round tubes (32) through the square rods (21), the butt joint spring rods (24) are symmetrically arranged on the inner walls of the square frames (23), the butt joint spring rods (24) on the same inner walls of the square frames (23) are connected through the U-shaped frames (25), and the opposite surfaces of the U-shaped frames (25) are provided with positioning round rods (26) in a rotating fit mode, and the positioning round rods (26) are connected through butting wheels (27).
3. A textile yarn conduction drying apparatus as claimed in claim 1, wherein: the traction unit (4) comprises a positioning plate (41), a telescopic cylinder (42), a sliding frame (43), a traction round pipe (44), a collection box (45), water outlet pipes (46), a traction rod (47), an auxiliary rod (48) and a traction ring (49), wherein the left end of the bearing plate (1) is provided with a sliding groove (11), the positioning plate (41) is arranged at the position, which is positioned at the right side of the sliding groove (11), on the bearing plate (1), the telescopic cylinder (42) is arranged at the left side of the positioning plate (41), the sliding frame (43) is arranged at the output end of the telescopic cylinder (42) through a flange, the sliding frame (43) is arranged in the sliding groove (11) in a sliding fit manner, the traction round pipe (44) is arranged at the upper end of the sliding frame (43), the lower end of the traction round pipe (44) is uniformly provided with the plurality of water outlet pipes (46) from left to right, the collection box (45) is arranged at the position, which is positioned at the lower side of the traction round pipe (44) on the sliding frame (43), and collecting box (45) and outlet pipe (46) use mutually in coordination, the interior left side of drawing pipe (44) is turned right and is arranged multiunit and draw ring (49), every group draws ring (49) including a plurality of draw ring (49) and one with drawing the traction ring (49) that pipe (44) circumference evenly arranged, draw ring (49) with drawing pipe (44) central line coincidence between be connected through auxiliary rod (48) with drawing between pipe (44) central line coincidence and the other traction ring (49), draw ring (49) and draw between pipe (44) and pass through traction lever (47) connection that the position leanest on.
4. A textile yarn conduction drying apparatus as claimed in claim 3, wherein: the right end of the traction round tube (44) is connected with the left end of the drying round tube (32) through the shutter round tube (12).
5. A textile yarn conduction drying apparatus as claimed in claim 3, wherein: the height difference exists between the left and right adjacent traction rings (49).
6. A textile yarn conduction drying apparatus as claimed in claim 2, wherein: the adjacent square frames (23) at the left and the right have a height difference.
7. A textile yarn conduction drying apparatus as claimed in claim 1, wherein: the inner wall of the drying circular pipe (32) is symmetrically provided with a closed circular plate (39) in the left-right direction, and the closed circular plate (39) is provided with a circular through hole (391).
8. A textile yarn conduction drying apparatus as claimed in claim 1, wherein: the bearing circular roller (511) between the inner walls of the front end and the rear end of the hair sucking frame (51) is in an inverted V shape as a whole.
