Abstract

本说明书一个或多个实施例提供一种多角度头部艾灸仪，包括箱体，箱体左右两端分别连接有左固定件和右固定件，箱体上端连接有上固定件，左固定件、右固定件和上固定件末端端部分别连接有外罩，箱体前端连接有前罩，左固定件、右固定件和上固定件内部埋设有连接管，同时前罩、外罩内分别设有驱动件，驱动件的活动端连接有艾柱架，通过驱动件带动艾柱架向外横移伸出，以更换艾柱，驱动件带动艾柱架向内横移，以抵接软管，通过左固定件、右固定件和上固定件构成的框架，戴套以抵接头部艾灸使用，艾烟经由软管、管接头、连接管，向箱体汇集排出，无需艾灸的部分，可便捷相应的连接阀关闭，以封闭导通连接，减少冗余的除烟管道。

Figure 202111512638

One or more embodiments of this specification provide a multi-angle head moxibustion instrument, which includes a box body, left and right ends of the box body are respectively connected with a left fixing piece and a right fixing piece, the upper end of the box body is connected with an upper fixing piece, and the left fixing piece is connected to the box body. The outer cover is connected to the end parts of the box body, the right fixing piece and the upper fixing piece respectively, the front end of the box is connected with a front cover, the left fixing piece, the right fixing piece and the upper fixing piece are embedded with connecting pipes, and the front cover and the outer cover are respectively provided with There is a driving part, and the movable end of the driving part is connected with a moxa column frame, and the moxa post frame is driven by the driving part to move laterally out to replace the moxa post, and the driving part drives the moxa post frame to move inwardly to abut the hose , through the frame composed of the left fixing piece, the right fixing piece and the upper fixing piece, wear a sleeve to abut the joint for moxibustion, and the moxa smoke is collected and discharged to the box through the hose, pipe joint and connecting pipe, and the part that does not need moxibustion , the corresponding connection valve can be conveniently closed to close the conduction connection and reduce redundant smoke removal pipes.

Figure 202111512638

Description

Multi-angle head moxibustion instrument
Technical Field
One or more embodiments of this description relate to moxibustion equipment technical field, especially relate to a multi-angle head moxibustion instrument.
Background
The existing moxibustion is usually large in size, needs to be held by a user or other people for moxibustion treatment, and is particularly inconvenient to use when multiple acupuncture points of the head are subjected to physical therapy.
Disclosure of Invention
In view of the above, an object of one or more embodiments of the present disclosure is to provide a multi-angle head moxibustion instrument, which is directed to solving all or one of the problems of the background art.
In view of the above objects, one or more embodiments of the present specification provide a multi-angle head moxibustion instrument, including:
the box body, the left and right ends of the box body are respectively connected with a left fixing piece and a right fixing piece, the upper end of the box body is connected with an upper fixing piece, the tail end parts of the left fixing piece, the right fixing piece and the upper fixing piece are respectively connected with an outer cover, the front end of the box body is connected with a front cover, connecting pipes are embedded in the left fixing piece, the right fixing piece and the upper fixing piece, the left and right ends, the upper end and the front end of the box body are respectively connected with a connecting valve, wherein the connecting valves positioned at the left and right ends and the upper end of the box body are connected with the connecting pipes, the connecting valves positioned at the front end of the box body penetrate into the front cover and are connected with a front pipe joint, and one end of the front pipe joint is connected with a hose;
the side pipe joint is arranged in the outer cover, one end of the side pipe joint is connected with the connecting pipe, and the other end of the side pipe joint is connected with the hose;
the driving piece is respectively arranged in the front cover and the outer cover, the movable end of the driving piece is connected with a moxa column frame which is used for being installed in a moxa column clamping way, the moxa column frame is driven to move inwards in a transverse way by the driving piece, and the moxa column frame is connected with a smoke removing hose in a butting way;
the outer cylinder cover is movably connected to the opening at the tail end of the front cover and the opening at the tail end of the outer cover respectively, and an anti-scalding net is covered on the outer side face of the outer cylinder cover and used for abutting against head moxibustion.
Preferably, the moxa column frame comprises an inner cylinder, a steel nail frame is fixed at one end of the inner cylinder and used for fixedly inserting the moxa column, an inner cylinder cover is movably clamped at the other end of the inner cylinder cover, a moxa column cover is fixed on the inner side of the inner cylinder cover and used for covering the limiting moxa column, and the movable end of the driving piece is fixed on the outer side wall of the inner cylinder.
Preferably, the outer side wall of the inner barrel is provided with a first L-shaped clamping groove, the inner side wall of the inner barrel cover is provided with a first circular limiting head, and the first circular limiting head is slidably inserted into the first L-shaped clamping groove and rotationally clamped.
Preferably, the inner side wall of the outer cylinder cover is provided with a second circular limiting head, the outer side walls of the tail ends of the front cover and the outer cover are provided with second L-shaped clamping grooves, and the second L-shaped clamping grooves are slidably inserted into the second L-shaped clamping grooves through the second circular limiting head and are rotationally clamped.
Preferably, the driving member adopts a motor slide block module.
Preferably, the connecting valve is a stainless steel ball valve.
Preferably, the rear end of the box body is provided with a smoke outlet for connecting with external smoking equipment.
Preferably, a filter screen is arranged at the smoke outlet.
From the above, it can be seen that a multi-angle head moxibustion instrument provided by one or more embodiments of the present disclosure is provided, in which a case is provided, a left fixing member and a right fixing member are respectively connected to left and right ends of the case, an upper fixing member is connected to an upper end of the case, an outer cover is respectively connected to end portions of the left fixing member, the right fixing member and the upper fixing member, a front cover is connected to a front end of the case, connecting pipes are embedded in the left fixing member, the right fixing member and the upper fixing member, connecting valves are connected to left and right ends, upper ends and front ends of the case, and are communicated with the case and controlled to be communicated with the case, wherein the connecting valves at the left and right ends and upper ends of the case are connected to the connecting pipes, the connecting valves at the front end of the case penetrate into the front cover and are connected to a front pipe joint, one end of the front pipe joint is connected to the connecting pipes, and the other end of the side pipe joint is also connected to the hoses, meanwhile, driving pieces are respectively arranged in the front cover and the outer cover, the movable end of the driving piece is connected with a moxa cone frame for clamping the moxa cones, the openings at the tail ends of the front cover and the outer cover are respectively movably connected with an outer cylinder cover, an anti-scald net is covered on the outer side surface of the outer cylinder cover, therefore, when in use, the movable outer cylinder cover is taken down, and the driving piece is controlled to drive the moxa cone frame to move transversely outwards and extend out of the moxa cone frame, the moxa cone is clamped and connected by the replacing assembly, the moxa cone frame is driven to move inwards and transversely by the driving piece to be communicated with the abutting hose, the outer cylinder cover is buckled, the frame composed of the left fixing piece, the right fixing piece and the upper fixing piece is conveniently worn and sleeved on the head, used by abutting against the head part for moxibustion, the produced moxa smoke is collected and discharged to the box body through the hose, the pipe joint and the connecting pipe without the moxibustion part, the corresponding connecting valve can be conveniently closed to close the conducting connection, and redundant smoke removal pipelines are reduced.
Drawings
In order to more clearly illustrate one or more embodiments or prior art solutions of the present specification, the drawings that are needed in the description of the embodiments or prior art will be briefly described below, and it is obvious that the drawings in the following description are only one or more embodiments of the present specification, and that other drawings may be obtained by those skilled in the art without inventive effort from these drawings.

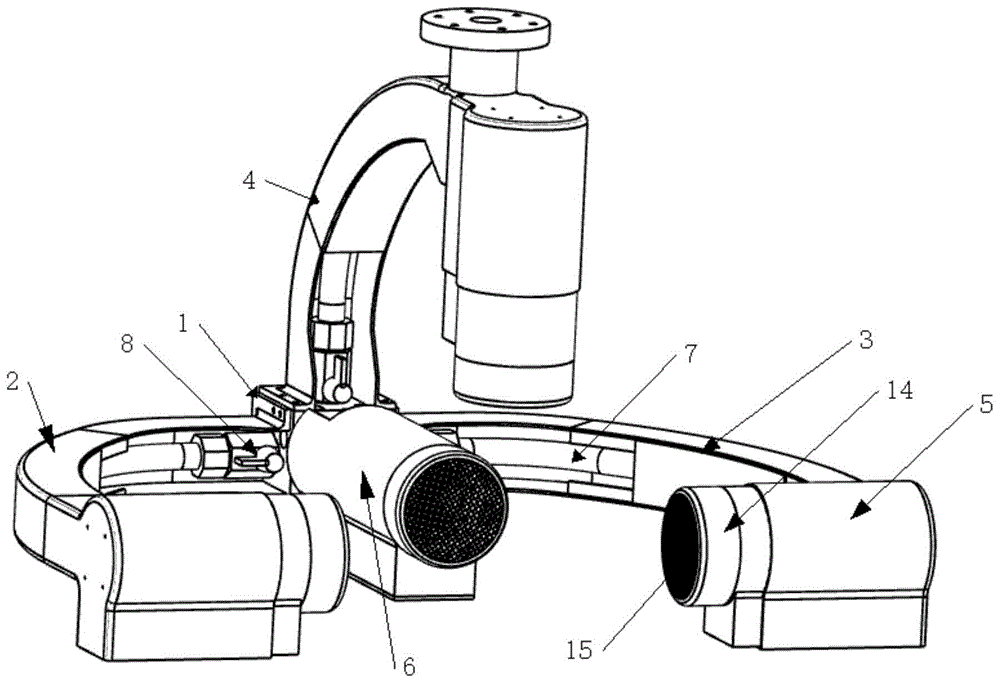

FIG. 1 is a schematic structural diagram of an embodiment of the present invention;
FIG. 2 is an exploded view of an embodiment of the present invention;
FIG. 3 is a schematic structural diagram of an outer cylinder cover according to an embodiment of the present invention;
FIG. 4 is a schematic structural view of a connecting valve according to an embodiment of the present invention;
FIG. 5 is a schematic structural diagram of an inner cylinder cover according to an embodiment of the present invention;
FIG. 6 is a schematic structural view of an upper fixing member according to an embodiment of the present invention;
FIG. 7 is a schematic structural view of an inner barrel according to an embodiment of the present invention;
FIG. 8 is a schematic structural view of an enclosure according to an embodiment of the present invention;
FIG. 9 is a schematic structural view of a moxa cone holder according to an embodiment of the present invention;
FIG. 10 is a schematic structural diagram of a connecting tube according to an embodiment of the present invention;
FIG. 11 is a schematic structural diagram of a case according to an embodiment of the present invention;
FIG. 12 is a schematic structural diagram of a filter screen according to an embodiment of the present invention;
FIG. 13 is a schematic structural view of an edge joint according to an embodiment of the present invention;
fig. 14 is a schematic structural view of a front pipe joint according to an embodiment of the present invention.
In the figure: 1. a box body; 2. a left securing member; 3. a right fixed member; 4. an upper fixing member; 5. a housing; 6. a front cover; 7. a connecting pipe; 8. a connecting valve; 9. a front pipe joint; 10. a hose; 11. a side pipe joint; 12. a drive member; 13. a moxa cone frame; 131. an inner barrel; 1311. a steel nail rack; 132. an inner cylinder cover; 133. a moxa cone cover; 14. an outer cylinder cover; 15. an anti-scald net; 16. a first L-shaped slot; 17. a first circular spacing head; 18. a second circular limiting head; 19. a second L-shaped slot; 20. a smoke outlet; 21. and (4) a filter screen.
Detailed Description
To make the objects, technical solutions and advantages of the present disclosure more apparent, the present disclosure is further described in detail below with reference to specific embodiments.
It is to be noted that unless otherwise defined, technical or scientific terms used in one or more embodiments of the present specification should have the ordinary meaning as understood by those of ordinary skill in the art to which this disclosure belongs. The use of "first," "second," and similar terms in one or more embodiments of the specification is not intended to indicate any order, quantity, or importance, but rather is used to distinguish one element from another. The word "comprising" or "comprises", and the like, means that the element or item listed before the word covers the element or item listed after the word and its equivalents, but does not exclude other elements or items. The terms "connected" or "coupled" and the like are not restricted to physical or mechanical connections, but may include electrical connections, whether direct or indirect. "upper", "lower", "left", "right", and the like are used merely to indicate relative positional relationships, and when the absolute position of the object being described is changed, the relative positional relationships may also be changed accordingly.
A multi-angle head moxibustion instrument is shown in figures 1 to 14 and comprises a box body 1, wherein the left end and the right end of the box body 1 are respectively connected with a left fixing piece 2 and a right fixing piece 3, the upper end of the box body 1 is connected with an upper fixing piece 4, the tail end parts of the left fixing piece 2, the right fixing piece 3 and the upper fixing piece 4 are respectively connected with an outer cover 5, the front end of the box body 1 is connected with a front cover 6, connecting pipes 7 are embedded in the left fixing piece 2, the right fixing piece 3 and the upper fixing piece 4, the left end, the right end, the upper end and the front end of the box body 1 are respectively connected with connecting valves 8, the connecting valves 8 positioned at the left end, the right end and the upper end of the box body 1 are connected with the connecting pipes 7, the connecting valves 8 positioned at the front end of the box body 1 penetrate through the front cover 6 and are connected with a front pipe joint 9, one end of the front pipe joint 9 is connected with a hose 10, a side pipe joint 11 is arranged in the outer cover 5, one end of the side pipe joint 11 is connected with the connecting pipe 7, the other end is connected with a hose 10, be equipped with driving piece 12 in front shroud 6, the dustcoat 5 respectively, the expansion end of driving piece 12 is connected with moxa column frame 13 for pack into moxa column joint, drive moxa column frame 13 inside sideslip through driving piece 12 to 10 intercommunication smoke abatement of butt hose, front shroud 6, 5 end opening part of dustcoat respectively swing joint have outer cover 14, 14 lateral surfaces upper covers of outer cover are equipped with prevents scalding net 15, for the first moxa-moxibustion of butt.
The invention is characterized in that a box body 1 is arranged, the left and right ends of the box body 1 are respectively connected with a left fixing piece 2 and a right fixing piece 3, the upper end of the box body 1 is connected with an upper fixing piece 4, the tail end parts of the left fixing piece 2, the right fixing piece 3 and the upper fixing piece 4 are respectively connected with an outer cover 5, the front end of the box body 1 is connected with a front cover 6, connecting pipes 7 are embedded in the left fixing piece 2, the right fixing piece 3 and the upper fixing piece 4, the left and right ends, the upper end and the front end of the box body 1 are respectively connected with connecting valves 8 to be communicated with the box body 1 and control the communication, wherein the connecting valves 8 positioned at the left and right ends and the upper end of the box body 1 are connected with the connecting pipes 7, the connecting valves 8 positioned at the front end of the box body 1 penetrate through the front cover 6 and are connected with a front pipe joint 9, one end of the front pipe joint 9 is connected with a hose 10, a side 11 is arranged in the outer cover 5, one end of the side pipe joint 11 is connected with the connecting pipes 7, the other end is also respectively connected with the hose 10, meanwhile, driving parts 12 are respectively arranged in the front cover 6 and the outer cover 5, the movable end of the driving part 12 is connected with a moxa column frame 13 for installing moxa column clamping, the end openings of the front cover 6 and the outer cover 5 are respectively and movably connected with an outer cylinder cover 14, the outer side surface of the outer cylinder cover 14 is covered with an anti-burn net 15, so that when the moxa-moxibustion device is used, the movable outer cylinder cover 14 is taken down, the driving part 12 is controlled to drive the moxa column frame 13 to transversely move outwards and extend out of the moxa column frame 13 to be replaced and assembled into the moxa column clamping, the moxa column frame 13 is driven by the driving part 12 to transversely move inwards to be communicated with a butting hose 10 and then is buckled with the outer cylinder cover 14, the moxa-moxibustion device is conveniently worn and sleeved on the head through a frame consisting of a left fixing part 2, a right fixing part 3 and an upper fixing part 4 and is used for butting against the head moxibustion, the produced moxa smoke is collected and discharged to the box body 1 through the hose 10, a pipe joint and a connecting pipe 7, and a part which does not need moxibustion, and a corresponding connecting valve 8 can be conveniently closed, so as to seal the conducting connection and reduce redundant smoke removing pipelines.
In the embodiment of the present invention, the moxa cone frame 13 comprises an inner cylinder 131, one end of the inner cylinder 131 is fixed with a steel nail frame 1311 for inserting and fixing the moxa cone, the other end is movably clamped with an inner cylinder cover 132, the inner side of the inner cylinder cover 132 is fixed with a moxa cone cover 133 for covering and limiting the moxa cone, and the movable end of the driving element 12 is fixed on the outer side wall of the inner cylinder 131.
In the embodiment of the invention, the outer side wall of the inner cylinder 131 is provided with the first L-shaped slot 16, and the inner side wall of the inner cylinder cover 132 is provided with the first circular limiting head 17, so that when in use, a moxa cone is placed in the moxa cone cover 133, the inner cylinder cover 132 is buckled along the opening end of the inner cylinder 131, the moxa cone is inserted into the first L-shaped slot 16 in a sliding manner through the first circular limiting head 17 and is rotationally clamped, and when the moxa cone needs to be replaced, the inner cylinder cover 132 is reversely rotated and opened.
In the embodiment of the invention, the inner side wall of the outer cylinder cover 14 is provided with the second circular limiting head 18, and the outer side walls of the tail ends of the front cover 6 and the outer cover 5 are provided with the second L-shaped clamping groove 19, so that when the outer cylinder cover 14 needs to be buckled, the second circular limiting head 18 is slidably inserted into the second L-shaped clamping groove 19 and is rotationally clamped, and when the outer cylinder cover needs to be replaced and opened, the outer cylinder cover 14 is reversely rotated and opened.
In the embodiment of the present invention, the driving member 12 is a motor-driven slider module, i.e. a motor is used to drive a screw to rotate, and a slider engaged with the screw is driven to move transversely by the screw.
In the embodiment of the present invention, the connection valve 8 is a stainless ball valve.
In the embodiment of the present invention, the rear end of the box body 1 is provided with a smoke outlet 20 for connecting with a smoking device to remove smoke.
In the embodiment of the present invention, a filter screen 21 is disposed at the smoke outlet 20.
In the multi-angle head moxibustion instrument disclosed by the invention, when in use, a left fixing piece 2 and a right fixing piece 3 are respectively connected with the left end and the right end of a box body 1, the upper end of the box body 1 is connected with an upper fixing piece 4, the tail end parts of the left fixing piece 2, the right fixing piece 3 and the upper fixing piece 4 are respectively connected with an outer cover 5, the front end of the box body 1 is connected with a front cover 6, connecting pipes 7 are embedded in the left fixing piece 2, the right fixing piece 3 and the upper fixing piece 4, the left end, the right end, the upper end and the front end of the box body 1 are respectively connected with connecting valves 8 to be communicated with the box body 1, the connecting valves 8 positioned at the left end, the right end and the upper end of the box body 1 are connected with the connecting pipes 7, the connecting valves 8 positioned at the front end of the box body 1 penetrate through the front cover 6 and are connected with a front pipe joint 9, one end of the front pipe joint 9 is connected with a hose 10, a side pipe joint 11 is arranged in the outer cover 5, one end of the side pipe joint 11 is connected with the connecting pipes 7, the other end is also respectively connected with a hose 10, meanwhile, driving pieces 12 are respectively arranged in the front cover 6 and the outer cover 5, the movable end of the driving piece 12 is connected with a moxa column frame 13, the openings at the tail ends of the front cover 6 and the outer cover 5 are respectively and movably connected with an outer cylinder cover 14, an anti-burn net 15 is covered on the outer side surface of the outer cylinder cover 14, the movable outer cylinder cover 14 is taken down, the driving piece 12 is controlled to drive the moxa column frame 13 to transversely move outwards and extend out of the moxa column frame 13 to be replaced and assembled into the moxa column clamping connection, the moxa column frame 13 is driven to transversely move inwards through the driving piece 12 to be connected with the abutting hose 10 and then is buckled with the outer cylinder cover 14, the frame consisting of the left fixing piece 2, the right fixing piece 3 and the upper fixing piece 4 is conveniently worn and sleeved on the head to be used in abutting connection, the produced moxa smoke is collected and discharged to the box body 1 through the hose 10, the pipe connector and the connecting pipe 7, the moxibustion part which does not need moxa-moxibustion, and the corresponding connecting valve 8 can be conveniently closed, so as to seal the conducting connection and reduce redundant smoke removing pipelines.
Those of ordinary skill in the art will understand that: the discussion of any embodiment above is meant to be exemplary only, and is not intended to intimate that the scope of the disclosure, including the claims, is limited to these examples; within the spirit of the present disclosure, features from the above embodiments or from different embodiments may also be combined, steps may be implemented in any order, and there are many other variations of different aspects of one or more embodiments of the present description as described above, which are not provided in detail for the sake of brevity.
It is intended that the one or more embodiments of the present specification embrace all such alternatives, modifications and variations as fall within the broad scope of the appended claims. Therefore, any omissions, modifications, substitutions, improvements, and the like that may be made without departing from the spirit and principles of one or more embodiments of the present disclosure are intended to be included within the scope of the present disclosure.

Claims (8)

1. The utility model provides a multi-angle head moxibustion instrument which characterized in that includes:
the connecting valve at the left end, the right end and the upper end of the box body are connected with the connecting valves, the connecting valve at the left end, the right end and the upper end of the box body penetrates into the front cover and is connected with a front pipe joint, and one end of the front pipe joint is connected with a hose;
the side pipe joint is arranged in the outer cover, one end of the side pipe joint is connected with the connecting pipe, and the other end of the side pipe joint is connected with the hose;
the driving piece is respectively arranged in the front cover and the outer cover, the movable end of the driving piece is connected with a moxa column frame for clamping the moxa column, and the moxa column frame is driven by the driving piece to move inwards and transversely to abut against the hose to communicate and remove smoke;
the outer cylinder cover is movably connected to the front cover and the opening at the tail end of the outer cover respectively, and an anti-scalding net is covered on the outer side face of the outer cylinder cover and used for abutting against head moxibustion.
2. The multi-angle head moxibustion instrument according to claim 1, wherein the moxa cone frame comprises an inner cylinder, one end of the inner cylinder is fixed with a steel nail frame for inserting and fixing the moxa cone, the other end of the inner cylinder is movably clamped with an inner cylinder cover, the inner side of the inner cylinder cover is fixed with a moxa cone cover for covering and limiting the moxa cone, and the movable end of the driving element is fixed on the outer side wall of the inner cylinder.
3. The multi-angle head moxibustion instrument according to claim 2, wherein a first L-shaped slot is arranged on the outer side wall of the inner cylinder, a first circular limiting head is arranged on the inner side wall of the inner cylinder cover, and the first L-shaped slot is slidably inserted into the first circular limiting head and rotatably clamped with the first circular limiting head.
4. The multi-angle head moxibustion instrument according to claim 1, wherein a second circular limiting head is arranged on the inner side wall of the outer cylinder cover, a second L-shaped clamping groove is arranged on the outer side wall of the front cover and the outer cover, and the second circular limiting head is slidably inserted into the second L-shaped clamping groove and rotationally clamped.
5. The multi-angle head moxibustion instrument according to claim 1, wherein the driving member is a motor-slider module.
6. The multi-angle head moxibustion instrument according to claim 1, wherein the connection valve is a stainless steel ball valve.
7. The multi-angle head moxibustion instrument according to claim 1, wherein a smoke outlet is formed at the rear end of the box body and used for externally connecting smoke extraction equipment.
8. The multi-angle head moxibustion instrument according to claim 7, wherein a filter screen is arranged at the smoke outlet.
